WT 8998 - Clock TECHNOLINE - Free user manual and instructions

Brand	TECHNOLINE
Model	WT 8998
Product type	Radio-controlled wall clock
Reception technology	DCF-77 (long-range radio signal)
Power supply	1 AA LR06 alkaline battery (1.5 V)
Battery type	Alkaline (non-rechargeable)
Number of batteries	1
Display	Analog hands (hours, minutes, seconds)
Main functions	Automatic and manual DCF-77 signal reception, manual time setting, reset
Reception modes	Automatic (upon battery insertion) or manual (REC button)
Maintenance	Annual battery replacement; clean with a soft, dry cloth
Safety	Do not immerse in water, avoid extreme temperatures, shocks, dust, humidity; do not open the housing
Certifications	Compliant with directives 2014/53/EU and ROHS 2011/65/EC
Declaration of conformity	Available at www.technoline.de/doc/4029665089980

Frequently Asked Questions - WT 8998 TECHNOLINE

How to start the WT 8998 clock?

Insert an AA LR06 alkaline battery observing polarity (+/-) into the battery compartment. The hands will then move to 12:00 and the clock automatically enters reception mode for the DCF-77 radio signal.

How to manually set the time if the radio signal is not received?

Press and hold the SET button for more than 3 seconds. The minute hand advances quickly. Release when the desired time is reached. For precise adjustments, press intermittently to advance minute by minute. The setting ends automatically after 6 seconds of inactivity.

Why is the clock not receiving the DCF-77 radio signal?

Reception may be disturbed by long distances, mountains, concrete buildings, electrical appliances (computers, televisions), metal structures or moving vehicles. Place the clock near a window and away from any source of interference.

What to do if the clock does not display the correct time after reception?

Ensure that the clock has received the DCF-77 signal (this may take 2 to 10 minutes). If not, perform a manual reception by holding the REC button for more than 3 seconds. The clock will then set to the exact time as soon as it captures the signal.

How to perform a manual reception of the radio signal?

Press and hold the REC button for more than 3 seconds. The hands align to 12:00 and the clock tries to capture the DCF-77 signal. If reception succeeds, the hands automatically set to the exact time (allow 2 to 10 minutes).

What to do after changing the battery?

After inserting a new battery, press the RESET button located on the back of the clock to restart the reception process.

How to maintain the WT 8998 clock?

Replace the battery once a year to ensure optimal operation. Clean the clock with a soft, dry cloth. Do not use abrasive cleaners or solvents. Avoid exposure to water, dust, extreme temperatures and shocks.

What batteries to use for the clock?

Only use an AA (LR06) 1.5 V alkaline battery. Do not use rechargeable batteries as they may damage the device.

Can I use rechargeable batteries?

No, only use non-rechargeable alkaline batteries. Rechargeable batteries have lower voltage and may cause malfunction.

Where to find the declaration of conformity of the clock?

The original EU declaration of conformity is available at www.technoline.de/doc/4029665089980.

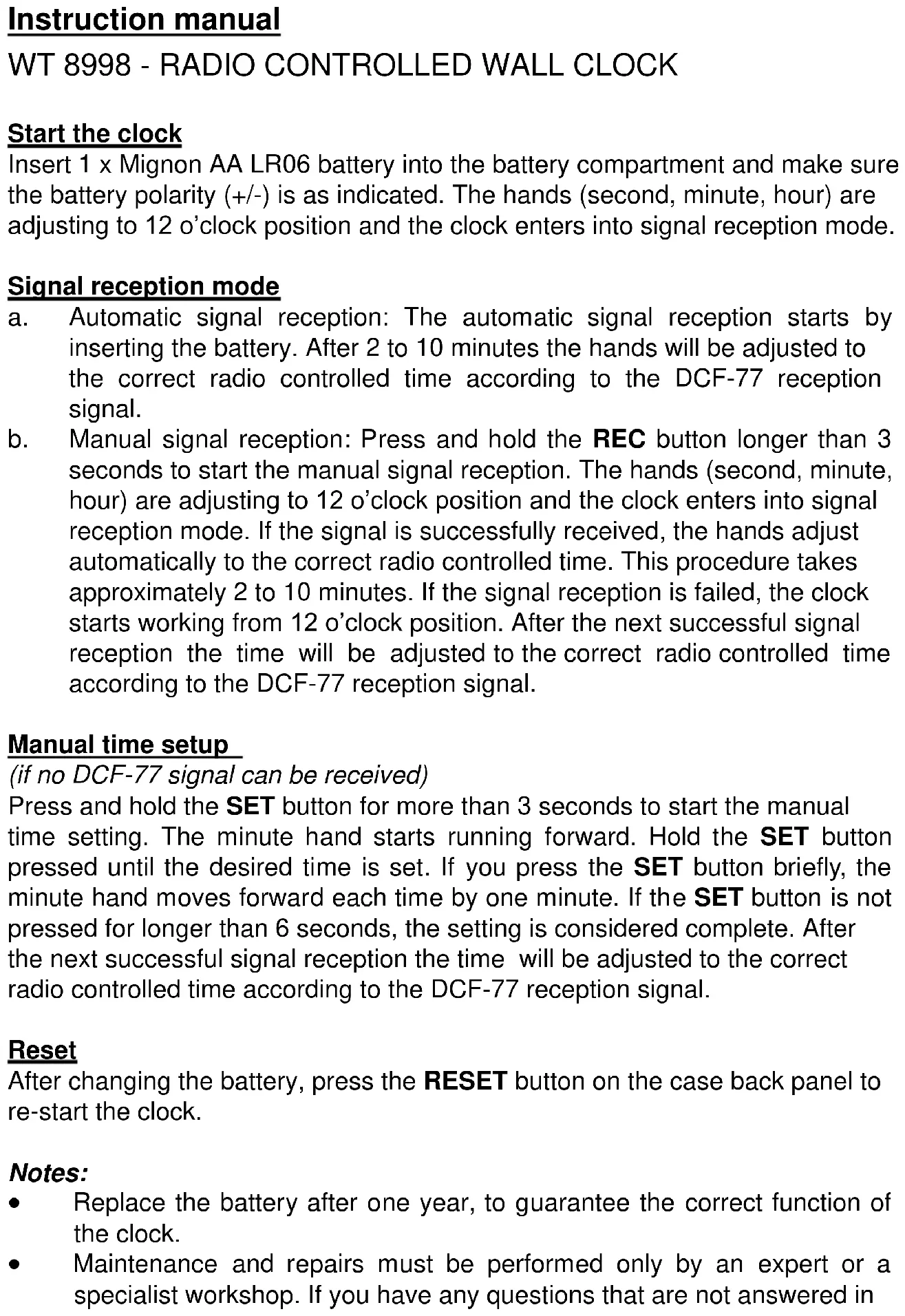

USER MANUAL WT 8998 TECHNOLINE

Insert 1 x Mignon AA LR06 battery into the battery compartment and make sure the battery polarity (+/-) is as indicated. The hands (second, minute, hour) are adjusting to 12 o'clock position and the clock enters into signal reception mode.

Signal reception mode

a. Automatic signal reception: The automatic signal reception starts by inserting the battery. After 2 to 10 minutes the hands will be adjusted to the correct radio controlled time according to the DCF-77 reception signal.

b. Manual signal reception: Press and hold the REC button longer than 3 seconds to start the manual signal reception. The hands (second, minute, hour) are adjusting to 12 o'clock position and the clock enters into signal reception mode. If the signal is successfully received, the hands adjust automatically to the correct radio controlled time. This procedure takes approximately 2 to 10 minutes. If the signal reception is failed, the clock starts working from 12 o'clock position. After the next successful signal reception the time will be adjusted to the correct radio controlled time according to the DCF-77 reception signal.

Manual time setup

(if no DCF-77 signal can be received)

Press and hold the SET button for more than 3 seconds to start the manual time setting. The minute hand starts running forward. Hold the SET button pressed until the desired time is set. If you press the SET button briefly, the minute hand moves forward each time by one minute. If the SET button is not pressed for longer than 6 seconds, the setting is considered complete. After the next successful signal reception the time will be adjusted to the correct radio controlled time according to the DCF-77 reception signal.

Reset

After changing the battery, press the RESET button on the case back panel to re-start the clock.

Notes:

• Replace the battery after one year, to guarantee the correct function of the clock.
• Maintenance and repairs must be performed only by an expert or a specialist workshop. If you have any questions that are not answered in

this manual, please contact our Technical Advisory Service or an other specialist.

Hereby, Technotrade declares that this product WT 8998 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665089980

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
  • nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
• among tall buildings
  • inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
  • inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).
  • Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.

• Ensure batteries are stored away from metal objects as contact may cause a short circuit.

• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.

• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points.

As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the

European Union, and to other European countries with a separate waste collection system.
