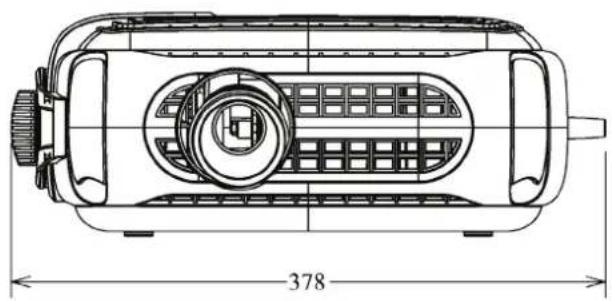

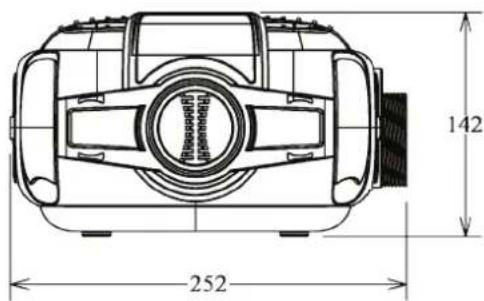

Technical line drawing of a mechanical device with dimension标注 (378 mm), no readable text or symbols present.

252 142

Strictly ensure that you have read the use instructions before placing the pump in service!

Dear Customer,

Congratulations on your purchase of a new device from T.I.P.!

As is the case with all of our products, this product has been developed on the basis of the latest technical expertise. Manufacture and assembly of the device use the latest pump technology and the most reliable electrical/electronic and mechanical components, in order to guarantee the quality and long service life of your new product.

Please read through the usage instructions carefully, as they will enable you to take advantage of all its features. Enjoy your new device.

Table of contents

1. General safety instructions.... 1
2. Safety measures 2
3. Application areas 2
4. Technical data....2
5. Scope of delivery 2
6. Commissioning / Installation 3
7. Maintenance and care.... 3
8. Dismounting / mounting the pump 4
9. Troubleshooting/recommendations 4
10. Guarantee 5
11. Ordering spare parts 5
12. Service 5

1. General safety instructions

Please read through these usage instructions carefully and familiarise yourself with the controls and proper procedure for using this product. We are not liable for damage which occurs due to a failure to observe instructions and rules given in these usage instructions. Damage which occurs due to a failure to observe instructions and rules given in these usage instructions does not fall under the guarantee. Keep these usage instructions in good condition and enclose them when transferring ownership.

Persons not conversant with the contents of these operating instructions must not use this device.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The pump must not be used when people are in the water.

The pump must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.

The mains power connection of this device cannot be replaced. In case the line is damaged, the device must be scrapped.

Disconnect the device from the power supply and let it cool down before cleaning and maintenance is performed and before the device is stored.

Particular attention must be paid to notices and instructions with the following symbols:

Danger of injury or material damage if this instruction is not complied with

Danger of electrical shock that can result in injury or material damage if this instruction is not complied with

Check the device for transport damage. If there is damage the retailer must be notified without delay, at the latest however, within 8 days of the purchase date.

2. Safety measures

Attention! Use in garden ponds and the protected area of garden ponds is only permitted if the installation complies with the valid regulations. Consult a qualified electrician.

Attention! Do not use the pump in or on swimming pools!

Prior to use:

• Check the mains cable and plug for damage.
• Mains voltage and current type must agree with the information on the type plate.
• Only connect the pump via a residual current circuit breaker (RCCB, = 30 mA) to a proper earthing contact socket.

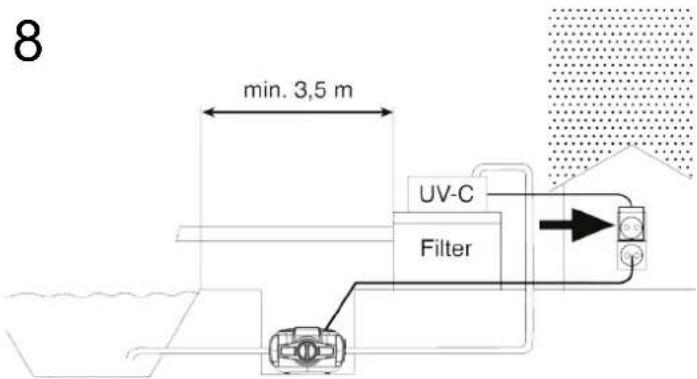

  • Install the connection socket in the water-protected area and at least 2 m away from the edge of the pond.
  • Always protect the mains plug from moisture.
• Unplug the mains plug before performing any work on the pump, fountain or pond.
• Do not operate the pump if there are people in the water (disconnect the pump from the mains supply beforehand!)
• Important! If there is damage to the mains cables or the motor housing the complete pump is unusable and must be disposed of. Repair is not possible because the connecting cable is permanently cast in the motor housing.
• Never suspend or transport the pump by the mains cable.

- This pump is equipped with a permanent magnet, whose magnetic fields could influence pacemakers, interfere with electrical/electronic components and wipe data carriers.

• People with pacemakers should always maintain a safety distance of at least 30 cm from the pump.

3. Application areas

This product is an immersion pump, the motor is completely cast in epoxy resin. The pumps are designed for use in water, such as: garden pond, fish pond, fountains, for operating filter systems, streams, etc. as well as for water aeration and circulation. This device has been developed for private use and not for industrial or commercial purposes.

The pump is not suitable for displacement of salt water, faecal matter, flammable, corrosive or other hazardous liquids. The pumped liquid must not exceed the maximum temperature specified in the technical data.

4. Technical data

Model	BPF 8000 E
Mains voltage / frequency 220 - 240 V~ 50 Hz
Rated power 70 Watt
Degree of protection IPX8
Max. flow rate (Qmax) * 8000 l/h
Max. pressure 0,45 bar
Max. delivery head (Hmax) * 4,5 m
Max. immersion depth ∇ 2 m
Maximum temperature of the pumped liquid (Tmax) 6 mm
Length of line cord 35 °C
Type of cord 10 m
Net weight H05RN-F
Item Part Nr. 4,1 kg

* The values were determined with free, unreduced outlet

5. Scope of delivery

Pump with 10 m cable, 2 hose connection ports ( 25 mm / 32 and 40mm), operating instructions.

6. Commissioning / Installation

You can find explanatory figures at the start of the usage instructions. The numbers in brackets in the following text relate to Fig. IV.

Important! The pump must not run dry, i.e. without water. Otherwise the possibility if damage cannot be ruled out!

• The unit can be placed submerged or dry.
  • Always place the unit below water level.
• Place the unit horizontally on the ground ensuring its stable position.
• You can switch on the pump by plugging the mains plug into the socket or switch it off by pulling the mains plug back out.
• The water temperature must not exceed 35^ .
• The pump must be protected from freezing.
• Always ensure that the seals we supply are properly in place and the relevant parts are cleanly screwed together. Never use force or an unsuitable tool to try to connect the parts.
• Adjust the hose connection ports to the size of the hose that is used; to do this, use a standard household saw to cut off the smaller hose diameter that is not required on the connection ports.

Operate the device as a filter or stream pump in water (Figure I)

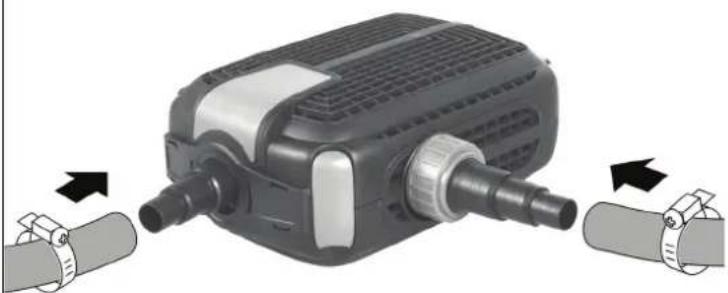

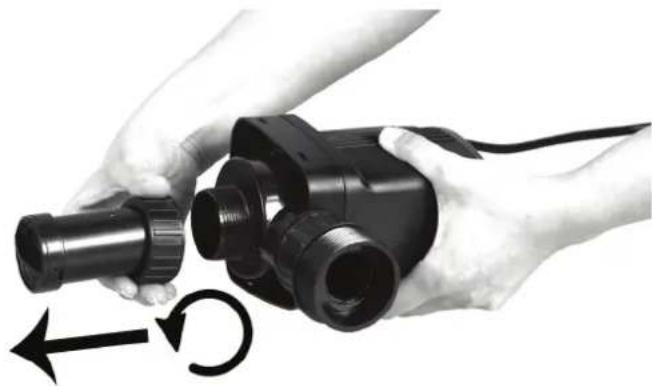

• Install the hose connection ports (12,13) on the pump outlet.. (Fig. I/1)
- Connect the pump outlet to the pond filter or the stream (Fig. I/2)

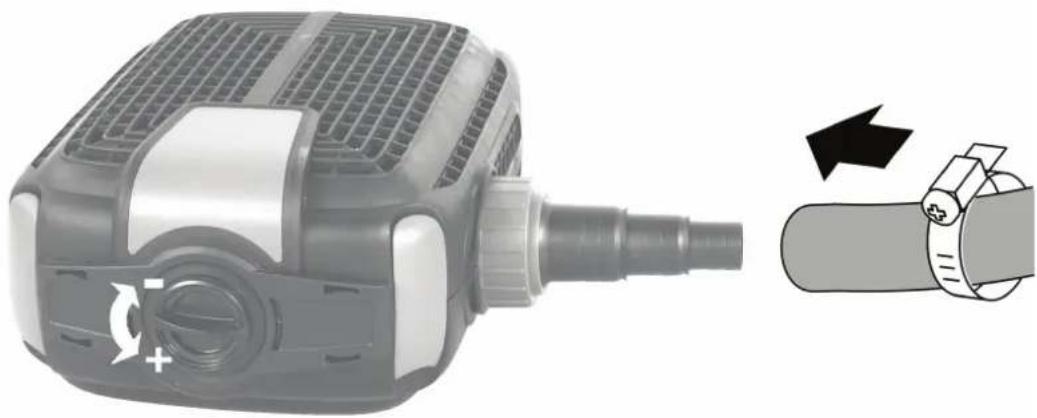

• In the BPF 8000 E, the flow rate can be adjusted according to requirements using the integrated flow rate regulator.
- Completely immerse the pump in your pond. Water will penetrate into the pump body.

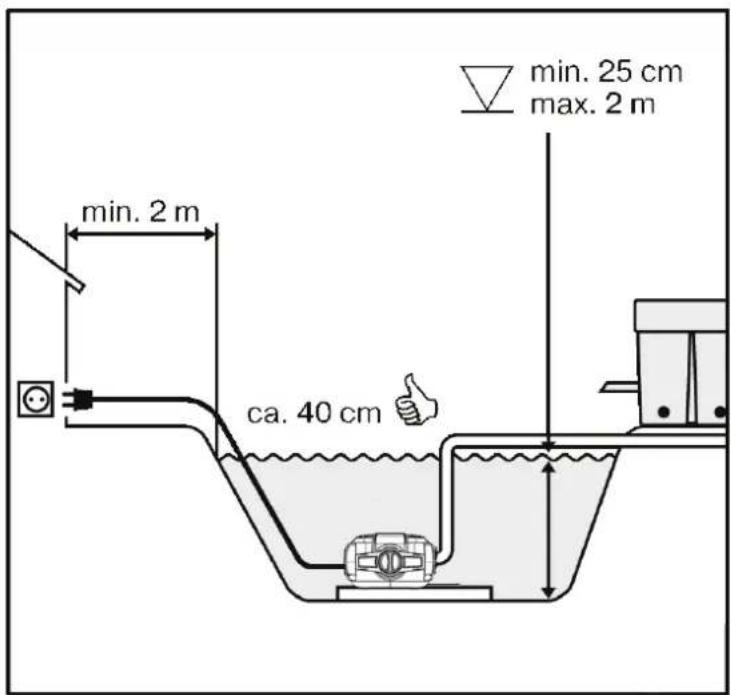

• A water level of at least 25 cm is required for operation, so that the pump does not take in air.
- Only operate the pump at a maximum immersion depth ( ) of 2 m!
- In order to avoid unnecessary soiling, position the pump in your pond above the sludge deposits, and attach solidly and levelly (stone slab)!

Setting up the pump dry (Figure II)

• Set up the device so that it is not subjected to direct sunlight (maximum 40^ ).

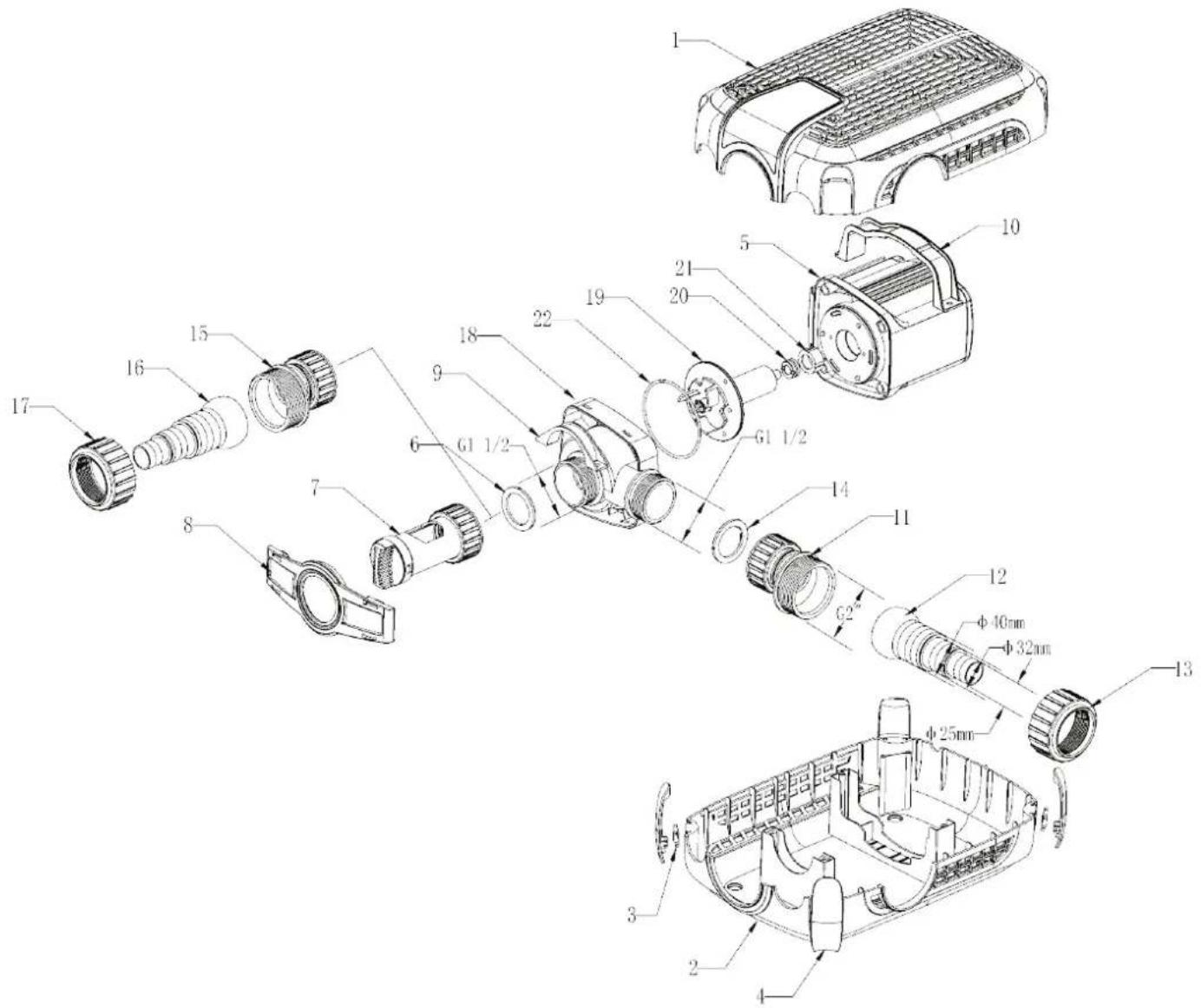

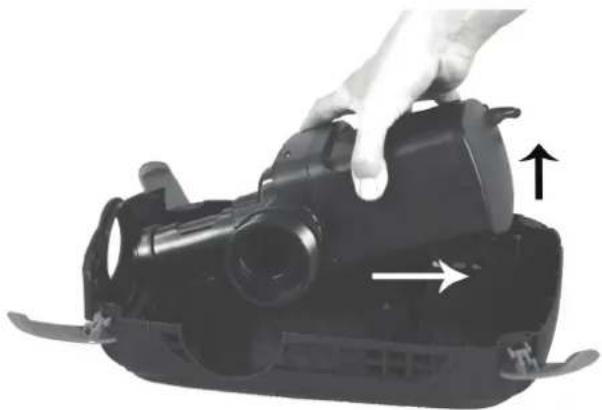

• Open the clips (4) and remove the top shell (1). (Fig. II/1)
• Remove the screws that fasten the holders (9,10). Remove the holders (9,10) from the bottom shell (2). (Fig. II/2)
• Remove the pump from the bottom shell (2). (Fig. II/3)
  • Install the hose connection ports (12,13,16,17) on the pump inlet and outlet. (Fig. II/5)
• Re-insert the pump in the bottom shell (2). (Fig. 11/6)
• Re-assemble the device by following the steps in reverse order.
• Connect the suction and pressure lines. (Fig. II/7)

7. Maintenance and care

To significantly extend the service life of your pump, and to ensure trouble-free function, we recommend regular maintenance and cleaning. With a few hand movements every user can easily execute all maintenance tasks. For this, the pump must be dismounted, as described in chapter 8. All parts can be cleaned with a non-metallic brush and a neutral cleaner. Ensure that the cleaning agent does not get into the pond water. Carefully rinse off all cleaned parts with clean tap water, before putting the pump back together and placing it in service. If the pump is heavily calcified, you can place the run unit and the motor block in a descaling solution for stainless steel parts. In this regard comply with the use instructions provided with the descaling agent.

7.1. Maintenance intervals

The time intervals for the required maintenance task (complete cleaning) to a great extent are based on the level of pond water contamination. Select the time intervals for cleaning accordingly.

If, when performing maintenance tasks, you determine that there are defects or wear, replace the parts in question (see ordering spare parts).

7.2. Winter - maintenance

• Protect your pump from freezing!
• If there is danger of freezing, take the pump out of your garden pond.
• Completely clean the pump as specified in the instructions.
• Store the pump over winter in a frost-free location.

7.3. Overload protection

The built-in thermal overload trip prevents the pump from being overheated.

The pump must cool down.

Check the following operating conditions:

• Is there a sufficient water supply?
• Has the filter become clogged?
• Has dirt entered the pump housing (Follow the cleaning instructions below)?
• Have hoses or jets become clogged?
• Has the pump cooled down?

As soon as you have solved the problems, you can start the pump again, pulling the plug out and putting it again in the socket after a short time (1 min.)

8. Dismounting / mounting the pump

Figure III

1. Follow the safety measures. Disconnect the pump!

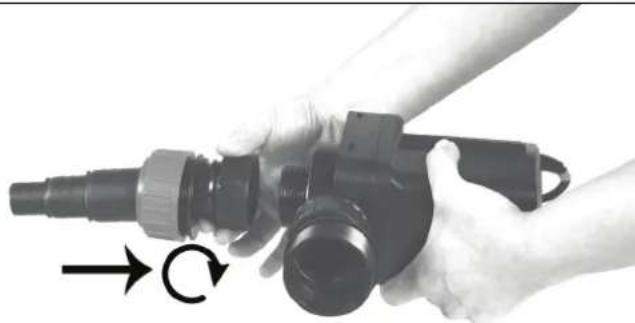

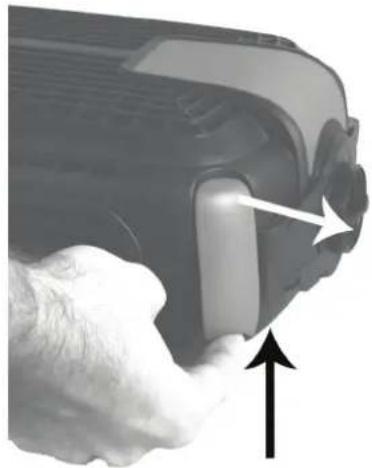

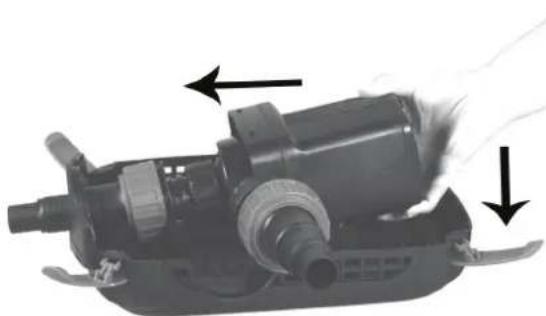

2. Remove the top shell from the pump cage in accordance with fig. III/1
3. Loosen the pump's retaining bracket as shown in fig.III/2
4. Remove the entire pump with pump housing from the lower shell. (III/3)
5. Unscrew the flow rate regulator from the inflow cover

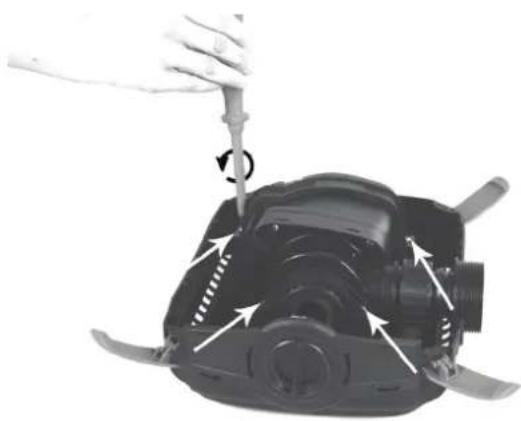

6. Loosen the 4 screws (III/5).
7. Unclip pump housing (18) from motor housing (III/6).

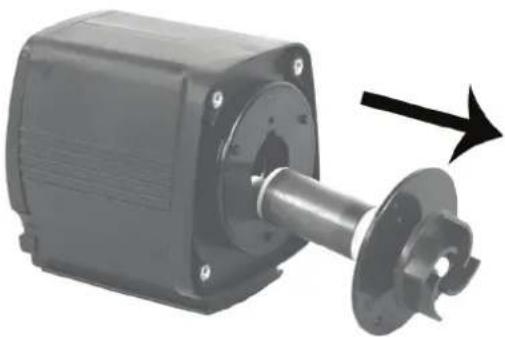

8. Remove rotor assembly (19) from motor housing. Pay attention to the O-ring (22) in the motor housing (III/7).
9. Clean all parts using clear water and soft sponge.

Mounting:

1. Press the O-ring (22) onto the rim in the motor housing.
2. Push the rotor assembly (19) onto the motor housing (5) with precaution and turn the bearing cap so that the two holes fit on the pins in the motor housing (5).
3. Make sure the rotor assembly is free and will turn.
4. Check the position of the O-ring (22) in the motor housing (5).
5. Plug the pump housing (18) in the motor housing (5) and tighten the 4 screws uniformly.
6. Re-insert the pump into the pump cage by following the steps in reverse order..
   For trouble-free operation, repeat this procedure depending on the degree of fouling and duration of operation.

9. Troubleshooting/recommendations

Fault	Possible cause	Remedy
No delivery capacity	Power supply interrupted Plug in the power	plugCheck fuse
	Cable is defective Dispose of pump
	Motor block is defective Dispose of pump
	Pump is calcified, rotor has seized Dismantle	pump and descale
	Rotor is blocked by sand Dismantle and clean pumpChange the set up location as specified in the usage instructions
	Pump is taking in air Pump is too close to the water surface and is taking in air →find a deeper location
Insufficient pump capacity	Front cover is clogged Clean front cover
	Hose system dirty Clean hose and/or outflow
	Hose is too long Shorten the hose
	Insufficient hose diameter Use a hose with a larger diameter
	Outflow is positioned too high	Reduce required delivery head
	Pump is taking in air Pump is too close to the water surface and is taking in some air → find a deeper location

10. Guarantee

The present device was manufactured and inspected according to the latest methods. The seller warrants for faultless material and workmanship in accordance with the legal regulations of the country in which the device was purchased.

The warranty period begins with the day of the purchase and is subject to the provisions below:

Within the period of warranty, all defects which are to be attributable to defective materials or manufacturing will be eliminated free of charge. Any complaints are to be reported immediately upon their detection.

The warranty claim becomes void in the case of interventions undertaken by the purchaser or by third parties. Damage resulting from improper handling or operation, incorrect setting-up or storage, inappropriate connection or installation or Acts of God or other external influences are excluded from warranty.

Parts being subject to wear and tear, such as the pump wheel (impeller) and mechanical shaft seals are excluded from warranty.

All parts were manufactured using maximum care and high-quality materials and are designed for a long lifecycle. It should be understood, however, that the wear and tear depends on the kind of use, the intensity of use and the internals of maintenance. Complying with the installation and maintenance information contained in the present operating instructions will therefore considerably contribute to a long lifecycle of these wearing parts.

In case of complaints, we reserve the option of repairing or replacing the defective parts or replace the entire device. Replaced parts will pass into our property.

Claims for liquidated damages are excluded unless they are caused by wilful acts or negligence on the side of the manufacturer.

The warranty does not provide for any claims beyond those referred to above. The warranty claim has to be evidenced by the purchaser in the form of the submission of the sales receipt. The present warranty commitment is valid in the country in which the device was purchased.

Please note:

1. Should your device fail to function properly, please verify first whether an operating error or another cause is present which cannot be attributed to a defect of the device.
2. In case you have to take or send in your defective device for repair, please be sure to enclose the following documents:

- Sales receipt (sales slip).

- A description of the occurring defect (a description as accurate as possible will expedite the repair work).

1. In case you have to take or send in your defective device for repair, please remove any attached parts which do not belong to the original condition of the device. If any attached parts of this kind should be missing upon the return of the device, we shall not be liable for them.

11. Ordering spare parts

The quickest, easiest and best value avenue for ordering spare parts is online. Our website www.tip-pumpen.de has a convenient spare parts shop, allowing you to order with just a few clicks. In addition, we use it to provide comprehensive information and valuable tips on our products and accessories, introduce new devices, and present the latest trends and innovations in the pump technology sector.

12. Service

In the case of warranty claims or malfunction, please contact your point of sale.

A current operating manual is available as required as a PDF file via e-mail: [e-mail].

For EC countries only

Please do not dispose of electrical appliances in the regular domestic waste!

According to the European Directive 2012/19/EC regarding waste electrical and electronic equipment and the implementation of that directive into national law, electrical devices have to be collected separately and disposed off in an environmental-suitable manner after the end of their life cycle. Should you have any questions, please contact your local waste disposal company.

D – 74915 Waibstadt / Germany

[e-mail]

www.tip-pumpen.de
