Simply Store HT5101 - Hand blender TEFAL - Free user manual and instructions

Product type	Hand mixer
Brand	TEFAL
Model	Simply Store HT5101
Included accessories	Multi-brush whisks, heavy-duty dough hooks, storage box with lid, transport locking piece
Speeds	1 to 4 + Turbo
Eject button	Yes, for removing whisks and dough hooks
Cord storage	Retractable, integrated into the base
Maximum flour capacity (dough hooks)	500 g for bread or shortcrust pastry
Maximum capacity for waffle/pancake batter	750 g
Preparation of whipped egg whites	Up to 6 egg whites
Preparation of whipped cream	20 cl
Maintenance of whisks and dough hooks	Dishwasher-safe or hand wash with sponge and dish soap
Maintenance of the motor unit	Wipe with a damp cloth, do not immerse
Safety instructions	Read carefully before use: avoid contact with moving parts, do not use with wet hands, unplug after use
Repairability	Do not disassemble or repair yourself, contact an authorized service center
Warranty	Warranty valid for domestic use, void in case of misuse or unauthorized repair

Frequently Asked Questions - Simply Store HT5101 TEFAL

How to use the whisks or dough hooks?

Insert the whisks or dough hooks into the designated holes until you hear a click. Make sure both whisks are the same length. Use a deep container and immerse the accessories into the mixture before starting to avoid splashes. Set the speed from 1 to 4 or use Turbo.

How to avoid splashes?

Always immerse the whisks or dough hooks into the mixture before starting the appliance. Stop the appliance before removing the accessories from the mixture. Start at speed 1 if the recipe is liquid.

How to clean the appliance?

Unplug the appliance. The whisks and dough hooks can be cleaned with a sponge and dish soap or in the dishwasher. The motor unit should be wiped with a damp cloth, never immerse it in water or put it in the dishwasher.

What preparations can I make?

With the dough hooks: bread dough, shortcrust pastry. With the whisks: waffle batter, pancake batter, whipped egg whites, whipped cream, mayonnaise. A gingerbread recipe is also provided in the manual.

How to store the appliance?

Use the retractable cord storage to wind the cord leaving about 15 cm. Place the appliance and accessories in the provided storage box. Close the lid.

What to do in case of malfunction?

If the appliance does not work properly, is damaged, or the power cord is damaged, do not use it. Take it to an authorized service center for repair. Never try to repair it yourself.

Can I wash the motor unit in the dishwasher?

No, never wash the motor unit in the dishwasher. Clean it only with a damp cloth and dry it thoroughly.

How to eject the accessories?

Turn the appliance off (position 0). Push the eject button (c) forward to release the whisks or dough hooks.

What accessories are available as options?

The band whisks (ref. SA192377) are available from your authorized dealer for preparations like gingerbread.

How to use the Turbo function?

The Turbo position on the speed selector increases power for thick mixtures or when the recipe requires it. Use it after starting at low speed if necessary.

USER MANUAL Simply Store HT5101 TEFAL

Line drawing of a hand mixer with two handles and a handle (no text or symbols)

FR

NL

EN

DE

ES

IT

PT

SV

NO

FI

DA

EL

TR

AR

FA

Technical diagram of a coffee maker with labeled parts including handwheels, motor, and container

Diagram of a medical device with catheter and tubing, enclosed in a circle (no text or symbols)

fig.1

Diagram of a hand holding a plug with a circular arrow indicating clockwise rotation around the plug (no text or symbols present)

fig.2

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

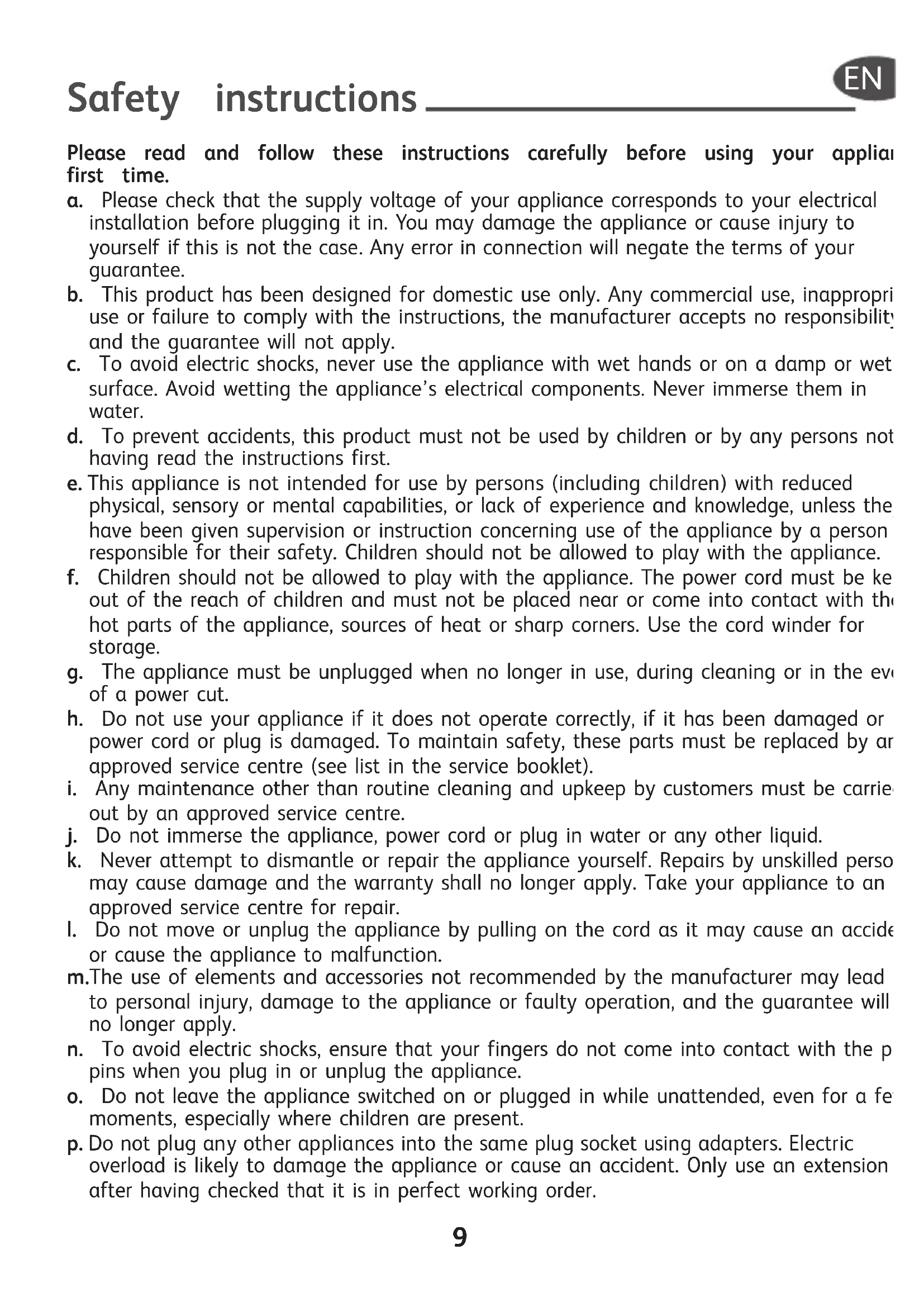

Please read and follow these instructions carefully before using your appliance first time.

a. Please check that the supply voltage of your appliance corresponds to your electrical installation before plugging it in. You may damage the appliance or cause injury to yourself if this is not the case. Any error in connection will negate the terms of your guarantee.

b. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

c. To avoid electric shocks, never use the appliance with wet hands or on a damp or wet surface. Avoid wetting the appliance's electrical components. Never immerse them in water.

d. To prevent accidents, this product must not be used by children or by any persons not having read the instructions first.

e. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless the have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should not be allowed to play with the appliance.

f. Children should not be allowed to play with the appliance. The power cord must be kept out of the reach of children and must not be placed near or come into contact with the hot parts of the appliance, sources of heat or sharp corners. Use the cord winder for storage.

g. The appliance must be unplugged when no longer in use, during cleaning or in the eve of a power cut.

h. Do not use your appliance if it does not operate correctly, if it has been damaged or power cord or plug is damaged. To maintain safety, these parts must be replaced by an approved service centre (see list in the service booklet).

i. Any maintenance other than routine cleaning and upkeep by customers must be carried out by an approved service centre.

j. Do not immerse the appliance, power cord or plug in water or any other liquid.

k. Never attempt to dismantle or repair the appliance yourself. Repairs by unskilled person may cause damage and the warranty shall no longer apply. Take your appliance to an approved service centre for repair.

I. Do not move or unplug the appliance by pulling on the cord as it may cause an accident or cause the appliance to malfunction.

m. The use of elements and accessories not recommended by the manufacturer may lead to personal injury, damage to the appliance or faulty operation, and the guarantee will no longer apply.

n. To avoid electric shocks, ensure that your fingers do not come into contact with the p pins when you plug in or unplug the appliance.

o. Do not leave the appliance switched on or plugged in while unattended, even for a few moments, especially where children are present.

p. Do not plug any other appliances into the same plug socket using adapters. Electric overload is likely to damage the appliance or cause an accident. Only use an extension after having checked that it is in perfect working order.

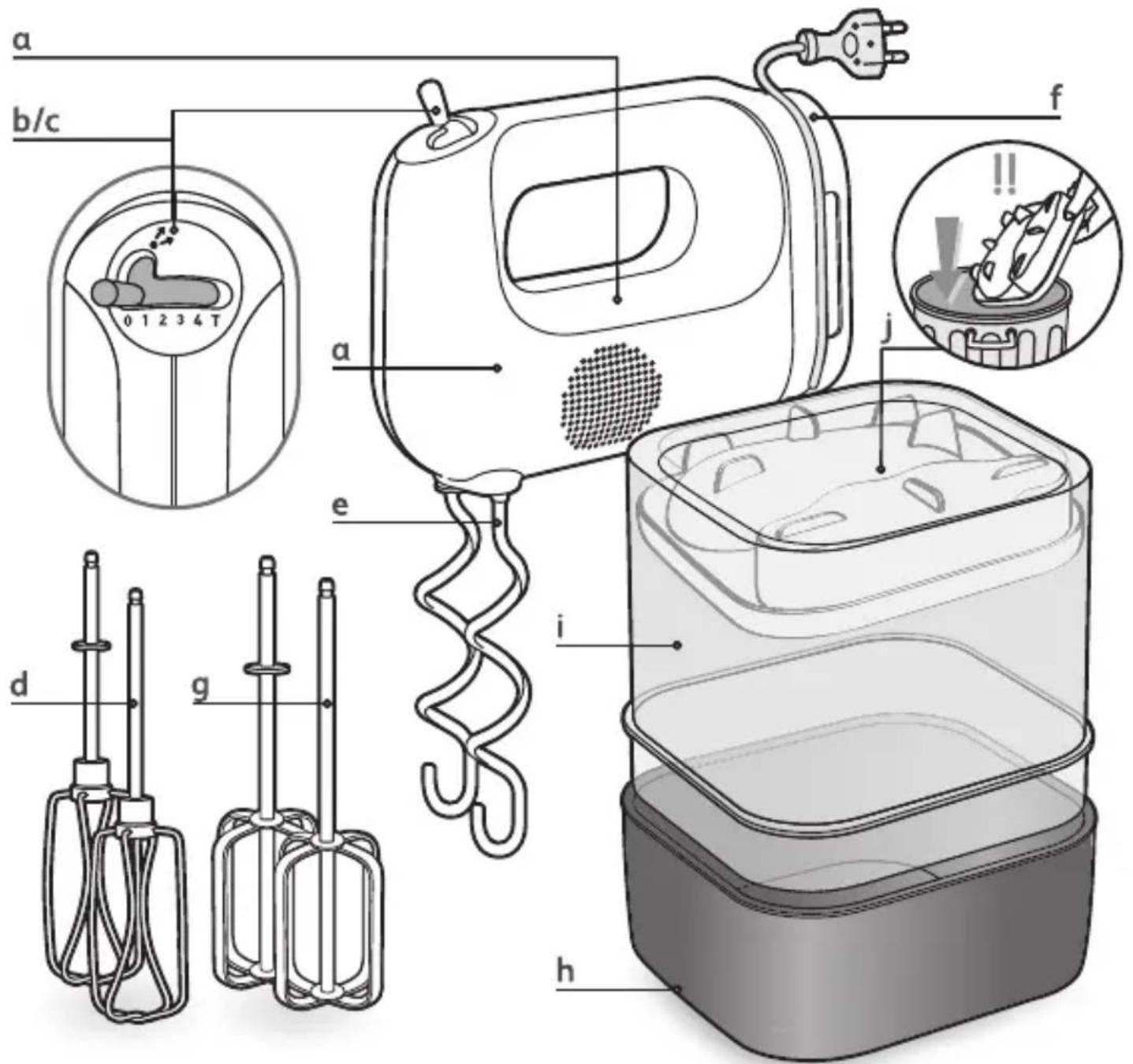

a Motor unit. f Retractable cord storage system.
b Speed selector + Turbo. g Hook mixers (Option - Available
c Ejection button (for whisk or mixer from your retailer ref. SA192377).
removal). h Storage base.
d Multi-blade mixer for light preparations. Lid.
e Mixer for heavy pastries. j Insert for transport.

Precautions of use

• To avoid accidents, ensure that long hair, ties, clothes or other objects do not catch on the moving parts of the appliance.
• In order to prevent injury to yourself and to others, and to avoid damaging the appliance, do not touch the whisks or mixers or insert any objects (knife, fork, spoor etc.) into the accessories. A spatula may be used instead, only when the appliance is not in operation.
• To avoid damage to the appliance, never place the appliance or its accessories in tl freezer, oven or micro-wave.
• The whisks and mixers are designed for preparing food. They must not be used for mixing other products.
• Do not use the box lid as a container.

First Use

Open the box and dispose of the soft plastic part (j) on the top of the appliance. Remove the accessories from the packaging and clean them with hot water.

Using the appliance

1. Check that the speed selector (b) is set at "0".

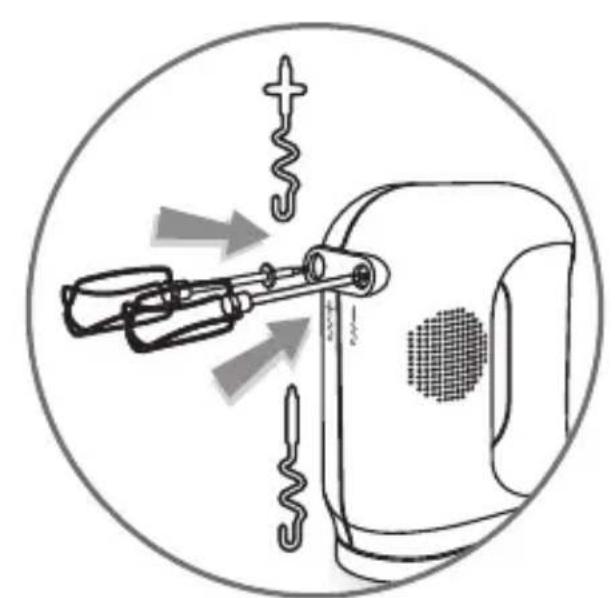

2. Insert the whisks (d) or mixers (e) into the holes and lock (fig.1). The whisks and mixers must be placed as shown in figure 1. Both whisks must be of the same length. The “click” indicates that the accessories are correctly in place.

3. Unwind the required cord length and plug the appliance in.

4. A deep bowl should be used for mixing.

5. To avoid splashing, place the whisks in the preparation before switching the appliance on.
6. Press the speed selector (b) to switch the appliance on, first on speed 1 then on speed 2, 3 and 4 as the preparation thickens. Use the “Turbo” position if the recipe requires higher power.

7. Switch the appliance off before removing the whisks from the preparation (to avc splashing).

8. After use, open the retractable cord storage base under the appliance and wind t1 cord in while leaving 15 cm cord length outside the base. Close the cord storage element and place the appliance and accessories in the storage base.

Accessories Quantity / Time Speed
Mixers:- Bread dough- Short crust pastry	500 g flour.Max. 2 min.	Speed 4 and Turbo.
Multi-blade whisks:- Waffle mix- Pancake mix	750 g.Approx. 2 min.	Start on speed 1 to avoid splashing, and then continue on speed 4 and Turbo.
Multi-blade whisks:- Egg whites	6 egg whites.3 min.	Start on speed 1 to avoid splashing, and then continue on speed 2, 3 and 4 as the preparation thickens.
Multi-blade whisks:- Whipped cream	200 ml - Approx 2 min. Stop whisking before the cream turns into butter.
Multi-blade whisks:- Mayonnaise	1-3 egg yolks3 to 5 min.

Gingerbread:

The hook mixers are required for this recipe. Available from your retailer, ref. SA192377.

150 g wheat flour, 150 g rye flour, 1 sachet (11 g) baking powder, 150 g sugar, 1 sa vanilla sugar (7.5 g).

Spices: cinnamon (4 g), cardamom (1 g), aniseed (1 g), nutmeg (0.2 g, pinch), 250 g liquid honey, 1 whole egg, 50 ml milk.

Pour the flour, baking powder and sugar into a bowl.

Grind the spices and add them to the preparation.

Add the honey, egg and milk.

Mix on speed “4” for one minute then leave to rest 10 minutes, before mixing again “Turbo” position for 10 seconds.

Place the dough in a greased cake tin and cook in the oven for 1 hr, 150°C.

Removing whisks or mixe

With the appliance switched off on position 0, push the ejection button (c) forwards eject the whisks or mixers.

Cleaning

1. Unplug the appliance.
2. Clean the whisks or mixers immediately after use to prevent any remaining egg oil mixture sticking or drying.
3. The whisks and mixers can be cleaned using a sponge and washing up liquid. The are also dishwasher-safe.
4. Clean the body of the appliance using a damp sponge only and dry carefully.
5. Never place the appliance in the dishwasher.
6. Do not use scouring pads or objects containing metal parts.
7. Never immerse the motor unit (a) in water. Dry with a dry or slightly damp cloth.

Storage

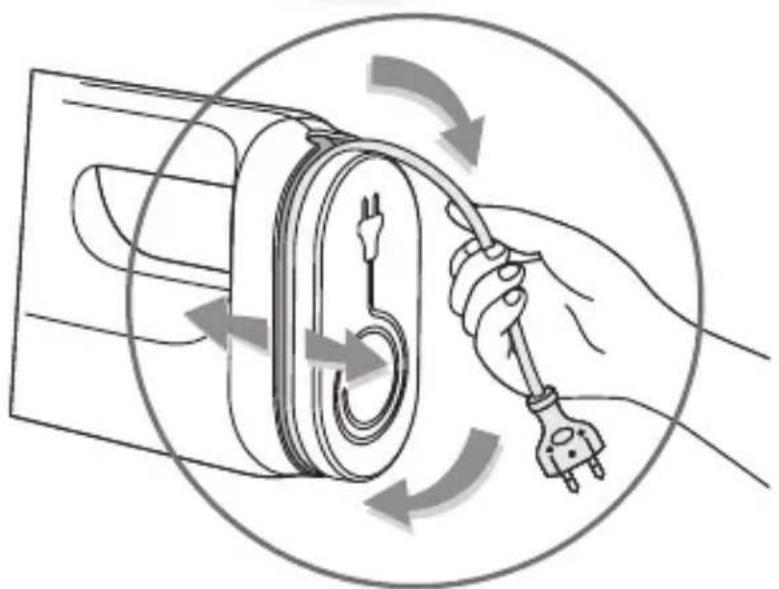

Use the cord storage base for neater storage (fig. 2).

End-Of-Life Electrical or Electronic Produ

Environmental protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

[phone] - ROI

or consult our website – www.tefal.co.uk
