USER MANUAL Prep'Line HB7111 TEFAL

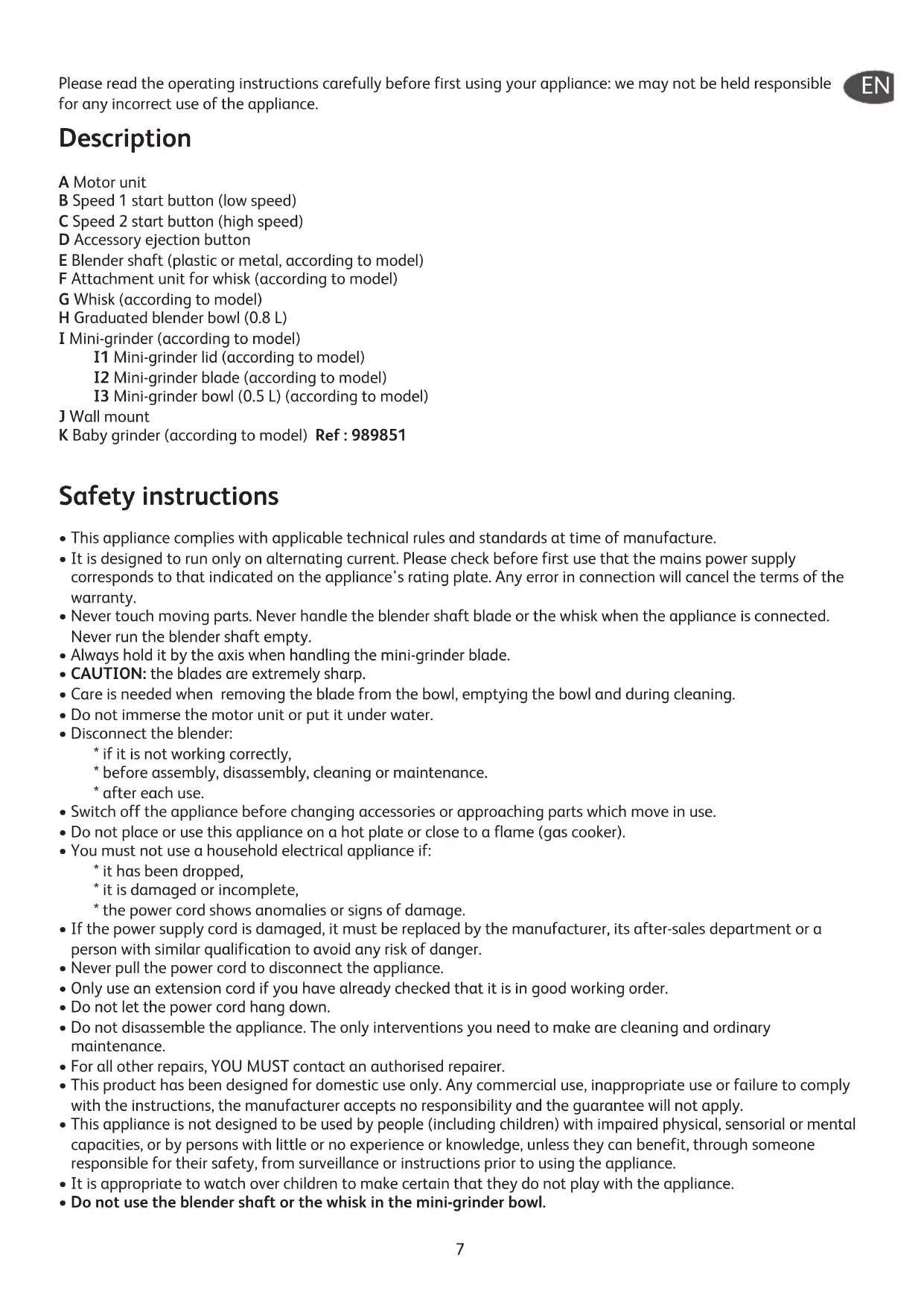

• This appliance complies with applicable technical rules and standards at time of manufacture.

• It is designed to run only on alternating current. Please check before first use that the mains power supply corresponds to that indicated on the appliance's rating plate. Any error in connection will cancel the terms of the warranty.

• Never touch moving parts. Never handle the blender shaft blade or the whisk when the appliance is connected. Never run the blender shaft empty.

• Always hold it by the axis when handling the mini-grinder blade.

• CAUTION: the blades are extremely sharp.

• Care is needed when removing the blade from the bowl, emptying the bowl and during cleaning.

• Do not immerse the motor unit or put it under water.

• Disconnect the blender:

• if it is not working correctly,

• before assembly, disassembly, cleaning or maintenance.

• Switch off the appliance before changing accessories or approaching parts which move in use.

• Do not place or use this appliance on a hot plate or close to a flame (gas cooker).

• You must not use a household electrical appliance if:

• it has been dropped,

• it is damaged or incomplete,

• the power cord shows anomalies or signs of damage.

• If the power supply cord is damaged, it must be replaced by the manufacturer, its after-sales department or a person with similar qualification to avoid any risk of danger.

• Never pull the power cord to disconnect the appliance.

• Only use an extension cord if you have already checked that it is in good working order.

• Do not let the power cord hang down.

• Do not disassemble the appliance. The only interventions you need to make are cleaning and ordinary maintenance.

• For all other repairs, YOU MUST contact an authorised repairer.

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• This appliance is not designed to be used by people (including children) with impaired physical, sensorial or mental capacities, or by persons with little or no experience or knowledge, unless they can benefit, through someone responsible for their safety, from surveillance or instructions prior to using the appliance.

• It is appropriate to watch over children to make certain that they do not play with the appliance.

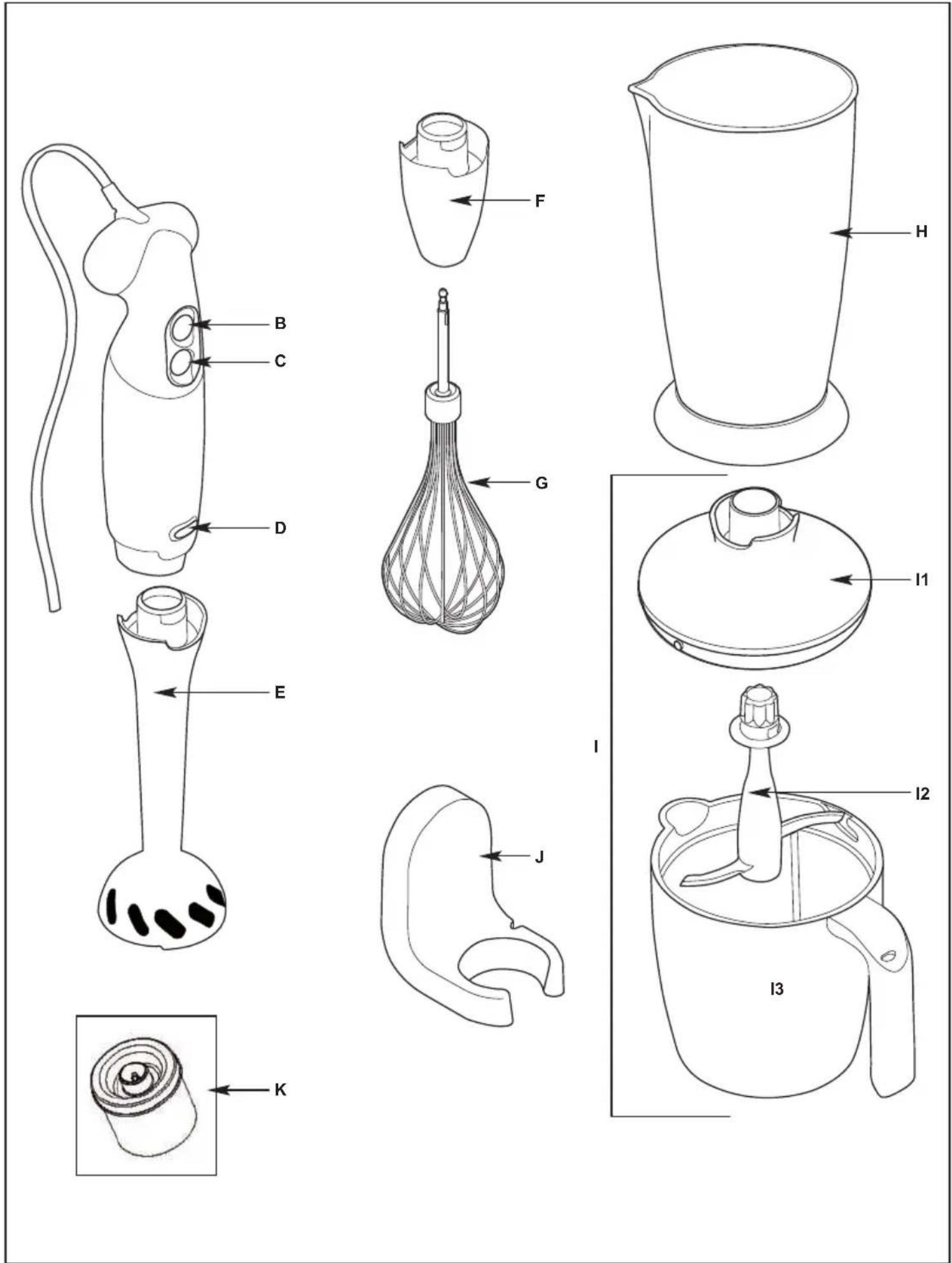

• Do not use the blender shaft or the whisk in the mini-grinder bowl. EN8 Bringing into service Using the blender shaft: Insert the shaft (E) onto the motor unit (A) until you hear the “click” that tells you it has locked. Your blender is ideal to prepare sauces, soups, cocktails, milk-shakes, mayonnaises, pancake mixes, waffle mixes and baby food preparations. To avoid splashing, first put the blender shaft into your preparation, plug in the appliance and then press button (B) or (C). Make a rotating and up and down movement to obtain even blending of the food. After use, switch the appliance off then press the ejection button (D) to disassemble the blender shaft accessory. Using the whisk: Fit the whisk (G) into the attachment unit (F), then slot the assembly onto the motor unit (A) until you hear the “click” that tells you it has locked. You can use the whisk to make light preparations (pancake mix, stiff egg white, chantilly cream, etc.). Switch the appliance on then press button (B) or (C). Unplug the appliance before pressing the ejection button (D) to disassemble the whisk accessory. Using the mini-grinder: Before using the mini-grinder:

1. First remove the protection from the blade (I2) then fit it carefully in the bowl (I3) on the central

axis. Remember to replace the protection once you have finished your preparation.

2. Put the food into the bowl.

3. Place the lid (I1) and then the motor unit (A) on the lid (I1).

4. Switch the appliance on then press speed (B) or (C).

Use the mini-grinder to chop parsley, condiments, meat (150 g), hazelnuts (125 g), breadcrumbs, baby food, etc. The bowl (I3) should be 2/3 full at most. Using the microwave oven: You can use the grinder bowl to heat up liquid preparations (soups, etc) in the microwave oven providing you do not add fat and that the metallic axis of the bowl is covered by the preparation. Practical hints

• You should never fill the bowl you use to blend or whip more than 2/3 full to avoid spillage.

• The preparation must at least cover the lower part of the blender shaft for the mix to be successful.

• Remove bone and gristle from meat before putting it in the bowl.

• Remove the cooking utensil from the source of heat to blend hot preparations. Leave cooked food to cool for a while before putting them in the bowl.

• Do not blend food and liquids at a temperature higher than 80°C (175°F).

• For fibrous foods (leeks, celery, asparagus, etc.) clean the blender shaft regularly during use while following the safety instructions for disassembly and cleaning.

• For fruit-based preparations, first cut up the fruit and remove pips and stones.

• Do not use the appliance with hard food like coffee beans, ice cubes, sugar, cereals and chocolate.

• Do not use the blender shaft or the whisk in the mini-grinder bowl. Before first use, wash accessories in soapy water. Rinse and dry them carefully. Caution: Handle the blade with care as it is very sharp. This appliance is equipped with an overheat protection device. If the appliance overheats, it will switch off automatically. If this happens, unplug the appliance, and let it cool down for 5 minutes before you switch it on again. Check that the operation mode and the quantities indicated in the instructions have been followed. If the problem persists, please contact your authorised service centre.9 Recipes Cleaning CAUTION: the blades are extremely sharp.

• Always disconnect the appliance before cleaning it.

• Do not put the appliance, power supply cord or plug into water or any other liquid.

• Never put the motor unit (A), the attachment unit for the whisk (F) or the mini-grinder lid (I1) in the dishwasher.

• Never immerse them in water or put them under the tap. Clean with a moist sponge.

• You can clean the blender shaft (E) (blade facing upwards), whisk (G) (whisk side facing upwards), graduated mixing (H), blade (I2) and the mini-grinder bowl (I1) in the dishwasher.

• We advise you to clean the blender shaft immediately after each use. If the plastic parts become discoloured by food like carrots, rub them with a cloth soaked in cooking oil and then clean as usual. Storage Mayonnaise: Blender shaft, 10 seconds at speed 2 Pour 1 egg yolk, 1 tablespoon mustard, 1 tablespoon vinegar, salt and pepper into the graduated blender bowl (H) and start to blend them gradually pour in 1/4 litre of oil while moving the blender up and downwards. Vegetable soup: Blender shaft, 30 seconds at speed 2 Boil 500g potatoes, 400g carrots, 1 leek, salt and peeper in

1.8 litres of water. Blend the ingredients.
