USER MANUAL INV300WU24F HQ

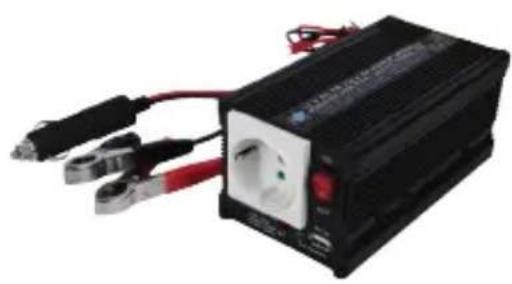

300 WATT DC TO AC MODIFIED SINEWAVE INVERTER WITH USB OUTPUT
MANUAL
MODE D'EMPLOI
MANUALE
HASZNÁLATI UTMUTATÓ
BRUKSANVISNING
MANUAL DE UTILIZARE
ANLEITUNG
GEBRUIKSAANWIJZING
MANUAL DE USO
KAYTTOOHJE
NAVOD KPOUZITI

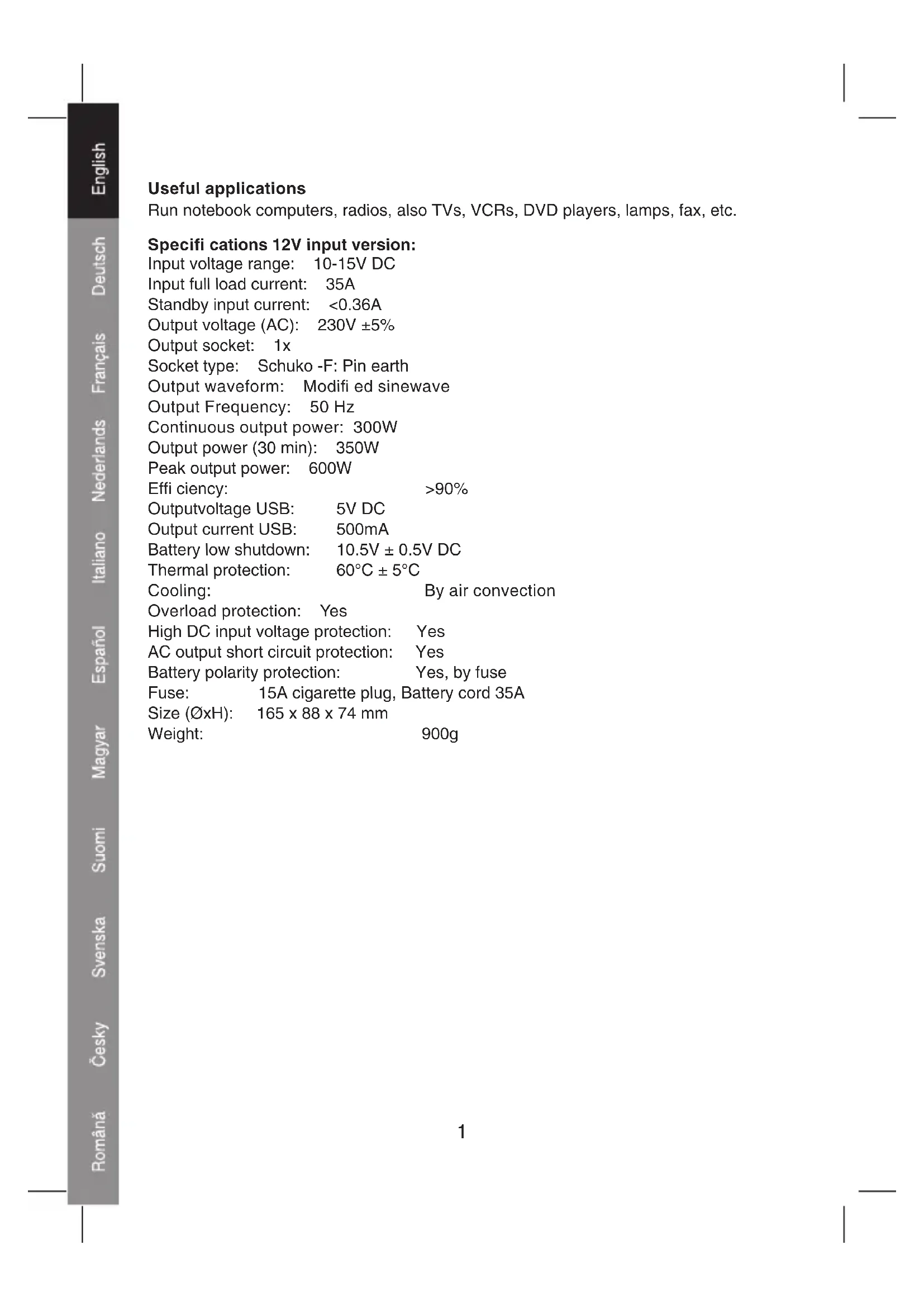

Useful applications
Run notebook computers, radios, also TVs, VCRs, DVD players, lamps, fax, etc.
Specifications 12V input version:
Input voltage range: 10-15V DC
Input full load current: 35A
Standby input current: <0.36A
Output voltage (AC): 230V ±5%
Output socket: 1x
Socket type: Schuko-F: Pin earth
Output waveform: Modifi ed sinewave
Output Frequency: 50 Hz
Continuous output power: 300W
Output power (30 min): 350W
Peak output power: 600W
Efficiency: >90%
Output voltage USB: 5V DC
Output current USB: 500mA
Battery low shutdown: 10.5V ± 0.5V DC
Thermal protection: 60^ ± 5^
Cooling: By air convection
Overload protection: Yes
High DC input voltage protection: Yes
AC output short circuit protection: Yes
Battery polarity protection: Yes, by fuse
Fuse: 15A cigarette plug, Battery cord 35A
Size (0xH): 165 x 88 x 74 mm
Weight: 900g
Specifications 24V input version
Input voltage range: 20-30V DC
Input full load current: 15A
Standby input current: <0.2A
Output voltage (AC): 230V ±5%
Output socket: 1x
Socket type: Schuko (-F: Pin earth)
Output waveform: Pure sinewave
Output Frequency: 50 Hz
Continuous output power: 300W
Output power (30 min): 350W
Peak output power: 600W
Efficiency: >90%
Output voltage USB: 5V DC
Output current USB: 500mA
Battery low shutdown: 21V ± 0.8V DC
Thermal protection: 60^ ± 5^
Cooling: By air convection
Overload protection: Yes
High DC input voltage protection: Yes
AC output short circuit protection: Yes
Battery polarity protection: Yes, by fuse
Fuse: 10A, cigarette plug, battery cord 20A
Size (ØxH): 165 x 88 x 74 mm
Weight: 900g

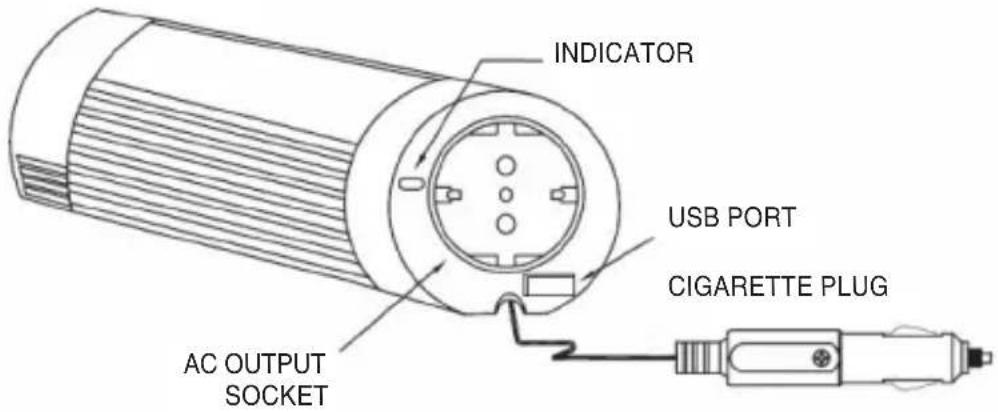

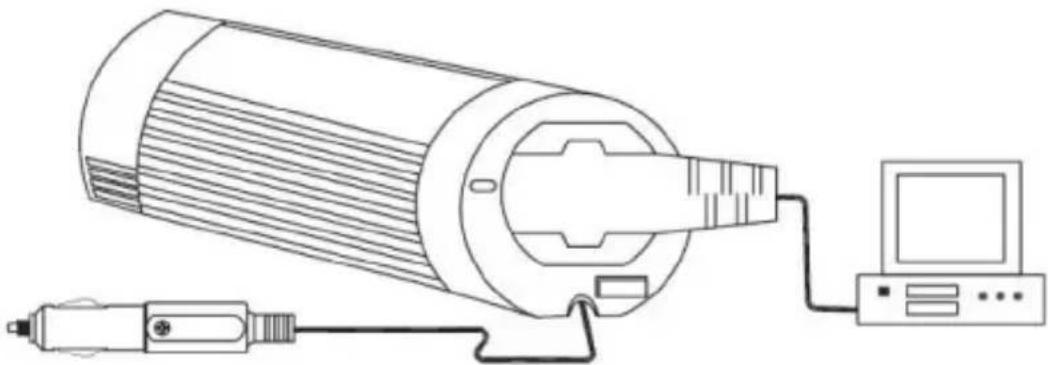

Operating instruction:
1.
2.
When using for longer periods it is wise to have the engine of the car running, to prevent a fully discharged battery. When the alarm for low battery starts, start the car engine to continue using the inverter and connected appliances.
Make sure that the maximum power demand of the connected appliances does not exceed the output power of this inverter (300W continuously, 350W for max. 30 minutes)
3.

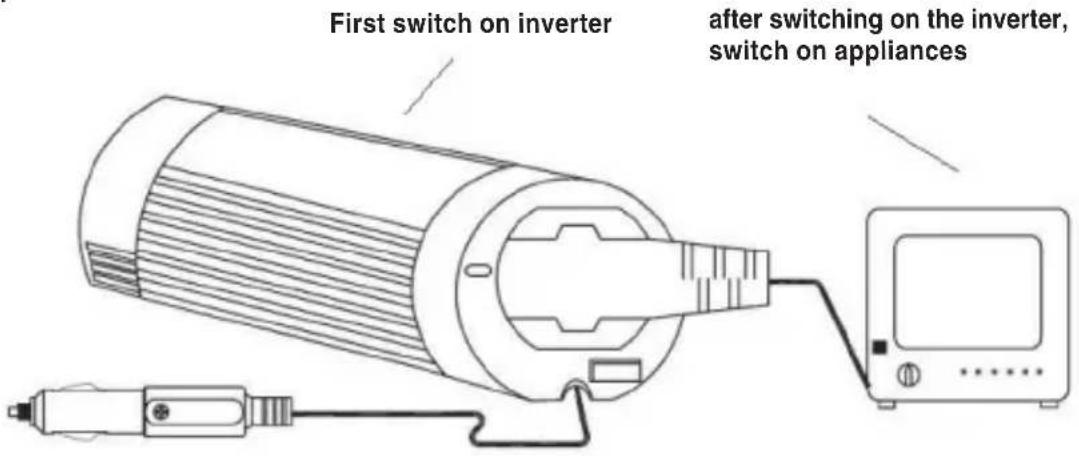

Always make sure to turn on the power of the inverter first, before turning on the power of the connected equipment.
4.

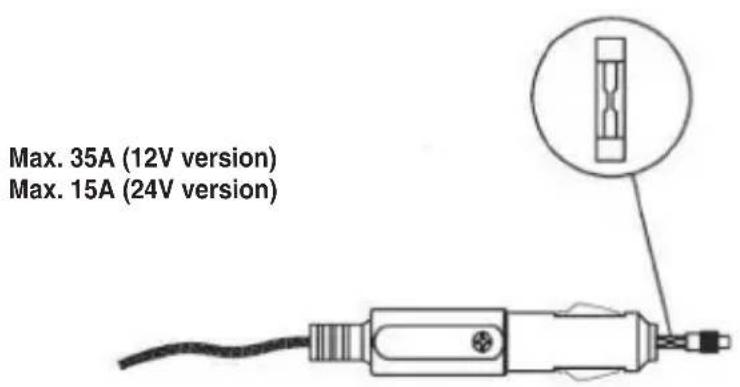

When the inverter and the power indicator do not work, but the power is on, check the fuse in the cigarette plug. If the fuse is spoilt, use similar fuse for replacement.
5.

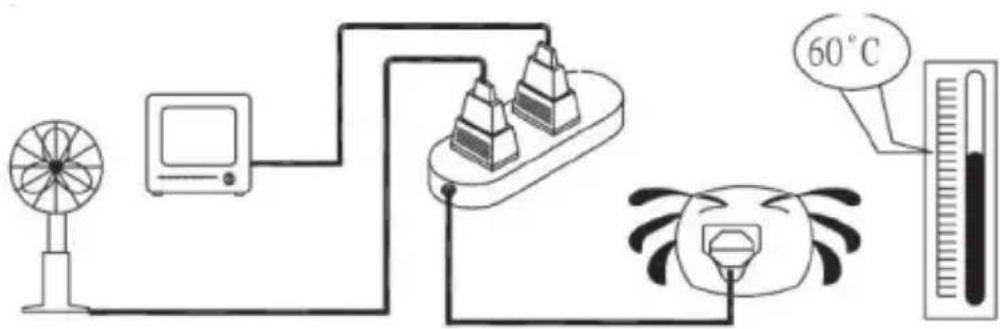

When the total watts of the connected appliance(s) exceed(s) the output capacity of the inverter or when the inverter is operating for a long time and the temperature reaches 60^ , the inverter will be shut down by the protection circuit.
6.
LED indicator:
- With normal use: LED is green
Overload / overtemperature: LED is red and blinks
7.

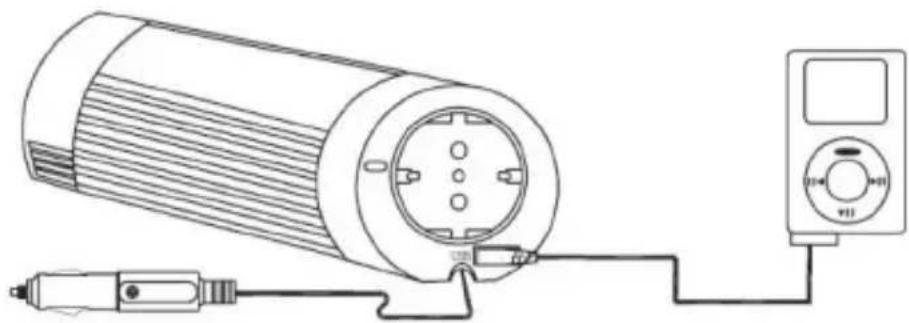

Built-in USB port makes this inverter extra versatile, allowing to charge and power USB devices!
Troubleshooting
If the inverter doesn't function properly, there can be several possible reasons for it:
1) Poor contact
Clean contact parts thoroughly
2) Inverter has no power
-
Check car fuse, replace damaged fuse
-
Check connection of wires
3) Fuse is blown
The fuse is located in the DC (cigarette) plug. Replace the fuse with a similar fuse of equivalent value
4) AC output shutdown caused by overload
Make sure the continuous load of the attached appliances does not exceed 100 Watts
5) AC output shutdown caused by overheating
- Under heavy loads for extended periods of time, the inverter will shutdown the output to prevent damage from excess heat. If this happens, please proceed as below:
(A) Switch off the power switch of the inverter
(B) Decrease load of the machine i.e. disconnect some of the appliances or wait until this inverter cools down.
(C) Switch on the power switch of the inverter.
6) Low-battery shutdown
- Recharge your battery and resume operation.
Caution!
Always place the inverter in an environment that is:
- Well ventilated
- Not exposed to direct sunlight or heat source
- Out of reach from children
- Away from water, moisture, oil or grease
- Away from any infl ammable substances
DECLARATION OF CONFIRMITY
We,
Nedis B.V.
De Tweeling 28
Declare under our responsibility that the product;
Brandname: HQ
Model: HQ-INV300WU-12, HQ-INV300WU-24
Description: 300W DC to AC Modified Sinewave Inverter with USB port
Is in confirmity with the following standards;
e-Mark (72/245/CEE, 2006/28/CE): e1372/2452006/28394800
EMC (89/336/EEC):
EN 61000-6-3:2001 / EN 61000-6-1:2001
LVD (73/23/EEC): +93/68/EEC
EN 60950-1:2001, EN 61558-1:1997 +A1:1998
Conform this regulation it's allowed to use this product in all European Community & EFTA countries.
Nedis BV is not responsible for the use of this product outside the European Community & EFTA countries.
s-Hertogenbosch, 17-08-2007
Mrs. J. Gilad
Purchase Director
Safety precautions:
To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur.
Maintenance:
Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty:
No guarantee or liability can be accepted for any changes and modifi cations of the product or damage caused due to incorrect use of this product.
General:
Designs and specific cations are subject to change without notice.
All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.
Attention:
This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
Copyright ©

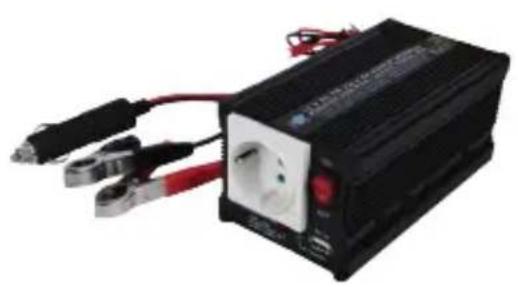

HQ-INV300WU-12 HQ-INV300WU-24
