Device type	Anti-dust mite vacuum
Brand	SilverCrest
Model	SMS 300 B2
Power supply	220-240 V ~, 50/60 Hz
Power consumption	300 W
Protection class	II (double insulation)
UV-C lamp	6 W, G5, UV-C (risk group 3)
Filter	HEPA (washable, 2 filters included)
Functions	Suction, vibration, UV-C disinfection
Included items	Vacuum, 2 HEPA filters, instruction manual
Safety	UV lamp safety switches, automatic shut-off
Intended use	Mattresses, sheets, duvets, upholstered furniture
Cleaning and maintenance	Empty the dust container after each use, clean the HEPA filter regularly
Spare parts	HEPA filter, UV-C lamp (available at www.kompernass.com)
Warranty	3 years

Frequently Asked Questions - SMS 300 B2 SILVERCREST

How to clean the SilverCrest SMS 300 B2 vacuum?

Before any cleaning, unplug the device. Clean the exterior with a slightly damp soft cloth. Empty the dust container after each use and clean the HEPA filter regularly. To clean the UV-C lamp, unscrew the cover and wipe it with a dry cloth.

How to empty the dust container?

Remove the dust container from the top of the device. Take out the HEPA filter, then remove the container cover. Empty the contents and wipe the inside with a dry cloth. Replace the cover and filter, then reinstall the container.

How to clean the HEPA filter?

After removing the HEPA filter from the dust container, place it in a plastic bag, close it and tap gently to remove dust. If necessary, rinse it with cold or lukewarm water, then let it dry completely before reinstalling.

The UV-C lamp does not turn on, what should I do?

Make sure the safety switches under the device are in contact with a flat surface. If the lamp still does not turn on, check that the vibration button is activated. If the problem persists, contact customer service.

The device no longer sucks, why?

Check that the device is turned on and plugged in. If the suction power is weak, it may be due to a full dust container or a clogged HEPA filter. Clean or replace them. Make sure the suction inlet is not blocked.

Can I use the vacuum on animals?

No, never use the device on people or animals. UV-C radiation can cause eye and skin damage. Use only on surfaces such as mattresses, sheets, and upholstered furniture.

What is the lifespan of the UV-C lamp?

The UV-C lamp should be replaced every 12 to 24 months depending on usage. The HEPA filter should be replaced every 12 to 18 months. To order parts, go to www.kompernass.com.

How to change the UV-C lamp?

First allow the lamp to cool. Unscrew the lamp cover using a screwdriver, remove the old lamp from the connection plugs, then insert a new UV-C lamp (6 W, G5). Replace the cover and screw it back.

Where to order spare parts for the SMS 300 B2?

You can order spare parts, such as the HEPA filter and UV-C lamp, on the website www.kompernass.com or by scanning the QR code in the manual. You can also contact customer service by phone or email.

What is the warranty of the SilverCrest SMS 300 B2 vacuum?

The device comes with a 3-year warranty from the date of purchase. It covers material and manufacturing defects, excluding wear parts. Keep your receipt as proof of purchase.

USER MANUAL SMS 300 B2 SILVERCREST

ANTI DUST MITES HANDHELD VACUUM CLEANER MILBENSAUGER / ASPIRATEUR ANTI-ACARIENS SMS 300 B2

GB IE

ANTI DUST MITES HANDHELD VACUUM CLEANER

Operating instructions and safety instructions

FR BE

ASPIRATEUR ANTI-ACARIENS

GB / IE Operating instructions and safety instructions Page 1

Diagram of a hair dryer with numbered parts labeled for identification

Labeled diagram of a handheld device with numbered parts for identification

Contents

Introduction....2

Copyright. 2

Intended use 2

Safety information .... 3

Package contents and transport inspection ....7

Parts and operating components 7

Safety switches 8

Operation 8

Usage recommendations....9

Cleaning....9

Emptying dust container.... 10

Cleaning the HEPA dust filter....11

Cleaning the UV-C lamp 11

Changing the UV-C lamp....11

Storage 12

Disposal....12

Disposal of the appliance 12

Disposal of the packaging....13

Troubleshooting 13

Appendix....14

Technical data 14

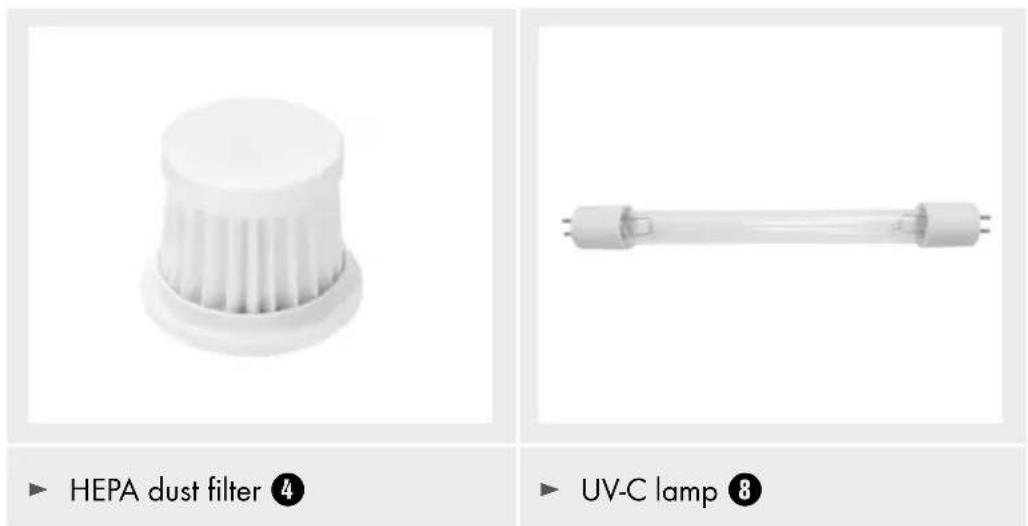

Ordering spareparts 15

Kompernass Handels GmbH warranty 16

Service....17

Importer....17

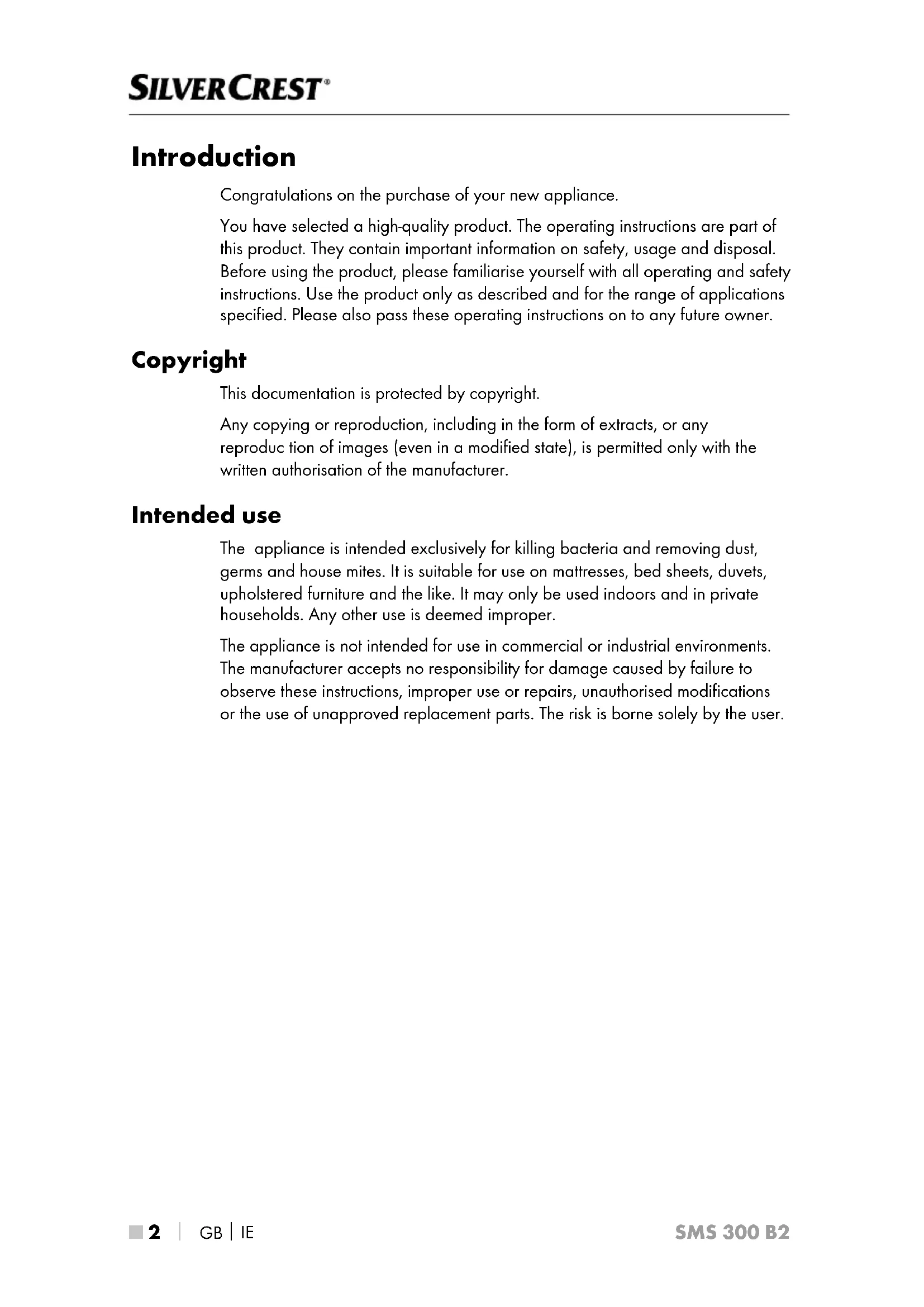

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Intended use

The appliance is intended exclusively for killing bacteria and removing dust, germs and house mites. It is suitable for use on mattresses, bed sheets, duvets, upholstered furniture and the like. It may only be used indoors and in private households. Any other use is deemed improper.

The appliance is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The risk is borne solely by the user.

Safety information

RISK OF ELECTRIC SHOCK!

The rating of the power supply must correspond with the details given on the rating plate of the appliance.
▶ To avoid potential risks, arrange for a defective appliance to be checked and, if required, repaired by qualified technicians, or contact our Customer Service Department.
- Arrange for defective power plugs and/or cables to be replaced as soon as possible by a qualified technician or by our Customer Service Department to avoid the risk of injury.
▶ Pull only on the plug itself when unplugging the appliance, never on the power cable.
▶ Never bend (kink) or crush the power cable; always route it in such a way that it cannot come into contact with hot surfaces and such that no one can step on it or trip over it.
▶ Disconnect the mains plug before cleaning and after each use.
▶ Always unwind the power cable fully before switching on and do not use an extension cable.
▶ Never touch the power cable or the plug with wet hands.
▶ Never use the appliance adjacent to water contained in a bath, shower, wash basin or other vessels. The proximity of water is hazardous, even if the appliance is switched off.
▶ Under no circumstances should the appliance be immersed in liquids or liquids be allowed to penetrate the housing.
- Do not expose the appliance to humidity and do not use it outdoors. If any liquid gets into the housing, disconnect the appliance from the power socket immediately and have it repaired by a qualified technician.
▶ Do not open the appliance housing. If the appliance is defective, have it repaired by an authorised technician only.

RISK OF ELECTRIC SHOCK!

• Do not use the appliance if it shows visible signs of damage, has fallen or leaks water. Arrange for it to be repaired by qualified specialists.
  This appliance may be used by children aged 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised by an adult or have been instructed in the safe use of the appliance and have understood the potential risks.
• Do not allow children to use the appliance as a toy. Cleaning and user maintenance may not be carried out by children unless they are supervised.

RISK GROUP 3

This appliance contains a lamp that is classified as risk group 3. WARNING - UV emitted from this product.

Avoid eye and skin exposure to unshielded product.

UV emitted from this product. Avoid eye and skin exposure to unshielded product.

WARNING! RISK OF INJURY!

▶ Use this appliance only when it is assembled. In particular, the cover of the UV-C lamp must be correctly installed before use!

Use this appliance only as described in these operating instructions.

Never look directly into the UV-C lamp. UV radiation can lead to injuries to your eyes and skin.

▶ Never use the appliance on people or animals! UV radiation can lead to injuries to eyes and skin.

WARNING! RISK OF INJURY!

The bactericidal ultraviolet rays of the UV-C lamp on the underside of the appliance are harmful to eyes and skin. Never expose yourself, other persons or animals to direct or reflected radiation. In case of exposure to the radiation, seek medical attention immediately.
▶ Make sure that the safety switches of the UV-C lamp are not blocked.
- Keep animals, hair, jewellery, loose clothing, fingers and all other parts of the body away from the suction opening of the appliance in order to prevent tight suction. Switch the appliance off immediately if it sucks onto any body part or object.
▶ Do not touch the vibration head during operation.
- Ensure that the connected power cable is not a hazard to tripping.
▶ Never leave the appliance unattended while it is switched on or connected to the mains power supply. Children should be supervised to ensure that they do not play with the appliance.
▶ Never allow children to use the appliance unattended.
- Allow the UV-C lamp to cool down sufficiently after use. Otherwise, there is a risk of burns.
▶ Never place your hand under the appliance while it is still in operation.

RISK OF FIRE!

▶ Do not insert anything into the openings of the appliance and make sure that they are not blocked.
▶ Make sure that the ventilation openings on the sides of the appliance are not blocked.
▶ To avoid a fire during operation, do not cover the appliance.
▶ Do not use the appliance in rooms containing highly flammable substances or toxic or explosive vapours.
In case of fire, do not extinguish the appliance with water. Asphyxiate flames with a fireproof blanket or use a suitable fire extinguisher.

CAUTION! PROPERTY DAMAGE!

▶ Do not use the appliance to vacuum up the following items:
-flammable or flammable substances
-glowing embers, burning cigarettes, matches, etc.
- liquids or wet substances (e.g. wet carpet shampoo)
-very fine dust (e.g. concrete dust), ash or toner
-sharp, hard objects (e.g. glass splinters)
- Do not place or lay any heavy objects on the product, power plug, or powercable.
▶ Do not attempt to lubricate the rollers with lubricant or oil. This would cause more dust and dirt to stick to the rollers.
▶ Do not clean the appliance with aggressive, chemical or abrasive cleaning agents. They could damage it.

Package contents and transport inspection

DANGER!

• Do not allow children to play with packaging materials. There is a risk of suffocation.
  Remove all parts of the appliance and the operating instructions from the carton.
  ◆ Remove all packaging materials from the appliance.

The following components are included in delivery (see fold-out page for illustrations):

● Mites handheld vacuum cleaner
• HEPA dust filter (2x)
- Operating instructions

NOTE

▶ Check the package for completeness and signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact Customer Service (see section Service).

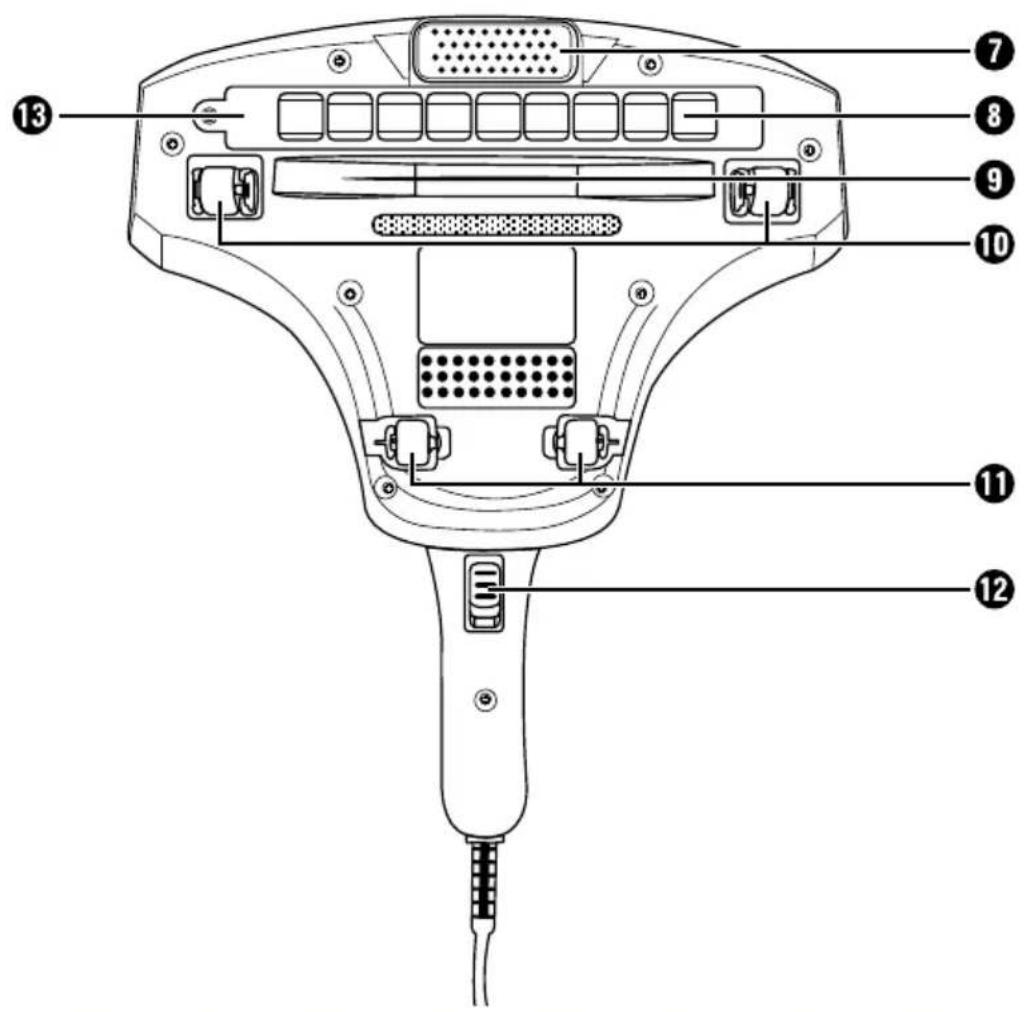

Parts and operating components

(See fold-out page for illustrations)

① Handle
② On/Off switch ①
3 Dust container
④ HEPA dust filter (in the dust container)
⑤ Ventilation opening
6 Power cable
⑦ Vibration head
8 UV-C lamp
9 Suction opening
10 Safety switches
11 Rollers
12 Vibration button
13 UV-C lamp cover

Safety switches

The appliance has two safety switches ⑩ on the left and right of the underside of the appliance. The UV-C lamp ⑧ only switches on when the vibration button ⑫ is pressed if both safety switches ⑩ are pressed simultaneously. This deactivates the automatic switch-off of the UV-C lamp ⑧. This happens automatically when the switched-on appliance is placed on a level surface (fig. A).

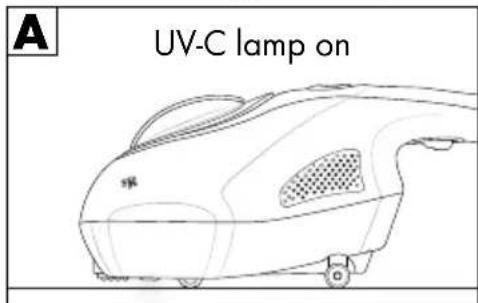

A UV-C lamp on

If the safety switches lose contact with the substrate, the automatic switch-off function is activated and the UV-C lamp ⑧ stops lighting (figs. B and C).

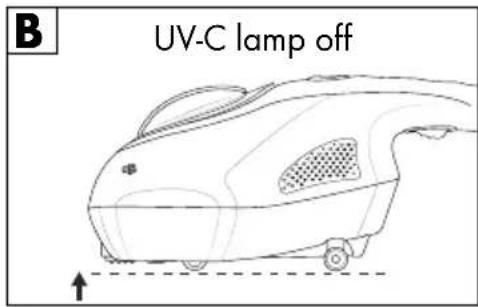

B UV-C lamp off

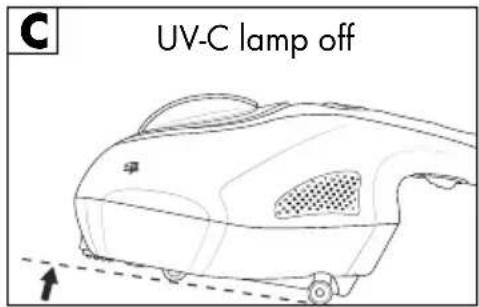

C UV-C lamp off

Operation

WARNING! RISK OF INJURY!

▶ Never look into the UV-C lamp ^8 during use!
▶ Never use the appliance on people or animals! UV radiation can lead to injuries to eyes and skin.
▶ Only operate the appliance when it has been properly assembled. This is the only way to avoid the dangers of UV radiation.
▶ Use this appliance only as described in these operating instructions. This is the only way to avoid the dangers of UV radiation.

NOTE

▶ Use the appliance only if it is completely and correctly assembled. The dust container ③ and the HEPA dust filter ④ must be inserted correctly and undamaged. If dirt gets into the motor of the unit, it could cause motor damage.
▶ Make sure that the safety switches of the UV-C lamp ^8 on the underside of the appliance are not blocked.
▶ Test the appliance on a small, unobtrusive spot first.

1) Plug the power plug into a properly installed, easily accessible wall outlet.

2) Place the appliance flat on the surface to be cleaned.

3) To switch the appliance on, push the On/Off switch Ⓓ 2 forwards. The appliance starts vacuuming.

4) Press the vibration button 12 to activate the vibration head 7. The vibration shakes up the surface to be cleaned and the swirled up dust is sucked in through the suction opening 9. Pressing the vibration button 12 also switches on the UV-C lamp 8.

5) Move the appliance evenly over the surface to be cleaned.

6) After vacuuming, push the On/Off switch ① ② back to switch off the appliance.

7) Unplug the appliance from the mains socket.

Usage recommendations

◆ Always clean mattresses from both sides.

New mattresses should be cleaned once a month. Older mattresses should first be cleaned daily for one week. Afterwards, cleaning should take place once a month.

The HEPA dust fil should be changed every 12 - 18 months depending on use, the UV-C lamp every 12 - 24 months. If you have any questions about spare parts, please contact customer service (see section Service).

Cleaning

RISK OF ELECTRIC SHOCK!

▶ Before cleaning the appliance, disconnect the power plug from the power socket. Otherwise, there is a risk of electrocution.

CAUTION! PROPERTY DAMAGE!

▶ Do not use abrasive, aggressive or chemical cleaning agents. They can damage the surface and also lead to irreparable damage to the appliance.

- Clean the appliance only with a soft cloth lightly moistened with water.

Empty the dust contain 3 after each use of the appliance. The HEPA dust filter 4 must also be cleaned regularly to avoid overloading the motor.

Emptying dust container

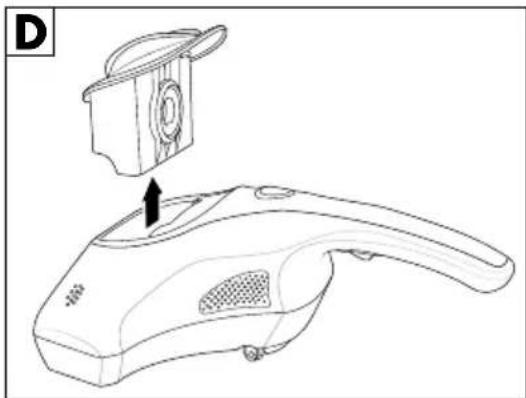

◆ Pull the dust container ③ upwards out of the appliance (fig. D).

Line drawing of a handheld vacuum cleaner with a component inserted, showing no text or symbols

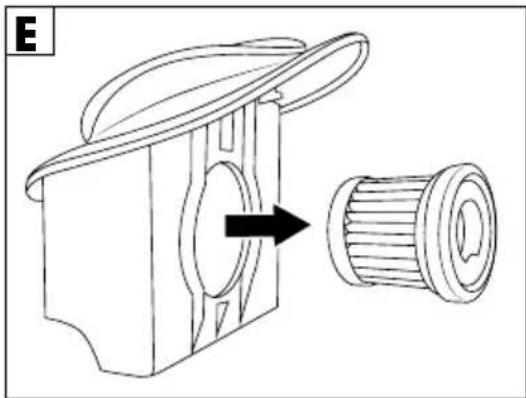

Reach into the opening of the HEPA dust filter ④ and pull it out of the dust container ③ (fig. E).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

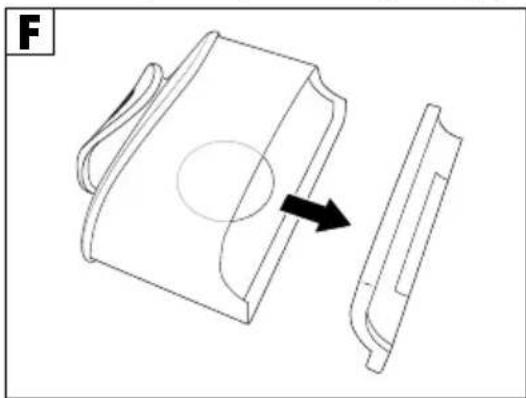

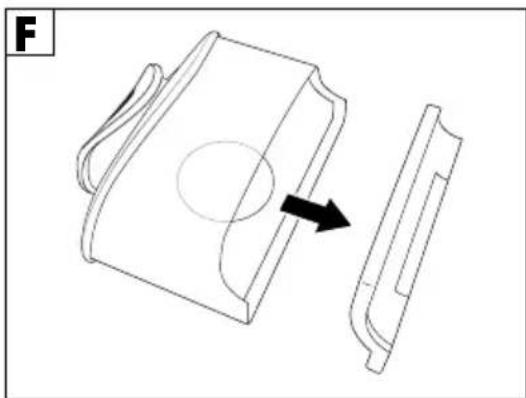

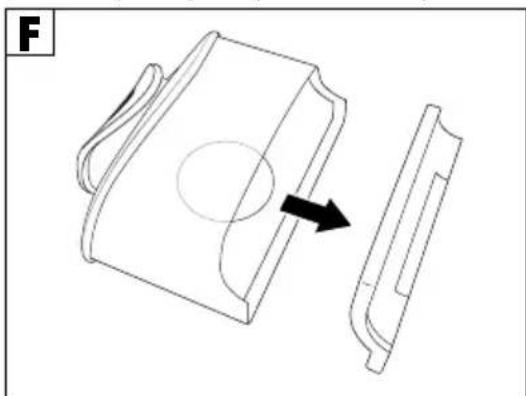

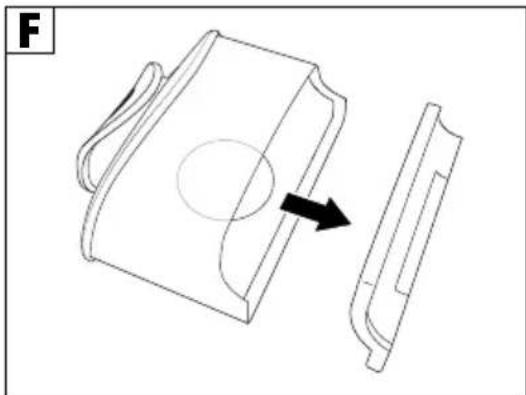

Remove the cover of the dust container ③ (fig. F).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

◆ Empty the dust container ③.
If necessary, wipe the dust contain ③ and the recess for the dust container ③ with a dry duster.
Also wipe the cover of the dust contain ③ with a dry duster.
Replace the cover of the dust contain ③. Make sure that the cover is completely pushed into the dust container ③ and closes it tightly.

Cleaning the HEPA dust filter

After you have removed the HEPA dust filter 4 from the dust container 3, place the HEPA dust filter 4 in a plastic bag. Close the plastic bag and knock the HEPA dust filter 4 out carefully.

- Wait until the dust in the plastic bag has settled and then remove the HEPA dust filter 4 from the plastic bag. Close the plastic bag again and dispose of it afterwards.

If necessary, you can rinse out the HEPA dust filter ④ with fresh cold or lukewarm water. Allow the HEPA dust filter ④ to dry out completely.

After cleaning, replace the HEPA dust filt in the dust container so that it is firmly seated.

Replace the empty dust container ③ with the inserted HEPA dust filter ④ in the recess for the dust container ③ on the appliance.

NOTE

▶ New HEPA dust filters ^4 can be reordered from the customer service (see section Ordering spare parts).

Cleaning the UV-C lamp

WARNING! RISK OF INJURY!

The UV-C lamp ^8 gets hot during use. Allow the UV-C lamp ^8 to cool down sufficiently after use. Otherwise, there is a risk of burns.

Use a screwdriver to loosen the screw on the cover of the UV-C lamp and remove the cover.

◆ Wipe the UV-C lamp ⑧ with a dry duster.

NOTE

- Be careful not to touch the UV-C lam8 with your fingers.

Put on the cover and fix it again with the screw.

Changing the UV-C lamp

WARNING! RISK OF INJURY!

The UV-C lamp ^8 gets hot during use. Allow the UV-C lamp ^8 to cool down sufficiently after use. Otherwise, there is risk of burns.

The technical information data for the UV-C lamp ⑧ can be found in the section Technical data.

Use a screwdriver to loosen the screw on the cover ⑬ of the UV-C lamp ⑧ and remove the cover ⑬.

◆ Pull the UV-C lam out of the plug connections.

Insert a new UV-C lam ^8 into the plug connections.

Put on the cover and fix it back in place with the screw.

Storage

◆ Store the appliance in a clean and dry place away from direct sunlight.

Disposal

Applies only to France:

FR

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

NOTE

Remove the UV-C lamp ^8 before disposing of the appliance and dispose of it separately from the appliance.

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries and lamps before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

Troubleshooting

The following table will help you to identify and rectify minor malfunctions. If the solutions presented below do not resolve the problem, please contact Customer Service (see section Service).

Fault Cause Remedy
The appliance does not suck.	The appliance is not switched on.	Make sure that the appliance is properly connected to the power supply and press the On/Off switch 12.
	The plug is not plugged in.	Insert the power plug into the socket.
	The mains socket is not supplying power.	Check the house fuses
The suction power is too weak.	The dust container 3 is full.	Empty the dust container 3.
	The HEPA dust filter 4 is dirty.	Clean the HEPA dust filter 4.
	The suction opening 9 is blocked.	Turn off the appliance, pull out the plug from the wall socket and remove the blockage.
The UV-C lamp 8 does not light up.	The automatic switch-off device of the UV-C lamp 8 has been activated.	Check the safety switches 10 left and right (see section Safety switches).
	The UV-C lamp 8 or appliance is defective.	Contact Customer Service (see section Service).
The vibration head 7 does not vibrate.	The vibration function is not switched on.	Press the vibration button 12.
An unpleasant odour escapes from the appliance during suction.	Odours often develop when new appliances are used for the first time.	The smell should disappear after the appliance has been used a few times.
	The appliance is defective.	Switch off the appliance, pull out the power plug from the socket and contact Customer Service (see section Service).

Appendix

Technical data

Power supply 220–240 V ~	(alternating current), 50/60 Hz
Power consumption 300 W
Protection class	II/☐ (double insulation)
Light bulb 6 W, G5, UV-C
Classification of the UV-C lamp risk group	Risk group 3

NOTE

▶ No user action is required to switch the product between 50 and 60 Hz. The product adapts automatically to either 50 or 60 Hz.

Ordering spareparts

You can order the following spare parts for the product SMS 300 B2:

HEPA dust filter ④ UV-C lamp ⑧

You can order replacement parts for this product on the Internet at www.kompernass.com.

SMS 300 B2

Scan the QR code with your smartphone/tablet.

You can use this QR code to go directly to our website to view and order the available spare parts.

NOTE

▶ If you have problems with your online order, you can contact our service centre by phone or e-mail (see section Service).
▶ Please always quote the article number (e.g. 407208_2207) when ordering. You can find it on the title page of these operating instructions.
▶ Please note that online ordering of replacement parts is not possible for all countries.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 407208_2207 available as proof of purchase.

You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 407208_2207.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE ServiceIreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 407208_2207

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung....20

Urheberrecht 20

A UV-C-Lampe an

Line drawing of a handheld device with a top component and an arrow pointing to it (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

White plastic pushpin with ribbed design (no text or symbols visible)

HEPA-Staubfilter 4

Pure electrical circuit lines without any symbols

UV-C-Lampe 8

QR code image containing encoded data, no visible human-readable text

SMS 300 B2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Sommaire

Introduction....38

Droits d'auteur 38

Usage conforme 38

Line drawing of a handheld device with a top component and an arrow pointing to it (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

White plastic pushpin with ribbed design (no text or symbols visible)

Pure electrical circuit lines without any symbols

Lampe UV-C 8

QR code image containing encoded data, no visible human-readable text

SMS 300 B2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding....58

Auteursrecht....58

WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

Line drawing of a handheld vacuum cleaner with a component inserted, showing no text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

QR code image containing encoded data, no visible human-readable text

SMS 300 B2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....76

POZOR! HMOTNÉ ŠKODY!

POZOR! HMOTNÉ ŠKODY!

Line drawing of a handheld device with a top component and an arrow pointing to it (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

White plastic pushpin with ribbed design (no text or symbols visible)

Pure electrical circuit lines without any symbols

QR code image containing encoded data, no visible human-readable text

SMS 300 B2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

Wstep....94

Prawa autorskie....94

Line drawing of a handheld device with a top component and an arrow pointing to it (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....112

Line drawing of a handheld device with a top component and an arrow pointing to it (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

♦ Odstráňte kryt nádoby na prach ③ (obr. F).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

♦ Vyprázdnite nádobu na prach ③.
Ak je to potrebné, otrite nádobu na pra: a výrez pre nádobu na prach 3 suchou handričkou na prach.
♦ Otrite aj kryt nádoby na prach ③ suchou handričkou na prach.
♦ Nasad'te spät' kryt nádoby na prac 3. Dbajte na to, aby bol kryt kompletne zasunutý do nádoby na prach 3 a pevne ju uzatváral.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción....130

Line drawing of a handheld vacuum cleaner with a component inserted, showing no text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

White plastic pushpin with ribbed design (no text or symbols visible)

Filtro de polvo HEPA 4

Pure electrical circuit lines without any symbols

Lámpara UV-C 8

QR code image containing encoded data, no visible human-readable text

SMS 300 B2

Escanee este código QR con su smartphone o tableta.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Indledning....148

Ophavsret 148

Line drawing of a handheld vacuum cleaner with a component inserted, showing no text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

♦ Tøm støvbeholderen ③.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Line drawing of a handheld device with a top component and an arrow pointing to it (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

White plastic pushpin with ribbed design (no text or symbols visible)

Pure electrical circuit lines without any symbols

Lampada UV-C 8

QR code image containing encoded data, no visible human-readable text

SMS 300 B2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 184

Szerzői jog 184

Line drawing of a hand washing machine with a component inserted, showing no text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

White plastic pushpin with ribbed design (no text or symbols visible)

HEPA porszürő 4

Pure electrical circuit lines without any symbols

UV-C-lámpa 8

QR code image containing encoded data, no visible human-readable text

SMS 300 B2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

HU JÓTÁLLÁSI TÁJÉKOZTATÓ

Line drawing of a handheld vacuum cleaner with a top component and an arrow indicating the component's direction (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

- Odstranite pokrov posode za prah ③ (slika F).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

White plastic pushpin with ribbed design (no text or symbols visible)

▶ HEPA filter za prah 4

Pure electrical circuit lines without any symbols

UV-C-luč 8

QR code image containing encoded data, no visible human-readable text

SMS 300 B2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 407208_2207

Garancijski list

Line drawing of a handheld vacuum cleaner with a top component and an arrow indicating the part's direction (no text or symbols present)

♦ Uhvatite otvor HEPA filtra za prašinu ④ i izvucite ga iz spremnika za prašinu ③ (slika E).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

♦ Uklonite poklopac spremnika za prašinu ③ (slika F).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Ispraznite spremnik za prašinu 3.
Ako je potrebno, obrišite spremnik za praši, ③ i udubljenje za spremnik za prašinu ③ suhom krpom za prašinu.
Poklopac spremnika za prašin 3 također prebrišite suhom krpom za prašinu.
Vratite poklopac spremnika za prašin 3. Pazite se da je poklopac potpunc gurnut u spremnik za prašinu 3 i da ga čvrsto zatvara.

Čišćenje HEPA filtra za prašinu

QR code image containing encoded data, no visible human-readable text

SMS 300 B2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NJEMAČKA

www.kompernass.com

Cuprins

Introducere 238

Dreptul de autor....238

Line drawing of a handheld vacuum cleaner with a component inserted, showing no text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

White plastic pushpin with flared rim and circular base (no text or symbols)

HEPA filtru de praf 4

Pure electrical circuit lines without any symbols

Lampă UV-C 8

QR code image containing encoded data, no visible human-readable text

SMS 300 B2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Съдържание

Въведение....256

Авторско право 256

Употреба по предназначение 256

Line drawing of a handheld vacuum cleaner with a circular component inserted, showing internal structure and mounting point (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a handheld vacuum cleaner with a component inserted, showing no text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

White plastic pushpin with ribbed design (no text or symbols visible)

Pure electrical circuit lines without any symbols

▶ AuXvia UV-C 8

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ГЕРMANIA

www.kompernass.com

PDF ONLINE www.lidl-service.com

FR © ©

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci

Stan informacji · Stav informácií · Estado de las informaciones · Tilstand af information · Versione delle informazioni

Információk állása · Stanje informacij · Stanje informacija · Versiunea informațiilor · Актуалност на информацията
