USER MANUAL EZwedge Tri Chauvet
It's Green Thinking.
About This Guide
The EZwedge™ Tri Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetlighting.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
-
This product is not intended for permanent installation.
-
ONLY connect this product to a grounded and protected circuit.
Always disconnect from power before cleaning or replacing the fuse.
DO NOT look at the light source when the product is on.
-
Make sure the power cord is not crimped or damaged.
-
Never disconnect this product from power by pulling on the cord.
-
When mounting this product overhead, use a safety cable.
DO NOT allow flammable materials close to the unit while operating.
DO NOT touch this product when it is operating because it may be hot.
- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
- Always mount this product in a location with adequate ventilation, at least 20 in (50~cm) from adjacent surfaces.
- Be sure that no ventilation slots on the unit's housing are blocked.
- Never connect this product to a dimmer or rheostat.
- Replace the fuse with another of the same type and rating.
- ONLY use the hanging/mounting bracket or the handles to carry this product.
- The maximum ambient temperature is 104^ (40^) . Do not operate this product at higher temperatures.
- In the event of a serious operating problem, stop using immediately.
DO NOT open this product. It contains no user-serviceable parts.
Contact
Outside the U.S., United Kingdom, Ireland, or Mexico, contact your distributor to request support or return a product. Visit www.chauvetlighting.com for contact information.
What is Included
EZwedgeTM Tri
Warranty Card
Infrared Remote Control IRC-6
Quick Reference Guide
Power Cord
To Begin
Unpack your EZwedge™ Tri and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not CHAUVET®.

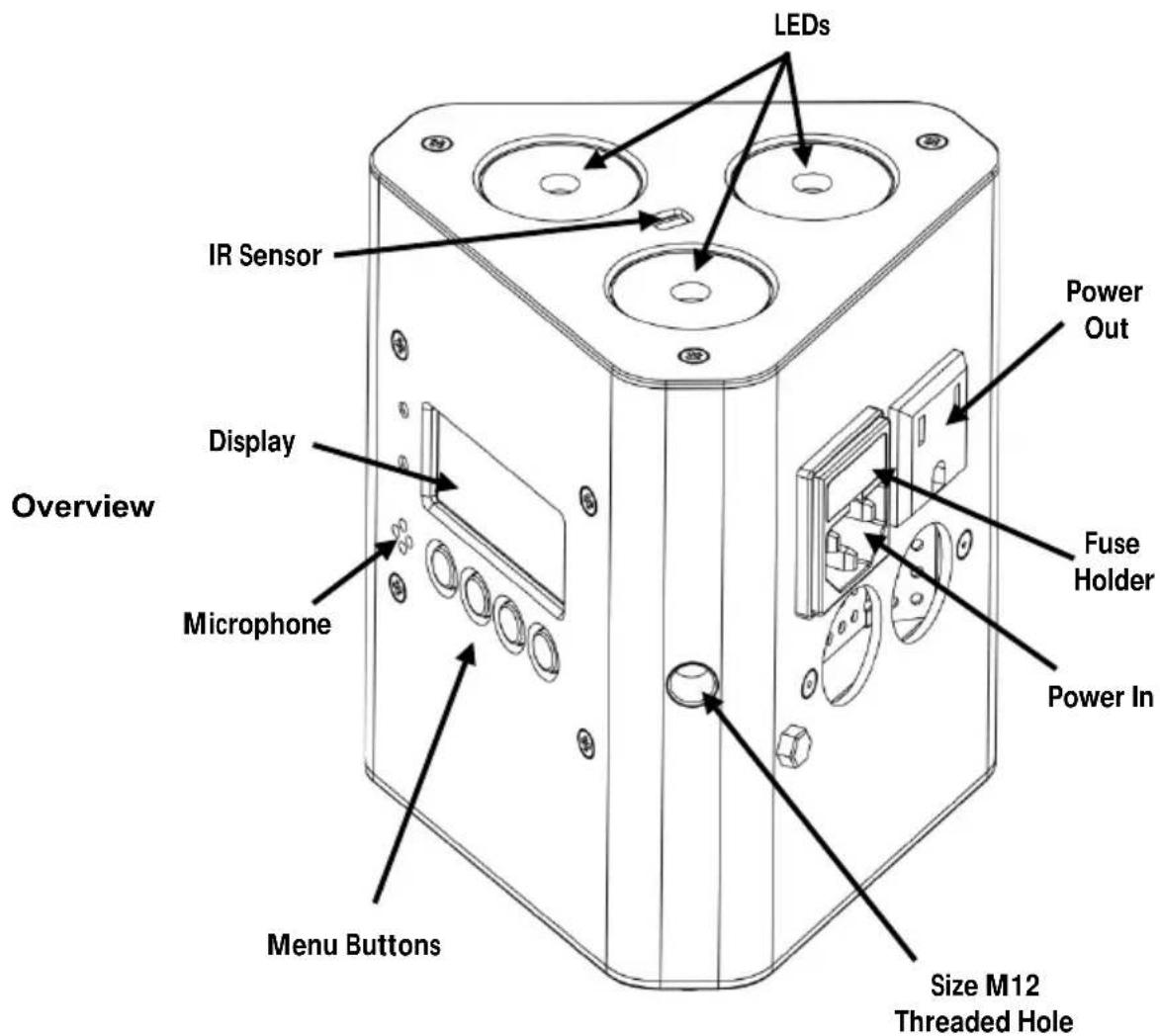

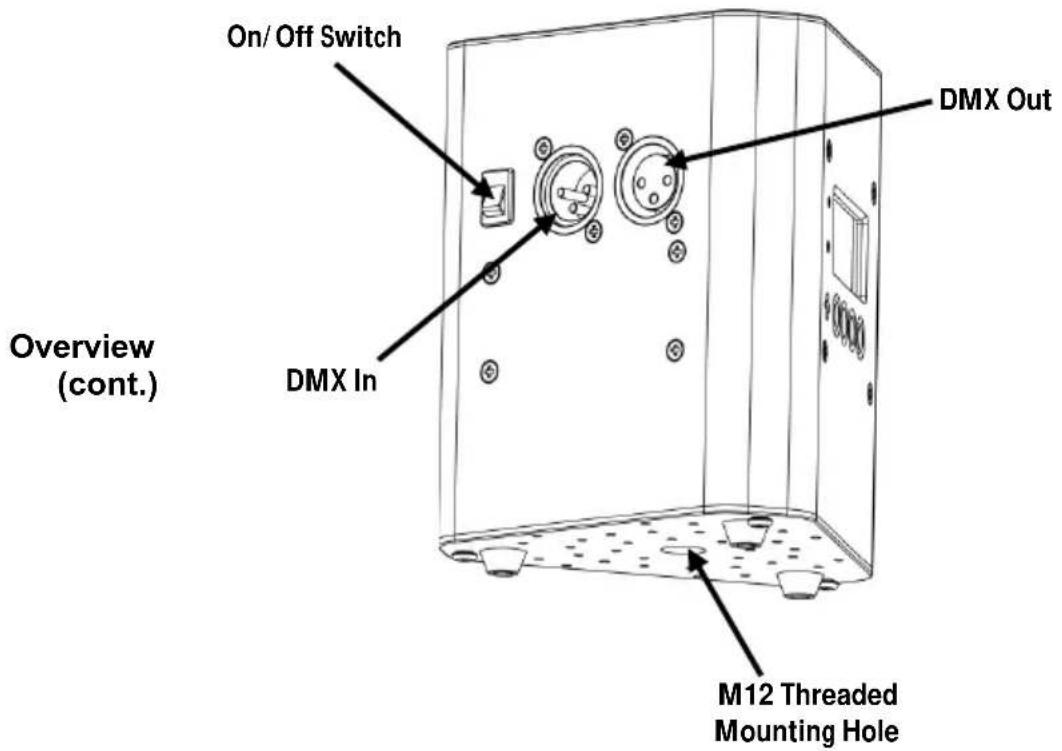

Description
The EZwedge™ Tri is a battery-operatedd tri-color LED wash light that fits perfectly inside the TRUSST® Goal Post and Arch Kit truss systems. The rechargeable lithium battery lasts up to 20 hours from a single charge. I attaches to 35-mm truss without the need for a bracket, using M10 and M12 threaded rigging points. Easily control static olors and automated program with the included IRC-6 remote controller. Built-in dimming curves provide smooth dimming. Create coordinated light shows by linking other tri-clor LED fixtures in Master/Slave mode.
AC Power This product has an auto-ranging power supply that can work with an input voltage range of 100 to 240 VAC, 50/60Hz .
Power Linking For the maximum number of EZwedge™ Triproducts that you can power link at each voltage, see the sticker on the product or the User Manual.
Fuse 1. Disconnect the product from power.
Replacement 2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.
Charging the Battery The EZwedge™ Tri comes with a rechargeable lithium battery for cable-free operation. To charge the battery, simply plug in the external power cord at any time before, during, or after operation. You can charge the battery with the LEDs off by leaving the power switch in the Off position. The indicator light on the external power supply turns red while the battery is charging, then it turns green when the battery is done charging.
For optional battery life, charge the EZwedge™ Tri battery for 24 hours prior to initial use.
Battery Run Time
| Maximum Run Time (all colors on) | Maximum Run Time (single color on) | Recharge Time |
| Up to 8 hours | Up to 20 hours | 6 hours |
IRC-6 (Infrared Remote Controller from CHAUVET® DJ. For more information on the IRC-6 or to download instructions, go to www.chauvetlighting.com.

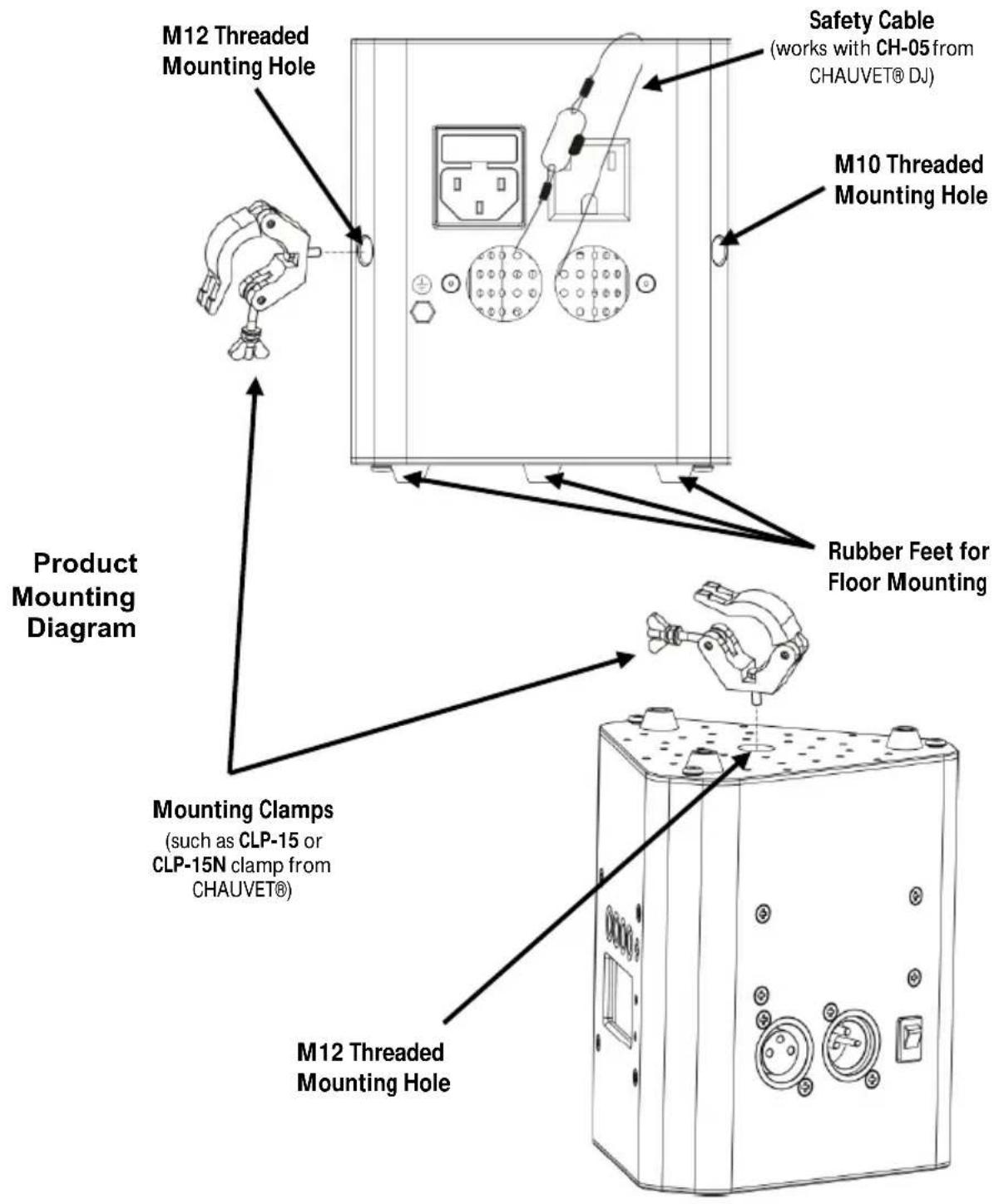

Mounting Before mounting this product, read the Safety Notes.
| Control Panel Description | Button Function | |
| <MENU> | Exits from the current menu or function | |
| <UP> | Navigates upwards through the menu list and increases the numeric value when in a function | |
| <DOWN> | Navigates downwards through the menu list and decreases the numeric value when in a function | |
| <ENTER> | Enables the currently displayed menu or sets the currently selected value into the selected function | |
Menu Options
| Main Function | Programming Levels | Description | |
| DMX Personalities and Starting Address | 3-CH | d 1-d512 | Selects DMX personality and starting address |
| 8-CH | |||
| Static Colors C-- | C 1 | Red | |
| C 2 | Green | ||
| C 3 | Blue | ||
| C 4 | Cyan | ||
| C 5 | Magenta | ||
| C 6 | Yellow | ||
| C 7 | White | ||
| Auto Programs P-- | P 1 | Auto program 1 (3-color snap) | |
| P 2 | Auto program 2 (3-color fade) | ||
| P 3 | Auto program 3 (7-color snap) | ||
| P 4 | Auto program 4 (7-color fade) | ||
| Program Speed | S-- | S 1-S100 | Selects auto program speed (slow to fast) |
| Sound-Active Mode | Snd | Snd1 | 3-color Sound-Active mode |
| Snd2 | 7-color Sound-Active mode | ||
| Sound Sensitivity | SenS | u 0-u100 | Sound sensitivity control |
| Custom Settings U-- | r 0-r255 | Red (0-100%) | |
| g 0-g255 | Green (0-100%) | ||
| b 0-b255 | Blue (0-100%) | ||
| Dimmer Mode | dIM | OFF | Dimmer speed off |
| dIM1 | Dimmer mode 1, fast speed | ||
| dIM2 | Dimmer mode 2, middle speed | ||
| dIM3 | Dimmer mode 3, slow speed | ||
| Infrared SET | On | Turns infrared on or off | |
| OFF | |||
DMX Linking
The EZwedge™ Tri can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetlighting.com.
Starting To ensure full access to all channels in each DMX mode, the highest Address recommended DMX address is 505.
Master/Slave The EZwedge™ Tri uses the DMX data connection for its Master/Slave Connection mode. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.
DMX Values
| 8-CH Channel | Function | Value | Percent/Setting |
| 1 | Red | 000 Ü 255 | 0-100% |
| 2 | Green | 000 Ü 255 | 0-100% |
| 3 | Blue | 000 Ü 255 | 0-100% |
| 4 Color | 000 Ü 015 | No function | |
| 016 Ü 255 | Color macros | ||
| 5 | Strobe | 000 Ü 015 | No function |
| 016 Ü 255 | Strobe, slow to fast | ||
| Speed | 000 Ü 255 | Auto programs speed, slow to fast (when Channel 6 is 032-223) | |
| 6 Auto Programs | 000 Ü 031 | No function | |
| 032 Ü 063 | 0-100% | ||
| 064 Ü 095 | 100%-0 | ||
| 096 Ü 127 | 100%-0-100% | ||
| 128 Ü 159 | Color fade | ||
| 160 Ü 191 | 3-color snap | ||
| 192 Ü 223 | 7-color snap | ||
| 224 Ü 255 | Sound-Active | ||
| 7 Dimmer | 000 Ü 255 | 0-100% | |
| 8 Dimmer Mode | 000 Ü 051 | Dimmer mode manually set in Menu Options | |
| 052 Ü 101 | Dimmer mode off | ||
| 102 Ü 152 | Dimmer mode 1, (fast speed) | ||
| 153 Ü 203 | Dimmer mode 2, (medium speed) | ||
| 204 Ü 255 | Dimmer mode 3, (slow speed) | ||
| 3-CH Channel | Function | Value | Percent/Setting |
| 1 | Red | 000 Ü 255 | 0-100% |
| 2 | Green | 000 Ü 255 | 0-100% |
| 3 | Blue | 000 Ü 255 | 0-100% |
