USER MANUAL Bubble Machine Chauvet

Line drawing of a box with six circular components and a handle, no text or symbols present

Abstract black-and-white gradient pattern with no text or symbols

CHAVET3

About This Guide

The B-250 Bubble Machine Quick Reference Guide (QRG) only contains the product's connection, mounting, and operation information. Download the User Manual from www.chauvetlighting.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Limited Warranty

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvctlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important safety information about installation, usage, and maintenance.

• Always connect this product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect from the power source before cleaning this product.
• Never disconnect this product from power cord by pulling or tugging on the cord.
• If mounting this product overhead, always secure it to a fastening device using a safety cable.
• Do not mount this product on a flammable surface.
- Do not drink the bubble fluid. If you do, call your local emergency service (911 in the US) for help.
• Do not add perfume, alcohol, gasoline, or other flammables to the fluid.
- Make sure the voltage of the outlet to which you are connecting is within the range stated on the decal or rear panel of the product.
- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
- Always install this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- Be sure that no ventilation slots on the unit's housing are blocked.
• Do not obstruct the bubble wands or leave machine unattended.
• Never connect this product to a dimmer or rheostat.
- Replace the fuse with another of the same type and rating.
• Never carry this product from the power cord or any moving part.
• Only use the hanging/mounting bracket to carry this product.
- The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• Do not overfill; spillage may occur. Always mount on a flat, level surface.
- Do not leave unused fluid in the reservoir for an extended period. The fluid may thicken in the reservoir.
• In the event of a serious operating problem, stop using the unit immediately.
- Never try to repair this product. Repairs performed by unauthorized technicians can lead to damage or malfunction. Please contact the nearest authorized technical assistance center.
- To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Contact

Outside the US, United Kingdom, Ireland, France, Germany, Mexico, or Benelux, contact your distributor to request support or return a product. Visit www.chauvetlighting.com for contact information.

What Is Included

• B-250 Bubble Machine
- Power Cord
- Hanging Bracket with Mounting Hardware
• Quick Reference Guide

To Begin

Unpack your Bubble Machine and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

Description

The Bubble Machine is a lightweight, portable bubble machine designed for larger areas. For best results, use Chauvet bubble fluid.

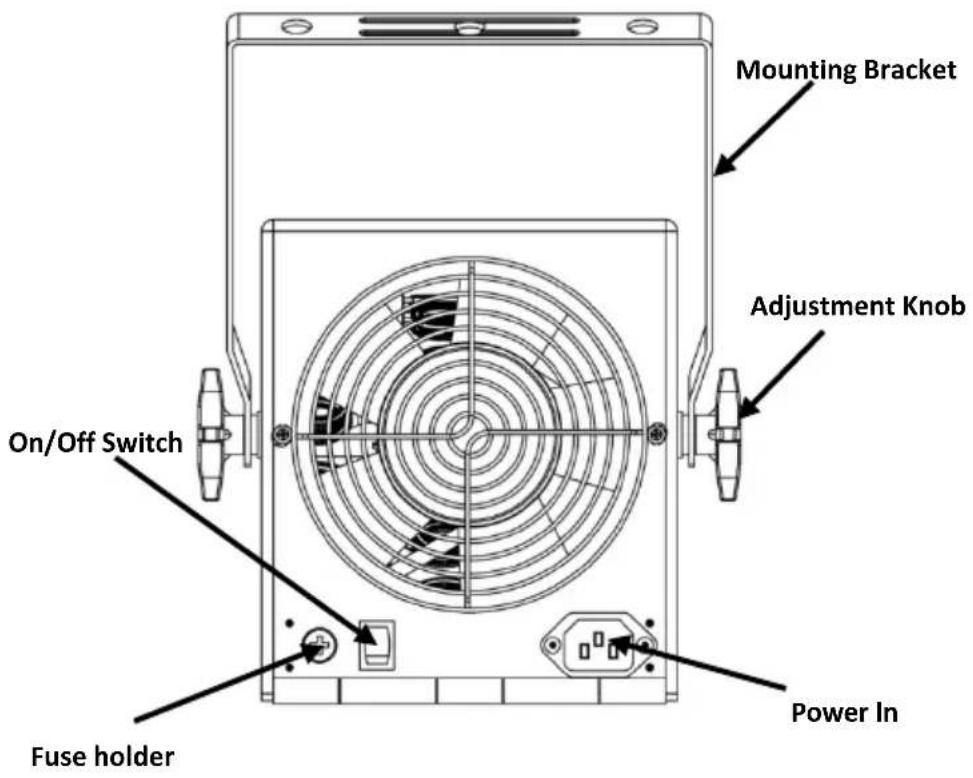

Product Overview

Mounting Bracket Adjustment Knob On/Off Switch Fuse holder Power In

AC Power

This product has a voltage-specific power supply that can work with an input voltage of 120 VAC, 60 Hz or 230 VAC, 50 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Fuse Replacement

1. Disconnect this product from power.
2. With a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back into place and reconnect power.

Mounting

Before mounting this product, read the Safety Notes. Place bubbler on a flat level surface or use the mounting brackets provided. Ensure that the bubbles are not shooting directly into anyone's face or above heavy traffic areas, as bubble fluid leaves a slippery surface. The bubble machine must not have more than a 5^ angle of inclination.

Fill/Replace Bubble Fluid

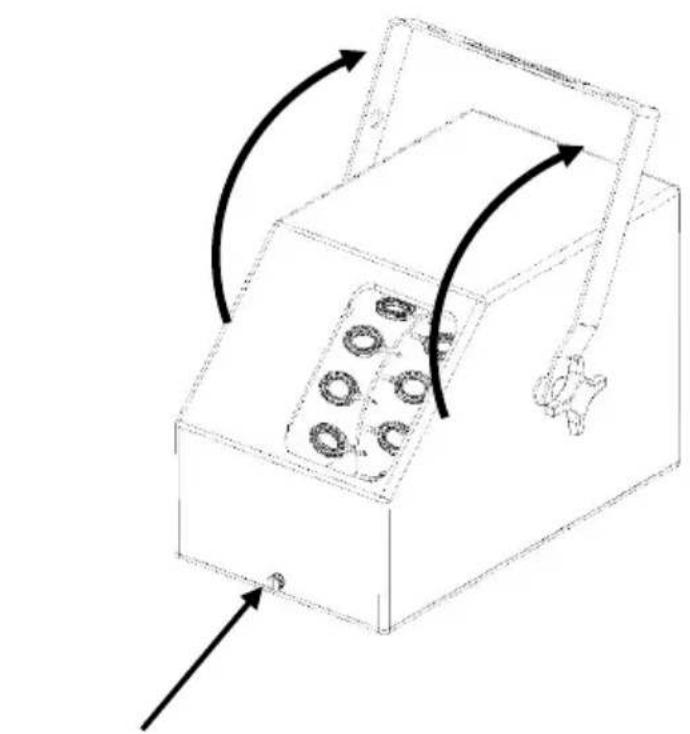

1. Place the Bubble Machine on a level surface and loosen the thumbscrew on the front of the unit for fluid tank access. Lift the cover.
2. Fill the tank with bubble fluid.

Note: Use of CHAUVET bubble fluid (BJU or BJG), specially formulated for use with CHAUVET bubble machines, is recommended. The tank capacity is 24 oz (0.7 l).

1. Lower the cover and tighten the screw.

Operation

1. Plug into a suitable wall outlet.
2. Turn on the Bubble Machine.

Note: Do not leave unused fluid in the reservoir for an extended period. The fluid may thicken in the reservoir.

Line drawing of a box with gears and a handle, showing rotational arrows (no text or symbols)

Thumb Screw

Acerca de Esta Guía

Diagram of a mechanical device with gears and a handle, showing rotational motion arrows (no text or symbols)

Tornillo demano

Line drawing of a box with circular components and directional arrows indicating rotation or movement (no text or symbols)

Flügelschrauben

Diagram of a box with rollers inside and arrows indicating rotation or movement (no text or symbols)

Viti manuali

Diagram of a box with circular components and directional arrows indicating rotation or movement (no text or symbols)

Duimschroeven
