Product Type	LED Effect Projector
Brand	Chauvet
Model	SlimPAR Pro W USB
Power Supply	100-240 VAC, 50/60 Hz (universal)
Light Sources	LEDs: warm white, cool white, amber
DMX Modes	3, 4 and 9 channels
Connectivity	Wired DMX, infrared (IRC-6), D-Fi USB (wireless)
Main Features	Dimmer, strobe, auto programs, sound-activated mode, customizable static colors, color macros
Protocol	DMX512
Power Linking	Possible (see manual for max number)
Max Ambient Temperature	40 °C (104 °F)
Protection Rating	IP20 (indoor only)
Fuse	Same type and amperage as original fuse
Package Contents	Projector, power cord, gel frame, gel holder, reference manual
Safety	Grounding mandatory, use safety cable when hanging, do not expose eyes to light source, minimum distance 50 cm from surfaces, do not open
Maintenance and Cleaning	Unplug before cleaning, replace fuse with identical one
Spare Parts and Repairability	No user-serviceable parts (except fuse)
Warranty	Limited, see Chauvet website for terms
Usage	Indoor only, do not expose to rain or moisture

Frequently Asked Questions - SlimPAR Pro W USB Chauvet

How to set the DMX start address?

Use the navigation buttons to access the menu, select the desired DMX mode (3, 4, or 9 channels), then set the address from B001 to 512 using the up/down buttons. Confirm with ENTER.

What operating modes are available?

Modes include: DMX (3, 4, or 9 channels), static colors (7 colors), auto programs (P1 to P4 with adjustable speed), sound-activated programs (Snd1 and Snd2), and custom color mixing (U--).

How to use sound-activated mode?

Select mode Snd1 (3 colors) or Snd2 (7 colors) in the menu. Adjust the sound sensitivity via the SEnS parameter (u--0 to 100) so the fixture reacts to music.

How to connect multiple fixtures in master/slave?

Use DMX cables to link the fixtures in series. Configure the first one in DMX mode with an address (master) and the following ones in slave mode (same address or via dedicated menu). Refer to the manual for details.

How to use the IRC-6 infrared remote?

Enable the infrared mode in the menu (SEr On). Point the IRC-6 remote toward the fixture's receiver to control basic functions (dimmer, color, etc.).

How to replace the fuse?

Unplug the unit. Use a flat-head screwdriver to loosen the fuse holder and remove it. Replace the blown fuse with a fuse of the same type and amperage. Reinsert the fuse holder and plug back in.

What type of fuse to use?

Use exclusively a fuse of the same type and amperage as the original. Check the label on the unit or the manual for exact specifications.

How to configure a 9-channel DMX mode?

In the menu, select 9-CH mode, then set the DMX start address (B001 to 504). Each channel controls a function: dimmer, warm white, cool white, amber, color macros, strobe, programs, speed/sensitivity, dimming speed.

Can I use this projector outdoors?

No, the fixture is rated IP20 and must be used indoors only. Do not expose it to rain or moisture to avoid risk of fire or electric shock.

How to power link multiple fixtures?

You can power link multiple SlimPAR Pro W USB units using the power output socket. The maximum number of linked fixtures depends on the mains voltage (120V or 240V). See the manual or label for exact values.

USER MANUAL SlimPAR Pro W USB Chauvet

CHAUVET 3

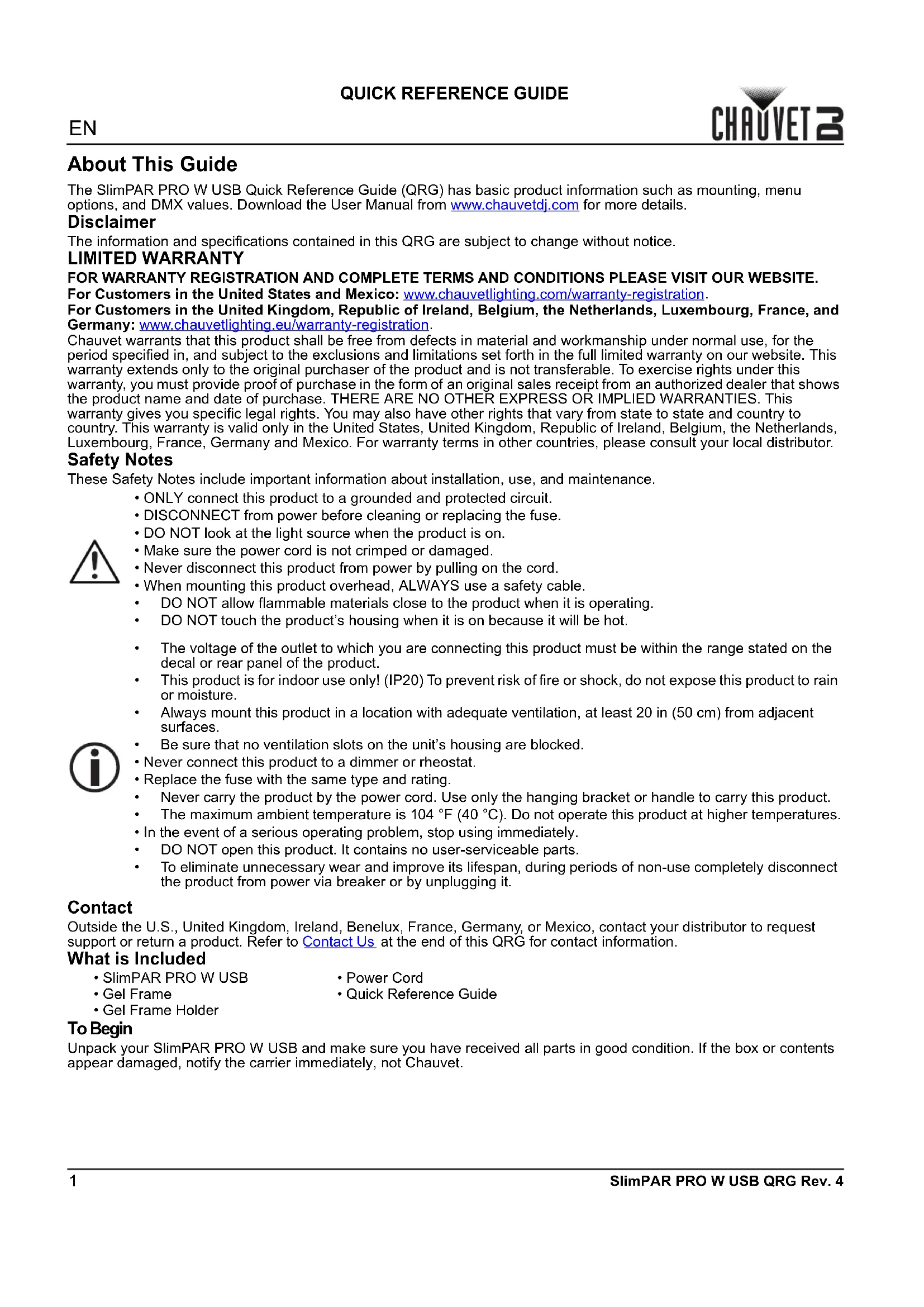

About This Guide

The SlimPAR PRO W USB Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.

• DO NOT allow flammable materials close to the product when it is operating.

- DO NOT touch the product's housing when it is on because it will be hot.

- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.

• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- Be sure that no ventilation slots on the unit's housing are blocked.

- Never connect this product to a dimmer or rheostat.

- Replace the fuse with the same type and rating.

• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104\ °F ( 40\ °C ). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using immediately.

• DO NOT open this product. It contains no user-serviceable parts.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

- SlimPAR PRO W USB

- Power Cord

- Gel Frame

- Quick Reference Guide

- Gel Frame Holder

To Begin

Unpack your SlimPAR PRO W USB and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

For the maximum number of SlimPAR PRO W USB products that you can power link at each voltage, see the User Manual or the sticker on the product.

Fuse Replacement

1. Disconnect the product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

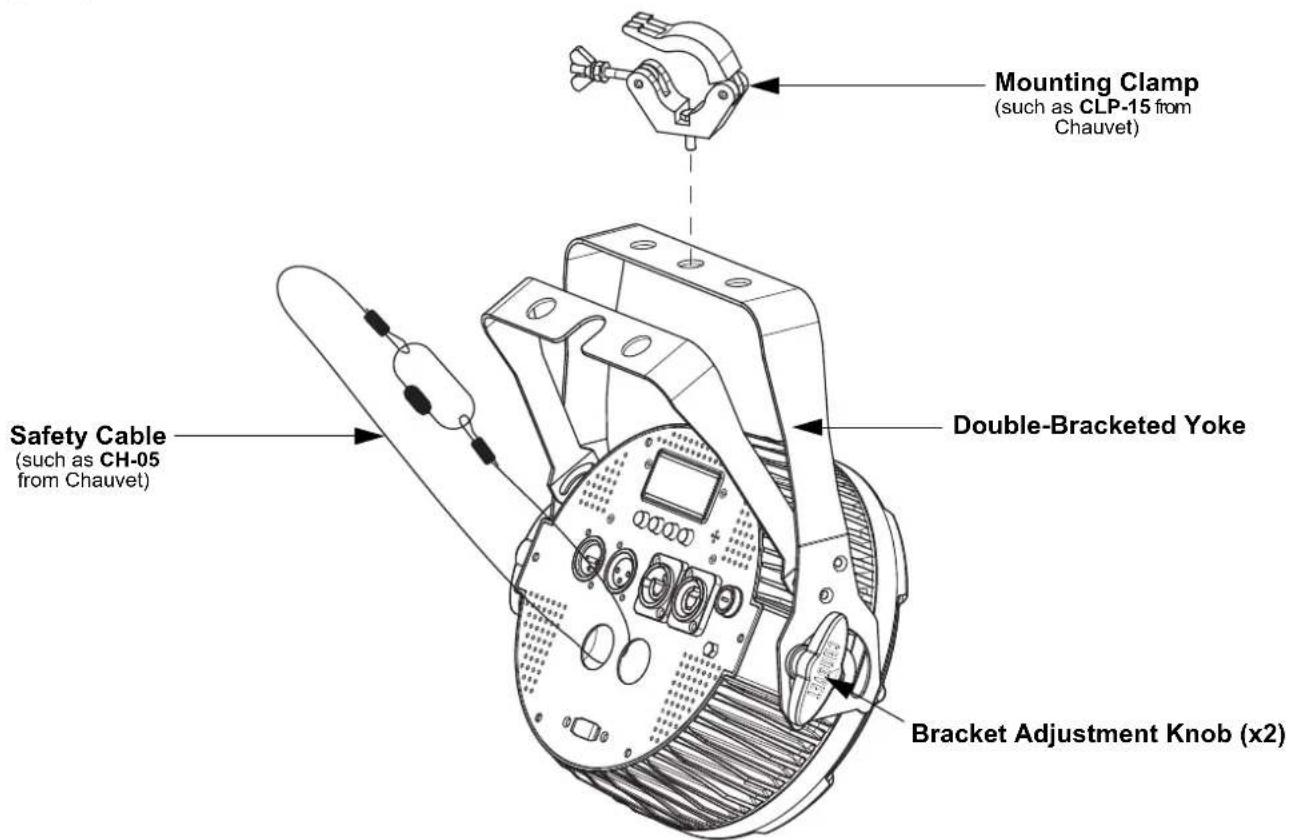

Mounting Diagram

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Mode Programming Levels Description
DMX Mode	3-CH	d100 DMX2 mode	3-channel DMX mode
	4-CH 4-channel DMX mode
	9-CH 9-channel DMX mode
Static Colors C-- C 1-7 Static colors
Automatic Programs P--		P1 3-color program (snap)
		P2 3-color program (pulse)
		P3 7-color program (snap)
		P4 7-color program (fading)
Program Speed S-- S--1-100 Program speed for P 1-4
Sound-Active Programs	Snd	Snd1	3-color sound-active program
		Snd2	7-color sound-active program
Sound Sensitivity	SEnS	u--0-100	Sound sensitivity
Custom Color Mixing	U--	C000-255	Custom static colorsCombine cool white, amber, and warm white
		A000-255
		W000-255
Dimmer Speed Mode	dIM	OFF	Linear dimmer
		dIM1	Dimmer speed settings: dIM1 (slow) to dIM1 (fast)
		dIM2
		dIM3
Infrared Mode	SEr	On	Enables or disables infrared control
		OFF

DMX Linking

The SlimPAR PRO W USB can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 504.

Master/Slave Connection

The SlimPAR PRO W USB uses the DMX data connection for its Master/Slave mode. Information about configuring the SlimPAR PRO W USB for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

IRC-6 (Infrared Remote Control)

The SlimPAR PRO W USB can be operated with the CHAUVET IRC-6. For more information about the IRC-6, download instructions for the IRC-6 or the SlimPAR PRO W USB User Manual from www.chauvetdj.com.

D-Fi USB Connectivity

The SlimPAR PRO W USB is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product's DMX Personality and DMX Address. Further instructions for connecting and configuring this product for D-Fi USB operation are in the User Manual.

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.

Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:

1. D-Fi USB
2. Wired DMX
3. IRC-6 Remote Control
4. Manual Digital Display/Menu Buttons

DMX Values

9-CH

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2 Warm white 000 ⇔ 255 0–100%
3 Cool white 000 ⇔ 255 0–100%
4 Amber 000 ⇔ 255 0–100%
5 Color Macros		000 ⇔ 015 No function
		016 ⇔ 255 Color macros
6 Strobe		000 ⇔ 015 No function
		016 ⇔ 255 Strobe, slow to fast
7	Automatic/Sound-Active Programs	000 ⇔ 031 No function
		032 ⇔ 063 Pulse strobe (0–100%)	When Ch. 2–4 are active
		064 ⇔ 095 Pulse strobe (100–0%)
		096 ⇔ 127 Pulse strobe (0–100–0%)
		128 ⇔ 159 Auto fade transition
		160 ⇔ 191 Auto snap transition (3-color)
		192 ⇔ 223 Auto snap transition (7-color)
		224 ⇔ 249 Sound-active mode (3 colors)
		250 ⇔ 255 Sound-active mode (7 colors)
8	Auto Speed (when Ch. 7 is 032 ⇔ 223)	000 ⇔ 255 Auto program speed, slow to fast
	Sound Sensitivity (when Ch. 7 is 224 ⇔ 255)	000 ⇔ 010 Sound sensitivity Off
		011 ⇔ 255 Sound sensitivity, low to high
9 Dimmer Speed Mode		000 ⇔ 051 Dimmer speed set from display
		052 ⇔ 101 Dimmer speed mode off
		102 ⇔ 152 Dimmer speed mode 1 (fast)
		153 ⇔ 203 Dimmer speed mode 2 (medium)
		204 ⇔ 255 Dimmer speed mode 3 (slow)

4-CH

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2 Warm white 000 ⇔ 255 0–100%
3 Cool white 000 ⇔ 255 0–100%
4 Amber 000 ⇔ 255 0–100%

3-CH

Channel Function Value Percent/Setting
1 Warm white 000 ⇔ 255 0–100%
2 Cool white 000 ⇔ 255 0–100%
3 Amber 000 ⇔ 255 0–100%

Acerca de esta guía

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Email: [e-mail]

Zona Industrial Lerma Website: www.chauvetdj.mx

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.

SlimPAR PRO W USB QRG Rev. 4 ML6

© Copyright 2019 Chauvet

All rights reserved

Printed in the P.R.C.
