Product type	Cordless Angle Drill
Brand	Parkside
Model	PWBSA 12 A1
Rated voltage	12 V (DC)
Battery type	Lithium-ion
Battery capacity	2 Ah (24 Wh)
No-load speed	0–1300 min⁻¹
Max torque (hard/soft)	11 Nm / 3 Nm
Chuck capacity	∅ max. 10 mm
Max drilling diameter (steel)	10 mm
Max drilling diameter (wood)	10 mm
Max screw diameter	6 mm
Number of angle positions	5 positions
Functions	Drilling, screwdriving, forward/reverse, variable speed, spindle lock
Work light	Integrated LED
Charge level indicator	LED (red/orange/green)
Sound pressure level	75,3 dB(A)
Sound power level	86,3 dB(A)
Vibration (metal drilling)	3,96 m/s²
Charge temperature	10 °C to 40 °C
Storage temperature	0 °C to 50 °C
Maintenance	Clean with a dry cloth, no oil or grease
Spare parts	Battery, charger, switch available via customer service

Frequently Asked Questions - PWBSA 12 A1 PARKSIDE

What are the intended uses of the Parkside PWBSA 12 A1 drill?

The drill is designed for screwdriving and drilling in wood, metal, ceramic and plastic, especially in hard-to-reach places. It is not intended for professional use.

Which battery should be used with this model?

Use only batteries from the X12V Team series: PAPK 12 A1, A2, A3, B1, B3, C1 or D1. The PAPK 12 A3 2 Ah battery is supplied with the device (unless otherwise stated).

How to charge the battery?

Insert the battery into the quick charger (PLGK 12 A2 or compatible) and plug it in. The red LED indicates charging, the green LED signals that the battery is ready. Charging time is approximately 60 minutes for a 2 Ah battery.

How to adjust the rotation speed?

The speed is variable depending on the pressure on the ON/OFF switch. Press lightly for low speed, harder for high speed. Adapt the speed to the material and screw size.

How to change the rotation direction?

Use the forward/reverse switch located above the trigger. Push it to the right for forward rotation (screwing), to the left for reverse rotation (unscrewing). Only operate it when the device is at a standstill.

How to adjust the head angle?

Press the release button at the back of the head and turn the chuck to the desired angle (5 positions available). Release the button to lock. Check that the head is properly locked before use.

What to do if the battery is empty while screwdriving?

Thanks to the spindle lock, you can use the tool as a manual screwdriver: the chuck remains locked when the switch is not pressed, allowing screwing/unscrewing even without power.

What safety precautions should be observed?

Wear hearing protection and a dust mask. Hold the tool by insulated gripping surfaces when there is a risk of contact with electric cables. Do not drill in areas where pipes may be present without a detector.

How to maintain the drill?

The device requires no special maintenance. Clean the housing with a dry cloth. Do not use solvents or aggressive products. Keep the battery contacts clean.

Where can I order spare parts?

Spare parts such as the battery or switch can be ordered via the customer service hotline: France 0800 919270, Belgium 0800 12089. Have the IAN number 391297_2201 ready.

USER MANUAL PWBSA 12 A1 PARKSIDE

Exterior view of a black handheld electric drill bit (no visible text or symbols)

PDF ONLINE www.lidl-service.com

CORDLESS ANGLE DRILL 12V / AKKU-WINKELBOHR-SCHRAUBER 12 V / PERCEUSE D'ANGLE SANS FIL 12 V PWBSA 12 A1

GB IE

CORDLESS ANGLE DRILL 12V

Translation of the original instructions

FR BE

PERCEUSE D'ANGLE SANS FIL 12 V

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB / IE Translation of the original instructions Page 1

Technical diagram of a mechanical component with numbered parts labeled 10, 11, and 12

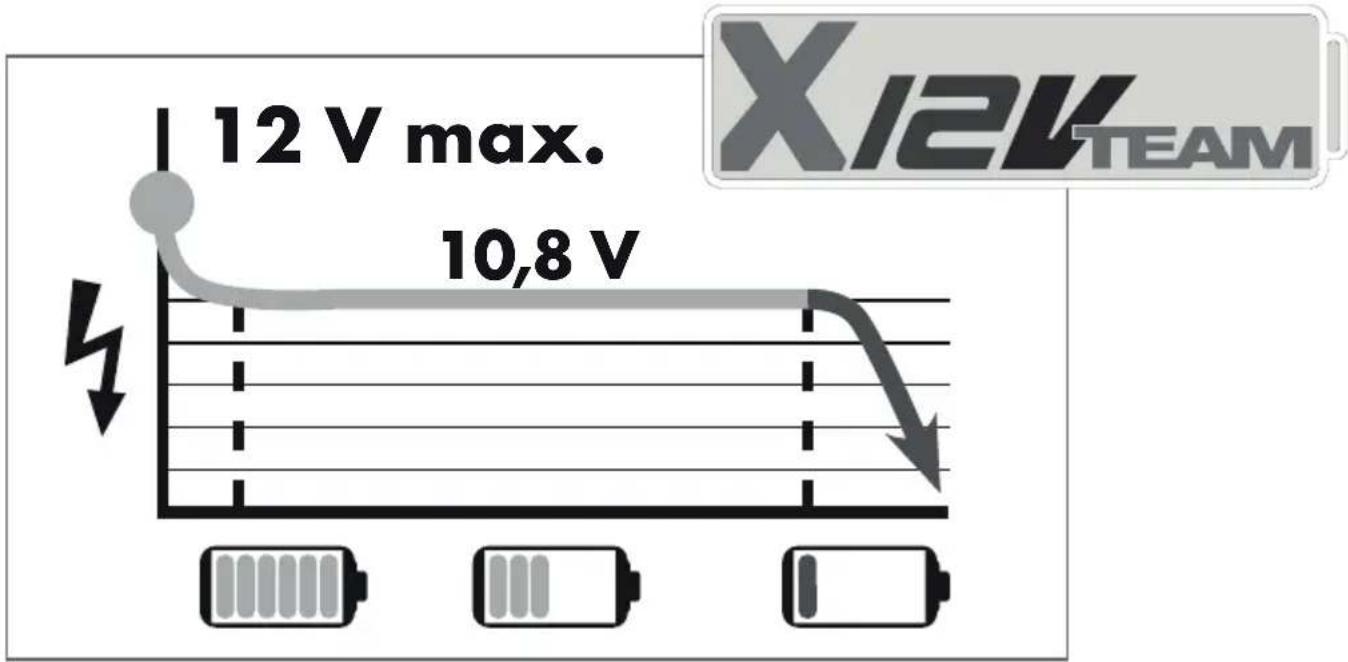

All Parkside tools and the chargers PLGK 12 A1/A2/A3/B2/PDSLG 12 A1 of the X12V Team series are compatible with the PAPK 12 A1/A2/A3/B1/B3/C1/D1 battery pack.

Technical specifications 2

General power tool safety warnings....3

1. Work area safety 3

2. Electrical safety ....

3. Personal safety 4

4. Power tool use and care 4

5. Use and handling of the cordless electrical power tool....5

6. Service 5

Safety instructions for drills....5

Appliance-specific safety instructions....6

Safety guidelines for battery chargers....6

Original accessories/attachments 7

Before use 7

Charging the battery pack 7

Inserting/removing the battery pack 7

Checking the battery charge level 7

Use 7

Changing tools 7

Select direction of rotation 8

Switching on/off 8

Setting the rotational speed 8

Spindle lock 8

Adjusting the tool head 8

Tips and tricks 8

Maintenance and cleaning 9

Disposal....9

Kompernass Handels GmbH warranty 10

Service....11

Importer....11

Original declaration of conformity 12

Ordering replacement batteries 13

Telephone ordering 13

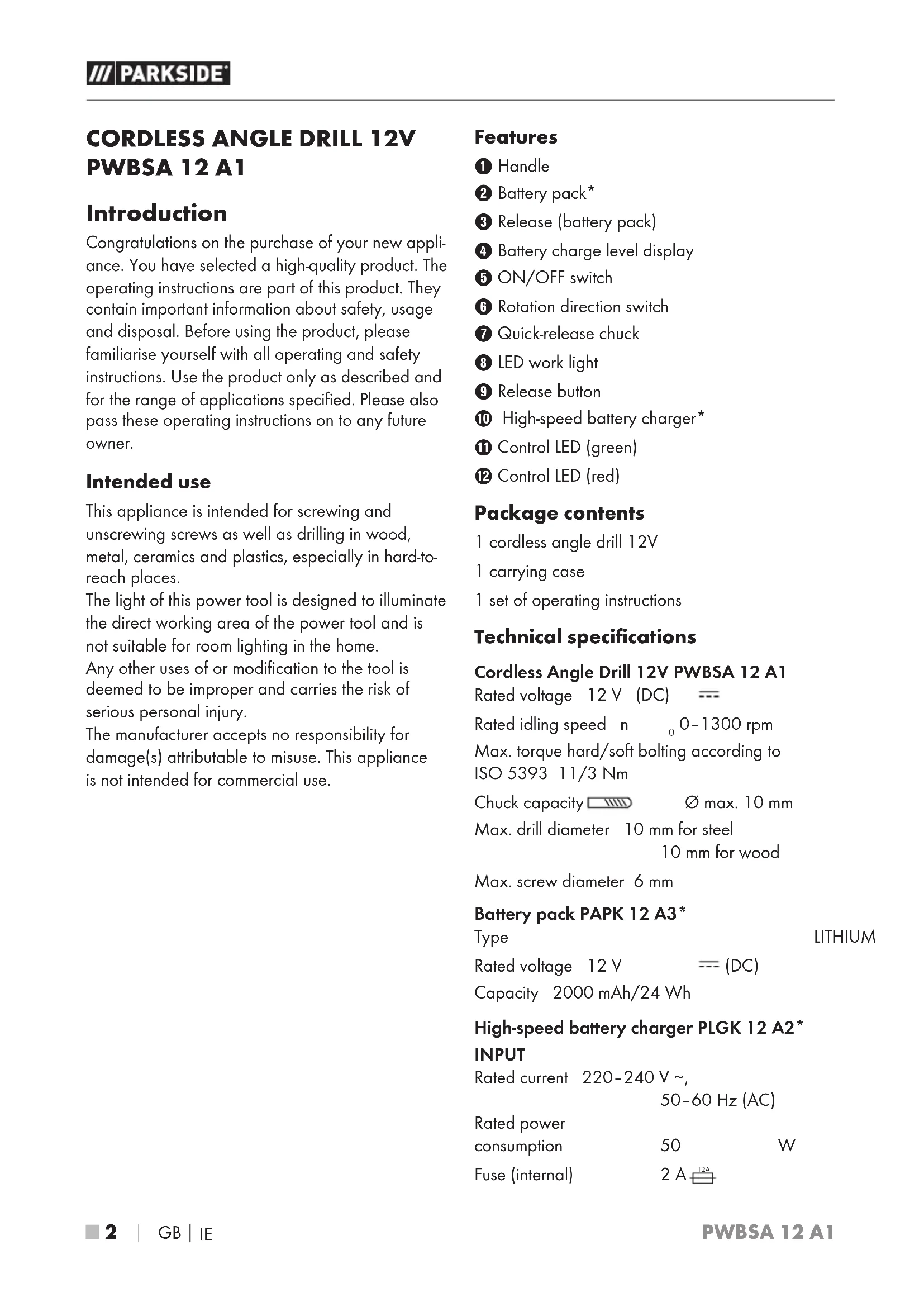

CORDLESS ANGLE DRILL 12V PWBSA 12 A1

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended for screwing and unscrewing screws as well as drilling in wood, metal, ceramics and plastics, especially in hard-to-reach places.

The light of this power tool is designed to illuminate the direct working area of the power tool and is not suitable for room lighting in the home.

Any other uses of or modification to the tool is deemed to be improper and carries the risk of serious personal injury.

The manufacturer accepts no responsibility for damage(s) attributable to misuse. This appliance is not intended for commercial use.

Features

① Handle
② Battery pack*
③ Release (battery pack)
④ Battery charge level display
⑤ ON/OFF switch
6 Rotation direction switch
7 Quick-release chuck
⑧ LED work light
9 Release button
10 High-speed battery charger*
⑪ Control LED (green)
12 Control LED (red)

Package contents

1 cordless angle drill 12V
1 carrying case
1 set of operating instructions

Technical specifications

Cordless Angle Drill 12V PWBSA 12 A1

Rated voltage 12 V (DC) ---

Rated idling speed n 0-1300 rpm

Max. torque hard/soft bolting according to ISO 5393 11/3 Nm

Chuck capacity ☐ max. 10 mm

Max. drill diameter 10 mm for steel

10 mm for wood

Max. screw diameter 6 mm

Battery pack PAPK 12 A3*

Type

LITHIUM

Rated voltage 12 V = (DC)

Capacity 2000 mAh/24 Wh

High-speed battery charger PLGK 12 A2 ^* INPUT

Rated current 220-240 V \~, 50-60 Hz (AC)

Rated power

consumption 50 W

Fuse (internal) 2 A T2A

OUTPUT

Rated voltage 12 V (DC)

Rated current 2400 mA

Charging time approx. 60 min

Protection class II /

□ (double insulation)

* BATTERY AND CHARGER ARE NOT SUPPLIED

Noise emission values

Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool at the working location is typically as follows:

Sound pressure level L

$$ _ {p A} = 7 5. 3 \mathrm{dB(A)} $$

Uncertainty

$$ _ {D A} = 5 \mathrm{dB} $$

Sound power level L

$$ _ {W A} = 8 6. 3 \mathrm{dB(A)} $$

Uncertainty

$$ _ {W A} = 5 \quad d B $$

Wear ear muffs!

Total vibration values (vector total of three directions) determined in accordance with EN 62841:

Drilling in metal

$$ \alpha_ {h, D} = 3. 9 6 \mathrm{m} / \mathrm{s} ^ {2} $$

Uncertainty

$$ K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

NOTE

The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

▶ Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.

WARNING!

▶ Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a power tool may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use.

A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and accessory tools etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
e) Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.

f) Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130^ C ( 265^ F) can cause an explosion.
g) Follow all instructions regarding charging and never charge the battery or the cordless tool outside of the temperature range given in the operating instructions. Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries.

Protect the recharge- at (for example, from to sunlight), fire, water a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified specialist using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never try to repair damaged batteries. Batteries should only be maintained by the manufacturer or an approved customer service centre.

Safety instructions for drills

Safety instructions for all work

Wear ear muffs. Exposure to loud noise can lead to hearing loss.

■ Hold the power tool only by the insulated handles when you are carrying out work in which the accessory tool or the screws may come into contact with concealed power cables. Contact with a live wire may electrify exposed metal parts of the tool and could give the operator an electric shock.

Wear a dust mask.

Safety information for using long drill bits

- Do not use a higher rotational speed than the maximum permissible speed. At higher speeds, the drill bit can bend slightly if allowed to turn freely without being in contact with the workpiece, and this can lead to injuries.

■ Always start drilling at a low speed and with the drill bit in contact with the workpiece. At higher speeds, the drill bit can bend slightly if allowed to turn freely without being in contact with the workpiece, and this can lead to injuries.

■ Do not exert excessive pressure and only apply pressure along the length of the drill bit (no lateral pressure). Drill bits can bend and break which can lead to a loss of control and injuries.

Appliance-specific safety instructions

WARNING! TOXIC DUSTS!

▶ Working with the tool can produce harmful/toxic dusts which represent a health hazard for the person operating the appliance and for anyone else in the vicinity.

■ CAUTION, POWER CABLES! DANGER!

Ensure that you are not likely to contact power, gas or water supply lines when you are working with the power tool. If necessary, check with a service line detector before you start to cut or drill into a surface.

■ Collect any dust that is produced; for example, using a vacuum cleaner.

Residual risks!

Even if you operate this power tool properly, there will still be residual risks. The following risks can occur in the context of the design and construction of this power tool:

1. Lung damage, if no suitable dust protection mask is worn.
2. Hearing damage, if no suitable hearing protection is worn.
3. Damage to health resulting from hand-arm vibrations if the appliance is used for an extended period of time or is not properly used and maintained.

WARNING!

The power tool creates an electromagnetic field during operation. This field can, in certain circumstances, impair active or passive medical implants. To reduce the risk of serious or fatal injuries, we recommend that individuals with medical implants consult their doctor and the manufacturer of the medical implant before operating the tool.

Safety guidelines for battery chargers

■ This tool may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the tool safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

The charger is suitable for indoor use only.

■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

CAUTION!

This charger can only charge the following rechargeable batteries: PAPK 12 A1/PAPK 12 A2/PAPK 12 A3/PAPK 12 B1/PAPK 12 B3/PAPK 12 C1/PAPK 12 D1.

▶ A current list of battery compatibility can be found at www.Lidl.de/Akku.

Original accessories/attachments

■ Use only the additional equipment and accessories specified in the operating instructions.

Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.

WARNING!

- Do not use any accessories which are not recommended by PARKSIDE. This can lead to an electric shock and fire.

Before use

Charging the battery pack

CAUTION!

▶ Always disconnect the mains plug before removing or inserting the battery pack ② from the high-speed charger ⑩.

NOTE

▶ Never charge the battery pack at an ambient temperature of below 10^ C or above 40^ C. If a lithium-ion battery is going to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0^ C and 50^ C.

Insert the battery pack ② into the high-speed charger ⑩.

◆ Insert the power plug into the socket. The control LED ⑫ lights up red.

The green LED ⑪ indicates that the charging process is complete and the battery pack is ready for use.

◆ Push the battery pack ② back into the appliance.

You should always switch the high-speed charger 10 off for at least 15 minutes between successive charging processes. Also disconnect the power plug from the mains power socket.

Inserting/removing the battery pack

Inserting the battery pack

◆ Snap the battery pack ② into the handle ①.

Removing the battery pack

◆ Press the two release buttons ③ and remove the battery pack ②.

Checking the battery charge level

- Press the ON/OFF switch ⑤ to check the charge level of the battery. The status/remaining charge will be shown on the battery charge level display ④ as follows: RED/ORANGE/GREEN = maximum charge/performance RED/ORANGE = medium charge/performance RED = low charge - charge the battery

Use

Changing tools

Your tool has a fully automatic spindle lock SPINDLE LOCK When the motor is stopped, the power train locks so that the quick-release chuck ⑦ can be opened by turning it ↗. After you have attached the desired tool and tightened it by turning the chuck ↗, you can continue working.

The spindle lock is released automatically when the motor is started (by pressing the ON/OFF switch 5).

Select direction of rotation

WARNING!

The rotation direction switch 6 may only be used/adjusted when the tool is at a standstill.

Select the direction of rotation by pushing the rotation direction switch ⑥ to the right or left.

Switching on/off

Switching on

Press the ON/OFF switch ⑤ and keep it pressed in. The LED work light ⑧ lights up when the ON/OFF switch ⑤ is pressed lightly or fully. This provides illumination of the work area in poor lighting conditions.

Switching off

◆ Release the ON/OFF switch 5.

Setting the rotational speed

You can infinitely adjust the speed of the switched on power tool, depending on how far the ON/OFF switch ⑤ is pressed in.

◆ Select a low speed for small screws or soft materials.

- Select a high speed for large screws, hard materials or removing screws.

◆ Press the ON/OFF switch ⑤ only lightly to achieve a low speed. Increasing the pressure increases the speed.

Spindle lock

When the ON/OFF switch ⑤ is not pressed, the quick-release chuck ⑦ is locked.

This makes it possible to screw in screws even when the battery is discharged or to use the power tool as a screwdriver.

Adjusting the tool head

You can set the quick-release chuck ⑦ into 5 different angular positions.

Press the release button ⑨ and swivel the quick-release chuck ⑦ to the desired position.

- Then let go of the release button ⑨ again.

Before use, check whether the quick-release chuck ⑦ is locked in the respective angular position.

There is a risk of injury!

Tips and tricks

Tip! How to do things correctly.

Before operating the appliance, check whether the screw or drill bit is correctly positioned, i.e. centred in the drill chuck.

♦ Screw bits are labelled according to their dimensions and their shape. If you are uncertain, always check first whether the bit fits tightly in the screw head without any play.

Torque

♦ Smaller screws/bits can be damaged if you set the torque or rotational speed too high.

Hard screw joints (in metal)

◆ Particularly high torques occur, e.g. in metal screw joints when using drive sockets. Select a low rotational speed.

Soft screw joints (e.g. in soft wood)

◆ Here, too, use a low speed to avoid damaging the wood surface when it comes into contact with the metal screw head. Use a countersink.

When drilling in wood, metal and other materials, observe the following:

Use a high speed for drill bits with a small diameter and a low speed for drill bits with a large diameter.

◆ Select a low speed for hard materials and a high speed for soft materials.

◆ Secure or fasten the workpiece in a clamp or vice (if possible).

Mark the spot where you want to drill using a centre punch or nail. Select a low rotational speed when starting.

◆ Pull the rotating drill bit from the hole repeatedly to remove dust and chips and clear the hole.

Drilling in metal

Use a metal drill (HSS). For optimum results, cool the drill bit with cutting oil. Metal drill bits can also be used to drill into plastics. Start with a 3 mm drill bit and then increase the size until the desired hole diameter is achieved.

Drilling in wood

Use a wood drill with a lathe centre; for deep holes, use an auger bit; for large-diameter holes, use a Forstner bit. Small screws can be screwed directly into soft wood without predrilling.

Maintenance and cleaning

WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.

The tool is maintenance-free.

■ The appliance must always be kept clean, dry and free from oil or grease.
■ Never allow liquids to get into the tool.
■ Use a dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
If a lithium-ion battery is going to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry.

NOTE

▶ Replacement parts that are not listed (such as batteries, switches) can be ordered via our Service Hotline.

Disposal

FR

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/recharge able batteries may contain toxic heavy metals.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

KompernassHandelsGmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

■ Normal reduction of the battery capacity over time

■ Commercial use of the product

■ Damage to or alteration of the product by the customer

■ Non-compliance with safety and maintenance instructions, operating errors

■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 391297_2201 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 391297_2201.

WARNING!

▶ Have your tools repaired by the Service Centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the tool is maintained.
▶ Always ensure that the power plug and power cord are replaced only by the manufacturer of the appliance or the company customer service. This will ensure that the safety of the tool is maintained.

NOTE

▶ Replacement parts that are not listed (e.g. batteries, switches and grip bracket) can be ordered via our service hotline.

Service

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail]

IE ServiceIreland Tel.: [phone] E-Mail: [e-mail] IAN 391297_2201

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Original declaration of conformity

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive

(2006/42/EC)

EMC (Electromagnetic Compatibility)

(2014/30/EU)

RoHS Directive

(2011/65/EU)*

(2015/863/EU)

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards

EN 62841-1:2015

EN 62841-2-1:2018/A11:2019

EN 55014-1:2017/A11:2020

EN IEC 55014-1:2021

EN 55014-2:1997/A2:2018

EN IEC 55014-2:2021

EN IEC 63000:2018

Type/appliance designation: Cordless Angle Drill 12V PWBSA 12 A1

Year of manufacture: 06-2022

Serial number: IAN 391297_2201

Bochum, 28/03/2022

Seddyck CE

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Ordering replacement batteries

Close-up of a black cylindrical electronic device with a small labeled component (no visible text or symbols)

If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone. Due to limited stocks, this item may sell out in a relatively short time.

NOTE

▶ Online ordering of replacement parts is not possible in all countries. If this is the case, please contact the Service Hotline.

Telephone ordering

GB Service Great Britain Tel.: [phone]
IE ServiceIrelandTel.: 1800 101010

To ensure fast processing of your order, have the article number of your appliance to hand (IAN 391297_2201) in case of questions. The article number can be found on the type plate or the title page of these instructions.

Inhaltsverzeichnis

Einleitung 16

AKKU-WINKEL- BOHRSCHRAUBER 12 V PWBSA 12 A1

Einleitung

Bohren in Metall a_h,D=3,96 m/s^2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Close-up of a black cylindrical electronic device with a small button and label (no readable text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines

(2006/42/CE)

Sudaford CE

Semi Uguzlu

Close-up of a black cylindrical electronic device with a small labeled component (no visible text or symbols)

Accupack PAPK 12 A3\*

Type LITHIUM-ION

$$ L _ {W A} = 8 6, 3 \mathrm{dB(A)} $$

Onzekerheid

$$ K _ {w A} = 5 \mathrm{dB} $$

WAARSCHUWING! GIFTIGE STOFFEN!

Tip! Zo handelt u correct.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Close-up of a black cylindrical electronic device with a small button and label (no readable text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Close-up of a black cylindrical electronic device with a small rectangular component on the side (no visible text or symbols)

$$ L _ {W A} = 8 6, 3 \mathrm{dB(A)} $$

Niepewność

$$ K _ {W A} = 5 \quad d B $$

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Close-up of a black cylindrical electronic device with a small rectangular button and a label 'X' (no readable text or symbols on the device itself)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Close-up of a black cylindrical electronic component with a small square cutout and a small label 'X' on the side (no readable text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Close-up of a black cylindrical electronic device with a small labeled component (no visible text or symbols)

Boring i metal a_h,D=3,96 m/s^2

Usikkerhed K = 1,5 m/s ^4

BEMARK

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Close-up of a black cylindrical electronic device with a small rectangular component and a label 'X' (no readable text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

J. J. F. G. R. S.

CE

Semi Uguzlu

Close-up of a black cylindrical electronic device with a small button and label (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

J. E. T. G. D. C. E.

Semi Uguzlu

Close-up of a black cylindrical electronic device with a small button and label (no visible text or symbols)

Negotovost _pA = 5 dB

Raven zvočne moči L _WA = 86,3 dB (A)

Negotovost _WA = 5 dB

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 391297_2201

OPOZORILO!

▶ Naprave dajte v popravilo samo servisni službi ali strokovnjaku za elektrotehniko, ki naj uporablja le originalne nadomestne dele. S tem zagotovite, da se ohrani varnost naprave.

Zamenjavo vtiča ali priključnega voda zmeraj prepustite proizvajalcu naprave ali njegovi servisni službi. S tem zagotovite, da se ohrani varnost naprave.

OPOMBA

J. E. T. G. D. C. E.

Semi Uguzlu

- vodja kakovosti -

Close-up of a black cylindrical electronic device with a small rectangular component on top (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci · Stan informacji Stav informacií · Estado de las informaciones · Tilstand af information · Versione delle informazioni · Információk állása · Stanje informacij: 03 / 2022 · Ident.-No.: PWBSA12A1-032022-1
