Product type	Bipolar electrostatic audio speaker
Brand	Loewe
Model	Stand Speaker Slim ID
Dimensions (W x H x D)	26 x 122.5 x 26 cm
Weight	10 kg
Power supply	220-240 V, 50/60 Hz
Standby power consumption	< 0.5 W
Recommended amplifier power	50 - 150 W
Maximum permissible load	200 W
Impedance	10 - 4 Ohm
Frequency response	150 Hz - 40 kHz (-3 dB)
Sound pressure level (1W @ 3m)	82.5 dB
Operating principle	Inverse bipolar electrostatic speaker with additional treble range
Package contents	1 right speaker, 1 left speaker, 2 speaker cables (6 m), 2 power plugs, instruction manual
Cleaning the aluminum surface	Soft slightly damp cloth, without abrasive products
Safety precautions	Do not expose to moisture, impacts, magnetic fields, excessive heat; unplug during storms
Surface material	Scratch-sensitive aluminum
Mains connection	Mains plug 220-240 V, with strain relief
Audio connection	Screw terminals (black and red) for speaker cable
Operating temperature	Ambient temperature, avoid condensation

Frequently Asked Questions - Stand Speaker Slim ID LOEWE

How to connect the speaker to the amplifier?

Use the supplied speaker cable. Connect the black strand to the black terminal of the amplifier and speaker, and the unmarked strand to the red terminal. Make sure to observe the left and right markings.

What is the recommended amplifier power?

Loewe recommends an amplifier power between 50 and 150 Watt. Do not exceed 200 Watt to avoid damaging the speaker.

Where to place the speakers for optimal sound?

Place the speakers at a similar distance from the rear and side walls. The listening angle should be oriented towards your preferred position. Avoid heat sources and direct sunlight.

How to clean the aluminum surface?

Use a soft microfiber cloth slightly damp with water and a little dish soap. Never use abrasive products. For the grille, gently use a vacuum cleaner.

What to do in case of condensation after a temperature change?

Let the speaker rest for about one hour at room temperature before turning it on. This prevents damage to internal components.

How to safely transport the speaker?

Hold the speaker by the sides and the base plate. Keep the original packaging for transport. Avoid touching the electrostatic diaphragm with sharp objects.

Can I use a single speaker or do I need both?

The speakers are designed as a pair (left and right) for stereo sound. You can use them individually, but the sound reproduction will be monophonic.

What to do if the fabric protection is damaged?

Do not puncture the protection. Contact an authorized Loewe dealer for repair. The interior contains dangerous high voltages.

What is the standby power consumption?

The standby power consumption is less than 0.5 Watt. For extended absence, unplug the mains plug.

Can I connect a subwoofer with these speakers?

Yes, the system is modular. You can add a Loewe Subwoofer Highline for a surround solution. Make sure the amplifier sends frequencies above 150 Hz to the speakers.

USER MANUAL Stand Speaker Slim ID LOEWE

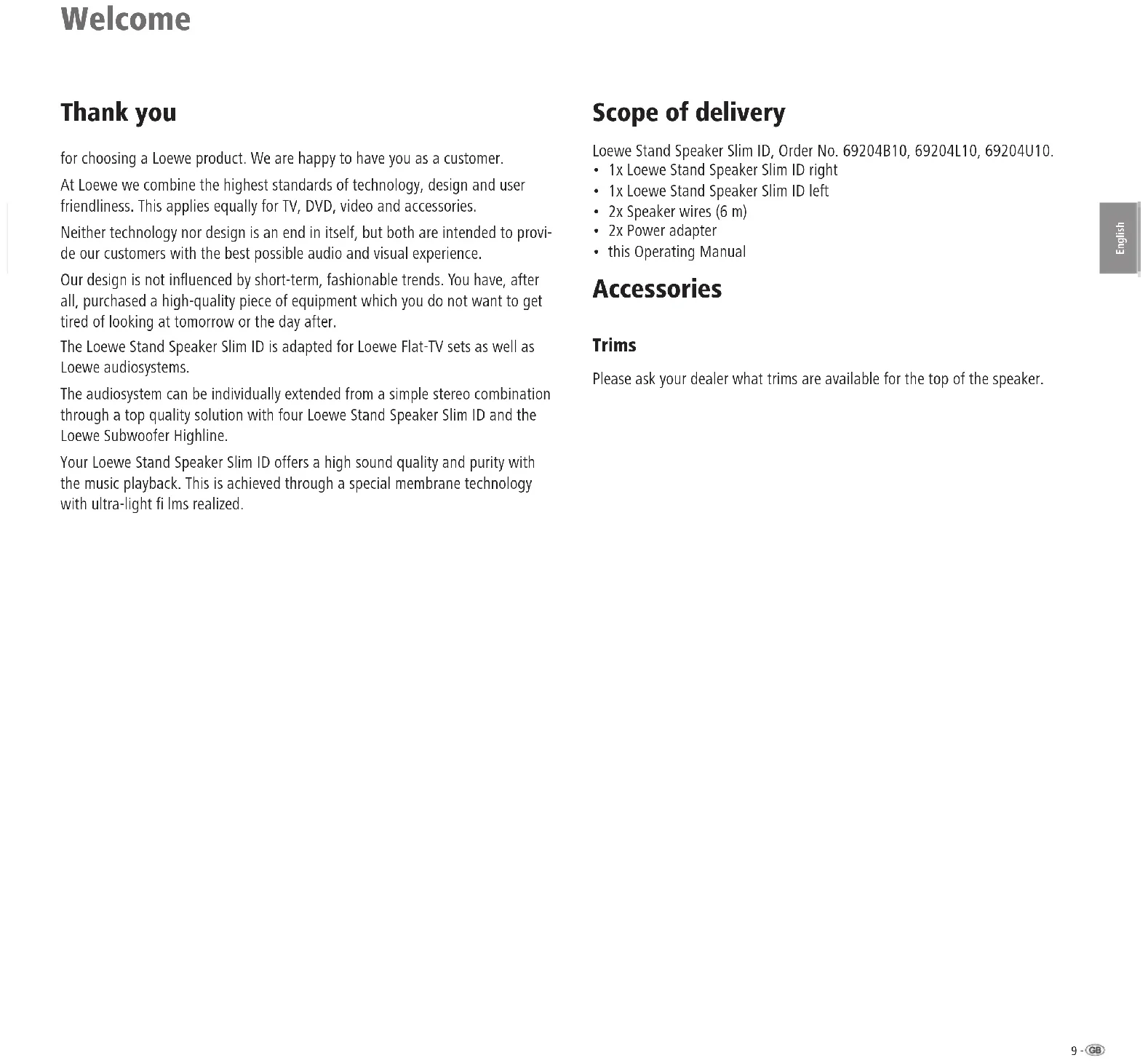

for choosing a Loewe product. We are happy to have you as a customer.

At Loewe we combine the highest standards of technology, design and user friendliness. This applies equally for TV, DVD, video and accessories.

Neither technology nor design is an end in itself, but both are intended to provide our customers with the best possible audio and visual experience.

Our design is not influenced by short-term, fashionable trends. You have, after all, purchased a high-quality piece of equipment which you do not want to get tired of looking at tomorrow or the day after.

The Loewe Stand Speaker Slim ID is adapted for Loewe Flat-TV sets as well as Loewe audiosystems.

The audiosystem can be individually extended from a simple stereo combination through a top quality solution with four Loewe Stand Speaker Slim ID and the Loewe Subwoofer Highline.

Your Loewe Stand Speaker Slim ID offers a high sound quality and purity with the music playback. This is achieved through a special membrane technology with ultra-light fi Ims realized.

Scope of delivery

Loewe Stand Speaker Slim ID, Order No. 69204B10, 69204L10, 69204U10.

• 1x Loewe Stand Speaker Slim ID right
• 1x Loewe Stand Speaker Slim ID left
• 2x Speaker wires (6 m)
• 2x Power adapter
• this Operating Manual

Accessories

Trims

Please ask your dealer what trims are available for the top of the speaker.

Welcome

Disposal

Cardboard box and packaging

You have opted for a durable and technically sophisticated product. In line with national regulations regarding the disposal of packaging materials, we pay a fee to authorised recyclers who collect packaging from dealers. However, we recommend that you keep the original cardboard box and the rest of the packaging materials so that the unit can, if necessary, be transported in the safest possible conditions.

The unit

Important: The EU Directive 2002/96/EG governs the proper re-acceptance, handling and recycling of used electronic appliances.

Old electronic appliances must therefore be disposed of separately. Never throw this set in the normal domestic waste. You can hand in your old set free of charge at identified collection points or at your dealer if you buy a similar new set. Other details about re-acceptance (also for non-EU countries) are available from your local administration.

Cleaning

It is possible that the packaging material may leave marks on the surface of the floor-standing speaker. This does not mean that the surface has been damaged. These marks can be easily removed using water mixed with a little washing-up liquid and applied using a soft cloth (e.g. microfi bre).

Clean the surface of the aluminum Individual Sound loudspeaker system with a damp, soft, clean cloth (without aggressive cleaning agents).

Because of electrostatic charge dust may sellte on the speaker grille.

You can gently suck it with a vacuum cleaner, if necessary.

For your safety

For your safety and to avoid unnecessary damage to your TV set, please read and observe the following safety instructions:

• Your Loewe Stand Speaker Slim ID system is designed exclusively for playing audio signals.

• Always switch off your system (Loewe Stand Speaker Slim ID system, TV set and any other connected components) before connecting or disconnecting other equipment or speakers.

• Never operate the Loewe Stand Speaker Slim ID system unsupervised. Pull the power adapter out the mains socket during longer periods of absence.

Protect your Loewe Stand Speaker Slim ID system against ...

• Damp, moisture, rain, splashing water or dew
• Knocks and mechanical stresses
  Magnetic and electrical fields
  Higher electrical powers than specified
  Cold, heat, direct sunlight and extreme temperature variations
  Dust
• Covering which obstructs air circulation - especially the rear
  Manipulations inside the set

Do not place any containers fi Iled with liquids on top of the appliance.

Candles or naked fl ames must be kept away from the appliance at all times to prevent it from catching fire.

Do not pierce the fabric cover of the electrostatic membrane with sharp objects.

Your Loewe Stand Speaker Slim ID system was designed exclusively for private use in a domestic environment. The warranty conditions only cover this intended use.

WARNING: TO RULE OUT DANGER OF ELECTRIC SHOCK, NEVER REMOVE THE COVERS. THERE ARE NO PARTS INSIDE THE HOUSING WHICH CAN BE REPAIRED BY THE USER. HAVE REPAIRS DONE ONLY BY YOUR LOEWE DEALER.

WARNING: USE THE ORIGINAL POWER ADAPTER EXCLUSIVELY.

WARNING: INSIDE THE SPEAKER HIGH VOLTAGE IS PRESENT. TO AVOID ELECTRICAL SHOCK PROTECT THE SPEAKERS FROM MOISTURE AND DAMAGE.

If your have moved your Loewe Stand Speaker Slim ID system from a cold to a warm environment, leave it standing for about one hour before switching on because of the possible formation of condensation. Do not switch on until it has reached room temperature. This avoids seriously damaging the components.

Setting up

Installing the Loewe Stand Speaker Slim ID system

Basic information

CAUTION: THE ALUMINIUM SURFACE OF THE Loewe Stand Speaker Slim ID IS VERY SENSITIVE TO SCRAWTING AND IMPACT. AVOID ALL CONTACT WITH SHARP OBJECTS. DO NOT PLACE VASES, CANDLES OR OTHER OBJECTS ON TOP OF THE UNIT.

CAUTION: DO NOT CONNECT THE Loewe Stand Speaker Slim ID TO AN AMPLIFIER OUTPUT, WHICH EMITS FREQUENCIES ≤ 150Hz IN ORDER TO AVOID DAMAGING THE LOUDSPEAKER.

• Place the speaker on a fi rm, level base.
• Hold the speaker on the sides and base plate when moving it. If the fabric lining becomes creased when doing so, please smooth this out carefully with your hand.
• Carefully pull the protective fi Im off the trim on the top.
• Please note, that the speakers consist of a right and left unit. A mark is on the product label at the base of each unit.
• Do not place the speakers near to strong sources of heat or in direct sunlight.
• Pull out the power adapter during thunderstorms. Surge voltages caused by lightning strikes can damage the unit.
• Also remove the power adapter in long periods of absence.
• The power adapter set must be easily accessible so that the unit can be disconnected from the power supply at all times.
• Lay the speaker and power cables in such a way that they cannot be damaged. The power cable may not be kinked or laid over sharp edges, not stood on and not exposed to chemicals; the latter also applies to the system as a whole. A power cable with damaged insulation can lead to electric shocks and is a fire risk and must therefore be changed by qualified service personnel before operation of the set continues.

Functional principle

The electrostatic speaker element used is an inverse high-voltage unit with dipole emission and additive treble array, activated by specially adapted high-voltage electronics.

The efficiency is twice as high as conventional electrostatic speakers thanks to the inverse arrangement and activation of the stators and speaker diaphragm. The surface emission of the sound means the volume heard remains in the range from 1 to 6m hearing distance.

The combination of surface emitter and dipole operation comes closest to the natural sound propagation of the original instruments and sounds.

The natural characteristics of the sounds are retained as far as possible with this technology.

A widening of the emission angle so as to enable several listeners to enjoy the sound simultaneously has been achieved by the additional asymmetrical treble array. The left and right speakers are therefore different.

This innovative acoustic concept has been made possible by the use of new materials, surface finishing, production processes and electronic circuits.

This technical refinement is devoted solely to the aim of meeting the most demanding acoustic expectations and reproducing the natural characteristics of the original sound unobtrusively and appealingly in your living room.

Optimum arrangement

Please note, that due to the operating principle of the Loewe Stand Speaker Slim ID, the sound is emitted on the front and rear side.

It is useful if the distance from the walls (to the rear as well as left and right) is about equal, so that the sound distribution into the room may be optimal.

In addition, the sound emission is directional.

It is therefore recommended to arrange the speaker in a way, that they face into your preferred listening position (page 12).

Setting up

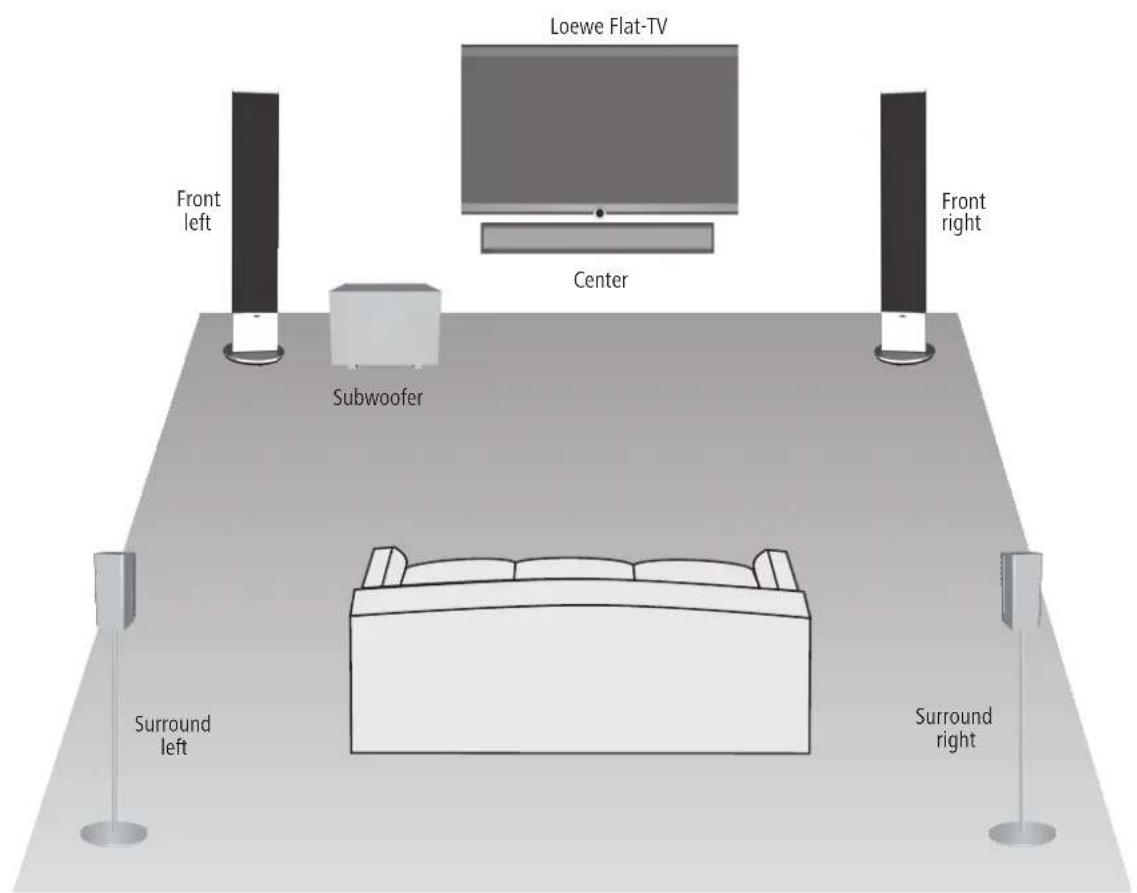

Suggestion for Surround Sound positioning solution

Connection

Connecting the speakers to the audio source

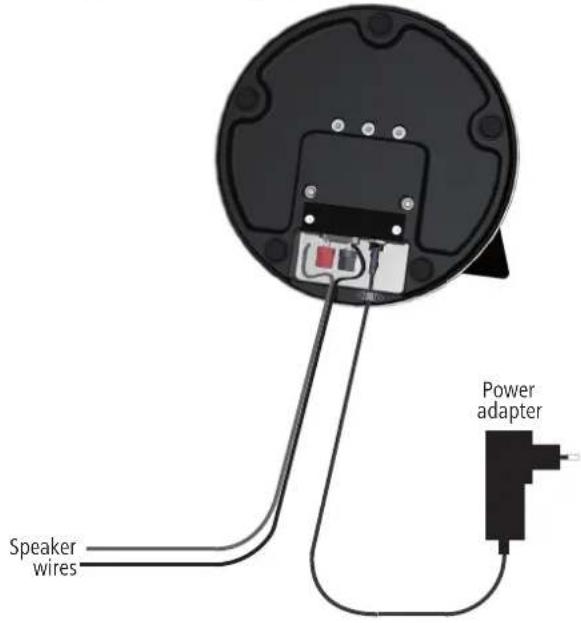

Connect the speaker wires on the bottom of the speaker. One of the two wires of the speaker cable is marked black. Connect this black wire with the black screw on your amplifier or audio output, and the black terminal on the loudspeaker.

Therefore turn the screw counterclockwise a few turns on. Run the wire end into the screw and tighten the screw clockwise.

Connect the unmarked wires with the red terminals.

Note the marking on the left and right speaker during connection.

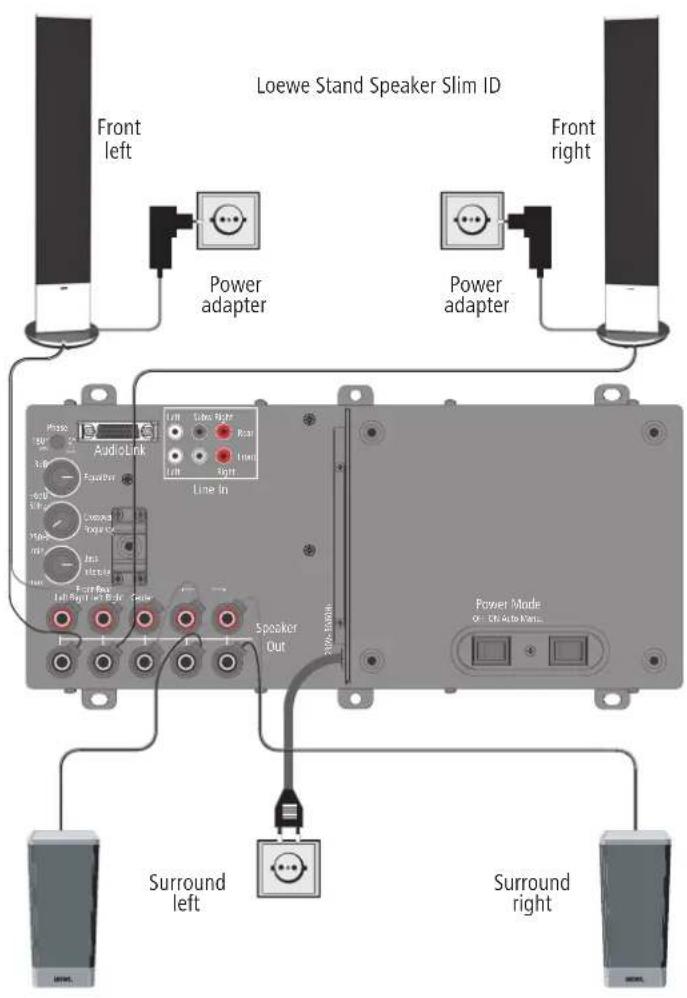

Connecting the subwoofer to the mains

Insert the plug at the end of the cable into the power jack at the bottom of the speaker.

Secure the cable against accidental unplugging with the strain relief provided. Plug the power adapter of the two speakers in one outlet with 220 - 240 V 50/60 Hz AC.

Technical Data

Loewe Stand Speaker Slim ID

Dimensions in cm (W x H x D) 26 x 122,5 x 26

Weight in kg 10

Principle

Mains voltage 220-240 Volt; 50/60 Hz

Recommended amplifer output 50-150 Watt

Max. rating speaker 200 Watt

Power consumption, power supply unit 1,5 Watt

Power consumption on standby < 0.5 Watt

Transmission range 150Hz - 40kHz -3dB

Sound Pressure Level (1W @ 3m) 82,5 dB

Impedance 10 - 4 Ohm

Electrostat

Masthead

Loewe Opta GmbH is a public limited company of German law with its Head Office in Kronach.

Industriestrasse 11, 96317 Kronach

Issue 03.13. 4^th edition

Loewe Opta GmbH, Kronach

All rights reserved including translation.

Design and technical specifications are subject to change without notice.
