Product type	Aquarium chiller with electronic regulation
Brand	EHEIM
Model	climacontrol+ S (Type 3750)
Dimensions (L x D x H)	310 x 310 x 447 mm
Weight	17.0 kg
Power supply	230 V / 50 Hz
Power consumption (cooling)	260 W
Power consumption (heating)	300 W
Cooling performance	Up to 500 L (water at 25 °C) / up to 200 L (water at 12 °C)
Heating performance	ΔT ~15 °C
Recommended water flow	500 – 800 l/h
Max. system pressure	1 bar / 14.4 psi
Hose connection (IN/OUT)	∅ 16/22 mm (with reduction 19/27 mm)
Noise level (at 80 cm, cooling)	~47 – 50 dB
Operating ambient temperature	10 °C – 38 °C
Max. mounting height	180 cm below water level
Refrigerant	R290 (flammable)
Protection rating (chiller)	IP I
Protection rating (WiFi controller)	IP III
Main functions	Electronic cooling and heating, constant temperature regulation, digital display, WiFi control
Maintenance and cleaning	Clean the air filter every 2-3 weeks with warm water
Safety	Unplug before maintenance, do not use without water circulation, overheating protection
Spare parts and repairability	Spare parts available from EHEIM; repairs exclusively by authorized service center
General information	For freshwater and saltwater aquariums up to 500 L; private use only

Frequently Asked Questions - climacontrol+ S EHEIM

What is the difference between the climacontrol+ S, M and L models?

The S, M and L models differ in their cooling power and recommended maximum aquarium volume. The S model is suitable for up to 500 liters, the M up to 1000 liters and the L up to 2000 liters. Dimensions and weight also increase with size.

How to install the EHEIM climacontrol+ S chiller?

Place the device below the water level of the aquarium, maintain a minimum distance of 50 mm around for ventilation. Connect the hoses (∅ 16/22 mm) to the inlet (IN) and outlet (OUT). Connect the WiFi controller via the RJ45 cable and power supply unit. Ensure water circulation is active before turning on the power.

How to connect the WiFi controller to the home network?

Connect the power supply of the controller. On your device, connect to the WiFi network 'EHEIM clima XXXXXXXX' with the security key indicated on the back label. Open a browser at http://192.168.1.1 or eheimdigital.local to access the configuration interface.

What to do if the device screen remains off?

Check that the power supply of the WiFi controller is properly plugged in and the mains socket is powered. Make sure the power cable of the chiller is correctly inserted.

How to clean the air filter of the chiller?

Fold down the front plastic grille, remove the air filter and clean it with warm water. Let it dry completely before reinstalling. Perform this operation every 2 to 3 weeks, at least once a month.

Why is the water not cooling enough?

Possible causes: insufficient water circulation (check the filter and pump), kinked or blocked hoses, too high ambient temperature, or chiller power unsuitable for the water volume. Also ensure cooling mode is activated.

Can I use the chiller without the WiFi controller?

No, the WiFi controller is required for operation. It ensures temperature regulation and information display. Without it, the screen shows 'OFF' and the device does not work.

What types of aquariums are compatible?

The chiller is suitable for freshwater and saltwater aquariums, for private use. The water temperature must not exceed 35 °C. Do not use for drinking water or abrasive, flammable or explosive liquids.

What do the error codes on the screen mean?

Codes include P1 and P2 (defective sensors), HA (temperature too high), HA2 (overheating due to dirty air filter or excessive ambient temperature), LA (temperature too low). Refer to the manual for corrective actions.

How to decommission and dispose of the device?

Disconnect the power supply, drain the water from the hoses. For disposal, comply with the WEEE directive: do not dispose with household waste, take it to a recycling center. The packaging is recyclable.

USER MANUAL climacontrol+ S EHEIM

climacontrol+ L Type 3752 climacontrol+ M Type 3751

climacontrol+ S Type 3750

Simple graphic of a sun with a large X symbol, no text or labels present.

Weather icon showing a cloud with raindrops and a black X symbol (no text or numbers)

Simple icon of a steaming bar chart with a cross symbol (no text or labels)

Isometric line drawing of a refrigerated industrial machine with heat exchanger and cooling fins (no text or symbols)

B

max 180 cm

C max 180 cm

D max 180 cm

E ① 1/4 ② 1/4

F ③ ④ ⑤ ⑧ ⑦ ⑥ OUT IN

G S T U V ⑨ ⑩

Isometric line drawing of a refrigerant appliance with cooling fins and heat exchangers (no text or symbols)

Technical line drawing of a mechanical device with internal components and a numbered annotation (11), no readable text or symbols present.

J ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗

K OUT IN

L AUX SET 88.0°C °F

M ⑱ BRELLA ⑲

N 19 20

ACDC Adapter Power Supply Chord Drip Loop Aquarium

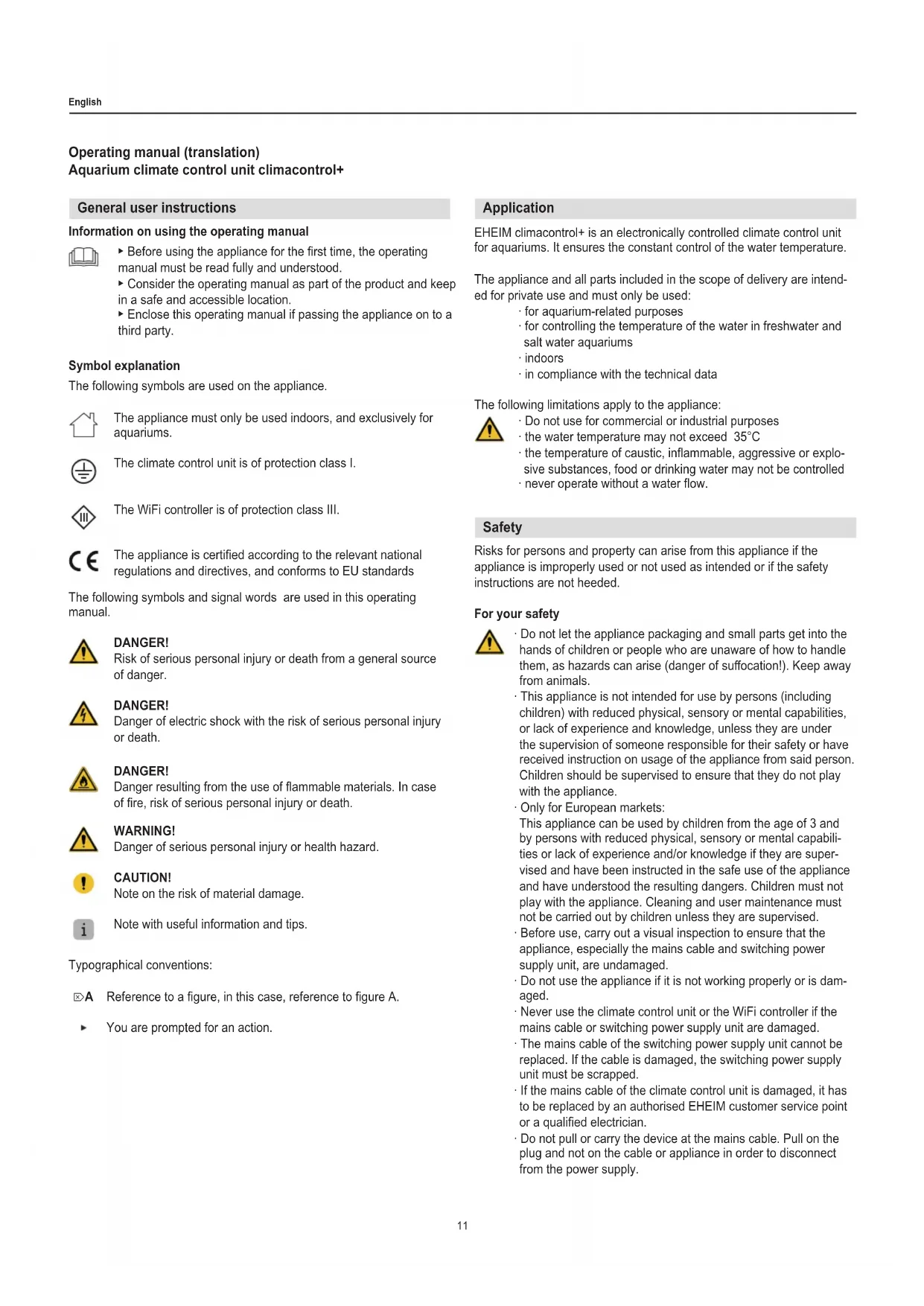

Operating manual (translation)

Aquarium climate control unit climacontrol+

General user instructions

Information on using the operating manual

▶ Before using the appliance for the first time, the operating manual must be read fully and understood.
- Consider the operating manual as part of the product and keep in a safe and accessible location.
▶ Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols are used on the appliance.

The appliance must only be used indoors, and exclusively for aquariums.

The climate control unit is of protection class I.

The WiFi controller is of protection class III.

The appliance is certified according to the relevant national regulations and directives, and conforms to EU standards

The following symbols and signal words are used in this operating manual.

DANGER!

Risk of serious personal injury or death from a general source of danger.

DANGER!

Danger of electric shock with the risk of serious personal injury or death.

DANGER!

Danger resulting from the use of flammable materials. In case of fire, risk of serious personal injury or death.

WARNING!

Danger of serious personal injury or health hazard.

CAUTION!

Note on the risk of material damage.

Note with useful information and tips.

Typographical conventions:

☒A Reference to a figure, in this case, reference to figure A.

▶ You are prompted for an action.

Application

EHEIM climacontrol+ is an electronically controlled climate control unit for aquariums. It ensures the constant control of the water temperature.

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

· for aquarium-related purposes
· for controlling the temperature of the water in freshwater and salt water aquariums
· indoors
· in compliance with the technical data

The following limitations apply to the appliance:

· Do not use for commercial or industrial purposes
· the water temperature may not exceed 35^ C
· the temperature of caustic, inflammable, aggressive or explosive substances, food or drinking water may not be controlled
· never operate without a water flow.

Safety

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

Do not let the appliance packaging and small parts get into the hands of children or people who are unaware of how to handle them, as hazards can arise (danger of suffocation!). Keep away from animals.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under the supervision of someone responsible for their safety or have received instruction on usage of the appliance from said person. Children should be supervised to ensure that they do not play with the appliance.
- Only for European markets:
This appliance can be used by children from the age of 3 and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.
Before use, carry out a visual inspection to ensure that the appliance, especially the mains cable and switching power supply unit, are undamaged.
- Do not use the appliance if it is not working properly or is damaged.
- Never use the climate control unit or the WiFi controller if the mains cable or switching power supply unit are damaged.
- The mains cable of the switching power supply unit cannot be replaced. If the cable is damaged, the switching power supply unit must be scrapped.
- If the mains cable of the climate control unit is damaged, it has to be replaced by an authorised EHEIM customer service point or a qualified electrician.
Do not pull or carry the device at the mains cable. Pull on the plug and not on the cable or appliance in order to disconnect from the power supply.

• Never put a finger or any object through the slots of the ventilation grille. The contact with the fan propeller can cause injuries.
• Only carry out the work described in these instructions.
• Protect the mains cable against heat, oil and sharp edges.
  · Never make technical modifications to the appliance.
• Only use original spare parts and accessories for the appliance.
  · Repairs must only be carried out by an EHEIM service centre.

• We recommend protecting all electrical aquarium appliances via a residual current protective device with a rated residual current of 30 mA maximum.
• If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.
• Protect the socket, mains plug and switching power supply unit from moisture. A drip loop must be formed with the mains cable. This prevents any water running along the cable to the mains socket, which would result in a short-circuit.
• The electrical data of the appliance and the switching power supply unit have to match that of the power grid. This data is found on the type plate, the packaging and in these instructions.
• Do not attach multiple sockets or portable power supply units to the rear of the device.
• The device complies with the radio equipment directive 2014/53/EU. The full text of the EU declaration of conformity is available online here: www.eheim.com.
• Only use the switching power supply unit that has been supplied with the WiFi controller. If it needs to be replaced, then an original EHEIM switching power supply unit has to be used.

• The device contains the flammable coolant R290. Any work with it has to be performed by experienced expert personnel trained in the R290 gas managed process.
  · The cooling circuit must not be damaged.
• When disposing of the appliance, proceed as described in the chapter "Decommissioning and disposal".

Assembly and installation

Unpacking

CAUTION! Material damage.

▶ Take into account the weight of the device. Always use the recessed grips to carry the device.

Preserve the packaging for a safe future storage or transportation.

1. Open the packaging and remove the accessories.
2. Use the recessed grips to pull the device upwards and out of the packaging.
3. Remove the Styrofoam trays and plastic bags.
4. Ensure that the scope of delivery is complete.
5. Check all components for transport damage.

Installation site

- In order to ensure the intended and safe operation of the device, it must never be exposed to the elements or direct heat sources. The device can be used in ambient temperatures from 10^ to 38^ .

- The device always has to be placed below the water level of the aquarium. Note that the maximum installation height is 180 cm.

Preparation (☒E/F)

1. Place the cover ① onto the climate control unit.
2. Secure the cover with the wrench ② by tightening the screws on the left and the right a quarter turn clockwise.
3. Connect the WiFi controller ⑤ to the climate control unit with the RJ45 data cable③.
4. Connect the WiFi controller to the ④ switching power supply unit.
5. Remove the plugs at the connection IN ⑥ and the connection OUT ⑦.

Keep the plugs. They can be used as transport protection to prevent the leaking of residual water.

Placement in the base cabinet of the aquarium or the cabinets (☒G/H/I)

Maintain a minimum distance of at least 50 mm to the walls and doors of the cabinet. Keep the ventilation openings free.

1. Choose an even surface for the placement of the device.
2. Saw a section ⑨ of approx. 200 × 200 mm (approx. 400 cm²) into the rear wall of the cabinet (for example) in order to ensure the fresh air supply and the laying of hoses and electrical installations.

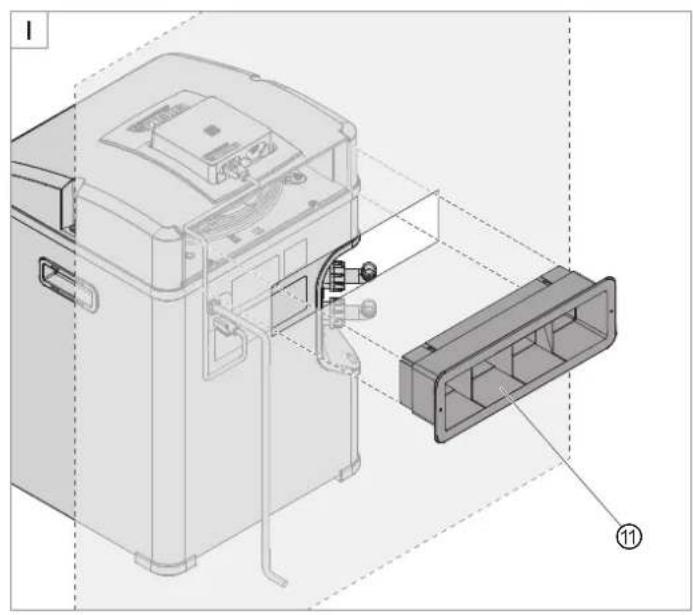

3. Saw a section for receiving the warm exhaust air duct ⑪ into the cabinet ⑩ in order to ensure that the warm air of the device can leave the cabinet.

• Use the self-adhesive template for marking the opening.
• We recommend placing the opening for the warm exhaust air duct in the back wall of the cabinet. This allows the digital display to be clearly visible from the front. Please note the dimensions in the following table:

Warm exhaust air duct dimensions
S 260 mm
T 74 mm
U > 60 mm
V	climacontrol+ S 343 mm
	climacontrol+ M 385 mm
	climacontrol+ L 427 mm

1. Following the hose installation, slide the device against the respective wall and push the warm exhaust air duct onto the device from behind through the opening.

Free-standing placement

Maintain a minimum distance of at least 50 mm to walls, furniture, etc. in order to ensure an optimal fresh air supply and the removal of warm air.

1. Choose an even surface for the placement of the device.

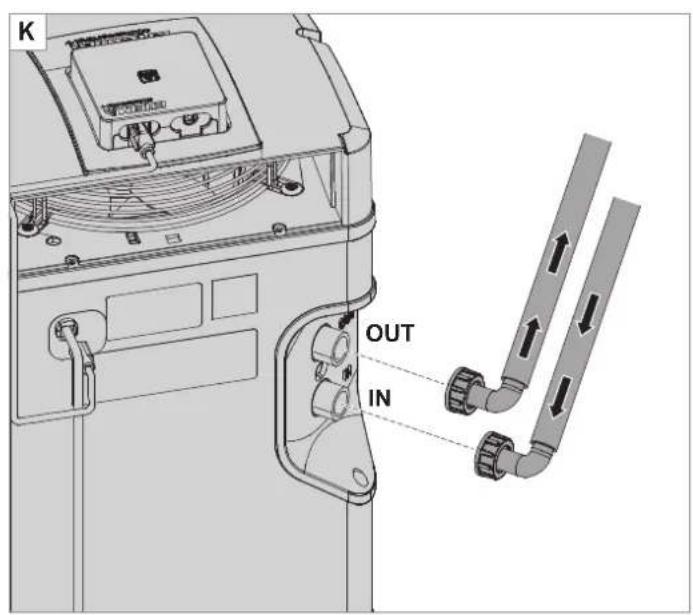

Installing the hoses (J/K)

CAUTION! Material damage.

▶ Only operate the device with filtered, clean water.

Take note of the installation examples ☒B/C/D.
- In order to ensure an optimal and efficient circulation performance of the filter, we recommend operating aquarium filters and climate control units with separate water circuits (☒C).
- For a simpler installation, we recommend slightly greasing the connecting parts with Vaseline.

1. Guide the hose (∅ 16/22) through the hose clamp ⑫ and the hose lock ⑬.
2. Slide the union nut ⑭ onto the hose connecting piece⑯.
3. Insert the seal ⑮ into the union nut.
4. Connect the hose to the hose connecting piece.

For a hose of ∅ 19/27, first pull the reducing coupling ⑰ onto the hose connecting piece. Then connect the hose.

1. Secure the hose connection to the hose lock. Use pliers for this.
2. Connect the pressure side of the filter and/or pump (return flow into the aquarium) with the connection IN of the climate control unit. Connect the return flow of the water to the aquarium to the connection OUT at the climate control unit.
3. Tighten the union nuts of the two hose connecting pieces hand-tight. Do not use pliers!

Maintenance

DANGER! Electric shock!

▶ Prior to any maintenance, pull the switching power supply unit of the WiFi controller and the mains plug of the climate control unit.

CAUTION! Material damage.

• Do not use hard objects or aggressive cleaning agents for cleaning.
  ▶ All components are not dishwasher-resistant.

The following sections describe maintenance work necessary for optimum and fault-free operation. Regular maintenance prolongs the service life and assures functionality of the climate control unit over a long period.

Cleaning the air filter

Recommended maintenance

Clean the air filter 19 approx. every 2 – 3 weeks but at least once a month.

1. Fold the plastic grilles ⑳ at the front side of the climate control unit forward.
2. Remove the air filter and clean it with lukewarm water.
3. Reinsert the dry air filter at the front side and close the plastic grille.

Prior to disconnecting the hose lines from the climate control unit, stop the water circuit by turning off the pump and/or filter. Press the hose clamps ⑫ together to prevent water from leaking out.

Commissioning

CAUTION! Material damage.

- Do not operate the climate control unit without a water flow. - Ensure that the water circuit has been established and the piping has been ventilated completely.

1. Start the pump and/or filter in order to start the water circuit.
2. Wait approx. 2 minutes to ensure the piping has been ventilated completely.
3. Check to ensure that the hose connections ⑥/⑦ of the climate control unit are watertight (☒F).
4. Insert the switching power supply unit ④ of the WiFi controller into the mains socket.
5. Insert the mains plug Ⓑ of the climate control unit into the mains socket. The display at the front says OFF (☒L).

Operation with WLAN connection

CAUTION! Material damage.

▶ Do not connect any devices other than the WiFi controller included in the scope of delivery.

System requirement

WLAN-enabled terminal device (smartphone, tablet, notebook etc.)

Creating the network

1. Insert the switching power supply unit in the mains socket. The status LED 18 illuminates.

• The status LED flashes white: The network is being searched for or created
• The status LED illuminates blue: A new network has been established.
  · The display of the device shows the current water temperature.
• When it is first started, the compressor starts with a delay of 2 minutes.

Connecting to the WLAN network

1. Open the network settings of your terminal device (smart-phone, tablet, notebook etc.).
2. Connect the terminal device to the WLAN network (SSID) EHEIM clima XXXXXXXX.
3. Enter the network security key.

You can find the security key of the network on the label at the back of the WiFi controller. Alternatively, you can also scan the QR code 1 (see label) to establish the connection.

Calling up the website

1. Open your web browser and enter the following address: http://192.168.1.1, eheimdigital oder eheimdigital.local

Alternatively, you can also scan the QR code 2 (see label) to open the software in the browser.

Initial configuration

1. Select the desired language from the language selection and follow the instructions for the initial configuration.

A comprehensive set of instructions for the software can be found on the main page via the QR code, or downloaded at www.eheim.com.

Meaning of the status LED

• The status LED flashes white: The network is being searched for or created
• The status LED illuminates blue: The device has established a network.
  The status LED illuminates green: The device is connected to another EHEIM digital device

Information on the display (☒L)

When it is in operation, the display of the device always shows the current water temperature.

Symbol meaning
OFF The device is switched off.
°C The water temperature is measured in degrees Celsius.
°F	The water temperature is measured in degrees Fahrenheit.
	Flashes: Cooling mode is being prepared.Illuminated: Cooling is switched on. Climate control unit is cooling.
	Illuminated: Heating is switched on. Climate control unit heats.

Decommissioning and disposal

Storing and overwintering

1. Take the appliance out of the water circuit of the aquarium.
2. Clean the appliance
3. Store the appliance in a frost-proof place.

Disposal

When disposing of the appliance, pay attention to the relevant statutory regulations.

Information on the disposal of electrical and electronic appliances in the European Union: Within the European Union, disposal of electrically operated appliances is governed by national regulations that are based on the EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The appliance may no longer be disposed of with the municipal or household waste.

The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

Clearing faults

DANGER! Electric shock!

▶ Before clearing faults, remove the mains plug and the switching power supply unit.

Fault Possible cause Remedy

The display does not switch on	No power supply	► Make sure that the mains plug has been plugged into the socket all the way
Display always says OFF	WiFi controller not operational	► Make sure that the switching power supply unit has been plugged into the socket all the way► Check whether the cable of the switching power supply unit is connected with the WiFi controller and has been plugged in all the way
Insufficient water cooling or water heating, target temperature is not reached	Insufficient water circuit	► Check whether the aquarium filter or the pump are working► Check the hose installation for bends or constrictions► Clean the aquarium filter and/or pump► Clean the piping
	Cooling or heating output too low for the amount of water	► Check the performance data (see technical data)
	Aquarium and/or piping insufficiently insulated or the hose lines are too long	► Insulate the piping or the walls of the aquarium► Keep the hose lines as short as possible
	Increased flow resistance due to additional accessories in the hose system (e.g. CO2 reactors, UVC clarifiers or other units)	► Reduce the flow resistance► Operate the climate control unit with a separate water circuit
	No warm exhaust air from the warm exhaust air duct	► Cooling compressor does not work properly Contact the EHEIM customer service: www.eheim.com

For other faults, please contact EHEIM Service.

Error messages

DANGER! Electric shock!

▶ Before clearing faults, remove the mains plug and the switching power supply unit.

Message Possible cause Remedy

P1	Water temperature sensor is defective	▸ Contact the EHEIM customer service: www.eheim.com
P2 Temperature sensor for the overheating protection is defective		▸ Contact the EHEIM customer service: www.eheim.com
HA	Water temperature is above the set target temperature	▸ Check whether the aquarium filter or the pump are working▸ Check the hose installation for bends or constrictions.▸ Clean the aquarium filter and/or pump▸ Clean the piping
		▸ Check if the cooling function is switched on
HA2(Overheating)	Air filter and/or ventilation grille dirty ▶ Clean the air filter
	Ambient temperature too high	▸ Make sure that the device is operated in an ambient temperature of no more than +38°C.
	Ventilation system damaged	▸ Contact the EHEIM customer service: www.eheim.com
LA	Water temperature is below the set target temperature	▸ Check whether the aquarium filter or the pump are working▸ Check the hose installation for bends or constrictions.▸ Clean the aquarium filter and/or pump▸ Clean the piping
		▸ Check if the heating function is switched on

For other faults, please contact EHEIM Service.

Technical data

climacontrol+ S M L
Type 3750 3751		3752
Aquarium size up to		500 l	1000 l	2000 l
Mains voltage/frequency		230 V / 50 Hz
Power consumption (cooling mode)		260 W (230 V)	300 W (230 V)	400 W (230 V)
Cooling output: *
Water temperature 25°C1	max.	500 l	1000 l	2000 l
Water temperature 12°C2	max.	200 l	300 l	500 l
Noise level / 80 cm (cooling mode)		~47 – 50 dB	~50 – 53 dB	~51 – 54 dB
Power consumption (heating mode)		300 W
Heating output Δt**		~15°C	~10°C	~6°C
Hose connection for hose ∅	IN	∅ 16/22 mm / with reducing coupling 19/27 mm
	OUT
Water flow	min.	500 l/h
	max.	800 l/h
System pressure	max.	1 bar / 14.4 psi
Weight		17.0 kg	18.7 kg	19.7 kg
Dimensions (L × W × H)		310 × 310 × 447 mm	310 × 310 × 489 mm	310 × 310 × 531 mm
Switching power supply unit
Type		7341218
Plug		EUR
Input		100 – 240 V / 50/60 Hz / 0.4 A
Output		5 V DC / 1 A / 5 W

* = value calculation: 1× Aquarium with cover, room temperature 30°C, thermal load
^1 Model S and M = 0.3 W/I, Model L = 0.2 W/I,
^2 = 0.1 W/l
** = value calculation 1× Aquarium with cover, room temperature 20°C,
t = temperature difference: room temperature to water temperature

Spare parts

See page 3.

AC/DC Adapter Power Supply Cord Drip Loop Aquarium

Terminal compatible WLAN (smartphone, tablette, notebook, etc.)

Connexion au réseau

Élimination/destruction

AC/DC Adapter Power Supply Cord Drip Loop Aquarium

AC/DC Adapter Power Supply Cord Drip Loop Aquarium

AC/DC Adapter Power Supply Cord Drip Loop Aquarium

Instalar as mangueiras (☒J/K)

CUIDADO! Danos materiais.

AC/DC Adapter Power Supply Cord Drip Loop Aquarium

AC/DC Adapter Power Supply Cord Drip Loop Aquarium

ACDC Adapter Power Supply Cord Drip Loop Aquarium

AC/DC Adapter Power Supply Cord Drip Loop Aquarium

ACDC Adapter Power Supply Chord Drip Loop Aquarium

Valmistelu (☒E/F)

AODC Adapter Power Supply Chord Drip Loop Aquarium

Hazırlık (☒E/F)

AC/DC Adapter Power Supply Cord Drip Loop Aquarium

AC/DC Adapter Power Supply Cord Drip Loop Aquarium

AC/DC Adapter Power Supply Cord Drip Loop Aquarium

ACDC Adapter Power Supply Chord Drip Loop Aquarium

- Uređaj obavezno mora da se postavi niže od nivoa vode u akvarijumu. Pritom imajte na umu maksimalnu visinu postavljanja od 180 cm.

Priprema (☒E/F)

1. Postavite poklopac ① na klima uređaj.
2. Učvrstite poklopac tako što ćete ključem ② okrenuti vijke s leve i desne strane udesno za četvrt kruga.
3. Povežite WiFi kontroler ⑤ signalnim kablom RJ45 ③ sa klima uređajem.
4. Priključite WiFi kontroler na strujni adapter ④.
5. Uklonite zatvarače sa priključaka IN ⑥ i OUT ⑦.

Sačuvajte te zatvarače. Možete da ih koristite prilikom transporta kao zaštitu od curenja zaostale vode.

ACDC Adapter Power Supply Cord Drip Loop Aquarium

ACDC Adapter Power Supply Chord Drip Loop Aquarium

Място за монтиране

ACDC Adapter Power Supply Cord Drip Loop Aquarium

Монтаж и установка

Распаковка

AC/DC Adapter Power Supply Chord Drip Loop Aquarium

AC/DC Adapter Power Supply Chord Drip Loop Aquarium

AC/DC Adapter Power Supply Chord Drip Loop Aquarium

Reproduction or copying – even parts thereof – only with the express permission of the producer.
