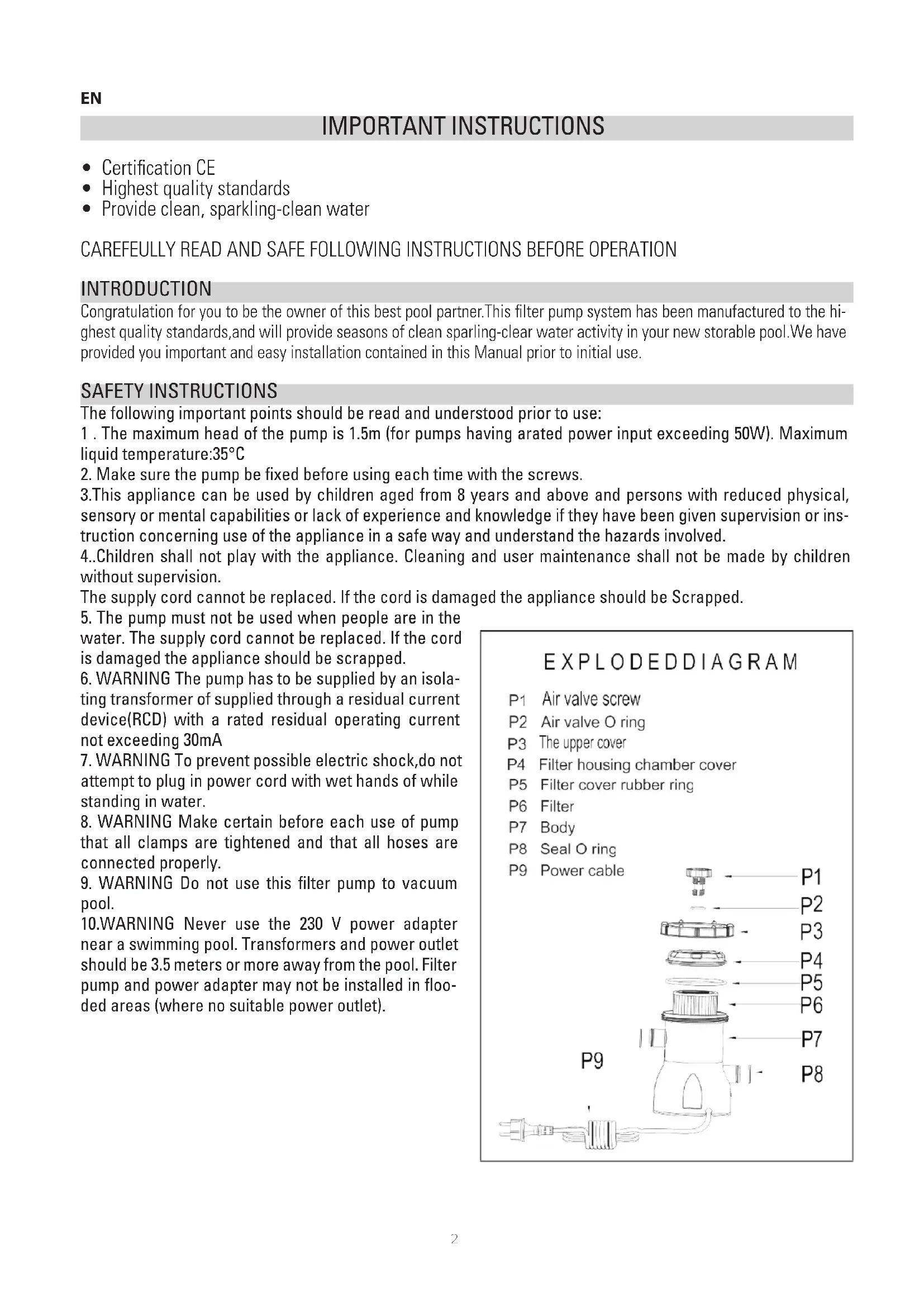

USER MANUAL CFS20 GRE

• Highest quality standards

• Provide clean, sparkling-clean water CAREFEULLY READ AND SAFE FOLLOWING INSTRUCTIONS BEFORE OPERATION INTRODUCTION Congratulation for you to be the owner of this best pool partner.This filter pump system has been manufactured to the hi- ghest quality standards,and will provide seasons of clean sparling-clear water activity in your new storable pool.We have provided you important and easy installation contained in this Manual prior to initial use. SAFETY INSTRUCTIONS The following important points should be read and understood prior to use: 1 . The maximum head of the pump is 1.5m (for pumps having arated power input exceeding 50W). Maximum liquid temperature:35°C

2. Make sure the pump be fixed before using each time with the screws.

3.This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or ins- truction concerning use of the appliance in a safe way and understand the hazards involved. 4..Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The supply cord cannot be replaced. If the cord is damaged the appliance should be Scrapped.

5. The pump must not be used when people are in the

water. The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.

6. WARNING The pump has to be supplied by an isola-

ting transformer of supplied through a residual current device(RCD) with a rated residual operating current not exceeding 30mA

7. WARNING To prevent possible electric shock,do not

attempt to plug in power cord with wet hands of while standing in water.

8. WARNING Make certain before each use of pump

that all clamps are tightened and that all hoses are connected properly.

9. WARNING Do not use this filter pump to vacuum

pool. 10.WARNING Never use the 230 V power adapter near a swimming pool. Transformers and power outlet should be 3.5 meters or more away from the pool. Filter pump and power adapter may not be installed in floo- ded areas (where no suitable power outlet).3 INSTALLATION INSTRUCTIONS

1. Set up your pool and fill it with water as recommended

2. Position the filter pump unit at least 8 inches below the

highest water level in the pool.

3. And keep the filter pump at least 2 feet away from the

sidewall of the pool.

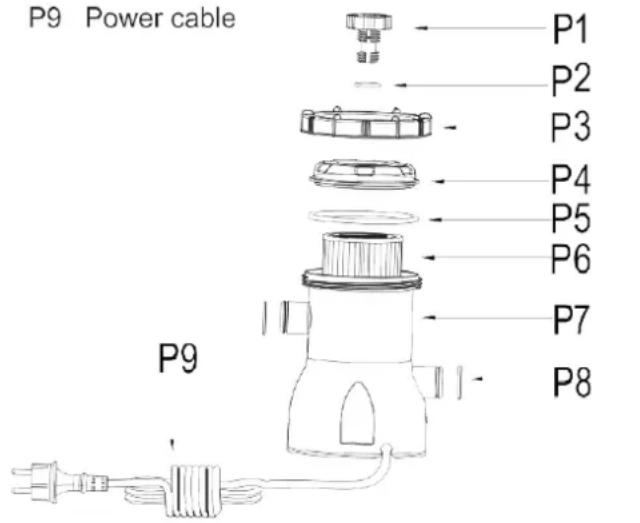

4. Place filter cartridge (P6) into the body of the filter pump.

5. Make certain that the filter chamber rubber gasket (P5)

is placed in the seal groove on the top of the filter pump.

6. Screw on filter chamber cover (P4) onto top of the body of

7. Connect the hoses (P10) in the same way as in the Instal-

lation iIIustration,fixture the pump to the wall of the pool. Remember to use hose clamp,tighten it with screwdriver.

8. Open both wall connection caps(P13)on the inside of the

pool an plug in a strainer(P14)for each.

9. Allow time for filter pump chamber to full with water,Ne-

ver operate the filter pump dry.

10. Check the local authorities to determine the appro-

priate standard and requirements for electronic installation. Connect electrical power cord into a grounded receptacle protected by a ground-fault circuit interrupter(GFCI). Please contact a qualified electrician for verification purpo- ses and/or installation of a GFCI receptacle if necessary. OPERATING INSTRUCTIONS

1. The filter pump will prime itself as long as it is positioned at least 8 CLEANING AND REPLACEMENT inches below

the highest water level is a relief valve located on the top of the pump.Simply turn the valve knob counter-clockwise,and when a small amount of water escapes,close immediately by turning clockwise. The pump will now be completely primed.

2. Never operate the filter pump dry. This can cause damage to seals which may result in leakage and/or flooding.

3. Prior to each use,check to ensure that all hose-clamps are tightened.

4. Prior to each use, check to ensure that both inside wall plug caps (P13) are open and strainer (P14) have been installed properly.

5. To prevent possible electric shock,do not attempt to plug in electrical power cord with wet hand or while standing in

6. The filter pump must operate in the upright,vertical position.

7. The filter pump must be positioned on level,stable ground.And the use of a riser or elevated platform is not expected.

8. Once you have confirmed turn on the pump by plug its electrical cord into a ground fault circuit interrupter outlet.

9. To preserve the full life of the pump and to keep the pool filtered properly,your pump should be run approximately 4 to 6 hours per day.

10. Overuse may cause overheating and/or motor burnout.Use good judgment on extremely days and be mindful of run-

ning the filter pump continuously for an extended period of time.

CLEANING AND REPLACEMENT

1. The filter cartridge in your pump filter system should be replaced approximately once per month.

2. Periodically cleaning of your filter cartridge can maintain the effectiveness of your filter pump and moderately prolong the cartridge’s lifespan prior to replacement.

3. Keep the power disconnected to the unit when cleaning the filter cartridge.

4. Remove the Strainers (P14) inside of the pool,and close the caps of the pools Wall Plugs(P13).

5. Turn the Air Vale Screw to release the air suction inside.

(ILLUSTRATION NOT TO SCALE)4

6. Remove the Filter Chamber Cover and the filter chamber rubber gasket,and then take out the filter cartridge.

7. Clean the filter cartridge with a garden hose using a direct powerful

8. If the filter cartridge cannot be cleaned effectively in this manner, it is time to replace it with a new cartridge.

9. Your clean (or new) cartridge can be put back into the filter chamber and you can refer to the installation instruction on page 3 to re-assemble the filter pump unit. GENERAL MAINTENANCE

1. To avoid dangerous or fatal electrical shock hazard.always disconnect power to the unit before attempting to clean

2. There is no need for any regular mechanical maintenance of the pump unit.(Do not attempt to disassemble the pump

3. If necessary ,clean outside of pump with a mild detergent and water, rinsing off with a hose.

4. There is no need for the use of any lubricants on the pump.

5. Do not use solvents clean the filter cartridge,as they will cause damage to the plastic components inside the pump.5
