USER MANUAL SuperSquareLaser 2G Laserliner

Laser 515 nm PowerGreen + LASER Laserliner DE 02 EN 07 NL 12 DA 17 FR 22 ES 27 IT 32 PL 37 FI 42 PT 47 SV 52 NO 57 TR RU UK CS ET RO BG EL SL HU SK HR

Laserliner

!

Warning sign with black triangular triangle and central sunburst symbol

Diagram of a device rear panel with labeled battery and warning symbols, showing internal components and polarity indicators.

Labeled diagram of a white handheld device with numbered parts, showing internal components and part views.

Exterior view of a modern office building (no signage)

CE UK CA -

!

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

90° line Laser

• The 2 clearly visible laser lines are ideally suited for aligning tiles.
  – Vertical and horizontal levelling on walls
• The applied lay edges and contact surface make it easy to position floor tiles.
• Clean application on all surfaces – also when using pins
  – Vials to adjust the device

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

Warning symbol with a triangular triangle and central starburst (no text or numbers)

Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 515 nm EN 60825-1:2014/AC:2017

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.
• Do not use the laser at eye level (1.40 ... 1.90 m)

Laserliner

• Reflective, specular or shiny surfaces must be covered whilst laser devices are in operation.
• In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

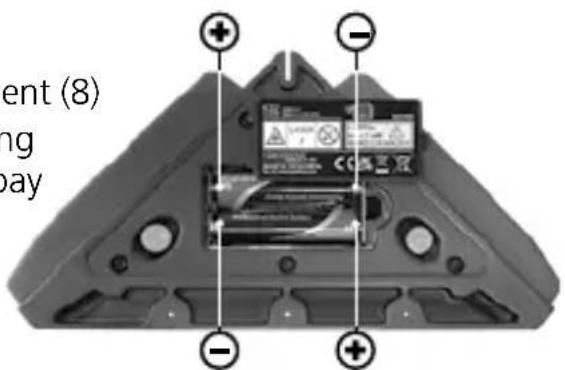

1 Inserting batteries

Open the battery compartment (8) and insert batteries according to the symbols. Be sure to pay attention to polarity.

Labeled diagram of a handheld device with numbered parts, showing internal components and part views.

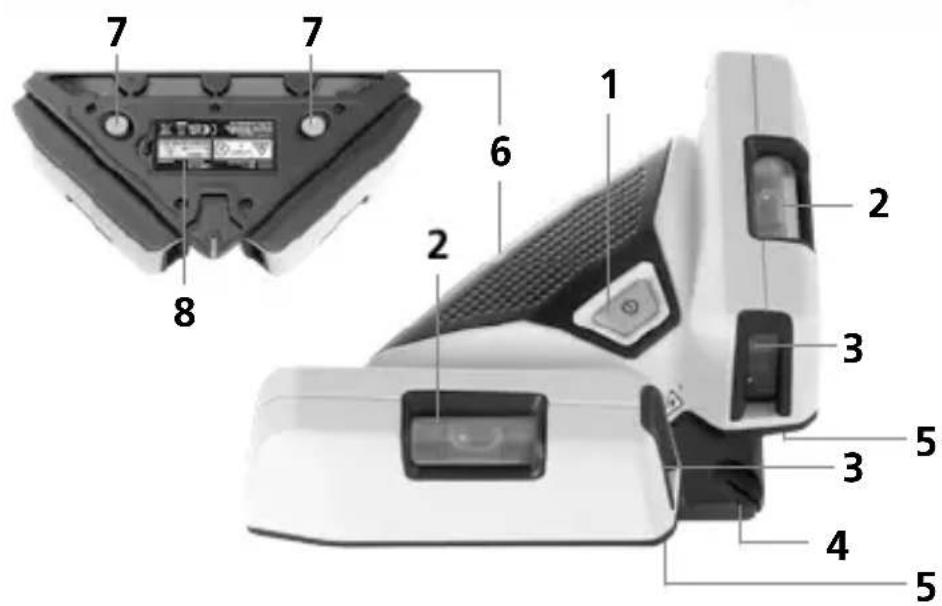

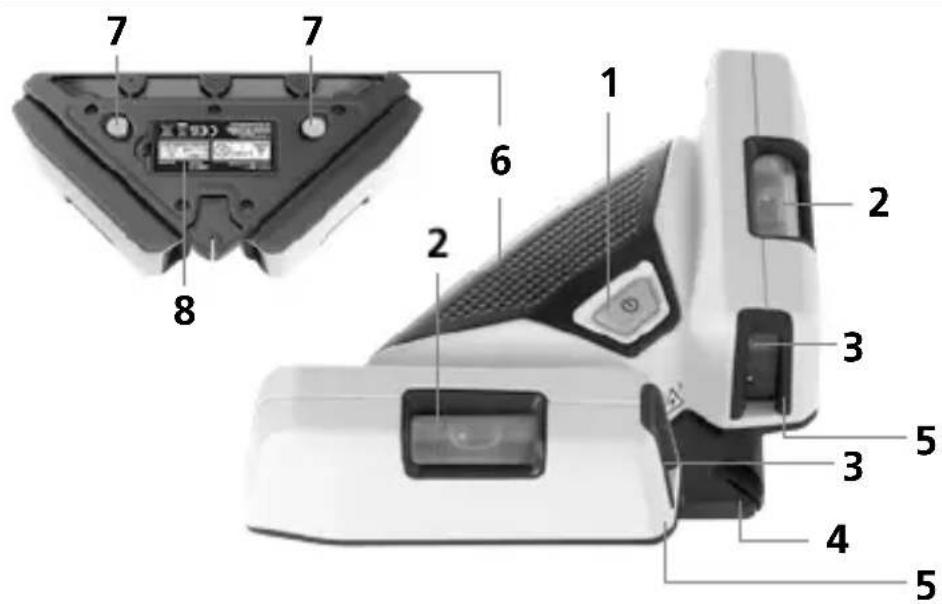

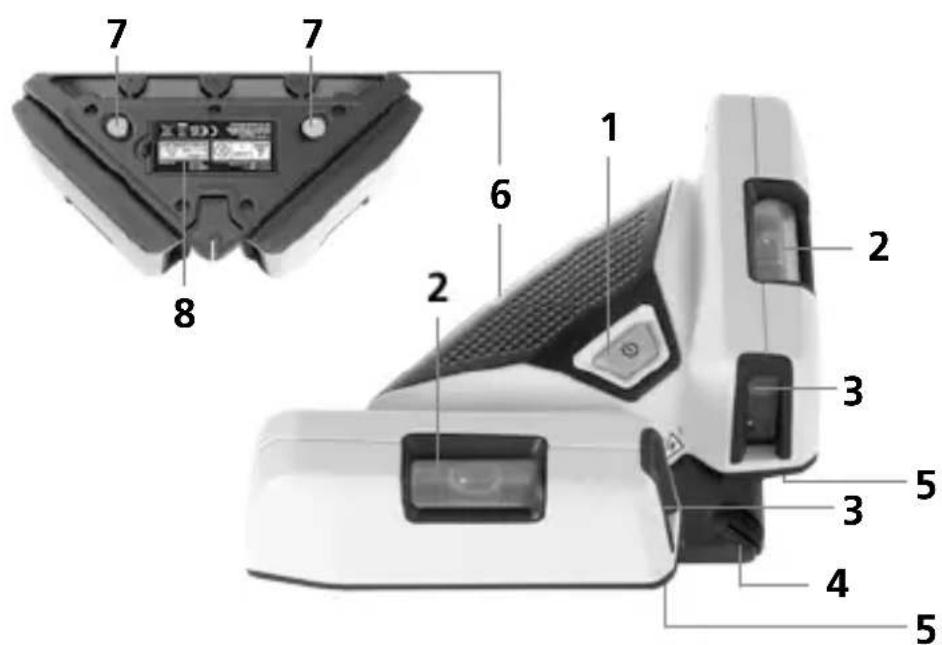

1 ON / OFF switch
2 Vials for wall applications
3 Laser output windows
4 90° try-square edge

5 Contact surface
6 Lay edge
7 Pins
8 Battery compartment

2 On-floor applications

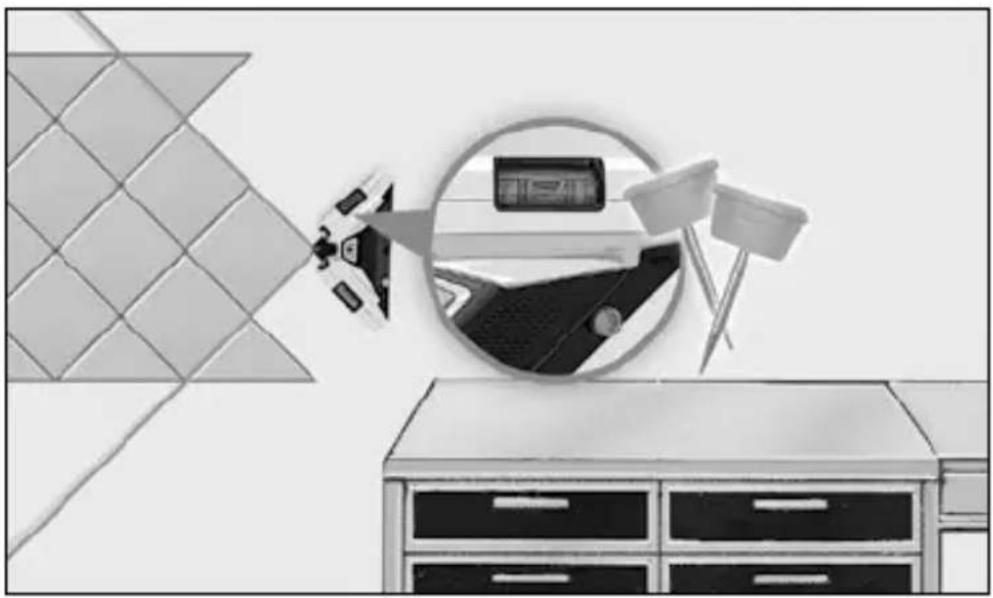

Turn on the unit with the ON / OFF switch (1). The laser lines now produce 2 marks at 90° angles on the floor. These projected lines allow tiles to be laid easily, yet precisely. The 90° lay edge (4) and the contact surface (5) make it easy to align the first floor tile.

Exterior view of a modern office building (no signage)

Green laser technology

Devices with the PowerGreen+ technology have very bright, green high-performance diodes which provide outstanding visibility of the laser lines at great distances, on dark surfaces and in bright ambient lighting conditions.

Approx. 6 times brighter than a typical red laser with 630 - 660 nm.

3 Wall applications

Mount the device on the wall for horizontal and vertical levelling. Then align the device with the vials.

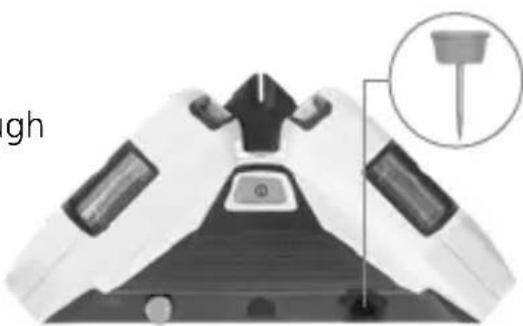

4 Mounting on the wall

1. Place device on the wall.
2. Push the special pins through the appropriate holes.

Top-down view of a medical device with a close-up inset showing a screw and a label 'gh' (no text or symbols on the device itself)

!

Regularly check the calibration before use, after transport and after extended periods of storage.

Laserliner

5 Checking the vertical line

Fix a plumb bob with a line at least 2.5 m in length on the wall, making sure that the bob can swing freely. Switch on the laser, direct the lines at the plumb and align the bubble levels (2). The precision is within tolerance if the deviation between the laser line and plumb line is not greater than 0.5 mm / m.

Calibration

The measuring device should be calibrated and tested on a regular basis to ensure it is accurate and working properly. We recommend the measuring device is calibrated every 1 - 2 years. If necessary, contact your distributor or the UMAREX-LASERLINER service department.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical data (Subject to technical changes without notice. 21W25)

Angle accuracy ± 0.5 mm / m
Levelling manual
Visibility (typical)* 40 m
Laser wavelength 515 nm
Laserklasse	2 / < 1 mW(EN 60825-1:2014/AC:2017)
Power supply 2 x 1.5V LR6	(AA)
Operating time approx. 3 hours
Operating conditions	0°C ... 50°C, max. humidity80% rH, no condensation,max. working altitude 4000 mabove sea level
Storage conditions	-10°C ... 70°C,max. humidity 80% rH
Dimensions (W x H x D) 200 x 48 x 100 mm
Weight 350 g (incl. batteries)

* at max. 300 lux

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info/?an=AFP
