USER MANUAL Stress releaZer BEURER

wireless technology. Der stress releaZer

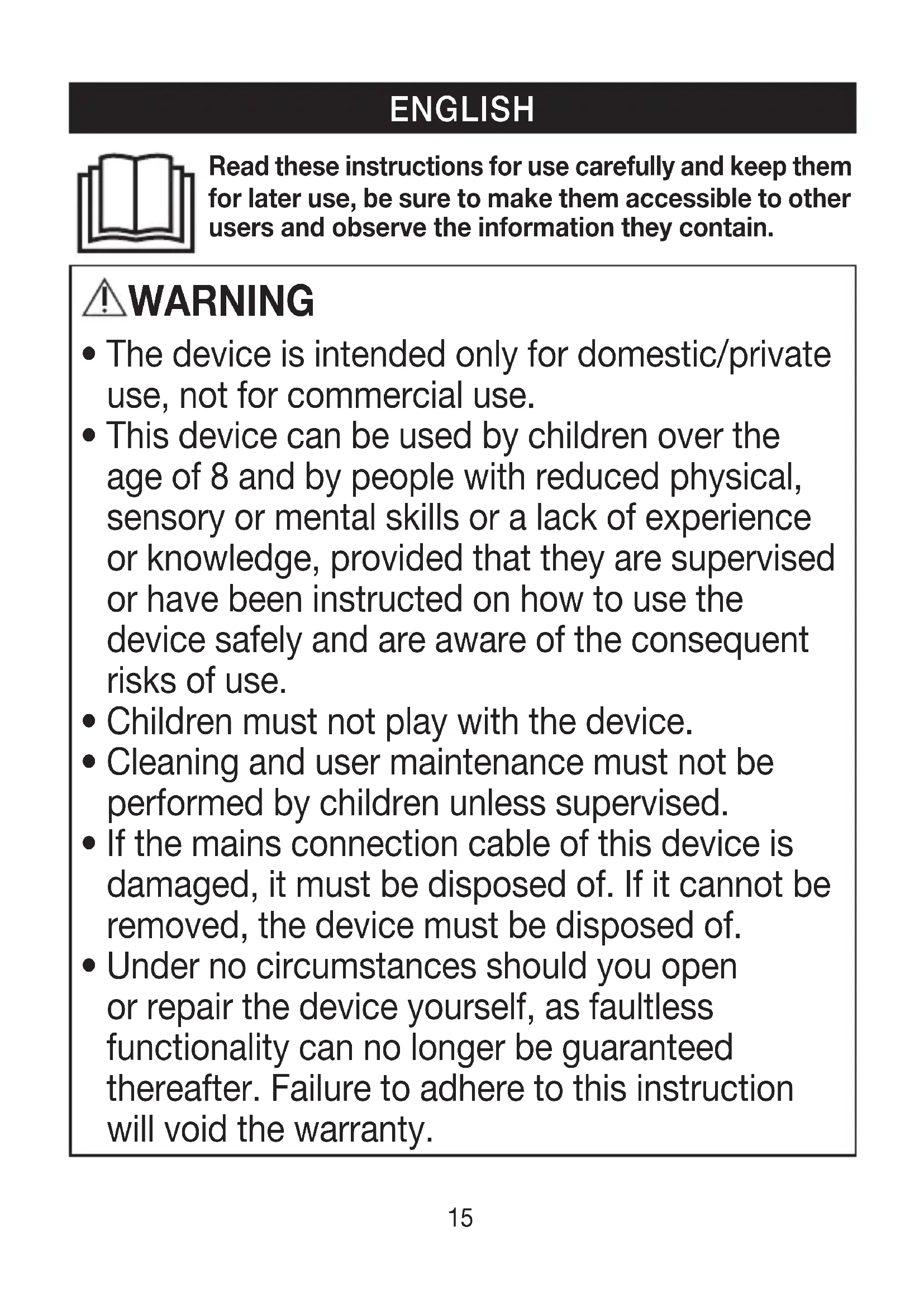

• The device is intended only for domestic/private use, not for commercial use.

• This device can be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely and are aware of the consequent risks of use.

• Children must not play with the device.

• Cleaning and user maintenance must not be performed by children unless supervised.

• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

• Under no circumstances should you open or repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to adhere to this instruction will void the warranty.16 Included in delivery 1x stress releaZer 1x micro USB charging cable 1x mains adapter Signs and symbols The following symbols appear in these instructions for use: WARNING Warning notice indicating a risk of injury or damage to health IMPORTANT Safety note indicating possible damage to the device/acces

sory Note Note on important information Observe the instructions for use Device not to be used on individuals with a pacemaker or other implants, such as an insulin pump or an implanted defibrillator The device is double protected and therefore corresponds to protection class 2. Only use indoors. Manufacturer Table of contents

1. Getting to know your device ........ 18

7. Cleaning and maintenance .......... 24

Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE

PAP Dispose of packaging in an environmentally friendly manner The products demonstrably meet the requirements of the Technical Regulations of the EAEU Direct current Switching mains part Short-circuit-proof safety isolating transformer United Kingdom Conformity Assessed Mark. CE labelling This product satisfies the requirements of the applicable European and national directives. IP20 Protected against solid foreign objects 12.5 mm in diameter and larger

Polarity ta=45°C Rated ambient temperature Maximum operating temperature18

1. Getting to know your device

1.1 How does the stress releaZer work?

The beurer stress releaZer was specially developed for the prevention and treatment of stress. By covering the diaphragm area with the stress releaZer, primary nerve pathways in this region are relaxed and your natural breathing rhythm is restored. The built-in vibration motor transmits pulses to the user, which allows them to breathe normally. The stress releaZer also has an illuminated ring, which functions as a mood light. While the device is in use, the illuminated ring pulsates in time with the user’s breathing rhythm. The stress releaZer also has an optional heat function on the underside for a more comfortable application.

1.2 “beurer CalmDown” app

You can also connect the stress releaZer to your smartphone using Blue- tooth

. To do this, all you need to do is download the free “beurer Calm- Down” app from the Apple App Store (iOS) or from Google Play (Android

The free “beurer CalmDown” app oers the following advantages:

Detailed instructions for use

Audiovisual breathing exercises with an HRV (heart rate variability) train- ing programme

Determination of stress level and ability to recover

Relaxing music to accompany use

A calender function for recording periods of use

An option to add personal notes

wireless technology. The stress releaZer

low energy technology, frequency band 2.400 - 2.480 GHz, the maximum transmission power emitted in the frequency band < 20 dBm, compatible with Bluetooth

phones/tablets. Technical information is subject to change without notification to allow for updates.19

WARNING The stress releaZer is intended for private use only. The stress releaZer is not a medical device, rather it is a relaxation device. The stress releaZer may only be used for the purpose for which it is designed and in the manner specified in the instructions for use. Any form of improper use can be dangerous. The manufacturer is not liable for damage resulting from improper or careless use.

WARNING Safety note regarding the use of the stress releaZer

Keep the packaging material away from children. choking hazard!

Before use, ensure that the device and accessories have no visible dam- age. If you have any doubts, do not use the device and contact your re- tailer or the specified Customer Service address.

Keep the mains adapter away from water.

Do NOT use the device if you have a pacemaker or other im- plants, such as an insulin pump or an implanted defibrillator.

Do NOT use the device on the head.

Do NOT use the device on the face.

Do NOT use the device on the genitals.

Do NOT use the device if you suer from a medical abnormality or injury in the diaphragm area (e.g. open wound).

Do NOT use the device during pregnancy.

Do NOT use the device while sleeping.

Do NOT use the device in a vehicle.

Do NOT use the device on animals.

Do NOT use the device whilst undertaking any activity where an unex- pected reaction could be dangerous.

Do NOT use the device after the consumption of substances that lead to impaired cognitive function (e.g. pain medication, alcohol).

The device features an optional heat function. Persons not sensitive to heat must be careful when using the heat function.

Use of the device must feel pleasant at all times.20

Only use the device with the supplied accessories.

Repairs must only be carried out by Customer Services or authorised retailers. Under no circumstances should you open or repair the device yourself, as faultless functionality could no longer be guaranteed there

after. Failure to comply with this instruction will void the warranty. Never attempt to repair the device yourself! If you are unsure whether the device is suitable for you, please consult your doctor. Please consult your doctor before using the stress releaZer:

If you suer from a severe illness or have recently had surgery on your upper body.

In the case of feverish colds, thrombosis, diabetes, neurological diseases or severe inflammations.

If you are suering pain, the cause of which is unknown. Notes on handling batteries

If your skin or eyes come into contact with fluid from a rechargeable battery cell, flush out the aected areas with water and seek medical assistance.

Choking hazard! Small children may swallow and choke on rechargeable batteries. Store rechargeable batteries out of the reach of small children.

Protect batteries from excessive heat.

Risk of explosion! Never throw batteries into a fire.

Do not disassemble, split or crush the rechargeable batteries.

Only use chargers specified in the instructions for use.

Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications in these instructions for use regarding correct charging must be observed at all times.

Fully charge the battery prior to initial use.

In order to achieve as long a battery service life as possible, fully charge the battery at least twice per year.21

1 Micro USB connection 4 Heat button 2 Function light 5 Illuminated ring 3 ON/OFF button 6 Illuminated ring button22

Note Before using the stress releaZer for the first time, let it charge for a minimum of 4 hours. Proceed as follows: Charging the stress releaZer

Connect the micro USB charging cable to the mains adapter and the stress releaZer (Figure 1). Then insert the mains adapter into a suitable socket. Al- ternatively, you can also charge the stress releaZer with the charging cable via the USB port on your computer or laptop ( Figure 2). When the device is charging, the function light will light up alternately in a cir

cle. When the stress releaZer is fully charged, the function light will be perma- nently illuminated. The battery will last for approx. 3 hours when fully charged (with heat and light function activated) or approx. 11 hours without heat and light function. Charge the stress releaZer again as soon as the function light flashes blue during operation. Note The device cannot be used whilst it is being charged. Figure Figure

6.1 Positioning the stress releaZer

Note You can use the stress releaZer either on bare skin or over clothing. We rec- ommend that you use the stress releaZer for 30 minutes every day.

Lie flat on your back. Alternatively, you can also sit on a reclined chair.

Place the stress releaZer on the dia- phragm area (resting on the bottom rib bones/chest). If you find that use directly on the diaphragm is uncom- fortable, position the stress releaZer above the diaphragm. Note Do not use the device near your solar plexus (area between your chest and your stomach). This may cause dizziness and nausea.

6.2 Switching on the stress releaZer/selecting the breathing cycle

Note Select the breathing cycle of your choice. If the stress releaZer is used over an extended period of time, it is possible to increase your breath duration. Press once

Press the ON/OFF button to switch on the stress releaZer. Bluetooth

is activated when three sections of the function light light up blue. You can now connect the stress releaZer to your smartphone using the “ beurer CalmDown” app if you wish. Press twice

The first breathing cycle is activated. In this breathing cycle, breathe in for 5 seconds, and then breathe out for 5 seconds. Press three times

The second breathing cycle is activated. In this breath- ing cycle, breathe in for 6 seconds, and then breathe out for 6 seconds.24 Press four times

The third breathing cycle is activated. In this breathing cycle, breathe in for 7 seconds, and then breathe out for 7 seconds. Press five times = The stress releaZer is switched o. Note You can also switch o the stress releaZer, regardless of the setting, by pressing and holding down the ON/OFF button. Note The stress releaZer features an automatic switch-o function, which is set to the maximum operating duration of 30 minutes. After 30 minutes, the stress releaZer switches o automatically.

You can switch on a soothing heat during use to increase relaxation. To do this, press the heat button on the stress releaZer. The function light starts to glow blue. Press the heat button again to switch o the heat.

You can also switch on a blue light during use to increase relaxation. To do this, press the light button on the stress releaZer. The illuminated ring around the stress releaZer will now start to pulse in time with the user’s breathing rhythm. Press the light button again to switch o the blue light. When the light function and the heat function are both switched on, the illu- minated ring will glow red, not blue.

7. Cleaning and maintenance

The service life of the stress releaZer depends on careful use. IMPORTANT

Clean the stress releaZer after every use using a soft, slightly damp cloth (water or a mild cleaning solution). Dry the stress releaZer using a lint-free cloth. Do not use any abrasive cleaning products.25

Protect the stress releaZer from knocks, dust, chemicals, drastic chang- es in temperature, electromagnetic fields and nearby sources of heat (ovens, heaters).

Do not submerge the stress releaZer in water or any other fluids and make sure that no fluids can get into the stress releaZer.

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the device at a suitable local collection or recycling point in your country. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal. Rechargeable battery disposal The empty, completely flat rechargeable batteries must be disposed of through specially designated collection boxes, recycling points or electron- ics retailers. You are legally required to dispose of the batteries. To remove the battery from the device, pry open the cover above the illumi

nated ring using a screwdriver. Remove the battery from inside the housing. The codes below are printed on rechargeable batteries containing harmful substances: Pb = Battery contains lead Cd = Battery contains cadmium Hg = Battery contains mercury

Average active eciency: ≥ 73.88 %26 No-load power consumption: ≤ 0.09 W Dimensions 18 x 12.8 x 5 cm Weight Approx. 380 g Battery: Capacity Nominal voltage Type designation 2200 mAh

Lithium-ion Data transfer Bluetooth® low energy technology, 2.400 - 2.480 GHz frequency band transmission power < 20 dBm Technical information is subject to change without notification to allow for updates. We hereby confirm that this product complies with the European RED Di- rective 2014/53/EU. The CE Declaration of Conformity for this product can be found under: https://www.beurer.com/web/we-landingpages/de/cedecla- rationofconformity.php

wireless technology. El stress releaZer

1.2 App "beurer CalmDown"

wireless technology stress releaZer

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Beurer GmbH is under license. Other trademarks and trade names are those of their respective owners. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC. Android is a trademark of Google LLC.
