Product type	Foot bath with massage and heating
Brand	Beurer
Model	FB 65
Dimensions (L x W x H)	45.0 x 39.0 x 18.4 cm
Weight	Approx. 3.45 kg
Power supply	220-240 V~, 50-60 Hz, 650 W
Maximum water capacity	5.5 L
Water temperature range	34 °C to 48 °C (adjustable in 2 °C increments)
Timer	20 to 60 minutes (in 5-minute increments)
Massage functions	Bubbling massage, vibration massage, massage rollers (6 pieces)
Automatic programs	P1, P2, P3 (combinations of bubbling and vibration)
Ambient lighting	6 colors (red, green, blue, yellow, purple, turquoise)
Motorized pedicure center	Yes, with 3 interchangeable attachments (pumice stone, brush, massage)
Touchscreen	Touch LED
Safety class	II (double insulation)
Splash protection	Yes
Automatic shut-off	Yes (via timer or automatic after 60 min max)
Care	Rinse with clean water, mild detergent, dry the air ducts with bubble function without water
Package contents	1 foot bath, 3 massage attachments, 1 storage/drying bag, 1 instruction manual
Warranty	See the included warranty card

Frequently Asked Questions - FB 65 BEURER

How long can I use the foot bath?

The maximum continuous use time is 60 minutes. After this time, the device automatically switches to standby mode. You can set a timer from 20 to 60 minutes in 5-minute increments.

What water temperature do you recommend?

The heating can be set from 34 °C to 48 °C in 2 °C increments. For a refreshing effect, use cold water (24-29 °C without heating). Warm water (30-40 °C) promotes well-being. Hot water (42-48 °C) has a warming effect and stimulates the immune system.

Can I use bath salts or essential oils?

No, never use oily fragrances or bath salts, as they may damage the device. Only use clean water.

How to clean the foot bath after use?

Unplug the device and empty the water. Rinse with clean water. You can use a mild non-foaming detergent. To dry the air ducts, activate the bubble function without water for about 1 minute. The massage rollers are removable for easy cleaning.

Is the foot bath suitable for large feet?

The device fits up to shoe size ~51. Beyond that, the massage functions may be limited.

What are the medical contraindications?

Consult a doctor before use if you have diabetes, thrombosis, varicose veins, venous inflammation, or after foot surgery. Do not use the foot bath on open wounds, warts, fungal infections, or pathological changes of the feet.

How to use the motorized pedicure center?

The foot bath has three attachments: pumice stone for calluses, brush to stimulate reflex zones, and massage attachment for circulation. Insert the attachments in standby mode, then turn on the device and use them on your feet.

What to do if the device does not heat?

Check that you have activated the heating by pressing the 'Increase temperature' button. Make sure the bubble function is activated for faster heating. If the problem persists, contact customer service.

Is the foot bath safe for use in the bathroom?

The device is safety class II (double insulation) and protected against splashes. Use it only in dry indoor rooms, away from standing water. Never immerse it and do not use it in the bathtub or sauna.

How to store the foot bath?

After cleaning and drying, store the device in its original packaging or in the provided storage bag in a dry place. Do not leave the device open for a long time.

USER MANUAL FB 65 BEURER

Top-down view of a baby foot massage device with digital display and foam buttons (no text or symbols visible)

EN Wellness Foot Spa Instructions for use....12

Illustration of an open book with a geometric window and horizontal lines, no text or symbols present

EN Unfold page 3 before reading the instructions for use.

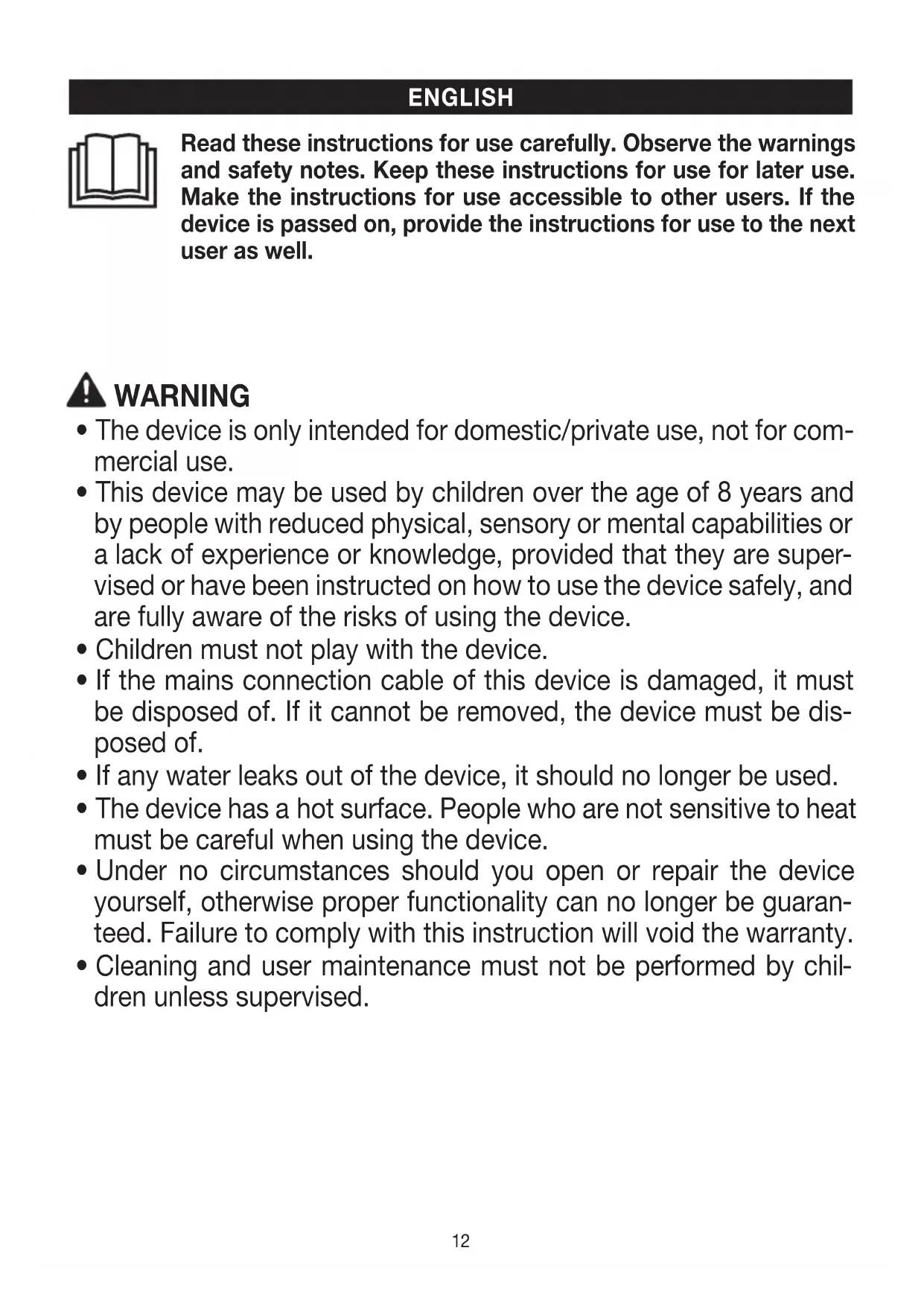

Read these instructions for use carefully. Observe the warnings and safety notes. Keep these instructions for use for later use. Make the instructions for use accessible to other users. If the device is passed on, provide the instructions for use to the next user as well.

WARNING

• The device is only intended for domestic/private use, not for commercial use.
• This device may be used by children over the age of 8 years and by people with reduced physical, sensory or mental capabilities or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the risks of using the device.
  • Children must not play with the device.
• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.
• If any water leaks out of the device, it should no longer be used.
• The device has a hot surface. People who are not sensitive to heat must be careful when using the device.
• Under no circumstances should you open or repair the device yourself, otherwise proper functionality can no longer be guaranteed. Failure to comply with this instruction will void the warranty.
• Cleaning and user maintenance must not be performed by children unless supervised.

Contents

1. Signs and symbols.... 13
2. Warnings and safety notes......14
3. Scope of delivery....15
4. Device description....16

5. Use 16

6. Cleaning and maintenance....19

7. Disposal....19
8. Technical specifications 19

9. Warranty 19

10. SIGNS AND SYMBOLS

	CAUTIONSafety note indicating possible damage to the device/accessory		WARNINGWarning indicating a risk of injury or damage to your health
	CAUTIONIndicates that caution is necessary when operating devices or controls in the vicinity of this symbol, or that the current situation needs operator awareness or operator action in order to avoid undesirable consequences		Marking to identify the packaging material.A = material abbreviation,B = material number:1-7 = plastics,20-22 = paper and cardboard
	Read the instructions Disposal in accord		theWaste Electrical and Electronic Equipment EC Directive (WEEE)
	Manufacturer Dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in according to the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose of packaging in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with the manufacturer dispose in accordance with it.
	Product informationNote on important information		Protection class II deviceThe device is double-insulated and, therefore, is in protection class 2
	The products demonstrably meet the requirements of the Technical Regulations of the EAEU		CE labellingThis product satisfies the requirements of the applicable European and national directives.
	For indoor use only United Kingdom Corporation		sessed Mark
	Separate the product and packaging elements and dispose of them in accordance with local regulations.	[CBAS]	Alternating currentThe device is suitable for use with alternating current only

2. WARNINGS AND SAFETY NOTES

WARNING

Intended use

This foot bath is intended to be used exclusively for the care of your feet.

- Do NOT use the foot bath:

• Without water, as there is a risk of overheating.
• With oily aromatic additives or bath salts.
• If you have a medical abnormality or injury in your feet (e.g. open wound, warts, athlete's foot).
• Whilst sleeping.

• With animals.

• Never use the foot bath for more than 60 minutes (risk of overheating). Allow the foot bath to cool down for at least 15 minutes before using it again.

• Consult your doctor before using the foot bath if:

- You are unsure whether the foot bath is suitable for you.

- You suffer from a severe illness or have recently had surgery on your feet.

- You suffer from diabetes or thrombosis, leg or foot conditions, e.g. varicose veins or venous inflammation, or pain of an unknown cause.

- Note that the foot bath is suitable for people up to a shoe size of approx. 51. Larger feet may restrict the massage functions.

The device is only intended for the purpose described in these instructions for use. The manufacturer is not liable for damage resulting from improper or careless use.

WARNING

Failure to observe the following information may result in personal injury or material damage.

• Danger of suffocation! Keep packaging material away from children.
• Before use, ensure that the device and accessories have no visible damage. If you have any doubts, do not use the device and contact your retailer or the customer service address provided.
• Do not pull, twist or bend the mains cable. Do not stick any needles or sharp objects into the device.
• Make sure that the mains cable is not routed or pulled over pointed or sharp objects.
• Insert the mains plug into a socket that is protected against humidity, moisture and water splashes.
• Do not place the foot bath in a shower tray, bath tub or sink to fill it.
• If the device has been dropped or has suffered any other damage, it must no longer be used.
• Only specialist personnel may perform repairs on electrical devices. Improper repairs may put users in significant danger. In the event of a fault or damage, have the device repaired by a certified specialist workshop.
• Should a fault occur during use, switch the device off immediately and remove the mains plug from the socket.
  • Always switch the device off and unplug the mains plug before moving or cleaning it.
• When using the bubble massage, water may escape from the foot bath over the rim. Please pay increased attention to the risk of slipping.

WARNING

Risk of electric shock

• Make sure that the mains plug and mains cable do not come into contact with water or other liquids.

- Only use the foot bath in dry indoor areas. Never use the foot bath in the bath or a sauna.

- Only use the foot bath with dry hands.

- Never submerge the foot bath under water. Never pick up a foot bath that has been submerged in water. Disconnect the mains plug immediately.

- Only use the foot bath with the mains voltage specified on the device.

- Do not operate the foot bath during a storm.

- In the event of defects or malfunctions, switch the foot bath off immediately and disconnect it from the mains socket. Do not pull on the mains cable or on the foot bath to disconnect the mains plug from the socket.

- Never hold or carry the device by the mains cable. Keep the mains cable away from hot surfaces.

- Never connect the foot bath to the power cable if your feet are already in the water. Damage to the device can lead to fatal electric shocks.

WARNING

Risk of fire

• Do not expose the device to high temperatures.
  • NEVER use the foot bath:

• Unsupervised, especially if there are children nearby.

• Underneath a cover such as a blanket, pillow, etc.
• Near petrol or other highly flammable substances.
• On high-pile carpeting because the vents may be covered.

3. SCOPE OF DELIVERY

Check the scope of delivery to ensure that the exterior of the cardboard package is intact and all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the customer service address provided.

• 1 foot bath
• 3 massage attachments (portable pedicure device, brush attachment, massage attachment)
  • 1 storage and drying bag
  • 1 copy of these instructions for use

4. DEVICE DESCRIPTION

The associated drawings are shown on page 3.

1 LED touch display
2 Splash protection
3 Fill level mark (max. 5.5 l)
4 Ambient lighting
5 Foot rest with massage nodules
6 Bubble bar
7 Massage roller attachments (6 pieces)
8 Motorised pedicure centre
9 Portable pedicure device
10 Brush attachment
11 Massage attachment
12 ON/OFF button

13 "Increase water temperature" / "Switch water heating on" function button
14 "Decrease water temperature" / "Switch water heating off" function button
15 "Vibration" function button
16 "Programs" function button
17 "Bubble" function button
18 "Ambient lighting" function button
19 Water temperature / timer time display
20 "Timer" function button
21 Cable outlet
22 Cord winder
23 Rubber feet
24 Storage / drying bag

5. USE

Initial use

1. Remove the packaging, including the film protecting the display.
2. Check the complete scope of delivery (including packaging) for damage.
3. Before plugging the foot bath in, fill it with cold or warm water up to the fill level mark 3 (approx. 5 cm high). The foot rest part must be completely submerged under water.
4. Place the foot bath on a firm and level surface.
5. Ensure that the mains cable does not pose a trip hazard.
6. Insert the mains plug into a suitable socket. The ON/OFF button 12 starts to flash. The foot bath is in standby mode.

Using the foot bath

1. Sit in a comfortable position. Never use the foot bath standing up.
2. Place your feet in the foot bath. The rubber feet on the base of the device prevent the foot bath from slipping.
3. Press the ON/OFF button 12 to switch the foot bath on. The ON/OFF button 12 lights up and stays lit; the display 19 shows the current water temperature. The foot bath is now ready for use.
4. The massage is especially effective if you move your feet back and forth over the massage roller attachments 7 in the foot rest.

At the end of use

To switch the foot bath off again before the automatic switch-off takes effect (see "Timer function"), press the ON/OFF button 12 again. The ON/OFF button 12 flashes again. The foot bath is in standby mode. Switch the foot bath off after use and remove the mains plug from the socket.

Pedicure attachments

The foot bath has a motorised pedicure centre 8 for individual pedicure.

There are three different attachments 9 10 11 that you can attach to the motorised pedicure centre 8:

• The portable pedicure device attachment 9 can be used to remove dead skin cells and calluses.
• The brush attachment 10 can be used to stimulate the reflex zones in the soles of your feet.
• The massage attachment 11 provides a pleasant massage for your feet and stimulates circulation.

We recommend attaching the pedicure attachments when the foot bath is in standby mode.

Setting the water temperature ⚡+ ⚡-

You can use the foot bath with and without water heating. The water heating can be set to between 34^ C and 48^ C. The water heating starts at 34^ C. You can increase/decrease the water temperature in 2^ C increments.

1. To switch the water heating on, press the "Increase water temperature" / "Switch on water heating" function button 13.
2. To increase the water temperature in the foot bath, press the "Increase water temperature" / "Switch on water heating" function button 13.
3. Select your desired water temperature using the "Water temperature / Water heating" function buttons 13 14. The desired water temperature is shown briefly on the display 19 before the display returns to showing the current water temperature.
4. The heating process starts.

• The foot bath has a memory function that remembers the set water temperature until the power circuit is interrupted.
• For quicker heating, we recommend activating the “Bubble” function as well.

• Different water temperatures have a positive effect on the feeling in your body. Choose the right water temperature for your wellness experience:

• Cold water (24–29°C – without water heating) has a refreshing and vitalising effect on the body. It awakens your spirits and brings new energy.

• Lukewarm water (30–40°C) supports an optimal wellness experience and has a nurturing and constructive effect.

• Warm water (approx. 42–48°C) has a particularly soothing and warming effect on the body and, as a result, can support the immune system. Please note that the water temperature should increase slowly and should not be set too high initially.

• To reduce the water temperature in the foot bath, press the “Decrease water temperature” / “Switch off water heating” function button 14.

• The water heating has been switched off when the LEDs of the "Water temperature / water heating" function buttons 13 14 turn off.

Vibration massage (v)

You can switch a vibration massage on during use.

1. To switch the vibration massage on, press the "Vibration" function button ^15 . The LED of function button 15 starts to light up.

2. To switch the vibration massage off again, press function button 15 again. The LED turns off.

Automatic programs P

The foot bath has one preset and three individually selectable programs:

PO = Manual operation / Program OFF (default)

P1 = Bubble and vibration massage on simultaneously for 10 seconds and pause for 5 seconds

P2 = Bubble massage and pulsating vibration alternating for 15 seconds each

P3 = Bubble and vibration massage alternating for 10 seconds each

1. Select the desired program (P1, P2, P3) using the "Programs" function button 16. The LED of function button 16 starts to light up. The currently set program is briefly displayed on the LED touch display 1. The display switches back again to the water temperature.

2. To change to manual mode, press function button 16 again until PO appears in the LED touch display 1. The function button 16 LED turns off.

Bubble massage

You can switch a bubble massage on during use.

1. To switch the bubble massage on, press the "Bubble" function button ^17 . The LED of function button ^17 starts to light up.

2. To switch the bubble massage off again, press function button 17 again. The LED turns off.

Ambient lighting

You can switch ambient lighting on during use.

1. To switch the ambient lighting on, press the "Ambient lighting" function button 18. The LED of function button 18 and the light strips in the foot bath begin to light up.

2. Use function button 18 to select the desired ambient light (red, green, blue, yellow, purple or turquoise).

- Red light can increase circulation and stimulate metabolism.

- Green light can have a balancing effect and increase the recovery factor.

- Blue light supports relaxation and can have a harmonising effect.

- Yellow light can generate positive energies and increase optimism.

- Purple light can put the body in an improved meditative mood and be inspiring.

- Turquoise light can have a calming and cooling effect on the body and is particularly recommended with cold water.

1. To switch the ambient lighting off, either press and hold function button 18 for two seconds or press function button 18 repeatedly until the LED of function button 18 and the light strips in the foot bath go out after the turquoise light.

Timer function

You can set a timer time of between 20 and 60 minutes (in 5-minute increments) on the foot bath. After this time has passed the foot bath switches off automatically. Initially, the timer time is automatically preset to 20 minutes.

1. Use the "Timer" function button 20 to select your desired relaxation time. The selected timer time is shown briefly in the water temperature / timer time display 19 before the water temperature is displayed again.

2. You can display the remaining relaxation time during use by pressing function button 20 once.

3. If function button 20 is pressed several times during use, the relaxation time is restarted.

4. As soon as the relaxation time has elapsed, the foot bath automatically switches to standby mode.

6. CLEANING AND MAINTENANCE

CAUTION

Make sure that no water gets inside the device! Make sure that the foot bath is switched off and unplugged every time before cleaning.

1. After use, unplug the foot bath and empty the water via the narrow side.
2. To make it easier to empty the foot bath, we recommend carrying it with the straight side facing the body.
3. Then rinse the foot bath with clean water.
4. For hygienic cleaning, a mild, non-foaming/abrasive cleaning product can be used (e.g. neutral vinegar).
5. To dry out the air lines after cleaning, switch the bubble function on without water for approximately 1 minute. You can wipe any drops off with a cloth.
6. The storage bag for the pedicure attachments can also be used at the same time as a cloth to clean/dry the foot bath.
7. To make cleaning/drying easier, you can remove the massage roller attachments 7 from the foot bath by removing them with a gentle lever action.
8. After cleaning, store the foot bath in its original packaging and in a dry place. Do not leave the foot bath open for prolonged periods of time.

7. DISPOSAL

For environmental reasons, do not dispose of the device in household waste at the end of its service life. Dispose of the device at a suitable local collection or recycling point in your country. Observe the local regulations for material disposal. Dispose of the device in accordance with EC Directive Waste Electrical and Electronic Equipment (WEEE). If you have any questions, please contact the local authorities responsible for waste disposal. You can obtain the location of collection points for old devices, for example, from the local or municipal authorities, local waste disposal companies or your retailer.

8. TECHNICAL SPECIFICATIONS

Power supply: 220-240 V~, 50-60 Hz, 650 W
Size: 45.0 x 39.0	x 18.4 cm
Weight: Approx.	3.45 kg

9. WARRANTY

Further information on the warranty and warranty conditions can be found in the warranty leaflet supplied.

FRANÇAIS

2. WAARSCHUWINGEN EN VEILIGHEIDSOPMERKINGEN

WAARSCHUWING

Beoogd gebruik

4. BESCHRIJVING VAN HET APPARAAT

PO = Manuel drift / Program OFF (standard)

PO = Manuell drift / Program OFF (forhåndsinnstilt)
