POWDP7060 - Welding machine PowerPlus - Free user manual and instructions

Brand	PowerPlus
Model	POWDP7060
Product type	Cordless soldering iron
Rated voltage	20 V DC
Temperature range	200 - 480 °C
Maximum power	70 W
Power supply	20 V Li-ion battery (not included)
Heating element type	Ceramic heating
Temperature adjustment	Adjustment knob
Heating indicator	LED indicator
Battery indicator	3 capacity LEDs
Package contents	Soldering iron, stand, metal case, sponge, solder wire, manual
Warranty	36 months
Weight (approx.)	0.25 kg (estimate)
Max. ambient temperature for battery	40 °C
Protection class (charger)	Class II (double insulation)
Intended use	Manual soldering for installation, repair and small-scale production

Frequently Asked Questions - POWDP7060 PowerPlus

How to turn on the POWDP7060 soldering iron?

First install the charged battery, then press the on/off switch. The LED indicator blinks until it reaches the operating temperature, then stays lit steadily.

What is the maximum temperature this soldering iron can reach?

The adjustable temperature ranges from 200 °C to 480 °C. Use the adjustment knob to set it as needed.

How to check if the battery is charged?

Press the battery capacity indicator button. Three LEDs lit = full charge, two = 60%, one = almost empty.

Can I use the soldering iron while it is charging?

No, the soldering iron is cordless and runs on battery. You must remove the battery to charge it. Never use it while charging.

How to replace the soldering tip?

Let the tip cool for 30 minutes. Remove the battery, loosen the nut, remove the sleeve, pull out the old tip, insert the new one, replace the sleeve and nut.

What to do if the iron does not heat up?

Check that the battery is charged and correctly inserted. Make sure the switch is in the on position. If the indicator does not light up, the battery or tool may be defective.

Which battery to use with the POWDP7060?

Use a 20 V Li-ion battery compatible with PowerPlus tools. The battery is not included in the package.

How to clean the soldering iron?

Use the provided damp sponge to clean the tip after use. Always disconnect the battery before cleaning. Do not immerse the tool in water.

Is the soldering iron suitable for electronic soldering work?

Yes, thanks to its temperature range of 200-480 °C, it is suitable for electronic soldering, provided a suitable fine tip is used.

What is the warranty period?

The warranty is 36 months from the date of purchase, covering defects in materials and workmanship, but not normal wear nor batteries or chargers.

USER MANUAL POWDP7060 PowerPlus

Orange and black power supply unit with attached cable and terminal block (no visible text or symbols)

FIG.1 FIG.2

Electricity power supply device with coiled cable and spring attached to a motor (no visible text or symbols)

4 5 6 3 POWER 1-1.128

Close-up of a black and orange battery with a circular button highlighting a small electronic component (no visible text or symbols)

FIG.3 FIG.4

Technical diagram showing a soldering process with numbered components and a close-up of the tool tip.

FIG.5 FIG.6

POWDP7060 NL

1 BEOOGD GEBRUIK 2
2 BESCHRIJVING (FIG. A)....2
3 INHOUD VAN DE VERPAKKING....2
4 TOELICHTING VAN DE SYMBOLEN ....3
5 ALGEMENE VEILIGHEIDSVOORSCHRIFTEN ....3
5.1 Werkplaats .... 3
5.2 Elektrische veiligheid....3
5.3 Veiligheid van personen....4
5.4 Zorgvuldige omgang met en gebruik van elektrisch gereedschap ....4
5.5 Service....5

6 BIJKOMENDE VEILIGHEIDSINSTRUCTIES VOOR BATTERIJEN EN LADERS 5

6.1 Batterijen....5
6.2 Laders....6
7 OPLADEN EN INBRENGEN OF UITNEMEN VAN DE BATTERIJ 6
7.1 Aanwijzingen op de lader (Fig. 1)....6
7.2 Uitnemen/inbrengen van de batterij (Fig. 2)....6
7.3 Indicator batterijcapaciteit (Fig. 3)....6
8 GEBRUIK 7
8.1 De soldeerbout in gebruik nemen (Fig. 4)....7
8.2 De soldeerbout gebruiken (Fig. 5)....7
9 REINIGING EN ONDERHOUD ....7
9.1 Soldeerpunten vervangen (Fig. 6)....7
9.2 Onderhoud 8
10 TECHNISCHE GEGEVENS 8
11 GARANTIE 9
12 MILIEU....9

POWDP7060 NL

SOLDEERBOUT 20 V (BATT. NIET MEEGELEVERD) POWDP7060

1 BEOOGD GEBRUIK

2 BESCHRIJVING (FIG. A)

7 CHARGING AND INSERTION OR REMOVAL OF BATTERY .....5

7.1 Charger indications (Fig. 1)....5

7.2 Removal / insertion of battery (Fig. 2)....6

7.3 Battery capacity indicator (Fig. 3)....6

8 OPERATION....6

8.1 Starting the soldering iron (Fig.4)....6

8.2 Operating the soldering iron (fig.5) 7

9 CLEANING AND MAINTENANCE 7

9.1 Replacing soldering tips (fig.6)....7

9.2 Maintenance....7

10 TECHNICAL DETAILS....7

11 WARRANTY....8

12 ENVIRONMENT 8

SOLDERING IRON 20V (NO BATT.) POWDP7060

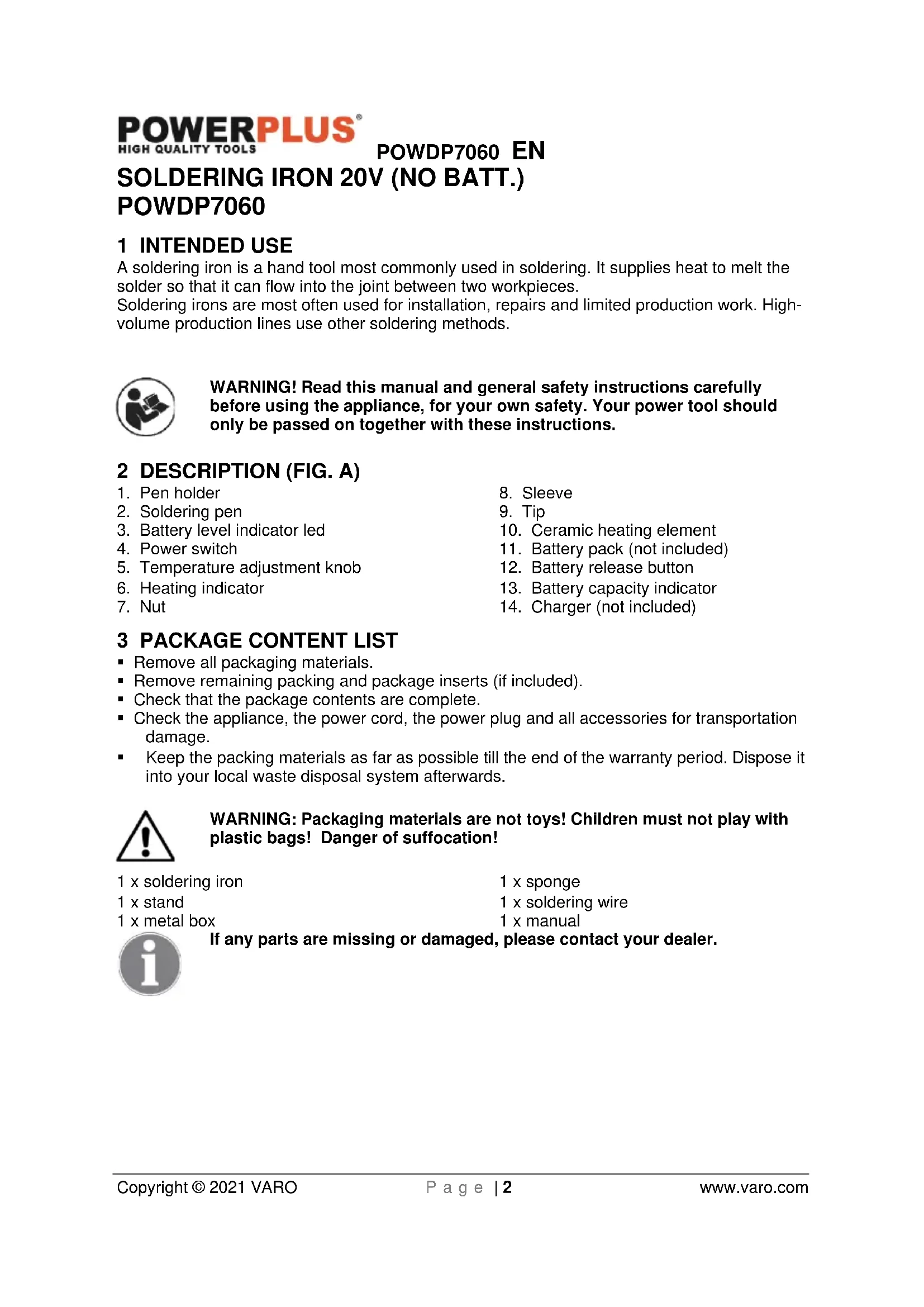

1 INTENDED USE

A soldering iron is a hand tool most commonly used in soldering. It supplies heat to melt the solder so that it can flow into the joint between two workpieces.

Soldering irons are most often used for installation, repairs and limited production work. High-volume production lines use other soldering methods.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

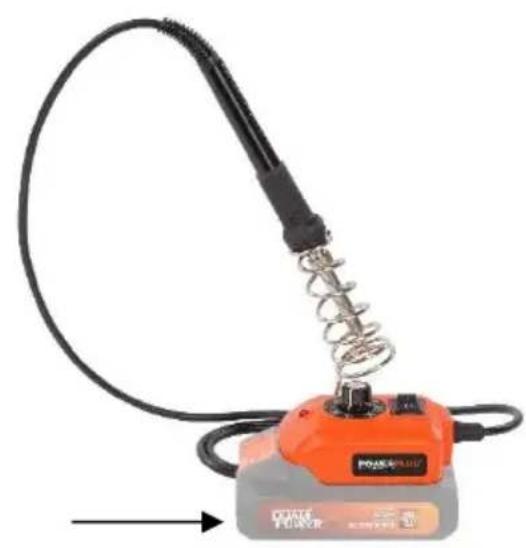

2 DESCRIPTION (FIG. A)

1. Pen holder
2. Soldering pen
3. Battery level indicator led
4. Power switch
5. Temperature adjustment knob
6. Heating indicator

7. Nut

8. Sleeve

9. Tip
10. Ceramic heating element
11. Battery pack (not included)
12. Battery release button
13. Battery capacity indicator
14. Charger (not included)

3 PACKAGE CONTENT LIST

■ Remove all packaging materials.
- Remove remaining packing and package inserts (if included).
- Check that the package contents are complete.
- Check the appliance, the power cord, the power plug and all accessories for transportation damage.
- Keep the packing materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation!

1 x soldering iron
1 x stand
1 x metal box

1 x sponge
1 x soldering wire
1 x manual

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

	Denotes risk of personal injury or damage to the tool.		In accordance with essential requirements of the European directive(s)
	Read manual before use		"Class II - The machine is double insulated; Earthing wire is therefore not necessary (only for charger)
	Ambient temperature 40°C max. (only for battery)		Do not expose charger and battery pack to water
	Use battery and charger only in closed rooms		Do not incinerate battery pack or charger
	To reduce the risk of injury or damage, avoid contact with any hot surface.		Mandatory use of eye protection.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

• Always check that the power supply corresponds to the voltage on the rating plate.
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of an electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of an electric shock.

POWDP7060 EN

- If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.

5.3 Personal safety

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

- Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

- Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

- Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.

- Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.

- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

- If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

- Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

- Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.

- Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

- Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

- Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

- Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

POWDP7060 EN

6 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS

6.1 Batteries

■ Never attempt to open for any reason.
- Do not store in locations where the temperature may exceed 40 °C.
- Charge only at ambient temperatures between 4 °C and 40 °C.
- Store your batteries in a cool dry place (5 °C-20 °C). Never store batteries in discharged state.

It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The ideal charge for long-term storage of your Li-ion battery is 40% of capacity.

- When disposing of batteries, follow the instructions given in the section "Protecting the environment".

- Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal directly or via accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat generation which may lead to casing rupture or fire.

- Do not heat. If batteries are heated to above 100 °C, sealing and insulating separators and other polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning may result.

- Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows:

- Carefully wipe the liquid off using a cloth. Avoid skin contact.

- In case of skin or eye contact, follow the instructions below:

√ Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar.

√ In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician.

Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.

6.2 Chargers

• Never attempt to charge non-rechargeable batteries.
  ■ Have defective cords replaced immediately.
  ■ Do not expose to water.
  ■ Do not open the charger.
  ■ Do not probe the charger.
  ■ The charger is intended for indoor use only.

7 CHARGING AND INSERTION OR REMOVAL OF BATTERY

7.1 Charger indications (Fig. 1)

Connect the charger to the power outlet socket

■ Solid green: ready to charge
■ Flickering red: charging
- Solid green: charged
■ Solid green and red: battery or charger damaged

POWDP7060 EN

Note: if the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart. Do not charge any other battery pack or any battery pack that does not securely fit the charger.

1. Frequently monitor the charger and battery pack while connected
2. Unplug the charger and disconnect it from the battery pack when finished.
3. Allow the battery pack to cool completely before using it.
4. Store the charger and battery pack indoors, out of reach of children.

NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries.

7.2 Removal / insertion of battery (Fig. 2)

Battery tools are always in operating condition. Place the switch in the off position and remove the battery pack when the product is not in use or when carrying at your side.

• Hold the tool with one hand and the battery pack (11) with the other.
• To install: push and slide battery pack into battery port, make sure the release latch on the rear side of the battery snaps into place and battery is secure before beginning operation.
• To remove: Press the battery release latch and pull the battery pack out at the same time.

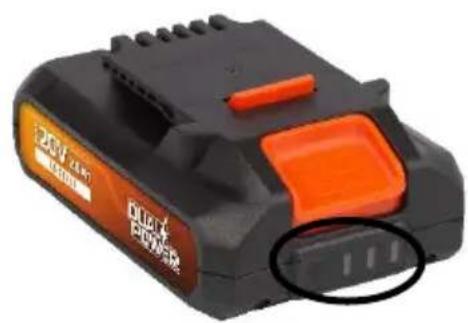

7.3 Battery capacity indicator (Fig. 3)

There are battery capacity indicators on the battery pack, you can check the capacity status of the battery if you squeeze the button (13). Before using the machine, please press switch trigger to check if the battery is full enough for properly working.

Those 3 LED might show the status of the capacity level of the battery:

3 LED's are lit: Battery fully charged

2 LED's are lit: Battery 60% charged

1 LED is lit: Battery almost discharged

8 OPERATION

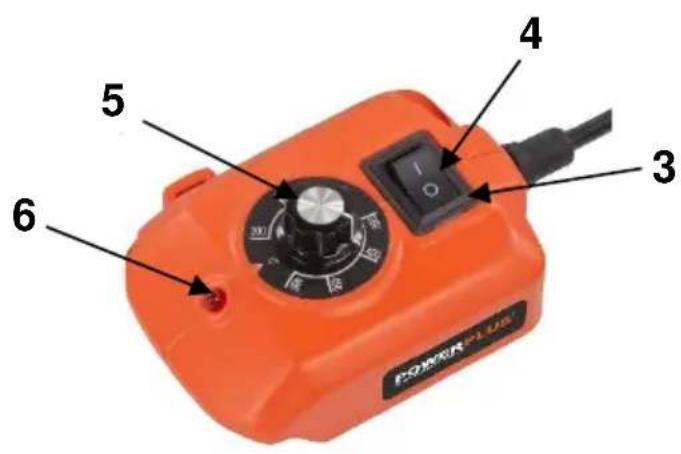

8.1 Starting the soldering iron (Fig.4)

■ Make sure the battery is charged.
- Set the power switch (4) in the on position (I).
- The battery level indicator led (3) light will turn green. This indicator is part of the power switch and is a bead surrounding the switch. When the battery is depleted the indicator (3) will turn red.
- The heating indicator led (6) will turn red and burn continuously until the iron is hot enough to start working.
- Set the temperature (°C) adjustment knob (5) to the desired level depending on the application.
- The heating indicator led (6) will flash until the set temperature is reached, at that point the led will go out.
- When during operation the temperature has dropped, warming will start again (led flashes) until the set temperature is reached (led goes out).

POWDP7060 EN

8.2 Operating the soldering iron (fig.5)

■ Always hold the soldering iron pen as shown. Apply solder with the tip of the pen.
■ Apply soldering wire only to the tip of the tool at the point where it touches the workpiece
■ After soldering, return the pen to the pen holder. Press firmly to make sure it is secure.
- Press the on/off switch to turn the soldering iron off.
- Always allow 30 minutes for the soldering iron to cool before storing the tool.

Warning: always place the pen back into the holder so that the tip does not come in contact with anything while it is heating or when not in use. Following this rule will reduce the risk of damage to items, burns, fire or serious personal injury.

9 CLEANING AND MAINTENANCE

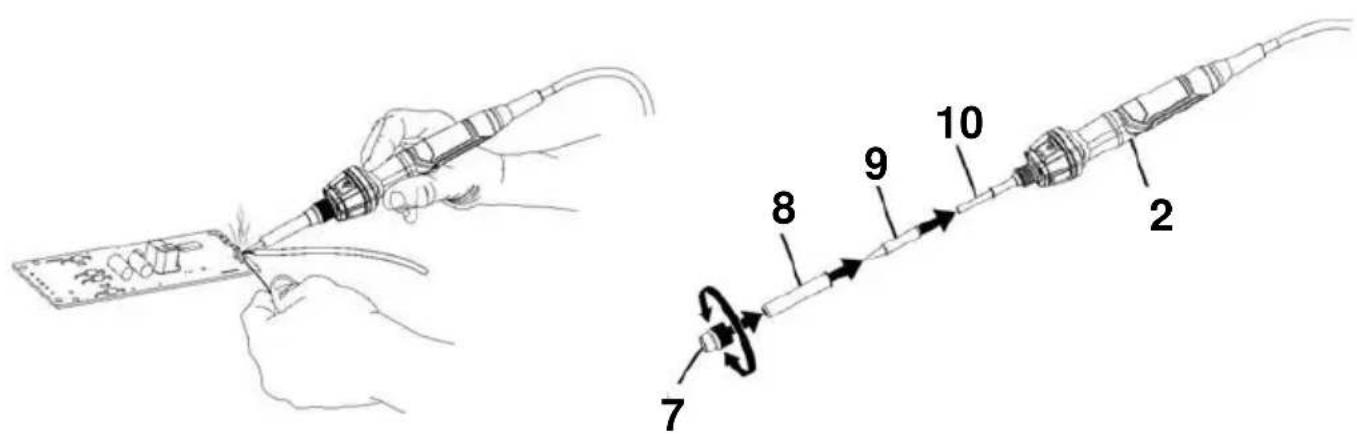

9.1 Replacing soldering tips (fig.6)

Warning: always allow the soldering tip to cool for a minimum of 30 minutes before removing the tip. Touching a hot soldering tip can result in serious personal injury.

■ Remove the battery pack (11) from the tool
■ Loosen the nut (7) by turning counterclockwise and remove from tip.
■ Remove the sleeve (8) by sliding off the pen (2).
- Pull to remove the tip (9) and insert a replacement tip. Push the new tip onto the ceramic heating element (10).
- Hold the body of the pen and slide the sleeve (8) over the new tip.
■ Reinstall the nut (7).

9.2 Maintenance

- Our machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

- In order to maintain battery capacity, we recommend the battery to be completely discharged every one month and fully recharged again. Only store with a fully charged battery and top-up the charge from time to time if stored for a long time. Store in a dry and frost-free place, the ambient temperature should not exceed 40°C.

10 TECHNICAL DETAILS

Type	POWDP7060
Rated voltage (DC)	20V
Temperature	200-480°C
Max power	70W

POWDP7060 EN

11 WARRANTY

- This product is warranted for a 36-month period effective from the date of purchase by the first user.

- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

■ Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

- Your tool must be charged at least 1x per month to ensure optimal operation of this tool.

12 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way.

Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

POWDP7060 DE

3 FÖRPACKNINGSINNEHÅLL 2

4 SYMBOLER....3

5 ALLMÄNNA SÄKERHETSANVISNINGAR FÖR ELEKTRISKA VERKTYG....3

3 FÖRPACKNINGSINNEHÅLL

10 TEKNISET TIEDOT....7

11 TAKUU 8

12 LAITTEEN KÄYTÖSTÄ POISTAMINEN 8

JUOTIN 20 V (EI AKKU)

POWDP7060

1 KÄYTTÖTARKOITUS

2 POPIS (OBR. A)....2

3 OBSAH BALENIA....2

4 SYMBOLY 3

5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE ....3

5.1 Pracovná plocha....3

6.1 Akumulatory....5

6.2 Ładowarki....6

7 ŁADOWANIE ORAZ WKŁADANIE LUB WYJMOWANIE AKUMULATORA 6

Red and black soldering kit with coiled spring and soldering iron (no visible text or symbols)

DISCOVER THE ENTIRE PRODUCT RANGE AT

WWW.DUAL-POWER.COM
