Brand	Livarno Lux
Model	IAN 396691
Product type	LED table lamp
Use	Indoor, dry enclosed rooms
Supply voltage	230-240 V~, 50 Hz
Max LED power	6.5 W
Energy efficiency class	F
LED lifespan	25,000 h
Number of light colors	3 (warm white, neutral white, cold white)
Brightness adjustment	6 levels, touch
USB port	Yes, 5 V / 1.0 A
Memory function	Yes (last brightness setting)
Protection rating	IP20
Protection class	II
Transformer type	MY12W-HPV1.0-A1 (12 V, 1.0 A)
Warranty	36 months
Cleaning	Dry, lint-free cloth
Number of pages of manual	85

Frequently Asked Questions - IAN 396691 Livarno Lux

How to turn the lamp on and off?

Use the ON/OFF touch button (8) on the lamp base.

How to change the light color?

Press the mode button «M» (6) to switch between warm white, neutral white, and cold white.

How to adjust the brightness?

Operate the touch dimmer on the lamp base (3). You have 6 brightness levels. The lamp remembers the last setting.

Can I charge my phone via the USB port?

Yes, the USB port (4) provides 5 V / 1.0 A. Charging works even when the lamp is off.

How to clean the lamp?

Unplug the lamp, let it cool down, then wipe with a dry, lint-free cloth. Never use water or solvents.

Is the lamp suitable for outdoor use?

No, it is exclusively designed for indoor use in dry enclosed rooms (IP20).

What to do if the LED no longer works?

The LEDs cannot be replaced by the user. Contact customer service or the manufacturer for repair.

What type of transformer is supplied?

The plug transformer is a MY12W-HPV1.0-A1 (input 200-240 V~, output 12 V =, 1.0 A). Use only this model.

How to dispose of the lamp at end of life?

Do not dispose of it in household waste. Take it to a collection point for electrical appliances or a recycling center.

What is the warranty period?

The warranty is 36 months from the date of purchase. Keep the receipt and the IAN 396691 reference.

USER MANUAL IAN 396691 Livarno Lux

Operation and safety notes

NL BE

LED-TAFELLAMP

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operation and safety notes Page 11

WARNING! STROMSCHLAGGEFAHRI!

List of pictograms used

Introduction

Intended use Page 13
Scope of delivery.. Page 13
Parts description.. Page 13
Technical data.. 13

Safety

Safety notices.. Page 13

Initial use

Mounting the light. Page 14
Switching the lamp on/off.. Page 14
USB connector . Page 15
Setting the light colour. Page 15
Dimming the lamp. Page 15

Maintenance and cleaning.. Page 15

Disposal

Warranty and service.. Page 15

Warranty. Page 15
Service address.. Page 16
Declaration of conformity. Page 16
Manufacturer.. Page 16

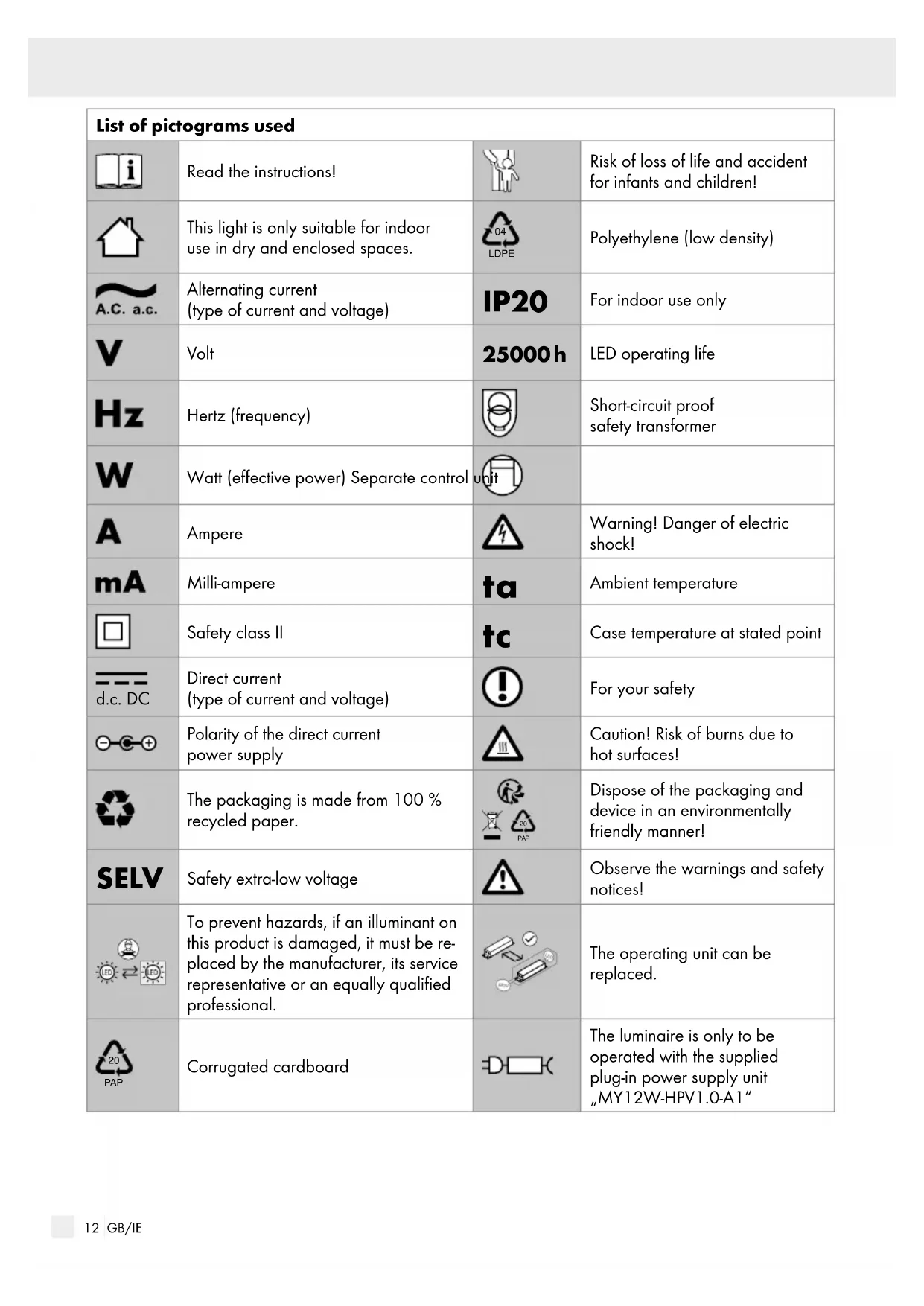

List of pictograms used
i	Read the instructions!		Risk of loss of life and accident for infants and children!
	This light is only suitable for indoor use in dry and enclosed spaces.	04 LDPE	Polyethylene (low density)
A.C. a.c.	Alternating current (type of current and voltage)	IP20	For indoor use only
V	Volt	25000h	LED operating life
Hz	Hertz (frequency)		Short-circuit proof safety transformer
W	Watt (effective power) Separate control
A	Ampere		Warning! Danger of electric shock!
mA	Milli-ampere	ta	Ambient temperature
	Safety class II	tc	Case temperature at stated point
d.c. DC	Direct current (type of current and voltage)		For your safety
	Polarity of the direct current power supply		Caution! Risk of burns due to hot surfaces!
	The packaging is made from 100% recycled paper.		Dispose of the packaging and device in an environmentally friendly manner!
SELV	Safety extra-low voltage		Observe the warnings and safety notices!
	To prevent hazards, if an illuminant on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional.		The operating unit can be replaced.
20 PAP	Corrugated cardboard		The luminaire is only to be operated with the supplied plug-in power supply unit „MY12W-HPV1.0-A1"

LED Desk lamp

Introduction

Congratulations on your new product.

You have selected a high quality product.

The instructions for use are a part of the

product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Only use the product as described and for the indicated purpose. When passing this product on to others, please be sure to include all its documentation. Before using this product for the first time verify the correct voltage and that all parts are properly installed.

Intended use

This light is only suitable for indoor use in dry and enclosed spaces. This device is intended for normal operation.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED desk lamp

(14164205L/

14164306L)

1 Plug-in transformer

1 Set of operating

instructions

- Parts description

Lamp head
2 LED module
3 Lamp base
4 USB connector
5 Status LED
Mode button "M"

7 Touch dimmer
8ON/OFFtouch
button
9 Mains cable
10 Plug-in transformer

- Technical data

Entire lamp:

Modelnumber:14164205L/

14164306L

Operating voltage: 230 - 240V 50Hz

Rated power: max. 13 W

Protection class: II/

IP rating: IP20

LED:

LED module: max. 6,5 W

USB:

Output power: 5V = -1.0A

Mains adapter:

Model number: MY12W-HPV1.0-A1

Operating voltage: 200-240V\~, 50/60Hz

Outputpower: 12V = .1.0A,

12W max.

Protection class: II/

This product contains illuminants from energy efficiency category F^ (corresponding to Ordinance (EU) 2019/2015).

Safety

Safety notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

WARNING! RISK OF FATAL INJURY AND ACCIDENT HAZARD FOR TODDLERS AND

SMALL CHILDREN!

Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, when supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

RISK OF INJURY!

Do not leave the lamp or packaging material lying unattended. Plastic film or bags, Styrofoam etc. can become dangerous toys for children.

Avoid the risk of fatal injury from electric shock

Always check the plug-in transformer and the USB connector for possible damage before connecting the light to the mains.
In the event of damage, repairs or other problems with the light, please contact the service centre or an electrician.
Ensure that the light does not come into contact with water or other liquids under any circumstances.
- Never open or insert anything into electrical fittings or equipment (e.g. switches, fitting socket). This will pose a risk of fatal injury from electric shock.
Only touch the insulated part of the plug-in transformer when connecting to or disconnecting from the mains supply!
To prevent hazards, if the external flexible lead on this lamp is damaged, it must only be replaced by the manufacturer, the service representative of the manufacturer, or an equally qualified person.
Before every use, verify the available mains voltage matches the required operating voltage of the light (see "Technical data").
Always disconnect the plug-in transformer from the mains prior to assembly, disassembly, cleaning, or if the light will not be used for extended periods.

Safe working

Position the lamp so it is protected from moisture and dirt.
Always be attentive! Always pay attention to what you are doing and use common sense.
Do not cover the lamp with objects. Excessive heat can result in fire.
Do not look into the illuminant from a close distance during operation.
Do not use optical instruments to look at the light source (e.g. magnifying glass).
In order to disconnect the light completely from the power supply, the plug-in transformer must be removed from the socket.
To prevent hazards, if an illuminant on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional.

- Initial use

- Mounting the light

Remove all packaging material from the lamp.
Connect the plug-in transformer [10] to the mains cable [9].
Plug the plug-in transformer into a properly installed power socket.

Note:As soon as the lamp is plugged into the socket, a blue light next to the USB port lights up.

Your lamp is now ready to use.

- Switching the lamp on/off

Press the ON/OFF touch button 8 on the lamp base 3 to switch the lamp on and off.

USB connector

• Your lamp has a USB connector 4 in the case. With this USB connector 4 you can operate any devices that may be operated using a USB connector.
  The charging function works during all settings (ON/OFF).
  The light is suitable for USB cables up to 5m long.

- Setting the light colour

You can set three different light colours (warm white, neutral white or cold white) for the lamp using the mode button "M" 6.

Dimming the lamp

To dim the lamp, press the touch dimmer 7 on the lamp base 3.

The lamp can be dimmed in 6 stages.

Note: The lamp has a memory function. When it is switched on again the lamp automatically uses the previously selected dimming level.

- Maintenance and cleaning

WARNING! DANGER OF ELECTRIC SHOCK!

First, unplug the plug-in transformer from the socket.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

• Allow the light to cool off completely. Remove the inserted USB plug if necessary.

WARNING! DANGER OF ELECTRIC SHOCK!

For electrical safety reasons, never clean the lamp with water or other liquids, or immerse it in water.

Do not use solvents, benzene or similar substances. They could damage the light.
Only use a dry, lint-free cloth for cleaning.
Plug the plug-in transformer into a properly installed power socket.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Legacy equipment can also be returned to retailers who offer electrical appliances for sale.

Warranty and service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14164205L/14164306L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observation of the operating instructions or unauthorised interference are excluded from the warranty. The performance of

Warranty and service

services under the warranty does not extend or renew the warranty period.

-Serviceaddress

Free service number:

Tel.: [phone]

IAN 389491_2201

Please have your receipt and the item number (IAN 389491_2201) ready as your proof of purchase when enquiring about your product.

Declaration of conformity (C)

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer

Modelnumber: MY12W-HPV1.0-A1

Bedrijffspanning: 200 - 240V 50 / 60Hz

Uitgangsvermögen: 12V= max. 1,0 A,

12W max.
