USER MANUAL SWAW510 SAMSUNG

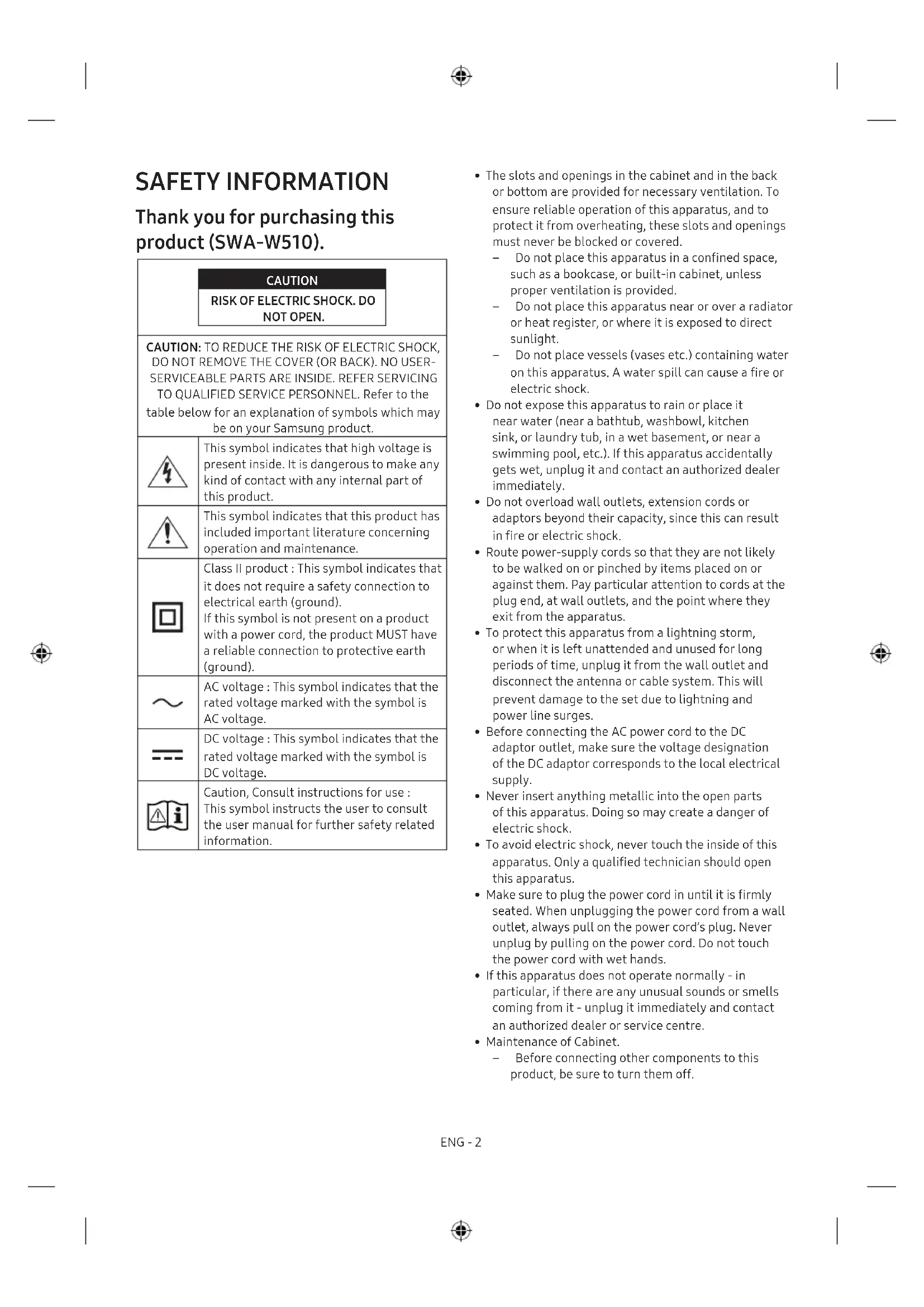

SAFETY INFORMATION Thank you for purchasing this product (SWA-W510). CAUTION

TO QUALIFIED SERVICE PERSONNEL. Refer to the table below for an explanation of symbols which may be on your Samsung product. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product. This symbol indicates that this product has included important literature concerning operation and maintenance. Class II product : This symbol indicates that it does not require a safety connection to electrical earth (ground). If this symbol is not present on a product with a power cord, the product MUST have a reliable connection to protective earth (ground). AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage. DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage. Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for further safety related information.

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered. ‒ Donotplacethisapparatusinaconnedspace, such as a bookcase, or built-in cabinet, unless proper ventilation is provided. ‒ Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight. ‒ Do not place vessels (vases etc.) containing water onthisapparatus.Awaterspillcancauseareor electric shock.

• Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer immediately.

• Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result inreorelectricshock.

• Route power-supply cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to cords at the plug end, at wall outlets, and the point where they exit from the apparatus.

• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local electrical supply.

• Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

• To avoid electric shock, never touch the inside of this apparatus.Onlyaqualiedtechnicianshouldopen this apparatus.

• Makesuretoplugthepowercordinuntilitisrmly seated. When unplugging the power cord from a wall outlet, always pull on the power cord’s plug. Never unplug by pulling on the power cord. Do not touch the power cord with wet hands.

• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service centre.

• Maintenance of Cabinet. ‒ Before connecting other components to this product, be sure to turn them off. EnglishENG - 3

• Be sure to pull the power plug out of the outlet if the product is to remain unused or if you are leaving the house for an extended period of time (especially when children, elderly, or disabled people will be left alone in the house). ‒ Accumulated dust can cause an electric shock, anelectricleakage,orarebycausingthepower cord to generate sparks and heat or the insulation to deteriorate.

• Contact an authorized service centre for information if you intend to install your product in a location with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a train station, etc. Failing to do so may cause serious damage to your product.

• Use only a properly grounded plug and wall outlet. ‒ An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

• To turn this apparatus off completely, you must disconnect it from the wall outlet. Consequently, the wall outlet and power plug must be readily accessible at all times.

• Do not allow children to hang on the product.

• Store the accessories (battery, etc.) in a location safely out of the reach of children.

• Do not install the product in an unstable location suchasashakyself,aslantedoor,oralocation exposed to vibration.

• Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a service centre.

• To clean this apparatus, unplug the power cord from the wall outlet, and then wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air fresheners, lubricants, or detergent. These chemicals can damage the appearance of the product or erase the printing on the product.

• Do not expose this apparatus to dripping or splashing.Donotputobjectslledwithliquids,such as vases, on the apparatus.

• Do not plug multiple electric devices into the same wall socket. Overloading a socket can cause it to overheat,resultinginare. WARNING

• TO PREVENT THE SPREAD OF FIRE,

KEEP CANDLES AND OTHER ITEMS WITH

OPEN FLAMES AWAY FROM

THIS PRODUCT AT ALL TIMES.

• Toreducetheriskofreorelectricshock,donot expose this appliance to rain or moisture. Precautions

1. Ensure that the AC or DC power supply in your house

complies with the power requirements listed on theidenticationstickerlocatedontherearofyour product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots arenotcovered.Donotplacetheunitonampliers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet.

2. Do not expose the unit to direct sunlight or other

heat sources. This could lead to overheating and cause the unit to malfunction.

3. Unplug the Power cord from the AC wall socket if

the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using it.

4. If the electricity supplied to your home is rated at

240V AC, use a suitable plug adapter to connect this unit to your electrical outlets.ENG - 4 Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including AV receivers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.Iftheprovidedplugdoesnottintoyour outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus.

12. Use only with the cart, stand, tripod,

bracket,ortablespeciedbythe manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when you intend to leave it unused for long periods of time.

14. Referallservicingtoqualiedservicepersonnel.

Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 01 CHECKING THE COMPONENTS Subwoofer / Power Cord NOTE

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Main Unit)

• Designandspecicationsaresubjecttochange without prior notice. 02 CONNECTING THE SOUNDBAR

1. Check the standby status after plugging into

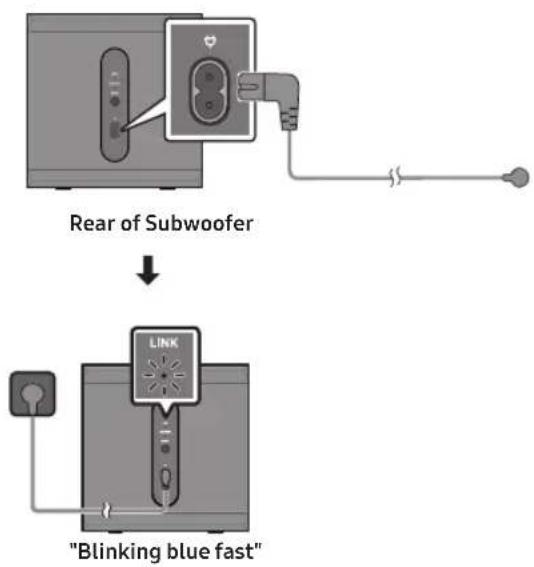

an electrical outlet. Plug the Subwoofer power cord into an electrical outlet and into the Subwoofer to turn on the Subwoofer. The LINK LED indicator (blue LED) on the Subwoofer blinks. If the LED does not blink, refer to step 5. "Blinking blue fast" Rear of SubwooferENG - 5

• The image of the Soundbar may differ from your Soundbar, depending on the model. SOUND MODE PAIR 5 sec Soundbar LED Indicator Red BlinksX3

3. Congure “ID SET” using the Soundbar’s

remote control Press the Up button on the Soundbar remote control for 5 seconds.

• The ID SET message appears on the Soundbar main unit’s display for a short time and then disappears.

• After the ID SET process, the Soundbar power is automatically turned on.

complete) The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Subwoofer. LINK LED - Blue is OnENG - 6

5. If the SWA-W510 does not connect, take

the necessary steps according to the LED Indicator’s status LINK (Blue) On : Successfully connected (normal operation). LINK (Blue) Blinking : Recovering the connection.

• Check if the power cable attached to the main Soundbar unit is connected properly or wait about 5 minutes.

• Repeat steps 2 through 4. STANDBY (Red) On :

• Standby (with the Soundbar main unit turned off). ‒ Check if the power cable attached to the main Soundbar unit is connected properly.

• Connection failed ‒ 1. Press the ID SET button on the back of the Surround Speakers with a pen tip for 5~6 seconds until the LINK LED indicator blinks (in Blue). Rear of Subwoofer 5 sec ‒ 2. Repeat steps 2 through 4. Red and blue Blinking : Malfunction

• See the contact information for the Samsung Service Centre in this manual. 03 COMPATIBLE MODELS

• Compatible with select Samsung Soundbar. Please visit the Soundbar product page at www.samsung. com/support for more information.

• Compatible model list is subject to change without further notice.

• An administration fee may be charged if either (a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read). (b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).

• You will be informed of the administration fee amount before a technician visits.ENG - 7 06 SPECIFICATIONS AND GUIDE Specications Subwoofer Name SWA-W510 Weight

Dimensions (W x H x D)

238.0 x 240.8 x 238.0 mm

Operating Temperature Range +5°C to +35°C Operating Humidity Range 10 % ~ 75 % AMPLIFIER Rated Output power 200 W Overall Standby Power Consumption (W)

SRD max transmitter power 25mW at 5.725GHz – 5.825GHz NOTE

• Samsung Electronics Co., Ltd reserves the right to changethespecicationswithoutnotice.

• Weight and dimensions are approximate.

• Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements. The full text of the declaration of conformity is available at the following internet address: http://www.samsung.com go to Support and enter the model name. This equipment may be operated in all EU countries and in the UK. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local governmentofce,fordetailsofwhereandhow they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitmentsandproductspecicregulatory obligations e.g. REACH, WEEE, Batteries, visit: www.samsung.com/uk/aboutsamsung/sustainability/ environment/our-commitment/data/DEU - 8 SICHERHEITSINFORMATION Vielen Dank, dass Sie sich für dieses Produkt (SWA-W510) entschieden haben. VORSICHT GEFAHR DURCH STROMSCHLAG. NICHT ÖFFNEN. VORSICHT: UM DAS RISIKO EINES STROMSCHLAGS ZU VERRINGERN, DÜRFEN SIE DIE ABDECKUNG (ODER RÜCKSEITE) NICHT ÖFFNEN. ES BEFINDEN SICH IM INNEREN KEINE TEILE, DIE VON BENUTZERN GEWARTET
