Product type	Portable LED lamp with clip and magnet
Brand	Ansmann
Model	PL130B
Dimensions (L x W x H)	160 x 20 x 15 mm
Weight (without batteries)	20 g
Power supply	2 AAA micro alkaline LR03 batteries (included)
Protection class	III (very low voltage)
Protection rating	IP20 (protection against solid objects >12.5 mm, no water protection)
Impact resistance	IK07 (impact energy 2 J)
Housing material	ABS plastic
Operating temperature	-10 to 40 °C
Storage temperature	-10 to 50 °C
Main light source	SMD LED 3 W, 130 lm, range 16 m, battery life ~6 h
Auxiliary light source	SMD LED 1 W, 50 lm, range 12 m, battery life ~7 h
Color temperature	5700 K (cool light)
Color Rendering Index (CRI)	>80
Risk group	1 (low risk to retina in case of prolonged exposure)
Main functions	On/off via button, attachment via clip or integrated magnet
Care and cleaning	Clean with a slightly damp cloth, do not immerse, do not use abrasive cleaners or solvents
Safety	Do not look directly into the beam, do not point into others' eyes, do not open or modify the product, use only batteries of the same type
Batteries	Replaceable, non-rechargeable, remove used batteries promptly
Light source	Non-replaceable (replace entire lamp at end of life)
Package contents	1 lamp, 2 micro AAA batteries, 1 instruction manual
Warranty	See terms at www.ansmann.de

Frequently Asked Questions - PL130B ANSMANN

How to turn the lamp on and off?

Press the On/Off button to turn the lamp on or off.

How to replace the batteries?

Turn the battery compartment cover located on the lamp base. Replace the two batteries respecting the indicated polarity. Always use batteries of the same type (alkaline LR03).

Can rechargeable batteries be used?

No, the use of rechargeable batteries or high-current batteries is not permitted due to different electrical values. Use only non-rechargeable batteries.

What is the battery life of the lamp?

In main light mode (3W): approximately 6 hours. In auxiliary light mode (1W): approximately 7 hours.

How to attach the lamp?

The lamp has a holding clip and an integrated magnet. You can clip it onto clothing or attach it to a metal surface using the magnet.

Is the lamp waterproof?

No, the lamp has an IP20 protection rating, meaning it is not protected against water. Do not immerse it and avoid contact with liquids.

Can I look directly at the light?

No, do not look directly into the light beam. Blue light may pose a risk to the retina in case of prolonged exposure. Do not point the beam into others' eyes.

How to clean the lamp?

Disconnect the lamp (remove batteries). Clean with a slightly damp cloth, then wipe with a dry cloth. Never use abrasive cleaners or solvents, and do not immerse the lamp in water.

What to do if the lamp does not turn on?

Check that the batteries are inserted correctly respecting polarity. If the batteries are dead, replace them with new batteries of the same type. If the problem persists, contact customer service.

Does the lamp come with batteries?

Yes, the delivery includes 2 micro AAA alkaline LR03 batteries.

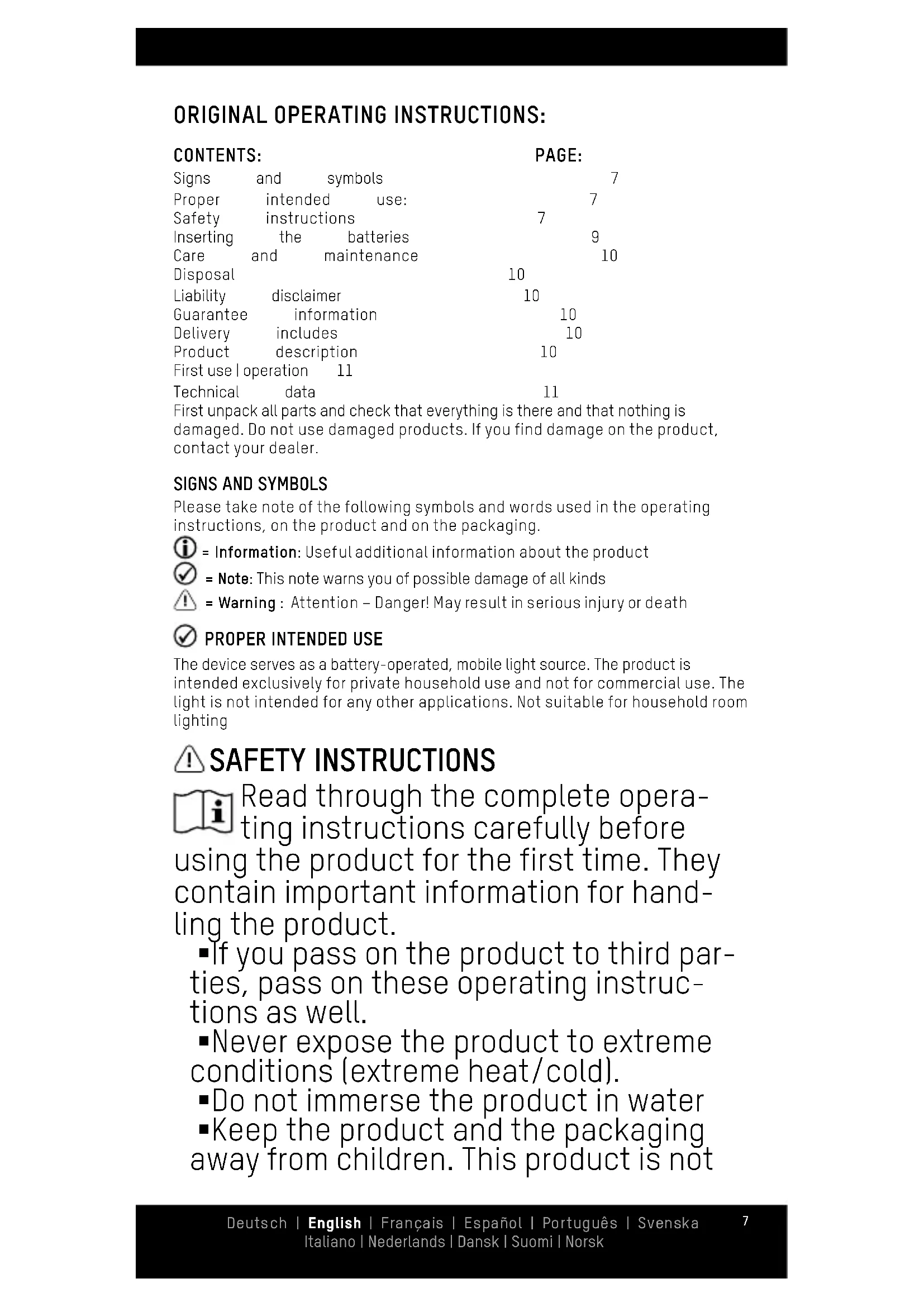

USER MANUAL PL130B ANSMANN

Safety instructions 7

Inserting the batteries 9

Care and maintenance 10

Disposal 10

Liability disclaimer 10

Guarantee information 10

Delivery includes 10

Product description 10

First use operation 11

Technical data 11

First unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

1 = Information: Useful additional information about the product

= Note: This note warns you of possible damage of all kinds

= Warning: Attention - Danger! May result in serious injury or death

PROPER INTENDED USE

The device serves as a battery-operated, mobile light source. The product is intended exclusively for private household use and not for commercial use. The light is not intended for any other applications. Not suitable for household room lighting

SAFETYINSTRUCTIONS

Read through the complete operating instructions carefully before using the product for the first time. They contain important information for handling the product.

If you pass on the product to third parties, pass on these operating instructions as well.
- Never expose the product to extreme conditions (extreme heat/cold).
- Do not immerse the product in water
- Keep the product and the packaging away from children. This product is not

a toy. Children should be supervised in order to ensure that they do not play with the product.

• This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the product!

Do not look directly into the light beam. Do not shine the light in other people's faces. If this occurs for too long, the blue light portion of the beam can cause retinal damage.

The product is categorised as protective class III and thus operates with a non-hazardous voltage range.

The light source of this lamp cannot be replaced. If the light source has reached the end of its service life, the complete lamp must be replaced.

• Do not open or modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.
  Always keep the product dry.

Note:

• This product contains batteries. Do not throw the product into a fire
• Improperly inserted batteries could leak

and/or cause a fire/explosion

Always change all of the batteries at the same time as a complete set and always use equivalent batteries
- Keep batteries away from children: Risk of choking or suffocating
- Never try to open, crush or heat a battery or set it on fire
- Do not use the batteries if the product appears to be damaged
Batteries are not rechargeable
Always dispose of used batteries & rechargeable batteries in accordance with the local regulations and requirements.
In the event of battery leakage, do not touch. If you come into contact with battery fluid, wash the affected area thoroughly and immediately with plenty of water
If the battery fluid has caused a skin reaction or has come into contact with your eyes, contact a medical professional immediately
- Do not short-circuit the batteries!
The use of rechargeable batteries and high-current batteries is not permitted due to other electrical characteristics.
- Remove used or empty batteries from the lamp immediately
If the lamp is no longer to be used, the batteries must be removed from the lamp before it is disposed of

① INSERTING THE BATTERIES

When inserting batteries, ensure that the batteries are inserted with the correct polarity.

Switch the product off before changing the batteries.

CARE AND MAINTENANCE

Cleaning:

• Carry out cleaning tasks only when the mains plug has been pulled out / when the power supply has been disconnected

Clean only with a slightly damp cloth, then rub it dry
- Do not use abrasive agents or solvents for cleaning.
- Never submerge the product in water or other liquids.
- Do not allow fluids to enter the housing.
- Do not use hard brushes or sharp objects for cleaning.

Maintenance:

If the product is not going to be used, remove the batteries and store separately in order to preserve service life.

DISPOSAL

Dispose of unserviceable lamps in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the dealer from whom you purchased the product.

For disposal, pass the device on to a specialist disposal point for old equipment. Do not dispose of the device via household waste as the device contains batteries / rechargeable batteries.

In this way you will fulfil your legal obligations and contribute to environmental protection.

① LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

WARRANTY INFORMATION

You can find our warranty terms online at www.ansmann.de. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this.

① DELIVERY INCLUDES

1x Lamp

2x AAA batteries

1x Operating instructions

① PRODUCT DESCRIPTION

1 Auxiliary light
2 Main light
3 On/off button
4 Mounting clip with integrated magnet
5 Battery compartment

① OPERATION

The lamp is switched on and off by pressing the on/off button.

The lamp can be fastened in place with the mounting magnet or used with the clip.

The batteries can be replaced by unscrewing the battery compartment cover on the base of the lamp.

TECHNICAL DATA

Illuminant: Main light: 3W SMD LEDs | Auxiliary light: 1W SMD LED

Risk group: 1

Power supply: 2x Micro AAA alkaline batteries LR03 (included)

Protection class: III

Luminous flux: Main light: 130lm | Auxiliary light: 50lm

Battery life: Main light: ca. 6h | Auxiliary light: ca. 7h

Light range: Main light: ca. 16m | Auxiliary light: ca. 12m

LED: 5700k | CRI >80

Housing material: ABS plastic

Protection type: IP20 | IK07

Storage temperature: -10 to 50 °C

Operating temper- -10 to 40 °C rature:

Weight: 20g (without batteries)

Dimensions: 160 x 20 x 15mm

The product complies with the requirements from the EU directives.

Subject to technical changes. We assume no liability for printing errors.

TRADUCTION FRANÇAISE DU MODE D'EMPLOI ORIGINAL :

PRODUCTBESCHRIJVING:

2x Micro AAA battery

1x bruksanvisning

PRODUKTBESKRIVELSE

Lyspaere: Hovedlys: 3W SMD-LED | Ekstralys: 1W SMD-LED

Risikogruppe: 1

Strømforsyning : 2x Micro AAA alkaliske batterier LR03 (Inkludert i leveransen)

Kundenservice | Customer service:

ANSMANN AG

Industriestrasse 10

97959 Assamstadt

Germany

Hotline: [phone]

E-Mail: [e-mail]

MA-1600-0385/V1/02-2020
