WL450RSLIM - Lighting ANSMANN - Free user manual and instructions

Brand	Ansmann
Model	WL450RSLIM
Product type	Mobile inspection lamp with battery
Light source	LED 3W (main) + COB LED 4W (auxiliary)
Luminous flux	450 lm (main), 70 lm (auxiliary)
Range	Approx. 30 m
Battery life	4.75 h (main 100%), 30 h (auxiliary)
Power supply / Battery	Lithium-ion 3.7 V, 2000 mAh, 7.4 Wh
Input voltage	5 V DC
Max input current	1000 mA
Charging time	Approx. 5.5 h
Protection rating	IPx3
Dimensions (L x W x H)	306 x 36 x 20 mm
Weight (with battery)	154.4 g
Reference number	1600-0304
Storage temperature	5 °C to 25 °C
Operating temperature	0 °C to 45 °C
Protection class	III
Care and cleaning	Slightly damp cloth, do not immerse, no liquid in housing
Safety	Do not look directly at LED, avoid impacts, do not expose to excessive moisture
Spare parts / Repairability	LED not replaceable, battery not user-replaceable; repair only by manufacturer
Warranty	3 years (excluding damage due to non-compliance with manual)
Package contents	Lamp, USB-micro USB cable, instructions for use

Frequently Asked Questions - WL450RSLIM ANSMANN

How to turn on the lamp and change mode?

Press the button once to turn on the main LED at 100%, a second time for the top LED at 100%, a third time to turn off.

How to charge the lamp?

Before first use, fully charge the lamp. Remove the micro-USB cap, plug the supplied cable into a 5V USB source. The lamp must be off during charging. The LED indicator is red during charging and turns green when the battery is full.

What is the battery life of the lamp?

In main mode at 100%, battery life is 4.75 hours. In auxiliary mode (top LED), battery life is approximately 30 hours.

Is the lamp waterproof?

It has an IPx3 protection rating, which means it is resistant to water splashes. Do not immerse it or use it in the rain.

Can I replace the battery or LED?

No, the lithium-ion battery and LED are not user-replaceable. At end of life, replace the entire lamp. Repairs must be carried out by the manufacturer.

How to clean the lamp?

Use a slightly damp cloth to clean the housing, then wipe dry. Never immerse the lamp in water and avoid liquid entering inside.

What are the eye risks?

Never look directly into the light beam, as blue light can damage the retina. In case of accidental exposure, close your eyes and turn away.

Can the lamp be used outdoors?

Yes, but only in dry weather due to the IPx3 rating. Avoid rain, explosive environments, and extreme temperatures (operating range: 0°C to 45°C).

What to do if the lamp does not turn on?

Check that it is charged. Plug it into a USB source and observe the indicator: red during charging, green when full. If it remains off after a full charge, contact customer service.

How to dispose of the lamp at end of life?

Do not dispose of it with household waste as it contains a battery. Take it to an electronic waste collection point or return it to the retailer.

USER MANUAL WL450RSLIM ANSMANN

Black rectangular electronic device with a vertical light beam, no visible text or symbols

1600-0304

1 5

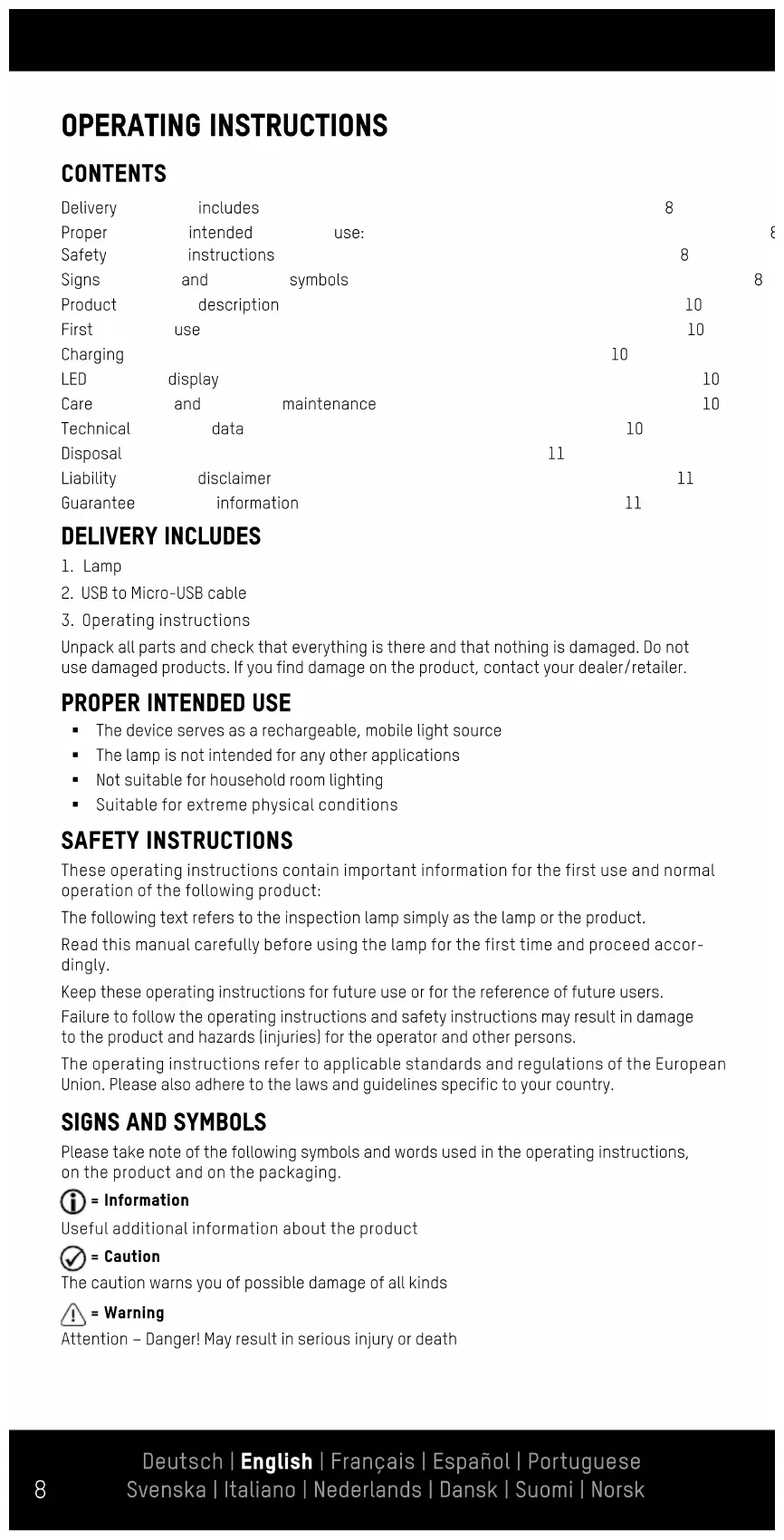

BEDIENUNGSANLEITUNG

INHALTSVERZEICHNIS

Delivery	includes		8
Proper	intended	use:		8
Safety	instructions		8
Signs	and	symbols		8
Product	description		10
First	use		10
Charging			10
LED	display		10
Care	and	maintenance		10
Technical	data		10
Disposal			11
Liability	disclaimer		11
Guarantee	information		11

DELIVERY INCLUDES

1. Lamp

2. USB to Micro-USB cable

3. Operating instructions

Unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer/retailer.

PROPER INTENDED USE

• The device serves as a rechargeable, mobile light source
• The lamp is not intended for any other applications
  ■ Not suitable for household room lighting
  ■ Suitable for extreme physical conditions

SAFETY INSTRUCTIONS

These operating instructions contain important information for the first use and normal operation of the following product:

The following text refers to the inspection lamp simply as the lamp or the product.

Read this manual carefully before using the lamp for the first time and proceed accordingly.

Keep these operating instructions for future use or for the reference of future users.

Failure to follow the operating instructions and safety instructions may result in damage to the product and hazards (injuries) for the operator and other persons.

The operating instructions refer to applicable standards and regulations of the European Union. Please also adhere to the laws and guidelines specific to your country.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

i = Information

Useful additional information about the product

√ = Caution

The caution warns you of possible damage of all kinds

⚠ = Warning

Attention – Danger! May result in serious injury or death

OBSERVE SAFETY INSTRUCTIONS!

Avoid eye injuries - Never look directly into the beam of light or shine it into other people's faces. If this occurs for too long, the blue light portion of the beam can cause retinal damage. If the light beam shines into the eyes, close the eyes and turn the head away from the light beam.

This lamp exceeds the conditions for risk-free use. The risk when using it depends on how the user handles the lamp.

(1) This value indicates the factor by which the risk group limit value to the next lowest group has been exceeded. The limit value is 1.
(2) Distance from eyes to the lamp at which the respective risk group is applicable.

Risk group 2

Information for the light, mains adapter and mains voltage on the socket must match with the type plate.
- Do not use the product if there is damage to the housing, plug, cable or mains adapter. Contact your local authorised specialist or the service address of the manufacturer.
- Do not open or modify the product! Repair work and replacement of the rechargeable battery pack shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.
- Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product.
This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the product!
- The LED light source cannot be replaced. When the LED comes to the end of its service life, the complete lamp must be replaced

• All illuminated objects must be at least 10cm away from the light!
• The lamp may only be used in accordance with the intended use.
  This product is not a toy to be played with.
• Keep out of the reach of children!

- Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device!

■ Always keep the product dry

ATTENTION:

• The product contains a non-replaceable li-ion rechargeable battery. Do not throw the product into a fire!
• The product may only be charged in closed, dry and spacious rooms, away from combustible materials and liquids. Disregard can result in burns and fires.
• Never open, crush or heat a rechargeable battery or set it on fire.
• Do not use the product in potentially explosive areas or in the rain and do not expose it to excessive heat.
• Do not use the product if it appears to be damaged

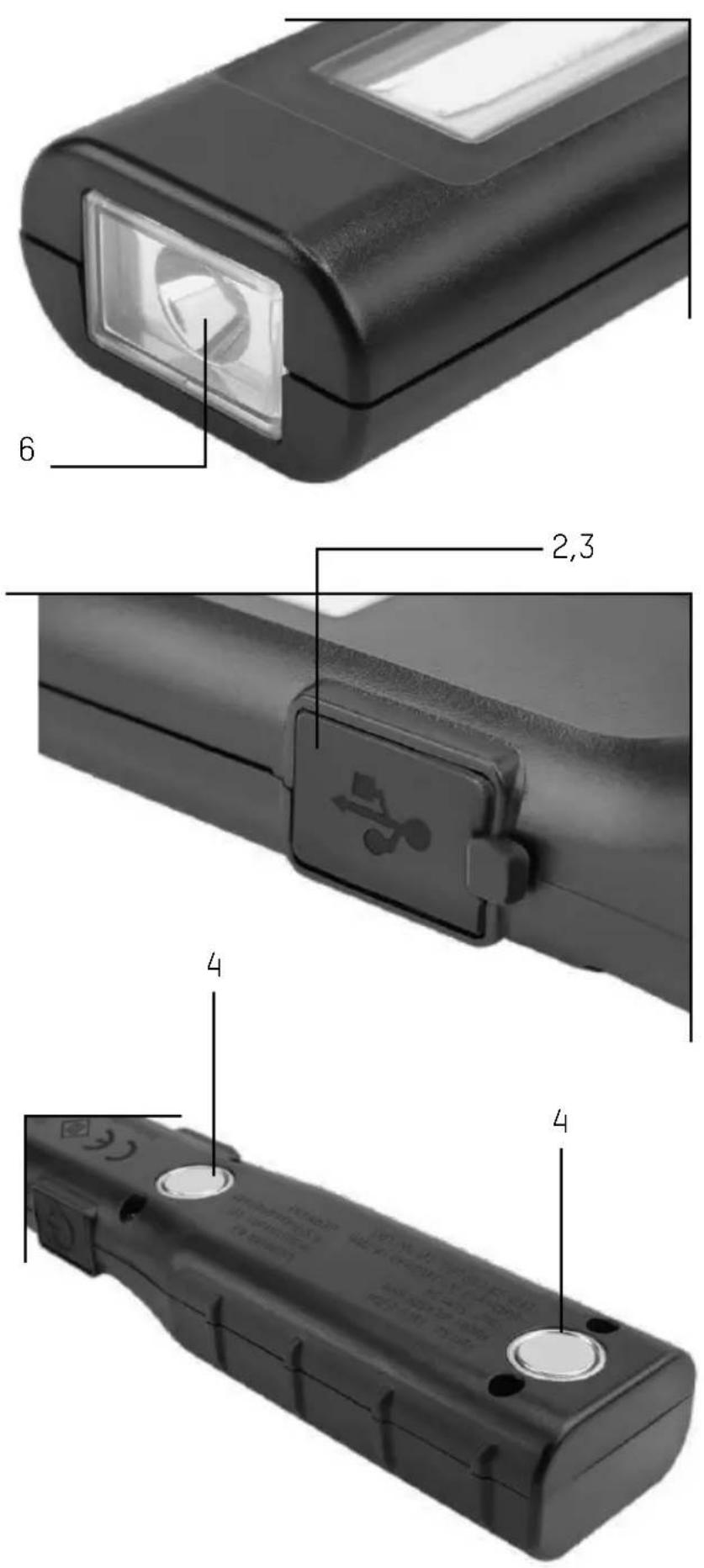

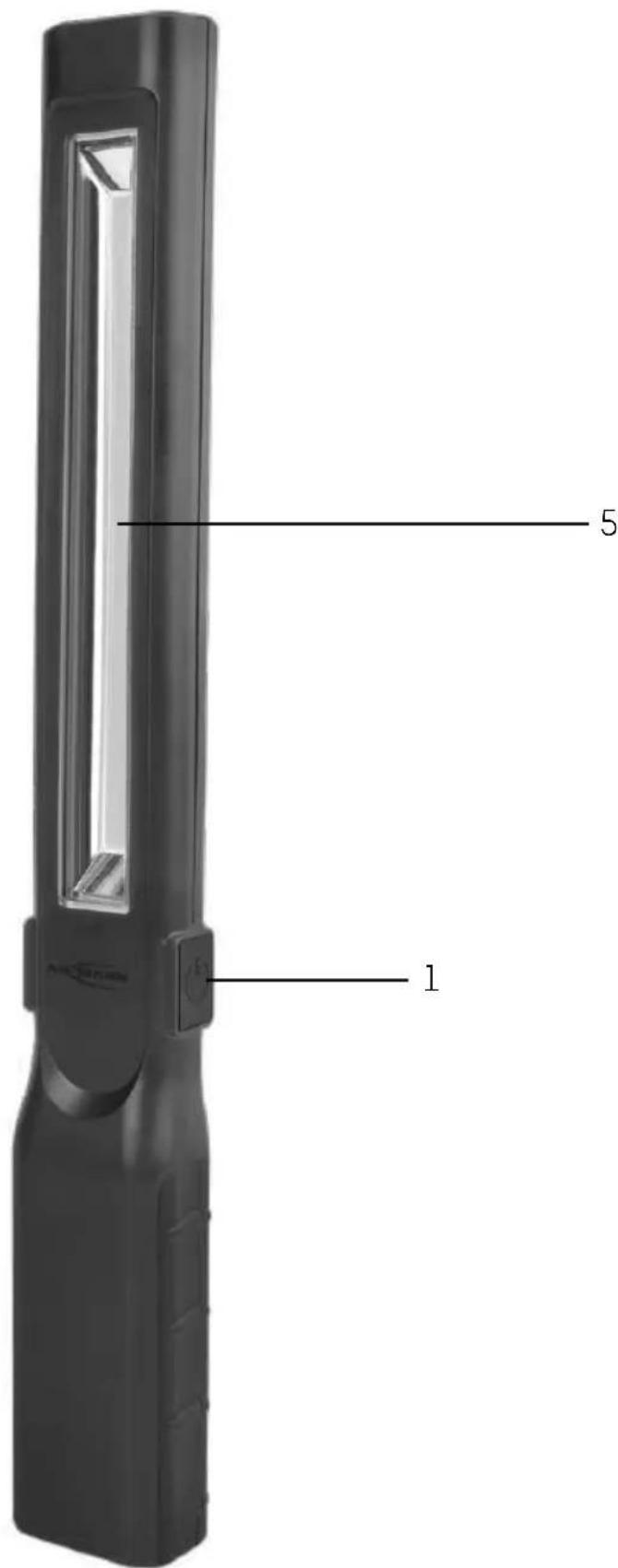

PRODUCT DESCRIPTION:

1. Button
2. LED display
3. Micro-USB charge socket
4. Magnets
5. COB LED
6. LED auxiliary lamp

i FIRST USE:

Button Press lx: Main LED 100%

Press 2x: Top LED 100%

Press 3x: Deactivation

i CHARGING:

Charge the workshop lamp fully before using for the first time. If the lamp has been stored for an extended period of time, it should also be charged before use; charge regularly during longer periods of non-use.

Switch the lamp off before charging. For charging, pull the sealing cap off the micro-USB socket on the side of the lamp. Connect the USB charger to the lamp by plugging the micro-USB plug on one end of the USB/micro-USB charge cable into the micro-USB socket on the lamp and plugging the USB plug on the other end of the charge cable into the USB socket of the USB charger.

Note: Do not active the workshop lamp during charging. Check that the lamp is switched off after starting the charging process.

i CHARGE INDICATOR:

The charging process is indicated by a red LED. If the rechargeable battery is fully charged, the LED illuminates green.

CLEANING/MAINTENANCE:

• Clean only with a slightly damp cloth, then rub dry.
• Never submerge the product in water or other liquids.
• Do not allow fluids to enter the housing.
• Do not use hard brushes or sharp objects for cleaning.

√ IMPROPER USAGE OF THE LAMP MAY RESULT IN IT BEING DAMAGED:

• Do not throw or drop
  ■ Use only in original condition
  ■ Do not use while still in packaging
• Turn off after use

TECHNICAL DATA FOR LAMP:

Article no.: 1600-0304

Illuminant: 3W LED | 4W COB LED

Input voltage: 5V DC

Input current: Max. 1000mA

Rechargeable battery: Li-ion rechargeable battery pack 3.7V | 2000mAh | 7.4Wh

Luminous flux: Main light at 100% 450lm | Auxiliary LED 70lm

Battery life: Main light at 100% 4,75h | Auxiliary LED 30h

Light range: ca. 30m

Charge time: ca. 5,5h

Protection type: IPx3

Storage	temperature:	5°C°	to	25°C
Operating	temperature:	-0°C°	to	45°C

Weight of light incl. rechargeable battery: 154.4g

Length of USB cable: 100cm

Dimensions of light: 306 x 36 x 20mm

√ = CAUTION

Class 3 equipment

Conforms to European directives

Do not look into the lamp

Waste Electrical and Electronic Equipment (WEEE-Guideline)

Read the operating instructions carefully before use!

ENVIRONMENTAL INFORMATION | DISPOSAL:

☒ Dispose of unserviceable lamps in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the dealer from whom you purchased the product.

For disposal, pass the device on to a specialist disposal point for old equipment. Do not dispose of the device via household waste as the device contains batteries / rechargeable batteries.

In this way you will fulfil your legal obligations and contribute to environmental protection.

LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

WARRANTY INFORMATION

The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this. You can find our warranty terms online at www.ansmann.de.

Subject to technical changes. We assume no liability for printing errors.

Version: MA-1600-0304/V2/08-2020
