Product type	Mobile work lamp
Brand	ANSMANN
Model	WL180B
Category	Lighting
Light source	LED COB 3W
Luminous flux	200 lm (100%): 200 lm, 50%: 100 lm
Battery life	14 h (100%) / 31 h (50%)
Power supply	3 Mignon AA (LR6) non-rechargeable batteries
Housing material	ABS (impact-resistant plastic)
Protection rating	IP20 (indoor use, avoid moisture)
Dimensions (H x W x D)	125 x 70 x 25.5 mm
Weight	114 g (without batteries)
Main functions	3 lighting levels (100%, 50%, off), suspension hook, magnet on back
Package contents	1 lamp, 3 AA batteries, 4 attachments, 1 user manual
Safety	Do not look directly into the beam; do not expose to water or extreme temperatures; non-replaceable light source
Maintenance	Clean with a soft, dry or slightly damp cloth; remove batteries if not used for an extended period
Warranty	3 years (according to online conditions)
Protection class	III (safety extra-low voltage)
Storage temperature	5 °C to 25 °C

Frequently Asked Questions - WL180B ANSMANN

How to turn the WL180B lamp on and off?

Press once for 100% brightness, twice for 50%, three times to turn off.

What type of batteries to use?

Use three non-rechargeable Mignon AA (LR6) batteries, preferably of the same brand and quality.

Can I attach the lamp to a metal surface?

Yes, thanks to the integrated magnet on the back, the lamp adheres to all ferromagnetic metal surfaces.

How to hang the lamp?

Use the suspension hook located at the top of the lamp to hang it from a suitable attachment point.

What to do if batteries leak?

Do not touch the liquid. Immediately wash the affected body part with water. If the liquid comes into contact with eyes, consult a doctor.

Is the lamp waterproof?

No, the IP20 rating indicates it is only protected against solid objects larger than 12 mm. Avoid moisture and do not immerse in water.

Can I replace the LED?

No, the light source is not replaceable. At the end of the LED's life, you must replace the entire lamp.

What is the battery life?

It varies depending on the intensity used: approximately 14 hours at 100% and 31 hours at 50%.

How to clean the lamp?

Clean it with a soft, dry or slightly damp cloth. Do not use abrasive products or solvents.

Is the lamp guaranteed?

Yes, ANSMANN offers a 3-year warranty. See online conditions at www.ansmann.de.

USER MANUAL WL180B ANSMANN

Close-up of a black ANSMANN device with four screwdrivers and a central display (no visible text or symbols on the main body)

1600-0303

ANSMANN 2 1 3

4 5

6 10 20 Litterless Magnetic Resistor 51.100V 100% 47.100V 100% 50.100V 100% 50.100V 100%

BEDIENUNGSANLEITUNG

INHALTSVERZEICHNIS

Delivery	includes
Proper	intended	use
Safety	instructions
Product	description
Inserting	the	batteries
Operation
Care	and	maintenance
Technical	data
Disposal
Liability	disclaimer
Guarantee	information

DELIVERY INCLUDES

1x ABS plastic work lamp

3x AA batteries

4x Bits

1x Operating instructions

First unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer.

PROPER INTENDED USE

The device serves as a battery-operated, mobile light source. The product is intended exclusively for private household use and not for commercial use.

SAFETY INSTRUCTIONS

Read through the complete operating instructions carefully before using the product for the first time. They contain important information for handling the product.

If you pass on the product to third parties, pass on these operating instructions as well.

• Never expose the product to extreme conditions (extreme heat/cold).
• Do not immerse the product in water
• Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product.

- This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the product!

- Do not look directly into the light beam.

- Do not shine the light in other people's faces. If this occurs for too long, the blue light portion of the beam can cause retinal damage.

- The product is categorised as protective class III and thus operates with a non-hazardous voltage range.

- The light source of this lamp cannot be replaced. If the light source has reached the end of its service life, the complete lamp must be replaced.

- Do not open or modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.

■ The lamp may be used indoors exclusively.
■ Always keep the product dry

NOTE:

• This product contains batteries. Do not throw the product into a fire.

• Improperly inserted batteries could leak and/or cause a fire/explosion.

• Always change all of the batteries at the same time as a complete set and always use equivalent batteries.

• Keep batteries away from children > Risk of choking or suffocating

• Never try to open, crush or heat a battery or set it on fire.

• Do not use the batteries if the product appears to be damaged.
  ■ The batteries cannot be recharged!

- Always dispose of used batteries & rechargeable batteries in accordance with the local regulations and requirements.

• In the event of battery leakage, do not touch. If you come into contact with battery fluid, wash the affected area thoroughly and immediately with plenty of water.
• If the battery fluid has caused a skin reaction or has come into contact with your eyes, contact a medical professional immediately.

■ Do not short-circuit the batteries!
■ Remove used or empty batteries from the lamp immediately
- If the lamp can no longer be used, the batteries must be removed from the lamp before it is disposed of

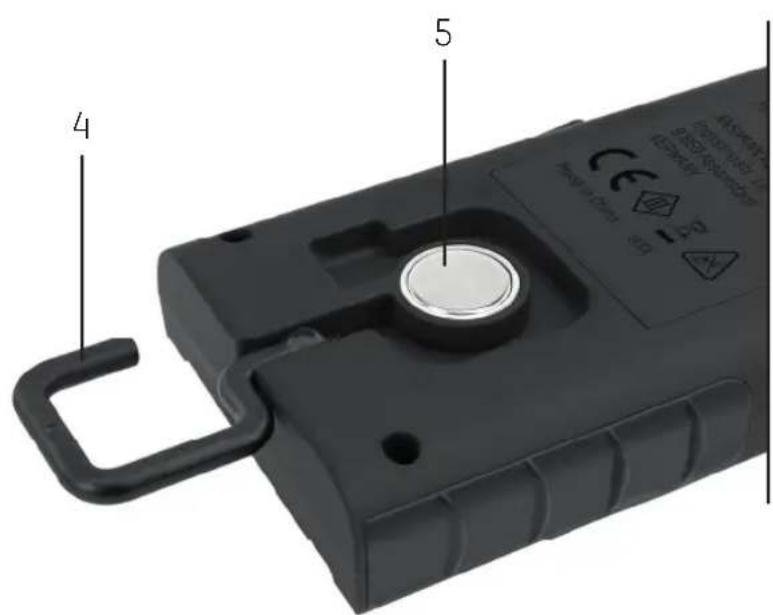

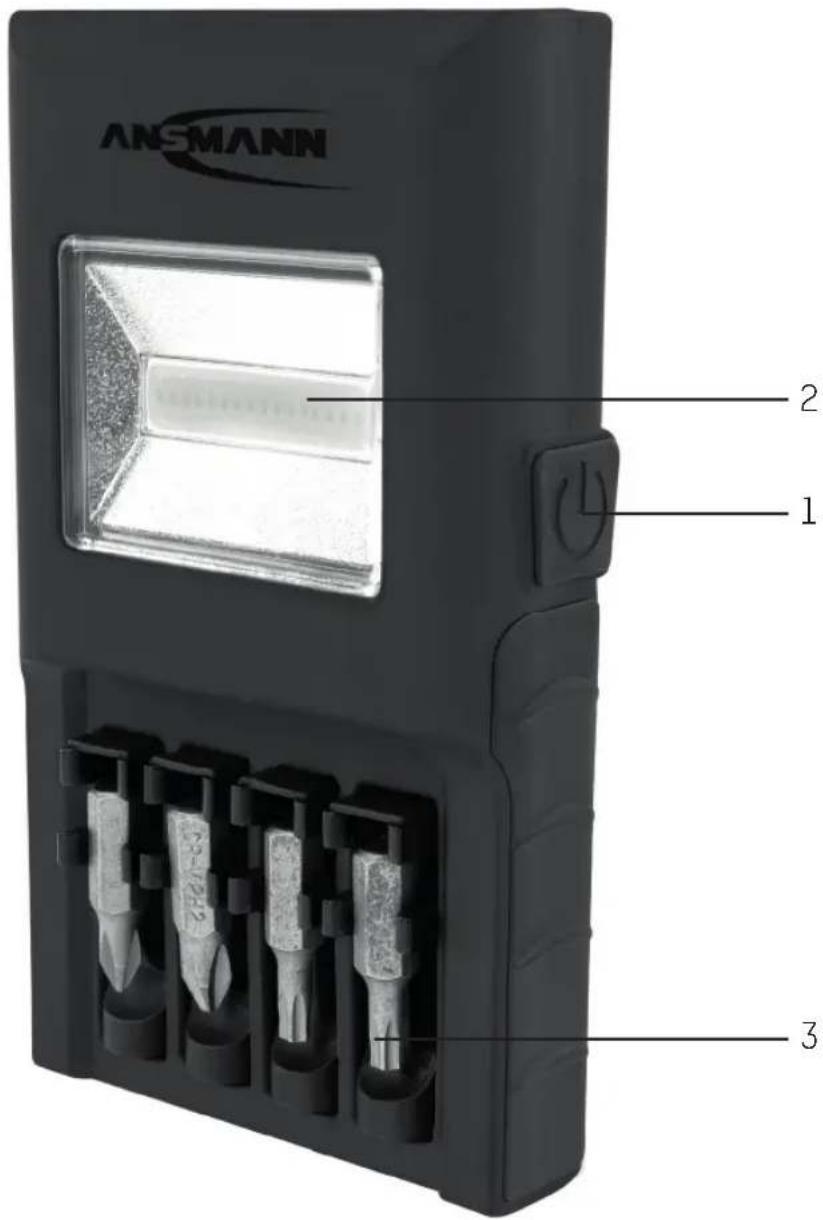

PRODUCT DESCRIPTION (SEE PAGE 2)

1 On/off button
2 COB LED
3 Bits
4 Hanging hook
5 Mounting magnet

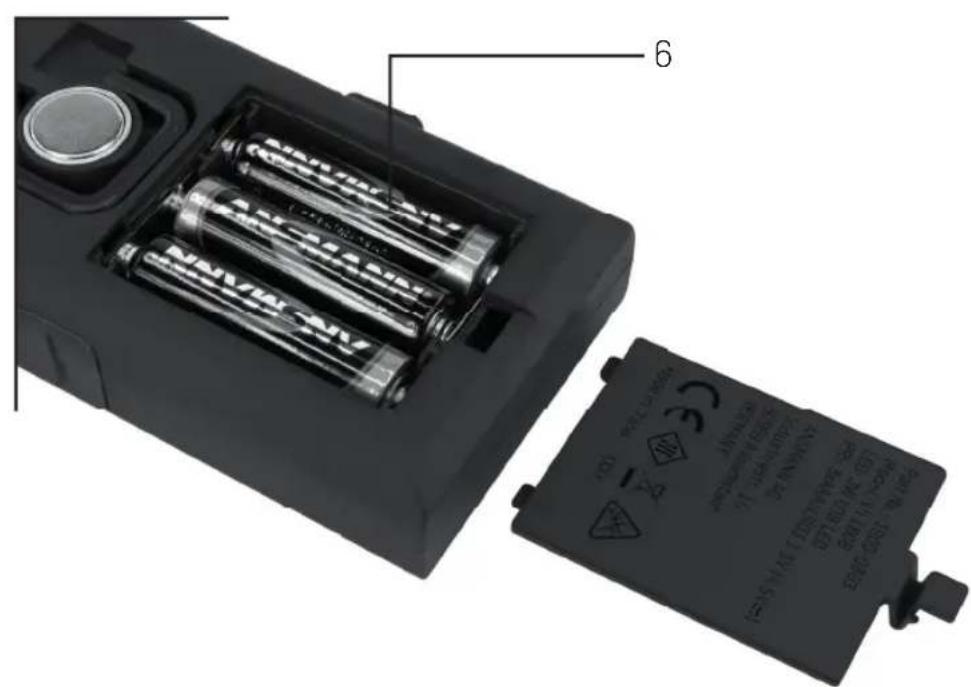

6 Battery compartment

INSERTING THE BATTERIES

3 batteries are included with the delivery. In order to activate the product, open the battery compartment and insert the batteries with the correct polarity. When replacing batteries, ensure that the batteries are inserted with the correct polarity.

OPERATION

Press 1x: 100%

Press 2x: 50%

Press 3x: Deactivation

The work lamp can be hung from suitable hanging points with the help of the hanging hook. The magnet on the rear of the lamp enable the product to be mounted on most magnetisable surfaces.

CARE AND MAINTENANCE

Cleaning

Disconnect the power supply from the product before any cleaning.

Use only a soft, dry or slightly moist cloth (with a little mild washing-up liquid if

required) for cleaning. Do not use abrasive agents or solvents for cleaning.

Maintenance

If the product is not going to be used, remove the batteries and store separately in order to preserve service life.

TECHNICAL DATA

Illuminant 3W COB LED

Risk group 2

Power supply 3x AA LR6 batteries

Protection class III

Luminous flux 200 lm /100 lm

Battery life 14/31 h

Housing material ABS

Protection type IP20

Storage temperature 5 to 25 °C

Weight of light 114g

Dimensions of light (H x W x D) 125 x 70 x 25.5 mm

Risk group 2

Dispose of unserviceable lamps in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the dealer from whom you purchased the product.

For disposal, pass the device on to a specialist disposal point for old equipment. Do not dispose of the device via household waste as the device contains batteries / rechargeable batteries.

In this way you will fulfil your legal obligations and contribute to environmental protection.

LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

WARRANTY INFORMATION

The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this. You can find our warranty terms online at www.ansmann.de.

CE The product complies with the requirements from the EU directives.

Version: MA-1600-0303/V1/22-10-2019
