Product Type	Portable LED lamp with main and auxiliary lighting functions
Brand	Ansmann
Model	WL210B
Dimensions	175 x 31 x 21 mm
Weight	53 g (without batteries)
Power Supply	3 micro AAA alkaline LR03 batteries (included)
Main Light Source	LED SMD 3W, flux 210 lm, range 45 m
Auxiliary Light Source	LED SMD 1W, flux 105 lm, range 19 m
Main Battery Life	Approximately 4 hours
Auxiliary Battery Life	Approximately 12 hours
Protection Class	III (very low voltage)
Protection Rating	IP20 (no water protection)
Housing Material	ABS plastic
Operating Temperature	-10 to 25 °C
Storage Temperature	-10 to 50 °C
Optical Risk Group	2 (do not look directly into the beam)
Main Functions	On/Off button, 180° swivel articulation, suspension ring, magnetic attachment and clip
Care and Cleaning	Clean with a slightly damp cloth, do not immerse, no solvents
Safety	Do not look directly into the LED, do not open, replace used batteries, keep out of reach of children
Spare Parts and Repairability	Light source not replaceable, whole lamp to be replaced at end of life
General Information	Compliant with European directives, disposal according to local regulations, online warranty at www.ansmann.de

Frequently Asked Questions - WL210B ANSMANN

What type of batteries should I use and how do I insert them?

Use 3 micro AAA alkaline LR03 batteries. Insert them respecting the polarity indicated in the compartment. Always turn off the lamp before replacing the batteries.

How do I turn the lamp on and off?

Press the On/Off button to turn on or off. The lamp switches on in main mode (210 lm) or auxiliary mode (105 lm) depending on the setting.

What lighting modes are available?

The lamp offers two modes: main lighting (LED 3W, 210 lm) and auxiliary lighting (LED 1W, 105 lm). Auxiliary mode provides longer battery life.

How do I attach the lamp to different surfaces?

You can hang it using the fold-out suspension ring, attach it to a metal surface with the integrated magnet, or clip it to clothing/bag using the clip.

What is the range of the lamp?

In main mode (210 lm), the range is approximately 45 meters. In auxiliary mode (105 lm), it is approximately 19 meters.

How long is the battery life?

Battery life is approximately 4 hours in main mode and 12 hours in auxiliary mode, with new alkaline batteries.

Is the lamp waterproof?

No, the protection rating is IP20, meaning it is not protected against water. Avoid any immersion and keep it dry.

How do I clean the lamp?

Use a slightly damp cloth to clean the housing. Do not immerse the lamp in water and do not use solvents or abrasive objects.

What should I do if batteries leak?

Do not touch the liquid. Immediately wash the affected area with water. If skin or eye contact occurs, consult a doctor. Remove used batteries.

How do I dispose of the lamp at end of life?

Do not throw it away with household waste. Drop it off at a collection point for electrical appliances or at your retailer. Remove the batteries and dispose of them separately.

USER MANUAL WL210B ANSMANN

Technical line drawing of a two-port refrigerator with internal components and a power button (no text or symbols)

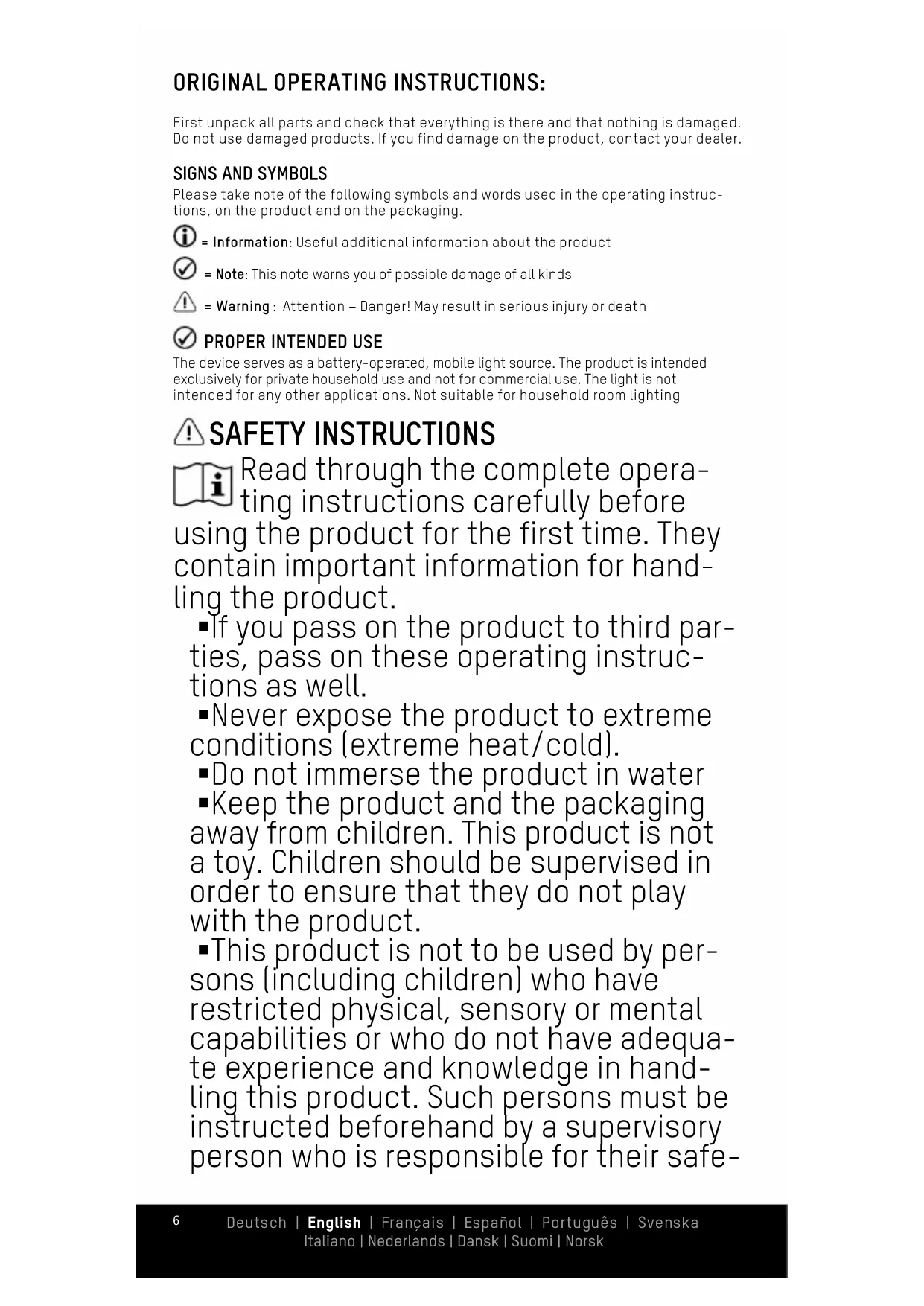

First unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

i = Information: Useful additional information about the product

☑ = Note: This note warns you of possible damage of all kinds

⚠ = Warning : Attention – Danger! May result in serious injury or death

PROPER INTENDED USE

The device serves as a battery-operated, mobile light source. The product is intended exclusively for private household use and not for commercial use. The light is not intended for any other applications. Not suitable for household room lighting

⚠ SAFETY INSTRUCTIONS

Read through the complete operating instructions carefully before using the product for the first time. They contain important information for handling the product.

■If you pass on the product to third parties, pass on these operating instructions as well.

■Never expose the product to extreme conditions (extreme heat/cold).

■Do not immerse the product in water

- Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product.

■This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safe-

ty or must be supervised during the use of the product!

Do not look directly into the light beam. Do not shine the light in other people's faces. If this occurs for too long, the blue light portion of the beam can cause retinal damage.

The product is categorised as protective class III and thus operates with a non-hazardous voltage range.

The light source of this lamp can- not be replaced. If the light source has reached the end of its service life, the complete lamp must be replaced.

- Do not open or modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.

■Always keep the product dry.

Note:

■This product contains batteries. Do not throw the product into a fire
■Improperly inserted batteries could leak and/or cause a fire/explosion
■Always change all of the batteries at the same time as a complete set and always use equivalent batteries

- Keep batteries away from children: Risk of choking or suffocating

■Never try to open, crush or heat a battery or set it on fire

■Do not use the batteries if the product appears to be damaged

■Batteries are not rechargeable

■Always dispose of used batteries & rechargeable batteries in accordance with

the local regulations and requirements.

■In the event of battery leakage, do not touch. If you come into contact with battery fluid, wash the affected area thoroughly and immediately with plenty of water

■If the battery fluid has caused a skin reaction or has come into contact with your eyes, contact a medical professional immediately

■Do not short-circuit the batteries!

■The use of rechargeable batteries and high-current batteries is not permitted due to other electrical characteristics.

■Remove used or empty batteries from the lamp immediately

■If the lamp is no longer to be used, the batteries must be removed from the lamp before it is disposed of

i INSERTING THE BATTERIES

When inserting batteries, ensure that the batteries are inserted with the correct polarity.

Switch the product off before changing the batteries.

i CARE AND MAINTENANCE

Cleaning:

- Carry out cleaning tasks only when the mains plug has been pulled out / when the power supply has been disconnected

■ Clean only with a slightly damp cloth, then rub it dry

- Do not use abrasive agents or solvents for cleaning.

■ Never submerge the product in water or other liquids.

- Do not allow fluids to enter the housing.

- Do not use hard brushes or sharp objects for cleaning.

Maintenance:

If the product is not going to be used, remove the batteries and store separately in order to preserve service life.

DISPOSAL

Dispose of unserviceable lamps in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the dealer from whom you purchased the product.

For disposal, pass the device on to a specialist disposal point for old equipment. Do not dispose of the device via household waste as the device contains batteries / rechargeable batteries.

In this way you will fulfil your legal obligations and contribute to environmental protection.

i LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

i WARRANTY INFORMATION

You can find our warranty terms online at www.ansmann.de. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this.

i OPERATION

The lamp is switched on and off by pressing the on/off button. The lamp can be suspended using the fold-out hanging eye, fastened in place with the mounting magnet or used with the clip. Various lighting positions can be achieved thanks to the 180^ swivel joint.

i TECHNICAL DATA

Illuminant: Main light: 3W SMD LEDs | Auxiliary light: 1W SMD LED

Risk group: 2

Power supply: 3x Micro AAA alkaline batteries LR03 (included)

Protection class: III

Luminous flux: Main light: 210lm | Auxiliary light: 105lm

Battery life: Main light: 4h | Auxiliary light: 12h

Light range: Main light: 45m | Auxiliary light: 19m

Housing material: ABS plastic

Protection type: IP20

Storage temperature: -10 to 50 °C

Operating temperature: -10 to 25 °C

Weight: 53g (without batteries)

Dimensions: 175 x 31 x 21mm

CE The product complies with the requirements from the EU directives.

Subject to technical changes. We assume no liability for printing errors.

TRADUCTION FRANÇAISE DU MODE D'EMPLOI ORIGINAL :

i STELL OG VEDLIKEHOLD

Rengjøring:

Kundenservice | Customer service:

ANSMANN AG

Industriestrasse 10

97959 Assamstadt

Germany

Hotline: [phone]

E-Mail: [e-mail]

MA-1600-0387/V1/02-2020
