FL1600AC - Lighting ANSMANN - Free user manual and instructions

Product type	Mobile LED projector
Brand	ANSMANN
Model	FL1600AC
Supply voltage	230 V~, 50/60 Hz
Power	20 W
Nominal luminous flux	1800 lm
Color temperature	5000 K (neutral white)
Color rendering index (CRI)	>80 Ra
IP protection rating	IP54 (protected against water splashes)
IK protection rating	IK05
Protection class	I (with protective conductor)
Lighting type	Non-replaceable LED
Dimensions (H x W x D)	263 x 263 x 149 mm
Weight	1.4 kg
Operating temperature	-20 °C to +50 °C
Place of use	Indoor and outdoor
Installation method	Placed, suspended (eyelet) or carried (handle)
Angle adjustment	Yes, by locking screws
Plug protection rating	IP44
Maintenance	Clean with a soft, dry or slightly damp cloth
Warranty	10 years
Repairability	Light source and glass not replaceable, repair by a professional

Frequently Asked Questions - FL1600AC ANSMANN

How to turn the FL1600AC projector on and off?

The projector does not have a switch. It turns on by plugging it into a power outlet and turns off by unplugging it.

Can the projector be used outdoors?

Yes, it is suitable for indoor and outdoor use. Its IP54 protection rating protects against water splashes, but it must not be immersed.

What to do if the protective glass is broken?

The safety glass is not replaceable. If the glass is damaged, the product must be disposed of according to regulations.

Is it possible to replace the LED?

No, the light source is not replaceable. When the LED reaches the end of its life, the entire projector must be replaced.

How to clean the projector?

First unplug the device. Use a soft, dry or slightly damp cloth (possibly with a little mild dish soap). Never use abrasive products or solvents.

What is the warranty of the projector?

ANSMANN offers a 10-year warranty on the product, subject to compliance with the instructions in the user manual.

Why should you not look directly into the light beam?

Looking directly into the beam can cause retinal damage due to the blue light component. Also, do not shine it into other people's faces.

Can the projector be suspended?

Yes, it has an eyelet for hanging and a handle. It can be placed on its support bracket or suspended.

What are the dimensions and weight of the FL1600AC?

The dimensions are approximately 263 x 263 x 149 mm and the weight is approximately 1.4 kg.

How to adjust the lighting angle?

Loosen the two locking screws, adjust the spotlight angle, then retighten the screws. The joints provide resistance to prevent unintentional adjustment.

USER MANUAL FL1600AC ANSMANN

Three black-and-white photo displays of a spotlights with visible LED indicators and wiring (no text or symbols)

1600-0277: FL800AC

1600-0278: FL1600AC

1600-0279: FL2400AC

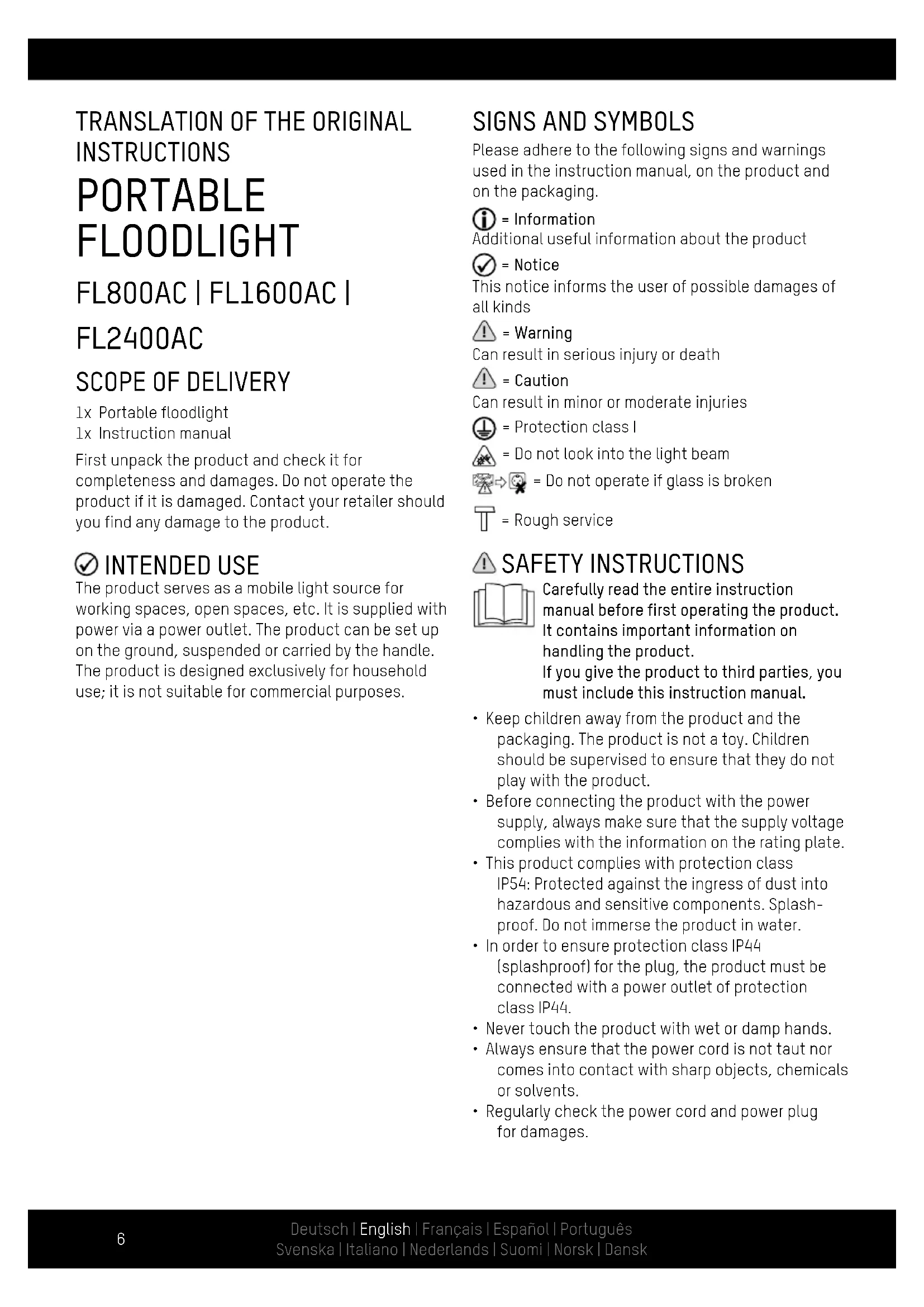

TRAGBARER STRAHLER

PORTABLE FLOODLIGHT

BEDIENUNGSANLEITUNG

MANUAL

1 2 3 7 6 5 4 3

FL800AC | FL1600AC |

FL2400AC

LIEFERUMFANG

FL800AC | FL1600AC |

FL2400AC

SCOPE OF DELIVERY

1x Portable floodlight

1x Instruction manual

First unpack the product and check it for completeness and damages. Do not operate the product if it is damaged. Contact your retailer should you find any damage to the product.

INTENDED USE

The product serves as a mobile light source for working spaces, open spaces, etc. It is supplied with power via a power outlet. The product can be set up on the ground, suspended or carried by the handle. The product is designed exclusively for household use; it is not suitable for commercial purposes.

SIGNS AND SYMBOLS

Please adhere to the following signs and warnings used in the instruction manual, on the product and on the packaging.

i = Information

Additional useful information about the product

√ = Notice

This notice informs the user of possible damages of all kinds

⚠ = Warning

Can result in serious injury or death

⚠ = Caution

Can result in minor or moderate injuries

⊥ = Protection class I

△ = Do not look into the light beam

Do not operate if glass is broken

T = Rough service

⚠ SAFETY INSTRUCTIONS

Carefully read the entire instruction manual before first operating the product. It contains important information on handling the product. If you give the product to third parties, you must include this instruction manual.

• Keep children away from the product and the packaging. The product is not a toy. Children should be supervised to ensure that they do not play with the product.
• Before connecting the product with the power supply, always make sure that the supply voltage complies with the information on the rating plate.
• This product complies with protection class IP54: Protected against the ingress of dust into hazardous and sensitive components. Splash-proof. Do not immerse the product in water.
• In order to ensure protection class IP44 (splashproof) for the plug, the product must be connected with a power outlet of protection class IP44.
• Never touch the product with wet or damp hands.
• Always ensure that the power cord is not taut nor comes into contact with sharp objects, chemicals or solvents.
• Regularly check the power cord and power plug for damages.

- To avoid hazards, the flexible exterior cord of this floodlight, if damaged, may only be replaced by the manufacturer, its service representative or a comparable professional.

This product complies with protection class I and must therefore be connected to the protective earth conductor.

Do not look directly into the beam of light. Do not shine the light in the faces of others. Looking into the beam of light for too long may cause damage to the retina due to blue light.

The safety glass is non-replaceable. If the safety glass is damaged, dispose of the product.

• Safe operation cannot be guaranteed if the product shows any kind of damage. If the product is damaged, it must be disposed of or repaired.
• Do not repair the product yourself! Have repairs carried out by a professional electrician.
  Caution: The light source of this luminaire is not replaceable. When the light source reaches its end of life the whole luminaire shall be replaced.
  ⚠ Warning: Fire hazard! Do not cover the product during operation and keep it away from inflammable surfaces.

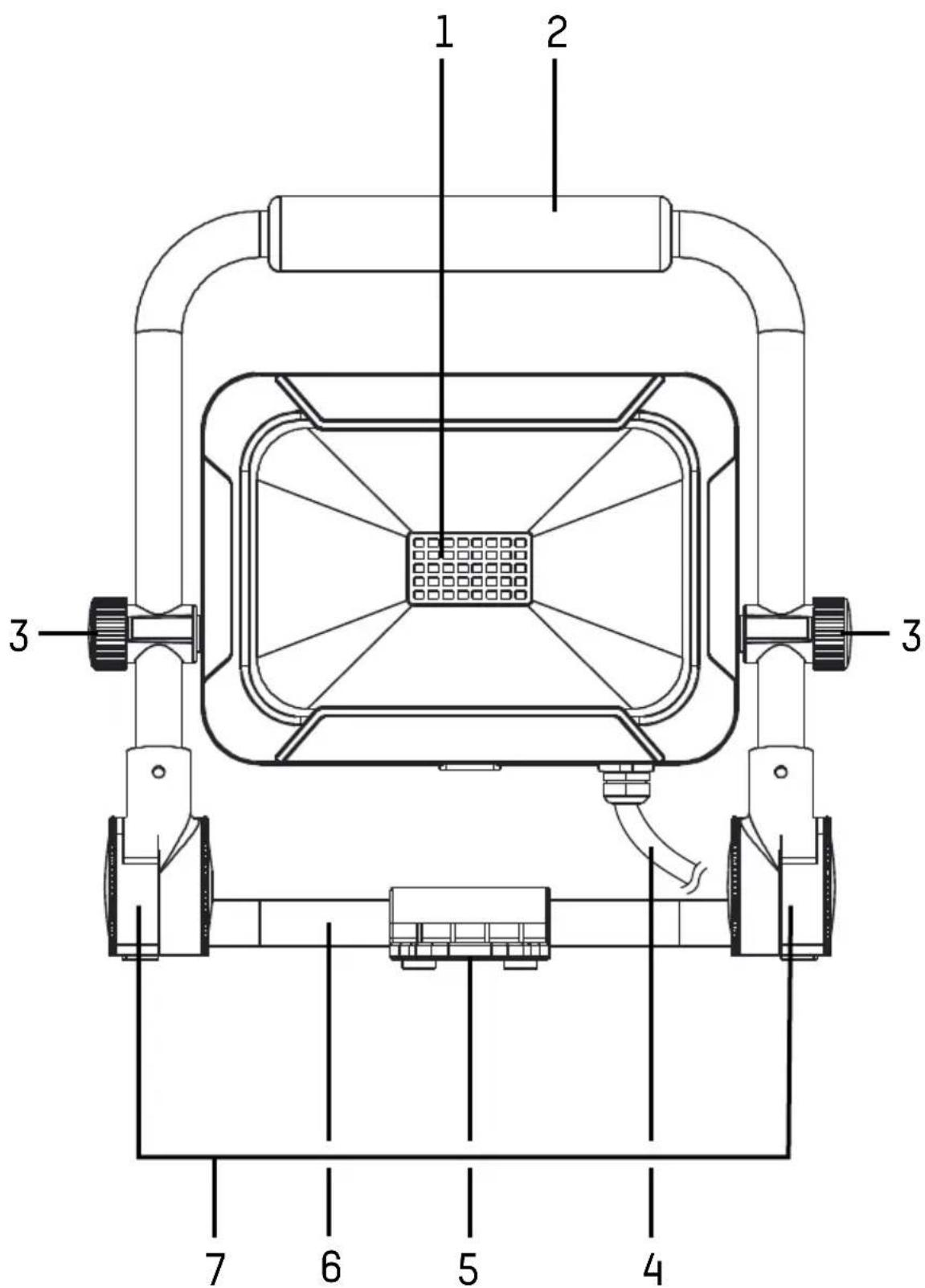

i PRODUCT DESCRIPTION

(see page 2)

1 LEDs 5 Suspension eyelet
2 Handle 6 Stand
3 Set screws 7 Joints
4 Power cord with power plug

i SETUP INSTRUCTIONS

• Always carry the product by the handle.
• Always set up the product on the stand.
• Always suspend the product by the suspension eyelet.
- The joints have some resistance to prevent unintentional adjustments. Adjust the angle of the stand slowly, avoid jerky movements.

i SETTING THE FLOODLIGHT

• Loosen both set screws.
• Adjust the angle of the floodlight.
• Re-tighten the set screws.

The product does not have a switch. It is turned on and off directly via the power supply.

• Turn on: Plug the power plug into a suitable power outlet.
• Turn off: Disconnect the power plug from the power outlet.

i CLEANING

• Always disconnect the power supply before cleaning the product.
- Use only a soft, dry or slightly damp cloth (where necessary with a little mild dishwashing detergent) to clean the product. Never use any abrasive cleaners or solvents to clean the product.

i TECHNICAL DATA

Model	1600-0277:FL800AC	1600-0278:FL1600AC	1600-0279:FL2400AC
Supply voltage 230 V~, 50/60 Hz
Power output in watts	10 W 20	W 30 W
IP protection class IP54 (splashproof)
IK protection class IK05
IP protection class (plug)	IP44 (splashproof)
Protection class I
Luminary type LED
Colour temperature 5000 K
Colour rendering index (CRI)	>80 Ra
Nominal luminous flux	900 lm 1800 lm 2700 lm
Max. projection area	446 cm2	694 cm2	825 cm2
Use site Indoors and outdoors
Operating temperature ta	-20 to +50 °C
Glass dimensions (W x B x D) - approx.	90 x124 x4 mm	128 x178 x4 mm	147 x202 x4 mm
Dimensions (W x B x D) - approx.	214 x208 x144 mm	263 x263 x149 mm	288 x286 x164 mm
Weight - approx. 1 kg 1.4 kg 1.7 kg

i DISPOSAL

At the end of its service life, dispose of the light in keeping with all legal requirements. The dustbin symbol indicates that waste electrical and electronic equipment may not be disposed of with normal household waste within the EU. Please use local recycling and collection points or contact the retailer where you purchased the product.

You thus fulfill your statutory obligations and contribute to protection of the environment.

i DISCLAIMERS

The information contained in this instruction manual is subject to change without prior notice. ANSMANN assumes no liability for direct, indirect, accidental or other types of damage or consequential damage that result from improper handling of the product or failure to comply with the information contained in this instruction manual. We assume no liability and grant no warranty claims in cases of improper use of the product.

i WARRANTY INFORMATION

We offer a ten-year warranty on the product. Damages to the product due to failure to observe the instruction manual will void the warranty. This does not affect your legal warranty right.

You can find our warranty terms online at www.ansmann.de

1600-0277

1600-0278

1600-0279

CE The product meets the conditions of the European Union.

TRADUCTION DE LA NOTICE ORIGINALE

SPOT PORTABLE

FL800AC | FL1600AC |

FL2400AC

CONTENU DE L'EMBALLAGE

1x Spot portable

1x Mode d'emploi

FL800AC | FL1600AC |

FL2400AC

VOLUMEN DE SUMINISTRO

FL800AC | FL1600AC | FL2400AC

CONTEÚDO DA EMBALAGEM

1x Refletor portátil

FL800AC | FL1600AC |

FL2400AC

LEVERANSENS INNEHÅLL

FL800AC | FL1600AC |

FL2400AC

FL800AC | FL1600AC | FL2400AC

LEVERINGSOMVANG

1x Draagbare breedstraler

i PRODUCTBESCHRIJVING

(zie blz. 2)

FL800AC | FL1600AC |

FL2400AC

TOIMITUKSEN SISÄLTÖ

FL800AC | FL1600AC |

FL2400AC

LEVERANSEINNHOLD

1x Bærbar flombelysning

1x Bruksanvisning

Pakk ut produktet og sjekk at leveransen er fullstendig og fri fra skader. Ikke ta skadede produkter i bruk. Ta kontakt med forhandleren ved påviste skader på produktet.

√ TILTENKT BRUK

FL800AC | FL1600AC |

FL2400AC

LEVERINGSOMFANG

1x Bærbar projektør

97959 Assamstadt | Germany

Hotline: [phone]

E-Mail: [e-mail] | www.ansmann.de
