USER MANUAL TheraFace PRO THERABODY

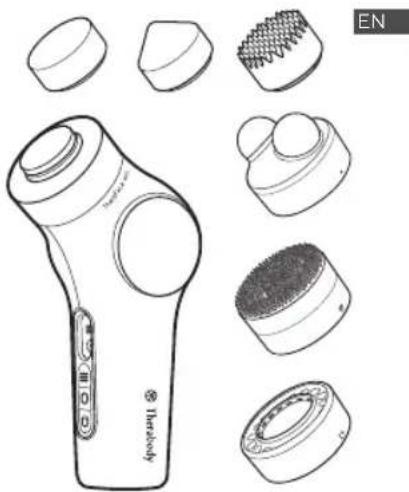

Product Overview TheraFace PRO An advanced solution for better facial wellness. The TheraFace PRO is a 4-in-1 handheld device that takes facial wellness to the next level by helping to reduce tension, relax facial muscles, and achieve healthier-looking skin by gently stimulating the face. It includes microcurrent, blue, red, and red+infrared light LED, and cleansing treatments, allowing you to customize your facial therapy in one easy-to-use versatile device. Use the variety of treatment rings to help lift, tone, rejuvenate, and deep clean. The TheraFace PRO is your all-in-one solution for optimal health and wellness for the face. Intended Use Percussive Therapy The TheraFace PRO is intended to help reduce tension, relax facial muscles, and achieve more beautiful skin by gently stimulating the face. The variety of treatment rings are intended to help lift, tone, rejuvenate, and deep clean. Percussive therapy, now optimized for the face. Facial massage to reduce tension and relax facial muscles.3

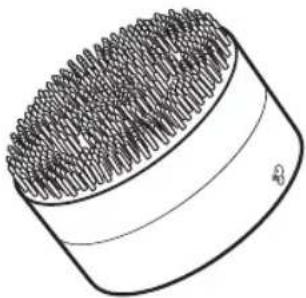

Microcurrent Ring Cleansing Ring Microcurrent rms and tightens the skin. Microcurrent improves muscle tone and contour in the face/neck Magnetic connection to the device and can be removed by pulling The Microcurrent treatment is delivered through the Microcurrent Ring A primer gel intended to be used with the TheraFace PRO device prior to starting the microcurrent treatment to ensure the treatment is delivered safely and eectively Cleansing removes facial build up of dirt, oil, and debris Magnetic connection to the device and can be removed by pulling All cleansing is delivered through the Cleansing Ring TheraOne

LED Ring: Blue/Red/Red+IR LED Ring: Red + Infrared Light Red + Infrared Light is intended to reduce periorbital wrinkles (the wrinkles around the eyes) and is shown to increase the body’s natural healing process LED Ring: RED Light Red Light is intended to reduce periorbital wrinkles (the wrinkles around the eyes) LED Ring: Blue Light Blue Light is intended to reduce mild to moderate acne *Blue Light is not intended to treat or reduce severe acne Example of Periorbital WrinklesExample of Mild Acne Example of Moderate AcneExample of Severe Acne*0 Magnetic connection to the device and can be removed by pulling The LED treatment is delivered through the LED Ring5

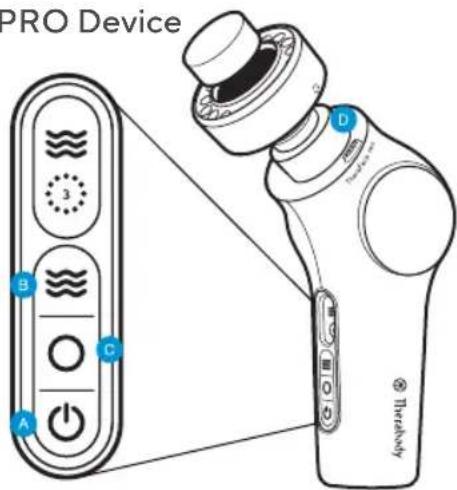

Getting To Know Your TheraFace PRO Device Percussive Therapy Button Controls the Percussive Attachment Ring Button Controls the Attachment Ring Attachment Ring Magnetic connection to the device and can be removed by pulling All the Attachment Rings have only one correct position Percussive Therapy Attachments Magnetic connection to the device and can be removed by pulling All the Attachment Rings have only one correct position Power Button Powers the device ON / OFF Flat - General use for the entire face, neck and chest Cone - More precise treatment for targeted areas such as around the eyes, nasolabial lines and pressure points Micropoint - Maximize circulation for larger areas such as the forehead, cheeks and chest Hot and Cold Rings (sold separately) Magnetic connection to the device and can be removed by pulling Delivers the option of 3 Cold and 3 Hot settings6

Getting Started Push and hold the ON/OFF button to power on the device and the OLED screen will turn on. Powering on the TheraFace PRO device

1. Start with a clean, dry face

2. Select and attach your desired

3. Turn on the device

4. Choose your settings

Basic getting started steps: Push and hold the ON/OFF button again to switch the device o and the OLED screen will be o. Switching O If the device is not manually powered o by pressing the Power button, the device will automatically shut o after 10 minutes of inactivity. Automatic Shut O Note: Make sure you turn o the power on the device before removing the rings.7

1. The LED ring has 3 light therapy wavelength options: red, blue and

2. To start using the LED therapy mode, attach the LED ring to the

TheraFace PRO device.

3. Turn ON the TheraFace PRO device by pressing the Power Button

4. Then, turn ON the LED ring by pressing the Attachment Ring button.

5. To toggle between light options (blue, red and red+infrared), press

the Attachment Ring button again.

6. The TheraFace PRO LED ring has a proximity sensor system, and will

only reach full light intensity (brightness) once the device is placed at the right distance from your face (0.5 inches), reducing glare in the interim. Avoid direct skin contact.

7. To turn o the LED ring, toggle to the Red+IR light mode and

press the Attachment Ring Button one more time or power o the TheraFace PRO device by pressing the Power Button for 2 seconds.

Warning: Do not place the LED Ring directly on the skin. Keep the LED

Ring approximately 0.5 inches away from the skin. Using the TheraFace PRO Start by washing your face completely and rinse twice to remove residue. Allow skin to dry completely before starting treatment. Be sure to visit therabody.com for treatment protocols and instructional videos. A. Percussive Therapy Feature

1. Select and attach the desired percussive therapy attachment

2. Once attached to the TheraFace PRO, turn ON the TheraFace PRO

device by pressing the Power Button for 2 seconds.

3. Turn on the percussive feature by pressing the percussive button once.

4. To toggle between the 3 speed options (1750, 2100 and 2400 rpm), press

the percussive button again.

5. To stop the percussive treatment, press the percussive button a third time.

Note: • Can be combined with Hot and Cold Rings* - (*Hot and Cold Rings sold separately)

• Cannot be combined with the Microcurrent attachment or with the LED ring Note: The TheraFace PRO device will make a beeping sound every 15 seconds. This will help you track the time within each treatment and will also inform you if a treatment has been disconnected or is completed.

• 1 beep = timed feedback every 15 sec so you can time their protocols better

• 2 beeps = the LED, Microcurrent, Hot, or Cold treatment has been accidentally disconnected

• 3 beeps = the LED, Microcurrent, Hot, or Cold treatment is over8

B. LED Treatment C. Microcurrent Treatment

1. Remove any percussive therapy attachment before attaching the

2. Prior to starting the microcurrent treatment, apply the TheraOne™

Conductive Gel to your clean, dry face or treatment area to ensure the treatment is delivered correctly.

3. Attach the Microcurrent Ring to the TheraFace PRO device.

4. Once attached to the TheraFace PRO, turn ON the TheraFace PRO

device by pressing the Power Button for 2 seconds.

5. Turn on the microcurrent treatment by pressing the ring button once.

6. To adjust the intensity level to your comfort, press the ring button once

to toggle between the 3 intensity options.

7. To stop the microcurrent treatment, press the ring button a third time.

Warning: When using the TheraFace PRO with the Microcurrent Ring, a

microcurrent primer is required. Do NOT use the Microcurrent Ring on the midline of the neck or eye area. PRO Tip: When using the Microcurrent Ring, slowly glide the device using light to medium pressure, keeping both spheres on the face at once. A microcurrent protocol of 5-8 minutes can be completed once per 24-hour period. Be sure to visit therabody.com for treatment protocols and instructional videos. The TheraOne™ Conductive Gel is a primer intended to be used with the TheraFace PRO device prior to starting the microcurrent treatment to ensure the treatment is delivered safely and eectively. D. Microcurrent Primer: TheraOne Conductive Gel Directions:

1. Start with a clean, dry face.

2. Apply a mask-like layer of the conductive gel to all treatment areas

of the face and neck.

3. Following treatment with the microcurrent ring, rinse o and apply

your favorite moisturizer. Note: • There is a preset shut o time of 8 minutes

• Cannot be combined with the percussive therapy attachments

• While the Microcurrent Ring will work with any conductive gel, we recommend the TheraOne™ Conductive Gel if available in your market.9

1. Tone: Use one cotton pad with toner applied sweeping gently

across the face, avoiding the eye area and concentrating on the nose, nasal fold, and chin

4. SPF: Apply SPF only in the morning or daytime hours

If you already use a toner, serum, moisturizer, and/or SPF, then apply in this order following the completion of any TheraFace PRO protocol: After Skin Treatment Clean your face with a warm, damp washcloth. Device Maintenance The following maintenance instructions are important to ensure that your device continues to work as it was designed. Failure to follow these instructions may cause your device to stop working. Care and Cleaning Visually inspect the TheraFace PRO device and attachment rings for any obvious signs of debris build-up. Wipe your device and attachment rings down with a damp cloth or alcohol-free cleansing wipe. After cleaning, allow the device and attachment rings to dry thoroughly before storing or beginning another treatment protocol. A properly cleaned device should have no visible signs of debris or moisture. Note: This product is not waterproof, only clean with a damp cloth or alcohol-free cleansing wipe by wiping the device and attachment rings. Do not submerge the device in water or clean it under running water (other than the Cleaning Ring). Do not allow the device to come into contact with any corrosive solutions, which would damage appearance and function. Store the device in a cool and dry place (Temperature: 0°C/32°F - 40°C/104°F Relative humidity: 10~95% RH). Do not store the device or battery where temperatures may exceed 40°C/104°F, such as in direct sunlight or in a vehicle. TheraFace PRO Device After Care & Cleaning Warnings: Use only as directed. Avoid eye contact. Do NOT use the on the midline of the neck. Prior to starting the microcurrent treatment, test by applying a small amount of the TheraOne Conductive Gel on a small patch of skin rst. Skin may absorb gel during microcurrent session; reapply if needed to ensure even glide of device on the skin.10

• The TheraFace PRO is USB-C enabled with the connector at the bottom of the device.

• The TheraFace PRO includes a USB-C to USB-A cable.

• You can plug the device into any standard USB adapter.

• The TheraFace PRO allows for fast-charging if charged with a USB-C adapter. Note: Make sure the charger is from a certied manufacturer and it hasn’t suered any structural damage. The TheraFace PRO device will not work while charging. TheraFace PRO Warnings and Guidance (Precautions and Contraindications) Background This device is intended to be used on the face, neck, and upper chest regions of the body. If you have any specic medical conditions or concerns, please consult your physician before using this product. There will be times when it is advisable to modify how devices are used (precautions) or times when it is not appropriate to use certain devices (contraindications). The following document highlights these for each modality or treatment attachment included with the TheraFace PRO device as of the date of printing. For up-to-date information, please visit us online. Important Safety Information General TheraFace PRO Use Read the full Warnings and Guidance prior to using the TheraFace PRO. This device is contraindicated against and should not be used by or on anyone with a history of epilepsy, seizures or cardiopathy. The TheraFace PRO is not recommended for anyone with an electronic implanted device (such as a pacemaker), cardiac arrhythmia, tumors, or acute episodes of inflammatory diseases. The device is not recommended for those who have arteriosclerosis, thromboses or implants in the body region being treated. Dental implants should be rmly anchored before using the device. Do not use the device on the eyes, eyelids, or the area immediately surrounding the eye (Periorbita area). The device should not be used if you have dark brown or black spots, such as large freckles, birthmarks, moles or warts, on the area to be treated. The device is not recommended if you have eczema, psoriasis, lesions, open wounds or active infections other than mild to moderate acne, such as cold sores, in the area to be treated. Wait for the infected area to heal before using the device. The device should not be used if you have abnormal skin conditions caused by diabetes or other systemic or metabolic diseases. It is not recommended to use this device if you have a history of herpes outbreaks in the area of treatment, unless you have consulted with your physician and have received preventive treatment before using the device. Please consult your physician prior to use if you are pregnant and/or nursing. Please consult your physician prior to use if you are pregnant and/or nursing. Immediately stop using the device at the rst sign of discomfort.The device is not recommended for anyone under the age of 18 without adult supervision and should be kept out of reach of children. If you have any medical concerns, are taking any medications that cause light sensitivity, or have had any facial surgery or other surgical procedures, please consult your doctor before using the device.11

Microcurrent Ring Attachment These recommendations are derived from consultation with medical experts and the published research in regards to precautions and contraindications and are as of the date of printing. For up-to-date information, please visit us online. When using the device with the microcurrent treatment, a microcurrent conductive gel primer is required. Prior to starting the microcurrent treatment, test by applying a small amount of the conductive gel on a small patch of skin. Precautions

• Recent injury, surgery, or facial treatment such as neurotoxin, dermal ller, microneedling, laser, and/or chemical peel until skin has fully healed

• Do not use during a breakout from Herpes Simplex Virus

• Do not use over facial hair; facial hair must be shaved prior to use as hair can interfere with the conductivity

• Do not use if you suer from any heart condition

• Do not use directly over center of neck (bone), specically avoiding the thyroid

• Do not use on breast area

• Do not use across your chest

• Do not use on groin area

• Do not use directly on the eyes, eyelids, or the area immediately surrounding the eye (Periorbita area).

• Do not apply to broken skin

• Do not use on children Contraindications The following are circumstances where the potential risks may outweigh the benets. Consult a medical professional before use.

• Skin rash, open wounds, blisters, local tissue inflammation, infections, bruises, or tumors

• Pacemaker or other implanted electronic devices

• Metal plates or pins in the application area

• Implanted debrillators/ stimulators LED Ring Attachment (Red LED, Red+IR LED, and Blue LED Therapies) These recommendations are derived from consultation with medical experts and the published research in regards to precautions and contraindications as of the date of printing. For up-to-date information, please visit us online. Precautions

• Recent injury, surgery, or facial treatment such as neurotoxin, dermal ller, microneedling, laser, and/or chemical peel until skin has fully healed.

• Current breakout from Herpes Simplex Virus

• For facial hair: Use LED over facial hair, following the pattern of hair growth (typically in a downward motion)

• Do not apply directly to the eyeball/eyelid

• Do not apply to broken skin

• Do not apply retinol before use of red LED light Contraindications The following are circumstances where the potential risks may outweigh the benets. Consult a medical professional before use.

• Skin rash, open wounds, blisters, local tissue inflammation, infections, bruises, or tumors

• Abnormal sensations (ex. numbness)

• Cardiopathy (heart disease)

• Photo allergy or disorder (ex. Lupus, porphyria)

• Medications that cause light sensitivity

• Medications for severe acne

• Extreme sensitivity to light

• Melasma or hyperpigmentation (especially if exacerbated by mild warmth)

• Suspicious lesions or skin cancer–please visit your physician

• If taking or using any retinol or sun-sensitive medications or products or benzoyl peroxide do not use infrared light12

Percussive Therapy Attachments (Flat, Cone, Micro-point) These recommendations are derived from consultation with medical experts and the published research in regards to precautions and contraindications as of the date of printing. For up-to-date information, please visit us online. Precautions Due care is required in these circumstances and the use of the devices may need to be modied (such as attachment used, the force applied, the position of the body, avoidance of use in direct contact with an area, etc.). Where appropriate or if you have any concerns, seek the advice of a medical professional

• Recent injury, surgery, or facial treatment such as neurotoxin, dermal ller, microneedling, laser, and/or chemical peel until skin has fully healed.

• Current breakout from Herpes Simplex Virus

• Hypertension (controlled)

• Abnormal sensations (e.g., numbness)

• Sensitivity to pressure

• Medications that may alter sensations

• Do not apply directly to the eyeball/eyelid

• Do not apply to broken skin Contraindications The following are circumstances where the potential risks may outweigh the benets. Consult a medical professional before use.

• Skin rash, open wounds, blisters, local tissue inflammation, infections, bruises, or tumors

• Hypertension (uncontrolled)

• Acute or severe cardiac, liver, or kidney disease

• Neurologic conditions resulting in loss or altered sensation

• Direct application to the eyes or throat

• Recent surgery or injury

• Connective tissue disorders

• Peripheral vascular insuciency or disease

• Medications that thin the blood or alter sensations

• Direct pressure over surgical site or hardware

• Extreme discomfort or pain

• Pacemaker, ICD, or history of embolism Cleansing Ring Attachment These recommendations are derived from consultation with medical experts and the published research in regards to precautions and contraindications as of the date of printing. For up-to-date information, please visit us online. Precautions

• Recent injury, surgery, or facial treatment such as neurotoxin, dermal ller, microneedling, laser, and/or chemical peel until skin has fully healed.

• Current breakout from Herpes Simplex Virus

• If you have facial hair, use the cleansing ring following the pattern of hair growth (typically a downward motion) and/or make small circular motions if comfortable

• Do not apply directly to the eyeball/eyelid

• Do not apply to broken skin Contraindications The following are circumstances where the potential risks may outweigh the benets. Consult a medical professional before use.

• Skin rash, open wounds, blisters, local tissue inflammation, infections, bruises, or tumors Hot Ring Attachment These recommendations are derived from consultation with medical experts and the published research in regards to precautions and contraindications as of the date of printing. For up-to-date information, please visit us online. Precautions

• Recent injury, surgery, or facial treatment such as neurotoxin,13

dermal ller, microneedling, laser, and/or chemical peel until skin has fully healed.

• Current breakout from Herpes Simplex Virus

• Do not apply directly on the eyeball/eyelid

• Do not apply to broken skin Contraindications The following are circumstances where the potential risks may outweigh the benets. Consult a medical professional before use.

• Skin rash, open wounds, bliszters, local tissue inflammation, infections, bruises, or tumors Cold Ring Attachment These recommendations are derived from consultation with medical experts and the published research in regards to precautions and contraindications. Precautions

• Recent injury, surgery, or facial treatment such as neurotoxin, dermal ller, microneedling, laser, and/or chemical peel until skin has fully healed.

• Current breakout from Herpes Simplex Virus

• For facial hair use Cold Ring as noted in standard protocol

• Do not apply on the eyeball/eyelid

• Do not apply to broken skin Contraindications The following are circumstances where the potential risks may outweigh the benets. Consult a medical professional before use.

• Skin rash, open wounds, blisters, local tissue inflammation, infections, bruises, or tumors

• Cold hypersensitivity/Cold urticaria

• Circulatory insuciency Additional Unit Warnings When using the device, these basic precautions should always be followed:

1. USE ONLY AS INSTRUCTED. Use the device as described

in the device User Manual only. Only use the recommended attachments, accessories, and replacement parts. Do not carry out any maintenance on your own.

2. NOT FOR CHILDREN. The device is not intended for use by

young children or persons with reduced physical, sensory, or reasoning capabilities, or lack of experience and knowledge with how the device should be operated, unless they have been given supervision or instruction by a responsible person. Do not allow the device to be used as a toy. Children should be supervised to ensure that they do not play with the device.

3. CHARGING LOCATIONS. The device should be charged

indoors in a well ventilated, dry location. Do not charge the device outdoors, in a bathroom, or within 10 feet (3.1 meters) of a bathtub or pool. Do not use the device or charger on wet surfaces and do not expose the charger to moisture, rain, or snow. Do not use the device in the presence of explosive atmospheres (gaseous fumes, dust, or flammable materials). Sparks may be generated, possibly causing a re.

4. DO NOT OVERCHARGE. Do not leave the battery in the

Charger for more than 1 hour after the battery has been fully charged. The battery includes a Theragun Protection system to avoid the risk of overcharging. However, overcharging may reduce its life over time

5. DO NOT BURN OR INCINERATE THE DEVICE OR ITS

BATTERIES. The battery may explode, causing personal injury or damage. Toxic fumes and materials are created when the battery is burned.

6. DO NOT CRUSH, DROP, OR DAMAGE THE DEVICE

BATTERIES OR CHARGER. Do not use a charger that has received a sharp blow, been dropped, run over, or damaged in any way.

7. BATTERY CHEMICALS CAUSE SERIOUS BURNS. Never allow

the internal battery to come into contact with the skin, eyes, or14

mouth. If a damaged battery leaks chemicals, use rubber or neoprene gloves to dispose of it. If skin is exposed to battery fluids, wash with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately flush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.

8. DO NOT SHORT CIRCUIT. A battery will short circuit if a metal

object makes a connection between the positive and negative contacts on the battery or the 16V connector. Do not place a battery near anything that may cause a short circuit, such as coins, keys, or nails in your pocket. A short circuited battery may cause re and personal injury.

9. DO NOT OPERATE UNDER BLANKET AND PILLOW OR

BETWEEN COUCH CUSHIONS. Excessive heating can occur and cause re, electric shock, or injury.

10. STORING THE DEVICE & BATTERY. Store in a cool, dry place.

Only charge the device when the ambient temperature is between 0°C/32°F - 40°C/104°F. Do not store the device or batteries where temperatures may exceed 40°C/104°F, such as in direct sunlight or in a vehicle.

11. DISPOSING OF BATTERIES. The TheraFace PRO lithium-ion

batteries for the device are more environmentally friendly than some other types of batteries. Always dispose of device batteries according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations. Even discharged batteries contain some energy. Before disposing, use electrical tape to cover the device’s 16V connector/terminals to prevent the battery from shorting, which could cause a re or explosion.

12. DO NOT DISASSEMBLE. Disassembly or incorrect reassembly

may result in the risk of electric shock, re, or exposure to battery chemicals. The warranty will be void if the device, batteries, or charger are disassembled or if any parts have been removed.

13. SERVICE. If the device, batteries, or charger is not working

properly, has received a sharp blow, or has been dropped, damaged, left outdoors, or dropped into water, then do not use it. Do not attempt to repair or disassemble the device which may result in an electric shock or re.

14. DO NOT USE WHILE BATHING OR IN THE SHOWER, TUB,

OR SINK. Do not place or store the device or batteries where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid. Do not reach for an appliance that has fallen into or come into contact with water. Unplug immediately.

15. THERMAL LIMITER. The device has an automatic reset thermal

limiter that shuts o the device to prevent overheating and re.

16. POLARIZED PLUG. To reduce the risk of electric shock, this

appliance has a polarized plug (one blade is wider than the other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician to install the Theragun Proper outlet. Do not change the plug in any way.

17. DO NOT OPERATE the device where aerosol (spray) is being

used or where oxygen is being administered.

SAVE THESE INSTRUCTIONS

1. Use the TheraFace PRO device and attachment rings only as

described within this User Manual. The risks and dangers of using the TheraFace PRO device and attachment rings in any way other than specied in the provided User Manual are unknown and may result in negative side eects.

2. This TheraFace PRO device was not tested for use over the eye

socket or eyelid so the risks are unknown.15

CE mark the Restriction of Hazardous Substances “WEEE (Waste Electrical and Electronic Equipment)”.The waste products should be handled legally. Keep dry FCC Federal Communications Commission Please read the user manual before use Type BF apply part. Product Specications

BASIC UNIT CHARACTERISTICS

Power Source User supplied USB-A or USB-C adapter Indicator Light YES Housing Materials PC ADDITIONAL FEATURES Environment for operation Temperature: 0 ~ 40° CRelative humidity: <93% RHEnvironment for storage Temperature: -25° C ~ 50° CRelative humidity: 10~95% RH Use atmospheric pressure 70-106Kpa16

Percussive 1750, 2100 and 2400 rpm Frequency 1750rpm :29.1Hz 2100rpm:35Hz 2400rpm:40Hz17

1. This device is Class II equipment with type BF applied part. It complies with Medical

Electrical Safety Standards (IEC 60601-1).

2. This device is also compliant with Medical EMC Standard (IEC 60601-1-2).

3. All the user directly contracting materials for the main device housing and output

contacts in this device are biocompatible for its intended use. They comply with biocompatibility standards ISO 10993-5 (Cytotoxicity) and ISO 10993-10 (Irritation and Sensitization). Safety, EMC & Bio-compatibility CAUTION: Do not apply the device near any devices with Electromagnetic Interference (EMI), such as cell phones, Magnetic Resonance Imaging (MRI), computerized axial tomography (CT), diathermy, Radio Frequency Identication (RFID), etc. or MR environment. EMI, RF devices or MR environment may aect the normal function of the device or would cause user injury. The TheraFace PRO has been tested and found to comply with the electromagnetic compatibility (EMC) limits for medical device to IEC 60601-1-2: 2007. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: FCC compliance statement

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.18

The TheraFace PRO is intended for use in the electromagnetic environments specied below. The customer or the user of the TheraFace PRO should ensure that it is used in such an environment. EMISSIONS TEST COMPLIANCE ELECTROMAGNETIC ENVIRONMENT - GUIDANCE RF emissions CISPR 11 Group 1 The TheraFace PRO uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. RF emissions CISPR 11 Class B The TheraFace PRO is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes. Harmonic emissions

The TheraFace PRO is intended for use in the electromagnetic environment specied below. The customer or the user of the TheraFace PRO should ensure that it is used in such an environment. IMMUNITY TEST IEC 60601 TEST LEVEL COMPLIANCE LEVEL ELECTROMAGNETIC ENVIRONMENT - GUIDANCE Electrostatic discharge (ESD)

±6kV contact ±8kV air ±6kV contact ±8kV air Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%. Electrostatic transient / burst

±2kV for power supply lines ±1kV for input/output lines ±2kV for power supply lines ±1kV for input/output lines Mains power quality should be that of a typical commercial or hospital environment. Surge

±1kV dierential mode ±2kV common mode ±1kV dierential mode ±2kV common mode Mains power quality should be that of a typical commercial or hospital environment. Voltage dips, short interruptions and voltage variations on power supply input lines

(>＜95% dip in UT) for 5 sec <5% U

(>＜95% dip in UT) for 5 sec Mains power quality should be that of a typical commercial or hospital environment. If the user of the TheraFace PRO requires continued operation during power mains interruptions, it is recommended that the TheraFace PRO be powered from an uninterruptible power supply or a battery. Power frequency (50/60 Hz magnetic eld

3 A/m 3 A/m Power frequency magnetic elds should be at levels characteristic of a typical location in a typical commercial or hospital environment. NOTE U

is the a.c. mains voltage prior to application of the test level.

3 Vrms 150kHz to 80MHz 3V Portable and mobile RF communications equipment should be used no closer to any part of the higi Station, including cables, than the recommended separation distance calculated from the equation application to the frequency of the transmitter. Recommended separation distance Where p is the maximum output power rating of the transmitter in watts(W) according to the transmitter manufacturer and d is the recommended separation distance in metres(m).b Field strengths form xed RF transmitters, as determined by an electromagnetic site survey, a should be less than the compliance level in each frequency range. b Interference may occur in the vicinity of equipment marked with the following symbol: Radiated RF 3V/m 80MHz to 2.5GHz 3V/m NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic is aected by absorption and reflection from structures, objects and people. Field strengths from transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to xed RF transmitters, an electromagnetic site survey should be considered. If the measured led strength in the location in which the TheraFace PRO is used exceeds the applicable RF compliance level above. The TheraFace PRO should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the higi Station.Over the frequency range 150kHz to 80 MHz, led strengths should be less than 3V/m.21

Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM – For EQUIPMENT and SYSTEMS that are not LIFE – SUPPORTING Recommended separation distances between portable and mobile RF communications equipment and the higi Station The TheraFace PRO is intended for use in the electromagnetic environment specied below. The customer or the user of the TheraFace PRO should ensure that it is used in such an environment. Rated maximum output of transmitter

Separation distance according to frequency of transmitter 150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.5 GHz

For transmitters rated at a maximum output power not listed above the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is aected by absorption and reflection from structures, objects and people. LIMITED WARRANTY For full warranty information, please visit www.therabody.com/warranty. To request a copy of the warranty by mail, you may send a request to the following address: Therabody - Warranty Therabody, Inc. Attn: Customer Service 6100 Wilshire Blvd. Ste 200 Los Angeles, Ca. 90048 Please note, this is not a return address or a retail location. No Therabody products or packages will be accepted at this location.22

Separation distance according to frequency of transmitter 150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.5 GHz

• 3 pieptonen = de LED, Microcurrent, Hot, of Cold-behandeling is voltooid108

• Botbreuk of myositis ossicans
