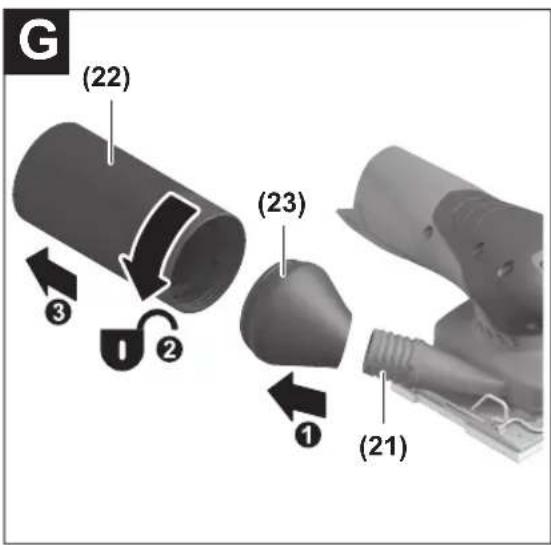

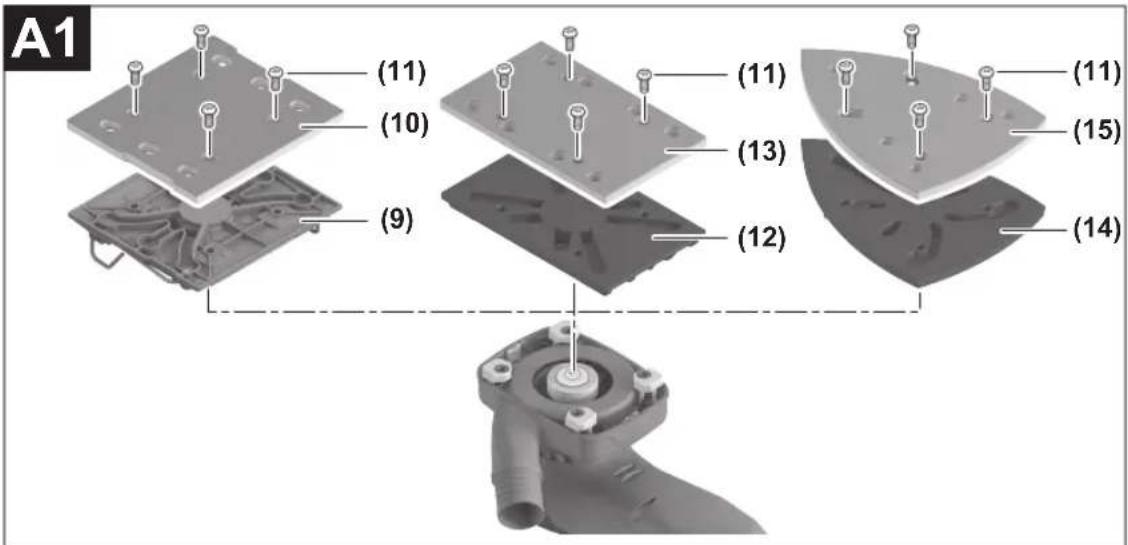

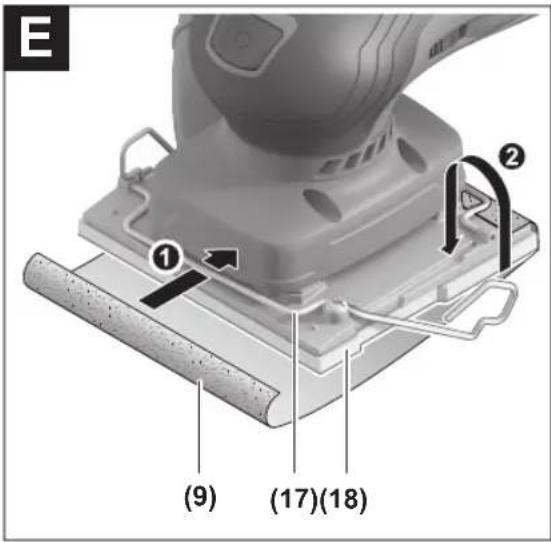

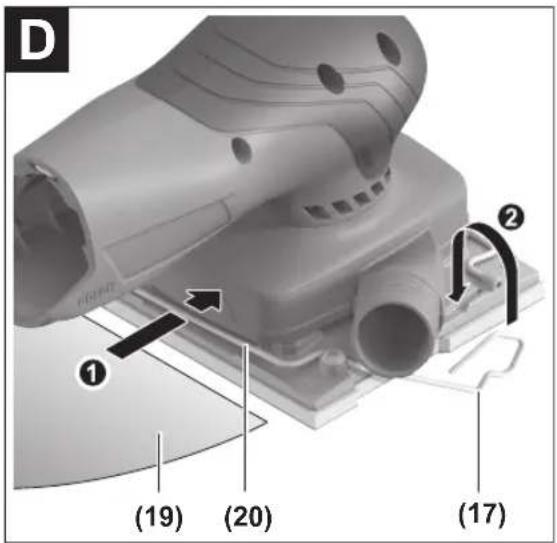

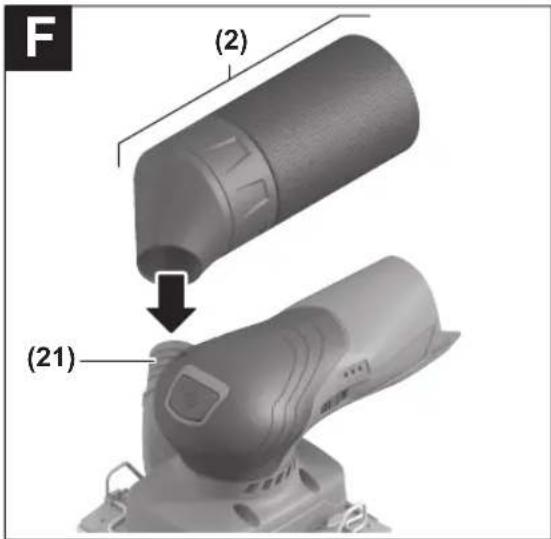

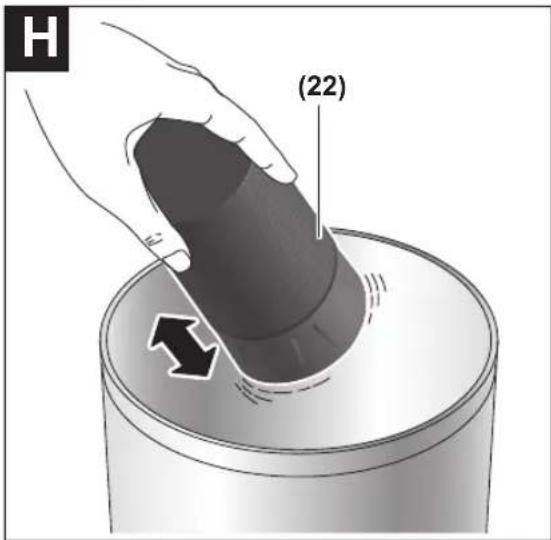

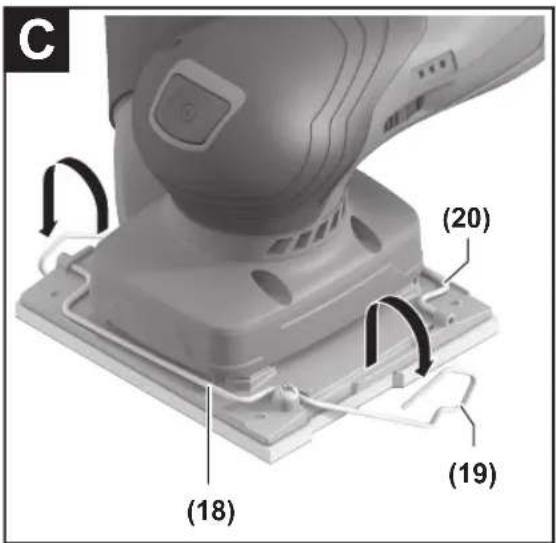

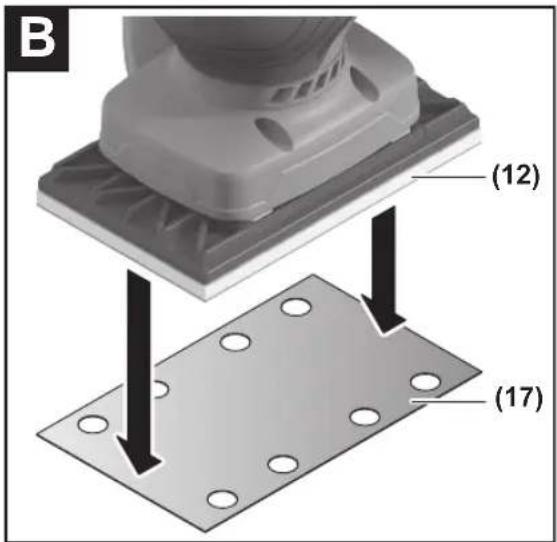

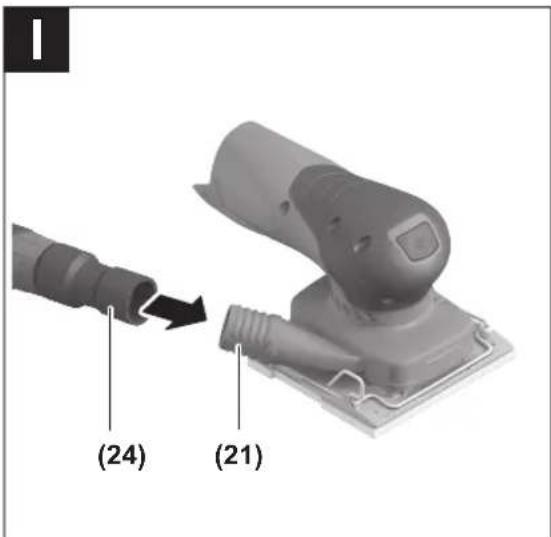

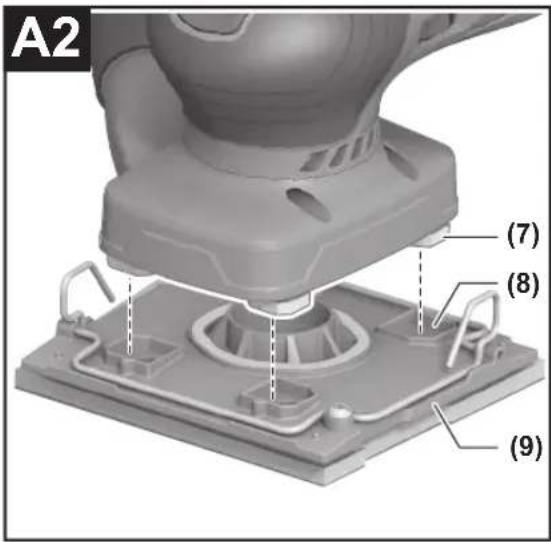

(4) Rechargeable battery release button (5) Battery charge indicator (6) Orbital stroke rate preselection thumbwheel (7) Pivoting feet (8) Recess for pivoting feet (9) Square base plate with clamp fastening (10) Square foam pad hook-and-loop fastening (11) Screws for base plate (x4) (12) Rectangular base plate (13) Rectangular foam pad hook-and-loop fastening (14) Triangular base plate (15) Triangular foam pad hook-and-loop fastening (16) Handle (insulated gripping surface) (17) Sanding sheet with hook-and-loop fastening (18) Front clamping bracket (19) Sanding sheet clamps (x2) (20) Rear clamping bracket (21) Extraction outlet (22) Dust bag (23) Adapter for dust bag (24) Extraction hose

This accessory is not part of the standard scope of delivery. Technical Data Orbital sander GSS 12V-13 Article number 3 601 JL0 0.. Rated voltage V= 12 No-load speed

12,000–20,000 Orbit diameter mm 1.6 Sanding plate dimensions – Square mm 100 x 110 – Rectangular mm 80 x 130 – Triangular (sanding sheet length from corner to corner) mm 100 x 150 Weight

Recommended ambient temperature during charging °C 0to+35 Permitted ambient temper- ature during operation

and during storage °C –15to+50 Recommended rechargeable batteries GBA 12V... Recommended battery char- gers GAL 12... GAX 18...

Measured at 20–25°C with rechargeable batteryGBA 12V 3.0Ah B) Depending on battery in use C) Limited performance at temperatures <0°C Values can vary depending on the product, scope of application and environmental conditions. To find out more, visit www.bosch-professional.com/wac. Noise/Vibration Information Noise emission values determined according toEN62841-2-4. Typically, the A-weighted sound pressure level of the power tool is 74dB(A). Uncertainty K=3dB. The noise level when working can exceed the volume stated. Wear hearing pro- tection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN62841-2-4:
