Product Type	Table Fan
Brand	SilverCrest
Model	STVM 30 B2
Power Supply	220-240 V ~, 50-60 Hz
Power Consumption	45 W (max), 38.8 W in operation
Speeds	3 speeds (I, II, III) + stop (0)
Oscillation	Yes, push button switch
Tilt	Manually adjustable with button
Sound Power Level	60.5 dB(A)
Maximum Airflow	62.92 m³/min
Service Value	1.62 (m³/min)/W
Measurement Standard	IEC 60879:1986
Blade Material	Plastic
Protective Grille	Yes, front and rear, clip-on
Usage	Indoor only, household use
Maintenance	Clean with a damp cloth, do not immerse
Safety	Do not insert objects, unplug before cleaning
Warranty	3 years from date of purchase
Customer Service France	Tel. [phone], email [e-mail]
Customer Service Belgium	Tel. [phone], email [e-mail]
Spare Parts	Available during the warranty period
Product Reference (IAN)	384782_2107

Frequently Asked Questions - STVM 30 B2 SILVERCREST

How to assemble the SilverCrest STVM 30 B2 fan?

Follow the steps in the instruction manual: attach the tube to the base with the thumbscrew, then the rear grille, the blade, and the front grille. Use a cross-head screwdriver. See the illustrations in the manual.

How to adjust the fan speed?

Turn the speed control knob to positions I (low), II (medium), or III (maximum). Position 0 to stop.

How to activate oscillation?

Press the oscillation button to activate the rotating motion. Pull it to deactivate.

How to adjust the fan tilt?

Loosen the tilt knob, manually adjust the angle, then retighten the knob. Do not do this during operation.

How to clean the fan?

Turn off and unplug the device. Clean the grilles with a vacuum cleaner and a slightly damp cloth. Do not let water enter the motor unit.

What to do if the fan does not work?

Check that the plug is properly inserted and that the speed knob is not on 0. If the problem persists, contact customer service.

Can the fan be used by children?

Yes, under supervision. Children aged 8 years and older may use it if they have received safety instructions. Do not let children play with the appliance.

What is the warranty for the SilverCrest STVM 30 B2?

The warranty is 3 years from the date of purchase. Keep the receipt. The warranty covers material and manufacturing defects, but not normal wear and tear.

Where to find spare parts?

Essential spare parts are available during the warranty period. Contact customer service at the contact details provided in the manual.

How to dispose of the product at end of life?

Do not dispose of the appliance with household waste. Take it to a recycling center or collection point for electrical devices. The packaging is recyclable.

USER MANUAL STVM 30 B2 SILVERCREST

TISCHVENTILATOR / DESK FAN / VENTILATEUR DETABLE STVM 30 B2

DE AT CH

TISCHVENTILATOR

Operation and safety notes

FR BE

VENTILATEUR DE TABLE

GB/IE Operation and safety notes Page 14

Warnings and symbols used

Introduction 15

Intended use. 15
Scope of delivery. 16
Description of parts 16
Technical data 16

Safety instructions. 17

Before use 19

Unpacking 19
Assembly 19
Tilt adjustment. 19

Operation. 20

Fan speed 20
Oscillation 20

Cleaning and care 20

Storage 20

Disposal. 21

Warranty 22

Warranty claim procedure.. 22

Service 22

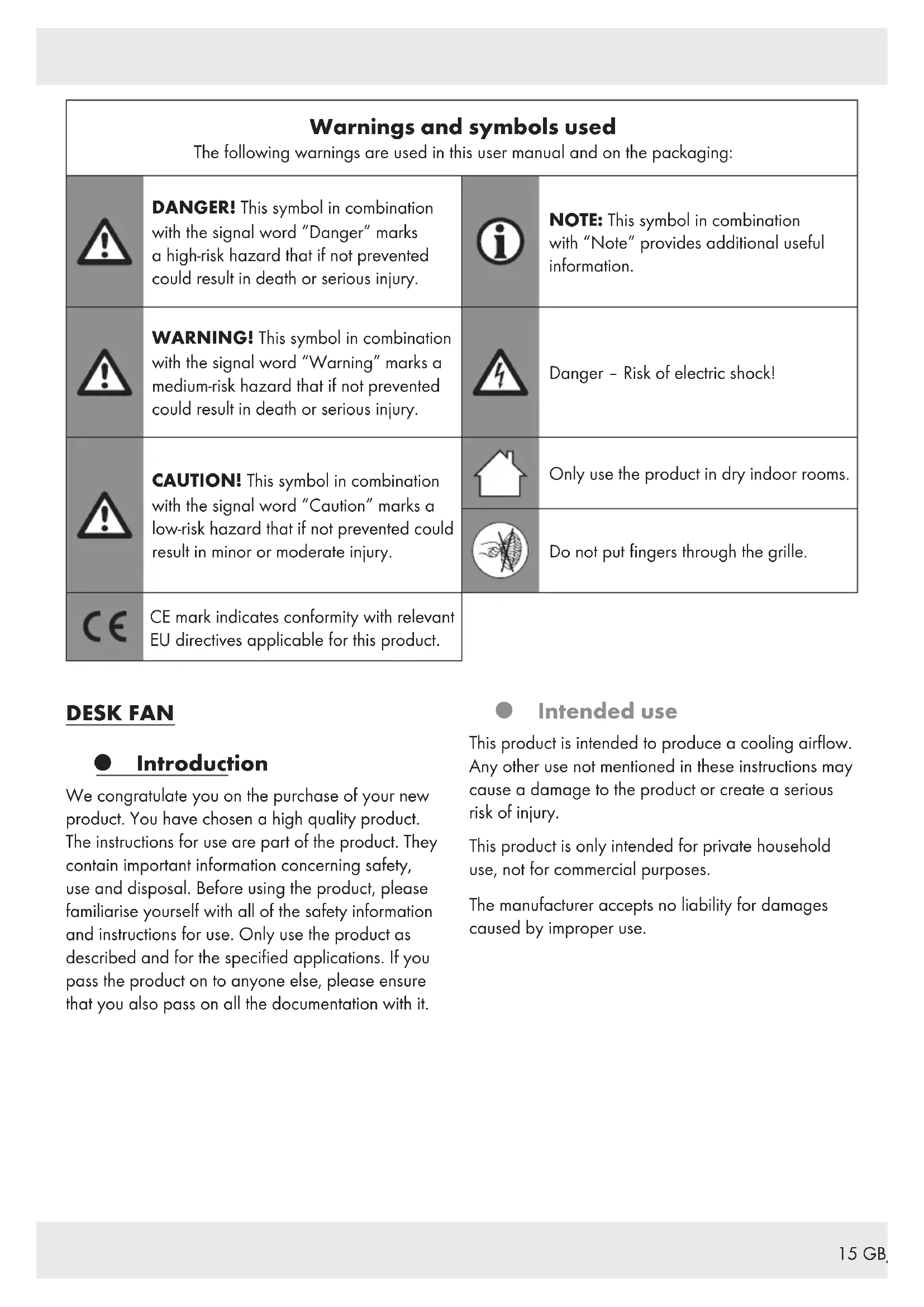

Warnings and symbols used The following warnings are used in this user manual and on the packaging:
!	DANGER! This symbol in combination with the signal word "Danger" marks a high-risk hazard that if not prevented could result in death or serious injury.	i	NOTE: This symbol in combination with "Note" provides additional useful information.
!	WARNING! This symbol in combination with the signal word "Warning" marks a medium-risk hazard that if not prevented could result in death or serious injury.	4	Danger - Risk of electric shock!
!	CAUTION! This symbol in combination with the signal word "Caution" marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Only use the product in dry indoor rooms.
			Do not put fingers through the grille.
CE	CE mark indicates conformity with relevant EU directives applicable for this product.

DESK FAN

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended to produce a cooling airflow. Any other use not mentioned in these instructions may cause a damage to the product or create a serious risk of injury.

This product is only intended for private household use, not for commercial purposes.

The manufacturer accepts no liability for damages caused by improper use.

Scope of delivery

Unpack the product. Remove the transport locks. Accessory needed: Pair of scissors (Fig. B)
After unpacking the product, check if all parts are complete and in good condition. Remove all packaging materials, including protective foils, before use.

1x Motor unit (with lock cap and lock screws (× 4) ) and pole (with knurled screw)

1x Base
1x Front grille (with lock screw and lock nut)
1x Rear grille
1x Blade

NOTE: Various removable components are delivered pre-assembled (see "Description of parts").

Description of parts

Before reading, unfold the page containing the illustrations and familiarise yourself with all the functions of the product.

Fig. A

1	*Lock cap A D
2	Blade
3	Groove
4	Rear grille
5	Handle
6	Motor shaft
7	Speed control knob (0, I, II, III)
8	Oscillation control knob
9	Motor unit
10	Power cord with power plug
11	*Screw and nut
12	*Knob (tilt adjustment)
13	Base

14 *Knurled screw
Lock screws (M5× 8mm)(x4) (rear grille)
16 Grille clips (x 4)
17 *Lock screw (M2.5 x 10 mm) and lock nut (grille)
18 Front grille
19 Hanging device

• pre-assembled

Technical data

Input voltage: 220-240 V ~50-60 Hz

Power consumption: 45 W

Description Symbol Value Unit

Maximum fan flow rate	F	62.92	m3/min
Fan power input	P	38.8	W
Service value	SV	1.62	(m3/min)/W
Standby power consumption	PSB	0.0	W
Fan sound power level	LWA	60.5	dB(A)
Maximum air velocity	C	3.32	meters/sec
Measurement standard for service value	IEC 60879:1986 (corr. 1992)
Contact details for obtaining more information	OWIM GmbH & Co. KGStiftsbergstraße 174167 NeckarsulmGERMANYwww.owim.com

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

DANGER! Risk of suffocation! Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Cleaning and user maintenance shall not be made by children without supervision.

Children shall not play with the product.

Electrical safety

WARNING! Risk of injury!

Switch the product off and disconnect it from the power supply before cleaning work and when not in use.

WARNING! Risk of electric shock! Ensure the rated voltage shown on the rating label corresponds with the voltage of the power supply.

WARNING! Risk of electric shock! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Operation

Only use the product in dry indoor rooms.
Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.

CAUTION! Risk of injury!

Ensure that the fan is switched off from the supply mains before removing the guard.

CAUTION! Risk of injury!

Never use the product without the safety grille or with a damaged safety grille.

CAUTION! Risk of injury!

During use, keep hands, hair, clothing and utensils away from the safety grille to avoid injuries and damage of the product.

Before use

Unpacking

Remove the packaging. Check if the product is damaged.

Assembly

■ Accessory needed: Cross head screwdriver
Number of persons needed for assembly: 1 adult

Fig. Step

1. Remove the knurled screw 14 from the pole on the motor unit 9.
2. Place the pole on the base [13].
3. Fasten with the knurled screw 14

Remove the 4 lock screws [15] from the motor unit [9].

1. Align the rear grille handle 5 upwards and to the rear. Attach the rear grille 4 to the motor unit 9.

2. Tighten with the 4 lock screws 15.

3. Place the blade 2 on the motor shaft 6. Insert the pins on the motor shaft into the groove 3 on the rear of the blade.

4. Tighten the lock cap 1 on the motor shaft 6 (direction of rotation:

Fig. Step

1. Remove the lock screw and the lock nut 17 from the front grille 18.
2. Loosen the grille clips [16] from the front grille [18].
3. Centre the hanging device 19 of the front grille 18 on the rear grille 4.

NOTE: The 4 grille clips 16 must fit over the frame of the rear grille 4 and the front grille 18 .

Insert and fasten the lock screw and the lock nut [17]. Close the 4 grille clips [16] over the frame of the rear grille [4] and the front grille [18].

① NOTE: The lock screw and the lock nut 17 are very small. Do not lose or drop these fasteners.

Tilt adjustment

Loosen the knob 12.
Adjust the tilt angle manually.
Tighten the knob [12] again.
Do not perform the tilt adjustment when the product is in operation.

Operation

Place the product on a flat, stable ground.

Connect the power plug 10 to a suitable socket-outlet.

Fan speed

Rotate the speed control knob 7 to turn the product on/off and to select the fan speed setting:

Position Function

Pulled out Off

Pushed in On

• during operation

Cleaning and care

Before cleaning: Rotate the speed control knob 7 to the 0 position. Disconnect the power plug 10 from the socket-outlet.
Clean the product with a slightly moistened cloth.
Do not allow any water or other liquids to enter the motor unit 9.

MWARNING! Do not immerse the electrical parts of the product in water or other liquids. Never hold the product under running water.

• Both rear grille 4 and front grille 18 must not be removed under any circumstances.
  Clean the the rear grille 4 and the front grille 18 with a vacuum cleaner and a damp cloth only.

Storage

• When not in use, store the product in its original packaging.
  Store the product in a dry, secure location away from children.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 384782_2107) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

Regulatorposition Oscillation*

Udtrukket Fra

Indtrykket Til

• under drift
