Type de produit	Analog surveillance camera
Marque	ABUS
Modèle	TVCC34011
Alimentation	12 V DC via power adapter (5.5 x 2.1 mm, barrel connector)
Format vidéo	TVI (preset), switchable to CVBS, CVI, AHD
Résolution maximale	2 MP
Connecteur vidéo	BNC
Connecteur alimentation	Barrel connector 5.5 x 2.1 mm
Longueur du câble fourni	30 m (combo cable)
Angle de pivotement	0 - 360°
Angle d'inclinaison	0 - 75°
Angle de rotation	0 - 360°
Fonctions principales	OSD menu, SMART IR, WDR, BLC, HLC, motion detection, privacy masking
Mode jour/nuit	Automatic, forced color, forced black & white
Commutation format analogique	Via physical switch (hold 5 seconds): CVBS → TVI → CVI → AHD
Entretien et nettoyage	Clean with a damp cloth; do not use solvents, alcohol or abrasive products. Disconnect the device before cleaning.
Consignes de sécurité	Disconnect before servicing; do not open the housing; use only the specified voltage; install out of reach of children.
Réparabilité	Maintenance work must be carried out by a qualified specialist. Do not open the housing except for mounting, SD card insertion or access to buttons.
Contenu de la livraison	Camera, 12V power adapter, drilling template, 30 m combo cable, mounting materials, instructions

Frequently Asked Questions - TVCC34011 ABUS

How to install the ABUS TVCC34011 camera?

Attach the provided drilling template at the desired location. Drill the holes and secure the camera base with the supplied screws and wall plugs. Lift the camera onto the base and fasten it with the stop plate and screw. For alignment, loosen the stop plate screw and adjust pan (0-360°), tilt (0-75°) and rotation (0-360°). Tighten the screw.

How to change the analog format of the camera?

At delivery, the TVI format is preset. To change, unscrew the switch cover and hold the button for 5 seconds. The format changes in order: CVBS → TVI → CVI → AHD. Repeat the operation to select the desired format.

How to access the on-screen display (OSD) menu?

The OSD menu is accessible only via a compatible recorder or control keyboard. Use the Iris+ option or select preset 95 to open the menu. Navigate with the PTZ arrow keys and confirm with Iris+. The menu is in English only.

What is the maximum coaxial cable length for the TVCC34011?

The coaxial cable length to the next device must not exceed 800 meters for 2 MP resolution, or 300 meters for 5 MP. Avoid laying the cable near electrical cables or conductive materials to prevent interference.

How to adjust the day/night mode?

In the OSD menu, go to DAY NIGHT. You can choose AUTO (automatic), COLOR (always color) or BW (always black & white). Also set the D->N THRESHOLD and N->D THRESHOLD to adjust the change sensitivity.

What to do in case of malfunction?

If you notice smoke, unusual noises or odors, immediately turn off the device and disconnect the power plug. The device must not be used again until a specialist has inspected it. For any other questions, contact ABUS customer service ([e-mail], [phone]).

How to clean the TVCC34011 camera?

First disconnect the device. Clean the housing with a damp cloth without solvents, alcohol, thinners, scouring powder or harsh chemicals. Wipe gently until completely dry. Never allow liquid to come into contact with internal components.

What analog formats are supported?

The camera supports four analog formats: CVBS (standard), TVI, CVI and AHD. The default format is TVI. You can change via the physical switch (hold 5 seconds).

How to reset the camera to factory settings?

In the OSD menu, select FACTORY DEFAULT to restore the camera's factory settings. Note that this option is in the main menu, after exiting submenus. Confirm with Iris+.

Where to find ABUS customer service?

You can contact ABUS Security-Center by email at [e-mail], by phone at [phone] (Mon-Thu 8am-5pm, Fri 8am-2pm) or by mail to ABUS Support, Linker Kreuthweg 5, 86444 Affing, Germany.

USER MANUAL TVCC34011 ABUS

TVCC34011 / TVCC40011

www.abus.com/product/TVCC34011

www.abus.com/product/TVCC40011

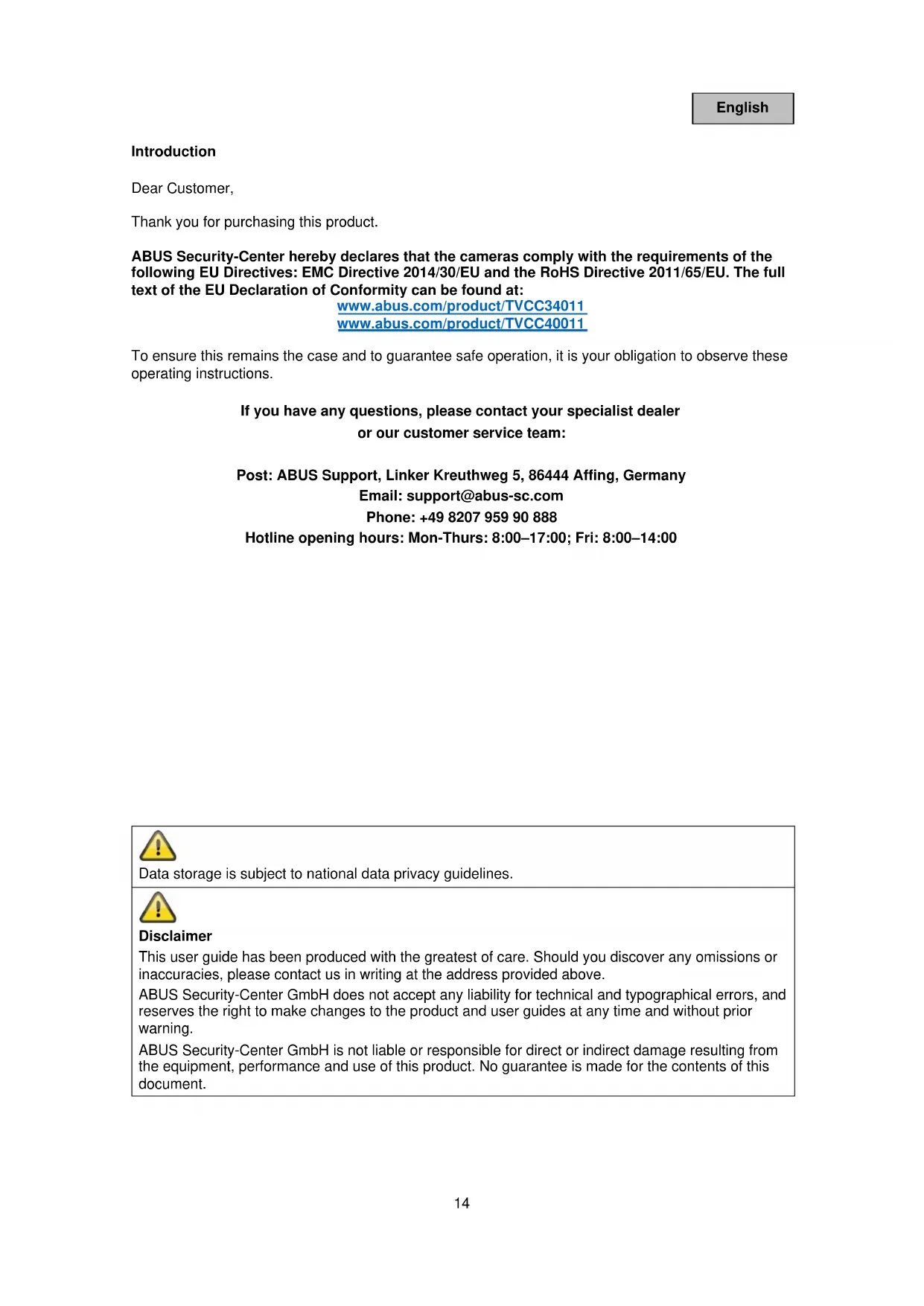

Thank you for purchasing this product.

ABUS Security-Center hereby declares that the cameras comply with the requirements of the following EU Directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full text of the EU Declaration of Conformity can be found at:

www.abus.com/product/TVCC34011

www.abus.com/product/TVCC40011

To ensure this remains the case and to guarantee safe operation, it is your obligation to observe these operating instructions.

If you have any questions, please contact your specialist dealer or our customer service team:

Post: ABUS Support, Linker Kreuthweg 5, 86444 Affing, Germany

Email: [e-mail]

Phone: [phone]

Hotline opening hours: Mon-Thurs: 8:00–17:00; Fri: 8:00–14:00

Data storage is subject to national data privacy guidelines.

Disclaimer

This user guide has been produced with the greatest of care. Should you discover any omissions or inaccuracies, please contact us in writing at the address provided above.

ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user guides at any time and without prior warning.

ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the equipment, performance and use of this product. No guarantee is made for the contents of this document.

Explanation of symbols

	The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock).
	The triangular warning symbol indicates important notes in this user guide which must be observed.
	This symbol indicates special tips and notes on the operation of the unit.

Lists

3. ...4. ...	Lists with a set order given either in the text or warning notice.
... ... ...	Lists without a set order given either in the text or warning notice.

Intended use

Only use the device for the purpose for which it was built and designed. Any other use is not considered to be the intended use.

Important safety information

General

Before using this device for the first time, please read the following instructions carefully and observe all warning information, even if you are familiar with the use of electronic devices.

	All guarantee claims are invalid in the event of damage caused by non-compliance with this user guide. We cannot be held liable for resulting damage.
	We cannot be held liable for material or personal damage caused by improve operation or non-compliance with the safety information. All guarantee claims are void in such cases.

Retain this handbook for future reference.

If you sell or pass on the device to third parties, you must include these instructions with the device.

The following safety information and hazard notes are not only intended to protect your health, but also to protect the device from damage. Please read the following points carefully:

Power supply

• Only operate this device through a power source which supplies the mains power specified on the type plate. If you are unsure which voltage is supplied at the installation location, contact your energy provider.
• Disconnect the device from the power supply before carrying out maintenance or installation work.
• The device is only fully disconnected from the mains network when the power supply unit is removed.
• To fully disconnect the device from the mains, the mains plug must be withdrawn from the mains socket.
• In order to eliminate the risk of fire, the device's mains plug should always be disconnected from the mains socket, if the device is not being used for an extended period of time.

Overload/overvoltage

• Prior to unstable weather and/or when there is a risk of lightning strike, disconnect the device from the mains network or connect the device to a UPS.
• Avoid overloading electrical sockets, extension cables and adapters, as this can result in fire or electric shock.

Cables

• Always grasp cables by the plug connector and do not pull the cable itself.
• Never grasp the power cable with wet hands, as this can cause a short circuit or electric shock.
• Do not place the device itself, items of furniture or other heavy objects on the cable and ensure that it does not become kinked, especially at the connector plug and at the connection sockets.
• Never tie a knot in the cable and do not bundle it together with other cables.
• All cables should be laid so that they cannot be trodden on or cause a hazard.
• Damaged power cables can cause fire or electric shock. Check the power cable from time to time.
• Do not modify or manipulate the power cable or plug.
• Only use adapter plugs or extension cables that conform to applicable safety standards, and do not interfere with the mains or power cables.

Children

• Keep electrical devices out of reach of children. Never allow children to use electrical devices unsupervised. Children may not always properly identify possible hazards. Small parts may be fatal if swallowed.
• Keep packaging film away from children. There is a risk of suffocation.
• This device is not intended for children. If used incorrectly, parts under spring tension may fly out and cause injury to children (e.g. to eyes).

Surveillance

• The use of surveillance equipment may be forbidden or regulated by law in some countries.
  • Before using this equipment, ensure that all of your surveillance activities are completely legal.

Installation location/operating environment

Do not place any heavy objects on the device.

The device is only designed for operation in spaces with appropriate temperatures or humidity (e.g. bathrooms), or excessive accumulation of dust. Please refer to the individual devices' technical data for more detailed information.

Ensure that:

• adequate ventilation is always guaranteed (do not place the device on a shelf, thick carpet, bed or anywhere where ventilation slits may be covered and always leave a 10 cm gap on all sides)
• no direct sources of heat (e.g. radiators) can affect the device
• interior devices are not exposed to direct sunlight or strong artificial light
• the device is not in the immediate vicinity of magnetic fields (e.g. loudspeakers)
• no naked flames (e.g. lit candles) are placed on or next to the device
• sprayed or dripping water is prevented from coming into contact with interior devices and caustic fluids are avoided
• the device is not operated in the vicinity of water, in particular, the device should never be submerged (do not place objects containing fluids, e.g. vases or drinks, on or near the device)
• no foreign bodies penetrate the device
• the device is not exposed to wide temperature variations, as otherwise there may be condensation from humidity causing electrical short circuits
• the device is not exposed to excessive shock or vibration.

Unpacking the device

Handle the device with extreme care when unpacking it.

Packaging and packaging aids can be reused and, as far as possible, should be sent for recycling.

We recommend the following:

Paper, cardboard and corrugated cardboard as well as plastic packaging items should be placed in the appropriate recycling containers.

If no such facility exists in the area, these materials should be put into the general household waste.

Warning

If the original packaging has been damaged, inspect the device. If the device shows signs of damage, return it in the original packaging and inform the delivery service.

Start-up

- Observe all safety and operating instructions before operating the device for the first time.

	WarningWhen installing the device in an existing video surveillance system, ensure that all devices have been disconnected from the mains power circuit and low-voltage circuit.
	WarningImproper or unprofessional work on the mains network or domestic installations puts both you and others at risk.Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.

Care and maintenance

Maintenance is necessary if the device has been damaged (e.g. damage to the power cable and plug, or the housing), or if liquids or foreign bodies have got into the interior of the device, or if it has been exposed to rain or damp, or if it does not work properly or has been dropped.

Maintenance

• If smoke, unusual noises or smells develop, switch the device off immediately and unplug from the socket. In such cases, the device should not be used until it has been inspected by a qualified technician.
• Have all maintenance tasks carried out by qualified technicians only.
• Never open the housing on the device or accessories unless this is necessary. As there is always a risk to life due to electric shock when the housing is open, only open the housing when the device is disconnected from the power source.

With some devices, opening the device is unavoidable and permitted for the following purposes:

• Installing the device
• Inserting a storage medium (SD card or hard drive)
• Accessing essential functions (reset button or WPS button)

Cleaning

• Only clean the device housing with a damp cloth.
• Do not use products such as solvents, white spirit or thinners, or any of the following substances:

Brine, insect spray, solvents containing chlorine or acids (ammonium chloride), or scouring powder.

- Rub the surface gently with a cotton cloth until it is completely dry.

The device operates with a dangerous voltage level. When conducting maintenance or cleaning work, disconnect the device from the mains.

Contents

1. Scope of delivery....20
2. Description of hardware 21

2.1. HDCC34011 21
2.2. TVCC40011 21

1. Mounting/installation....22

3.1. HDCC34011 22
3.2. TVCC40011 23
3.3. Connecting the video cable 23
3.4. Changing the analogue format 23

1. OSD menu....24

1. Scope of delivery

TVCC34011

• Analogue dome camera
• 2V Power Supply
• Drilling template
  • 30 m combination cable
• Installation material
• Manual

TVCC40011

• Analogue camera
• 12V Power Supply
• Drilling template
  • 30 m combination cable
• Installation material
• Manual

2. Description of hardware

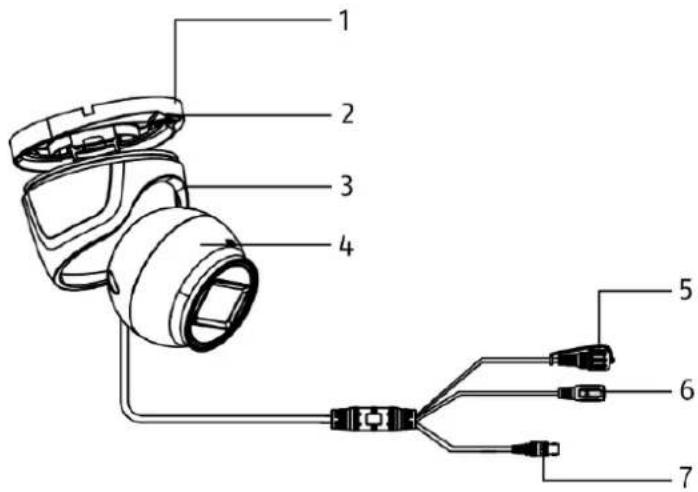

2.1. HDCC34011

1	Camera base plate	2	Locking plate
3	Camera cap	4	Camera
5	Toggle switchFor switching between analogue formats (CVBS / TVI / CVI / AHD)	6	Power supply connection(5.5 x 2.1 mm, barrel connector)
7	BNC video output (CVBS / TVI / CVI / AHD)

2.2. TVCC40011

1	Camera wall bracket	2	Camera
3	Lens	4	Toggle switchFor switching between analogue formats (CVBS / TVI / CVI / AHD)
5	Power supply connection(5.5 x 2.1 mm, barrel connector)	6	BNC video output (CVBS / TVI / CVI / AHD)

3. Mounting/installation

IMPORTANT!

The camera must be disconnected from the power supply during installation.

3.1. HDCC34011

Glue the drilling template provided where you intend to install the camera. Loosen the screws on the locking plate. Use the wall plugs and screws provided to mount the camera base plate in place.

If the cable is to be routed through the side, do not fully mount the camera base plate at this stage, so that the camera cable can still be fed through.

Lift the camera and cap onto the camera base plate and lock in position using the locking plate and screw.

Alignment

Loosen the screw on the locking plate slightly to adjust the position of the camera.

1. Panning: 0–360°
2. Tilting: 0–75°
3. Rotating: 0–360°

3.2. TVCC40011

1

Mounting screws

2

Alignment screws

Glue the drilling template provided where you intend to install the camera. Drill the required holes. Use the wall plugs and screws provided to mount the camera in place.

Alignment

Loosen the fixing ring or fixing screws to point the camera in the required direction.

1. Panning: 0–360°
2. Fixing ring for panning
3. Tilting: 0–180°
4. Fixing screw for tilting
5. Rotation: 0–360°
6. Fixing screw for rotation

3.3. Connecting the video cable

In order to transmit the video signal from the camera to an analogue recorder, a coaxial cable with BNC plug (male) must be used. The cable lengths between devices must not exceed 800 m (2MPx) or 300 m (5MPx).

Please note that the camera's image transmission may be disrupted when laying cable next to power lines or other conducting materials.

Recommendation:

Use TVAC25220 or TVAC25210 suppressor filters to minimise disruptions.

3.4. Changing the analogue format

The camera is delivered with the analogue TVI format preset. To change the format, unscrew the cover on the toggle switch and press and hold the button for 5 seconds. The switch will toggle between the analogue formats in a fixed order:

CVBS->TVI->CVI->AHD

4. OSD menu

The camera's on-screen display (OSD) can only be opened by devices with control capabilities (recorder, control panel). To open the OSD menu, either use the "Iris+" option or call up preset 95. To navigate, use the device's PTZ arrow keys and the "Iris+" option to open and confirm.

The OSD menu is only available in English. Please familiarise yourself with the description of the points below.

The "Iris+" option may differ for each device.

MAIN MENU

General menu navigation

BACK Go back one menu step

EXIT Leave main menu without saving changes

EXIT & SAVE Leave main menu and save all changes

VIDEO FORMAT Select video format

EXPOSURE

EXPOSURE MODE Set exposure mode

• GLOBAL Automatic
  • BLC Backlight compensation
  • HLC Highlight compensation
  • WDR Wide dynamic range

AGC Automatic gain control

• OFF Off
• LOW Low
• MIDDLE Middle
• HIGH High

SLOW Low shutter speed

• OFF Standard shutter speed
• X2 – X16 High shutter speed

DAY NIGHT

MODE Set mode

• AUTO Automatic
  • COLOR Image is always in colour
  • BW Image is always in black/white

IR LIGHT Enable/disable IR light

SMART IR Set smart IR mode

• MODE 1 For indoor/outdoor
- MODE 2 For indoor
• MODE 3 For outdoor

LEVEL Select IR level

D->N THRESHOLD Day to night threshold

• The lower the value, the sooner the camera switches between day/night mode
• The higher the value, the later the camera switches between day/night mode

N->D THRESHOLD Night to day threshold (see above)

VIDEO SETTING

IMAGE MODE Select image mode

• STD Standard setting
  • HIGH-SAT High saturation

WHITE BALANCE Open white balance settings

BRIGHTNESS Set brightness

CONTRAST Set contrast

SHARPNESS Set sharpness

SATURATION Set saturation

3DNR Set dynamic noise reduction

MIRROR Mirror camera image

• DEFAULT Normal
• H Horizontal
  • V Vertical
  • HV Horizontal and vertical

WB (White balance settings)

MODE Set mode

• AUTO Automatic
  • MANUAL Manual setting

RGAIN Set red gain

BGAIN Set blue gain

PRIVACY / MOTION (privacy masking/motion detection)

MODE Enable/disable privacy masking/motion detection

AREA x Edit zone

• DISPLAY Enable/disable display
• X POSITION Set X-axis position
• Y POSITION Set Y-axis position
- WIDTH Set width
- HEIGHT Set height
- RETURN Exit menu

SENSITIVITY Set sensitivity

COLOR Set colour

TRANSPARENCY Enable/disable transparency

RETURN Exit menu item

FACTORY DEFAULT Reset camera to factory settings

Introduction

Chère cliente, cher client,

www.abus.com/product/TVCC34011

www.abus.com/product/TVCC40011

Surcharge/Surtension

1. Montage/Installation 34

3. Montage/Installation

ATTENTION!

www.abus.com/product/TVCC34011

www.abus.com/product/TVCC40011

www.abus.com/product/TVCC34011

www.abus.com/product/TVCC40011

1. Montering / installation 58

3.1. HDCC34011 58
3.2. TVCC40011 59
3.3. Placering af videokablet 59
3.4. Skift analogt format....59

1. OSD-menu 60

1. Indhold i kassen

TVCC34011

3. Montering / installation

VIGTIGT!

Løsn fastgørelsesringen eller fastgørelsesskruerne for at justere kameraet i den enkelte retning.

www.abus.com/product/TVCC34011

www.abus.com/product/TVCC40011

www.abus.com/product/TVCC34011

www.abus.com/product/TVCC40011

www.abus.com/product/TVCC34011

www.abus.com/product/TVCC40011

www.abus.com/product/TVCC34011

www.abus.com/product/TVCC40011

E-post: [e-mail]

Tel.: [phone]
