| Product type | Angle grinder (grinder) |
| Brand | Silverline |
| Model | 571295 |
| Supply voltage | 230 V ~ |
| Power consumption | 650 W |
| Disc diameter | 115 mm |
| Bore diameter | 22.2 mm |
| Shaft thread | M14 |
| Cable length | 2 m |
| Protection class | II (double insulation) |
| Protection rating | IP20 |
| Dimensions (L × W × H) | 300 × 125 × 106 mm |
| Weight | 1.77 kg |
| Sound pressure level (LpA) | 80 dB(A) |
| Sound power level (LWA) | 91 dB(A) |
| Weighted vibration (ah,AG) | 11.77 m/s² |
| Main functions | Grinding, sanding, wire brushing, cutting (with optional guard) |
| Maintenance and cleaning | Regular cleaning, lubrication of moving parts, replacement of carbon brushes |
| Safety | Adjustable guard, auxiliary handle, spindle lock, double insulation |
| Spare parts and repairability | Spare carbon brushes included, accessories available from retailer |
| Warranty | 3 years (online registration within 30 days) |
| General information | Domestic and light professional use, CE compliance, WEEE recycling |
Frequently Asked Questions - 571295 SILVERLINE
User questions about 571295 SILVERLINE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Grinder in PDF format for free! Find your manual 571295 - SILVERLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 571295 by SILVERLINE.
USER MANUAL 571295 SILVERLINE
DIY 650W Angle Grinding 115mm
UK-571295/EU-980109
Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.
Description of Symbols
The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Wear head protection.
Wear hand protection.
Read instruction manual.
Class II construction (double insulated for additional protection)
Wear protective clothing
Caution!
Toxic fumes or gases!
Keep bystanders away!
DO NOT use for side grinding.
Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!
Beware of flying objects
Be aware of kickback!
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Important safety devices! Ensure correct function, maintain in accordance with instructions and DO NOT disable!
Conforms to relevant legislation and safety standards.
Technical Abbreviations Key
| V Volts | |
| ~, AC Alternating current | |
| A, mA Ampere, milli-Amp | |
| n0 No load speed | |
| n Rated speed | |
| ° Degrees | |
| Ø Diameter | |
| Hz Hertz | |
| W, kW Watt, kilowatt | |
| /min or min-1 | Operations per minute |
| rpm Revolutions per minute | |
| BSP British Standard Pipe (thread) | |
| dB(A) Decibel sound level (A weighted) | |
| m/s2 | Metres per second squared (vibration magnitude) |
Specification
Voltage: 230V
Power 650W
No load speed: 11,000rpm
Disc diameter. 115mm
Disc bore size: 22.2mm
Spindle thread: M14
Power cord length: 2m
Protection class:
Ingress protection: IP20
Dimensions (L× W× H) 300x125x106mm
Weight: 1.77kg
As part of our ongoing product development, specifications of
Silverline products may alter without notice.
Sound and vibration information:
Sound pressure L 80dB(A)
Sound power L 91dB(A)
Uncertainty K. 3dB
Weighted vibration a 11.77m/s
Uncertainty K: 1.5m/s
The sound intensity level for the operator may exceed 85dB(A)
and sound protection measures are necessary.
WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.
WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.
Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www. osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.
Carefully read and understand this manual and any label attached to the tool before use. Keep these instructions with the product for future reference. Ensure all persons who use this product are fully acquainted with this manual.
Even when used as prescribed it is not possible to eliminate all residual risk factors. Use with caution. If you are at all unsure of the correct and safe manner in which to use this tool, do not attempt to use it.

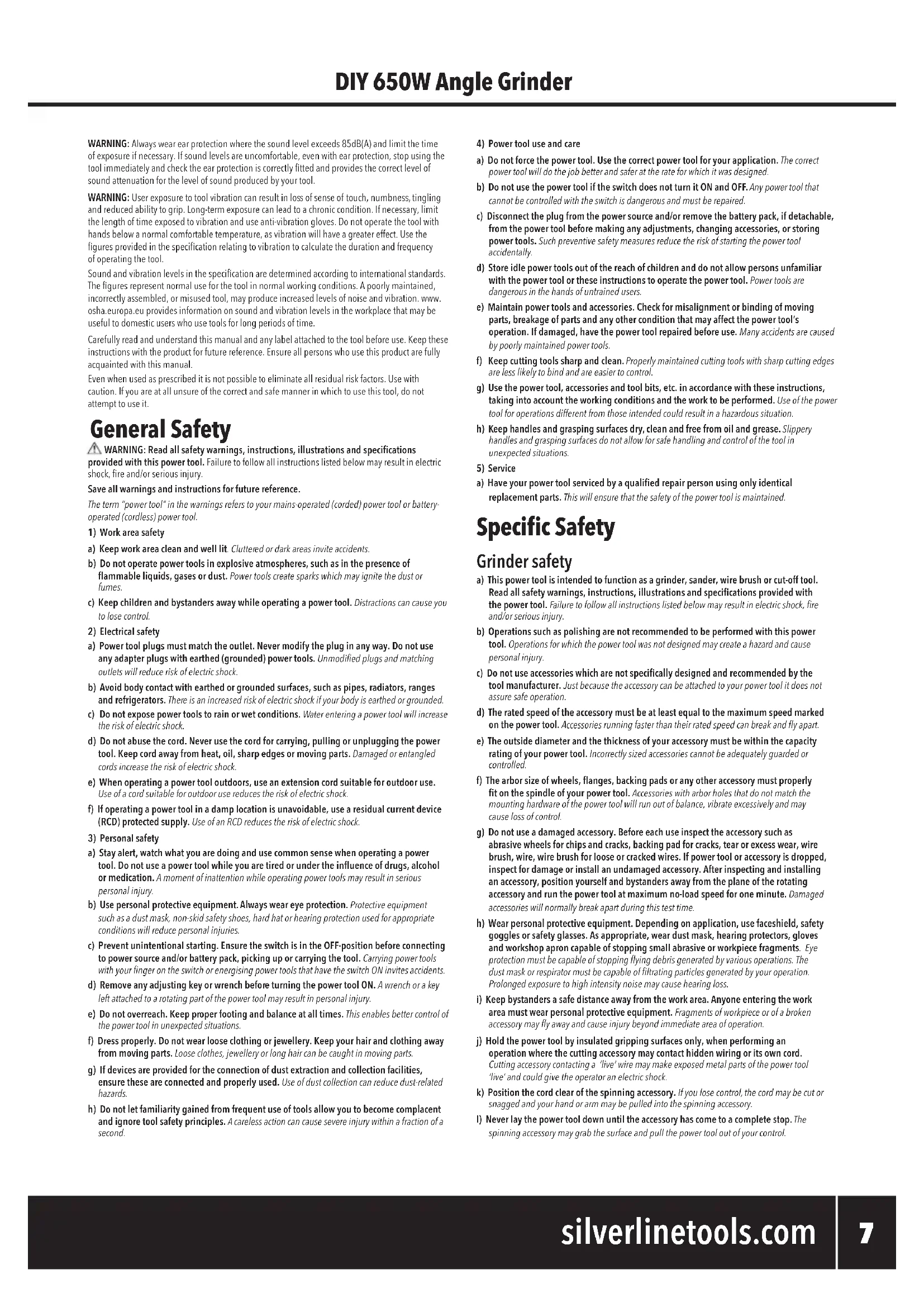

General Safety
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents.
d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Specific Safety
Grinder safety
a) This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with the power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
b) Operations such as polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f) The arbor size of wheels, flanges, backing pads or any other accessory must properly fit on the spindle of your power tool. Accessories with arbor holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush, wire, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on application, use faceshield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. Eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from the work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
j) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a 'live' wire may make exposed metal parts of the power tool 'live' and could give the operator an electric shock.
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
1) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it to your side. Accidental contact with the spinning accessory may snag clothing, pulling the accessory towards your body.
n) Regularly clean the power tool's vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.
Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump towards or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and position your body an arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in the direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.
Safety warnings specific for grinding and abrasive cutting-off operations
a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel, and sparks that could ignite clothing.
c) Wheels must be used only for recommended applications. For example: do not grind with the side of the cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding; side forces applied to these wheels may cause them to shatter.
d) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel, thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
e) Do not use worn down wheels from larger power tools. Wheels intended for larger power tools are not suitable for the higher speed of a smaller tool and may burst.
Additional safety warnings specific for abrasive cutting-off operations
a) Do not 'jam' the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimise the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel
f) Use extra caution when making a 'pocket cut' into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
Safety warnings specific for sanding operations
a) Do not use excessively oversized sanding disc paper. Follow manufacturer's recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc, or kickback.
Safety warnings specific for wire brushing operations
a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
b) If the use of the guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.
Additional grinder safety
WARNING: When using straight and depressed centre cutting-off wheels (type 41 and 42) plus grinding wheels that grind on the edge only (type 1), a cutting guard or cut-off guard must be fitted.
WARNING: DO NOT operate a grinder without the appropriate guards in place. Reset the guard if the work angle or the position of the person operating the machine changes.
WARNING: Always check for an expiry date of the grinding or cutting disc before use (remove from tool if necessary). This will be either printed on the label or stamped on the inner steel ring of the disc. DO NOT use an expired disc as it may shatter in use.
- The grinding surface of the centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected
- Do not touch grinding or cutting discs after use until they have cooled down
- Reset the on/off switch of the tool to the 'off' position whenever the power is interrupted
- The machine can be subject to overload if too much application force is exerted. Overload can lead to overheating and damage of the power tool. After use, continue to run the tool at no-load for several minutes in order to cool it down by using the fan of the motor
- When operating the grinder, it is an essential safety requirement that the correct type of guard is installed for each application to prevent injury. For example, a cutting guard must be installed when using a cutting or diamond disc, and a grinding guard must be used with grinding discs
- Grinding tool accessories must be mounted, used and stored in compliance with the manufacturer's recommendations
- Use the correct type of cutting or grinding disc for the task and material. Check the label on the disc or accessory to find out if it is appropriate to use on the workpiece
- If discs are supplied with blotters they must be fitted and used correctly. Not fitting blotters may cause the disc to shatter in use and be a safety risk
- Ensure the cutting/grinding disc or accessory is fitted correctly and securely before use. Run the machine with the disc or accessory fitted, but without load, for a reasonable time before attempting to cut/grind. If excessive vibration occurs, stop the machine, investigate and correct the cause before use. Seek professional guidance if you are in doubt about how to operate the machine safely
- Do not allow discs to become wet or contaminated with oil. If you suspect a disc has degraded in storage, or if you are unsure whether its expiry date has passed, DO NOT USE AND DISCARD
- Do not attempt to cut or grind magnesium or any alloy that has high magnesium content
- Hold the machine appropriately to ensure that debris produced does not land on skin or clothing
- Do not touch the spindle lock button while the tool is operating
- A grinding disc will gradually wear down during use, reducing its size. If a disc becomes too small to work with easily, stop using it and replace it with a new disc
Additional safety for super abrasives
- Superabrasives are generally inflexible and could shatter, so must be handled with the utmost care. Damaged or improperly mounted superabrasives are dangerous and can cause SEVERE injury to the user and other people in the vicinity
- Types of superabrasive wheels include diamond cutting discs, welded metal discs, CBN discs etc. Choose your superabrasive tool carefully, taking into consideration the workpiece material, the machine dimensions and capabilities. Make sure the machine does not exceed the maximum operating speed of the superabrasive disc
- NEVER use superabrasive cutting discs for side grinding, as this might lead to the disc shattering
- Superabrasive wheels have to be carefully inspected and tested before mounting. Metal wheels should be subjected to a sound test: hold the wheel on a mandrel or with a finger inserted through the bore, then tap it with a non-metallic object at several points and listen each time to the sound produced. An intact wheel will produce a clear 'bell like' metallic sound. Damaged wheels will give a dull, chattering sound. If in doubt, DO NOT USE, MARK AS DAMAGED AND DISCARD
Make sure the machine's mounting flange is compatible with the superabrasive wheel. Refer to the manufacturer's mounting instructions - ALWAYS conduct a test run after mounting, with no load for at least 30 seconds, to
determine if the wheel runs balanced and does not produce excessive vibration. If it does, switch off IMMEDIATELY, remove the disc, inspect, re-mount and re-test if no damage is detected
- If planning on using the superabrasive wheel with a coolant, liquid dust suppressant or lubricant, first check if the wheel, machine and workpiece are compatible with wet cutting and with the compound to be used. Always apply liquid to an already running wheel, never to a non-moving tool, as the unbalance could lead to the rupture of the wheel. When switching off, remove the liquid supply first and let the machine run at no-load, until centrifugal forces have drained all liquid from the wheel. Dry off the wheel after use, and prevent liquid from being absorbed into the wheel
Avoiding angle grinder burnout
Note: grinders are designed to work under load. Provided the motor is cooled quickly, minimal wear or damage will occur.
DO NOT over work the angle grinder.
- If the grinder emits a burning smell, DO NOT stop the grinder; instead, remove from load and allow to spin freely for approximately 5-10 seconds at high speed to cool the motor before continuing work.
- Repeat the removal of the grinder from load intermittently to keep the tool cool during use. If a grinder is slowing down on sticky material whilst under load:
- Check the correct grinding wheel type is being used.
- Make shallower passes across the material.
Product Familiarisation
| 1 Spindle |
| 2 Threaded Flange |
| 3 Inner Flange |
| 4 Spindle Lock Button |
| 5 ON/OFF Slider Switch |
| 6 Rear Handle |
| 7 Auxiliary Handle |
| 8 Grinding Guard |
| 9 Pin Spanner |
| 10 tex Key |
| 11 spare Brushes |
| 12 Power Cord |
Intended Use
Angle grinder suitable for light to medium duty grinding, sanding wire brushing and cutting of metal and other materials using an abrasive disc.
Unpacking Your Tool
Carefully unpack and inspect your tool. Fully familiarise yourself with all its features and functions
- Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool
Before Use
WARNING: Always unplug the grinder from the mains supply before attempting to fit or replace any attachment. Never fit any attachment with a maximum speed lower than the rated speed of the machine.
- All discs and accessories must be subjected to a visual inspection prior to installation, to ensure they are in good condition and within their expiry date. If in doubt, DO NOT USE AND DISCARD
Always check all parts and attachments are secure, and that rotating parts will not foul on guards or machine case
Always hold the machine, using both hands, by the handles provided - Be aware that the cast metal gear housing may become hot during use.
Hot air will be emitted from the ventilation holes - Ensure that the ventilation holes are not obscured in any way
Always wear appropriate personal protective equipment for the task. Use of this machine requires
ear defenders, eye protection, gloves, breathing protection, and if appropriate a hard hat
Fitting the auxiliary handle
WARNING: To ensure operator safety, ALWAYS use the tool with the Auxiliary Handle (7) installed.
- Screw the Auxiliary Handle by hand into the left or right hand threaded hole.(Fig. 1)
Adjusting, removing & installing the wheel guards
WARNING: The correct guard MUST be installed for each application before use. This is a legal requirement.
WARNING: NEVER install a cutting disc or super abrasive cutting wheel without the correct cutting wheel guard (not supplied) in place.
IMPORTANT: Ensure the Guard is positioned to provide a barrier between the disc and the operator.
Adjusting the grinding guard
Note: The Grinding Guard (8) can be moved through a range of approximately 90^ so it can be placed between the disc and the operator at any required work angle.
- Using the Hex Key (10) provided, loosen the Grinding Guard (8)
- Adjust the Grinding Guard so the guard will protect the operator from the disc when the tool is in use.
- Tighten the Grinding Guard
Fitting a grinding or cutting disc
IMPORTANT: Ensure the correct cutting or grinding guard is installed.
1. Install the Inner Flange (3) onto the Spindle (1)
Note: Ensure the Inner Flange is fitted the correct way around so that when the Inner Flange is rotated the motor rotates. (Fig. II)
2. Place the cutting or grinding disc onto the Inner Flange
Note: If using depressed centre discs, ensure that the depression is positioned towards the Inner Flange.
3. Screw the Threaded Flange (2) onto the Spindle (1)
Note: The raised centre of the Threaded Flange should face towards the disc when installing a grinding disc (Fig. III), and away when installing a cutting disc (Fig. IV)
4. Depress the Spindle Lock Button (4) and rotate the Spindle until the lock engages
5. Tighten the Threaded Flange turning clockwise using the Pin Spanner (9).
6. When tight, release the Spindle Lock Button. The grinder is now ready for use
Removing a grinding or cutting disc
- Remove a disc by depressing the Spindle Lock Button (4), then rotate the Spindle (1) until the lock engages
- Use the Pin Spanner (9) to remove the Threaded Flange (2)
Fitting a wire cup brush
IMPORTANT: When using a wire cup brush, ALWAYS install the Grinding Guard (8) and Auxiliary Handle (7) as described in the previous sections.
- Remove the Threaded Flange (2), grinding disc (if installed) and Inner Flange (3) from the Spindle (1)
- Screw the cup brush directly onto the Spindle
- Depress the Spindle Lock Button (4) and rotate the Spindle until the lock engages
- Tighten the cup brush with a suitable spanner (not supplied). Release the Spindle Lock Button. The tool is now ready for use (Image A)
Removing a wire cup brush
- To remove a cup brush, depress the Spindle Lock Button (4), rotate the Spindle (1) until the lock engages, then use a suitable spanner (not supplied) to remove the cup brush
Operation
WARNING: ALWAYS wear eye protection, adequate respiratory and hearing protection, as well as suitable gloves, when working with this tool.
Switching ON & OFF
WARNING: Do not switch the tool ON/OFF when it is under load.
ALWAYS allow the motor to reach its full speed before applying load
- Ensure the grinder has come to a complete stop before putting down after use.
Using both hands, always hold the tool securely by the handles provided
WARNING: Switching 'OFF' the angle grinder under load will significantly reduce the service life of the grinder.
- To start the tool, grip the Rear Handle (6) and Auxiliary Handle (7) firmly
- Slide the ON/OFF Slider Switch (5) forward until it clicks into the "l" position
- To stop the tool, press and slide the Switch to the '0' position (Fig. V).
Note: the ON/OFF Switch is spring loaded to automatically return to the '0' position when pressed.
Grinding
- Only use discs specifically manufactured for grinding operations. Stone and metal grinding discs are not interchangeable. Use the correct disc for the application
When grinding, keep the tool at approximately 15 to 30^ to the workpiece surface (Fig. VI).
Note: Do not apply too much pressure to the tool whilst grinding. Excessive pressure does not result in more effective removal of material, but will in fact cause premature wear of the grinding disc and will increase wear and tear on the tool.
Cutting
WARNING: Always ensure the correct guard (optional accessory) for use with cutting discs or superabrasive wheels is installed.
Note: This machine is not designed for wet cutting.
Only use discs specifically manufactured for cutting operations. Stone and metal cutting discs are not interchangeable. Use the correct disc for the application
- Never use cutting discs for grinding operations. The disc might shatter and produce projectiles that could injure the operator and/or bystanders
- When cutting, always keep the angle of the disc constant. Do not apply any sideways force to cutting discs, as this might lead to the disc becoming jammed in the cut and shattering
WARNING: Do not apply too much pressure to the tool whilst cutting. Excessive pressure does not result in more effective or faster cutting, but will in fact cause premature wear of the cutting disc and increase wear and tear on the tool.
Note: The cutting disc will wear during use, and the disc diameter will gradually reduce in size. The smaller the disc becomes, the more strain will be placed on the motor. Avoid damage to the tool by only using cutting discs that fall within approximately 25% of the original size.
Using a cup brush or wire wheel
Always check the no-load speed of the grinder does not exceed the maximum speed of the cup brush or wire wheel
Ensure no part of the cup brush or wire wheel can come into contact with the tool housing
- Run the grinder, with cup brush or wire wheel attached, for at least 30 seconds before use to check that the cup brush or wire wheel is secure and properly balanced
- When using a wire cup brush or wire wheel, avoid applying excess pressure. Using greater force will not make the cup brush or wire wheel more effective, but will bend the wires out of shape and damage the brush
Accessories
A full range of accessories including cutting guard and abrasive discs is available from your Silverline stockist
- Spare parts can be obtained from toolsparesonline.com
Maintenance
WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.
General inspection
Regularly check that all the fixing screws are tight
- Inspect the supply cord of the tool, prior to each use, for damage or wear. This advice also applies to extension cords used with this tool
- if the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard
Cleaning
- Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine's service life. Clean the body of your machine with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes
Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents - Never use caustic agents to clean plastic parts
Lubrication
Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant
Replacing the brushes
Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
To replace the brushes:
- Unscrew the motor cover screw (Fig.VII)
- Slide the cover off the tool
- Disconnect the wire terminal from the brush (Fig. VIII)
- Unscrew and remove the brush housing with the brush (Fig. IX)
- Using a screwdriver (not supplied) remove the brush from the housing (Fig. X)
- Replace the worn brush
- Repeat process for second brush
- Reassemble the tool in reverse order to disassembling
Note: One set of Spare Carbon Brushes (11) is supplied with this tool. Always replace both brushes as a pair.
Contact
For technical or repair service advice, please contact the helpline on (+44) 1935 382 222
Web: silverlinetools.com/en-GB/Support
Address:
Toolstream Ltd
Boundary Way
Lufton Trading Estate
Yeovil, Somerset
BA22 8HZ, United Kingdom
Storage
- Store this tool carefully in a secure, dry place out of the reach of children
Disposal
Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.
- Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
- Contact your local waste disposal authority for information on the correct way to dispose of power tools
Troubleshooting
Problem Possible cause Solution
| No function when ON/OFF Slider Switch (5) is operated | No power Check power supply | |
| Defective ON/OFF Slider Switch Replace the ON/OFF Slider Switch at an authorised Silverline service centre | ||
| Cutting disk is off centre/vibrating eccentrically | Grinding/cutting disc is overly worn | Turn 'OFF' the grinder, remove and replace the disc, as instructed in 'Fitting a grinding or cutting disc' |
| Deformed grinding/cutting disk | Turn 'OFF' the grinder, remove and replace the disc, as instructed in 'Fitting a grinding or cutting disc' | |
| Grinding/cutting disc not fitted correctly | Turn 'OFF' the grinder, remove and replace the disc, as instructed in 'Fitting a grinding or cutting disc' | |
Silverline Tools Guarantee
This Silverline product comes with a 3 year guarantee
Register this product at www.silverinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.
Registering your purchase
Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:
- Your personal details
Details of the product and purchase information
Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.
Terms & Conditions
Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.
PLEASE KEEP YOUR SALES RECEIPT
If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.
If this product develops a fault after the 30 day period, return it to:
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.
You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.
Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.
All work will be carried out by Silverline Tools or its authorized repair agents.
The repair or replacement of the product will not extend the period of guarantee
Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.
Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.
The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered:
The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.
If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.
Use of this product in the EU.
What is not covered:
Silverline Tools does not guarantee repairs required as a result of:
Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.
The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.
Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.
Use of the product for anything other than normal domestic purposes.
Change or modification of the product in any way.
Use of parts and accessories which are not genuine Silverline Tools components.
Faulty installation (except installed by Silverline Tools).
Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.
Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.
Introduction
Hand-Arm-Vibration a (Hauptgriff): 11,77 m/s²
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, GroBbritannien
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU,GB
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, GB
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
