USER MANUAL 980960 SILVERLINE

Introduction Thank you for purchasing this Silverline product. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the product read and fully understand this manual. Keep these instructions with the product for future reference. Description of Symbols The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use. Technical Abbreviations Key V Volts ~ or a.c. Alternating Current! A, mA Ampere, milli-Amp Ah Amp hours (battery capacity) n Rated speed Hz Hertz ⎓ or d.c. Direct Current W, kW Watt, kilowatt min

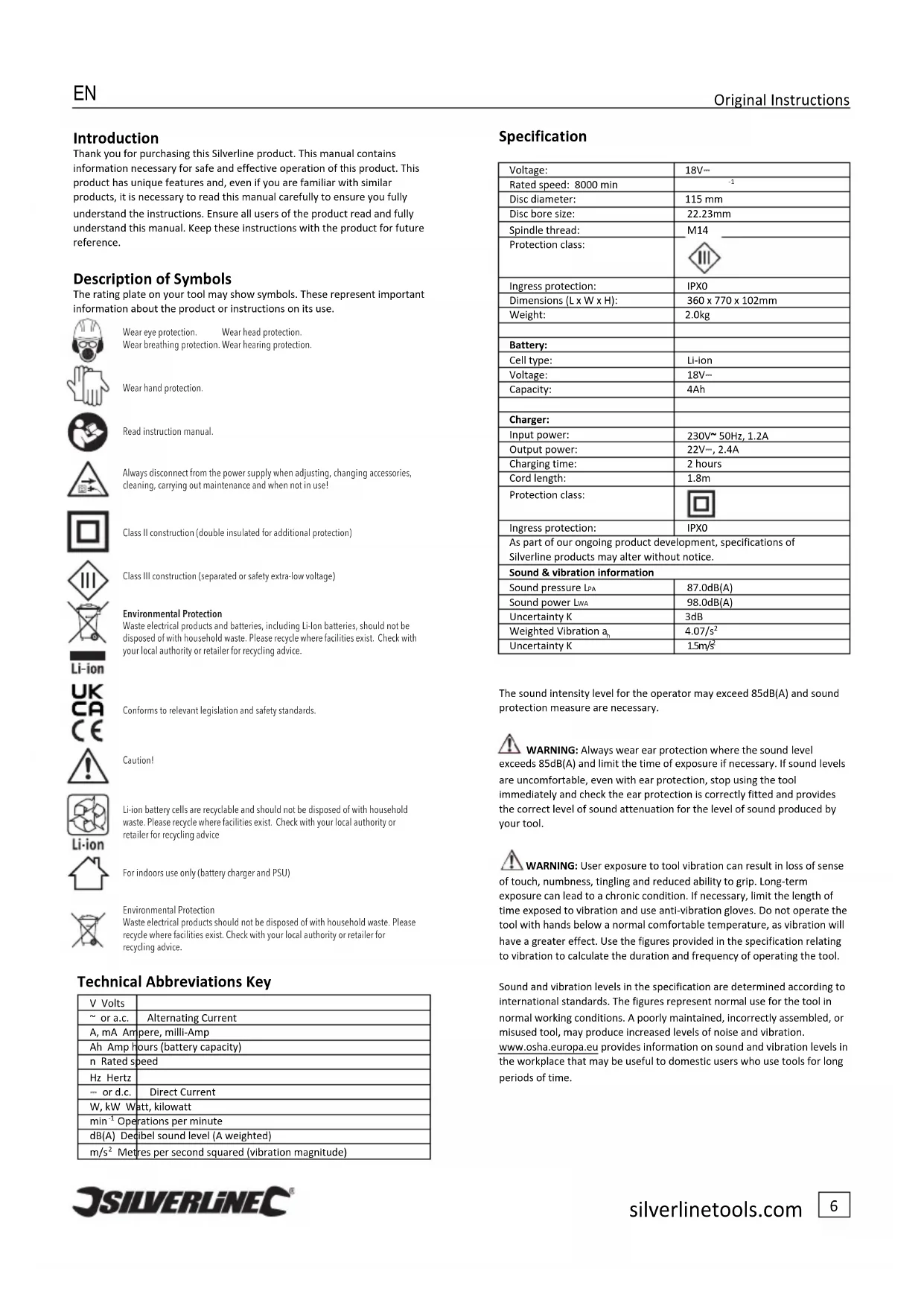

Metres per second squared (vibration magnitude) Specification* Voltage: 18V⎓ Rated speed: 8000 min

Disc diameter: 115 mm Disc bore size: 22.23mm Spindle thread: M14 Protection class: Ingress protection: IPX0 Dimensions (L x W x H): 360 x 770 x 102mm Weight: 2.0kg Battery: Cell type: Li-ion Voltage: 18V⎓ Capacity: 4Ah Charger: Input power: 230V~ 50Hz, 1.2A Output power: 22V⎓, 2.4A Charging time: 2 hours Cord length: 1.8m Protection class: Ingress protection: IPX0 As part of our ongoing product development, specifications of Silverline products may alter without notice. Sound & vibration information Sound pressure L

The sound intensity level for the operator may exceed 85dB(A) and sound protection measure are necessary.

WARNING: Always wear ear protection where the sound level

exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense

of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool. Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time. Wear eye protection. Wear breathing protection.Wear head protection.Wear hand protection.Read instruction manual.Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!Class II construction (double insulated for additional protection)Wear hearing protection. Class III construction (separated or safety extra-low voltage) Environmental Protection Waste electrical products and batteries, including Li-Ion batteries, should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.Conforms to relevant legislation and safety standards. Caution!Li-ion battery cells are recyclable and should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling adviceFor indoors use only (battery charger and PSU)Environmental ProtectionWaste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.EN Original Instructions silverlinetools.com

General Power Tool Safety Warnings

WARNING: Read all safety warnings, instructions, illustrations and

specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non- skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents. d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 131°C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.EN Original Instructions silverlinetools.com

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers. Specific Safety* Safety'warnings'common'for'grinding,'sanding,'wire'brushing,'polishing' or'abrasive'cutting-off'operations a) This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with the power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. b) Operations such as polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury. c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool it does not assure safe operation. d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled. f) The arbour size of wheels, flanges, backing pads or any other accessory must properly fit on the spindle of your power tool. Accessories with arbour holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush, wire, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time. h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. Eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from the work area.

Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. j) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a ‘live’ wire may make exposed metal parts of the power tool ‘live’ and could give the operator an electric shock. k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged, and your hand or arm may be pulled into the spinning accessory. l) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. m) Do not run the power tool while carrying it to your side. Accidental contact with the spinning accessory may snag clothing, pulling the accessory towards your body. n) Regularly clean the power tool’s vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. o) Do not operate the power tool near flammable materials. Sparks could ignite these materials. p) Even when this tool is used as prescribed it is not possible to eliminate all residual risk factors. If you are in any doubt as to the safe use of this tool, do not use it. Kickback and related warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump towards or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a firm grip on the power tool and position your body an arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start up. The operator can control torque reactions or kickback forces, if proper precautions are taken. b) Never place your hand near the rotating accessory. Accessory may kickback over your hand. c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in the direction opposite to the wheel’s movement at the point of snagging.EN Original Instructions silverlinetools.com

d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control. Safety warnings specific for grinding and abrasive cutting-off operations a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe. b) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel, and sparks that could ignite clothing. c) Wheels must be used only for recommended applications. For example: do not grind with the side of the cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding; side forces applied to these wheels may cause them to shatter. d) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel, thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges. e) Do not use worn down wheels from larger power tools. Wheels intended for larger power tools are not suitable for the higher speed of a smaller tool and may burst. Additional safety warnings specific for abrasive cutting-off operations a) Do not ‘jam’ the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage. b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you. c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding. d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece. e) Support panels or any oversized workpiece to minimise the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel f) Use extra caution when making a ‘pocket cut’ into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. Safety warnings specific for sanding operations a) Do not use excessively oversized sanding disc paper. Follow manufacturer’s recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc, or kickback. Safety warnings specific for wire brushing operations a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin. b) If the use of the guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to workload and centrifugal Additional grinder safety '

WARNING: When using straight and depressed centre cutting-off

wheels (type 41 and 42) plus grinding wheels that grind on the edge only (type 1), a cutting guard or cut-off guard must be fitted.

WARNING: DO NOT operate a grinder without the appropriate

guards in place. Reset the guard if the work angle or the position of the person operating the tool changes.

WARNING: Always check for an expiry date of the grinding or cutting

disc before use (remove from tool if necessary). This will be either printed on the label or stamped on the inner steel ring of the disc. DO NOT use an expired disc as it may shatter in use.

• The grinding surface of the centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected

• Do not touch grinding or cutting discs after use until they have cooled down

• Reset the on/off switch of the tool to the ‘off’ position whenever the power is interrupted

• The tool can be subject to overload if too much application force is exerted. Overload can lead to overheating and damage of the power tool. After use, continue to run the tool at no-load for several minutes in order to cool it down by using the fan of the motor

• When operating the grinder, it is an essential safety requirement that the correct type of guard is installed for each application to prevent injury. For example, a cutting guard must be installed when using a cutting or diamond disc, and a grinding guard must be used with grinding discs

• Grinding tool accessories must be mounted, used and stored in compliance with the manufacturer’s recommendations

• Use the correct type of cutting or grinding disc for the task and material. Check the label on the disc or accessory to find out if it is appropriate to use on the workpiece

• If discs are supplied with blotters they must be fitted and used correctly. Not fitting blotters may cause the disc to shatter in use and be a safety risk

• Ensure the cutting/grinding disc or accessory is fitted correctly and securely before use. Run the tool with the disc or accessory fitted, but without load, for a reasonable time before attempting to cut/grind. If excessive vibration occurs, stop the tool, investigate and correct the cause before use. Seek professional guidance if you are in doubt about how to operate the tool safely

• Do not allow discs to become wet or contaminated with oil. If you suspect a disc has degraded in storage, or if you are unsure whether its expiry date has passed, DO NOT USE AND DISCARD

• Do not attempt to cut or grind magnesium or any alloy that has high magnesium content

• Hold the tool appropriately to ensure that debris produced does not land on skin or clothing

• Do not touch the spindle lock button while the tool is operatingEN Original Instructions silverlinetools.com

• A grinding disc will gradually wear down during use, reducing its size. If a disc becomes too small to work with easily, stop using it and replace it with a new disc Additional safety for superabrasives

• Superabrasives are generally inflexible and could shatter, so must be handled with the utmost care. Damaged or improperly mounted superabrasives are dangerous and can cause SEVERE injury to the user and other people in the vicinity

• Types of superabrasive wheels include diamond cutting discs, welded metal discs, CBN discs etc. Choose your superabrasive tool carefully, taking into consideration the workpiece material, the tool dimensions and capabilities. Make sure the tool does not exceed the maximum operating speed of the superabrasive disc

• NEVER use superabrasive cutting discs for side grinding, as this might lead to the disc shattering

• Superabrasive wheels have to be carefully inspected and tested before mounting. Metal wheels should be subjected to a sound test: hold the wheel on a mandrel or with a finger inserted through the bore, then tap it with a non- metallic object at several points and listen each time to the sound produced. An intact wheel will produce a clear ‘bell like’ metallic sound. Damaged wheels will give a dull, chattering sound. If in doubt, DO NOT USE, MARK AS

• Make sure the tool’s mounting flange is compatible with the superabrasive wheel. Refer to the manufacturer’s mounting instructions

• ALWAYS conduct a test run after mounting, with no load for at least 30 seconds, to determine if the wheel runs balanced and does not produce excessive vibration. If it does, switch off IMMEDIATELY, remove the disc, inspect, re- mount and re-test if no damage is detected

• If planning on using the superabrasive wheel with a coolant, liquid dust suppressant or lubricant, first check if the wheel, tool and workpiece are compatible with wet cutting and with the compound to be used. Always apply liquid to an already running wheel, never to a non-moving tool, as the unbalance could lead to the rupture of the wheel. When switching off, remove the liquid supply first and let the tool run at no-load, until centrifugal forces have drained all liquid from the wheel. Dry off the wheel after use, and prevent liquid from being absorbed into the wheel Avoiding angle grinder burnout( Grinders are designed to work under load. Provided the motor is cooled quickly, minimal wear or damage will occur.

• DO NOT over work the angle grinder.

• If the grinder emits a burning smell, DO NOT stop the grinder; instead, remove from load and allow to spin freely for approximately 5-10 seconds at high speed to cool the motor before continuing work.

• Repeat the removal of the grinder from load intermittently to keep the tool cool during use. If a grinder is slowing down on sticky material whilst under load:

• Check the correct grinding wheel type is being used

• Make shallower passes across the material Battery and Charger Safety Use the Battery Charger correctly

• Refer to the section of this manual relating to use of the Battery Charger (18) before attempting to charge the Battery (8)

• Do not attempt to use the Battery Charger with any batteries other than those supplied.

• Keep your Battery Charger clean; foreign objects or dirt may cause a short or block air vents. Failure to follow these instructions may cause overheating or fire

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

• Examine the Battery Charger regularly for damage, especially the cord, plug and enclosure. If the Battery Charger is damaged, it must not be used until it has been repaired

• Children should be supervised to ensure that they do not play with the appliance

WARNING: Do not attempt to recharge non-rechargeable batteries.

fire, burn and explosion hazard.

• Keep the battery out of reach of children

• Only charge Li-ion batteries designed specifically for this charger

• Only use Li-ion batteries provided with this product or specifically designed to be compatible

• Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheating or fire

• When not in use batteries should be stored at room temperature (approximately 20˚C)

• Ensure battery contacts cannot accidentally short in storage. Keep batteries clean; foreign objects or dirt may cause a short. Keep away from other metal objects, for example paperclips, coins, keys, nails and screws

• Under abusive conditions, liquid may be ejected from the battery. This liquid may cause skin irritation or burns. Avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek medical help

• Do not open, disassemble, crush, heat above 60°C or incinerate. Do not dispose of in fire or similar

• Do not get batteries wet or immerse in water Battery & charger safety features ( The Battery and Charger are fitted with a number of safety features which may be triggered during charging or operation:

• Over-charge protection: Charger automatically switches off when the Battery has reached full charge capacity, protecting the internal components of the battery

• Over-discharge protection: Prevents the Battery from discharging beyond the recommended lowest safety voltage

• Over-heat protection: Sensor switches off if the Battery becomes too hot during operation. This can happen if the tool is overloaded or being used for extended periods of time. Up to 30 minutes cooling time may be required depending on the ambient temperature

• Overload protection: Battery temporarily stops if it is overloaded or the maximum current draw is exceeded, protecting the internal components. The Battery will resume normal operation when the current draw returns to a normal safe level. This may take a few seconds

• Short circuit protection: The Battery will stop working immediately if a short circuit occurs, this prevents damage to the Battery or toolEN Original Instructions silverlinetools.com

Intended Use' Hand-held, battery-powered angle grinder suitable for light to medium duty grinding and cutting of metal and other materials with a fitted disc and guard of the correct type. Suitable for wire brushing and sanding applications with the optional purchases of compatible accessories. The tool must ONLY be used for its intended purpose. Any use other than those mentioned in this manual will be considered a case of misuse. The operator, and not the manufacturer, shall be liable for any damage or injury resulting from such cases of misuse. The manufacturer shall not be liable for any modifications made to the tool, nor for any damage resulting from such modifications. Unpacking Your Tool

• Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions

• Ensure all parts of the product are present and in good condition

• If any parts are missing or damaged, have such parts replaced before attempting to use this product Before Use*

WARNING: ALWAYS remove the battery before attaching or changing

any accessories, or making any adjustments. Removing the Battery To remove the Battery (8), press the Battery Release (7) and slide the Battery out of the Battery Mount (6) (Fig. I (a-b)) Installing a charged Battery

1. To fit a charged Battery (8), slide it into the Battery Mount

(6) (Fig. I (c)) Note: The Battery will fit only in one direction, which is determined by its shape and the design of the Battery Mount. However, if the Battery does not slide into the Battery Mount easily, do not force it. Instead, pull the Battery out of the Battery Mount again, check for correct position, and try again gently.

2. Push the Battery into the Battery Mount until it locks into

place securely Setting up the Charger

2. Connect the Battery Charger to the mains power supply

Note: The Green LED (20) on the Battery Charger will illuminate to indicate that the Charger is powered.

WARNING: The Battery Charger is designed for indoor use only and

must not be exposed to moisture and rain. Charging the Battery

WARNING: Failure to follow the correct procedure when charging the

Battery (8) will result in permanent damage. Note: Normal charging time is 2 hours for a recently fully-discharged Battery, but if the Battery has been left in a discharged state for some time, it may take more time to charge.

1. Slide a discharged or partially discharged Battery onto the

Battery Charger (18) (Fig. II (a)) Note: Make sure the Battery and Battery Charger are lined up correctly. If the Battery does not slide onto the Battery Charger easily, don’t force it. Instead, remove the Battery, then check that the top of the Battery and the Battery Charger slot are clean and undamaged and that the Charger Terminals (21) are not bent.

2. Once charging commences, only the Red LED (19) will

illuminate Note: If the Red LED is not constantly illuminated after an uncharged Battery is inserted into the Charger, the Battery or Charger may be faulty. Recheck the Battery is fully inserted in the Battery Charger. If the fault persists do not use and contact your authorised Silverline distributer.

3. When the Battery is fully-charged, only the Green LED (20)

will be illuminated Battery Charge Level ' The Battery has a built-in Battery Charge Indicator (9). Pressing on the button to the right will indicate the charge level. The number of bars that illuminate when the button is pressed indicate the charge level; 1 bar indicating a low charge, 3 bars indicating a full charge. IMPORTANT: When a low charge level is indicated, be aware the tool may stop operating while in use. This may be dangerous. It is recommended to always ensure the Battery has a good charge level. Notes about battery charging IMPORTANT: Batteries are an expendable supply whose capacity shortens over time. Always adhere to the correct handling and charging instructions in the manual. If the battery does not hold charge or working time is shortened, purchase a genuine Silverline replacement.

• The battery should be charged at ambient temperatures between 10°C and 40°C (ideally around 20°C)

• After charging, allow 15 minutes for the battery to cool before use

• Ensure that the charger is disconnected from the mains supply after use, and is stored correctly

• Do not leave batteries on charge for extended periods and never store batteries on charge

• The charger monitors battery temperature and voltage while charging. Remove the battery once charging has been completed to maximise charge cycles of the battery and not waste powerEN Original Instructions silverlinetools.com

• Batteries can become faulty over time, individual cells in the battery can fail, and the battery could short. The charger will not charge faulty batteries. Use another battery, if possible, to check correct functionality of the charger and purchase a replacement battery if a faulty battery is indicated

• Do not store Lithium-ion battery packs in a discharged state long term. This can damage the Lithium-ion cells. For long- term storage, store batteries in a high charge state disconnected from the power tool

• The capacity of batteries will reduce over time. After 100 charge cycles, the battery’s operation time and the performance will slightly reduce. This decline will continue until the battery has minimal capacity after 500 charge cycles. This is normal and not a fault with the battery pack Fitting the Auxiliary Handle

WARNING: To ensure operator safety, ALWAYS use the tool with the

Auxiliary Handle (10) installed.

1. Screw the Auxiliary Handle into one of the three Handle

Location Points (3) located on the gearbox housing (Fig. III) Adjusting,'removing'&'installing'the'guard'

WARNING: The correct guard MUST be installed for each application before

use. This is a legal requirement.

WARNING: NEVER install a cutting disc or superabrasive cutting wheel

without the correct Cutting Guard (12) in place. IMPORTANT: Ensure the guard is positioned to provide a barrier between the disc and the operator. Adjusting the Guard Refer to Fig. IV

1. Release the Guard Clamp (17)

2. The Grinding Guard (15) can be moved through a range of

approximately 180°, so that it can be placed between the disc and the operator at any required work angle

3. Close the Guard Clamp

Note: If the Guard Clamp is too loose or too tight, open completely and adjust the clamp nut (Fig. IV (c)) Note: There is a Direction Indicator (1) on the motor housing which indicates the direction of rotation of the disc. This is helpful when determining the direction of sparks and debris produced during operation Removing/installing the Guard' Note: this tool is supplied with 2 guards:

• Grinding Guard (15) for grinding, sanding and wire brushing

• Cutting Guard (12) for use with cutting discs

1. Remove the disc if fitted (see ‘Fitting a disc’ section)

2. Loosen the Guard Clamp (17) and rotate the guard until the

protrusion on the inside of the Guard Clamp is aligned with the cut-out on the spindle housing (Fig. V)

3. Slide the guard off the spindle housing

4. To install a guard: align the guard as described in step 2.

Slide the guard onto the spindle housing and tighten the Guard Clamp Fitting a disc'

Warning: Ensure you have the correct guard installed for the disc you

ensuring a form-fit to the flattened parts of the spindle (Fig. VI)

2. Insert a disc onto the spindle

Note: If using depressed centre discs, ensure that the depression is positioned towards the Backing Flange

3. Screw the Locking Flange (14) onto the Spindle

Note: The raised centre of the Locking Flange should face away the disc when installing a grinding disc (Fig. VII (a)), and towards the disc when installing a cutting disc (Fig. VII (b)).

4. Depress and hold the Spindle Lock Button (2), then rotate

the Spindle (16) until you feel the lock engage

5. Use the supplied 2-Pin Spanner (11) to fully tighten the

Locking Flange. When tight, release the Spindle Lock. The angle grinder is now ready for use Removing a disc

1. Depress and hold the Spindle Lock Button (2), then rotate

the Spindle (16) until you feel the lock engage

Fitting a wire cup brush

1. Remove the Locking Flange (14), the disc (if installed) and

Backing Flange (13) from the Spindle (16)

2. Screw wire cup brush directly onto the Spindle

3. Depress the Spindle Lock (2) and rotate the Spindle until

you feel the Spindle Lock engage

4. Tighten the wire cup brush with a suitable spanner

5. Release the Spindle Lock

6. To remove a wire cup brush, depress the Spindle Lock,

rotate the Spindle until you feel the lock engage, then use a suitable spanner to remove the wire cup brush Operation

WARNING: ALWAYS wear appropriate safety equipment. Use of this

tool requires eye protection, gloves, ear defenders, and good quality respiratory protection.

WARNING: Ensure you have read and understood the Safety and

Before Use sections of this manual before using this tool. Switching ON & OFF

1. Hold the tool securely with both hands

2. Ensure the tool is not in contact with the workpiece before

3. Slide the ON/OFF Slider Switch (4) to the right and forward.

At the end of the forward travel, press the front of the switch downward to lock it (Fig. VIII)

4. Press the rear of the ON/OFF Switch to release it and stop

WARNING: Only use discs specifically manufactured for grinding

operations. Stone and metal grinding discs are not interchangeable. Use the correct disc for the application

1. Allow the tool to reach full speed before touching the tool

2. Apply light pressure to the work surface

Note: Excessive pressure does not result in more effective removal of material, but will in fact cause premature wear of the grinding disc and will increase wear and tear on the tool.

3. Keep the tool at approximately 15 to 30° to the work

Note: Adapt your technique to the material. A back and forth action is suitable for most types of metal, but is not necessarily suitable for all materialsEN Original Instructions silverlinetools.com

5. Remove the tool from the work surface before turning OFF

6. Allow the tool to stop rotating before putting it down

Cutting Note: This machine is not designed for wet cutting.

WARNING: Always ensure the correct Cutting Guard (12) is installed

when using cutting discs or superabrasive wheels.

WARNING: Only use discs specifically manufactured for cutting

operations. Stone and metal cutting discs are not interchangeable. Use the correct disc for the application.

WARNING: Never use cutting discs for grinding operations. The disc

might shatter and produce projectiles that could injure the operator and/or bystanders.

1. Position yourself so that the exposed underside of the

cutting wheel is facing away from you

2. Allow the tool to reach full speed before touching the tool

3. Apply light pressure to the work surface

Note: Excessive pressure does not result in more effective or faster cutting, but will cause premature wear of the cutting disc and increase wear and tear on the tool

4. Once a notch is established, keep the angle of the disc

5. Allow the tool to stop rotating before putting it down

WARNING: If the wheel is binding or when interrupting a cut for any

reason, switch off the tool and hold the tool motionless until the wheel comes to a complete stop. Then remove the tool.

WARNING: Do not apply any sideways force to cutting discs, as this

might lead to the disc becoming jammed in the cut and shattering. IMPORTANT: The cutting disc will wear during use, and the disc diameter will gradually reduce in size. The smaller the disc becomes, the more strain will be placed on the motor. Avoid damage to the tool by only using cutting discs that fall within approximately 25% of the original size. Using a cup brush or wire wheel

• Always check the no-load speed of the grinder does not exceed the maximum speed of the cup brush or wire wheel

• Ensure no part of the cup brush or wire wheel can come into contact with the tool housing

• Run the grinder, with cup brush or wire wheel attached, for at least 30 seconds before use to check that the cup brush or wire wheel is secure and properly balanced IMPORTANT: When using a wire cup brush or wire wheel, avoid applying excess pressure. Using greater force will not make the cup brush or wire wheel more effective, but will bend the wires out of shape and damage the brush.

WARNING: Remove the Battery (8) and Blade when the tool is to be

left unattended. Accessories'

• A full range of accessories including discs, wire brushes and guards, is available from your Silverline stockist

• Spare parts can be obtained from toolsparesonline.com Maintenance

WARNING: Always disconnect the tool from the power supply, before

cleaning or carrying out maintenance. General inspection

• Regularly check that all the fixing screws are tight. They may vibrate loose over time

• Repairs should be carried out by an authorised Silverline service centre. Lubrication'

• Lubricate all moving parts with a suitable lubricant spray, at regular intervals Cleaning

WARNING: ALWAYS wear protective equipment including eye

protection and gloves when cleaning this tool.

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the device’s service life

• Clean the body of your tool with a soft brush, or dry cloth

• Never use caustic agents to clean plastic parts. If dry cleaning is not sufficient, a mild detergent on a damp cloth is recommended

• Water must never come into contact with the tool

• Ensure the tool is thoroughly dry before using it

• If available, use clean, dry, compressed air to blow through the ventilation holes (where applicable) Brushes'

• Over time the carbon brushes inside the motor may become worn

• Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking

• If you suspect that the brushes may be worn, have them replaced at an authorised service centre Contact For technical or repair service advice, please contact the helpline on ([phone] Web: silverlinetools.com/en-GB/Support UK Address: Toolstream Ltd. Boundary Way Lufton Trading Estate Yeovil, Somerset BA22 8HZ, United Kingdom EU Address: Toolstream B.V. De Keten

Troubleshooting* Problem Possible cause Solution No function when ON/OFF Switch (7) is operated Battery (8) completely discharged Recharge Battery or replace with a fully charged Battery Defective Battery Replace Battery Defective ON/OFF Switch Have the ON/OFF Switch replaced by an authorised Silverline service centre Carbon brushes worn Have the carbon brushes replaced by an authorised Silverline service centre Faulty tool Contact authorised Silverline service centre for repair Slow cutting performance Disc not suitable for the material being cut Fit compatible disc Too much pressure exerted on to the tool Reduce the pressure applied to the tool Disc is off centre/vibrating eccentrically Disc is overly worn, damaged, or deformed Replace the disc Disc not fitted correctly Remove and refit the disc correctly Storage

• Store this tool carefully in a secure, dry place out of the reach of children

• For long-term storage, remove batteries and store separately Disposal Li-ion batteries should not be disposed of with household waste. If you do not know of a li-ion battery recycling centre in your area, contact your local authority or original dealer for advice on disposal of li-ion batteries. Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.

• Do not dispose of power tools, batteries or other waste electrical and electronic equipment (WEEE), with household waste

Stiftschlüssels (11) ab.
