Product TypeBuilt-in Induction Hob
BrandSilverline
ModelVC 5317 B01
Number of Cooking Zones2
Power Supply220-240 V ~ 50/60 Hz
Total Installed Power3000 W
Dimensions (L x W x H)288 x 520 x 55 mm
Cut-out Dimensions (A x B)268 x 500 mm
WeightApprox. 5 kg
Control TypeTouch controls
TimerUp to 99 minutes, automatic zone shut-off
Child LockYes (Keylock control)
Residual Heat IndicatorYes (displays "H")
Over-Temperature ProtectionYes
Auto ShutdownYes (adjustable time per power level)
SafetyKeylock, auto shut-off, residual heat warning, over-temperature protection
CleaningUse specific glass ceramic hob cleaner; avoid abrasive pads
Suitable CookwareInduction-compatible with smooth, flat base
InstallationBuilt-in; requires minimum 50 mm clearance; surface thickness at least 30 mm

Frequently Asked Questions - VC 5317 B01 SILVERLINE

How do I lock the hob controls to prevent accidental use?
Touch the keylock control (typically a padlock icon). The timer display will show 'Lo' indicating the controls are locked. To unlock, touch and hold the keylock control for a few seconds. The hob must be turned on to unlock.
What should I do if the hob does not turn on?
First, ensure the hob is properly connected to the power supply and the mains switch is on. Check for a power outage in your area. If the problem persists, contact a qualified technician. Do not attempt to repair yourself.
How do I use the timer to automatically turn off a cooking zone?
Select the cooking zone by touching the zone selection control. Then press the timer control. The timer display will show '10'. Use the '-' or '+' controls to set the desired time (up to 99 minutes). The timer will begin counting down, and the zone will turn off automatically when time expires.
What type of cookware can I use on this induction hob?
Use cookware with a flat, smooth base that is induction-compatible (check for a magnetic base). Avoid pans with jagged edges, curved bases, or those that are too small or too large for the zone. Always center the pan on the cooking zone.
How do I clean the glass surface without damaging it?
First, switch off the hob and let it cool. Apply a ceramic glass hob cleaner (not abrasive) while the glass is still warm (not hot). Wipe with a clean cloth or paper towel. For stubborn spills, use a razor blade scraper at a 30° angle, being careful not to cut yourself. Never use harsh scourers.
What does the 'H' indicator mean?
The 'H' appears on the display for a cooking zone that is still hot after use. It is a residual heat warning. Do not touch the zone until the 'H' disappears. This feature also helps you save energy by using the remaining heat for warming.
Can I use the hob as a work surface or for storage?
No. Never use the hob as a work or storage surface. Do not place objects, utensils, or combustible materials on the glass. This can cause damage or fire hazards.
What safety features does this hob have?
The hob includes: keylock to prevent accidental operation, auto shutdown (turns off zones after a set time), residual heat indicator ('H'), over-temperature protection, and a warning for hot surfaces. It also has automatic power-off if no settings are made within 1 minute.
How do I set the minute minder without using a cooking zone?
Ensure the hob is turned on. Press the timer control without selecting any cooking zone. The timer indicator will flash. Use the '-' or '+' controls to set the desired minutes (up to 99). The timer will count down and beep when time is up, but it will not turn off any zone.
What are the recommended heat settings for different cooking tasks?
Settings are guidelines. For gentle warming, use 1-2. For simmering and rice, 3-4. For pancakes, 5-6. For searing and stir-frying, 7-9. Experiment to find the best setting. Always use a lid to save energy and reduce cooking time.

User questions about VC 5317 B01 SILVERLINE

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Frying Pan in PDF format for free! Find your manual VC 5317 B01 - SILVERLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VC 5317 B01 by SILVERLINE.

USER MANUAL VC 5317 B01 SILVERLINE

natural_image Simple geometric symbol with a circle and two cross marks inside a rounded square (no text or labels)

EN Built-in Hob User Manual

SILVERLINE®

Değerli Müşterimiz,
natural_image Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
natural_image Pure technical diagram showing a rectangular block with labeled points A and B, no text or symbols present
natural_image Technical line drawing of a rectangular electronic device with mounting holes and a magnified inset showing internal components (no text or symbols)

Dikkat

natural_image Line drawing of a cooking pot on a stand (no text or symbols)
natural_image Simple line drawing of a hand with a circular symbol on the index finger (no text or labels)
natural_image Simple geometric symbol with a circle and two cross marks inside a rounded square (no text or labels)

EN Built-in Hob User Manual

SILVERLINE®

Dear Customer,

We would like to thank you and congratulate you on your choice.

This new product has been carefully designed and built using top quality materials, and meculously tested to ensure that it meets all your culinary requirements.

Please read and observe these simple instrucons, which will enable you to achieve excellent results from the very first me you use it.

READ CAREFULLY AND KEEP FOR FUTURE USE

This product is designed for domesc use. The manufacturer declines all responsibility for personal injury or property damage deriving from incorrect installaon or improper, erroneous or unsuitable use.

The appliance must not be used by people (including children) with physical, sensorial or mental impairments, or by people without the necessary experience or knowledge, unless they are supervised or instructed in the use of the appliance by a person responsible for their safety.

Children must be supervised to ensure that they do not play with the appliance. Do not place aluminium foil, pots or similar objects in contact with the base inside the oven for cooking.

The appliance gets very hot during use.

SAFETY PRECAUTIONS

Your safety is important to us. Please read this informaon before using your cooktop.

Installaon

Electrical Shock Hazard

  • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
  • Connecon to a good earth wiring system is essenal and mandatory.
  • Alterations to the domesc wiring system must only be made by a qualified electrician.
  • Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use cauon could result in injury or cuts.

Important safety instrucons

  • Read these instrucons carefully before installing or using this appliance.
  • No combustible material or products should be placed on this appliance at any me.
  • Please make this informaon available to the person responsible for installing the appliance as it could reduce your installaon costs.
  • In order to avoid a hazard, this appliance must be installed according to these instrucons for installaon.

- This appliance is to be properly installed and earthed only by a suitably qualified person.

- This appliance should be connected to a circuit which incorporates an isolang switch providing full disconnecon from the power supply.

- Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operaon and maintenance

Electrical Shock Hazard

  • Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance o immediately at the mains power supply (wall switch) and contact a qualified technician.
  • Switch the cooktop o at the wall before cleaning or maintenance.
  • Failure to follow this advice may result in electrical shock or death.

Health Hazard

- This appliance complies with electromagnec safety standards.

Hot Surface Hazard

  • During use, accessible parts of this appliance will become hot enough to cause burns.
  • Do not let your body, clothing or any item other than suitable cookware contact the Inducon glass unl the surface is cool.
  • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot
  • Keep children away.
  • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
  • Failure to follow this advice could result in burns and scalds.

Cut Hazard

- The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.

- Failure to use cauon could result in injury or cuts.

Important safety instrucons

- Never leave the appliance unaended when in use. Boilover causes smoking and greasy spillovers that may ignite.

- Never use your appliance as a work or storage surface.

- Never leave any objects or utensils on the appliance.

- Never use your appliance for warming or heang the room.

- Aer use, always turn o the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls).

- Do not allow children to play with the appliance or sit, stand, or climb on it.

- Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

- Do not leave children alone or unaended in the area where the appliance is in use.

- Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be

sasfied that they can use the appliance without danger to themselves or their surroundings.

- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.

- Do not use a steam cleaner to clean your cooktop.

- Do not place or drop heavy objects on your cooktop.

- Do not stand on your cooktop.

- Do not use pans with jagged edges or drag pans across the Inducon glass surface as this can scratch the glass.

- Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Inducon glass.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is intended to be used in household and similar applicaons such as: -sta kitchen areas in shops, oces and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments ; -bed and breakfast type environments.

- WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heang elements.

Children less than 8 years of age shall be kept away unless connuously supervised.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instrucon concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Unaended cooking on a hob with fat or oil can be dangerous and may result in fire.

NEVER try to exnguish a fire with water, but switch o the appliance and then cover ame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- Warning: If the surface is cracked, switch o the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts

- A steam cleaner is not to be used.

- The appliance is not intended to be operated by means of an external mer or separate remote-control system.

WARNINGS FOR PROPER TRANSPORTATION

  • Keep the original package of the appliance.
  • To move the appliance properly, use the original package with consideraon to the markings on the package.

- In cases where the original package could not be kept;

√ Care for any possible measures to prevent any impact to the appliance.
√ Do not place heavy objects on the appliance.
√ During transportation carry the appliance by holding the door side on the top.

Respect for the Environment:

The documentaon for this appliance is printed on paper bleached without chlorine or recycled paper to contribute to protecng the environment. The packaging was designed to prevent damage to the environment; they are ecological products that can be recovered or recycled. Recycling the packing saves raw materials and reduces the volume of industrial and domesc waste.

THE PACKING MATERIAL is 100% recyclable and marked with the recycling symbol. Dispose of in conformity with local law. The packing material (plasc bags, polystyrene parts, etc.) must be kept out of the reach of children because it is potentially dangerous.

THIS APPLIANCE is marked in conformity with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). By making sure that this product is

C∈

SILVERLINE VC 5317 B01 - Respect for the Environment: - 2

natural_image Symbol of a trash bin crossed with no text or labels

SILVERLINE VC 5317 B01 - Respect for the Environment: - 3

disposed of correctly, the user contributes to preventing potential negative consequences for the environment and health.

TECHNICAL SPECIFICATIONS

Top View

1 3 2 4 5

  1. max. 1800 W zone
  2. max. 1200 W zone
  3. Glass plate
  4. ON / OFF
  5. Control panel

Control Panel

5 4 3 2 1 ○ ○ - + ⏻

  1. ON/OFF control
  2. Power / Timer regulating controls
  3. Heating zone selection controls
  4. Timer control
  5. keylock control
MODEL NAMEVC5317B01
COOKING ZONES2 Zones
SUPPLY VOLTAGE220-240V~ 50/60Hz
INSTALLED ELECTRIC POWER3000W
PRODUCT SIZE L×W×H(MM)288x520x55 mm
CUT-OUT DIMENSIONS A×B (MM)268X500 mm

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

INSTALLATION

Selecon of installaon equipment

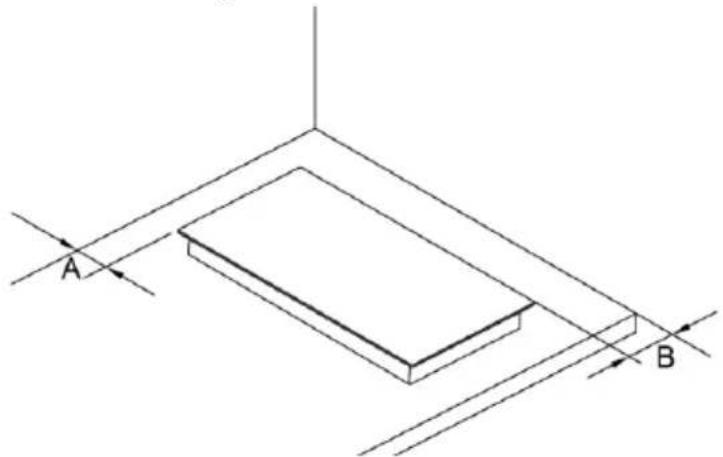

  1. Cut out the work surface according to the sizes shown in the drawing. For the purpose of installaon and use, a minimum of 50mm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiaon from the hotplate. As shown below:

A B C D E F

SEAL

  1. The ceramic cooker hob can be used on the table top of cabinet. The ceramic hob should be placed horizontally. As shown below:

SILVERLINE VC 5317 B01 - Selecon of installaon equipment - 3

natural_image Pure technical diagram showing a rectangular block with labeled points A and B, no text or symbols present

SILVERLINE VC 5317 B01 - Selecon of installaon equipment - 4

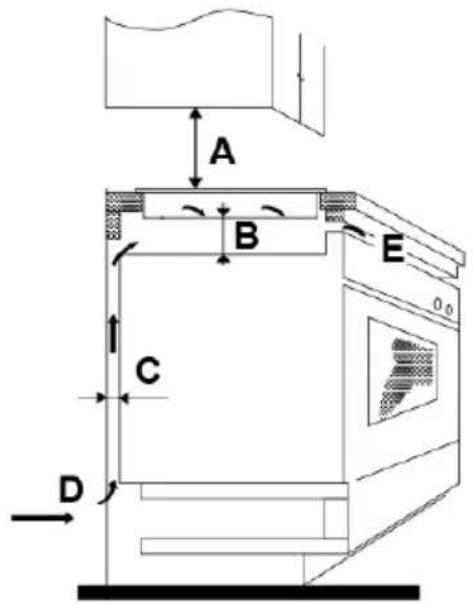

Under any circumstances, make sure the ceramic cooker hob is well venlated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below;

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

A B E C D

Three-step diagram illustrating a mechanical or electrical process with checkmark indicators and directional arrows.

Before locang the xing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Fix the hob on the work surface by screw four brackets on the boom of hob (see picture) aer installaon. Adjust the bracket posion to suit for dierent work surface's thickness.

SILVERLINE VC 5317 B01 - Before locang the xing brackets - 1

natural_image Technical line drawing of a rectangular electronic device with mounting holes and a close-up inset showing internal components (no text or symbols)

Cauons

  1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operaon by yourself.

  2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.

  3. The ceramic cooker hob shall be installed such that beer heat radiaon can be ensured to enhance its reliability.

  4. The wall and induced heang zone above the work surface shall withstand heat.

  5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

  6. A steam cleaner is not to be used.

  7. This ceramic can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance informaon.

Connecng the hob to the mains power supply

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. the method of conncon is shown below.

green-yellow blue brown N L 220-240V PE

  1. If the cable is damaged or needs replacing, this should be done by an aer-sales technician using the proper tools, so as to avoid any accidents.

  2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.

  3. The installer must ensure that the correct electrical conneccon has been made and that it complies with safety regulaons.

  4. The cable must not be bent or compressed.

  5. The cable must be checked regularly and only replaced by a properly qualified person.

PRODUCT SPECIFICATIONS AND USAGE

To start cooking

- Aer power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicang that the ceramic hob has entered the state of standby mode.

  1. Touch the ON/OFF control. all the indicators show “-”

SILVERLINE VC 5317 B01 - To start cooking - 1

natural_image Simple line drawing of a worm-like shape with a circular marker (no text or symbols)
  1. Place a suitable pan on the cooking zone that you wish to use.

• Make sure the boom of the pan and the surface Of the cooking zone are clean and dry.

  1. Touching the heang zone selecon control

  2. Select a heat seng by touching the “-” or “+” control.

- If you don’t choose a heat seng within 1 minute, the ceramic hob will automacally switch o. You will need to start again at step 1.

- You can modify the heat seng at any me during cooking.

- By holding down either of these buons, the value will adjust up or down.

When you have finished cooking

SILVERLINE VC 5317 B01 - When you have finished cooking - 1

natural_image Line drawing of a cooking pot on a stand (no text or symbols)

0

- +

  1. Touching the heang zone selecon control that you wish to switch o

6

  1. Turn the cooking zone o by scrolling down to “0” or touching “-” and “+” control together.

OR

  1. Turn the whole cooktop o by touching the ON/OFF ①control.

SILVERLINE VC 5317 B01 - When you have finished cooking - 6

natural_image Simple line drawing of a hand pointing upward with a circular symbol on the index finger (no text or labels)
  1. Beware of hot surfaces

“H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving funcon if you want to heat further pans, use the hotplate that is sll hot.

SILVERLINE VC 5317 B01 - When you have finished cooking - 7

Locking the Controls

  • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
  • When the controls are locked, all the controls except the ON/OFF control

SILVERLINE VC 5317 B01 - Locking the Controls - 1

are disabled.

To lock the controls

Touch the keylock control. The mer indicator will show "Lo"

To unlock the controls

  1. Make sure the ceramic hob is turned on.
  2. Touch and hold the keylock control for a while.
  3. You can now start using your ceramic hob.

When the hob is in the lock mode, all the controls are disable except the ON/OFF, you can always turn the ceramic hob o with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operaon

Over-Temperature Protecon

A temperature sensor equipped can monitor the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operaon automacally.

Residual Heat Warning

When the hob has been operang for some me, there will be some residual heat. The leer “H” appears to warn you to keep away from it.

Auto Shutdown

Another safety feature of the hob is auto shutdown. This occurs whenever you forget to switch o a cooking zone. The default shutdown mes are shown in the table below:

Power level123456789
Default working timer (hour)888444222

Using the Timer

You can use the mer in two dierent ways:

  • You can use it as a minute minder. In this case, the mer will not turn any cooking zone o when the set me is up.
  • You can set it to turn one cooking zone o aer the set me is up.
  • You can set the mer for up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecng any cooking zone

  1. Make sure the cooktop is turned on.
    Note: you can use the minute minder even if you're not selecng any cooking zones.
  2. Touch the mer control, the mer indicator will ash.
  3. Adjust the mer seng by touch the “-” or “+” controls. The minute minder indicator will start ashing and the mer display.

- +

Hint: Touch the “-” or “+” control of the mer once to decrease or increase by 1 minute. Touch and hold the “-”or“+” control of the mer to decrease or increase by 10 minutes. If the seng me exceeds 99 minutes, the mer will automacally return to 0 minute.

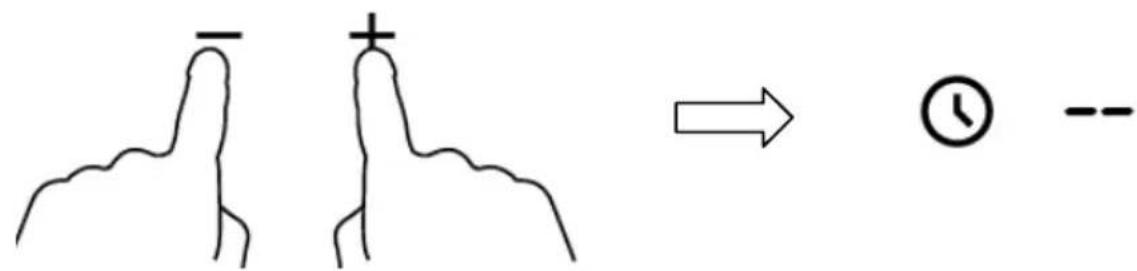

  1. Touching the"-" and "+" together, the mer is cancelled, and the"--" will show in the minute display.

Diagram showing two heart-shaped structures with a plus sign, followed by an arrow to a clock icon and a minus sign.

  1. When the me is set, it will begin to count down The display will show the remaining me and the m ash for 5 seconds.

SILVERLINE VC 5317 B01 - If you are not selecng any cooking zone - 3

  1. Buzzer will bips for 30 seconds and the mer indicator when the seng me finished.

SILVERLINE VC 5317 B01 - If you are not selecng any cooking zone - 4

Seng the mer to turn one cooking zone o

  1. Touching the heang zone selecon control

6

  1. Touch the mer control, the mer indicator show "10"

10

  1. Set the me by touching the or control of the mer

- +

Hint: Touch the “-” or “+” control of the mer once will decrease or increase by 1 minute. Touch and hold the “-” or “+” control of the mer will decrease or increase by 10 minutes.

If the seng me exceeds 99 minutes, the mer will automacally return to 0 minute.

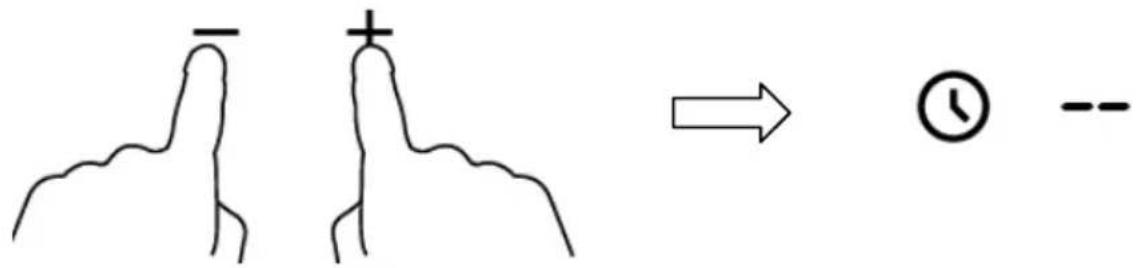

  1. Touching the “-” and “+” together, the mer is cancelled, and the will show ”--” in the minute display.

Diagram showing two heart-shaped structures with a plus sign, followed by an arrow to a clock icon and a minus sign.

  1. When the me is set, it will begin to count

SILVERLINE VC 5317 B01 - Seng the mer to turn one cooking zone o - 5

down immediately. The display will show the remaining me and the mer indicator ash for 5 seconds.

NOTE: The red dot next to power level indicator will illuminate indicang that zone is selected.

6 - ● ○ ● ○ -

  1. When cooking mer expires, the corresponding cooking zone will be switch o automacally.

NOTE: If you want to change the me aer the mer is set, you have to start from step 1

Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

SILVERLINE VC 5317 B01 - Choosing the right Cookware - 1

natural_image Three identical cooking pots with crossed-out X marks on their bases, no text or symbols present

Make sure that the base of your pan is smooth, sits at against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

SILVERLINE VC 5317 B01 - Choosing the right Cookware - 2

natural_image Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Always li pans o the ceramic hob – do not slide, or they may scratch the glass.

SILVERLINE VC 5317 B01 - Choosing the right Cookware - 3

natural_image Two cooking pots with crossed arrows indicating heating or cooling conditions (no text or symbols)

Cooking Guidelines

SILVERLINE VC 5317 B01 - Cooking Guidelines - 1

Take care when frying as the oil and fat heat up very quickly, particularly if you're using PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

Cooking Tips

  • When food comes to the boil, reduce the temperature seng.
  • Using a lid will reduce cooking mes and save energy by retaining the heat.
  • Minimise the amount of liquid or fat to reduce cooking mes.
  • Start cooking on a high seng and reduce the seng when the food has heated through.

Simmering, cooking rice

- Simmering occurs below boiling point, at around 85^ C , when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the avours develop without overcooking the food. You should also cook egg-based and ourthickened sauces below boiling point.

- Some tasks, including cooking rice by the absorpon method, may require a seng higher than the lowest seng to ensure the food is cooked properly in the me recommended.

Searing steak

To cook juicy avoursome steaks:

  1. Stand the meat at room temperature for about 20 minutes before

cooking.

  1. Heat up a heavy-based frying pan.
  2. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
  3. Turn the steak only once during cooking. The exact cooking me will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be.
  4. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For sr-frying

  1. Choose an ceramic compatible at-based wok or a large frying pan.
  2. Have all the ingredients and equipment ready. Sr-frying should be quick. If cooking large quanes, cook the food in several smaller batches.
  3. Preheat the pan briey and add two tablespoons of oil.
  4. Cook any meat first, put it aside and keep warm.
  5. Sr-fry the vegetables. When they are hot but sll crisp, turn the cooking zone to a lower seng, return the meat to the pan and add your sauce.
  6. Sr the ingredients gently to make sure they are heated through.
  7. Serve immediately.

Heat Sengs

The sengs below are guidelines only. The exact seng will depend on several factors, including your cookware and the amount you are cooking. Experiment with the inducon hob to find the sengs that best suit you.

Heat settingEignung
1 - 2·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickly·gentle simmering·slow warming
3 - 4·reheating·rapid simmering·cooking rice
5 - 6·pancakes
7 - 8·sautéing·cooking pasta
9·stir-frying·searing·bringing soup to the boil·boiling water

CARE AND CLEANING

What?How?Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.·When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.·Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glassRemove these immediately with a fish slice, palette knife or razor blade scraper suitable for ceramic glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.·Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.·The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

TROUBLESHOOTING

ProblemPossible causesWhat to do
The cooktop cannot Be turned on.No power.Make sure the cooktop is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.The controls are locked.Unlock the controls. See section 'Using your ceramic cooktop' for instructions.
The touch controls are difficult to operate.There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.Use cookware with flat and smooth bases. See 'Choosing the right cookware'.See 'Care and cleaning'.
Some pans make crackling or clicking noises.This may be caused by the construction of your cookware (layers of different metals vibrating differently).This is normal for cookware and does not indicate a fault.

414675
01.04.2014

İL İLÇE SERVİŞ ÜNVANI YETKİLİ KİŞİ YAZIŞMA ADRESİ TELEFON 1: FAX:
ADANACEYHAN HÜSEYİN DEMİR HULEYİN DEMİR B.KIRIM MH.4 SK.NO.8/A0 322 613 17 77 0 322 613 17 77
KOZANLİDER SOĞUTMAHÜSEYİN KURTTUFANPAŞA MAH.ÜSTÜN SOK.NO.65-A0 322 515 08 850 322 515 08 85
MERKEZPRESTU TEKNİKVOLKAN AKYÜZHUZUREVLERİ MH. ALPARSLAN TÜRKİŞ BULVARI NO: 329 YASIN ISIK APT.0 322 247 06 170 322 247 06 17
MERKEZPRESTU TEKNİKVOLKAN AKYÜZGÜZEL YALI MAH.81204 SK.SÜLEYMAN DEMİREL BULVARI DUYGU APT.NO:3/B0 322 247 06 180 322 247 06 18
ADIYAMANMERKEZ ARKADAŞ SOĞUTMAABDÜLCELİL UYANİKKAYALIK MAH. 2. ÇEVRE YOLU HISNI MANSUR CAD. NO: 272 / A0 416 213 43 43 00 416 213 43 43
KAHTAKARDEŞLER SOĞUTMAYASİN BOZANFATİH MAH ZAFER CAD NO 20/80 416 725 99 890 416 725 99 89
AFYONMERKEZBARBAROS TEKNİK SERVİSABDULLAH BARBAROSIMARET CAMİ KARŞISI MARULCU MH.AÇIK GÖZÖĞLU SK.NO:18/A0 272 215 12 170 272 215 12 77
MERKEZFATİH SOĞUTMAFATİH ÇOMAKCUMHURIYET MH. SÜKRI ÇELİK ALAY CD. ESRA ŞİTESİ ALTI C BLOK NO:130 272 214 51 330 272 214 30 77
AĞRIPATNOSAĞLAMAZ ELEKTRİKMESUT AĞLAMAZCUMHURIYET CD. HAMAM YOLU. NO:160 472 616 61 810 472 616 61 81
MERKEZAĞRI YETKILI SERVISLEVENT BUDAK29 EKİM CAD.MEYDAN CAMİ ARKASI SEVİ APT.ALTI0 472 215 99 360 472 215 99 36
DOĞÜBEYAZİTBEYTER TEKNİKMEHMET BEYTERBÜYÜK AĞRI CAD. FATİH CAMİ YANI NO:480 472 312 47 95
AKSARAYMERKEZGÜLER TEKNİK SOĞUTMAMEİN UYANİKHACIHASANLI MAH.DORUKAN APT.ALTI NO:129/C0 382 222 00 030 382 222 00 03
ORTAKÖYGÜVERÇİN SOĞUTMAGÜNER GÜVERÇİNAKSARAY CD.ZIRAAT BANKASI KARŞISI NO:18/D0 382 351 82 160 382 351 82 16
AMASYAMERZİFONEMEK TİCARETHÜSEYİN KARACANHARMANLAR MAH.KADIOĞLU PSI.NO:11 / A0 358 514 47 570 358 514 47 57
MERZİFONER TEKNİKSERKAN ERHARMANLAR MAH.ZÜBEYDE HANIM CAD.NO:10/C0 358 514 07 000 358 514 07 00
GÜMÜŞHACIKÖYGÖZDE BEYAZ ESYA SERVISFATİH GÜLTEKİNARTIKABAT MH. CUMHURIYET CD. NO:140 358 717 60 600 358 717 60 60
MERKEZELİT TEKNİKGÖKHAN ÖZSOYPIRINÇİ MH.HABIBI SK.TARTAN APT.NO:26 AMASYA ÇÖREKÇİSİ YANI0 358 201 00 050 358 201 00 05
ANKARAÇANKAYABAY TEKNİKMUSA KARABAYBIRLIK MAH.437 SOK. NO:5 / A0 312 495 92 660 312 495 50 38
KEÇÖRENDOĞSER SERVİSCİHAN AKDOĞANSANATORYUM CD.NO:201 / A0 312 381 44 550 312 355 44 55
POLATLITAMİRCİM TEKNİK SERVİSZAFER AYDINKURTULUŞ MAHALLESİ ATATÜRK CADDESİ NO:1390 312 623 47 460 312 621 38 47
SİNCANUĞUR TEKNİKUĞUR GÜYAGÜLERMARAŞAL ÇAKMAK MAH. ŞEHİT AHMET DOĞAN SOK. NO:22 / 140 312 245 37 370 312 245 57 57
PURSAKLARYALÇİN TEKNİKDURALİ KARABACAKYUNUS EMRE MH. YUNUS EMRE SK. NO:140 312 236 20 520 312 236 20 52
ÇANKAYAYILDIZ ANKARA TEKNİK SERVİSA.OĞUZ KELEŞSANCAK MH. CİDDE CD. NO:13/A0 312 440 97 970 312 442 44 69
ANTALYAKUMLUCAAKGÜL TEKNİKMEHMET ZİYA AIGÜLADNAN MENDERES BULV. KAVAKLI KUYU CD. KÜLTÜR HAN KARŞ. NO:90 242 887 53 800 242 887 64 72
MERKEZAKSOY TEKNİKHAVZA AKSOYÜÇGEN MAH. DOLAPLIDERE CAD M. ALI AKYÜZ APT. N:33/E MURATPAŞA0 242 243 51 550 242 248 74 26
ALANYAALP TEKNİKBRAHİM KALKANKADIPAŞA MH. ALIHAYDAR SK. NO:5 / A0 242 519 31 320 242 519 31 32
KAŞSARICAÖĞLU TİCARETİDRİS SARICAÖĞLUANDİFLİ MH.ATATÜRK BULVARI NO:410 242 836 19 990 242 836 29 88
MANAVGATÜREYEN ISITMA VE SOĞUTMAMEHMET ÜRÜYENYUKARI HİSAR MH.HASTANE CD.NO:70/B0 242 746 06 570 242 746 03 89
MERKEZYILDIZ TEKNİKAHVIET YIDIZGÜVENLIK MH. 261 SK. ÖZGÜR APT. NO:15 / B0 242 345 74 720 242 345 74 72
ARDAHANMERKEZOKTAY SOĞUTMAOKTAY FIRINCIKAPTANPAŞA MH. ÜMIT KAFTANCIOĞLU CD. NO:150 478 211 29 820 478 211 29 82
ARTVINLIOPAEFULIM YETKILI SERVISBULENT ARSLANKULEDIBI MH. KARADENIZ CAD.ZEMIN KAT NO:170 466 351 76 120 466 351 76 12
SAVŞATTEKNİK SOĞUTMASÜLEYVAN DEVİRCİYENİKÖY MAH.LEMEK CAD.NO:100 466 517 34 930 466 517 34 93
AYDINKUŞADASIADA TEKNİKHASAN KUŞEGE MAH. AYDIN BULV. NO:25/A0 256 614 26 320 256 614 25 41
MERKEZEFE SOĞUTMAADNAN YALÇINKAYAGUZELİSAR MAHALLESİ TÜRKOCAGİ CADDESİ NO:38/A0 256 212 90 790 256 214 52 24
MERKEZKAYRA TEKNİKLEVENT ÖZENÇMIMAR SINAN MH. YORÜK ALI EFE BLV. AL KONUT SITESİ NO:24/F0 256 219 12 970 256 219 12 97
NAZILIMERT BOBINAJ SOĞUTMANAILE-MUSTAFA KABASAKALALTINTAŞ MH.FEVZİ ÇAKMAK CD. NO:22/A0 256 313 62 660 256 313 62 66
SÖKEMURAT SOĞUTMAMURAT ÇALIŞKANYENİ CAMİ MH. SEKİLER CD. NO:33/A0 256 512 77 740 256 518 50 22
DIDIMYORAN SOĞUTMADENİZ DEMİRTAŞYENİ MAH R21 SOK. NO:160 256 811 24 650 256 811 40 70
BALIKESİRBANDIRMAEMEK TEKNİKMURAT SAĞIRIHSANIYE MH. 8 EVLER SK.NO:18/B0 266 714 12 500 266 714 12 50
MERKEZERDOĞAN ELEKTRİKSAİM ERDOĞANALI HİKMET PAŞA MH.ALTAY CD.NO:560 266 245 84 850 266 245 84 85
EDREMITGİZEM ASLANTAŞGİZEM ASLANTAŞCAMİ VASAT MAH 23 SOKAK NO/6/B0 266 373 77 880 266 373 25 34
BURHANIYEUĞUR TEKNİKŞAKİR DUYGULUVAHKEME MH.MITHATPAŞA CD.NO:640 266 412 86 890 266 412 86 89
BARTINMERKEZEFE SOĞUTMAOKTAY KAMANOKULAK MH. TOPÇU KONAĞI CD. NO:110/A0 378 227 56 590 378 227 82 92
BATMANMERKEZAKDAŞ KARDEŞLER SOĞUTMAM.EMİN AKDAŞYUDINLIK EVLER MAH. 12. CD. NO:1270 488 214 04 740 488 215 10 79
BILECKBOZÜYÜKTÜL-SEV TEKNİKILHAN BİLGİNKASIMPAŞA MH. KIVRIKOĞLU CD. NO:130 228 314 79 570 228 314 78 57
RINGÖLMERKEZPINAR SOĞUTMAMUHAMMET PINARYENİŞEHİR MH. HAYDAR ÜNSAL CD.BUKET SK.GÜL APT.NO:10 426 214 11 910 426 214 11 91
BITLISTATVANDOĞU TEKNİKFATİH GEÇLERTUĞ MAH ZİRAİ DONATIM CAD.NO:1060 434 827 11 77
BOLUMERKEZKLIM SOĞUTMA VE ELEKTRİKERGÜN RUZGARKARAMANLI MH.ŞEHITEROL MÜHÜRCUÖĞLU SK.NO:10/A0 374 212 23 320 374 212 12 32
BURDURMERKEZDADAK SOĞUTMAVURAT DADAKKONAK MH. RIZA DOĞRUL CD. NO:290 248 233 49 070 248 233 49 07
BUCAKÖZDOĞAN SOĞUTMABAYRAM ÖZDOĞANOĞUZHAN MAH 3911 SOK.NO:70 248 325 25 750 248 325 25 75
MERKEZSUDE SOĞUTMASERKAN EVCİLÖZĞÜR MAH ÇELIK SOK.NO:120 248 234 03 030 248 234 03 03
KARAMANLIŞENGÜN TEKNİKMEHİM ŞENGÜNPAZAR MH. HAL BINALARI NO:20 248 531 23 520 248 531 23 52
BURSAOSMANGAZIAYOJIN TEKNİKIBRAHİM AYDINSOĞANLI MH.NILÜFER CD.NO:660 224 233 11 480 224 233 10 74
INEGÖLBULVAR TEKNİKVAROL YILMAZSINANIBEY MAH.MURAT CAD.NO:1/A0 224 713 89 920 224 713 89 92
NILÜFERERER TICARETERTÜRÜL ERDOĞANBEŞEVLER NILÜFER TICARET MERKEZİ KAĞAN PLAZA NO:150 224 544 86 160 224 544 98 75
INEGÖLIKLIM SOĞUTMA ISITMACENGİZ KAYANKEMALPAŞA MH. YEŞIL ÇAYIR SK. NO:220 224 712 31 000 224 712 31 14
KARACABEYKARTEK ISIHASAN ŞİMŞEKTAVŞANLI MH. 135. SK. NO:170 224 662 35 020 224 662 35 02
YILDIRIMMENZIL SOĞUTMASMAİL ALANKAYADAVUT DEDE MH. FATİH SULTAN MEHMET CD. NO:280 224 361 62 790 224 361 62 79
GEMLİKPAŞA TEKNİKADEM ERDOĞANDR.ZIYA KAYA MH.JILICA CD.NO:250 224 513 68 400 224 513 68 40
ÇANAKKALEMERKEZALKAR İKLIVLENDİRMEYÜKSEL ALDEMİRİSMETPAŞA MAH.KAYAALP CAD.NO:20.286 213 15 150.286 213 15 17
GELISOLUGÜNGÖR TEKNİKUFUK GÜNGÖRGAZİ SÜLEYMAN PAŞA CD. GAZİ SÜLEYMAN PAŞA MH. ÖZTÜRK SİT. NO: 10.286 566 40 090.286 566 40 98
ÇAN S.C OTOVASYON CENGIZ MANDACI TERZIALAN BELDESİ ÇAKMMAYI MH.BAGLAR SK.NO:26
ÇANKIRIŞABANOZUAYDOĞDU TEKNİK SOĞUTMAABDULLAH AYDOĞDUCUMHURIYET MH. BELEDIYE ŞMERKEZI YANI NO:11/20.376 518 15 540.376 518 12 76
MERKEZCIHAN TEKNİKCIHAT ASLANBUŞDAY PAZARI MAH.ATATÜTK BLV.ANIL APT.A BLOK NO:40.376 212 29 160.376 212 29 16
ÇORUMMERKEZERDEM SOĞUTMAERSOY ERDEMKALE MAH.EMEK CAD.NO:14/B0.364 224 77 800.364 224 77 80
DENİZLIMERKEZAKSU TEKNİKMUHAMMET AKSUDEŞIRMENÖNÜ MH. 1739 SK. NO:120.258 264 44 040.258 264 44 04
MERKEZSISTEM SOĞUTMAILKER TEKDEMİRTOPRAKLİK MH. 571 SK. NO:11 / A0.258 242 59 810.258 264 99 23
ÇİVRİLTEKİN TİÇARETFIRAT TEKİNSARAY MH.DEŞIRMEN CD.20. SK. NO:120.258 713 65 220.258 713 65 22
DİYARBAKIRBAĞLARKAYA ISITMA VE SOĞUTMAŞEYHVUS KAYAS NİSAN MH. GİRNE CD. 38. SK. NO:56/C0.412 235 15 150.412 235 15 15
MERKEZMETROPOL SOĞUTMAMEHMET ÖCALDİLEKENT BLV. 204.AZEL YAPİÇİFT LİSİT. A BLOK ALTI NO:20.412 257 03 900.412 224 10 10
MERKEZSUDEM TEKNİKMEHMET HANİFI DEMİRPEYAS MH.523. SK.SERIN EVLER 3 SİT. B BLOK ALTI NO: 19 /A KAYAPINAR/0.412 252 41 880.412 252 41 88
ERGANITEKNİK ELEKTRİKIBRAHI BUDAKİSVETPAŞA MAH ISTASYON CAD NO:90.412 611 04 010.412 611 04 01
DÜZCEMERKEZKÜÇÜKLER SOĞUTMAERÇİN KÜÇÜKKÜLTÜR MH.SÜLEYMAN KUYUMCU CD.NO:77/B0.380 512 39 560.380 512 39 56
EDİRNEUZUNKÖPRÜÇAĞDAŞ TEKNİKÇAĞDAŞ ÖZKAYALARLIHAYRABOLU CD. NO:58/A0.284 518 33 990.284 518 33 99
MERKEZOCAK TEKNİKHARUN OCAKYANCIKÇI ŞAHİN MAH. ATATÜRK CD. NO:31/10.284 225 63 900.284 225 63 91
KEŞANSIMGE SOĞUTMAISMAIL BAYILMIŞBÜYÜK CAMI MAH. İSTİKAL CAD. NO 290.284 712 39 030.284 714 70 34
ELAZİĞMERKEZMEHMET ZORLUMEHMET ZORLUINZAİYE MH. KIBRİŞEHİDI MEHMET GÜÇÜLD CD. NO:63/A0.424 238 65 310.424 238 09 62
ERZINCANMERKEZAKAR ELEKTRİKEIBUBEKİK ARAKKARAAGAÇ MH.SÜVERBANK CD.NO:100.446 214 24 840.446 214 24 64
ERZURUMMERKEZKARDELEN SOĞUTMAEBUBEKİK AINŞÜKRÜPAŞA MH. ŞIH KÖYÜ CD. EVİN EVLER ALTI NO:132 YAKUTIYE0.442 319 11 440.442 319 11 44
ESKİŞEHİRMERKEZEKSEN TEKNİK SERVISSALH ZENGİNARIFIYE MH. M.KEMAL ATATÜRK CD. NO:10/D0.222 234 33 320.222 234 59 96
MERKEZESKOM ELEKTRONIKDURMÜS TEPECİKKIRMIZI TOPRAK MH. ALI FUAT GÜVEN CD. NO:31/A0.222 224 15 300.222 224 15 50
GAZİANTEPMERKEZNEW TEKNİKALPER EŞKİNBATIKENT MH. MUHSIN YAZKIOĞLU CD. NO:12 ŞEHİTKAMIL0.342 322 89 890.342 322 78 78
GIRESUNMERKEZKARATAŞ TEKNİKBAHADIR KARATAŞSULTAN SELİM MH.TOPAL SK. NO:310.454 216 42 180.454 216 42 18
GÜMÜSHANEMERKEZRECEP KOIOTOĞLURECEP KOIOTOĞLUHASAN BEY MAH. CUMHURIYET CD. NO:94 B0.456 213 74 490.456 213 74 59
HAKKARİMERKEZMAKAN TEKNİK SOĞUTMASERKAN SERİKÇEVRE YOLU SIVACI APT.NO:84/B0.438 211 73 030.438 211 73 03
HATAYSAMANDAĞAKBABA TEKNİKYAHYA ARBABACUMHURIYET MH. İLKOKUL CD. SS.SOKAK NO:30.326 512 19 290.326 512 19 29
MERKEZGÜZELYÜZ SOĞUTMA ISITMABEREKET GÜZELYÜZATATÜRK MH. ATATÜRK CD. NO:413 HARBIYE0.326 231 48 880.326 231 29 32
ISKENDERUNKAYNAR ISITMAOLCAY KAYNAR- OKTAY KAYNARŞEHITPAMİR CAD. KURTULUŞ MAH. 79/1 SOK NO: 8 / D0.326 614 25 170.326 614 25 22
İĞDIRMERKEZPARLAK TEKNİKIBRAHİM PARLAKTANSU ÇİLLER CAD TOMURCUK SOK.NO:150.476 227 47 510.476 227 47 51
İSPARTAMERKEZBOLAT SOĞUTMAÜMIT YÜCEERYAYLA MH.130 CD.NO:19/B [ESKI SSK BINASI ARKASI]0.246 223 19 660.246 218 23 21
YALVAÇKADİR SOĞUTMAKADİR ELBENLİESKİ SANAYI SİTESİ 2.BLOK.NO:60.246 441 04 350.246 441 04 35
MERKEZTİĞLI TEKNİK SERVISMEHMET ALI TİĞLIKEPECI MH. AKSU CD. NO:2/F0.246 223 76 930.246 223 76 92
İSTANBULKAVACİK/BEYKOZBEYAZ SERVISTUNCAY ÇUKURF.S.M CAD.SULH.SOK.NO:6/A0.216 537 01 050.216 537 01 07
KAĞITHANEBURAN SERVISHAMZA BURANVERKEZ MH. HIMMET SOK. NO:70.212 321 29 770.212 321 29 52
AVOLARBURAN SERVISHAMZA BURANÜNÜVERSİTE MH. ÇARDAK SK. NO:200.212 593 81 010.212 694 79 98
ÜMRANIYEÇAĞDAŞ SERVISMURAT COLAKİSTİKAL MH. KAVAKLIDERE CD. NO: 83/20.216 523 79 980.216 523 79 99
GAZIOSMANPAŞADUYGUN SERVISENGIN DUYGUNKARAYOLLARI MH. ABDİ IPEKÇI CD. NO:143/A0.212 419 35 510.212 419 35 54
KÜÇÜKÇEKWECEEKİP ELEKTRONIK TEKNİK SERVISGAZİ ASLANATATÜRK MH. İKİTELLI CD. S. SK. NO: 42 HALKAU0.212 472 45 000.212 472 45 35
İÇERENKÖY/ATAŞEHİREMEK SERVISİSMİL BİÇERKARSLI AHMET CD. ÇİZEK SK. NO:170.216 574 09 900.216 572 39 75
MECIDİVEKÖYGÜVEN TEKNİKHÜSEYİN AŞÇIFULYA MAH.MEHMETÇİK CADDESI NO:18/A0.212 213 11 850.212 213 11 87
İZMİRÖDEMİŞATOM BOBINAIERSİN BOYLUERAKINCLAR MAH. MAHSEL SOK. NO:19/A0.232 545 40 970.232 543 23 88
BERGAVAFAVORI SERVISALİ ASIKERTUĞRUL MAH.2.BAĞLAR CD.NO:10/B0.232 633 58 890.232 632 11 62
İHATAYGÜMÜŞ TEKNİKHAKAN GÜMÜŞ9109 SK. NO:17/B0.232 232 79 790.232 232 79 79
ŞİRİNYERİŞİK TEKNİKYAŞAR İŞİKNAMİK KEMAL CD.NO:50/B0.232 452 75 920.232 452 75 92
İŞİĞILIOZSER SERVISSEZER ŞENBAŞANADOLU CAD.NO:996/B0.232 329 02 310.232 329 01 34
URLASEZER SOĞUTMAOBEN SEZERBÜLENT BARATALI CD.JANDARMA KAVŞAĞI NO:92/B0.232 754 45 540.232 754 45 54
TIREYILDIZ ELEKTRONİKSEZAI ŞENGÜNKURTULUŞ MH.AKYOL CAD.NO:52 TIRE0.232 511 63 190.232 511 63 19
KAHRAVANMARAŞMERKEZARZU SOĞUTMAEIDER ÇAKARDUMLUPINAR MH.SAITZARİFOĞLU RULVARI NO:33/A0.344 223 96 540.344 223 96 54
ELİBİSTANGOK SOĞUTMABRAHİM GÖKGÜNEŞLI MH. AHMET KARACABEY CD. NO:17/C0.344 413 28 490.344 413 28 49
KARABÜKMERKEZNUR ELEKTRİKAHMET NURI TUNCAYHÜRİYET MH.KURNAZ SK.NO:2/A0.370 424 32 950.370 424 32 95
KARAMANMERKEZÖZKAR SOĞUTMAMEHMET TEBERKAZIM KARABEKİR PAŞA MH. ŞEHİT NİHAT AKMAN CD. NO:110.338 214 15 200.338 214 15 20
KARSMERKEZTAHA ELEKTRİKHALUK KEPENEKİBAKIRCILAR CD. NO:410.474 212 08 890.474 212 08 89
KASTAMONUMERKEZANIL TEKNİK SERVISSAIT AHMET AYDINM.A.ERSOY MH. ARNAVUTOĞLU CD. C BLOK TAHMİSCIOĞLU APT NO:6/B0.366 214 44 700.366 214 44 70
TOSYAULUER SOĞUTMAERDAL KOLAYCAMİT ATIK MAH HÜKÜMET CAD NO:73/A0.366 313 47 090.366 313 47 09
KAYSERİMERKEZKILIŞ TEKNİKMÜKREMİN KILIŞALSANCAK MAH. YAVUZSULTAN SELİM CD.NO:1130.352 245 25 760.352 245 25 76
KIRIKKALEMERKEZİŞİK SOĞUTMA ISITMA SİSTEMLERİMUSTAFA İŞİKGÜRLER MAH MILLET CAD NO:141/F0.318 225 25 000.318 225 25 00
KIRKLARELİBABAFSKISEVINÇ TEKNİKNURETTİN SEVINÇGAZİ KEMAL MAH. ÇÖMLİKÇI SK.NO:190.288 512 16 580.288 512 16 58
KIRŞEHİRMERKEZNET SOĞUTMABAYRAM AKKUŞAHI EVRAN MH. ŞEHİT BEKİR KORKMAZ CD. MAVIKOŞK APT. B-BLOK NO:29/30.386 213 00 540.386 213 00 54
KOCAELİGÖLCÜKÇAĞ TEKNİKİLYAS ÖZÇAKIRMERKEZ M.H. PREVEZE CD. No:29-A0.262 414 28 820.262 414 31 33
MERKEZDENİZ SOĞUTMAÖMER FARUK ATABAŞKOZLUK MH. İNÖNÜ CD. No:4/B0.262 324 93 040.262 331 49 29
GEBZESERVİŞ 24TERHAT DUYDUNFEVZİ ÇAKMAK MAH. EGİTİM CAD. NO:32 DARICA0.262 642 04 640.262 642 04 65
IZMITSERVIS 24FERHAT DUYDUNYENİŞEHİR MAH, AHMET ZIYA SK. NO:730 262 233 24 240 262 233 24 24
KONYASELÇUKLUERTUĞRUL TEKNİK SOĞUTMAAHMET ERTUĞRULPERİTPAŞA MH. NİŞANTAŞ SK.NO: 27/A0 332 238 33 990 332 238 33 97
AKŞEHİRSUDE SOĞUTMAAHMET KOCALİTİYARESKİ GARAJ ARKASI TOPALOĞLU APT. NO:6/B0 332 813 14 410 332 813 14 41
EREĞLITEK-SER SERVIS HİZMETLERİADNAN DEMIRTAŞESNAF SITESI A BLOK. NO:70 332 712 06 610 332 712 06 61
KÜTAHYAGEDIZÇAĞDAŞ SOĞUTMAMUZAFFER KARAKOYUNÖZÜURT MH.150 SK. NO:9-100 274 412 48 980 274 412 48 98
MERKEZELIFOĞLU ELEKTRİKFATIH TANLIKOLUF.S.M BULVARI NO:43 / B0 274 226 32 800 274 226 32 80
TAVŞANLIKRİSTAL SOĞUTMAYUSUF ÖZDEMİRKAVANKLI MAH.T.AVŞAN TARLA SK.NO:14/A0 274 614 93 990 274 614 93 99
SIMAVYUSUFCA TEKNİKYUSUF KAHRAMAN4 EYLÜL MH. YILDIRIM BEYAZIT CD. NO:390 274 513 19 950 274 513 19 95
MALATYAMERKEZBAŞER TEKNİKMEHMET BAŞERVİMAR SİNAN CD. NO:47 / A0 422 321 14 130 422 321 14 13
MERKEZERCAN TEKNİKERCAN ŞİMŞEKKÜĞÜK MUSTAFA PAŞA MH. MILLI EGEMENİK CD. NO:950 422 321 40 460 535 613 68 55
MANİSAMERKEZEKOL SERVISMETİN BULDİKMİMAR SİNAN MILLERLER CD. NO:17/A0 236 232 74 660 236 238 48 93
AKHİSARMADENTEPE TİCARETHÜSEYİN MADENTEPERAGIPBEY MH. IJSOK. NO:10A0 236 414 11 860 236 414 41 33
ALAŞEHİRÖZ HISAR DAYANIKLI TÜKETİM MALLARITARIK DAKNI - BİLAL KOCATÜRKSARISU MH. ISTIKLAL CD. NO:199/A0 236 653 44 510 236 653 50 86
SALIHLIÖZEN SOĞUTMAIBRAHIM GÖVLEKSIZMITHAT PAŞA MH. 6.SK. NO:3/B0 236 712 51 190 236 712 51 19
MERKEZŞEN SOĞUTMAHAKAN ŞENARDA MAH.KENZİ CADDESİ NO:52/A0 236 232 22 720 236 232 22 72
KIRKAĞAÇTEKNİK SOĞUTMABÜLENT SİKÇELİKYENİ MH. 34. SK. NO:162/B0 236 588 18 100 236 588 18 10
MARDİNKIZILTEPEARSLAN TEKNİKBİLAL ASLANYENİ MH. 507 SK. NO:19/S0 482 312 64 080 482 312 64 08
NUSAYBİNMODERN TEKNİKERMEHEMET ALİ BALASELAHATTİNEYÜBI MAH.MEKTEP SOK. NO:20/D0 482 415 00 470 482 415 00 47
MİDYATNEMAX MAKINAERCAN KANVAZBAHÇELİ EVLER MH. KAZIM KARABEKİR CD.AKKENT 2 BLOK NO:25-3/80 482 462 30 050 482 462 14 47
MERSİNMERKEZDEMİR TİCARETDURSUN DEMİRGÜVENEVLER MH. DUMILIUPINAR CD.MINA GÖK APT. NO:28/B0 324 231 25 220 324 231 25 22
MUTGENÇ SOĞUTMAMEHMET GENÇPINARBAŞI VH. MARA CD. NO:12/A0 324 774 63 350 324 774 63 35
ANAMURGÜNEY SOĞUTMAMEVLUT DEMİRESENTEPE MH.23 NISAN CD. NO:220 324 816 80 360 324 816 80 36
TARSUSGÜNEY TEKNİKMURAT SAMİ GÜNEYŞEHİT ISHAK MH. MEVLANA CD. NO:110 324 625 55 060 324 625 55 07
HİRDMLİGÜVEN SOĞUTMAHİLMİ OKURMERKEZ MAH.TÜRBE CAD. ERENLER İSHANI EMN. MÜD. KARŞISI NO:50/D0 324 515 31 840 324 515 31 84
SİLİKEKARDEŞLER SOĞUTMAMURAT BULDUKGAZİ MAH OĞUZKAAN CD. NO:410 324 714 78 030 324 714 78 03
YENİŞEHİRNEW TEKNİKALPER EŞKİNHÜRBİYET MAH İSMET İNÖNÜBULVARI NO 103/B0 324 327 27 500 342 322 78 78
MUĞLABODRUMARBON TEKNİKVEYSEL BONCUKÖZBEK CAD.HAMZA SOK. NO:170 252 319 60 770 252 319 60 77
MERKEZÇAĞLAR SEVIS VE TİCARETMEHMET KARAOĞLUVÜŞTAKBEY MH. RAGIPBEY CD. NO:50 252 214 13 910 252 214 44 73
MILASEMEK SOĞUTMASELCÜK ZORLUFIRUZPAŞA MAH. KİŞLA CAD. NO:450 252 513 00 670 252 512 40 67
MARVARISMARMARIS TEKNİKMEMİŞ TÜREDİÇİLDIR MH. 105. SOK. TOKER APT. NO:10/10 252 412 24 720 252 412 65 25
BODRUMNURBAY TEKNİKNURETTIN AKKUŞCUMHURIYET CAD NO:194/A/B ORTAKET0 252 358 55 820 252 358 55 83
FETHİYEŞUNKA TEKNİKRESUL ŞUNKATUZLA MH.ADNAN MENDERES BULVARI AYKURT 1 APT.NO:20/10 252 612 27 020 252 612 27 02
MIŞMERKEZGÜNAY SOĞUTMARAGIP GÜNAYATATÜRK BULVARI NO 141/A0 436 212 28 890 436 212 18 39
MERKEZÖMER TEKNİKÖMER ATALAYCUMHURIYET CD.ESKI HAL YANI 167. SK. NO:550 436 212 50 620 436 212 50 62
NEVŞEHİRMERKEZEREN SOĞUTMAFATH OLGUN350 EVLER MAH CANER SOK NO.7/B0 384 213 02 040 384 213 02 04
MERKEZKÖSE SOĞUTMAFEVZİ KÖSERAGIP ÜNER MAH. ZÜBEYDE HANIM CD. NO:460 384 212 93 340 384 212 81 85
NIĞDEMERKEZDEHA TİCARETHALILI ERTAŞŞAH SÜLEYMAN MH. SUAT BAYKAL CD. ÇETİN APT. ALTI. NO:14/G0 388 233 67 570 388 233 67 57
ORDUMERKEZSON-TEKAHMET TEMELBUCAK MAH. BEKIR SİTKI PAMUK CAD. NO:36/A0 452 666 88 890 452 666 88 89
MERKEZTEKNİK SOĞUTMAYUSUF TEVELBUCAK MH. 420 SK. NO:3/A0 452 222 21 010 452 222 21 01
ÜNYEZORLU SOĞUTMAZEKİ ZORLULİSELER MH. DEĞIRMEN YOLU. 1. SK. NO:14/A0 452 324 19 190 452 324 19 19
OSMANİYEMERKEZBÜRLİK SOĞUTMAILYAS GÜZELISTIKLAL MAH . AKYAR CD NO:60 KOCYİĞİT APART0 328 814 60 540 328 813 31 20
RIZEARDEŞENEVRİM ELEKTRONİKCAHİT DEMİRÇELİKYENİ MH.LATATTÜRK CD.NO:85/B0 464 715 17 170 464 715 11 26
MERKEZINCI TEKNİKKERIM KESKİNVIUFTÜ MAH STADYUM SOK NO:30/A0 464 213 29 850 464 214 35 44
MERKEZTOPRAK TEKNİKFATH TÖPRAKTOPHANE MH.KACKAR CD.NO:190 464 212 22 230 464 212 22 23
SAKARYAMERKEZKUZYE SOĞUTMAZEKİ BULUTŞEKER MAH.SEDAT KIRTATE FE CAD.NO:36/D0 264 279 23 900 264 279 23 90
SAMSUMMERKEZÇAĞDAŞ SERVISHAŞİM EMIRBUYURANHANÇERLİ MH.100.YIL BULV.NO:170 362 446 30 020 362 447 00 24
BAFRAKARATAŞ TİCARETLHAN KARATAŞKIZLURMAK MH. FEVZİ ÇAKMAK SK. NO:180 362 543 04 910 362 543 63 87
MERKEZSAYLOR ELEKTRONİKMUSTAFA KÜÇÜKYILMAZFEVZİ ÇAKMAK MH. LİSE CD. NO:520 362 234 61 050 362 234 61 05
SIIRTKURTALANAKSOY SOĞUTMA LTD ŞTİ.FIRAT AKSOYJULU CAMİ ALTI NO:200 484 411 26 910 484 411 50 67
MERKEZDEMİR SOĞUTMAALI DEMİRCUMHURIYET CAD. SUAT BEDÜK SOK. NO:1 SIRT0 484 273 37 510484 273 37 51
SINOPMERKEZDEMİREL TİCARETRAFET DEMİRELMEYDANKAPI MH.NALBANT SK.NO:50 368 260 07 870 368 260 07 87
BOYABATÖZTÜRK BEYAZ ESYABAYRAM ÖZTÜRKGÖKDERE MH. YUSUF KEMAL BEY CD. NO:24 PTT KARŞISI0 368 315 61 210 368 315 61 21
AYANCİKYILKAY SOĞUTMAMEHMET YILMAZYALI MAHALLESİ DOKTOR AVNI HAMZAÖĞLU CADDESİ NO:460 368613 52 120 368613 52 12
SIVASMERKEZSOĞUK TEKNİKAHMET ÖSTUNDAĞESKI KALE MAH. SARAY YOLU SK. BÜYÜK DOĞU APT. ALTI. NO:8/A0 346 221 17 890 346 223 87 98
MERKEZYENICE TEKNİKEROLYENİCELİÇARŞIBASI CAD.BURAK APT.ALTI NO:30 346 225 35 320 346 223 39 17
ŞANLI URFACEYLAPINARASAN SOĞUTMAMUZAFFER ASANCUMHURIYET CD. NO:1200 414 471 44 100 414 471 44 10
SİVEREKSAVET TEKNİKS.SEHMUS BEGEÇABDALAGA MAH.UCAR CAD. NO:160 545 668 03 630 545 668 03 63
VİRANŞEHİRSEÇKİN BEYAZ ESYAWEHMET GÜDERYENİŞEHİR MH. 1819 SK. NO:8/B0 414 511 68 470 414 511 68 47
MERKEZSERVAN BOŞINAJHALILI SEKERYENİŞEHİR MAH. 229. SK. EVİR APT. ALTI NO:19/A0 414 312 93 270 414 315 36 15
BIRECIKYARAŞIR SOĞUTMAFATH YARAŞIRMEYDAN MH. KOPRU ÇIKISI NO:90 414 652 36 380 414 652 36 38
ŞIRNAKCIZREUZANLAR SOĞUTMAHÜSEYIN UZANYAFES MAH.SITTİN NEFIS CAD. NO:240 486 616 30 310 486 616 30 31
SARAYBATI TEKNİKBÜLENT BARLASYENİ MH.TAKSIM CD.NO:90 282 768 69 340 282 768 69 34
TEKİRDAĞÇORLUBEYAZ TEKNİKEMRULLAH AYREŞADIYE MAH ŞİNASİ KURŞUN CD.3.SK.NO:15/A0 282 653 83 430 282 653 83 43
ÇERKEZKÖYDENİZ SOĞUTMASEYİT DENİZGMKP MAH.HASAN ÇAVUŞ SOK.NO:40 282 726 34 040 282 726 34 04
MERKEZ GÜLEN TEKNİK İSMAIL GÖKŞİN YAVUZ MAH.LİSE CAD.NO:190 282 261 07 78 0 282 261 07 78
MERKEZKURAL SOĞUTMANURKAN KURALERTUĞRUL MAH. GÜNEŞ SK. TÜFEKÇİ KENAN USTA PSJ. NO:7/80 282 262 55 460 282 263 89 17
TOKATERBAAEREL SOĞUTMAERKAN CIVELEKGAZIOSMAN PAŞA MAH.HÜKÜMET CD.NO:840 356 716 17 700 356 715 22 08
TURHALGÜÇLÜ ELKTRONİKOĞUZHAN ALEVDARCELAL MH. TUNA SK. NO:11/A0 356 276 39 660 356 275 87 54
MERKEZÖZGÜL TEKNİK SERVİSRIZA ÖZGÜLYEŞİL IRMAK MH. ÇAĞ GÖLÜ CD. NO:21/B0 356 214 60 700 356 213 17 75
TRABZONVAKFIKEBİRBIYIKLI SOĞUTMACOŞKUN BIYIKLIKEMALIYE MAH. FATİH CD. NO:320 462 841 48 310 462 841 30 92
MERKEZKENAN TEKNİKHAMİ KENANTOKLU MH. KURAN KURSU CD.HASAN TAHSİN SK.TÜRKLER APT.ALTİ NO:2/B0 462 224 31 630 462 230 42 45
AIKÇAABATTOPALOĞLU SOĞUTMAVELİ TOPALİNÖNÜ CD. NO:510 462 228 51 980 462 228 51 98
MERKEZYILDIZ ELEKTRONİKMUHAMMET ÇINARLIUZUN SOKAK ZAFER ÇARŞISI NO 4/50 462 321 03 310 462 321 03 31
TUNCELİMERKEZBATIN ELEKTRONİKALMET ALBAYRAKATATÜRK CAD. 25. SOKAK NO:10 428 213 10 700 428 213 10 70
UŞAKMERKEZMETİN SOĞUTMAHAKAN METİNÖZDEMİR MAH. YILMAZ ATAKSOR SK. NO:16\B USAK -MERKEZ0 276 223 96 350 276 227 80 23
VANERCIŞETALAR SOĞUTMAEROL ETAESKİ EMNIYET KARAKOLU ARKASI0 432 351 38 380 432 351 38 38
MERKEZYILMAZ TEKNİKÜBEYT YILMAZZÜBEYDE HANİM CD. ÖZ DOLUNAY SİTESİ ALTI NO:108/A0 432 212 03 140 432 214 95 25
YALOVAMERKEZEVSAN SERVİSMELİH - SERAP DOĞANİSTANBUL CAD.BORA SOK.NO:15/A0 226 811 18 11
YOZGATSORGUNSES SOĞUTMAAHMET TAŞKINOĞLUBAHÇELIEVLER MAH.ATATÜRK BULVARI OKULLAR APT.NO:10 354 415 80 810 354 415 29 46
MERKEZTUNCER SOĞUTMASİNAN-METİN TUNCERMEDRESE MAH.MAHMUT TURAN SK.SARGIN APT.ZEMİN KAT NO:20 354 212 68 190 535 666 02 91
SORGUNYILMAZ ISITMA VE SOĞUTMAÖMER YILMAZBAHÇELIEVLER MAH.MÜFTÜOĞLU CADDESİ NO:60 354 415 61 30
ZONGULDAKMERKEZEROL ELEKTRONİKISMAIL EROLMEŞRUTİYET MH.TAHİRKARAOĞUZ SK.UZUN ÇARŞI KI NO:1040 372 253 76 060 372 253 76 06
EREĞLIERŞAN SOĞUTMAYAŞAR ARSLANBAĞLIK MAH. ŞEHIT RIDVAN CD. .NO: 37 / D0 372 316 10 050 372 316 10 05
ÇAYCUMAUĞUR SOĞUTMAAYNUR-GÖKHAN KOYMATYENİ MH. HANIMELİ SK. BİLKENT SİTESİ YANI. KOYMAT APT. .NO:10 372 615 68 070 372 615 68 07

SILVERLINE VC 5317 B01 - TROUBLESHOOTING - 1

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SILVERLINE

Model : VC 5317 B01

Category : Frying Pan
