USER MANUAL DWST175659 DEWALT

The lightning flash with arrow head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock topersons. The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the user manual supplied with theappliance. WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to direct rain or moisture. Use only in drylocations.

WARNING: To reduce the risk of injury, read the instructionmanual.

Definitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to thesesymbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Denotes risk of electricshock. Denotes risk offire. EU‑Declaration of Conformity Radio Equipment Directive ToughSystem® Music + Charger

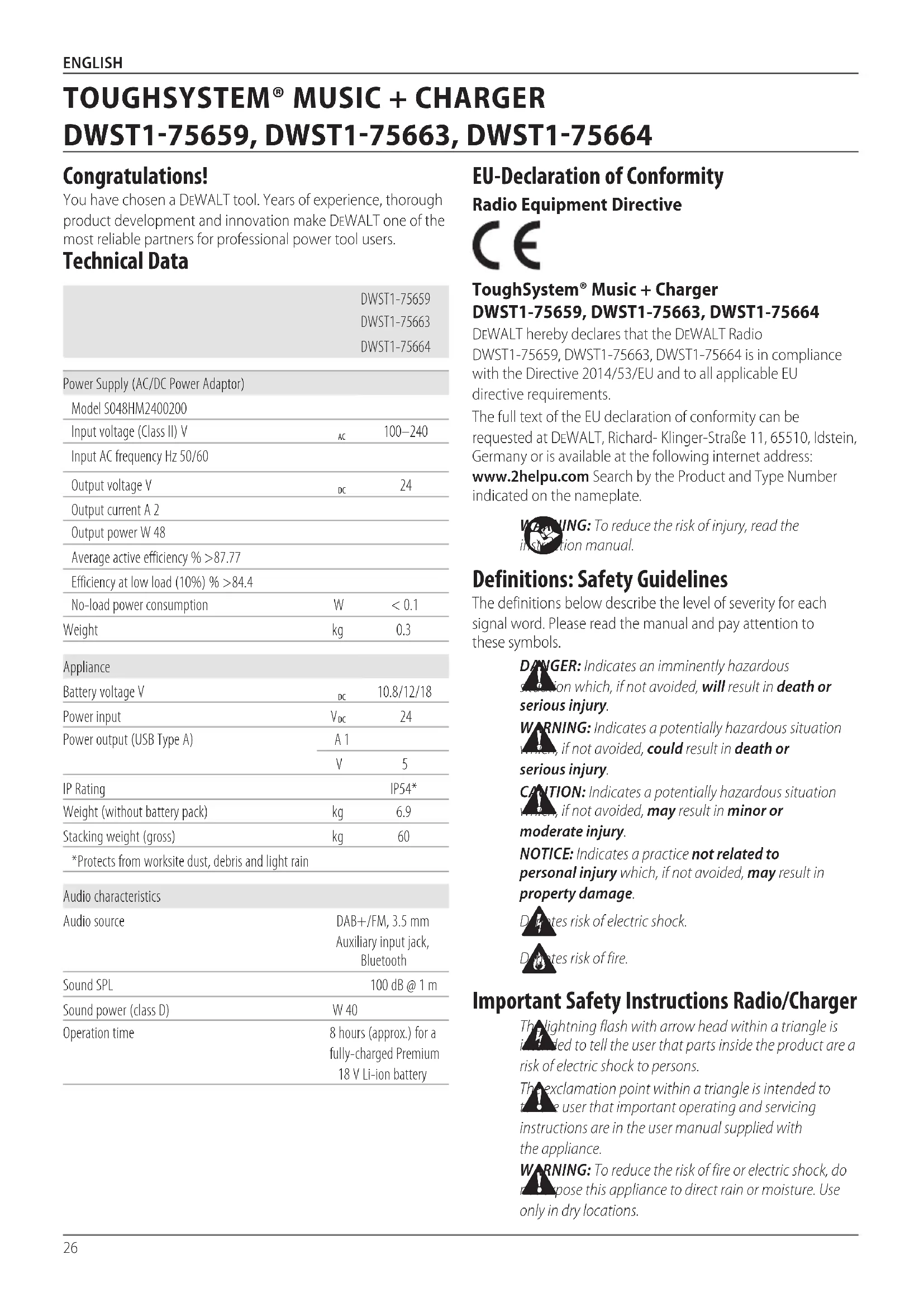

DWST1-75659, DWST1-75663, DWST1-75664

DeWALT hereby declares that the DeWALT Radio DWST1-75659, DWST1-75663, DWST1-75664 is in compliance with the Directive 2014/53/EU and to all applicable EU directiverequirements.The full text of the EU declaration of conformity can be requested at DeWALT, Richard- Klinger-Straße 11, 65510, Idstein, Germany or is available at the following internet address: www.2helpu.com Search by the Product and Type Number indicated on thenameplate.DWST1-75659DWST1-75663DWST1-75664Power Supply (AC/DC Power Adaptor)Model S048HM2400200Input voltage (Class II) V 100–240Input AC frequency Hz 50/60Output voltage V

Output current A 2Output power W 48Average active efficiency % >87.77Efficiency at low load (10%) % >84.4No-load power consumption W < 0.1Weight kg 0.3ApplianceBattery voltage V 10.8/12/18Power input V

Power output (USB Type A) A 1 V 5 IP Rating IP54*Weight (without battery pack) kg 6.9 Stacking weight (gross) kg 60 *Protects from worksite dust, debris and light rainAudio characteristicsAudio source DAB+/FM, 3.5 mm Auxiliary input jack, BluetoothSound SPL 100 dB @ 1 mSound power (class D) W 40Operation time 8 hours (approx.) for a fully-charged Premium 18 V Li-ion battery Congratulations! You have chosen a DeWALT tool. Years of experience, thorough product development and innovation make DeWALT one of the most reliable partners for professional power toolusers. Technical Data27 EnGLIsh Batteries Chargers/Charge Times (Minutes) Cat #

Weight *Date code 201811475B or later **Date code 201536or later Batteries Chargers/Charge Times (Minutes) Cat # V

DCB185 18 1.3 0.35 22 60 40 30 22 22 22 22 22 40 DCB187 18 3.0 0.54 45 140 90 70 45 45 45 45 45 90 DCB189 18 4.0 0.54 60 185 120 100 60 60 60 60 60 120 *Date code 201811475B or later **Date code 201536or later Chargers DeWALT chargers require no adjustment and are designed to be as easy as possible tooperate. Electrical Safety The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of yourmains.

Your DeWALT charger is double insulated in accordance with EN60335; therefore no earth wire isrequired.

CAUTION: To prevent electric shock, match the wide blade of the adaptor plug to the wide slot and fullyinsert. 1 . Read theseinstructions. 2 . Keep theseinstructions. 3 . Pay attention and follow allwarnings. 4 . Follow allinstructions. 5 . DO NOT use this appliance nearwater. 6 . Read and understand all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury. 7 . This appliance shall not be exposed to direct water and no objects filled with liquids, such as bottles, shall be placed on theappliance. 8 . Clean only with a dry or dampcloth. 9 . To protect the appliance from water or dust, always close the compartment cover, and the rubber cover of the DC power inputport. 10 . Use in accordance with the manufacturer’sinstructions. 11 . DO NOT place near any naked flame sources, such as lighted candles, heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produceheat. 12 . Protect the power cord from being walked on or pinched particularly at plug andreceptacle. 13 . Only use attachments/accessories specified by themanufacturer. 14 . When a cart is used, use caution when moving the cart/ appliance combination to avoid injury from tip-over. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with theapparatus. 15 . The AC/DC power adaptor should only be used as the power source for the appliance and for battery charging. To disconnect the appliance completely, the AC/DC power adaptor should be disconnected from theoutlet. 16 . Unplug this appliance during lightning storms or when unused for long periods oftime. 17 . The AC/DC power adaptor should be easily accessible and not obstructed while inuse. 18 . Refer all servicing to qualified service personnel. Servicing is required when the appliance has been damaged in any way, such as power-supply cord or plug is damaged, liquid or direct rain has reached the connectors, the appliance has been exposed to extensive moisture, does not operate normally, or has been dropped and does notoperate. 19 . This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for theirsafety. 20 . Children should be supervised to ensure that they DO NOT play with theappliance. 21 . Cleaning and user maintenance shall not be made by Children without supervision 22 . Use only with specifically designated DeWALT battery packs (see Battery Type for DeWALT-approved battery packs). Use of any battery packs other than those approved by DeWALT may create a risk of injury andfire. 23 . The radio/charger is designed to operate on 24V

Do not attempt to use it with any other power supply AC/DC power adaptor other than that supplied with theappliance. 24 . This product is intended for use only with the adaptorprovided. Brand name: DeWALT Model: S048HM2400200

The double insulation symbol (a square within a square) indicates a Class II electrical appliance and is intended to alert qualified service personnel to use only identical replacement parts in thisappliance.28 EnGLIsh

• These chargers are not intended for any uses other than charging DeWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose charger to rain orsnow.

• Pull by plug rather than cord when disconnecting charger. This will reduce risk ofdamage to electric plug andcord.

• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire,electric shock, orelectrocution.

• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate charger with damaged cord or plug— have them replacedimmediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised servicecentre.

• Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• In case of damaged power supply cord, the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent anyhazard.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect two chargerstogether.

• The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger. Charging a Battery (Fig.F)

1. Plug the charger into an appropriate outlet before inserting

into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink repeatedly indicating that the charging process hasstarted.

3. The completion of charge will be indicated by the red light

remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button

on the batterypack. If the supply cord is damaged, it must be replaced only by DeWALT or an authorised serviceorganisation. Mains Plug Replacement (U.K.& Ireland Only) If a new mains plug needs to be fitted:

• Safely dispose of the oldplug.

• Connect the brown lead to the live terminal in theplug.

• Connect the blue lead to the neutralterminal.

WARNING: No connection is to be made to the

earthterminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3A. Using an Extension Cable An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1mm

; the maximum length is30m. When using a cable reel, always unwind the cablecompletely. Important Safety Instructions for All BatteryChargers SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for compatible battery chargers (refer to TechnicalData).

• Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using batterypack.

WARNING: Shock hazard. Do not allow any liquid to get

WARNING: We recommend the use of a residual current

device with a residual current rating of 30mA orless.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable batteries. Other types of batteries may burst causing personal injury anddamage.

CAUTION: Children should be supervised to ensure that they do not play with theappliance. NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting toclean.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to worktogether.29 ENGLISHNOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before firstuse. Charger Operation Refer to the indicators below for the charge status of the batterypack.Charge Indicators Charging

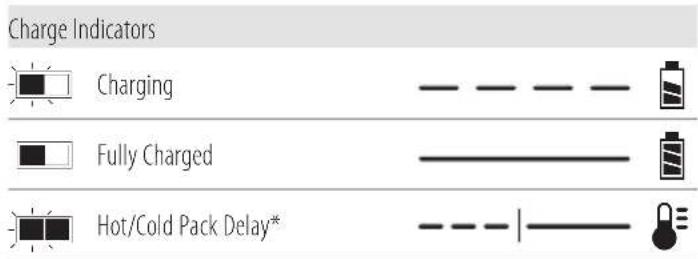

Hot/Cold Pack Delay*

• The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the chargingprocedure.The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing tolight.NOTE: This could also mean a problem with acharger.If the charger indicates a problem, take the charger and battery pack to be tested at an authorised servicecentre.Hot/Cold Pack DelayWhen the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife.A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery packwarms.Electronic Protection SystemXR Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deepdischarge.The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack on the charger until it is fullycharged. Wall Mounting These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 25.4mm long with a screw head diameter of 7–9mm, screwed into wood to an optimal depth leaving approximately 5.5mm of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Battery Packs Important Safety Instructions for All BatteryPacks When ordering replacement battery packs, be sure to include catalogue number andvoltage.The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging proceduresoutlined.

READ ALL INSTRUCTIONS

• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust orfumes.• Never force battery pack into charger. Do not modify battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personalinjury.
• Charge the battery packs only in DeWALTchargers.
• DO NOT splash or immerse in water or otherliquids.• Do not store or use the tool and battery pack in locations where the temperature may fall below 4˚C (39.2˚F) (such as outside sheds or metal buildings in winter), or reach or exceed 40˚C (104˚F) (such as outside sheds or metal buildings insummer).• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs areburned.• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persists, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark orflame.

WARNING: Never attempt to open the battery pack for any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution30 EnGLIsh Package Contents The package contains:1 Radio/Charger1 Instruction manualmay result. Damaged battery packs should be returned to service centre forrecycling. WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys,etc. CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover. Transportation

WARNING: Fire hazard. Transporting batteries can possibly cause fire if the battery terminals inadvertently come in contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Lithium-ion batteries should not be put in checkedbaggage.DeWALT batteries comply with all applicable shipping regulations as prescribed by industry and legal standards which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations, International Maritime Dangerous Goods (IMDG) Regulations, and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to section 38.3of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests andCriteria.In most instances, shipping a DeWALT battery pack will be excepted from being classified as a fully regulated Class 9Hazardous Material. In general, only shipments containing a lithium-ion battery with an energy rating greater than 100Watt Hours (Wh) will require being shipped as fully regulated Class 9. All lithium-ion batteries have the Watt Hour rating marked on the pack. Furthermore, due to regulation complexities, DeWALT does not recommend air shipping lithium-ion battery packs alone regardless of Watt Hour rating. Shipments of tools with batteries (combo kits) can be air shipped as excepted if the Watt Hour rating of the battery pack is no greater than 100Wh.Regardless of whether a shipment is considered excepted or fully regulated, it is the shipper's responsibility to consult the latest regulations for packaging, labeling/marking and documentationrequirements.The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer’s responsibility to ensure that its activities comply with the applicableregulations. Storage Recommendations 1. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold. For optimum battery performance and life, store battery packs at room temperature when not inuse.2. For long storage, it is recommended to store a fully charged battery pack in a cool, dry place out of the charger for optimalresults.nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged beforeuse. Labels on Charger and Battery Pack In addition to the pictographs used in this manual, the labels on the charger and the battery pack may show the followingpictographs: Read instruction manual beforeuse. See Technical Data for chargingtime. Do not probe with conductiveobjects. Do not charge damaged batterypacks. Do not expose towater. Have defective cords replacedimmediately Charge only between 4˚C and 40˚C. Only for indooruse. Discard the battery pack with due care for theenvironment. Charge DeWALT battery packs only with designated DeWALT chargers. Charging battery packs other than the designated DeWALT batteries with a DeWALT charger may make them burst or lead to other dangeroussituations. Do not incinerate the batterypack. Battery Type The following tools operate on a 18 volt battery pack: DWST1-75659, DWST1-75663, DWST1-75664These battery packs may be used: DCB181, DCB182, DCB183, DCB183B, DCB183G, DCB184, DCB184B, DCB184G, DCB185, DCB187, DCB189. Refer to Technical Data for moreinformation.31 ENGLISH Markings on Tool The following pictograms are shown on the tool: Read instruction manual beforeuse. Key Features

• FM-stereo with manual/auto scanning and memory preset ofstations.

• Bluetooth audio connectivity

• Auxiliary jack for connecting external audio devices

• USB power/charging port (5V/1A)

• Large LCD display with illumination

• Illuminated, soft-touch buttons

• Four tweeter drivers and two subwoofers for rich soundperformance Description (Fig.A–H)

WARNING: Never modify the radio or any part of it.

Damage or personal injury couldresult.

Top compartment latches (4x)

Top compartment cover

Battery pack cover latches (2x)

, which also includes the year of manufacture, is printed into thehousing. Example: 2021XX XX Year and Week of Manufacture V Volts A Amperes W Watts h Hours Direct current Class II Construction (double insulated) CE Mark Safety alert symbol

Auxiliary jack (3.5 mm)

USB power/charging port

Battery pack (not included)

Battery release button

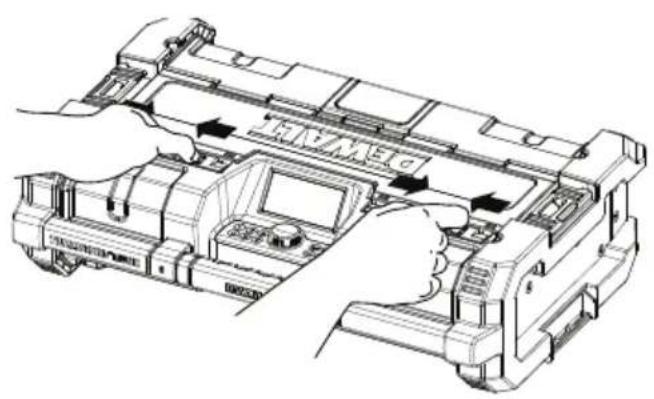

• To open the compartment cover, release the four locking latches

below the compartment yellow cover and openit. (Fig.B)

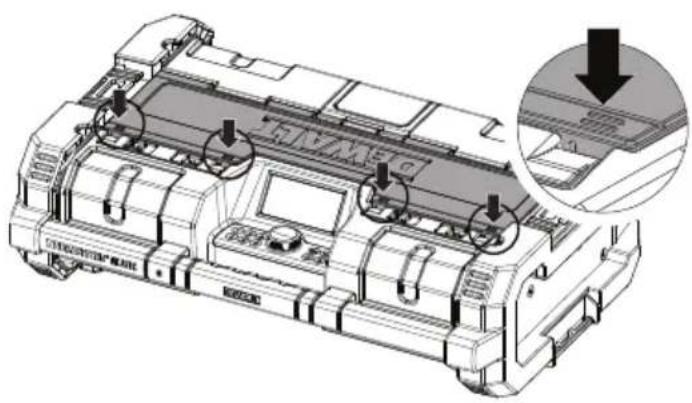

• To close the compartment cover

, push down on all four corners of the yellow cover. (Fig.C) NOTE: When correctly closed, the compartment protects its contents from dust, debris and lightrain.

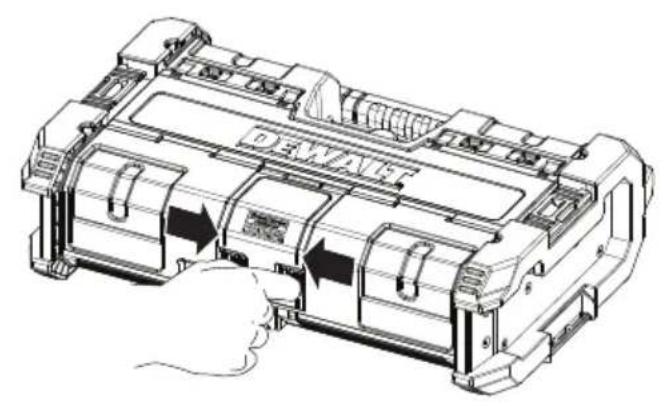

• To open the battery cover

, release the two locking latches

of the compartment yellow cover and open it. (Fig.D)

• To close the compartment, push the coverclosed. Intended Use The DeWALT ToughSystem® Music + Charger is a combination of a DAB+ and FM radio, Bluetooth and auxiliary music player. The system includes charging capabilities for DeWALT slide pack batteries. The ToughSystem® Music + Charger will charge most DeWALT Li-ion batteries. Batteries soldseparately. DO NOT use under wet conditions or in the presence of flammable liquids orgases. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons withoutsupervision.

• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with thisproduct. NOTE: Battery packs, chargers and kitboxes are not included with N models. Battery packs and chargers are not included with NT models. Bmodels include Bluetooth® batterypacks. NOTE: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DeWALT is under license. Other trademarks and trade names are those of their respectiveowners.

• Check for damage to the tool, parts or accessories which may have occurred duringtransport.

• Take the time to thoroughly read and understand this manual prior tooperation.32 EnGLIsh Inserting and Removing the Battery Pack from the Radio (Fig.F) nOTE: Make sure your battery pack

is fullycharged. To Install the Battery Pack into the Radio

with the rails inside the battery receptacle

2. Slide it into the receptacle until the battery pack is firmly

seated in the tool and ensure that you hear the lock snap intoplace. To Remove the Battery Pack from the Radio

1. Press the release button

and firmly pull the battery pack out of the batteryreceptacle.

2. Insert battery pack into the Radio as described in the

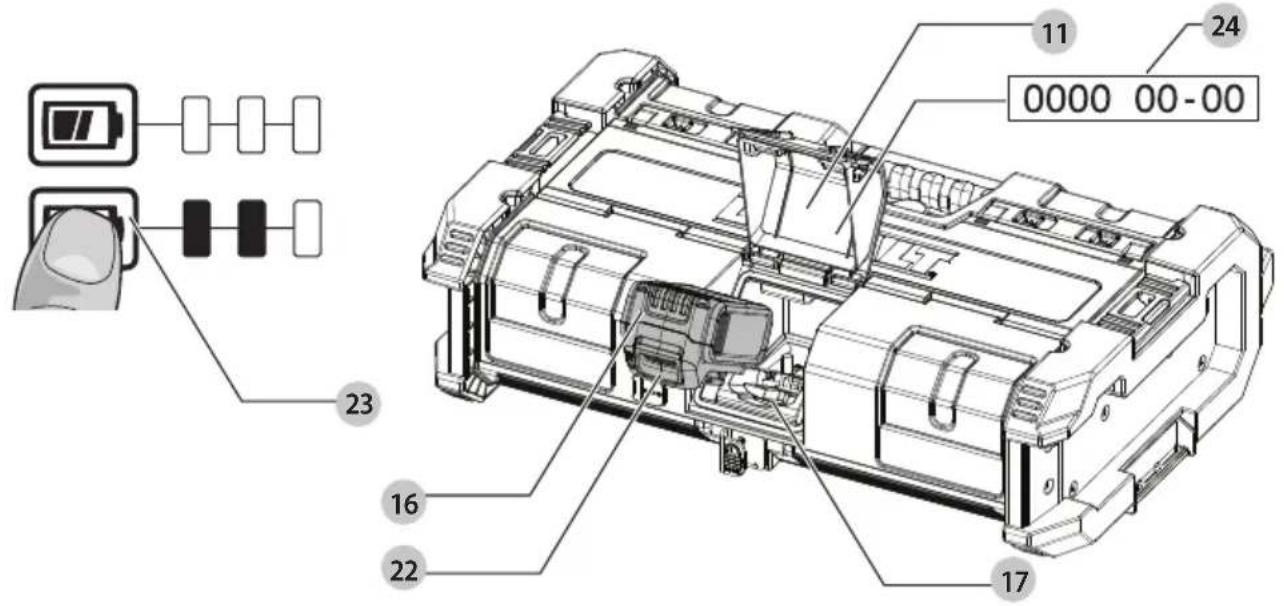

charger section of thismanual. Fuel Gauge Battery Packs (Fig.F) Some DeWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the batterypack. To actuate the fuel gauge, press and hold the fuel gauge button

. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to berecharged. nOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-userapplication.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury.

WARNING: Use only DeWALT battery packs andchargers.

LCD Indicators (Fig.G) When the appliance is turned OFF When charging a battery pack while the appliance is turned off, a large battery image is displayed in the center of the LCD screen

showing the battery pack chargingstatus. Battery pack is empty Battery pack level is low Battery pack is partially charged Battery pack is fully charged Hot/Cold Delay This charger has a hot/cold delay feature: when the charger detects a battery that is hot, it automatically starts a delay, suspending charging until the battery has cooled. After the battery has cooled, the charger automatically switches to the pack charging mode. This feature ensures maximum battery life. Charging a Battery Pack in the Radio (Fig.A, D–F) The ToughSystem® Music + Charge includes a large storage compartment. This compartment also stores and protects the AC/DC power adaptor when not in-use.

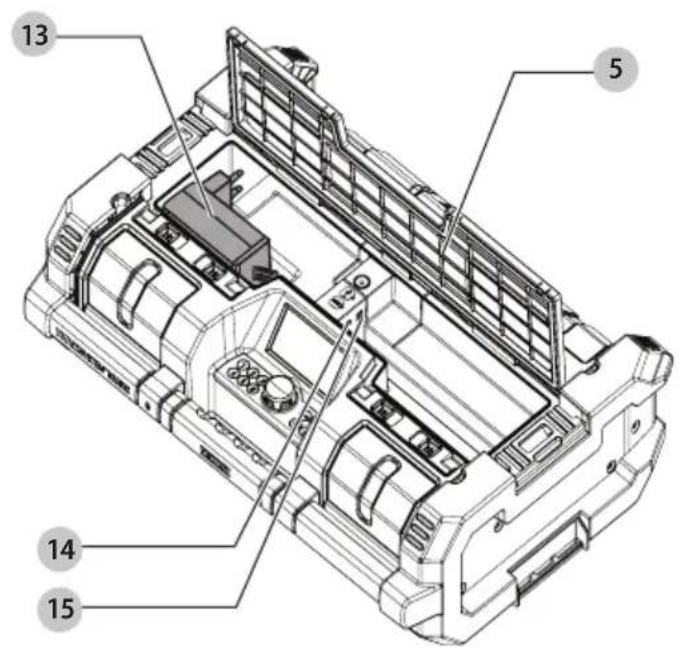

1. Open the top compartment cover

to take out the AC/DC poweradaptor.

2. Plug the charger AC/DC power adaptor into an appropriate

outlet and connect it to the power-in port

before inserting the battery pack

3. Open the battery pack cover

by releasing its lockinglatches

4. Insert the battery pack (not included) into the battery

receptacle, making sure the pack is securely held in the receptacle. The battery indicator will blink continuously, indicating that battery charging is inprocess. nOTE: Close the cover and check it is tightlyclosed.

5. The charging completion will be indicated by a steady

battery indicator. The pack is fully charged and may be used at this time or left in thecharger.

• Volume control and sound tone adjustment

• Mounts and locks to the DeWALT DWST08210 ToughSystem® L-Cart Carrier

• Stackable onto any ToughSystem® unit

• Water and dust resistant – IP54 tested

• DAB+ advanced digital audio broadcasting with information display as broadcast by the station

• DRC dynamic range compression allows quiet sounds to be comparatively louder, and loud sounds to be comparativelyquieter

WARNING: Always observe the safety instructions and

applicableregulations.

WARNING: Do not place the radio in locations where it

may be exposed to dripping orsplashing.33 ENGLISH OPERATION This appliance is equipped with memory capacity in order to store the selected radio channels and paired Bluetoothdevices. NOTE: The music mode will operate when connected with the AC/DC power adaptor and/or when operated solely on batterypower. NOTE: When the appliance is connected by the supplied power supply unit to the outlet it will charge the installed battery. Unplugged, the appliance can run up to 8hours on a fully charged battery using a premium 2A/h XR Li-ion battery. Using batteries of lower voltage and amp hours will yield less runtime. This appliance can be operated in the vertical or horizontalposition. NOTE: This product has two internal aerials that contribute to its ruggedness by omitting an external aerial that can be bent or broken. These aerials work together to provide 360degree radio reception without the need of extending and tuning an extruding antenna as required by other radios. In order to improve reception in very low signal areas we recommend placing the ToughSystem Music in the vertical position so the handle is facing upwards, or moving the radio closer to a window oropening. Faulty Battery Packs This charger will not charge a faulty battery pack. The charger will indicate faulty battery pack by displaying an X on the LCD battery image. If this occurs, re-insert the battery pack into the charger. If the problem persists, try a different battery pack to determine if the charger is working properly. If the new pack charges correctly, then the original pack is defective and should be returned to a service center or other collection site for recycling. If the new battery pack elicits the same trouble indication as the original, have the charger and the battery pack tested at an authorized service center. NOTE: This could also mean a problem with a charger. When the appliance is turned ON When the appliance is turned on, indicators for the power supply and the battery status are displayed on the lower right portion of the LCD screen

Appliance is operating via the AC/DC power adaptor Battery level is low Battery is partially charged Battery is fully charged Hot/Cold delay of charging Problem with the battery pack or charger Button Functions (Fig.G) The front panel includes a selection dial andmode buttons

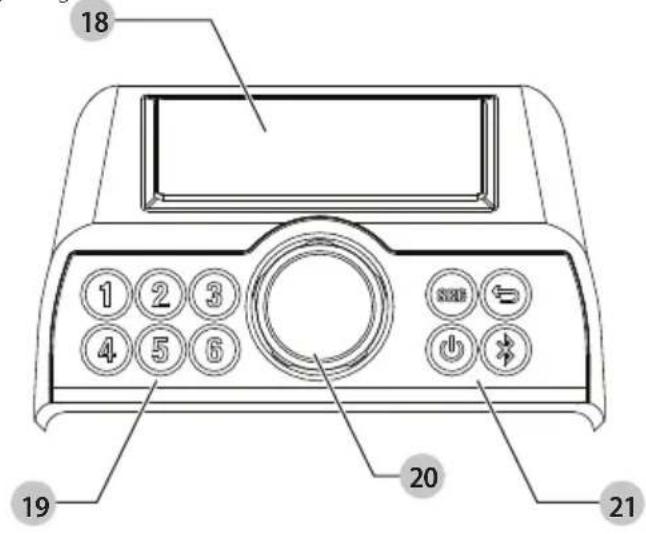

(the selection dial has more than one function) Power On/Off Back button Source selection button Bluetooth button Radio preset buttons Powering ON and OFF (Fig.G, H) Press the power button

for 1second. The appliance turns on to the last selected audiosource. Press the power button

for 3seconds. The appliance turnsoff. Volume Adjustment

WARNING: Excessive sound level can cause hearingloss.

NOTE: The volume is set and saved separately for each of the audio sourcetypes. Turn the dial

clockwise to increase the volume. To decrease the volume, turncounterclockwise. Back Button( ) After entering any one of the screens, press the back button to return to the previousscreen. Audio Source Select( ) To choose one of the audio sources (DAB+, FM, AUX or Bluetooth) push the source selection button

until the desired source is found. For example, if the radio is on FM, seen in upper left portion of LCD display, push the source button to change to AUX MAIN MENU (GeneralSetup) General Setup can be accessed from each of the selected audio sources by:

1. Pressing the selection dial

2. Rotating the selection dial clockwise until Main Menu

3. Pressing the selection dial to access the MainMenu.

From the main menu the following actions can be performed: - Sound: tone adjust: Bass, Treble and Mid - Language: select the interface Language - Brightness: adjust the screen Brightness - Restore todefault.

The appliance can be tuned to DAB+ / FM radio frequencies with the option of saving up to (6) DAB+ and (6) FM preset stations. After setting and saving the preset stations, pressing a preset button

instantly changes the frequency to the desiredstation.34 ENGLISH Finding a desired frequency can be performed in one of two methods: Auto Scan or ManualTune. Auto Scan

until the required source isreached.

2. Press the selection dial

to enter the Main Menu (see GeneralSetup).

3. Rotate the selection dial clockwise until Auto Scan is

reached and press to select. The Auto Scan begins searching for the closest strong, clearsignal. - Rotate the dial clockwise to scan up thefrequencies. - Rotate the dial counterclockwise to scan down thefrequencies.

4. Once a desired frequency is found, save it to one of the

channel preset buttons (see Setting the PresetButtons). Manual Tune

1. Select the required audio source and enter the Main Menu

2. Rotate the selection dial

clockwise and press it to select ManualTune.

3. Rotate the selection dial clockwise to go up the frequencies

or counterclockwise to go down the frequencies, until the desired frequency isreached.

4. Once a desired frequency is found, save it to one of the

channel preset buttons (see Setting the PresetButtons). Setting FM Presets

1. Set the radio to the desired station/frequency (see Auto

until a message >> P# is displayed. The station is saved to the displayed preset button number (#).

3. Repeat steps 1and 2to set additional presetstations.

to return to the Audio Sourcescreen.

5. The selected station is indicated on the LCD screen (button

2in theexample). DAB+ OPERATION

1. When first turned on or after restoring to default settings,

the appliance will automatically run a full station scan to find broadcasting stations.

2. Use the selection dial

to scroll through thestations. DAB+ MENU Full Scan

1. Press the Selection Dial

, and turn it to browse through themenu.

2. When Full Scan is chosen, the appliance will run a full band

scan, displaying the number of stations found.

3. When complete, the appliance will play the first station on

the band. Stations List When selected, the appliance will display the full list of available stations. Browse the list using the selection dial

and press to select astation. NOTE: When moving locations or if reception was poor in the original scan, this may result in an empty or incomplete list of available stations. Manually running an Full Scan will find all available broadcast stations. Setting Favorites (Presets)

1. Set the radio to the desired station (see FullScan).

until a message >> P# is displayed. The station is saved to the displayed preset button number (#).

3. The selected station is indicated on the LCDscreen.

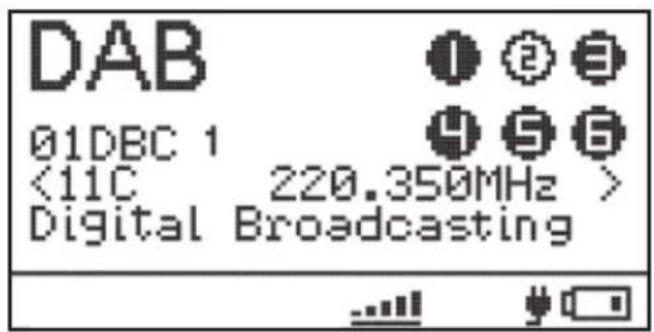

Information Display The following information can be selected to be displayed onscreen: Scrolling Text – loop through all types of information, 3seconds each. Frequency - the playing station's frequency. Type - the type of media broadcast made by the currentstation. Data rate - the resolution that is broadcast by the station. NOTE: The information is provided by the stations, and not controlled by theappliance. DAB Settings

1. Prune stations - Some stations previously received by your

radio that might no longer be available will display blanks in place of the station name. To remove these stations from the station list press the Selection Dial

. You will be asked to confirm your choice (similar to “Restore toDefault”).

2. DRC (dynamic range compression) - This function

reduces the difference between the loudest and quietest audio being broadcast. Effectively, this makes quiet sounds comparatively louder, and loud sounds comparatively quieter. The following options are available: - DRC off - DRC low - DRC high NOTE: DRC only works if it is enabled by the broadcaster Important Radio Notes

1. Reception will vary depending on location and strength of

2. Running the radio while connected to certain generators

may cause backgroundnoise. Adjusting the Sound Preferences Sound preferences can be adjusted by changing the equalization of the Bass, Treble orMid.

1. Press the selection dial

2. Rotate the selection dial clockwise until Main Menu

3. Press the selection dial to access the MainMenu.35

ENGLISH Protecting the Environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal householdwaste.Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com. Rechargeable Battery Pack This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for ourenvironment: Optional Accessories

WARNING: Since accessories, other than those offered

by DeWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DeWALT recommended accessories should be used with thisproduct.Consult your dealer for further information on the appropriateaccessories.

WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing thisprocedure. WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid.

Lubrication Your power tool requires no additionallubrication. MAINTENANCE Your radio has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning. WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury.The radio/charger and battery pack are notserviceable.4. Press the selection dial again to enter the Sound settingsscreen.5. Adjust to the desired setting by rotating the selection dial clockwise/counterclockwise.6. Press the selection dial to scroll through the sound setup options. Pressing saves the selectedsetup. Playing Audio from an External Device (AUX/ Bluetooth) The appliance can be used to play sound from an external device, through its built-in speakers, in one of two connectionoptions: - Auxiliary - BluetoothNOTE: The top compartment can also be used to store, protect and charge some portable audio devices, such as a smart phone or MP3 player. The USB power port can charge/power most devices that can accept power through a USB charging port (5V/1A).Connecting an Auxiliary Device1. Connect a 3.5 mm audio cable between the auxiliary input jack and the output jack of your audiodevice.2. Press the audio source button until AUX isdisplayed.3. Operate the audio through the connecteddevice.Connecting a Device through BluetoothThe appliance can connect to Bluetooth capable audio devices through Bluetoothcommunication.NOTE: The Bluetooth mode can store up to 8users.1. Enable the Bluetooth of the audio device to beconnected.2. Press the audio source button until the Bluetooth symbol is displayed , or press the Bluetooth button

. This operation enters the Bluetooth mode.The Bluetooth button blinksslowly.3. Press the Bluetooth button for 3seconds to make it discoverable. A discoverable signal sounds and the Bluetooth button

blinksfast.4. Look for the appliance (display name: ToughSystem Music) on the audio device to be connected, and select it. Once connected a connected signal sounds. The Bluetooth symbol is displayed on the LCD screen and the Bluetooth button lights in steadyblue.5. Operate the audio through the connected device. The next time this device is in its Bluetooth ON mode, it will automatically discover and connect to the appliance. NOTE:The appliance connects to the last connected device. A connected signal sounds. If the last connected device is not available, the Bluetooth button blinks until found by one of the other previously connected devices. NOTE:To disconnect from a device and become discoverable for other devices, press the Bluetooth button for 3seconds, or press the selection dial and select MakeDiscoverable.36 EnGLIsh Troubleshooting Low State of Charge Low state of charge will continue to function but may not perform as well. When the appliance is powered by a battery pack and its state of charge falls below 20%, the low battery indicator isdisplayed. Battery Pack Protection To protect the life of the battery pack, the appliance will shut off when the battery’s state of charge reaches a safe limit. If this happens, connect the DWST1-75659, DWST1-75663, DWST1-75664 to an outlet with the AC/DC power adaptor and charge the batterypack. Audio Stops When dropping the appliance in its vertical position the battery pack may disconnect from its receptacle. If the radio/charger is powered by the battery, the audio output will stop. To resume, open the cover and reposition the batterypack.

• Run the battery pack down completely, then remove it from thetool.
