OPK 1000 - Speaker OK - Free user manual and instructions

Product Type	Partybox Speaker with Bluetooth
Brand	OK
Model	OPK 1000
Dimensions (W x H x D)	380 x 990 x 240 mm
Weight	11.37 kg
Power Supply	AC adapter: 100-240 V~, 50/60 Hz, 0.5 A / DC output 9 V, 1 A
Built-in Rechargeable Battery	Yes, rechargeable (non-replaceable)
Bluetooth Version	4.1
Bluetooth Profiles	HFP 1.5, A2DP 1.2, AVRCP 1.4, SPP 1.1
Bluetooth Frequency	2.402 - 2.480 GHz
Maximum RF Power	2 dBm
AUX Input	3.5 mm stereo jack
Microphone Inputs	2 (MIC1, MIC2) - 6.35 mm jack (not included)
Output Power (RMS)	30 W
Channels	2.0 (stereo)
LED Lighting	Yes, with multiple effects (lighting button)
Bluetooth Range	Up to 10 meters
Care and Cleaning	Unplug before cleaning; use a slightly damp cloth; do not use solvents
Safety	Do not expose to water, do not open, use indoors only
Intended Use	Home audio entertainment
Package Contents	Partybox, power adapter, audio cable, manual

Frequently Asked Questions - OPK 1000 OK

How do I pair my smartphone with the OPK 1000 speaker via Bluetooth?

Turn on the partybox using the ON/OFF button. If no cable is connected, the Bluetooth indicator flashes blue. Enable Bluetooth on your smartphone and search for devices. Select OPK 1000 from the list. If necessary, press the M button to switch to Bluetooth mode. Pairing is automatic for subsequent uses.

How do I recharge the battery of the OPK 1000?

Plug the provided power adapter into the DC 9V port on the back of the device, then plug the adapter into a wall outlet. The red indicator lights up during charging and turns off when the battery is full.

What should I do if there is no sound?

Check that the volume is not at minimum (use the volume knob). Ensure the source device (phone, computer) is playing and its volume is sufficient. If using Bluetooth, reduce distance and remove obstacles. For AUX connection, check that the cable is firmly inserted.

Can I connect a microphone to this speaker?

Yes, the OPK 1000 has two microphone inputs (MIC1 and MIC2) with 6.35 mm jacks. Adjust the mic volume using the MIC VOL control and echo effect with ECHO. Microphones are not included.

How do I clean the speaker?

Before cleaning, unplug the device. Use a slightly damp cloth to wipe the exterior. Never use gasoline, alcohol, or abrasive products. Ensure no liquid enters the openings.

Is the speaker waterproof?

No, the OPK 1000 is not waterproof. Do not expose it to rain or moisture. It is intended for indoor use only.

What is the Bluetooth range?

The range is approximately 10 meters in open space. Obstacles like walls may reduce range. For initial pairing, bring devices within 1 meter.

How do I change the lighting effects?

When the device is on, the LED lighting is active by default. Press the lighting button (lighting mode) on the control panel to cycle through effects.

Can I use the OPK 1000 outdoors?

It is designed for home use and should be used indoors. Outdoor use is not recommended as it is not protected against weather.

What should I do if the device does not respond to buttons?

This may be due to electrostatic discharge. Unplug the device from the power outlet, wait a few seconds, and plug it back in. If the problem persists, contact the manufacturer.

USER MANUAL OPK 1000 OK

HERZLICHEN GLÜCKWUNSCH!

Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1.

The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons and animals.

1. The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance instructions in the literature accompanying the device.

3.

Danger! Excessive sound pressure from earphones and headphones can cause hearing loss. If you listen to loud music for a long time, your hearing may be impaired. Set to a moderate volume.

1. This product is only intended for audio entertainment. Do not use the product for any other purpose than described in this manual in order to avoid any hazardous situation. Improper use is dangerous and will void any warranty claim.

2. For household use only. Do not use outdoors.

3. Danger of suffocation! Keep all packaging material away from children.

4. Only use under normal room temperature and humidity conditions.

5. The product is only suitable for use at moderate degrees of latitude. Do not use in the tropics or in particularly humid climates.

6. Do not move the product from cold into warm places and vice versa. Condensation can cause damage to the product and electrical parts.

7. Do not use attachments or accessories other than recommended by the manufacturer or sold with this product. Install in accordance with this user manual.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.

9. Do not shift or move the product when powered on.

10. Do not touch, push or rub the surface of the product with any sharp or hard objects.

11. Danger! To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

12. The product shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases or filled glasses, shall be placed on the product.

13. Care should be taken so that no objects or liquids enter the enclosure through the openings.

14. No naked flame sources, such as lit candles, should be placed on the product.

15. Refer to an authorized service agent for all services. Do not attempt to repair the product yourself. Servicing is required when the product has been damaged in any way, such as the supply cord or the power plug, liquid has been spilled, objects have fallen into the product, the enclosure is damaged, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

16. Before connecting the product to the mains, make sure the voltage indicated on the product corresponds to your local mains.

17. Only use the product with the provided adapters.

18. Regularly check if power cord and the product are in operable condition. If found defective, do not put the product into operation. Immediately pull the plug.

19. Place the cord and, if necessary, an appropriate extension cable in such a way that pulling or tripping over it is impossible. Do not allow the cord to hang down within easy reach.

20. Do not jam, bend or pull the cord over sharp edges.

21. The power supply is used as the disconnect device; the disconnect device shall remain readily operable. To completely disconnect the power input, disconnect the power supply.

22. The product may not function properly or not react to the operation of any control due to electrostatic discharge. Switch off and disconnect the product; reconnect after a few seconds.

23. Protect the supply cord from being walked on or pinched particularly at the plug, convenience receptacles and the point where it exits from the product.

24. Never touch the power supply with wet hands.
25. Disconnect the power supply in case of faults during use, during lightening storms, before cleaning and when not using the product for a longer period of time.
26. Danger! Before cleaning, switch the product off and disconnect the power supply from the socket.
27. When the product has reached the end of its service life, make it defective by disconnecting the plug from the socket and cutting the cord in two.
28. When installing the device, leave sufficient space for ventilation. Do not install in bookcases, built-in cabinets or the like.
29. Do not impede ventilation by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Do not insert any objects.
30. Never expose rechargeable batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.
31. The rechargeable battery is permanently built into the product and cannot be replaced.
32. When disposing the product, please consult an electrician or your retailer to remove and dispose the built in batteries in an environmentally friendly manner.
33. Never short-circuit the contacts of the rechargeable battery. Do not throw the rechargeable battery or the product into fire. There is a danger of fire and explosion!
34. Information for service personnel: Caution! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
35. Remove the batteries from the product before disposal.

DECLARATION OF CONFORMITY

Hereby, [lmtron GmbH] declares that the radio equipment type OPK 1000 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://de.ok-online.com/nc/de/suche.html

COMPATIBILITY

This product is compatible with Bluetooth ^® enabled mobile phones and music devices. It features Bluetooth ^® version 4.1. It also works with devices featuring other Bluetooth ^® versions that support e.g. Wireless listening

• A2DP (Advanced Audio Distribution Profile)

Wireless music control

• AVRCP (Audio/Video Remote Control Profile)

INTENDED USE

This product is intended for audio playback via Bluetooth ^® , audio input (AUX) or microphone input (MIC 1, MIC 2). Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

10

CONTROLS AND COMPONENTS

A. Partybox

B. Handles

C. Control panel with LED indicator lights

D. Volume control with operation light

E. Skip back button

F. Mode selection button M

G. Bluetooth button ✝

H. Control ECHO

I. Mode Control LED BT/AUX

J. Mains connection and charging control LED

K. Microphone volume control MIC VOL

L. Light mode button

M. Play/Pause button▶II

N. Skip forward button ▶▶

O. Switch ON OFF

P. DC connection socket DC 9V

Q. Microphone input MIC2

R. Microphone input MIC1

S. Audio input AUX

T. Charging power supply

U. Audio cable

V. Rollers and feet

BEFORE FIRST TIME USE

• Remove the product and accessories from the original packaging carefully. For disposal of the original packaging, follow applicable legal requirements. If you have questions about correct disposal, contact your local authority.
• Check the package contents for completeness and damage. If the package content is incomplete or damages can be found, contact your place of purchase immediately.
• The device must be charged before the first use. Please refer to the chapter Charging The Battery.

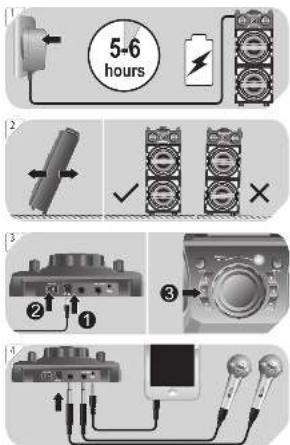

CHARGING THE BATTERY

1 Connect the DC plug of charging power supply to the DC connection socket DC 9 V. Connect the charging power supply to the mains. During the battery charging the LED indicator lights continuously red. Once the battery is fully charged the lights turns off.

INSTALLATION

2 Roll or carry the partybox to the desired location. When setting it up, make sure that the surface is firm and level and make sure that the speaker is placed securely.

OPERATION

3 Switch on the partybox with the ON / OFF switch. The operation light on the volume control lights up blue.

• If no audio cable is connected the mode control LED BT/AUX flashes blue and only the Bluetooth mode is active.
• If an audio cable is connected, the BT/AUX mode control LED lights red and the mode selection button M allows you to select audio in AUX or Bluetooth mode.

AUX IN OR MICROPHONE

Note: Before you connect your external player (for example an MP3 player), refer to its user guide regarding safety instructions and use with other devices.

Use an audio cable (included) to create a digital connection to a player or connect up to 2 microphones (not included) to the MIC 1 or MIC 2 inputs.

1. Connect the stereo cable to the AUX jack.
2. Insert the other end of the cable into the headphone or LINEOUT jack of the external device.

BLUETOOTH®

To play via Bluetooth ^® , if necessary press the mode selection button M so that the mode control LED BT/AUX flashes or lights up blue.

Pairing

Turn on the Bluetooth® connection on the playback device and search for devices. Connect (pair) your player to the partybox labeled OPK 1000. Future use of the same player will automatically connect to the partybox when the Bluetooth® feature is enabled on both devices. Start playback. If supported by your playback device you can operate the functions Play / Pause▶, skip forward ▶ and back ▶ing the paired player.

Note:

• Keep the range of 1 meter when pairing.
• Up to 10 meters reception range while music playback via bluetooth®.
• Before pairing a Bluetooth® AV source, refer to the AV source user guide regarding safety instructions and use with other devices

VOLUME

Adjust the volume on the playback device or with the volume control of the partybox. With the ECHO control you can manipulate the sound by creating an echo sound. The microphone volume control MIC VOL adjusts the volume of the microphone inputs separately.

LED LIGHT EFFECT

If the product is powered on, the color changing LED function is automatically activated. You can set different light effects with this speaker by pressing the light button.

CLEANING AND CARE

• Pull the power plug from the electrical outlets before cleaning.
- Clean the exterior with a lightly damp cloth.
- Do not use petrol, alcohol or other abrasive cleansers to clean the exterior.
- Do not allow liquids to spill into any openings.
• Use the original packaging if it is necessary to transport the unit.

12

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible	causes Solution
Appliance does not work.	Charging power supply not connected properly or battery empty.	Check if the power plug is properly connected to an electrical outlet.
No sound. Volume	is set too low. Increase the volume level.
	Settings at the source device are not correct.	Ensure that the external source has correct volume settings and is playing a track.
Bad audio quality.	Bad Bluetooth® reception. Shorten the distance between the Bluetooth® device and the partybox and make sure that no obstacles are disturbing the connection.
	Connecting cables are not inserted correctly.	Ensure that the connector cables to the source device are correctly plugged in and plugs fully inserted.
Appliance does not react to pressed buttons.	Malfunction due to electrostatic discharge.	Disconnect the appliance from the power supply. Connect the power plugs again to an electrical outlet.

SPECIFICATION

POWER SUPPLY : BI12T-090100-Adv (Blue Iron Holdings Limited)

Input/output: 100 - 240 V\~; 50/60 Hz; 0.5 A / 9 V

---; 1 A

Connectivity

Bluetooth®: BK3266

Bluetooth-Profile : HFPV1.5, A2DPV1.2, AVRCPV1.4, SPPV1.1

Bluetooth-range:2,402 GHz-2,480 GHz

Bluetooth-version : 4.1

Frequency range: 2.4 GHz - 2.480 GHz

Max. RF

: 2 dBm

AUX IN

: Stereo jack socket, 3,5 mm

Speaker

Output power (RMS)

:30 W

Sound System

: 2.0 channel

Dimension (W x H x D)

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product.
