Product type	Outdoor pizza oven
Brand	Ooni
Model	Karu 16
Dimensions (approx.)	76.2 × 58.4 × 73.7 cm
Weight (approx.)	40.5 kg
Thermometer power supply	3 AAA 1.5V batteries (included)
Maximum temperature	Approximately 550 °C (1,000 °F)
Fuels	Wood and charcoal (optional gas burner)
Main materials	Steel, cordierite stone
Cooking surface	Cordierite stone plates (2 plates)
Digital thermometer	Instant display in °C or °F, auto shut-off
Feet	Foldable for transport
Chimney	With cap and adjustable ventilation grate
Door	With plastic handle, adjustable hinge
Fuel grate	Removable, max capacity 1.3 kg
Usage	Outdoor only
Safety distances	1 m on sides and back, 3 m in front and above
Cleaning	Let cool for at least 2 hours, remove ashes after complete cooling
Spare parts	Cordierite stone, door, grate, thermometer, chimney
Safety standards	Do not use in a confined space, do not move when hot, keep away from children

Frequently Asked Questions - Karu 16 OONI

What fuels can I use in the Ooni Karu 16?

The oven comes with a wood and charcoal burner. You can also use an optional gas burner. Use dry, untreated hardwood (max 23 cm long, 7.5 cm diameter) or charcoal suitable for cooking.

How do I light the Ooni Karu 16 with wood or charcoal?

Remove the chimney cap, open the ventilation grate and air inlet. Place a layer of charcoal or a small pile of wood in the burner. Light with a gas torch or natural fire starter. Gradually add fuel and close the hatch. Preheat for 30 minutes before cooking.

How do I safely extinguish the oven?

Let the fire go out naturally. Do not remove ashes until the Ooni has completely cooled (at least 2 hours). Do not cover the oven immediately after use.

What is the maximum temperature reached?

The Ooni Karu 16 can reach up to 550 °C (1,000 °F). Use the digital thermometer to monitor the temperature.

How do I change the thermometer temperature unit?

Press the Ooni button once to switch between Celsius (°C) and Fahrenheit (°F).

Where should I install the Ooni Karu 16?

Install the oven outdoors only, on a solid, level, stable, non-flammable surface. Maintain a distance of at least 1 m on the sides and back, and 3 m in front and above the oven from any combustible surface.

What are the essential safety precautions?

Wear heat-resistant gloves. Do not touch hot metal parts. Do not leave the oven unattended. Keep children and pets away. Never use alcohol or gasoline to light the fire.

How do I maintain the cooking stone?

Let the stone cool completely. Clean food residues with a wire brush or scraper. Do not wash the stone with soapy water; it absorbs moisture. Clean the stone dry.

Can I use the Ooni Karu 16 indoors or under an awning?

No, the Ooni Karu 16 is designed for outdoor use only. Never use it inside a building, garage, tent, or any enclosed space due to fire and asphyxiation risks.

How do I replace the thermometer batteries?

Remove the 4 screws from the back panel of the thermometer with a Phillips screwdriver. Insert 3 new AAA batteries observing polarity. Screw the cover back on without overtightening.

USER MANUAL Karu 16 OONI

Multi-Fuel Pizza Oven

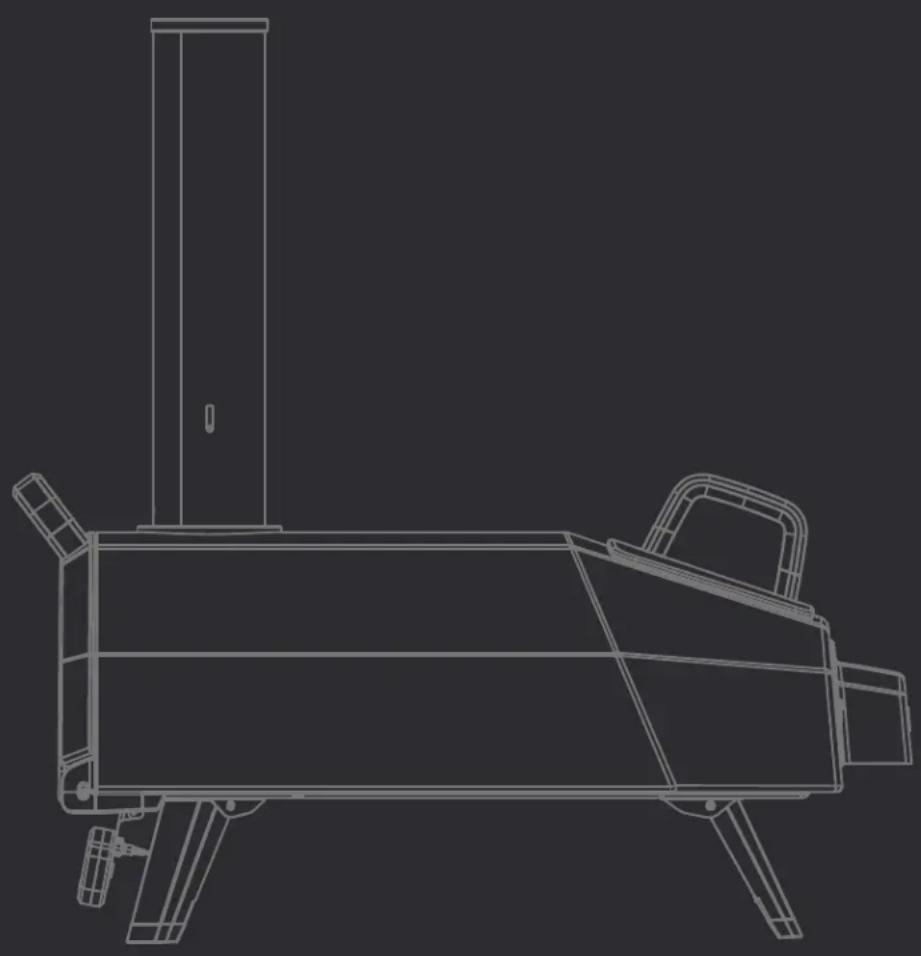

Assembly Manual

Line drawing of a mechanical device with a vertical panel and handle (no text or symbols)

Ooni Karu 16

Multi-Fuel Pizza Oven

Contents

EN 2

DA 18

DE 34

ES 50

FI 66

FR 82

IT 98

NL 114

NO 130

PT 146

SE 162

HE 178

JP 194

RU 210

CH 226

EN

Safety Legal Disclaimer – must be read in full, prior to use

1. Ooni is designed for outdoor use only. Ooni must always be placed outdoors, away from structures and never inside a building or a garage or in proximity to any enclosed area. The clearances around the oven to any combustible surfaces should be at least 1m from the sides and rear, and 3m from the front and above the oven. Place your Ooni on a sturdy, level, stable and non-flammable surface and keep it clear and free from flammable or combustible materials, gasoline and other flammable vapors and liquids.
2. Be aware of any local laws or regulations that may specify a required distance between outdoor cookers and any structures, or that may limit outdoor flame of any type during drought or hazardous periods.
3. Do not install or use your Ooni in or on boats or recreational vehicles.
4. Do not use your Ooni in high or gusty winds.
5. Your Ooni is not intended to, and should never be used as a heater.
6. Toxic fumes can accumulate and may cause asphyxiation.

7. Your Ooni Karu 16 is a live fire device. Live fire will naturally go towards any air source, therefore, at times you will see fire coming out of the oven:
   a. at the back where the fire is;
   b. from the top of the hatch when the lid is opened;
   c. from the front of the oven when you open the door; or
   d. from the top of the chimney.
   We recommend you wear gloves when operating your Ooni Karu 16, to avoid any risk of burning.

8. Please keep away from the Ooni's openings and warn others around you.

9. Improper installation, adjustment, alteration, service or maintenance of your Ooni may cause injury or property damage. Therefore, do not use your Ooni unless it is completely assembled and all parts are securely fastened and tightened.

10. Your Ooni should be inspected on a regular basis.

11. When using the charcoal/wood burner: Add the kindling gradually to reach an optimum temperature. Adding too much kindling will enlarge the fire, risking damage to you or your Ooni.

12. When using the gas burner: If the flame goes out, turn off the gas supply, remove door and hatch and wait 5 minutes before relighting.

13. When using your Ooni, there is a risk for your hands to suffer burns. Protective heat-resistant gloves should be worn at all times to avoid burns and you should never set hot items on or near combustible surfaces. DO NOT touch any metal parts when your Ooni is operating. Only touch the plastic handles to open the door and lift the fuel hatch.

14. Never leave your Ooni unattended. Do not leave your Ooni unattended with the lid open while lit. Be aware of hazards (dry leaves, decking and other combustible materials) that may be in proximity to the Ooni while it is in use as they may present a fire hazard if any sparks are allowed to come into contact.

15. Keep all electrical cords away from your Ooni.

16. Ooni is to be used by responsible adults only.

17. Keep children, pets, and combustible items away from your Ooni at all times.

18. Do not attempt to remove any parts or move your Ooni when it is hot or while cooking.

19. DO NOT leave any hazardous objects such as lighters or barbecue lighting fluid next to your Ooni. Indeed, Ooni radiates heat to all directions.

20. Ooni remains hot even after visible flames have died down. Allow a minimum of 2 hours for it to cool down once you are done using your Ooni. DO NOT cover the Ooni immediately after it has been used and make sure all the fire and glowing embers have disappeared from the burner before storing it.

21. The approximate temperature of your Ooni (when being used) ranges from 250°F (120°C) to 1000°F (550°C).

22. Ooni is safe and hazard-free when used as intended and according to safety guidelines, and will provide years of trouble-free use and enjoyment. It is the users' responsibility to maintain safe operation of the Ooni and to exercise reasonable standards of care at all times.

Technical line drawing of a mechanical device with no visible text or symbols

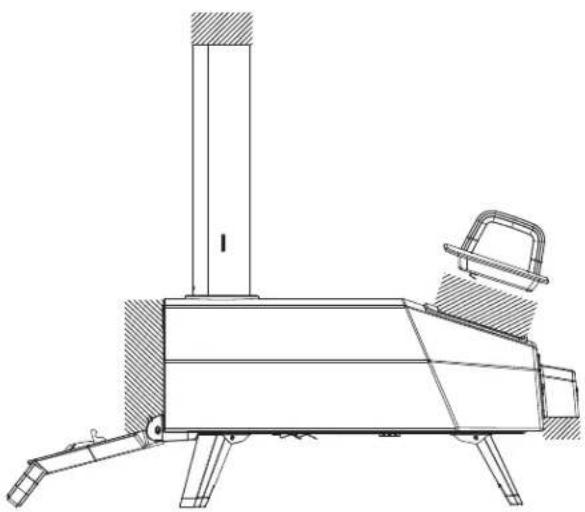

Areas where fire may appear outside the oven.

WARNING! This barbecue will become very hot, do not move it during operation

Do not use indoors!

WARNING! Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3!

WARNING! Keep children and pets away

Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats.

Danger of carbon monoxide poisoning fatality.

Do not cook before the fuel has a coating of ash.

Warning sign with warning symbols and icons for heating, cooking, and outdoor activities

Lighting & extinguishing – wood or charcoal

Ooni Karu 16 comes with a wood and charcoal burner as a standard. Only use charcoal that is suitable for cooking and do not cook food until the fuel has a coating of ash. When cooking with wood, use pieces of dry, non-treated hardwood (up to 23 cm / 9" long and 7.5 cm / 3") in diameter in the burner. Add no more than 0.5kg of fuel at one time and ensure there is no more than 1.3kg in the tray at one time.

To light your Ooni Karu 16 with either wood or charcoal:

• Remove the chimney cap, open the chimney baffle, and ceiling vent and attach the door.
• Remove the hatch and place a layer of charcoal or a small stack of wood in the charcoal/wood burner. Use a gas blowtorch or a natural fire-lighter to light the wood.
• Once there is a fire going, slowly add more fuel. Replace the hatch and let Ooni Karu 16 to preheat for 30 minutes. Add more fuel as needed. The barbecue shall be heated up and the fuel kept red hot for at least 30 minutes prior to the first cooking.
• Do not use spirit or petrol for lighting or re-lighting. Use only fire-lighters complying to EN 1860-3.

To extinguish

- Let the fire burn down naturally and leave Ooni Karu 16 to cool. Do not remove ashes until Ooni Karu 16 has cooled completely.

Power to the device

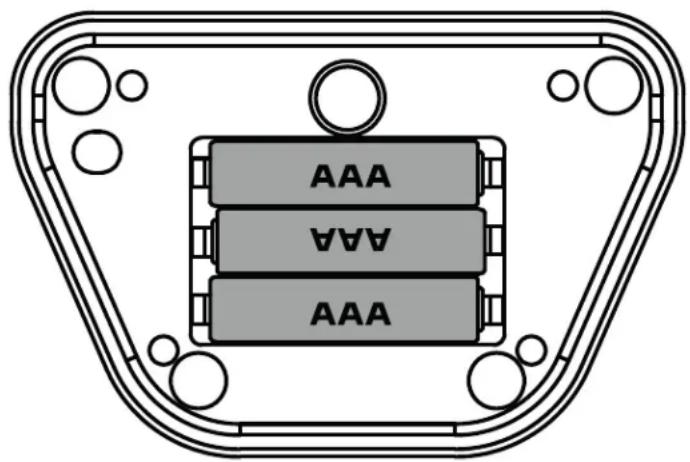

3 x Supplied 1.5V AAA batteries are used to power the Pizza Oven Digital Thermometer

Remove the four screws on the back panel of the Pizza Oven Digital Thermometer to access battery compartment.

AAA AAA AAA

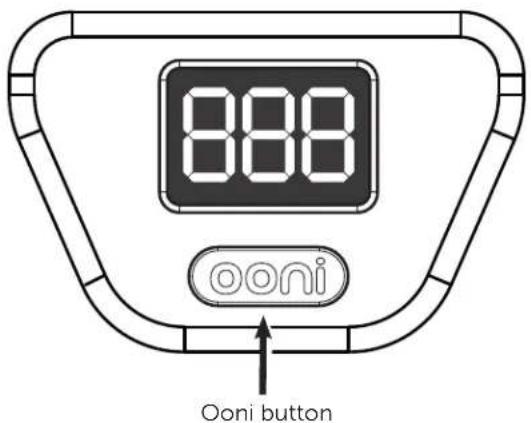

Thermometer instructions

Ooni Karu 16 comes with a battery powered Pizza Oven Digital Thermometer as standard.

Use the front mounted Pizza Oven Digital Thermometer for accurate and immediate temperature readings in Celsius (°C) or Fahrenheit (°F).

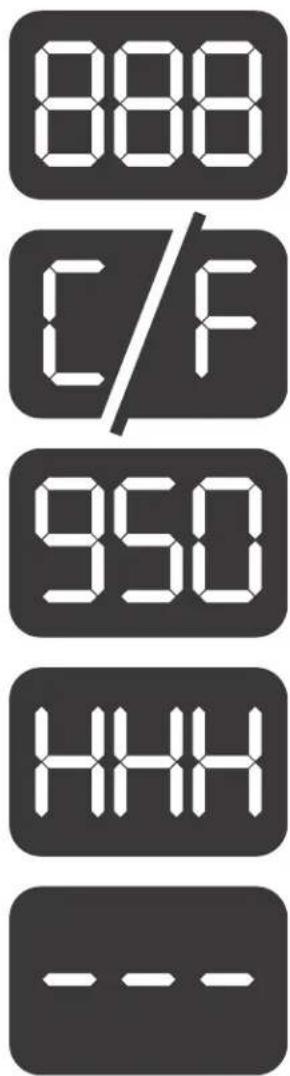

888 ooni Ooni button

888 C/F 950 HHH --

Power on

Press the Ooni button until '888' appears on screen

Power off

Press and hold the Ooni button until the display goes blank/off.

The thermometer will automatically power off after 3.14 hours.

Change unit of measure

Single press the Ooni button to cycle between Celsius (C) and Fahrenheit (F).

Temperature

The temperature will be displayed in the unit of measurement you selected.

Max temperature

Maximum internal temperature reached, open Karu 16 door to reduce the temperature within the oven.

Error

This will display if the thermometer cable has not been connected to the Jack Bracket

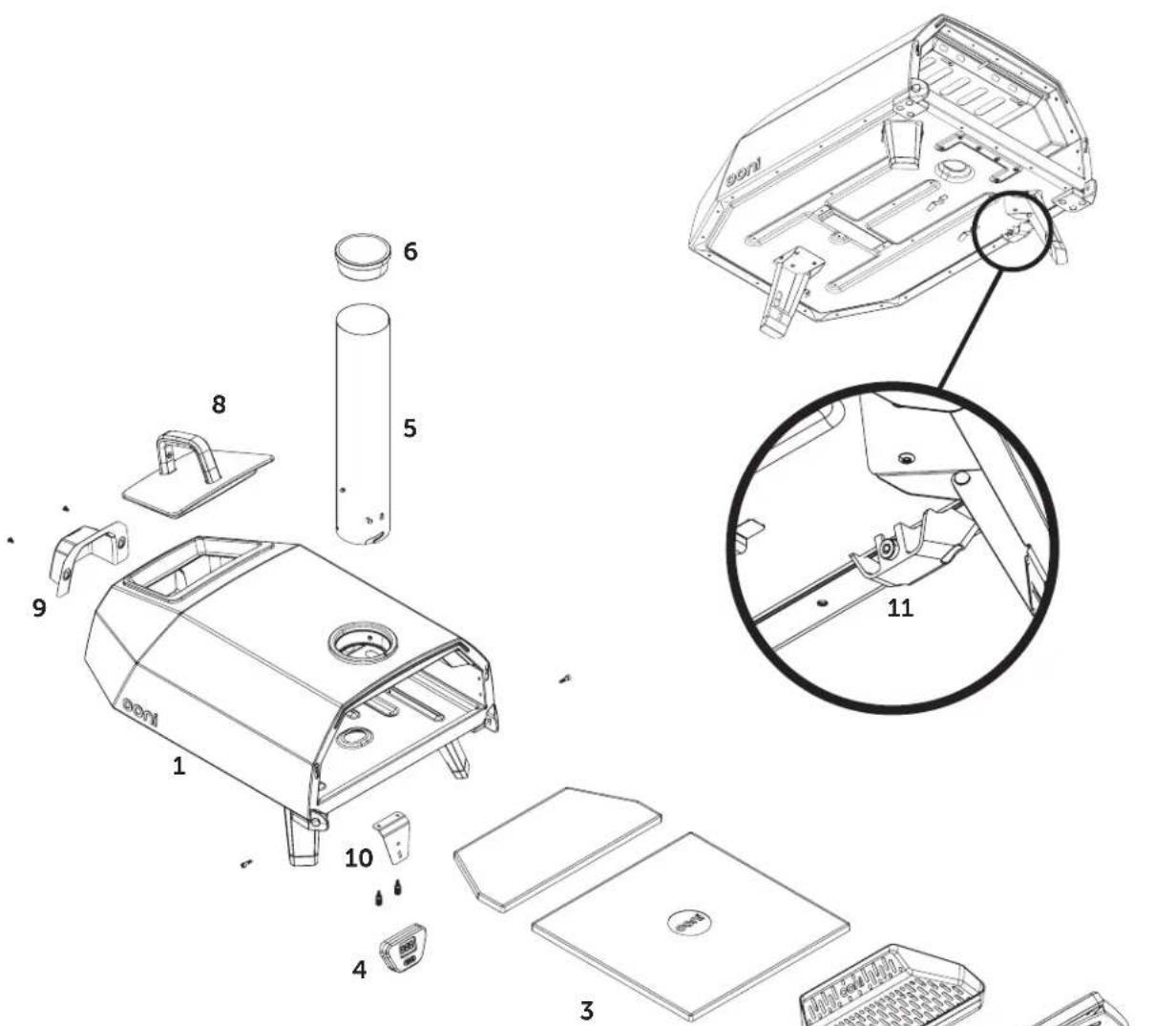

Exploded view and parts list

Exploded view diagram of a Sony device showing internal components and assembly steps with numbered labels

Parts list

1. Main body
2. Door
3. Cordierite stone baking boards
4. Digital Thermometer
5. Chimney
6. Chimney cap
7. Fuel grate and fuel tray
8. Fuel hatch
9. Draft defender plate
10. Thermometer bracket
11. Jack bracket
12. Allen key
13. Phillips head screwdriver

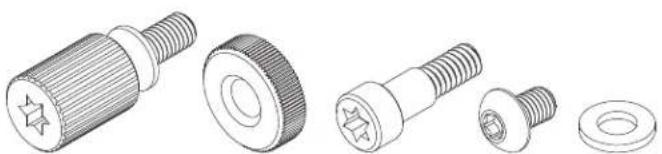

Fixings

A. Thermometer bracket screw
B. Thermometer thumb nut
C. Door hinge screw
D. Draft defender plate screw
E. Washer

Illustration of five different types of mechanical fasteners or bolts, including threaded and flat components (no text or symbols present)

A (x2) B (x1) C (x2) D (x2) E (x2)

Step by step

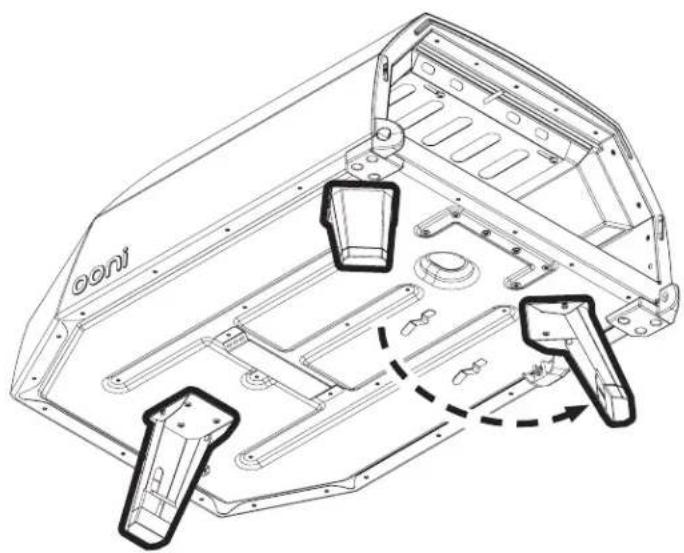

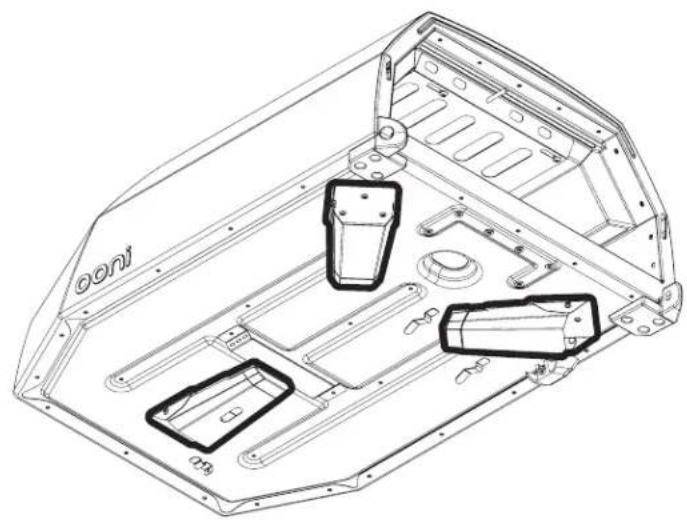

Step 1 - Unfold the legs

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and mounting brackets (no text or symbols)

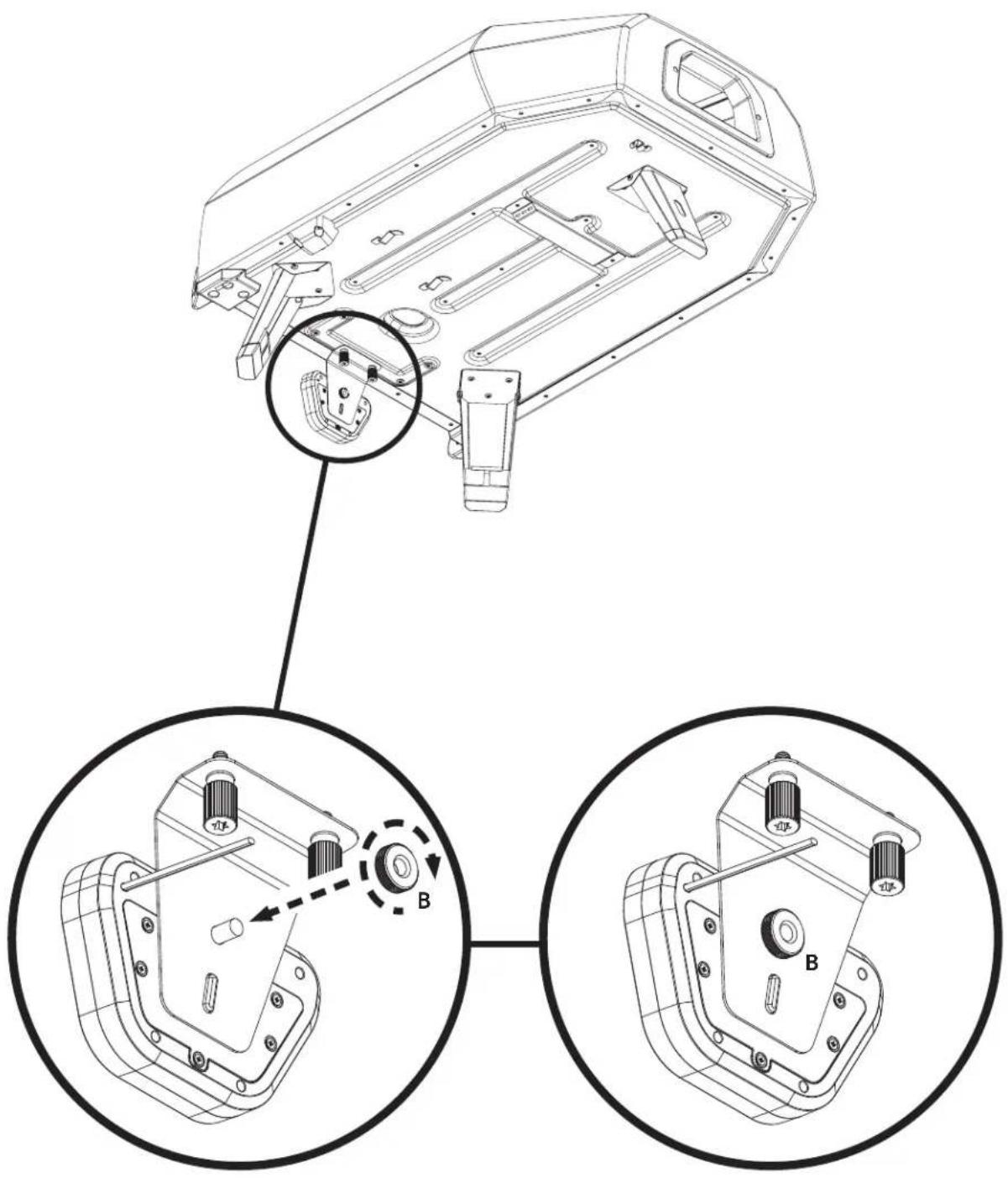

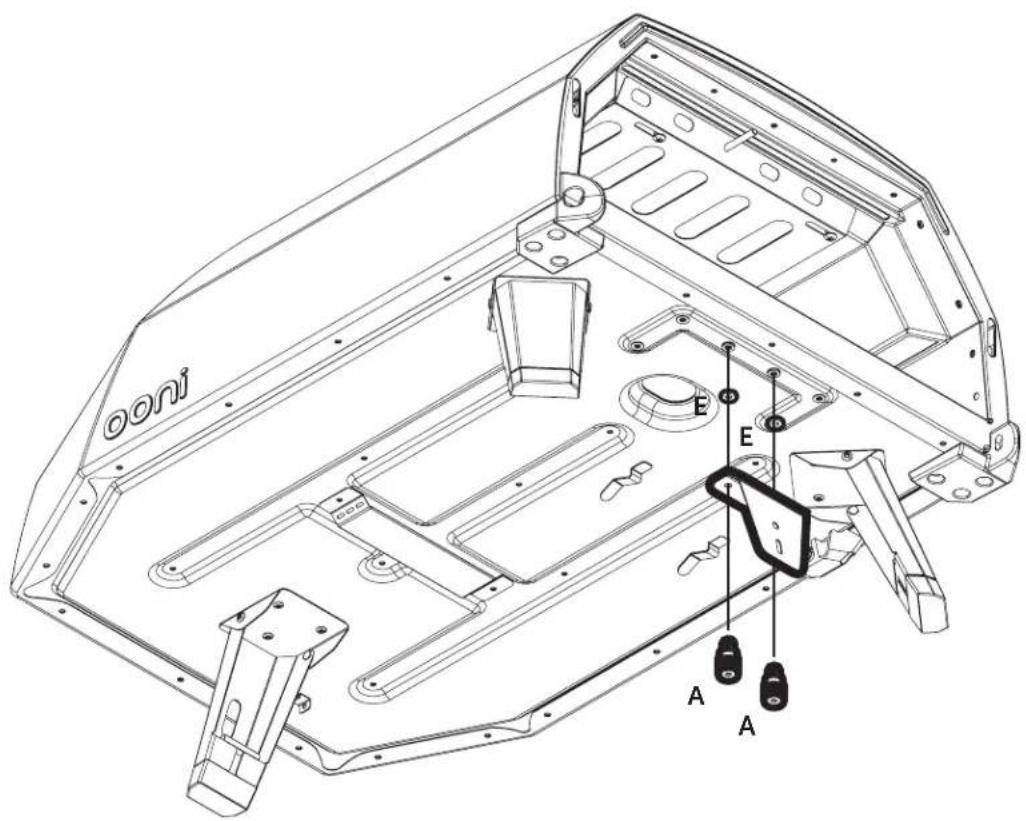

Step 2 - Attach the thermometer bracket to the floor

oonj E E A A

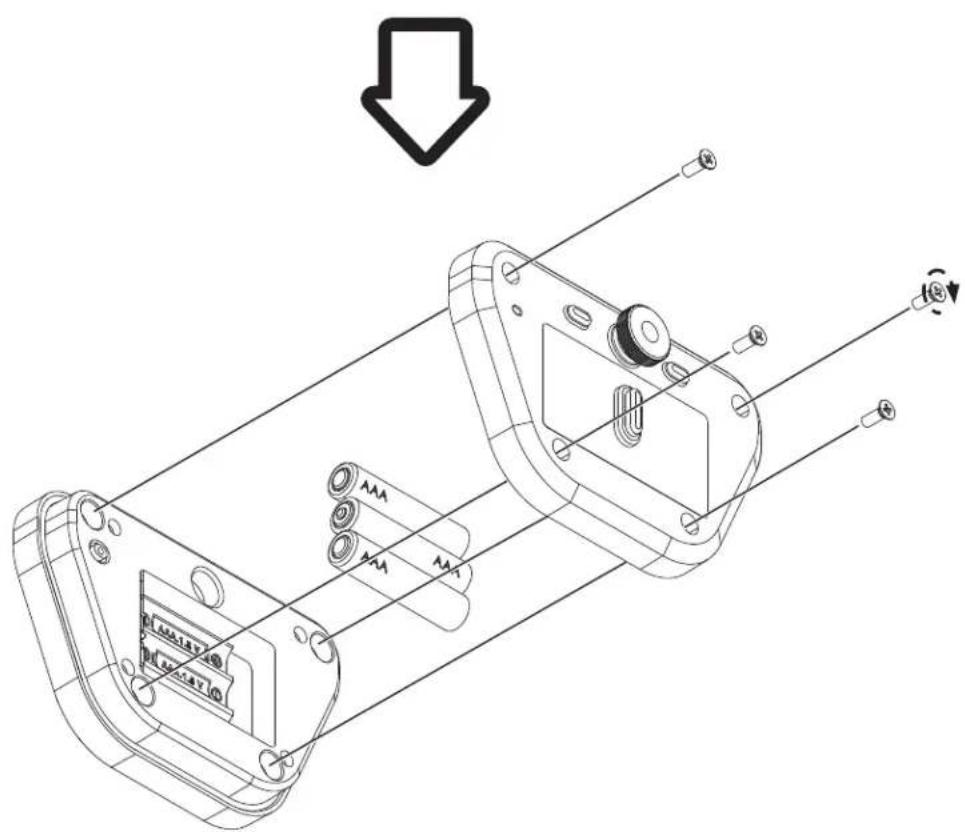

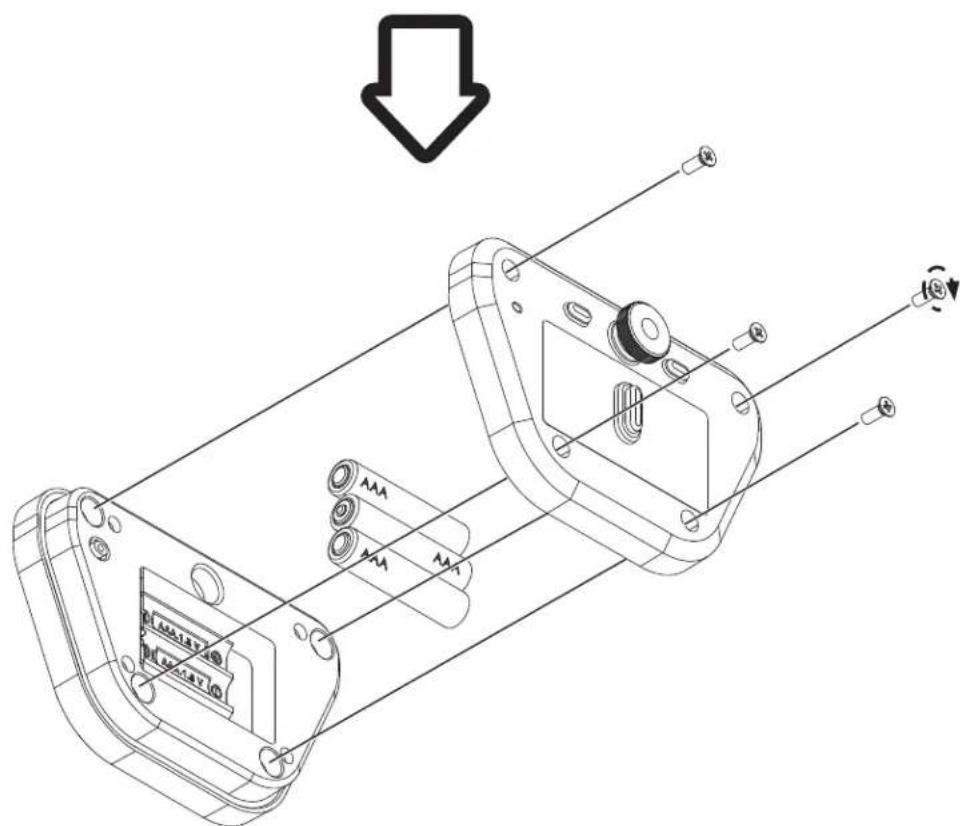

Step 3 - Insert the batteries into the Digital Thermometer

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

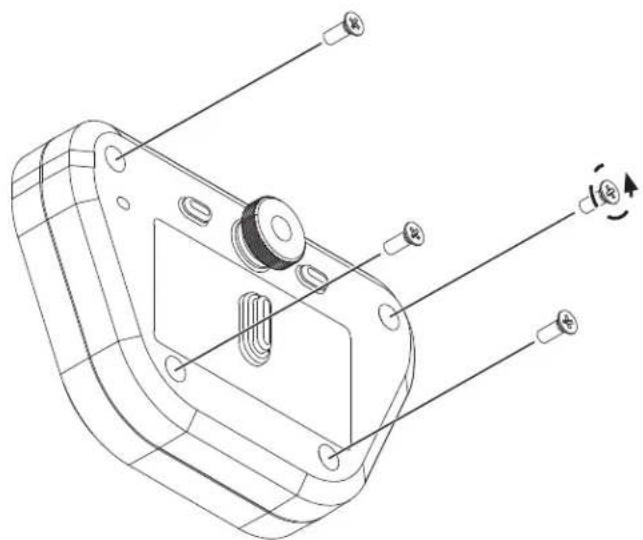

Remove 4x Phillips head screws counter-clockwise from the battery cover

Technical diagram of a mechanical device with labeled components and directional arrow indicating assembly or inspection.

Insert 3x AAA batteries provided and reinsert 4x Phillips heads screws clockwise.

Secure but do not over-tighten

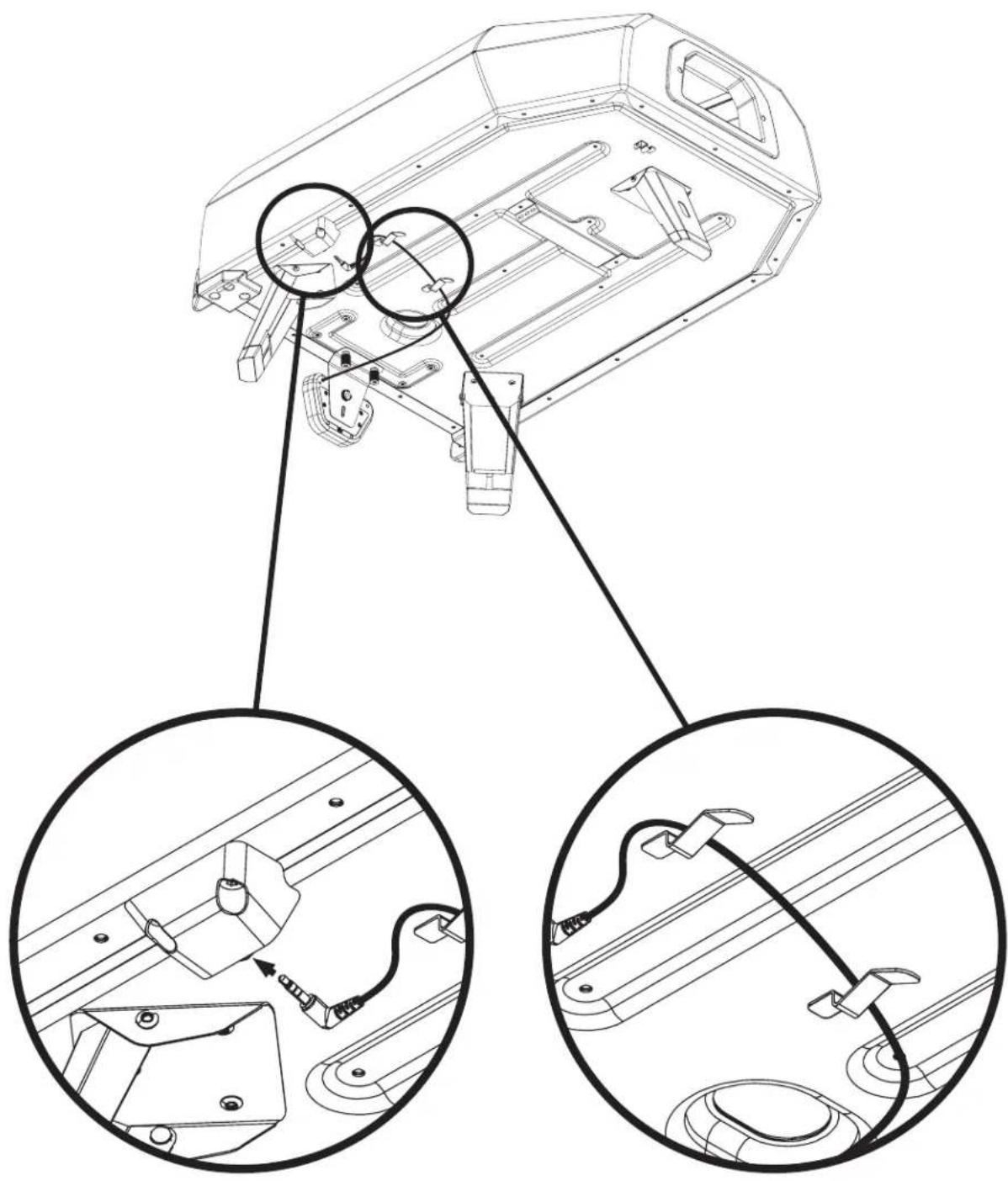

Step 4a - Attach the Digital Thermometer

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the internal frame.

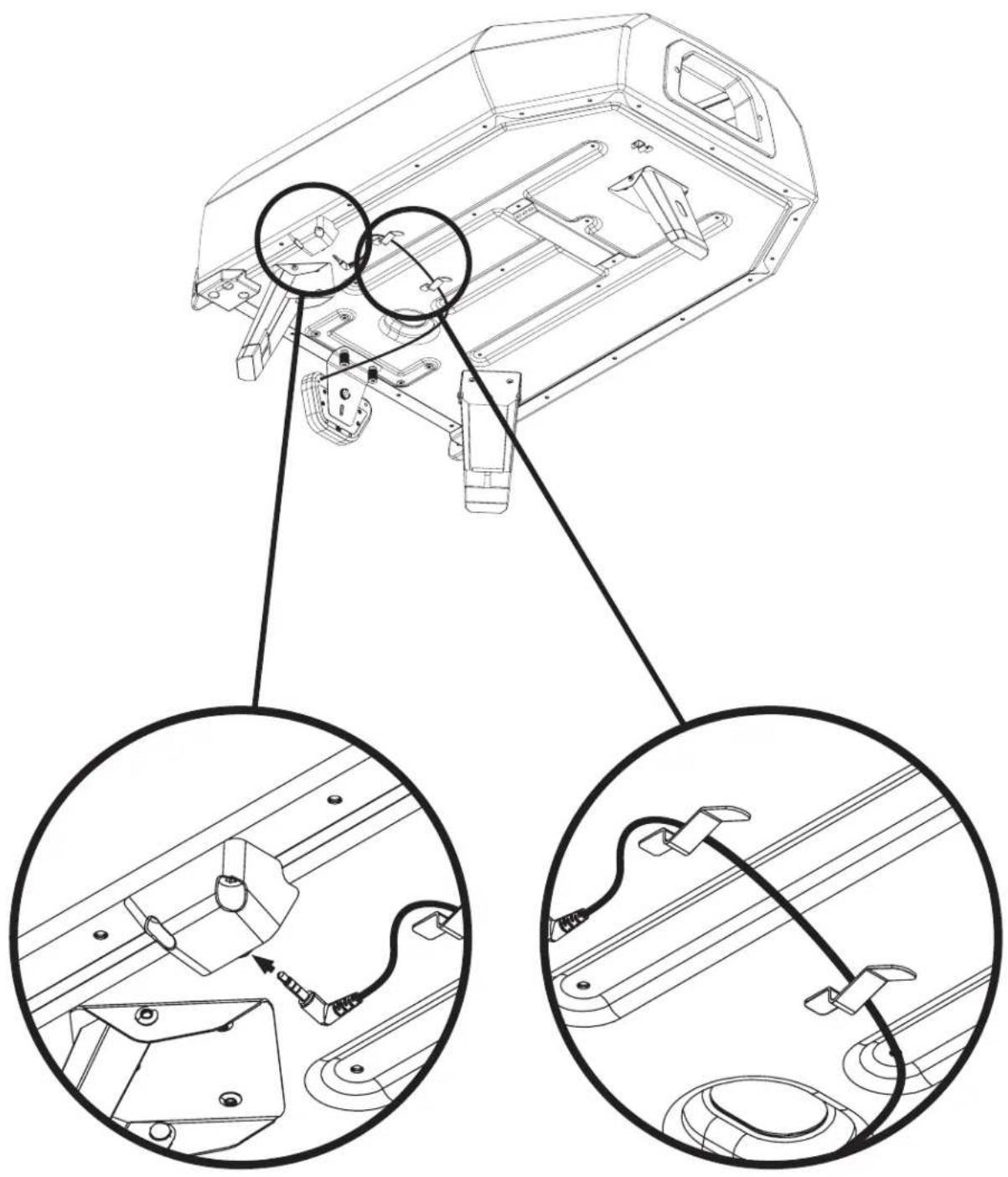

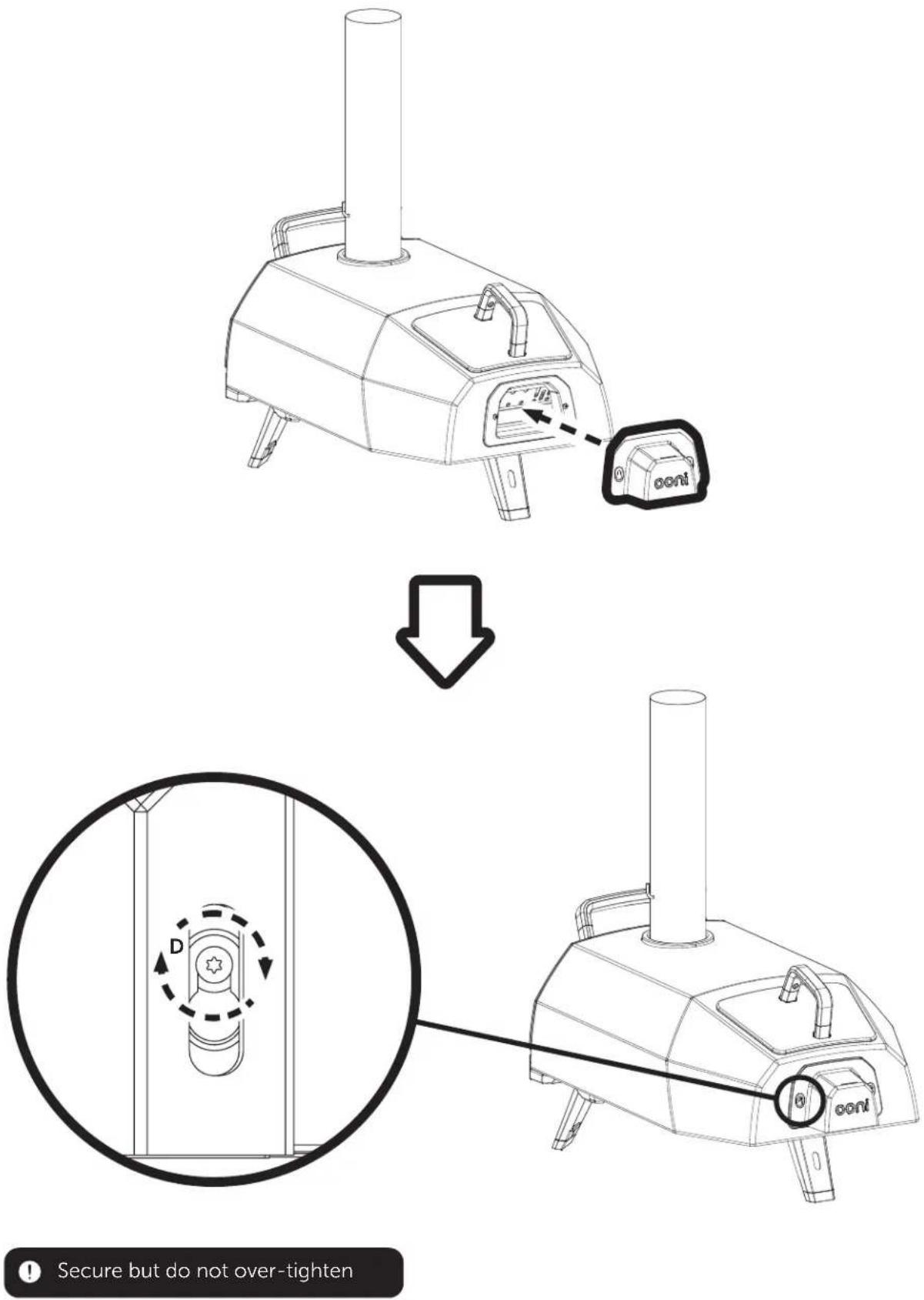

Step 4b - Attach the Digital Thermometer

Technical line drawing of a mechanical assembly with two views showing internal components and connection details (no text or symbols)

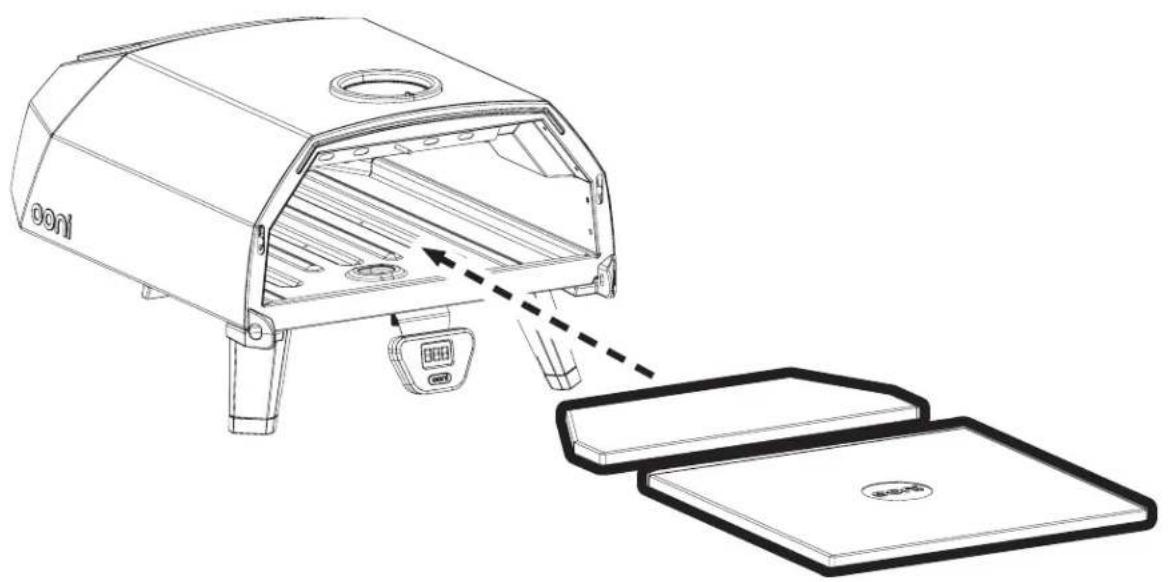

Step 5 - Insert Cordierite stone baking boards

Line drawing of a portable coffee maker with a digital display and open lid, showing internal structure and part assembly (no text or symbols)

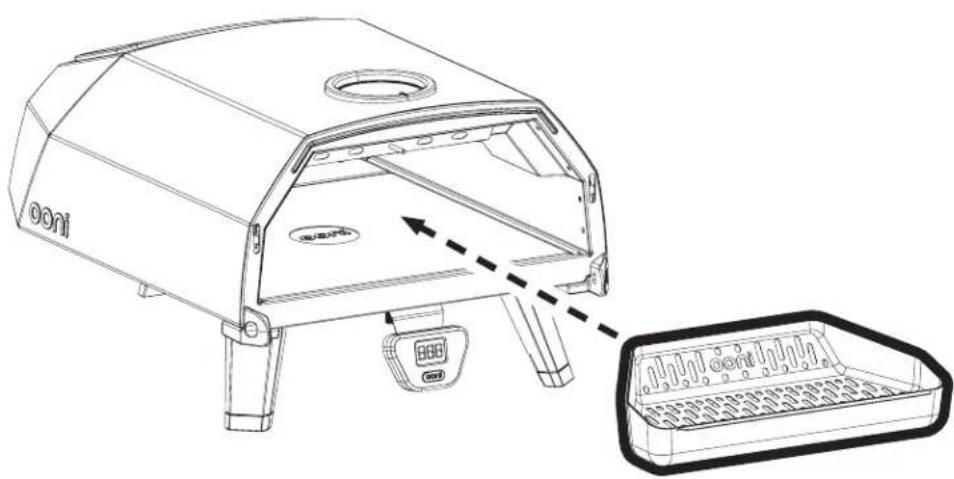

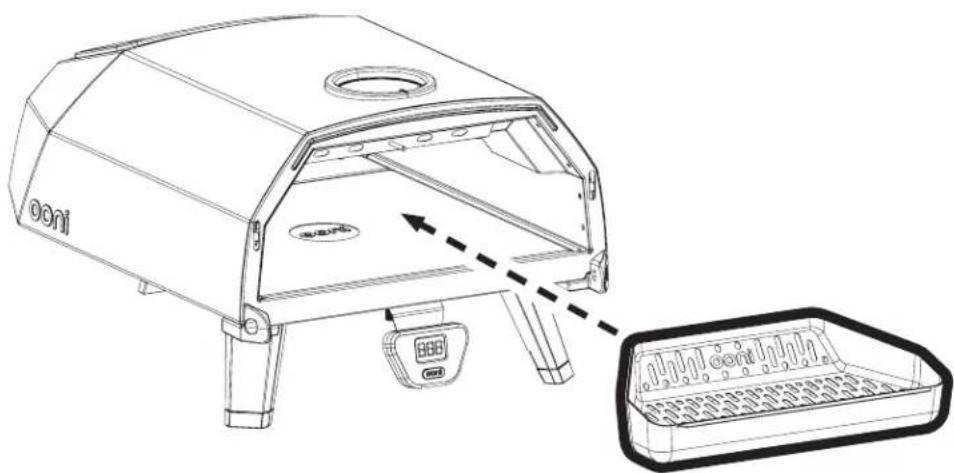

Step 6 -Insert fuel tray and fuel grate

Line drawing of a portable oven with a digital display and a tray, showing internal components and a dashed line indicating a drop or release (no text or symbols present)

The Ooni logo on the grate must face towards the front of the oven

ooni ooni ooni ensure door hook is correctly positioned over the door pins in the oven body.

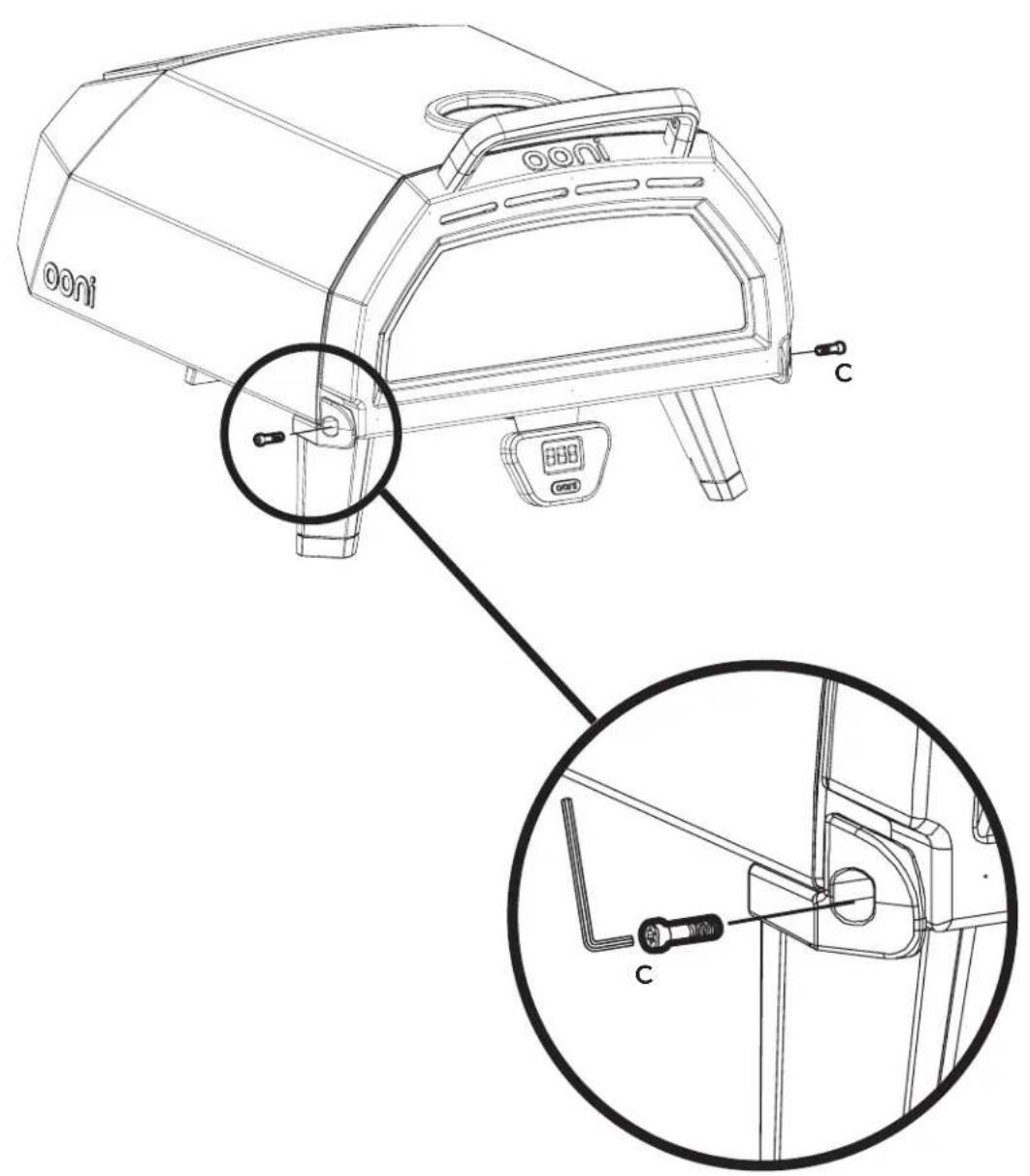

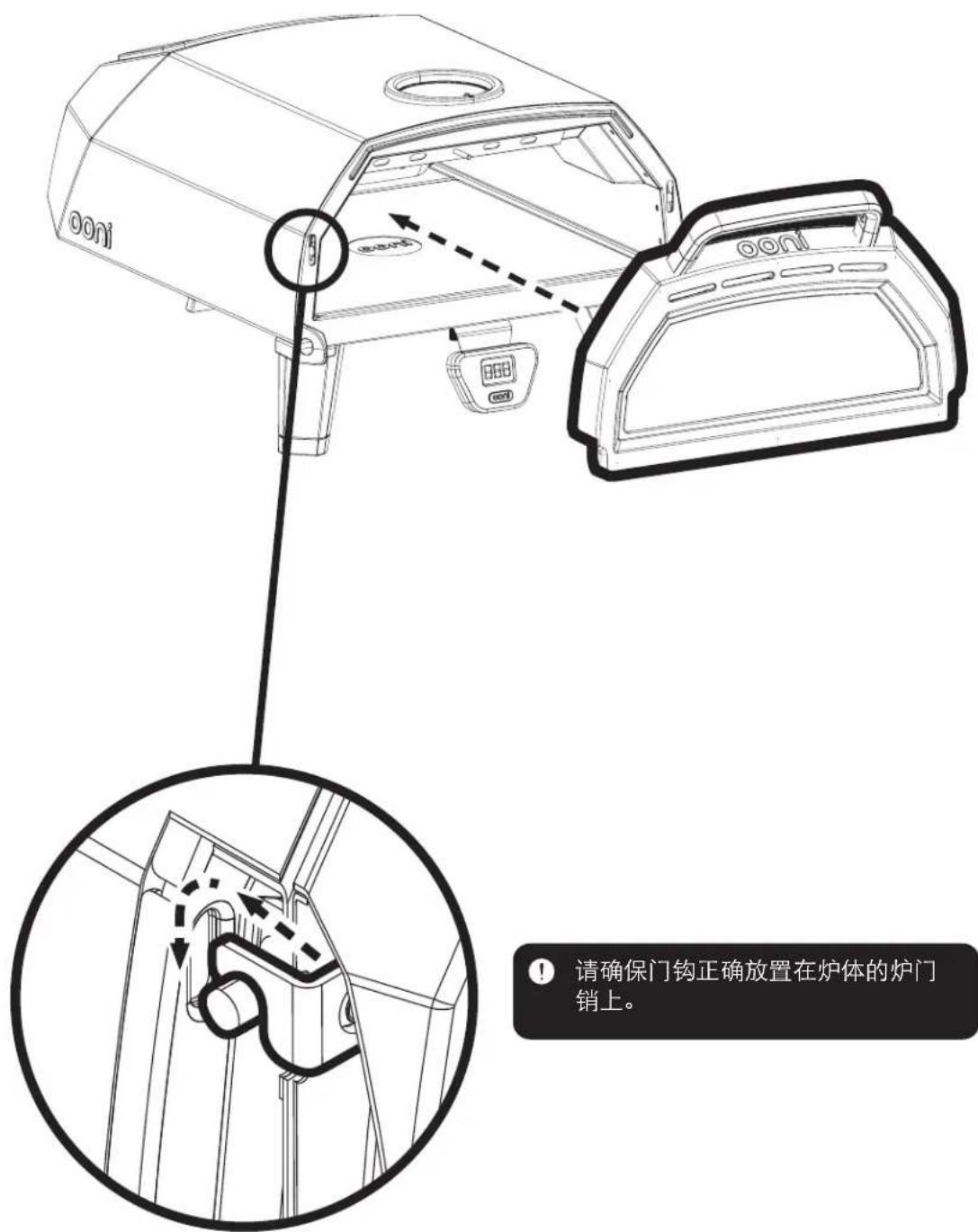

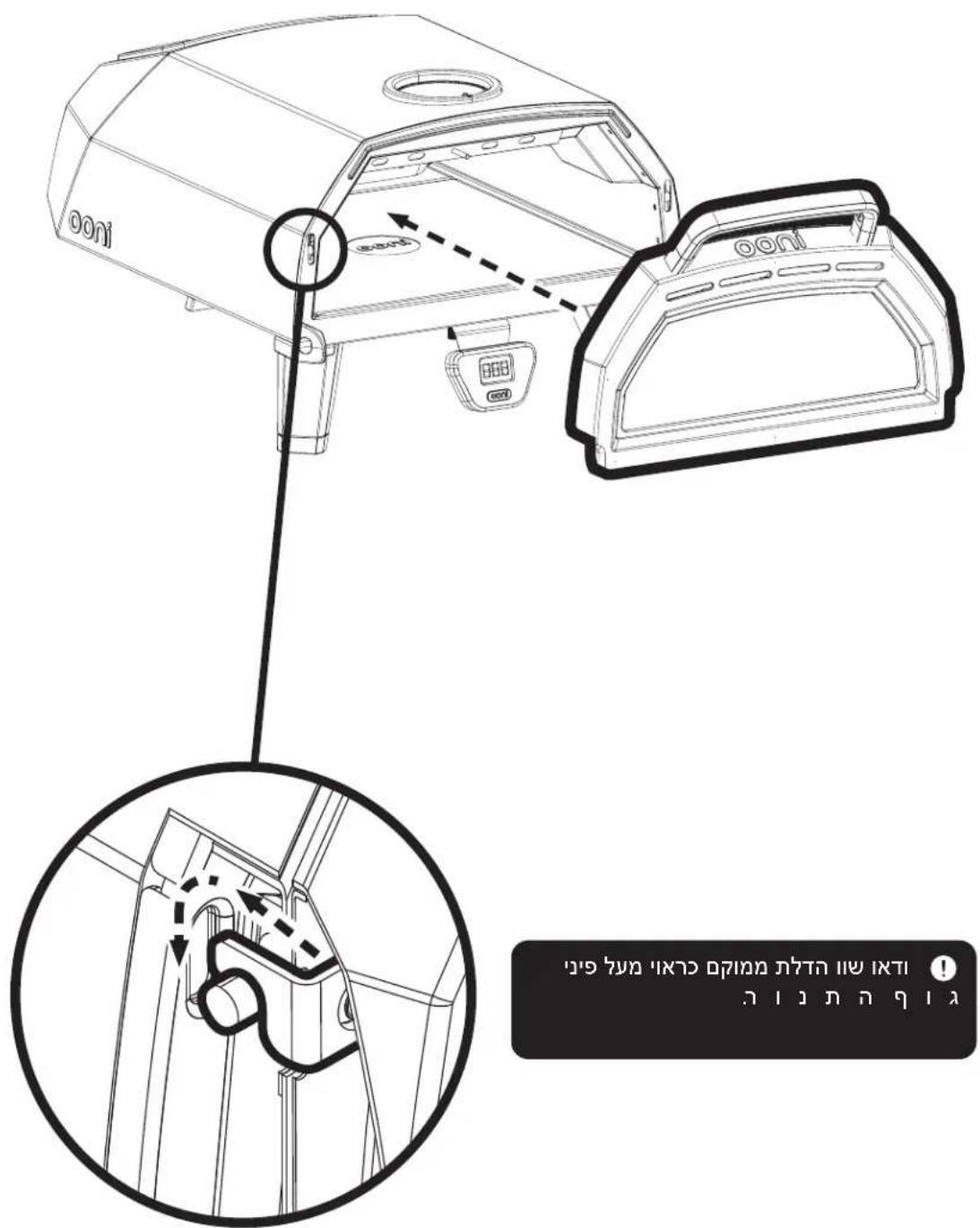

Ensure door hook is correctly positioned over the door pins in the oven body.

ooni ooni 688 C C

! Secure but do not over-tighten

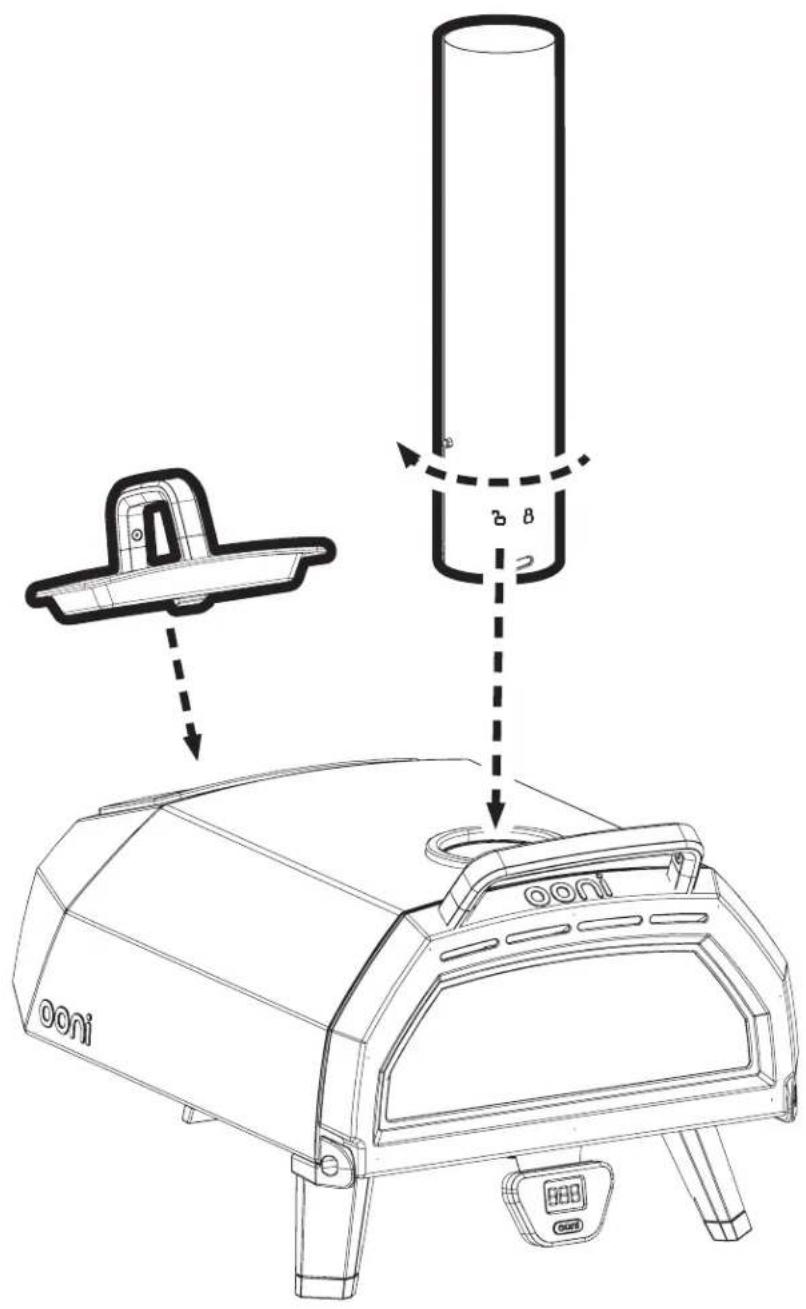

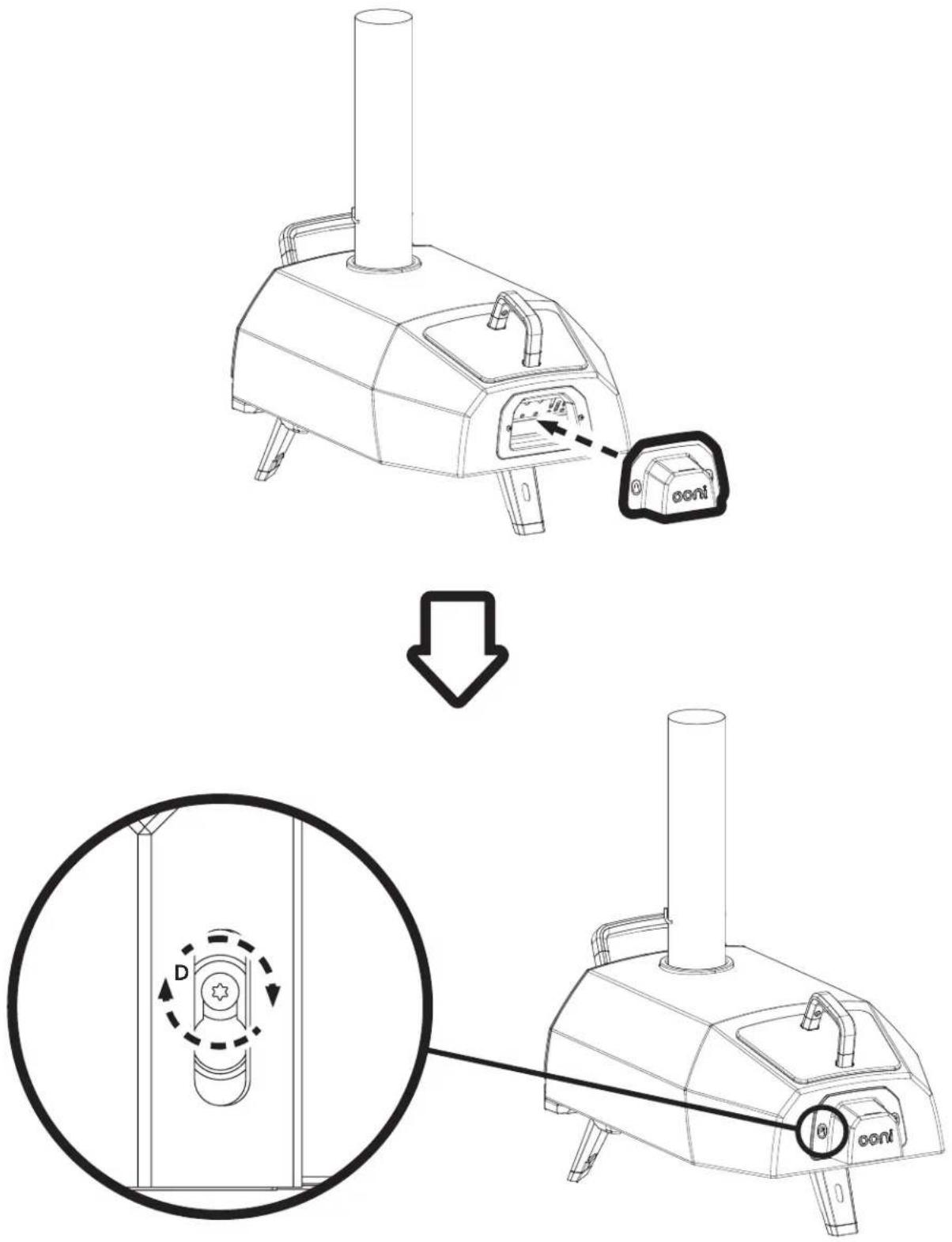

Step 8 - Attach chimney and fuel hatch

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

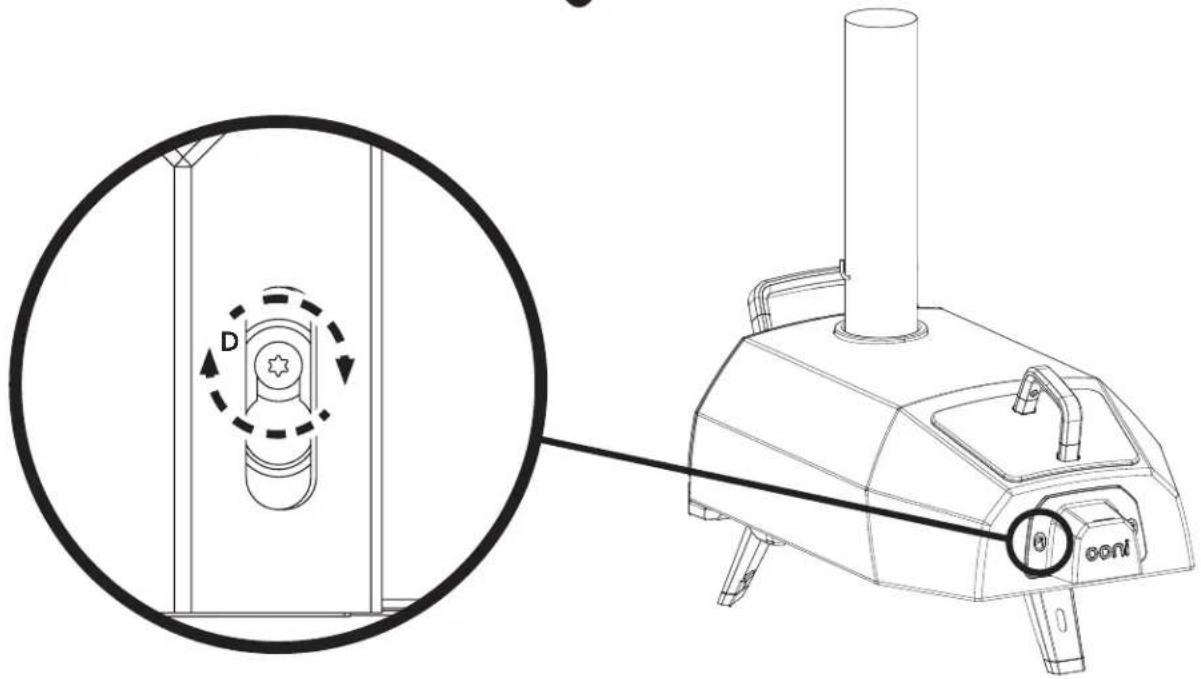

Step 9 - Attach draft defender plate

Tools required:

Allen key

Secure but do not over-tighten

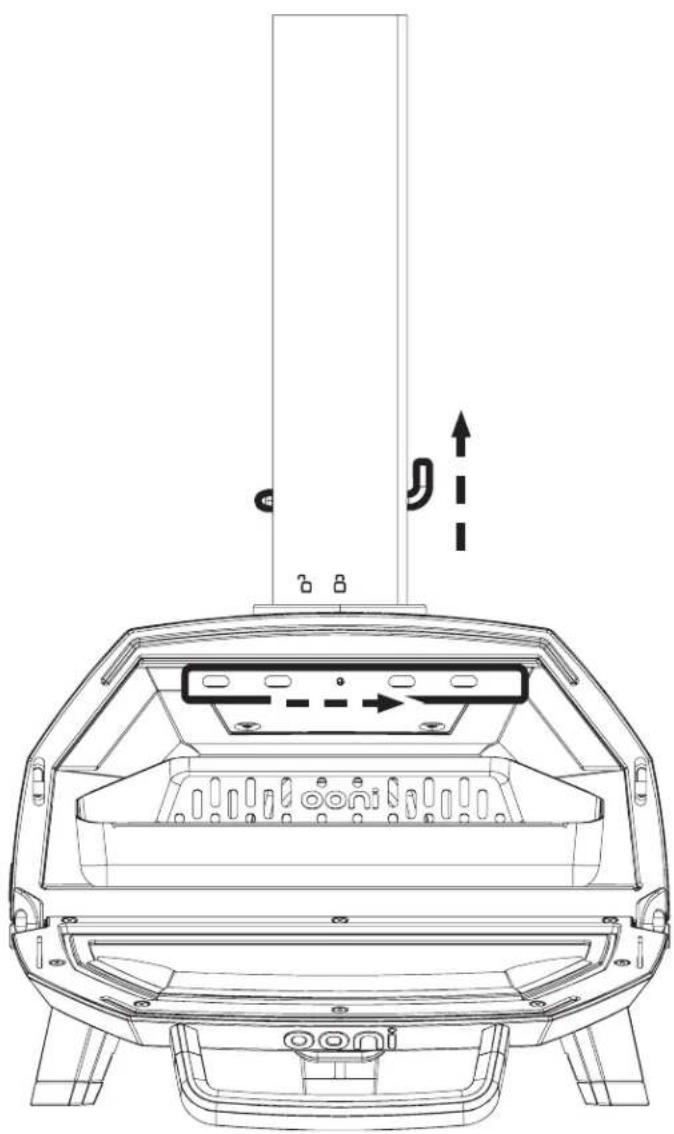

Step 10 - Open ceiling vent and chimney baffle before lightning

Chimney baffle should be vertical.

Ceiling vent should be to the right.

Technical line drawing of a vehicle front panel with no visible text or symbols

DA

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with hazard symbols and icons for outdoor activities including water, fire truck, house, campfire, trees, and grass.

888 ooni Ooni-knap

888 C/F 950 HHH --

Tænd

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and mounting brackets (no text or symbols)

oonj E E A A

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols present)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the component.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Line drawing of a portable oven with digital display and two open compartments (no text or symbols)

Line drawing of a portable oven with a digital display and a tray, showing internal components and a dashed line indicating movement (no text or symbols)

Ooni-logoet på risten skal vende mod ovnens frontdel

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Diagram illustrating the process of a portable oven with labeled components and a magnified view showing internal components.

Technical line drawing of a vehicle front panel with no visible text or symbols

DE

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with hazard symbols and icons for outdoor activities including water, heating, cooking, and trees

Exploded view diagram of a Sony device showing internal components and assembly steps with numbered labels

Teileliste

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and mounting brackets (no text or symbols)

oonj E E A A

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical device with exploded view and mounting points (no text or symbols)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the internal frame.

Technical line drawing of a mechanical assembly with two views showing internal components and connection details (no text or symbols)

Line drawing of a portable oven with digital display and lid, showing internal structure and packaging (no text or symbols)

Line drawing of a portable oven with a digital display and a tray, showing internal components and a dashed line indicating movement (no text or symbols)

Technical diagram of a Ooni air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Technical line drawing of a vehicle front panel with no visible text or symbols

ES

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with warning symbols and icons for heating, cooking, and outdoor activities

Exploded view diagram of a smart air conditioner unit with numbered parts and an inset close-up showing internal components.

Lista de componentes

Illustration of five different types of mechanical fasteners or bolts, including threaded and flat components (no text or symbols present)

A (x2) B (x1) C (x2) D (x2) E (x2)

Paso a paso

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and alignment arrows (no text or symbols)

ooni E E A A

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view and component labels (no readable text or symbols)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the internal frame.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Line drawing of a portable oven with digital display and internal compartments, showing part assembly (no text or symbols)

Line drawing of a portable oven with a digital display and a separate tray (no text or symbols)

Technical diagram of a Ooni air conditioner with labeled components and directional arrows indicating assembly or operation.

Paso 9 - Instale la placa protectora del tiro de aire

Technical line drawing of a vehicle front panel with no visible text or symbols

FI

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with hazard symbols and icons for outdoor activities including water, fire truck, house, campfire, trees, and grass.

888 ooni Ooni-painike

888 C/F 950 HHH - -

Virta päälle

Technical drawings of five different mechanical components (tens, washer, and nut) with no visible text or symbols

Vaiheittain

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and alignment arrows (no text or symbols)

oonj E E A A

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols present)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the component.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Line drawing of a portable oven with digital display and two open compartments (no text or symbols)

Line drawing of a portable oven with a digital display and a tray, showing internal components and a dashed line indicating movement (no text or symbols)

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Technical line drawing of a vehicle front panel with no visible text or symbols

FR

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with warning symbols and icons for outdoor activities including heating, cooking, and camping

888 ooni Bouton Ooni

888 C/F 950 HHH --

Marche

Technical line drawing of a vehicle chassis frame with no visible text or symbols

Technical line drawing of a mechanical housing component with internal parts and mounting brackets (no text or symbols)

oonj E E A A

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical device with exploded view and assembly details (no text or symbols)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the component.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Line drawing of a portable oven with digital display and internal compartments, showing part assembly (no text or symbols)

Line drawing of a portable oven with a digital display and a separate tray (no text or symbols)

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Technical line drawing of a vehicle front panel with no visible text or symbols

IT

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with warning symbols and icons for outdoor activities including water, fire truck, house, campfire, trees, and grass.

Abstract geometric pattern with white lines forming a symmetrical shape on dark background (no text or symbols)

Temperatura massima

Simple geometric shape with three horizontal white lines inside a rounded rectangle (no text or symbols)

Errore

Illustration of five different types of mechanical fasteners or bolts, including threaded and flat components (no text or symbols present)

A (x2) B (x1) C (x2) D (x2) E (x2)

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with mounting brackets and structural components (no text or symbols)

2 - Fissa la staffa del termometro al pavimento

oonj E E A A

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical device with exploded view and assembly details (no text or symbols)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the internal frame.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Line drawing of a portable oven with digital display and lid, showing internal structure and packaging (no text or symbols)

Line drawing of a portable oven with a digital display and a tray, showing internal components and a dashed line indicating movement (no text or symbols)

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Technical line drawing of a vehicle front panel with no visible text or symbols

NL

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with hazard symbols and icons for outdoor activities including water, fire truck, house, campfire, trees, and grass.

888 ooni Ooni-knop

888 C/F 950 HHH --

Aanzetten

Technical drawings of five different mechanical components (tens, washer, and nut) with no visible text or symbols

Stap voor stap

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and alignment arrows (no text or symbols)

oonj E E A A

Stap 3 - Stop de batterijen in de digitale thermometer

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical device with exploded view and assembly details (no text or symbols)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the internal frame.

Stap 4b - Bevestig de digitale thermometer

Technical line drawing of a mechanical assembly with two views showing internal components and connection details (no text or symbols)

Line drawing of a portable oven with digital display and internal compartments, showing part assembly (no text or symbols)

Line drawing of a portable oven with a digital display and a tray, showing internal components and a dashed line indicating a drop or release (no text or symbols present)

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Technical line drawing of a vehicle front panel with no visible text or symbols

NO

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with warning symbols and icons for heating, cooking, and outdoor activities

888 ooni Ooni-knott

888 C/F 950 HHH --

På

Exploded view diagram of a Sony device showing internal components and assembly steps with numbered labels

Deleliste

1. Hovedenhet
2. Dør
3. Cordierite bakesteinhelle
4. Digitalt termometer
5. Skorstein/Røykrør
6. Skorsteinstopp
7. Grillrist og brennstoffskål
8. Brennstoffluke
9. Trekkvernplate
10. Termometerbrakett
11. Jack-brakett
12. Unbrakonøkkel
13. Stjernetrekker

Fester

Illustration of five different types of mechanical fasteners or bolts, including threaded and flat components (no text or symbols present)

A (x2) B (x1) C (x2) D (x2) E (x2)

Trinn for trinn

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and alignment arrows (no text or symbols)

Trinn 2 – Fest termometerbraketten til gulvet

oonj E E A A

Trinn 3 – Sett batteriene inn i det digitale termometeret

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the component.

Trinn 4b - fest det digitale termometeret

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Line drawing of a portable oven with digital display and lid, showing internal structure and packaging (no text or symbols)

Trinn 6 – Sett på plass brennstoffskålen og grillristen

Line drawing of a portable oven with a digital display and a tray, showing internal components and a dashed line indicating a drop or release (no text or symbols present)

Ooniens logo på grillisten skal vende mot ovnens front

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Trinn 9 – Fest trekkvernplaten

Technical line drawing of a vehicle front panel with no visible text or symbols

PT

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with hazard symbols and icons for outdoor activities including water, fire truck, house, campfire, trees, and grass.

Illustration of five different types of mechanical fasteners or bolts, including threaded and flat components (no text or symbols present)

A (x2) B (x1) C (x2) D (x2) E (x2)

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and alignment arrows (no text or symbols)

ooni E E A A

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical device with exploded view and internal components (no text or symbols)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the component.

Passo 4b - Fixe o termómetro digital

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Line drawing of a portable oven with digital display and internal compartments, showing part assembly (no text or symbols)

Line drawing of a portable oven with a digital display and a tray, showing internal components and a dashed line indicating a drop or release (no text or symbols present)

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Technical line drawing of a vehicle front panel with no visible text or symbols

SE

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with warning symbols and icons for heating, cooking, and outdoor activities

888 ooni Ooni-knapp

888 C/F 950 HHH --

Påslagning

Tryck på Ooni-knappen tills "888" visas på skärmen

Avstängning

Illustration of five different types of mechanical fasteners or bolts, including threaded and flat components (no text or symbols present)

A (x2) B (x1) C (x2) D (x2) E (x2)

Steg för steg

Steg 1 – Fäll ut benen

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and alignment arrows (no text or symbols)

oonj E E A A

Steg 3 – Sätt in batterierna i den digitala termometern

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical device with exploded view and assembly details (no text or symbols)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the internal frame.

Steg 4b - Sätt fast den digitala termometern

Technical line drawing of a mechanical assembly with two views showing internal components and connection details (no text or symbols)

Line drawing of a portable oven with digital display and internal compartments, showing part assembly (no text or symbols)

Line drawing of a portable oven with a digital display and a separate tray (no text or symbols)

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Diagram illustrating the process of a portable oven with labeled components and a magnified view showing internal components.

Technical line drawing of a vehicle front panel with no visible text or symbols

HE

. Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karu 16, Ooni Karum

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with hazard symbols and icons for outdoor activities including water, fire truck, house, campfire, trees, and grass.

. Ooni Karu 16-7 Ooni Karu 16-7

תְרָה בַעִים הַלְא

888 ooni Ooni

888 C/F 950 HHH --

תַלְרָה

"888" Ooni

בְרָה

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and mounting brackets (no text or symbols)

ooni E E A A

Technical line drawing of a mechanical component with multiple pins and a central hub (no text or symbols)

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols present)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the component B.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Line drawing of a portable oven with digital display and lid, showing internal structure and part assembly (no text or symbols)

Line drawing of a portable oven with a digital display and a tray, showing internal components and a dashed line indicating movement (no text or symbols)

תַרְהָאִי – 7а בּוֹ

Technical diagram of a Ooni air conditioner with labeled components and directional arrows indicating assembly or operation.

Line drawing of a portable oven with a cylindrical top and control panel, showing no text or symbols on the device itself.

Technical diagram showing a device with a labeled component 'cont' and a circular inset highlighting a circular feature with 'D'.

Technical line drawing of a vehicle front panel with no visible text or symbols

JP

Technical line drawing of a mechanical device with no visible text or symbols

オーブンの外に火が出る可能性のある場所

Warning sign with hazard symbols and icons for outdoor activities including water, fire truck, house, campfire, trees, and grass.

点火と消火 - 薪または炭

Illustration of five different types of mechanical fasteners or bolts, including threaded and flat components (no text or symbols present)

A (x2) B (x1) C (x2) D (x2) E (x2)

ステップごとの解説

ステップ1 - 脚部を開く

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with mounting brackets and structural components (no text or symbols)

oonj E E A A

Technical line drawing of a mechanical component with labeled parts (no text or symbols)

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols present)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the internal mechanism.

Technical line drawing of a mechanical assembly with two views showing internal components and connection details (no text or symbols)

Line drawing of a portable oven with digital display and internal compartments, showing part assembly (no text or symbols)

Line drawing of a portable oven with a digital display and a separate tray (no text or symbols)

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Technical line drawing of a vehicle front panel with no visible text or symbols

RU

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with hazard symbols and icons for outdoor activities including water, fire truck, house, campfire, trees, and grass.

Abstract geometric pattern with white zigzag shapes on dark background (no text or symbols)

Simple geometric shape with three horizontal white lines inside a dark rounded rectangle (no text or symbols)

Ошибка

Technical drawings of four different mechanical components with no visible text or symbols

A (x2) B (x1) C (x2) D (x2) E (x2)

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and mounting brackets (no text or symbols)

oonj E E A A

Technical line drawing of a mechanical component with bolted parts and a curved housing (no text or symbols)

Technical line drawing of a mechanical device with exploded view and mounting points (no text or symbols)

Technical line drawing of a vehicle chassis with mechanical components and three circular insets showing close-ups of the assembly (no text or symbols)

Technical line drawing of a mechanical assembly with two views showing internal components and connection details (no text or symbols)

Line drawing of a portable oven with digital display and internal compartments, showing part assembly (no text or symbols)

Line drawing of a portable oven with a digital display and a separate tray (no text or symbols)

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Technical line drawing of a vehicle front panel with no visible text or symbols

CH

安全法律免责声明－请在使用前完整阅读

须

Technical line drawing of a mechanical device with no visible text or symbols

Warning sign with warning symbols and icons for heating, cooking, and outdoor activities

点火和灭火 - 木头或木炭

烧 仅

888 ooni Ooni

888 C/F 950 HHH - -

打开开关

Exploded view diagram of a device with numbered parts and an inset close-up showing internal components.

零件清单

Illustration of five different types of mechanical fasteners or bolts, including threaded and flat components (no text or symbols present)

A (x2) B (x1) C (x2) D (x2) E (x2)

安装步骤

第1步 - 打开烤炉支脚

Technical line drawing of a vehicle chassis frame with labeled components (no text or symbols beyond branding)

Technical line drawing of a vehicle chassis frame with structural components and alignment arrows (no text or symbols)

第2步 - 将温度计支架固定到地板上

oonj E E A A

第3步 - 将电池插入数字温度计

Technical line drawing of a mechanical component with bolted parts and a central knob (no text or symbols)

从电池盖上逆时针拧松并卸下4颗十字头螺钉

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols present)

Technical diagram of a vehicle chassis with labeled components and assembly steps, including a zoomed-in view of the internal mechanism.

Technical line drawing of a mechanical assembly with two views showing internal components and connection points (no text or symbols)

第5步 - 插入堇青石烤板

Line drawing of a portable oven with digital display and internal compartments, showing part assembly (no text or symbols)

第6步 - 插入燃料盘和燃料架

Line drawing of a portable oven with a digital display and internal components, showing no text or symbols.

燃料架上的Ooni标志必须朝向烤炉正面

第7a步 - 装上炉门

Technical diagram of a OONI air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Diagram illustrating the process of a portable air conditioner with labeled components and a magnified view showing internal components.

顺时针拧紧，但不要拧得过紧

Technical line drawing of a vehicle front panel with no visible text or symbols

ooni.com

© 2022 Ooni

Ooni is a registered trademark of Ooni Ltd.

All rights reserved.

PA-A00188
