USER MANUAL Koda 16 OONI

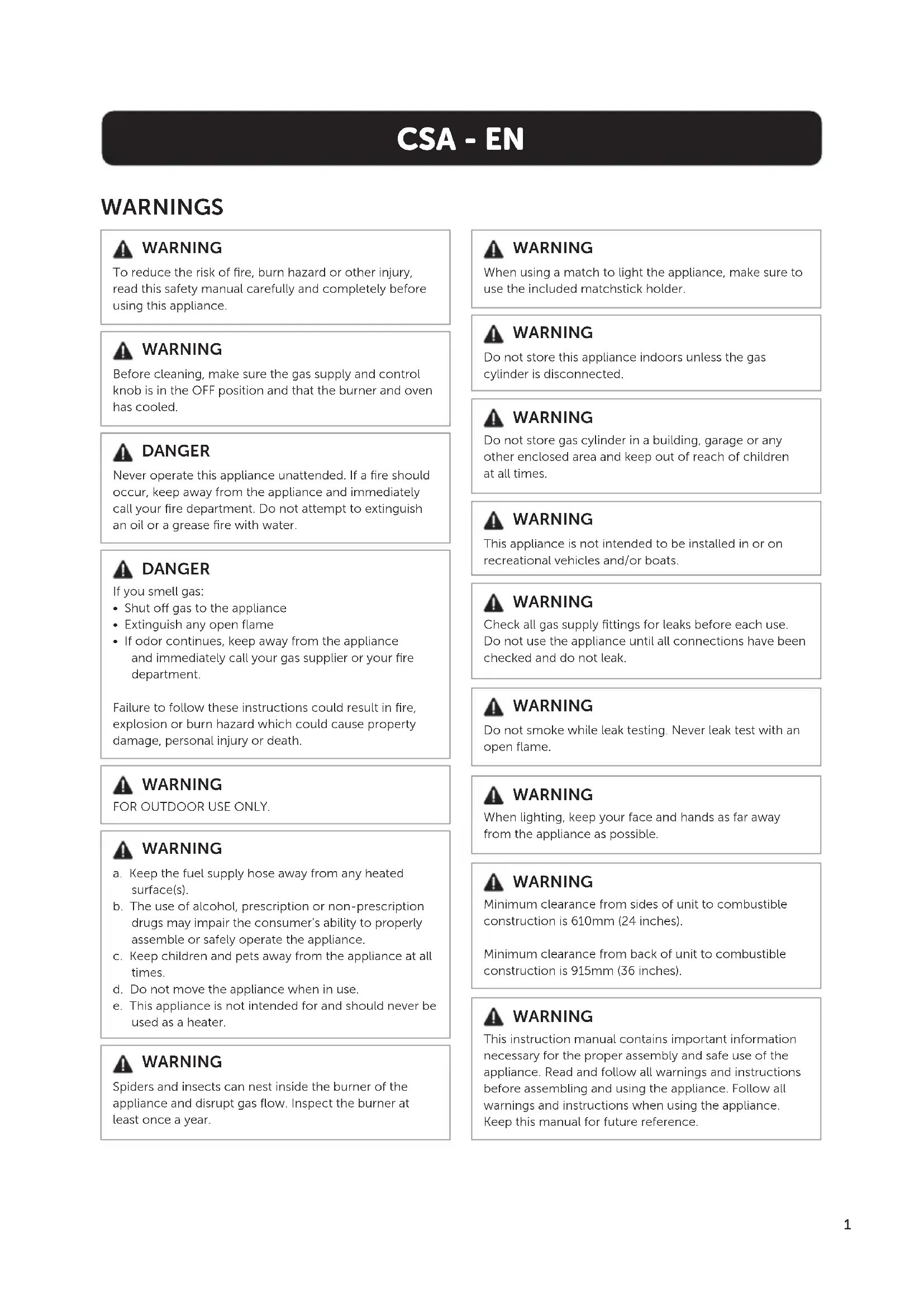

WARNING To reduce the risk of fire, burn hazard or other injury, read this safety manual carefully and completely before using this appliance. WARNING Spiders and insects can nest inside the burner of the appliance and disrupt gas flow. Inspect the burner at least once a year. WARNING Do not store gas cylinder in a building, garage or any other enclosed area and keep out of reach of children at all times. WARNING Check all gas supply fittings for leaks before each use. Do not use the appliance until all connections have been checked and do not leak. WARNING When using a match to light the appliance, make sure to use the included matchstick holder. WARNING Do not store this appliance indoors unless the gas cylinder is disconnected. WARNING This appliance is not intended to be installed in or on recreational vehicles and/or boats. WARNING Do not smoke while leak testing. Never leak test with an open flame. WARNING When lighting, keep your face and hands as far away from the appliance as possible. WARNING Minimum clearance from sides of unit to combustible construction is 610mm (24 inches). Minimum clearance from back of unit to combustible construction is 915mm (36 inches). WARNING This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. Read and follow all warnings and instructions before assembling and using the appliance. Follow all warnings and instructions when using the appliance. Keep this manual for future reference. WARNING FOR OUTDOOR USE ONLY. WARNING Before cleaning, make sure the gas supply and control knob is in the OFF position and that the burner and oven has cooled. DANGER Never operate this appliance unattended. If a fire should occur, keep away from the appliance and immediately call your fire department. Do not attempt to extinguish an oil or a grease fire with water. DANGER If you smell gas:

• Shut o gas to the appliance

• Extinguish any open flame

• If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury or death. WARNING a. Keep the fuel supply hose away from any heated surface(s). b. The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to properly assemble or safely operate the appliance. c. Keep children and pets away from the appliance at all times. d. Do not move the appliance when in use. e. This appliance is not intended for and should never be used as a heater. WARNINGS2

NOMINAL HOURLY GAS CONSUMPTION

WARNING This manual includes a list of required parts necessary for the safe operation of the appliance, directions for proper assembly and for assembly of installed parts and accessories supplied with the appliance, and proper procedures for gas leak testing. WARNING This appliance is not intended to be installed in or on a boat. This appliance is not intended to be installed in or on a recreational vehicle. WARNING This manual states that an oven, fryer or broiler shall not be used on or under any apartment or condominium balcony or deck. WARNING This appliance shall be used only outdoors, and shall not be used in a building, garage, or any other enclosed area. WARNING This manual includes an instruction to clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts, or leaks, the hose must be replaced prior to the appliance being put into operation. The replacement hose assembly shall be that specified by the manufacturer. WARNING Keep the fuel supply hose away from any heated surface(s). WARNING The appliance should not be located or used under overhead unprotected combustible construction materials or surfaces. For a grill, fryer or broiler, the minimum clearance shall be at least 10ft (3m) from any structure or combustible material. Ooni Koda 16 - Outdoor Use Gas Grill Gas Type Number of Burners Injector Size Main Burner Total Gas Consumption BTU Gas Pressure KPa Propane 1 1.10 29000 2.74 7iwc NG 1 1.85 29000 1.773

SAFETY PRACTICES TO AVOID INJURY

When properly cared for, your oven will provide safe, reliable service for many years. However, extreme care must be used as the oven produces intense heat that can increase the risk of accidents. When using this oven basic practices must be followed, including but not limited to following:

• Do not repair or replace any part of the oven unless specifically recommended in this manual. All other service should be referred to a qualified technician.

• Children should not be left alone or unattended in an area where the oven is being used. Do not allow children to sit, stand or play around the oven at any time.

• Never let clothing or other flammables come in contact with or too close to any burner or hot surface until it has cooled. The fabric could ignite, causing serious personal injury.

• For personal safety, wear proper apparel. Loose fittings garments or sleeves should never be worn while using the oven. Some synthetic fabrics are highly flammable and should not be worn while cooking.

• Do not heat unopened food containers as a build-up of pressure may cause the containers to burst. When lighting the burner, always pay close attention to what you are doing.

• When using the oven, do not touch the outer shell, stone baking board or immediate surroundings as these areas become extremely hot and could cause burns.

• Do not use the oven to cook extremely fatty meats or other products which increase flare-up.

• Keep the area surroundings the oven free from combustible material including fluids, trash and vapours such as gasoline or charcoal lighter fluid.

• Do not obstruct the flow of combustion and ventilation air.

• Never use the oven in extremely windy conditions.

• The temperature under the oven is high. Do not place the oven on a table with flammable table clothes, plastic or any other inflammable materials. BEFORE LIGHTING Inspect the gas supply hose prior to turning on the gas. If there is evidence of cut, wear or abrasion, it must be replaced prior to use. Screw the regulator onto the gas cylinder. Leak check the hose and regulator connections with a soap and water solution before lighting the appliance. Only the pressure regulator and gas hose assembly supplied with this appliance should be used.

LP GAS CYLINDER WARNING

1. Do not store spare liquid propane gas cylinder under or near this appliance.

2. Never fill the cylinder beyond 80 percent capacity.

3. Liquid propane cylinder must be fitted with an OVERFILL PROTECTION DEVICE (OPD).

4. If the information above is not followed exactly, a fire resulting in death or serious injury may occur.

5. This manual states that the installation must conform with local codes or, in the absence of local codes, with the

National Fuel Gas Code, ANSI Z223.1/NFPA 54, Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58; or Natural Gas and Propane Installation Code, CSA B149.1; Propane Storage and Handling, CSA B149.24

ASSEMBLY Before assembly, make sure all parts are present. If any part is missing or damaged, do not attempt to assemble the appliance. Contact customer service for replacement parts.

3. Connecting gas hose to Ooni Koda 16

Depending on your region the hose may be preassembled. a. Connecting gas hose directly to Ooni Koda 166

4. Connecting to gas tank

This gas fitting is clockwise. Make sure that the tank is completely switched o and screw the regulator as far as possible into the gas tank valve.

2. The cylinder valve should be in OFF position.

3. Make sure the burner valve is in OFF position.

4. Inspect the valve connections, port and regulator assembly. Remove debris and inspect the hose for

5. When connecting the regulator assembly to the valve, use your hand to tighten the nut clockwise until it

stops. Use of a wrench could damage the quick coupling nut and result in a hazardous situation.

6. Open the cylinder valve fully by turning the valve counterclockwise.

7. Before lighting the oven, use a soap and water solution to check all connections for leaks.

8. If a leak is found, turn the cylinder valve OFF, and do not use the oven until local liquid propane dealer can

1. Turn the oven burner valve OFF and make sure the oven is cool.

2. Turn the liquid propane cylinder valve OFF by turning clockwise until it stops.

3. Detach the regulator assembly from the cylinder valve by turning the quick coupling nut

4. Place dust cap for cylinder valve outlet whenever the cylinder is not in use.

• Please always keep the gas bottle in upright position.

• The size for 20 lbs LP gas cylinder is 12.2 inches in diameter and 17.9 inches tall

• If the appliance is not in use, the gas must be turned o at the supply cylinder.

• The cylinder used must include a collar to protect the cylinder valve.

• The minimum distance for the appliance and the 20lb gas tank is 40 inches apart.7 LEAK TESTING GENERAL Although the gas connections of the appliance are leak tested prior packing and shipment, a complete test must be performed at the installation site. Before each use, check all the gas connections for leak testing using the procedure listed below. If the smell of gas is detected at any time, you should immediately stop using and check the entire system for leaks. BEFORE TESTING Make sure all packing material has been removed from the appliance. Make a solution of one part liquid detergent and one part water. You will need a spray bottle, brush or rag to apply the solution to the fittings. TO TEST

1. Turn the burner valve OFF

2. Turn the liquid propane cylinder valve on counterclockwise to open the valve.

3. Apply the soap solution to all gas fittings. Soap bubbles would appear where a leak is present.

4. If a leak is present, immediately turn the gas supply OFF and tighten leaky fittings.

5. Turn the gas back ON and recheck.

6. Should the gas continue to leak from any of the fittings, turn the gas supply OFF and contact customer

Store Ooni Koda 16 out of direct sunlight and indoors where possible and when storing for extended periods of time. Ooni Koda 16 should not be exposed to harsh weather conditions such as snow, heavy rain and strong winds. Wait for Ooni Koda 16 to cool completely before moving The outer shell of Ooni Koda 16 may fade over time and through use. This will not aect performance. OPERATING INSTRUCTIONS

Each burner is rated at 29,000 BTU/Hr. To begin:

1. Make sure the oven has been leak tested and properly placed.

2. Remove any remaining packing material.

1. Make sure the control knob is in OFF position, and then turn the liquid propane cylinder

valve ON by slowly turning counterclockwise.

2. Push in and slowly turn the control knob anticlockwise until you hear a click and the

3. If burner doesn't light, turn the knob OFF, wait 5 minutes and repeat the lighting.

TO LIGHT WITH A MATCH

1. If burner will not light after several attempts using the control knob, the burner may be lit with a match.

2. If you have already attempted to light the burner using the control knob, wait 5 minutes for any gas to

dissipate. 3 Insert a match into the matchstick holder, ignite the match and insert through the oven opening to the burner.

4. Push and turn the control knob to HI slowly, the burner should ignite immediately.

5. If the burner does not light within seconds, turn the control knob OFF and wait 5 minutes and try again.9

Problem Possible Cause Prevention/Solution Burner will not light 1. No gas flow

2. Coupling nut and regulator not fully

3. Obstruction of gas flow

4. Disengagement of burner to valve

5. Incorrect assembly

1. Check to see if propane tank is

2. Turn the coupling nut about one-

half to three quarters additional turn until solid stop. Tighten by hand only - do not use tools

3. Clear burner tube

4. Reengage burner and valve

5. Check steps in assembly

instructions Sudden drop in gas flow or low flame 1. Out of gas 1. Check for gas in propane tank

2. Turn o gas control knob, wait 30

seconds and light oven. If flames are still low, turn o gas control knob and propane tank valve. Disconnect regulator. Reconnect regulator and leak test. Turn on propane tank valve, wait 30 seconds and then light oven. Flames blow out 1. High or gusting winds

2. Low on propane gas"

1. Turn front of oven away from wind

2. Refill propane tank

3. Refer to Sudden drop in gas flow

above Flare-up 1. Grease build up

2. Excessive fat in meat

3. Excessive cooking temperature

4. Excess flour on the cooking surface

2. Trim fats from meat before cooking

3. Adjust (lower) temperature

4. Brush remnant flour from cooking

surface Flashback (fire in burner tube, roaring sound from burner)

1. Burner and/or burner tubes are

2. Pressure drop during ingition

1. Turn gas control knob o. Clean

burner and/or burner tubes.

2. Turn o oven, ensure the tank valve

is fully open (if applicable) and relight. TROUBLESHOOTING

2. Avoid extreme temperature change to the stone. DO NOT place frozen foods on a hot stone

3. The stone is fragile and can break if bumped or dropped

4. The stone is very hot during use and stays hot for a long time after use.

5. DO NOT cool the stone with water when the stone is hot

6. After cleaning the stone with water, please dry the stone before use. This can be done in a conventional
