USER MANUAL Kura 12 OONI

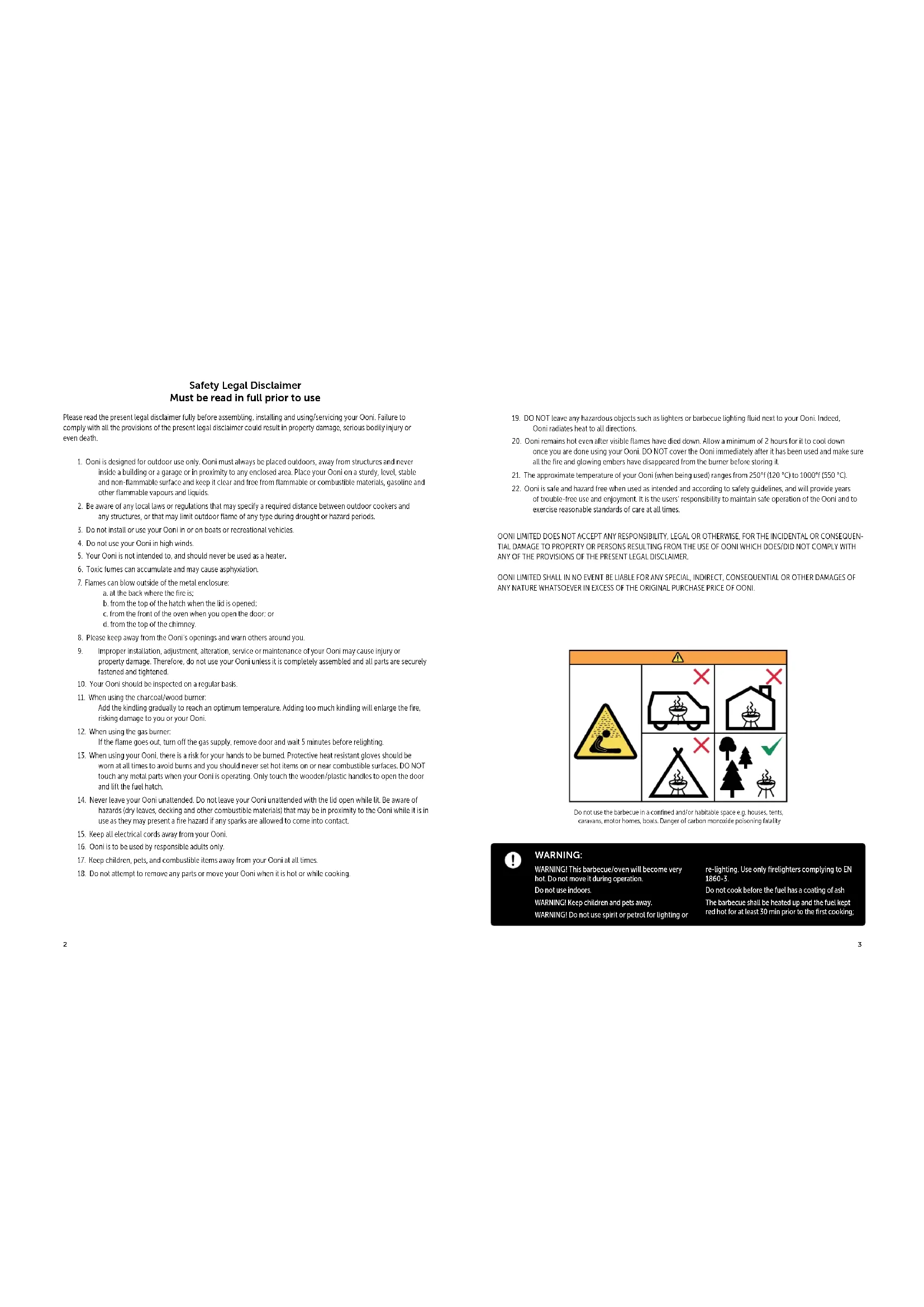

Karu 12 Manual1 Safety legal disclaimers 2 What’s in the box 4 Assembly 6 Lighting & extinguishing 20 Assembly translations CH 22 DA 25 DE 28 ES 31 FI 34 FR 37 IT 40 IW 43 JP 46 NL 49 NO 52 PT 55 SE 58 SI 61 Ooni Karu 12 Pizza Oven UU-P0A1002 3 Safety Legal Disclaimer Must be read in full prior to use Please read the present legal disclaimer fully before assembling, installing and using/servicing your Ooni. Failure to comply with all the provisions of the present legal disclaimer could result in property damage, serious bodily injury or even death.

1. Ooni is designed for outdoor use only. Ooni must always be placed outdoors, away from structures and never

inside a building or a garage or in proximity to any enclosed area. Place your Ooni on a sturdy, level, stable and non-flammable surface and keep it clear and free from flammable or combustible materials, gasoline and other flammable vapours and liquids.

2. Be aware of any local laws or regulations that may specify a required distance between outdoor cookers and

any structures, or that may limit outdoor flame of any type during drought or hazard periods.

3. Do not install or use your Ooni in or on boats or recreational vehicles.

4. Do not use your Ooni in high winds.

5. Your Ooni is not intended to, and should never be used as a heater.

6. Toxic fumes can accumulate and may cause asphyxiation.

7. Flames can blow outside of the metal enclosure:

a. at the back where the fire is; b. from the top of the hatch when the lid is opened; c. from the front of the oven when you open the door; or d. from the top of the chimney.

8. Please keep away from the Ooni’s openings and warn others around you.

9. Improper installation, adjustment, alteration, service or maintenance of your Ooni may cause injury or

property damage. Therefore, do not use your Ooni unless it is completely assembled and all parts are securely fastened and tightened.

10. Your Ooni should be inspected on a regular basis.

11. When using the charcoal/wood burner:

Add the kindling gradually to reach an optimum temperature. Adding too much kindling will enlarge the fire, risking damage to you or your Ooni.

12. When using the gas burner:

If the flame goes out, turn o the gas supply, remove door and wait 5 minutes before relighting.

13. When using your Ooni, there is a risk for your hands to be burned. Protective heat resistant gloves should be

worn at all times to avoid burns and you should never set hot items on or near combustible surfaces. DO NOT touch any metal parts when your Ooni is operating. Only touch the wooden/plastic handles to open the door and lift the fuel hatch.

14. Never leave your Ooni unattended. Do not leave your Ooni unattended with the lid open while lit. Be aware of

hazards (dry leaves, decking and other combustible materials) that may be in proximity to the Ooni while it is in use as they may present a fire hazard if any sparks are allowed to come into contact.

15. Keep all electrical cords away from your Ooni.

16. Ooni is to be used by responsible adults only.

17. Keep children, pets, and combustible items away from your Ooni at all times.

18. Do not attempt to remove any parts or move your Ooni when it is hot or while cooking.

19. DO NOT leave any hazardous objects such as lighters or barbecue lighting fluid next to your Ooni. Indeed,

Ooni radiates heat to all directions.

20. Ooni remains hot even after visible flames have died down. Allow a minimum of 2 hours for it to cool down

once you are done using your Ooni. DO NOT cover the Ooni immediately after it has been used and make sure all the fire and glowing embers have disappeared from the burner before storing it.

21. The approximate temperature of your Ooni (when being used) ranges from 250°f (120 °C) to 1000°f (550 °C).

22. Ooni is safe and hazard free when used as intended and according to safety guidelines, and will provide years

of trouble-free use and enjoyment. It is the users’ responsibility to maintain safe operation of the Ooni and to exercise reasonable standards of care at all times. OONI LIMITED DOES NOT ACCEPT ANY RESPONSIBILITY, LEGAL OR OTHERWISE, FOR THE INCIDENTAL OR CONSEQUEN- TIAL DAMAGE TO PROPERTY OR PERSONS RESULTING FROM THE USE OF OONI WHICH DOES/DID NOT COMPLY WITH ANY OF THE PROVISIONS OF THE PRESENT LEGAL DISCLAIMER. OONI LIMITED SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR OTHER DAMAGES OF ANY NATURE WHATSOEVER IN EXCESS OF THE ORIGINAL PURCHASE PRICE OF OONI.

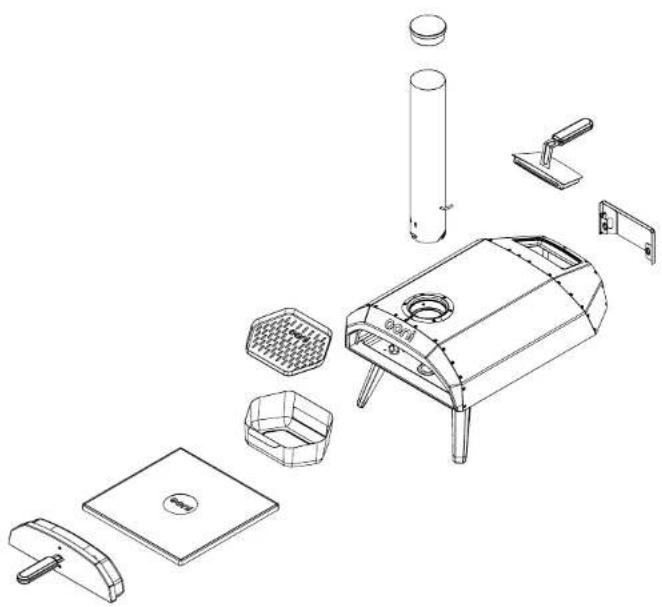

WARNING! This barbecue/oven will become very hot. Do not move it during operation. Do not use indoors. WARNING! Keep children and pets away. WARNING! Do not use spirit or petrol for lighting or re-lighting. Use only firelighters complying to EN 1860-3. Do not cook before the fuel has a coating of ash The barbecue shall be heated up and the fuel kept red hot for at least 30 min prior to the first cooking; Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality4 5 What’s in the box

Cordierite stone baking board

Draft defender plate

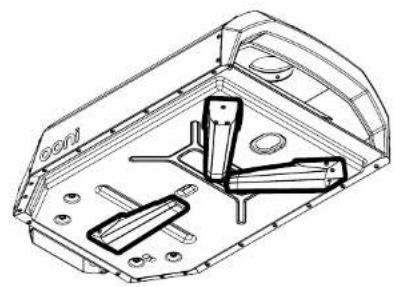

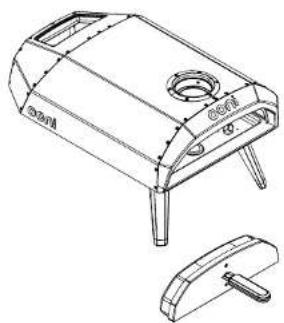

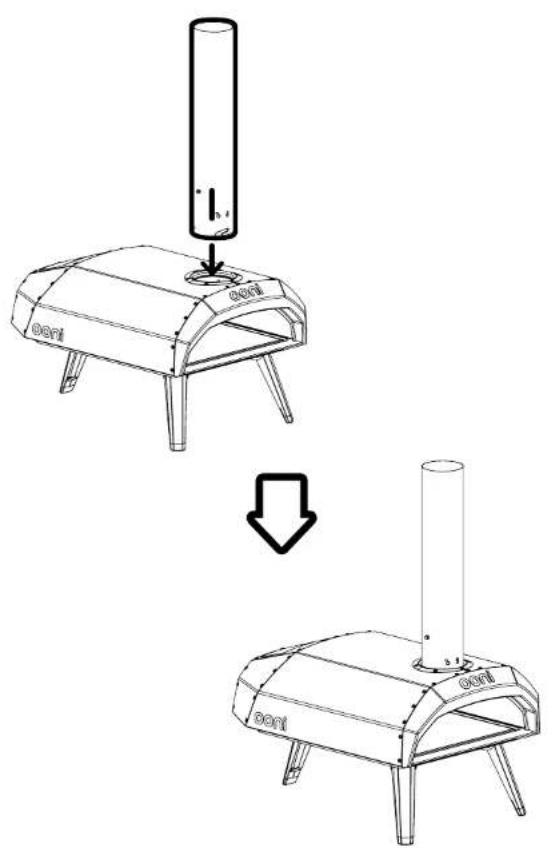

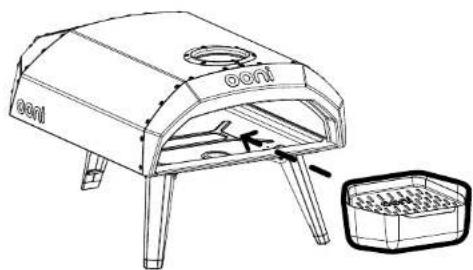

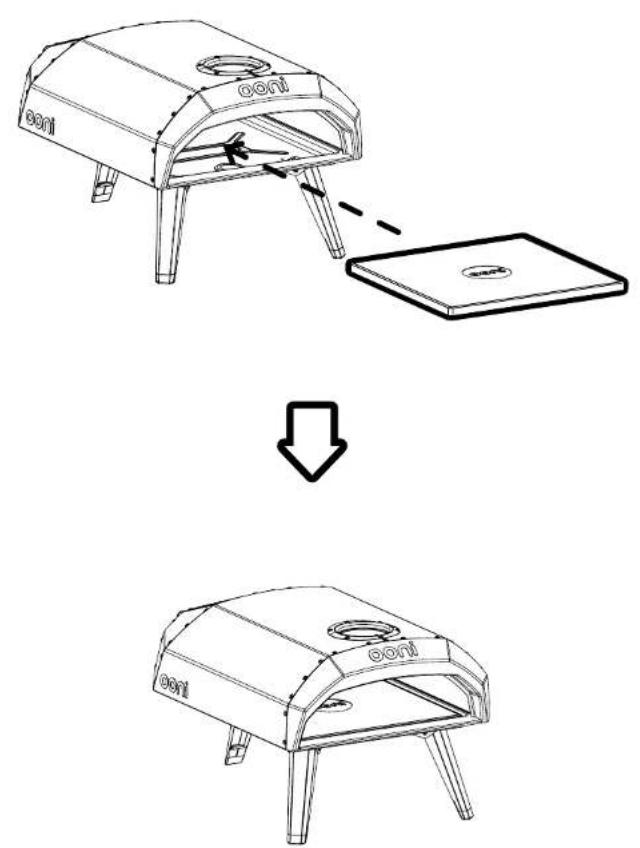

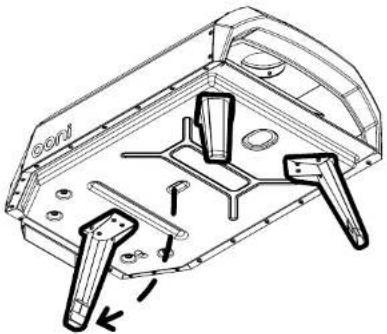

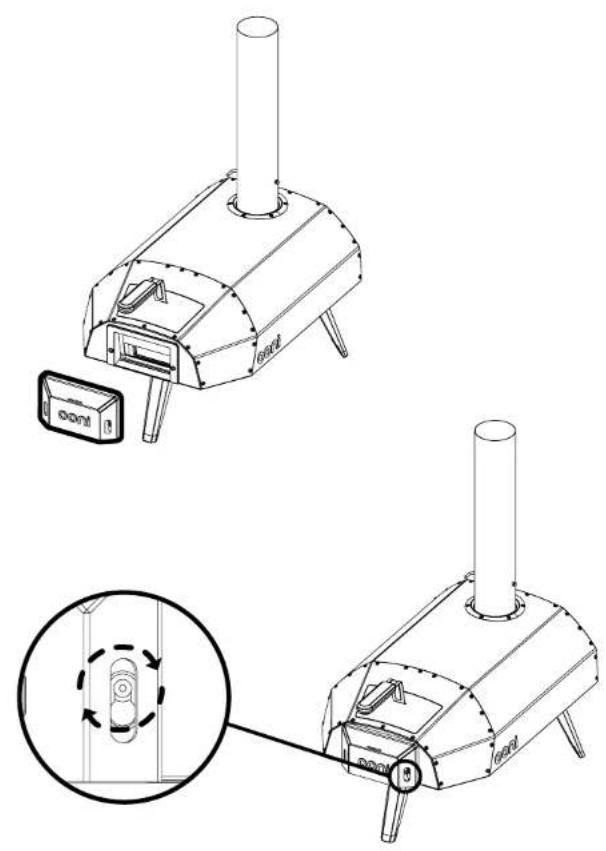

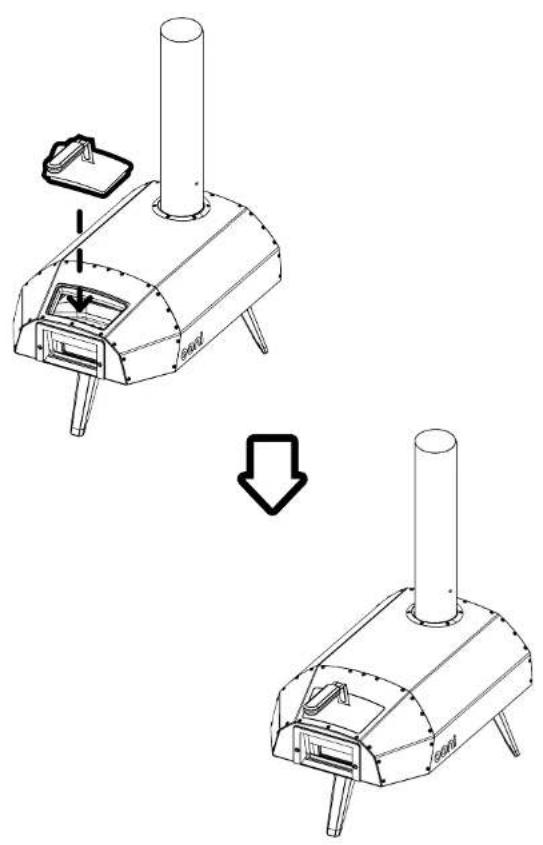

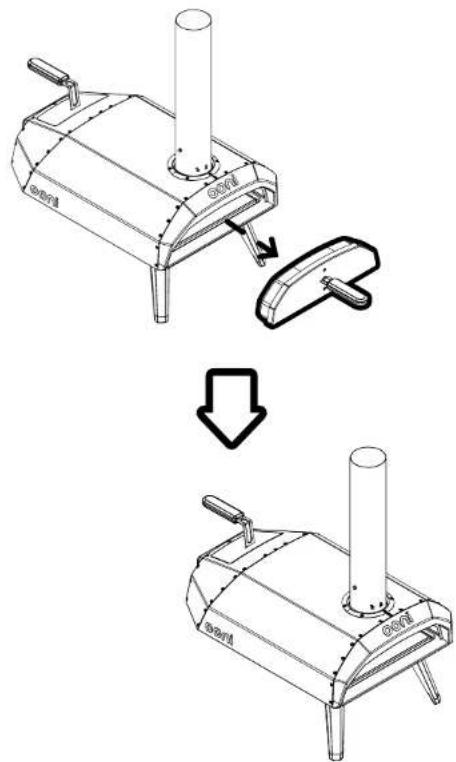

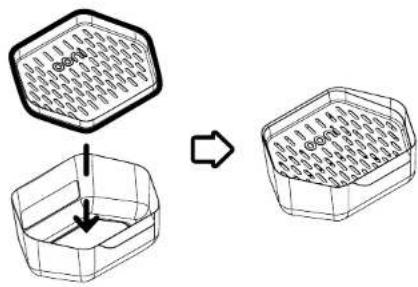

Fuel grate 8 & 9 Chimney & chimney cap Remove all parts from the packaging6 7 If cooking with wood / charcoal: Step 1: Unfold legs Step 2: Insert burner tray / grate8 9 Step 3: Insert pizza stone Step 4: Insert chimney and lock in place10 11 Step 5: Add fuel hatch Step 6: Add the draft defender plateLeave door o while cooking with gas

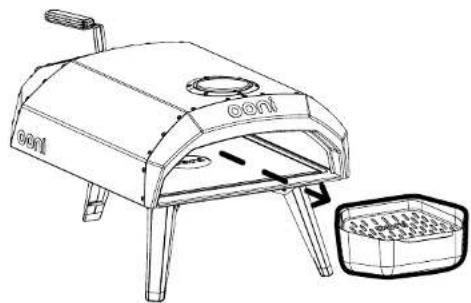

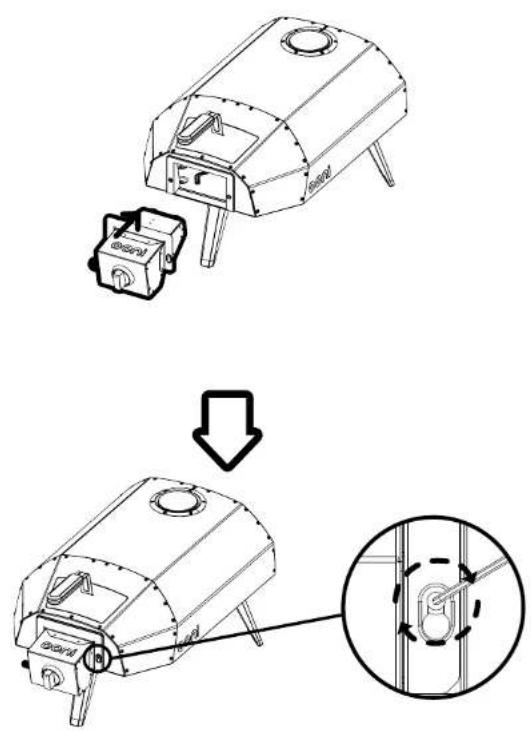

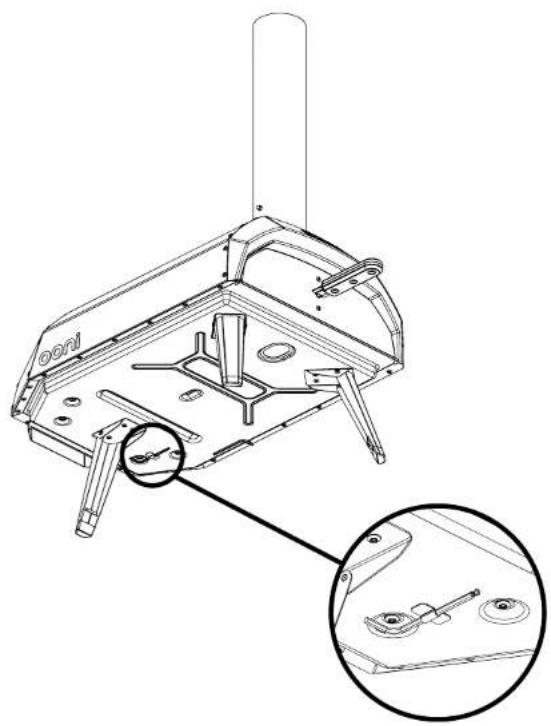

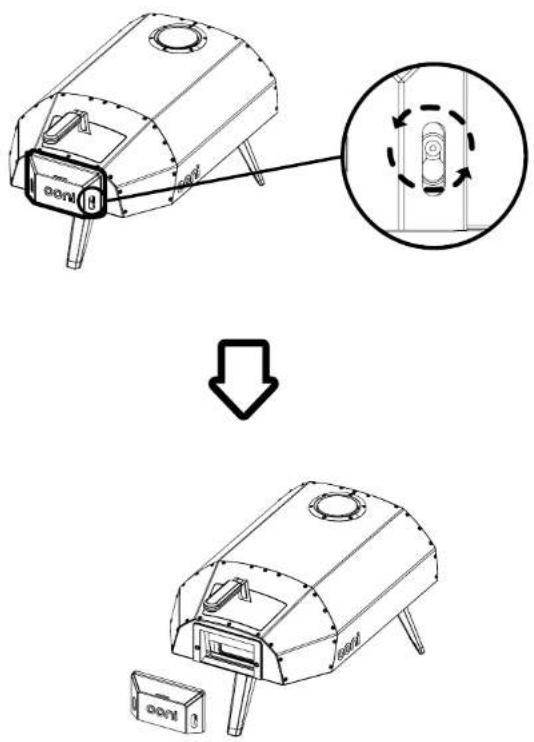

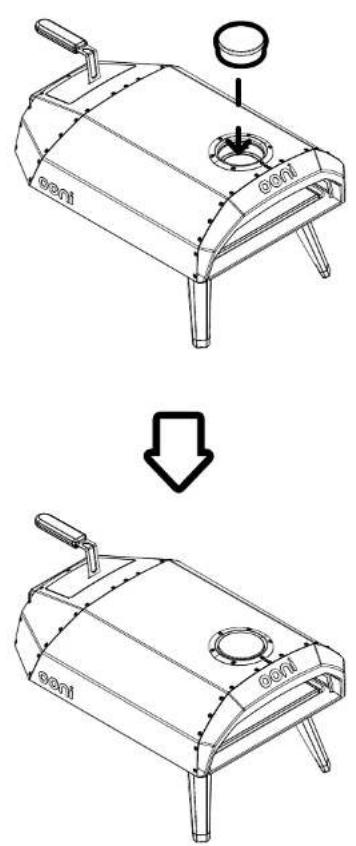

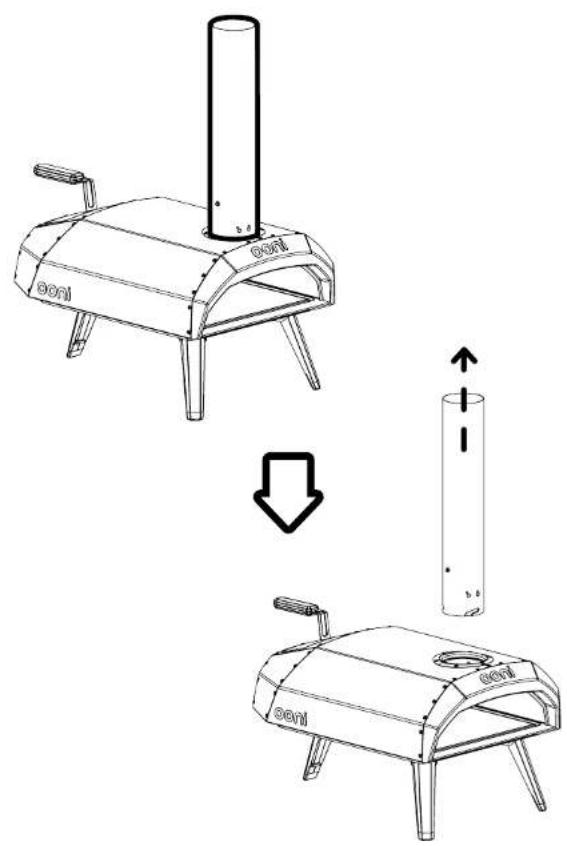

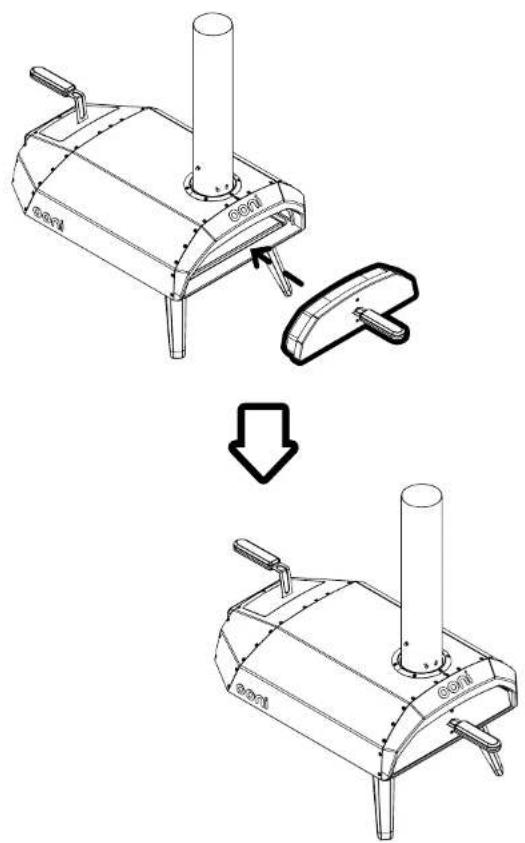

Step 7: Add door If cooking with gas: Step 1: Remove door14 15 Step 2: Remove chimney Step 3: Add chimney cap16 17 Step 4: Remove fuel tray / grate Step 5: Remove draft plate )secure but do not overtighten(18 19 Step 6: Add Gas Burner and secure with Allen key Hint: Store allen key underneath Ooni Karu20 21 Ooni Karu comes with a wood and charcoal burner as a standard. Only use charcoal that is suitable for cooking and do not cook food until the fuel has a coating of ash. When cooking with wood, use pieces of dry, non-treated hardwood (up to 20 cm (8”) long and 4 cm (1.5”) in diame- ter) in the burner. To light your Ooni Karu with either wood or charcoal: Remove the chimney cap, open the chimney and ceiling vents and attach required door. Remove the hatch and place a layer of charcoal or a small stack of wood in the charcoal/wood burner. Use a gas blowtorch or a natural fire-lighter to light the wood. Once there is a fire going, slowly add more fuel. Replace the hatch and leave Ooni Karu to pre- heat for 10-20 minutes. Add more fuel as needed. Do not use spirit or petrol for lighting or re-lighting. Use only fire-lighters complying to EN 1860-3. To extinguish Let the fire burn down naturally and leave Ooni Karu to cool. Do not remove ashes until Ooni Karu has cooled completely. Lighting & extinguishing - Wood or charcoalCH
