Product type	Bench grinder
Brand	Ferm
Model	BGM1019
Power	150 W
Supply voltage	230 V~, 50 Hz
No-load speed	2950 rpm
Duty cycle	S2 30 min (intermittent duty)
Grinding wheel dimensions	Ø 150 x 16 mm
Grinding wheel bore	Ø 12.7 mm
Weight	6.0 kg
Sound pressure level (Lpa)	62.6 dB(A)
Sound power level (Lwa)	75.6 dB(A)
Switch	On/Off switch
Protective screen	Yes, adjustable
Tool rest	2 pieces (right and left), adjustable
Mounting	Bolt on workbench (mounting holes)
Tool rest/wheel clearance	1-1.5 mm max
Wheel replacement	Possible, with right and left hand thread nuts
Maintenance	Clean with soft damp cloth, no lubrication
Safety	Safety glasses mandatory, protective screen, grounding
Accessories supplied	2 tool rests, 1 protective screen with support, manual
Warranty	See supplied warranty certificate
Intended use	Sharpening and grinding of metals, DIY tool

Frequently Asked Questions - BGM1019 Ferm

What is the power of the Ferm BGM1019 bench grinder?

The nominal power is 150 W with a voltage of 230 V and a frequency of 50 Hz.

How do I replace the grinding wheel on the Ferm BGM1019?

Unplug the machine, remove the covers, loosen the axle nut using a 19 mm wrench (right side right-hand thread, left side left-hand thread). Replace the wheel, place the concave flanges facing the wheel, tighten without overdoing. Readjust the tool rest with a gap of 1-1.5 mm.

What is the duty cycle (continuous use duration)?

The duty cycle is S2 30 minutes: after 30 minutes of continuous use, let the motor cool down to room temperature before using again.

What safety accessories are supplied?

The machine comes with an adjustable protective screen, two adjustable tool rests, and a screen support. Safety glasses are recommended.

How do I adjust the tool rest on the Ferm BGM1019?

Unplug the appliance, loosen the tool rest screws, position it 1-1.5 mm from the wheel, then tighten firmly. Check the gap before each use.

The motor is overheating abnormally, what should I do?

The motor may overheat in case of overload. Let it cool down. If the problem persists, contact after-sales service. Ensure you respect the S2 duty time (30 min).

What types of grinding wheels can I use?

Use wheels with diameter 150 mm, bore 12.7 mm, thickness 16 mm. Choose the grit according to the work: coarse grit for roughing, fine grit for finishing. Never exceed the maximum speed indicated.

How do I clean the Ferm BGM1019 bench grinder?

Clean the housing with a soft damp cloth (soapy water) after each use. Avoid solvents like benzene or alcohol. Clean the ventilation slots of dust.

Can I use the grinder for wood or lead?

No, the grinder is designed for grinding metals. Using it on wood, lead or soft materials clogs the wheel surface and can cause blockages.

What to do if the machine does not start?

Check that the switch is set to 'ON', that the cord is not damaged and that the mains socket works. If the problem persists, the switch or motor may be defective; contact an authorized service.

USER MANUAL BGM1019 Ferm

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

The numbers in the following text refer to the pictures on page 2

Read the operating instructions carefully before using this device. Familiarise yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Contents

1. Machine data
2. Safety instructions
3. Installation
4. Operation
5. Maintenance

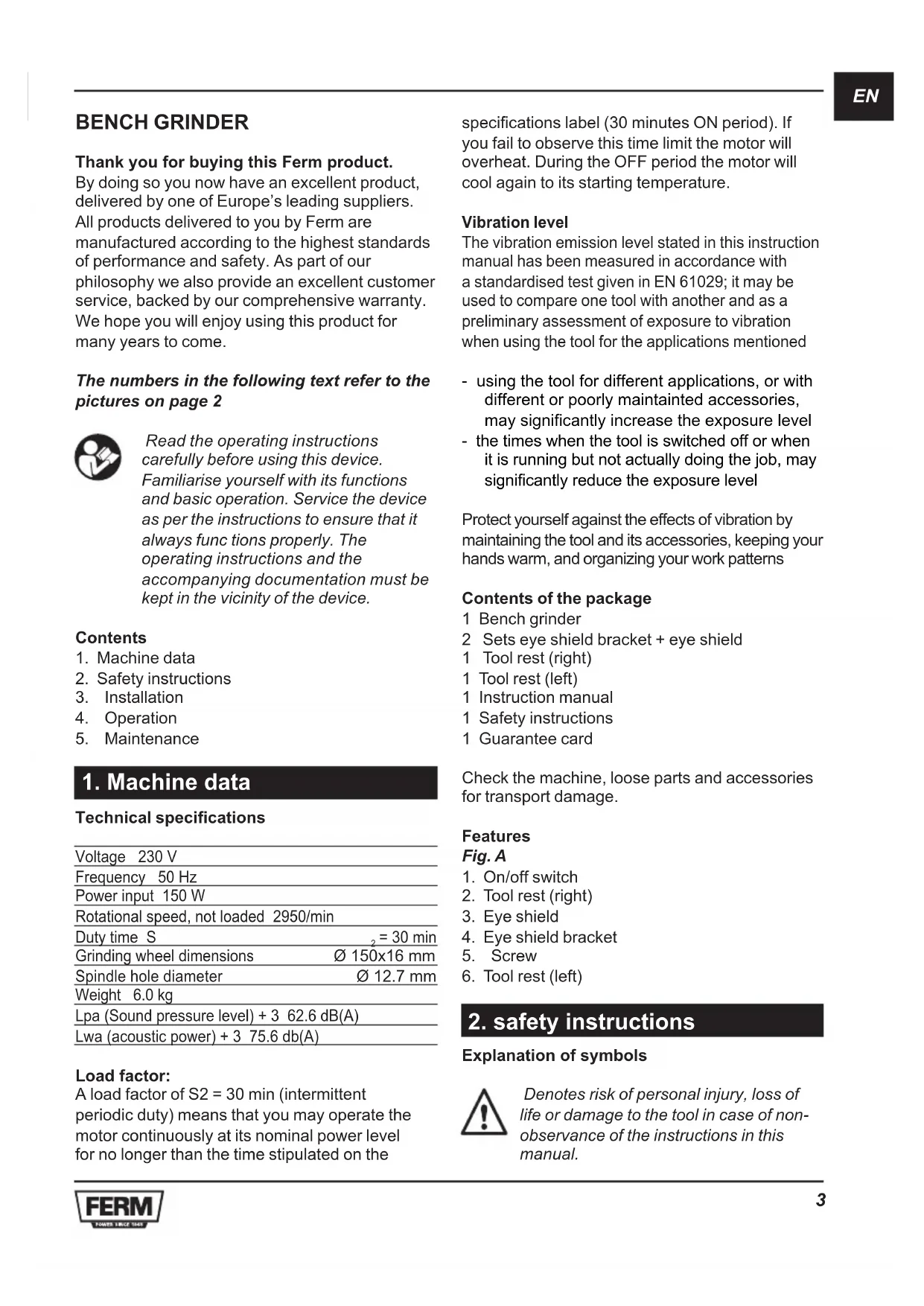

1. Machine data

Technical specifications

Voltage 230V

Frequency 50 Hz

Power input 150 W

Rotational speed, not loaded 2950/min

Duty time S 2 = 30min

Grinding wheel dimensions 150x16 mm

Spindle hole diameter 12.7 mm

Weight 6.0 kg

Lpa (Sound pressure level) + 3 62.6 dB(A)

Lwa (acoustic power) + 3 75.6 db(A)

Load factor:

A load factor of S2 = 30 min (intermittent periodic duty) means that you may operate the motor continuously at its nominal power level for no longer than the time stipulated on the

specifications label (30 minutes ON period). If you fail to observe this time limit the motor will overheat. During the OFF period the motor will cool again to its starting temperature.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 61029; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Contents of the package

1 Bench grinder
2 Sets eye shield bracket + eye shield
1 Tool rest (right)
1 Tool rest (left)
1 Instruction manual
1 Safety instructions
1 Guarantee card

Check the machine, loose parts and accessories for transport damage.

Features

Fig. A

1. On/off switch
2. Tool rest (right)
3. Eye shield
4. Eye shield bracket
5. Screw
6. Tool rest (left)

2. safety instructions

Explanation of symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observation of the instructions in this manual.

Indicates the presence of an electrical voltage.

Keep bystanders away.

Wear eye and ear protection.

Special safety instructions

When using the machine for the first time:

Check te following:
- Does the voltage rating of the bench grinder correspond to the power supply?
Is an earthed mains power socket available?
- Are the power cord and plug in good condition (solid, without fraying or other damage)?
- Avoid the use of long extension cords. The extension cords you use must always be earthed.
- A grinding wheel is a brittle toolpiece. The stone is not resistant to knocks.
Always grind on the front edge of the grinding wheel, and never on the side of the grinding wheel. Never fit a cracked grinding wheel. Replace it immediately, as the high rotational speed could cause the stone to fly apart, causing a serious accident.
Always wear safety glasses when grinding.
- Never grind without the cover fitted over the grinding wheel.
Always fit the grinding wheel cover and tool rest tightly, and with the correct clearance.
- Never allow more than 1 - 1.5mm clearance between tool rest and grinding wheel.
- Only use the grinding wheel for the work it was designed for (for example sharpening tools), and NOT for heavy construction work.
- The following information must be available, before you fit any new grinding wheel:
Details about the manufacturer.
Binding material.
Dimensions.
- Permissible rotational speed.
- Never ream out the hole in a grinding wheel to a larger diameter.
The maximum rotational speed of the grinding

wheel should never be allowed to exceed the maximum speed given for the wheel.

• Never use any grinding wheel that is damaged or deformed.
• In order to be able to grind safely, the machine must be firmly bolted to a workbench.
  The tool rest should be replaced whenever the width of the tool rest measures less than 20mm
  The recommended depth of the recess in the flange (T) is 2mm and the diameter of the spindle hole is 13mm (see Fig. D).

Whenever using the machine

• Check that the switch is NOT in the 'ON/1' position before connecting the machine to the power supply.
  Always keep the power cord out of the way of the tool's moving parts.

Immediately switch off the machine when:

• The plug or power cord is defective or damaged.
• The switch is defective.
• You smell smoke or burning insulation

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the power supply corresponds to the voltage on the rating plate.

Replacing cables or plugs

Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5mm^2 . When using a cable reel always unwind the reel completely.

3. installation

The grinder must be firmly bolted to a workbench. The length of the fixing bolts will depend on the thickness of the workbench. If the workbench is

made of steel, it is advisable to use a wooden block or plank between the grinder and the bench, to insulate it and prevent vibration.

Assembly and adjustment of eye shield bracket and eye shield

Fig. B

The eye shield bracket and eye shield should only ever be assembled/adjusted with the grinding wheel stationary, and the machine disconnected from the power supply.

Fix the eye shield bracket (4) with attached eye shield to the grinding wheel cover, using the screw provided (A).
- Set the eye shield bracket at the correct height. The clearance (B) between the wheel and the eye shield bracket should be 1 to 1.5mm .
Next tighten the screw (A) firmly.
- Position the eye shield to give maximum protection when working.
Always wear safety glasses.

Fitting and adjusting tool rest

The tool rest should only be adjusted when the grinding wheel is completely stationary, and the machine is disconnected from the power supply (the wall socket).

• Fit the tool rest as shown in Fig. C.
  Fix it as tightly as possible in position, with a maximum clearance (C) of 1 to 1.5mm between the tool rest and the grinding wheel.

Replacing the grinding wheel

Fig. C

Required tools:

19 mm spanner
- 8 mm spanner
Screwdriver

Only ever replace the grinding wheel when the motor is at a standstill and the power is completely disconnected.

• Remove the grinding wheel guards using the tools listed above. The spindle nut on the right-hand side has a right-handed thread. The spindle nut on the left-hand side has a

left-handed thread. Keep this in mind when you are replacing the grinding wheels.

• Loosen the nut using the correct spanner. Remove the old wheel from the spindle.
• Clean the flanges. Place one flange (A) back on the spindle, with the hollow side facing the grinding wheel. Slide the new wheel onto the spindle. Place the second flange (A) on the spindle, again with the hollow side facing the grinding wheel. Now tighten the nut on the spindle. Do not overtighten! Now refit the grinding wheel cover, and again adjust the tool rest correctly. Run the motor briefly, without grinding.

4. Operation

Selecting the grinding wheel

Coarse grinding wheels will in general remove the most material, and fine grinding wheels are used for finishing. If the surface is uneven, begin by using a coarse grinding wheel, and grind the workpiece until it is smooth. Next use a fine grinding wheel to remove the grooves and scratching left by the coarse wheel, and finish off the workpiece.

How to grind

To prevent the grinding surface from blocking up, avoid holding wood, lead or any other soft material or metal against the grinding wheel. To avoid creating grooves, do not press the workpiece too firmly on the grinding wheel. Use water to regularly cool the workpiece being ground. Wood chisels and the like should never be sharpened 'blue'.

Take care not to lose your grip on the object being ground, as it may suddenly become jammed between the tool rest and the grinding wheel. This can cause the stone to shatter, the motor to seize, or the workpiece to fly off, all of which can cause injury and damage.

Whenever the machine has been in use for 30 minutes, it should be switched off. Allow the machine to cool down to room temperature.

• Switching the machine on
• Check that the switch is in the "OFF/0" position before connecting the machine to the power supply.
• Press the power switch into the "ON/1" position to start your bench grinder.
  Always keep the power cord out of the way of the tool's moving parts.

5. Maintenance

Make sure that the machine is not live when carrying out maintenance work on the motor.

This machine has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Troubleshooting

Should the machine fail to function correctly, a number of possible causes and the appropriate solutions are given below:

1. The electromotor becomes hot

• The motor has become overloaded.
• Give the motor a chance to cool down.
  The motor is defect.
• Please contact the service address on the warranty card.

2. Machine switched on, but will not run

• Interruption in the mains connection.
• Check mains connection for fracture.
• The switch may be damaged.
• Please contact the service address on the warranty card.

Repairs and servicing should only be carried out by a qualified technician or service firm.

Cleaning

Regularly clean the device's casing with a soft cloth, preferably after each use. Keep the fan slits free of dust and dirt. Remove stubborn dirt using a soft cloth, dampened with soapy water. Do not use solvents such as benzene, alcohol, ammonia, etc, which might damage the plastic parts.

Lubrication

The device does not need any additional lubrication.

Defects

If a defect appears due to a part wearing out, please contact the service center on the warranty card. At the end of these instructions there is an exhaustive overview of the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Damaged and/or disposed of electrical or electronic devices must be dropped off at recycling stations intended for that purpose.

Warranty

Read the warranty conditions on the separately supplied warranty card.

The product and the user manual are subject to change. Specifications can be changed without further notice.

WERKBANKSLIJPMACHINE

W.Dekens CEO Ferm BV

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV · Lingenstraat 6 · 8028 PM · Zwolle The Netherlands

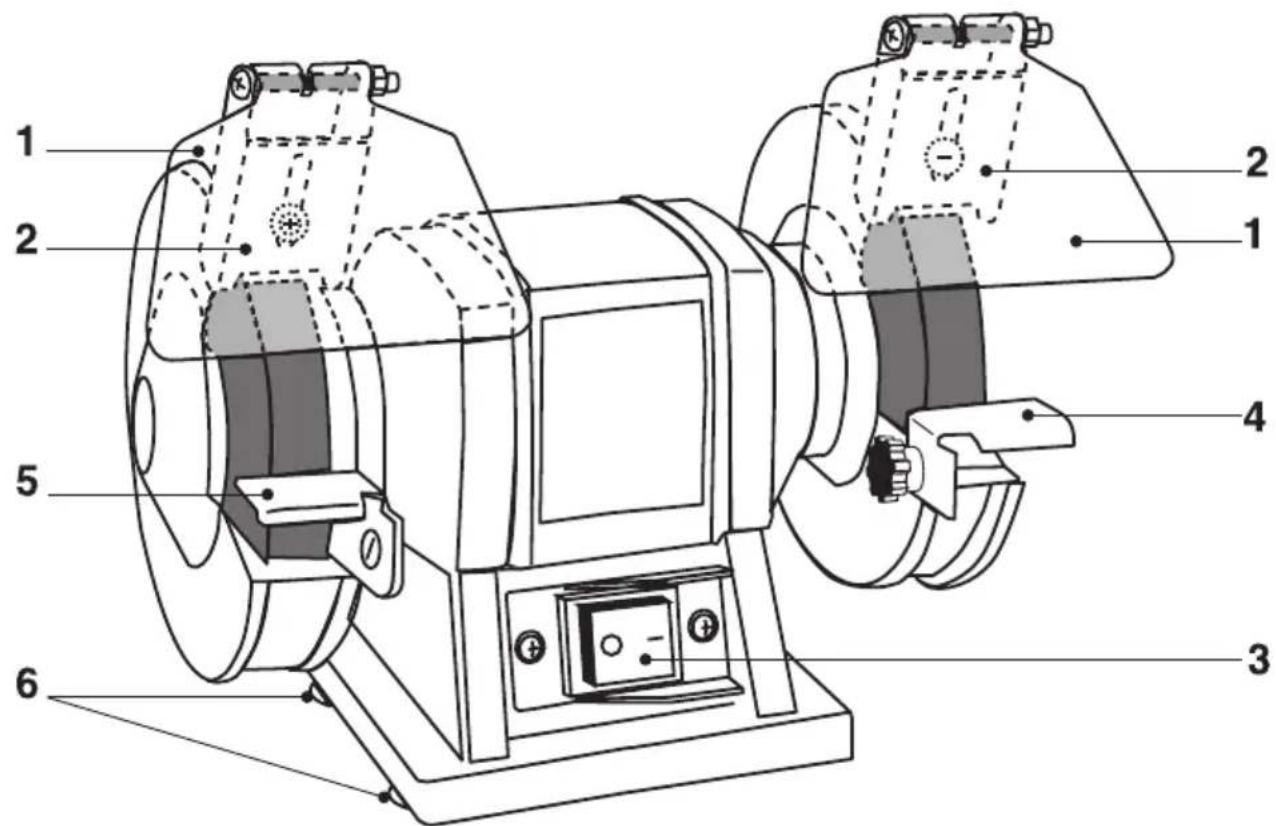

Spare parts list

Position	Description		No.
1		Cover	Glass	206452
2	Cover Glass holder	206151
3		Switch		206403
4		Support	(right)	206431
5		Support	(left)	206405
6		Rubber	foot	206411

Exploded view
