ANGLE GRINDER AGM1042

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

SAFETY WARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and the instructions.

Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury.

Keep the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Risk of personal injury.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Risk of flying objects. Keep bystanders away from the work area.

Wear safety goggles. Wear hearing protection.

Wear safety gloves.

Do not press the spindle lock button while the motor is running.

Risk of fire.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

Class II machine. Your machine is double insulated; therefore no earthwire is required.

ADDITIONAL SAFETY WARNINGS FOR ANGLE GRINDERS

• The machine has been designed for use as a grinder or cut-off machine. The machine is not suitable for operations such as sanding, wire brushing, polishing, etc. Risk of personal injury.
• Do not use accessories which are not specifically designed and recommended by the manufacturer. Risk of personal injury.
• Inspect the machine and the accessories before each use. Do not use accessories which are bent, cracked, or otherwise damaged. If the machine or one of the accessories is dropped, inspect the machine or the accessory for damage. If necessary, replace the accessory.
• Let the machine run at no load in a safe area after mounting the accessories. If the machine vibrates strongly, immediately switch off the machine, remove the mains plug from the mains, and try to solve the problem.
• Make sure that the maximum speed for the grinding disc is larger than or the same as the maximum speed of the machine. Refer to the rating plate on the machine.
• Only use grinding discs with the correct thickness and outside diameter. Refer to the rating plate on the machine.
• Make sure that spindle diameter of grinding discs, spacers, tension nuts, etc. correspond to the diameter of the spindle on the machine.
• Make sure that the grinding disc is properly mounted. Do not use adapters or other aids to mount grinding discs with another spindle diameter.
• Only use grinding discs that are recommended by the manufacturer. Only use guards that are specifically designed for the grinding disc.
  • Only use grinding discs that are suitable for

the application. For example: do not grind with the side of a cut-off disc.

• Do not use the machine without the guard. Securely mount the guard for maximum safety. Make sure that the user is protected from the grinding disc as much as possible.
• Make sure that the workpiece is properly supported or fixed.
• Wear safety goggles. Wear hearing protection. Wear a dust mask. If necessary, use other protective means, such as safety gloves, safety shoes, etc. Risk of personal injury.
• Keep bystanders away from the work area. Make sure that all persons in the work area wear protective equipment. Risk of personal injury.
• Keep the mains cable away from the rotating grinding disc. If the mains cable touches the rotating grinding disc, your hands or arms may come in contact with the grinding disc. Risk of personal injury.
• Hold the machine by the insulated gripping surfaces where the grinding disc may contact hidden wiring or the mains cable. If the grinding disc contacts a 'live' wire, the exposed metal parts of the machine can also become 'live'. Risk of electric shock.
• Do not use the machine while carrying it at your side. Risk of personal injury.
• Do not use the machine on workpieces requiring a maximum grinding depth that exceeds the maximum grinding depth of the grinding disc.
• Do not use accessories that require liquid coolants. Risk of electric shock.
• Do not use the machine near flammable materials. Risk of fire.
• Do not work materials containing asbestos. Asbestos is considered carcinogenic.
• Do not work metal with a magnesium content of more than 80%.
• Beware that the grinding disc continues to rotate for a short period after switching off the machine. Do not attempt to bring the grinding disc to a standstill yourself.
• Never put the machine down on a table or a workbench before it has been switched off.
• Regularly clean the ventilation slots. Risk of electric shock.

Kickback is a sudden reaction to a pinched, bound or twisted grinding disc, which causes the machine to lift up and out of the workpiece towards the user. If the grinding disc is pinched or bound tightly by the cut, the grinding disc jams and the machine is rapidly driven back towards the user. If the grinding disc is twisted in the cut, the back edge of the grinding disc can dig into the top surface of the workpiece, which causes the grinding disc to climb out of the cut and jump back towards the user.

Kickback is the result of incorrect use of the machine and/or incorrect operating procedures or conditions. Kickback can be avoided by taking proper precautions:

• Firmly hold the machine with both hands. Position your arms to resist kickback forces. Position your body to either side of the grinding disc, but not in line with the grinding disc. Kickback can cause the grinding disc to jump backwards. If proper precautions are taken, kickback forces can be controlled by the user.
• Be extra careful when using the machine on corners, sharp edges, etc. Make sure that the grinding disc does not become jammed. Risk of kickback.
• If the grinding disc jams or if you interrupt a cut for any reason, release the on/off switch and hold the machine motionless in the material until the grinding disc comes to a complete standstill. Never attempt to remove the machine from the workpiece or pull the machine backward while the grinding disc is in motion. Risk of kickback.
• Do not use blunt or damaged grinding discs. Unsharpened or incorrectly mounted grinding discs produce narrow cuts, which causes excessive friction and kickback and increases the risk of the grinding discs becoming jammed.
• Do not use toothed saw blades. Do not use woodcarving blades for saw chains. Risk of personal injury.

ELECTRICAL SAFETY

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a

minimum thickness of 1.5 mm^2 . If you use a extension cable reel, always fully unroll the cable.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS 1363/5A fused plug and that the following wiring instructions are followed.

The wires in the mains cable are coloured in accordance with the following code:

blue neutral

brown live

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

TECHNICAL DATA

	AGM1042
Mains voltage V~ 230
Mains frequency Hz 50
Power input W 750
No-load speed min	^-1 11,000
Grinding disc
Diameter mm 115
Bore mm 22.2
Spindle thread M14
Weight kg 2.2

NOISE AND VIBRATION

		AGM1042
Sound pressure (Lpa)	dB(A)	87.7
Acoustic power (Lwa)	dB(A)	98.7
Uncertainty (K)		dB(A)	3
Vibration		m/s2	7.52
Uncertainty (K)	m/s	2	1.5

Wear hearing protection.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745-1; it may be

used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

DESCRIPTION (FIG. A)

Your angle grinder has been designed for grinding and cutting masonry and steel.

1. On/off switch
2. On/off switch lock
3. Spindle lock button
4. Spindle
5. Guard
6. Main grip
7. Auxiliary grip

8. Carbon brush indicator

9. Guard spring

10. Clamping ring for guard
11. Clamping screws for guard
12. One-way clamping screw for guard

ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Mounting and adjusting the safety guard (figure A1)

• Place the machine on the table with the spindle (4) facing upwards.
• First place the spring (14), it's inner lid needs to fit the pocket in the machine housing.
• Then place the guard (5) with the closed pointing to the side of the motor housing.
• Then place the guard clamping ring (15) with it's outer lid pointing backwards. The holes in the ring must fit the holes in the machine housing

• First place the one way screw (17) in the hole which is closest to the outer lid. Do not fully tighten it.

• Then put two guard screws(16) in the holes but do not fully tighten them.

• Now tighten the one way screw (17) till the guard can only be rotated by applying little force.
• Then adjust the guard in its right position and tighten the 2 screws (16) to fix the guard position.
• Adjusting of the guard, can be done by loosening the 2 screws (16) a little, then rotate the guard to the desired position and fix the guard again.

Mounting and removing the grinding disc (fig. B)

Never attempt to remove the guard.

Mounting

• Place the machine on a table with the guard (5) facing upwards.
  • Mount the spacer (9) onto the spindle (4).
• Mount the grinding disc (10) onto the spindle (4).
• Keep the spindle lock button (3) pressed and firmly tighten the tension nut (11) using the spanner (12).

Removing

• Place the machine on a table with the guard (5) facing upwards.
• Keep the spindle lock button (3) pressed and loosen the tension nut (11) using the spanner (12).
• Remove the grinding disc (10) from the spindle (4).
• Keep the spindle lock button (3) pressed and firmly tighten the tension nut (11) using the spanner (12).

Mounting the auxiliary grip (fig. C)

- Tighten the auxiliary grip (7) into one of the mounting holes (13).

USE

Switching on and off (fig. A & D)

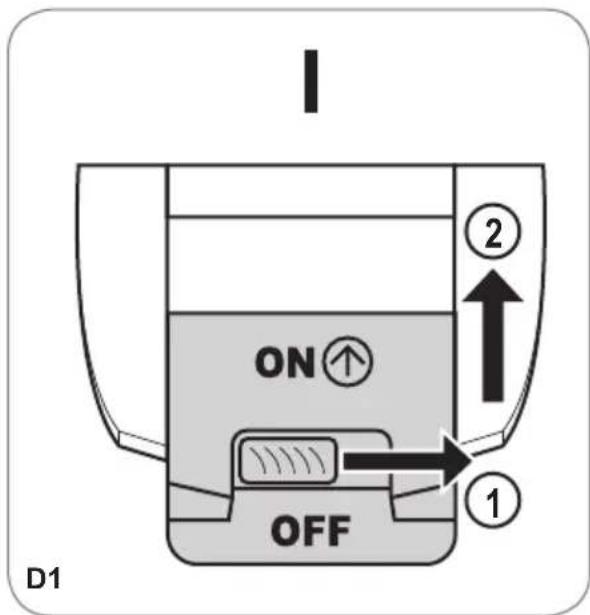

• To switch on the machine in continuous mode, slide the on/off switch lock (2) to the right and slide the on/off switch (1) in the direction of the grinding disc (fig. D1).
• To switch off the machine, press the lower part of the on/off switch (1) (fig. D2).

Hints for optimum use

• Clamp the workpiece. Use a clamping device for small workpieces.
• Draw a line to define the direction in which to guide the grinding disc.
• Hold the machine with both hands.
• Switch on the machine.
• Wait until the machine has reached full speed.
• Place the grinding disc on the workpiece.
• Slowly move the machine along the pre-drawn line, firmly pressing the grinding disc against the workpiece.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

• Regularly clean the housing with a soft cloth.
- Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots.

Carbon brush indicator (fig. A)

If the carbon brushes are worn, the carbon brush indicator (8) will come on. The carbon brushes must be replaced by the customer service department of the manufacturer or a similarly qualified person.

WARRANTY

Consult the enclosed warranty terms.

ENVIRONMENT

Disposal

The product, the accessories, and the packaging must be sorted for environmentally friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic

Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

WINKELSCHLEIFER AGM1042

Schutzvorrichtung (ABB. A1)

BESCHRIJVING (FIG. A)

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

Spare parts list
AGM1042 - Angle grinder

No.	Description	Position
409896	Outer flange 1
409897	Inner flange 3
409898	Clamping set for guard 4,5+58
409913	Wheel guard 115mm 6
409899	Spring ring 7
409900	Spindle	8
409901	Front cap 13
409902	Gear wheel 17
409903	Spindle lock 23|24
806000	Bearing 6000 ZZ 26
409904	Pinion gear 28
409911	Rotor	29
800607	Bearing 607 ZZ	30
409912	Stator	34
409907	Switch complete	37..40
409908	Carbon brush set	53
409909	Carbon brush holder	54
406814	Cam wrench	56
400973	Side handgrip	57
AGA1018	Diamond Cutting Disc, 115 mm
AGA1020	Diamond Cutting Disc, 115 mm
AGA1024	Diamond disc set Turbo, 115mm
AGA1025	Cutting disc steel, 115mm

Exploded view

Exploded view diagram of a cleaning or cleaning device with numbered parts for identification
