Tomado TIH3501S - Cooker

TIH3501S - Cooker Tomado - Free user manual and instructions

Find the device manual for free TIH3501S Tomado in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

Pick your language and provide your email: we'll send you a specifically translated version.

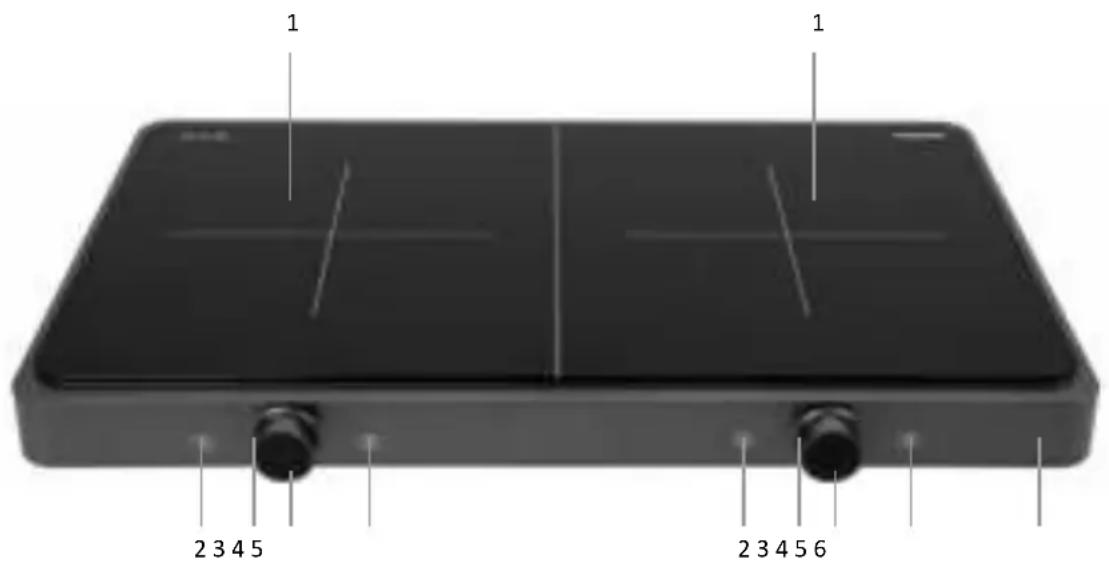

Product type Induction cooktop
Brand Tomado
Model TIH3501S
Number of cooking zones 2
Diameter of cooking zones 192 mm each
Number of heat settings 10 (1-9 + Boost)
Boost function Yes, maximum 5 minutes
Timer Yes, up to 9 h 50 depending on setting
Child lock Yes
Residual heat indicator Yes (symbol HH/hh)
Control type Rotary knobs and touch keys
Power supply 220-240 V, 50-60 Hz
Surface material Vitroceramic
Cookware compatibility Steel, enameled steel, cast iron, stainless steel (magnetic base)
Minimum cookware diameter 12 cm
Maximum cookware diameter 20 cm
Cleaning Damp cloth and mild detergent; glass scraper for burnt residues
Safety Automatic shut-off, child lock, overheat protection
Warranty 24 months
After-sales service www.tomado.com/support

Frequently Asked Questions - TIH3501S Tomado

How to use the Boost function?
To activate the Boost function, turn on the cooktop and turn the position knob to the highest setting. The symbol P appears. The Boost function lasts a maximum of 5 minutes, then automatically returns to position 9. Note: do not use Boost on both zones simultaneously.
How to activate the child lock?
Press and hold the child lock key for 2 seconds. The display shows L followed by the set position. Only the on/off button and the lock key remain active. To deactivate, press again for 2 seconds.
What to do if the display shows 'E0'?
Code E0 indicates that no suitable cookware is detected, the diameter is too small, or the material is not magnetic. Place compatible cookware in the center of the zone.
Which cookware to use on an induction cooktop?
Use cookware made of steel, enameled steel, cast iron, or stainless steel with a magnetic base. The bottom must be flat and the diameter between 12 and 20 cm. Avoid glass, ceramic, aluminum, and copper.
How to clean the vitroceramic surface?
Clean the surface with a damp cloth and mild detergent (dish soap). Dry thoroughly. For burnt residues, use a glass scraper. Do not use abrasive products or steam cleaners.
Why does the cooktop turn off automatically?
The cooktop turns off automatically if no key is pressed for 1 minute after switching on, or if no cookware is detected. This is a safety feature to prevent accidental operation.
How to set the timer?
While operating, press the timer key. Use the position knob to set the duration (from 1 minute to 9 h 50 depending on power). The timer turns off the zone automatically at the end.
What does 'HH' on the display mean?
HH indicates that the cooking zone is still very hot (residual heat). Do not touch the surface. hh indicates a still high but lower temperature. Wait until -- flashes for a cold surface.
What to do in case of error code E3 or E4?
These codes indicate a fault of the temperature sensor (E3) or induction sensor (E4). Contact Tomado after-sales service (www.tomado.com/support) for repair.
Can I use an aluminum pan?
No, aluminum cookware is not magnetic and does not work on an induction cooktop. Use only cookware with a magnetic base (steel, cast iron, etc.).

User questions about TIH3501S Tomado

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Cooker in PDF format for free! Find your manual TIH3501S - Tomado and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TIH3501S by Tomado.

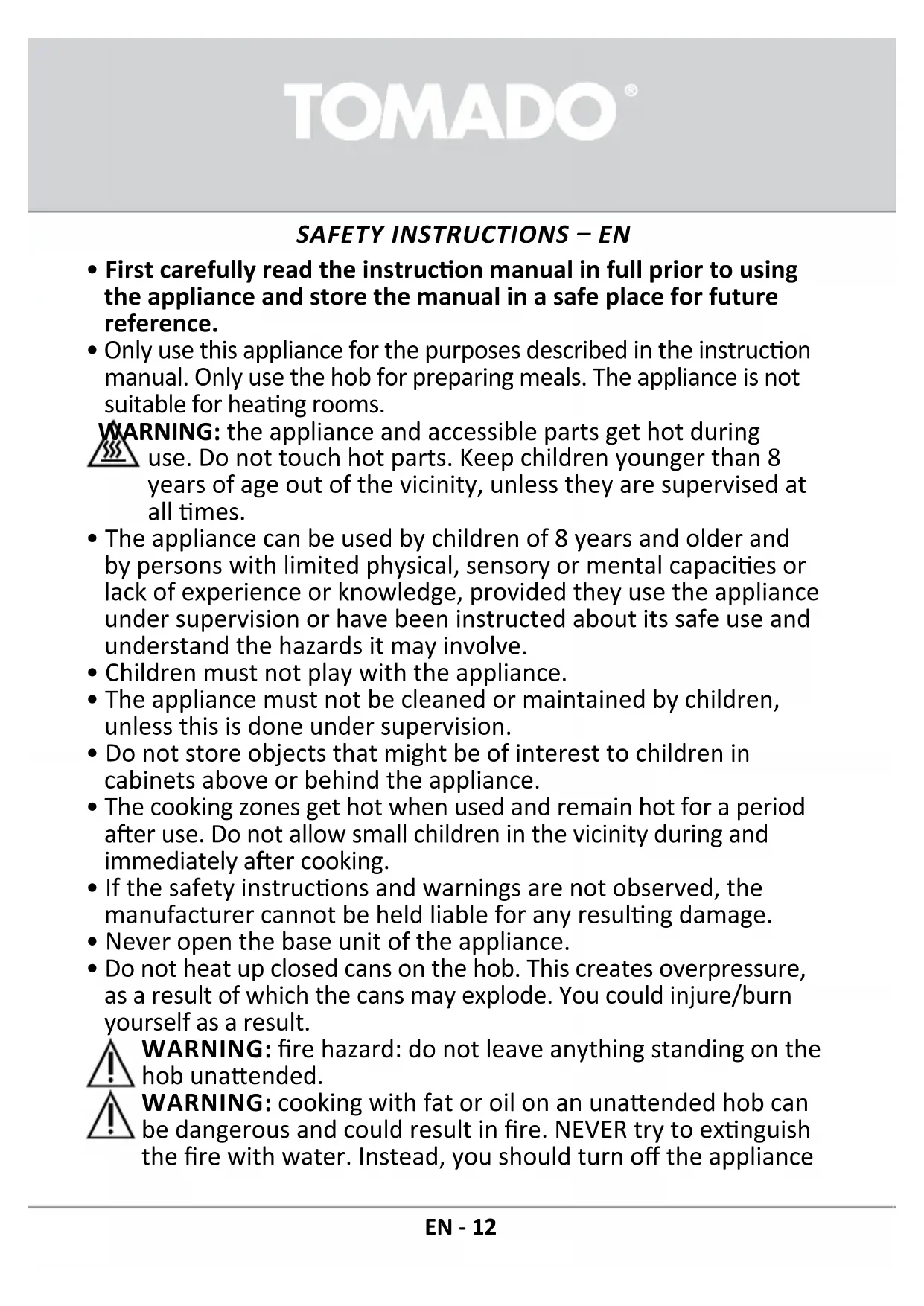

USER MANUAL TIH3501S Tomado
