TEH2001W - Cooker Tomado - Free user manual and instructions

Brand	Tomado
Model	TEH2001W
Product type	Electric cooktop
Category	Cooker
Intended use	Domestic and similar (staff kitchens, offices, hotels, guest houses, farms)
Number of cooking zones	2
Plate diameter	Left plate: 180 mm, Right plate: 150 mm
Plate material	Cast iron
Temperature control	2 thermostat knobs (MIN, 1-5, MAX)
Control indicators	2 indicators (one per plate), turn off when temperature reached
Transport handles	Removable handles supplied with mounting screws
Power supply type	Alternating current, earthed wall socket
Rated voltage	According to rating label (not specified here)
Cooking functions	Cooking, simmering, keeping warm, searing (positions 5 to MAX)
Maximum heating time	About 10 minutes to reach maximum temperature
Residual heat	Plates remain hot after switching off, can be used for keeping warm
Cleaning and maintenance	Clean with a damp cloth after cooling; do not use abrasive products; do not immerse
Safety	Do not leave unattended, keep out of reach of children, do not use on tablecloth or plastic
Warranty	24 months, with proof of purchase
Included accessories	Transport handles and mounting screws
Spare parts	Available on www.tomado.com/support
Recycling	WEEE: do not dispose of with household waste, follow local regulations

Frequently Asked Questions - TEH2001W Tomado

How to use the cooktop for the first time?

Before first use, remove packaging and stickers, mount handles if provided, clean with a damp cloth, then heat the plates at maximum power for 4 to 5 minutes in a ventilated room to burn off the protective coating. A slight smoke is normal.

What temperature settings to use for each type of cooking?

Use positions MIN to 4 for keeping warm or simmering (low heat), and positions 5 to MAX for cooking and searing (high heat). The knob is continuous, adjust gradually.

How to clean the cooktop?

Always unplug the appliance and let it cool completely. Clean with a damp cloth or soft sponge. Never use abrasive products or harsh detergents, and do not immerse the appliance in water.

What does the control indicator mean?

The indicator lights up when the plate is heating and turns off when the set temperature is reached. It will relight if the temperature drops (e.g., during cooking). This is normal.

Can I use cookware of any size?

It is recommended to use cookware with a bottom diameter matching the plate diameter (180 mm for the left plate, 150 mm for the right) to avoid energy loss.

Does the cooktop remain hot after turning it off?

Yes, residual heat persists for some time. You can use it to briefly keep food warm. Do not touch the plates until completely cooled.

What safety precautions should I follow?

Never leave the appliance unattended during use. Place it on a heat-resistant surface away from walls, curtains, and flammable materials. Do not touch hot parts and keep children away.

What to do if the cooktop does not heat up or the indicator does not light up?

First check that the plug is properly inserted and the socket works (e.g., with another appliance). If the problem persists, contact technical service; do not attempt to repair yourself.

Where can I buy spare parts or accessories?

Spare parts and accessories are available on www.tomado.com/support. Always use genuine parts recommended by the manufacturer.

How to recycle this appliance at end of life?

Do not dispose of the appliance with household waste. In accordance with the WEEE Directive (2012/19/EU), take it to a collection point for electrical and electronic products. The cardboard and plastic packaging is 100% recyclable.

USER MANUAL TEH2001W Tomado

1-4 = warmhouden-sudderen

5=koken en bakken

MAX = hoog

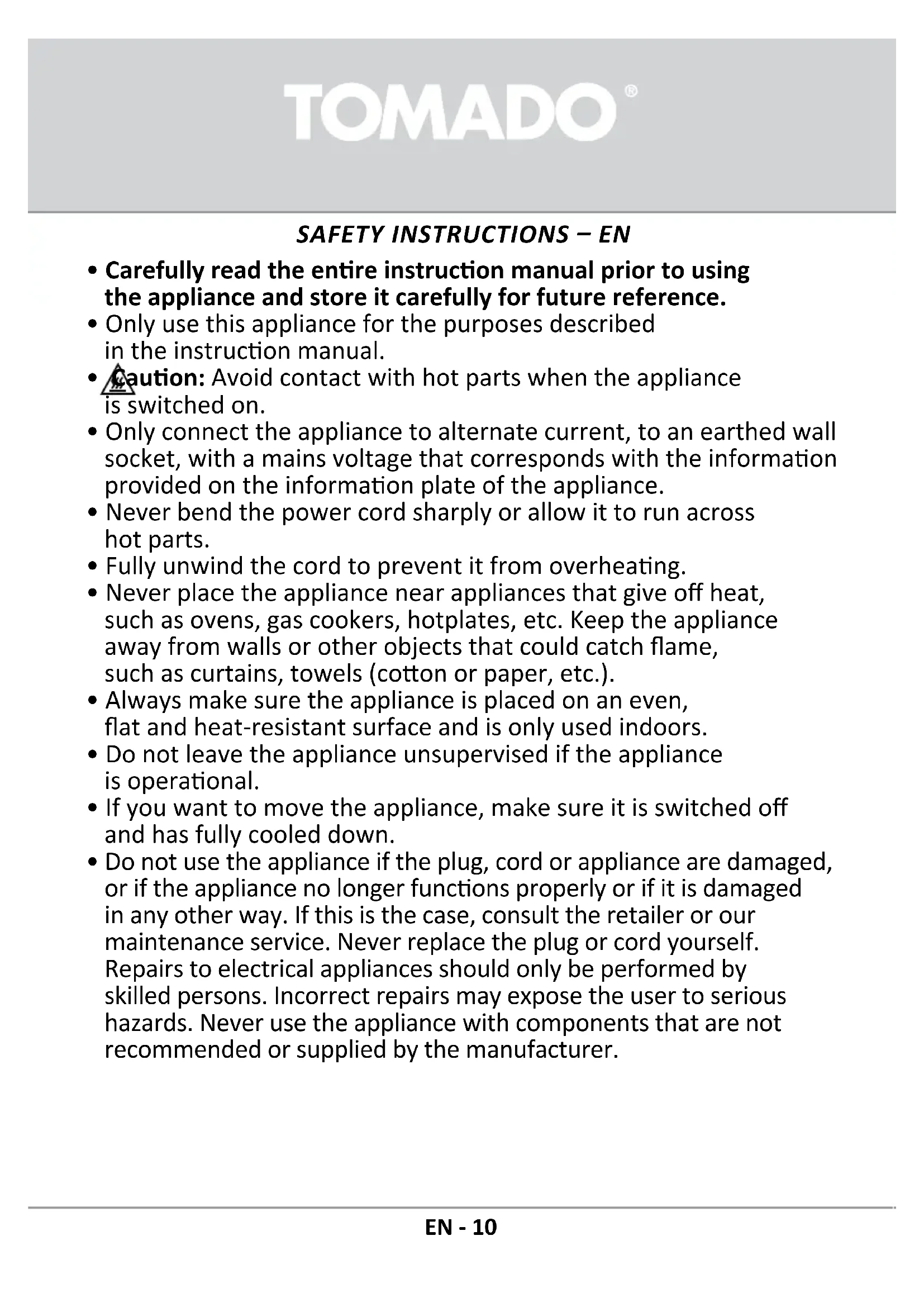

• Carefully read the entire instruction manual prior to using the appliance and store it carefully for future reference.
• Only use this appliance for the purposes described in the instruction manual.
• Caution: Avoid contact with hot parts when the appliance is switched on.
• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• Never bend the power cord sharply or allow it to run across hot parts.
• Fully unwind the cord to prevent it from overheating.
• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other objects that could catch flame, such as curtains, towels (cotton or paper, etc.).
• Always make sure the appliance is placed on an even, flat and heat-resistant surface and is only used indoors.
• Do not leave the appliance unsupervised if the appliance is operational.
• If you want to move the appliance, make sure it is switched off and has fully cooled down.
• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the retailer or our maintenance service. Never replace the plug or cord yourself. Repairs to electrical appliances should only be performed by skilled persons. Incorrect repairs may expose the user to serious hazards. Never use the appliance with components that are not recommended or supplied by the manufacturer.

TOMADO

• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or damp hands.
• Never connect the appliance to an external timer or a separate remote control system, in order to prevent hazardous situations.
• Keep the appliance out of reach of children. Children do not see the dangers associated with handling electrical appliances. Therefore, never allow children to operate electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.
• The appliance can be used by children of 8 years and older and by persons with limited physical, sensory or mental capacities or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its save use and understand the hazards it may involve.
  Children must not play with the appliance.
• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• If the appliance is not being used, or is being cleaned, fully switch off the appliance and remove the plug from the socket.
• Extension cords may only be used if the mains voltage (see the information plate) and capacity are identical to or higher than that of the appliance. Always use an approved earthed extension cord.
• If you decide to cease using the appliance due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Take the appliance to the waste processing department concerned of your municipality.
• In case of a breakdown, never make repairs yourself; a tripped safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should be used.

TOMADO

• Never submerge the appliance, cord or plug in water.

• This appliance is intended for household and similar use, such as:

• in staff kitchens, shops, offices and other work environments;

• by guests in hotels, motels and other residential environments;

• in Bed&Breakfast type environments;
  -farms.

• If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.

TOMADO

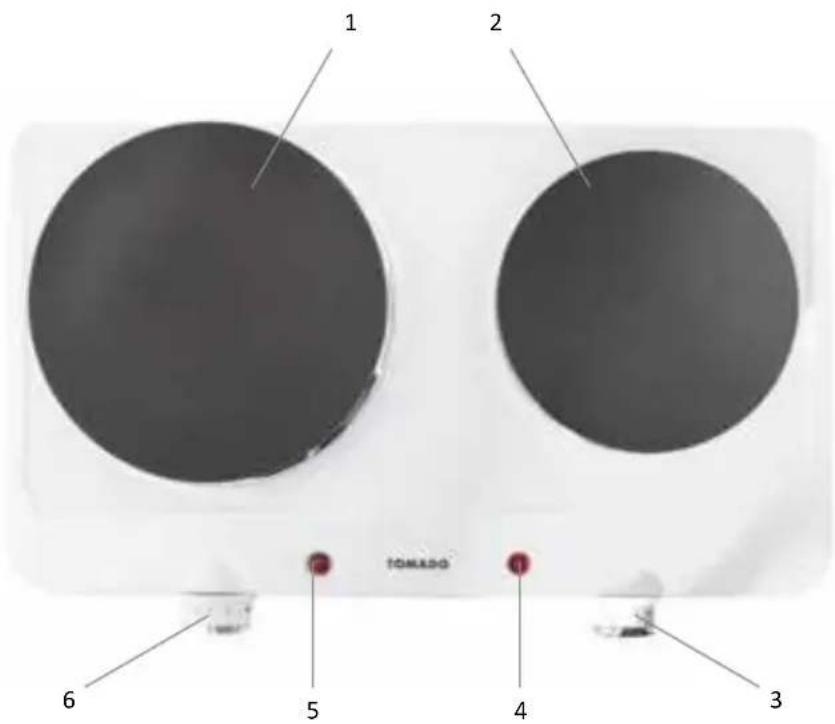

PRODUCT DESCRIPTION

1. Cast-iron hot plate 180mm
2. Cast-iron hot plate 150mm
3. Thermostat knob (MIN-1-2-3-4-5-MAX)
4. Indicator light - right hot plate
5. Indicator light - left hot plate
6. Thermostat knob (MIN-1-2-3-4-5-MAX)

PRIOR TO FIRST USE

Before using the appliance for the first time, you should proceed as follows: carefully unpack the hob and remove all packaging material and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of reach of children. After unpacking the appliance, carefully check it for external damage that may have occurred during transport.

The hot plate becomes hot during use, and also after use, the hot plate remains hot for some time. Mount the supplied handles, so you can pick up the hot plate safely if you want and move it without burning yourself. Screw the handles tight on both sides of the hot plate using the provided screws.

Place the hot plate on a sturdy, flat and heat-resistant surface. Clean the hot plate with a slightly damp cloth. The hot plates are provided with a protective layer that must be removed prior to first use. This is done by turning on the hot plate at maximum level for approximately 4 to 5 minutes. Do this in a properly ventilated room! Light smoke may form due to the protective layer burning off the hot plate. After removing the protective layer you can switch off the hot plate or start using it.

USE

Switch both thermostat knobs to «MIN». Only then insert the plug in the socket. Turn the thermostat knob of the hot plate to be used to the right, to the required position. The accompanying indicator light will light up. Position «MIN» of the hot plate is the lowest position and position «MAX» is the highest position. Use a low position [MIN to 4] for simmering and a higher position [5 to MAX] for boiling and frying.

The thermostat knob is a stepless control.

MIN = low

1-4 = keep warm-simmer

5 = boiling and frying

MAX = high

It takes approximately 10 minutes for the hot plate to reach maximum temperature (on the maximum setting of the thermostat knob). When the set temperature has been reached, the indicator light switches off. After a drop in temperature, due to heat transfer to the pan, the thermostat switches on again. The indicator light will light up again. Due to the construction of the hot plate, it remains hot for some time after switching off. This residual heat can be used to keep the food warm for a short period of time.

CAUTION: THE APPLIANCE CAN GET VERY HOT DURING USE, THEREFORE PLACE THE APPLIANCE DURING USE ON A HEAT-RESISTANT PLATE AND NEVER, FOR EXAMPLE, ON A PLASTIC TABLE, PLASTIC TABLE CLOTH OR REFRIDGERATOR.

Only use pans with bottoms that have the same diameter as the hot plate itself. Smaller diameters lead to loss of energy. Do not touch the hot plate when it is switched on. Please note that the hot plate does not cool down immediately after being switched off. Turn the thermostat knob to the «MIN» position and remove the plug from the socket after each use.

TOMADO

CLEANING AND MAINTENANCE

Prior to cleaning the appliance, always first remove the plug from the wall socket. Allow the hot plate to cool down before cleaning it with a damp cloth.

The base unit can also be cleaned with a damp cloth or sponge. Do not use abrasives or other aggressive cleaning agents.

Do remember that the hot plates require some time to cool down after having been switched off.

Do not submerge the appliance in water and/or other liquids.

RECYCLING

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU).

Observe the applicable rules in your country for the separated collection of electric and electronic products.

By disposing of the product correctly, you prevent negative consequences for the environment and for public health.

The packaging material of this product can be recycled 100% , return packaging material separately.

TOMADO

Go to www.tomado.com/support to purchase accessories or spare parts.

WARRANTY CONDITIONS

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.tomado.com/support
