USER MANUAL PBSG 95 E6 PARKSIDE

PDF ONLINE www.lidl-service.com

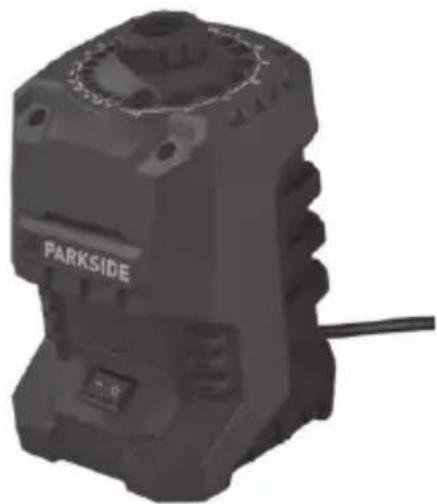

3D rendering of a black industrial sensor or sensor device labeled 'PARKSIDE' with no visible text or symbols on the body itself.

Translation of the original instructions

NL BE

Boorslijper

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / MT Translation of the original instructions Page

Scope of delivery 22

Description of functions ..... 22

Overview 22

Technical data 22

Safety information......23

Graphical symbols.... 23

General Safety Directions for Power Tools.... 24

Additional safety instructions..27

Residual risks 27

Operation 28

Grinding drill bits 28

Replacing the grindstone ..... 29

Removing blockages 30

Cleaning and servicing ...... 30

Cleaning 30

Maintenance 31

Storage 31

Transport......31

Disposal/environmental protection 31

Spare parts/accessories......32

Troubleshooting......32

Guarantee 33

Repair Service....34

Service-Center 35

Importer 35

Translation of the original EC declaration of conformity.201

Exploded Drawing......213

Introduction

Congratulations on purchasing your new device. You have chosen a high-quality device.

This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Before using the device, you should familiarise yourself with all operating and safety instructions. Use the device only as described and for the stated fi elds of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

The tool is intended for sharpening HSS drill bits with a diameter of 3-13 mm. It must not be used to grind carbide drills.

Any other use not expressly approved in the present instruction manual can damage the device and thus present a substantial risk for the user.

The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use.

The device is intended for use by adults. Children under the age of 16 may not use the device except under supervision.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

General description

An illustration of the most important functional components can be found on the front and the back fold-out pages.

Scope of delivery

Unpack the device and check for completeness. Dispose of the packaging material properly.

• Device
  • 2x grindstones (1x pre-mounted)Weight
• Instruction manual

Description of functions

The drill bit sharpener sharpens HSS drill bits with a diameter of 3-13 mm with a grindstone.

Please refer to the descriptions below for information on how the operating elements work.

Overview

1 Adjusting wheel
2 Drill mount

3 Screw

4 Cover

5 Tool housing
6 On/Off switch
7 Ventilation slit

8 Grindstone

Drill bit sharpener ....PBSG 95 E6

Nominal input voltage U .... 220 - 240 V\~, 50 Hz

Power consumption P......95 W

Rated no-load rotation speed n_0 1350 rpm

Protection class ....☐ II

Protection type IPXO

dWeight (incl. accessories)... approx. 0.8 kg Grinding angle....118°

Sharpness drill diameter..3-13mm Grindstone

Outside diameter ..... ∅ 75 mm

Borehole diameter.....Ø 52.4 mm

Thickness 14 mm

Abrasive .... Brown corundum .... 80 mesh

Base body.....PA6+30GF

Working speed....35 m/s Rotational speed....4750 rpm Sound pressure level

(L_pA) ..... 67.7 dB(A); K_pA = 3 dB Sound power level

(L_WA) 80.7 dB(A); K_WA = 3 dB

Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity.

The specified total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another.

The specified total vibration value and the stated specified noise emission value can also be used for a provisional assessment of the load.

The vibration and noise emissions may deviate from the specified values during actual use of the power tool, depending on how the power tool is being used and, in particular, what kind of material is being worked on.

-Safety measures for the protection of the operator are to be determined that are based on an estimate of the actual vibration load under the real operating conditions (for this, all parts of the operating cycle are to be taken into account, for example, times in which the power tool is turned off, and those during which it is turned on but running without a load).

Safety information

Graphical symbols

Symbols on the device:

Caution!

Read the instruction manual

Wear eye protection

Wear ear protection

Protection class II (Double insulation)

Electrical devices must not be disposed of with domestic waste.

Symbols used in the instruction manual:

Hazard symbol with information on the prevention of personal injury or property damage.

GB MT

Hazard symbol with in- formation on the preven- tion of personal injury or property damage through electric shock.

Hazard symbol with information on damage prevention.

Remove the mains plug

Advisory symbol with information on how to best use the device.

General Safety Directions for Power Tools

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool).

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and by-standers away while operating a power tool. Dis-tractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operation of the power tool in a damp environment is unavoidable, please use a residual current circuitry. The use of a residual current circuitry reduces the risk of an electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol

or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.

A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from

the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc.

in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional safety instructions

If the mains cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualified person in order to avoid hazards.

Residual risks

There will always be residual risks even if you operate this power tool according to the instructions. The following hazards may occur in connection with the type and design of this power tool:

a) Lung damage if suitable respiratory protection is not worn.
b) Hearing damage if suitable ear protection is not worn.
c) Damage to health as a result of - touching the area of the grinding tool which is not covered; - ejection of parts of workpieces or damaged grindstone.
d) Health injuries resulting from the effect of vibration on the hands and arms in the event that the device is used over a longer period of time or is not used and maintained properly.

Warning! During operation, this power tool produces an electromagnetic fi eld. Under certain circumstances, this fi eld may negatively affect active or passive medical implants. In order to reduce the danger of serious or fatal injuries, we recommend that individuals who wear medical implants should consult their doctor and the manufacturer of the implant before operating the machine.

Operation

Caution! Risk of injury!

• Disconnect the mains plug before carrying out any work on the device.
• Only use grindstone and accessories recommended by the manufacturer. Using other attachment tools and other accessories may represent a risk of injury to you.
• Never operate the device without protective equipment.

Despite spark protection, always wear safety gogg-

les while working in order to avoid eye injuries.

We recommend wearing ear protection to prevent damage to hearing.

Grinding drill bits

Rough-grind heavily dama- ged drill bits with a fi le or on a bench grinder fi rst.

Trial run:

Always carry out a trial run of at least 1 minute duration without load before carrying out your first grinding procedure and after every grindstone replacement. Switch the

device off immediately if considerable vibration occurs or if you hear abnormal noises.

1. Turn the adjusting wheel (1) all the way in the "DOWN" direction. The grindstone (8) is lowered completely.
2. Insert the drill bit in the smallest fi tting drill mount (2) on the tool.
   The diameters (∅) of the drill mount (2) are indicaext to this on the tool.

1. Move the On/Off switch (6) to the "I" position to switch the tool on. The tool turns on.

2. Turn the adjusting wheel (1) in the "UP" direction until you hear a grinding noise. Turning guides the grindstone (8) towards the drill bit.

Do not turn the adjusting wheel (1) too far in the direction, as the grindstone can come into contact with housing.

1. Applying slight pressure, loosen the drill bit and quickly turn it back and forth between the left and right stops about 10 times. With small drill bits, about 5 times is enough.

2. Remove the drill bit, turn it 180° around its own axis and insert it back into the drill mount (2) up to the grindstone.

3. If necessary, repeat steps 5 and 6 until both edges are sharp.

a a 118° b

The angle between the two cutting edges (a) should be 118°. Both cutting edges (a) must have the same angle to the drill axis (b) and must be the same length so that the drill runs centrically.

1. Move the On/Off switch (6) to position "○" to switch the tool off. The device turns off.

Replacing the grindstone

Information on replacement

• Ensure that the grindstone dimensions match those of the device.
• Never use separate bushings or adapters in order to make grindstones with a hole that is too large fit the device.
• Do not use any saw blades.
• Reassemble the device completely after replacing the grindstone.
• Replace the grindstone when it is worn, damaged or broken, or if grinding performance decreases or is irregular.

Switch off the device and unplug the mains plug.

Allow the device to cool down.

When loosening and tightening the nuts (B 9), the grindstone (B 8) must be held fi rm by hand.

See illustration A :

1. Unscrew the 4 screws (3) on the cover (4).
2. Lift the cover (4) up and off.

See illustration B :

1. Turn the nut (9) counter-clockwise using an open-end wrench (27 mm) to loosen it.
2. Remove the nut (9) and the disc (10).
3. Remove the grindstone (8).
4. Place a new grindstone (8) on the mount (11).
5. Fix the new grindstone (8) in the reverse order with the disc (10) and nut (9).

The fl at side of the grindstone (8) must be in contact with the mount (11).

Tighten the nut (9) in the clockwise direction C.

The spring (12) must be in the position indicated in Fig. B.

If the grindstone (8) is not in the correct position, the cover (4) cannot be closed

1. Place the cover (4) on the tool and fasten it with the 4 screws (3).

If the grindstone (8) is not in the correct position, the (4) cannot be closed. Make sure there is not a gap between the cover (4) and the tool housing (5). The ventilation slit (7) above the Parkside logo is not considered a gap.

Trial run:

Carry out a trial run of at least 1 minute duration without load. Switch the device off immediately if considerable vibration occurs or if you hear abnormal noises.

Removing blockages

Before any maintenance or cleaning work, turn the machine off, pull out the mains plug and wait for the grindstone to stop. There is a risk to life and limb through elec-

tric shock, fi re and the rotating grindstone.

• Ensure that the mains plug is disconnected from the mains supply.
• You can now remove the blockage in the machine.

Cleaning and servicing

Remove the mains plug before carrying out any adjust-maintenance or repair work.

Have any work on the device that is not described in this instruction manual performed by a professional. Only use original parts. Allow the device to cool off before performing any maintenance or cleaning. There is a danger of burns!

Always check the device before using it for obvious defects such as loose, worn or damaged parts, correct the positioning of screws or other parts. Examine the grindstone (8) in particular. Replace damaged parts.

Cleaning

Do not use any cleaning agents or solvents. Chemical substances may attack the plastic parts of the machine. Never clean the device under running water.

• Thoroughly clean the device after every use.
• Clean the surface of the device with a soft brush or cloth.

Maintenance

Besides having to replace the grindstone, the tool is maintenance-free.

Storage

• Store the device in a dry and dustproof location and out of reach of children.
• Grindstone must be dry and stored upright and should never be stacked.

Transport

Pull out the mains plug.

• Allow the device to cool down.
• Carry the device with two hands.

Disposal/ environmental protection

The device, accessories and pa- ckaging should be properly recyc- led.

Electrical devices must not be disposed of with domestic waste.

Directive 2012/19/EU on waste electrical and electronic equipment: Used electrical devices must be

collected separately for disposal and recycled in an environmentally sound manner.

Depending on the implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an offi cial collection point,
• Return to the manufacturer/distributor. We will dispose of any defective devices that you send to us free of charge.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Take the device to a recycling plant. The plastic and metal parts used on your device can be properly sorted according to materials and grades and efficiently recycled. Please contact our service centre for more information.

Spare parts/accessories

You can get spare parts and accessories from www.grizzlytools.shop If you have issues ordering, please use the contact form. If you have any other questions, contact the service centre (see page 35).

Position Operating instructions	Position Exploded view	Name Order no.
8	7	Grindstone	91106260

Troubleshooting

Always remove the mains plug before working on the device. Danger of electric shock!

Problem Possible	cause Error correction
Machine does not start	No mains power supplyMain circuit breaker is tripped	Check the socket, power cable, line, power plug, repairs to be carried out by qualified electrician if necessary, check main circuit breaker.
	On/off switch (6) is broken	Repair by Customer Care
	Defective motor
Grindstone does not move although the motor is running	Nut (9) loose	Tighten the nut (9) (see “Replacing the grindstone”)
	Workpiece, remaining workpieces or remaining grinding tools block drive	Remove blockages
Engine is slowing down and stops	Device is overloaded through workpiece	Reduce pressure on grindstone
Grindstone does not rotate smoothly, abnormal noises can be heard	Nut (9) loose	Tighten the nut (9) (see “Replacing the grindstone”)
	Grindstone (8) is defective	Replace the grindstone (8)

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover

product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. grindstone) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item number (IAN 380757_2110) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially

contact the service department specified below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 380757_2110

Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN 380757_2110

Importer

Please note that the following address is not a service address.

Please initially contact the service centre specifi ed above.

Pooblaščeni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p.,

Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

Translation of the original EC declaration of conformity
We hereby confi rm that the Drill Bit Sharpener model PBSG 95 E6 Serial number 000001 - 225000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2011/65/EU* & (EU)2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 62841-1:2015 • EN ISO 12100:2010 EN IEC 55014-1:2021 • EN IEC 55014-2:2021 EN IEC 61000-3-2:2019/A1:2021 • EN 61000-3-3:2013/A1:2019 EN IEC 63000:2018
This declaration of conformity is issued under the sole responsibility of the manufacturer:
	Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim
	GERMANY 15.04.2022	Christian Frank Documentation Representative

Translation of the original EC declaration of conformity

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

From responsible sources

FSC® C173044

FSC

www.fsc.org

MIXTE
