| Product type | Cordless multi-tool |
| Brand | Parkside |
| Model | PAMFW 12 D4 |
| Nominal voltage | 12 V (direct current) |
| Oscillation angle | 3.2° |
| Vibration speed | 5000 - 20000 min⁻¹ (adjustable to 6 levels) |
| Battery type | Lithium-Ion (X12V Team series) |
| Battery capacity (typical) | 2 Ah (PAPK 12 A1) - battery not included |
| Charging time | approx. 60 min (with charger PLGK 12 A1) |
| Machinable materials | Wood, plastic, light metals, tiles, nails, screws |
| Main functions | Sawing, cutting, grinding, sanding |
| Tool change | Tool-less (release lever) |
| Lighting | Integrated LED work light |
| Dust extraction | Angle adapter and dust collector |
| Weight (without battery) | approx. 1.2 kg |
| Sound pressure level | 76.9 dB(A) |
| Sound power level | 87.9 dB(A) |
| Vibration value (sanding) | 1.388 m/s² |
| Warranty | 3 years |
| Delivery contents | Tool, Delta sanding pad, 6 sanding sheets, scraper 52 mm, plunge cut saw blade 32 mm, diamond saw blade 64 mm, dust extraction, carry case, instruction manual |
Frequently Asked Questions - PAMFW 12 D4 PARKSIDE
User questions about PAMFW 12 D4 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cordless Multi-Tool in PDF format for free! Find your manual PAMFW 12 D4 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PAMFW 12 D4 by PARKSIDE.
USER MANUAL PAMFW 12 D4 PARKSIDE
CORDLESS MULTI-PURPOSE TOOL / AKKU-MULTIFUNKTIONSWERKZEUG / OUTIL MULTIFONCTION SANS FIL PAMFW 12 D4
GB IE
CORDLESS MULTI-PURPOSE TOOL
Translation of the original instructions
FR BE
OUTIL MULTIFONCTION SANS FIL
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE
GB/IE Translation of the original instructions Page 1
All Parkside tools and the chargers PLGK 12 A1/A2/B2/PDSLG 12 A1 of the X12V Team series are compatible with the PAPK 12 A1/A2/A3/B1/C1 battery pack.
General power tool safety warnings 3
1.Work area safety 3
2. Electrical safety 4
3. Personal safety 4
4. Power tool use and care 5
5. Battery tool use and care 5
6. Service 6
Appliance-specific safety instructions for grinders 6
Safety guidelines for battery chargers 6
Working procedures 7
Before use. 7
Removing/charging/inserting the battery pack 7
Checking the battery charge level 7
Dust/chip extraction 8
Connecting a dust extraction unit 8
Select a tool 8
Fitting the sanding sheet onto the sanding plate 9
Changing tools 9
Operation 9
Switching on and off 9
Select oscillation speed 9
Maintenance and cleaning 10
Kompernass Handels GmbH warranty 10
Service 12
Imporer
Disposal 12
Translation of the original Conformity Declaration 13
Ordering a replacement battery 14
Telephone ordering 14
CORDLESS MULTI-PURPOSE TOOL PAMFW 12 D4
Introduction
Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Please also pass on these operating instructions to any future owner.
Intended use
The appliance is intended for sawing, cutting and grinding. The following materials are preferable for processing: wood, plastic, drywall elements, light and non-ferrous metals, fasteners (e.g. nails, screws) and wall tiles. It is particularly suitable for near-edge and flush work. Any other usage or modification of the appliance is considered improper and carries a significant risk of accidents. Not for commercial use.
Features
Tool release lever
ON/OFF switch
3 Battery displayLED
4 Release buttons
5 Battery pack*
Dust extraction unit (2 pcs.)
Angleadapter
Speed adjustment wheel
Screw
10 Ventilation slits
1 LED work light
Tensioning screw
13 Ring connector
14 Scaper 52 mm
15 Diamond saw blade 64 mm
HCS plunge saw blade 32 mm
17 Sanding plate
18 Charging status display LED
19 Control LED
20 High-speed charger*
2 Sanding sheets
Package contents
1 cordless multi-purpose tool
1 delta sanding plate
6 sanding sheets 80mm flange (60/80/120)
1 scraper 52 mm
1 HCS plunge saw blade 32 mm
1 diamond saw blade 64 mm
1 dust extraction unit (2 pcs.)
1 carrying case
1 set of operating instructions
Technical data
Cordless multi-purpose tool PAMFW 12 D4
Rated voltage 12 V
(Direct current)
Electronic speed control
n_05000 - 20000rpm
Oscillation angle 3
Battery PAPK 12 A1*
LITHIUM
Type
Rated voltage
一
(Direct current)
Capacity
2000
High-speed battery charger PLGK 12 A1*
INPUT
Rated voltage 220-240 V 50-60 Hz (Alternating current)
Power consumption 50 W
OUTPUT
Rated voltage 12 V (Direct current)
Charging current 2.4 A
Charging time approx. 60 min.
Fuse (internal) 2 A
Protection class II / (douls insulation)
- BATTERY AND CHARGER ARE NOT INCLUDED
Noise and vibration data
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:
Noise emission value
Sound pressure level L = 76.9dB (A) Uncertainty K_pA = 3dB Sound power level L = 87.9dB (A) Uncertainty K_WA = 3dB
Wear hearing protection!
Total vibration values (vector total of three directions) determined in accordance with EN 62841:
Sanding
Vibration emission value a = 1.388m / s^2 Uncertainty K= 1.5 m/s2
NOTE
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.
WARNING!
Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General power tool safety warnings
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing on jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ (265^) may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries.
Protect the recharge- it (for example, from to sunlight), fire, water a risk of explosion.
6. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
Appliance-specific safety instructions for grinders
WARNING!
Dusts from materials such as leaded paint, some types of wood and metal can be harmful to your health.
- Contact with or inhalation of these dusts can represent a health hazard for the person operating the appliance and other people in the vicinity.
Wear safety goggles and a protective dust mask!
WARNING!
Do not use any accessories not recommended by PARKSIDE. This can lead to electric shock and fire.
Safety guidelines for battery chargers
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.
Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
To avoid potential risks, damaged mains cables should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.
This charger is suitable for indoor use only.
ARNING!
Do not operate the appliance with a damaged cable, power cable or power plug. A damaged power cableposes a threat of fatal electric shock.
TENTION!
This charger can only charge the following batteries: PAPK 12 A1/PAPK 12 A2/ PAPK 12 A3/PAPK 12 B1/PAPK 12 C1.
A current list of battery compatibility can be found at www.Lidl.de/Akku.
Working procedures
Working principle
The oscillating drive causes the application tool to move back and forth at a speed of 5000-20000 times per minute. This allows for precision work even in confined spaces.
Sawing/cutting
Use only undamaged saw blades that are in perfect working order. Bent, blunt or otherwise damaged saw blades may break.
When sawing lightweight construction materials, follow the statutory regulations and all recommendations from the material manufacturers.
Only soft materials such as wood, plasterboard or similar should be processed using the plunge saw process.
Sanding
To prolong the service life of the sanding sheets 21, ensure that you apply even pressure.
Before use
Removing/charging/inserting the battery pack
CAUTION!
Always unplug the appliance before you remove the battery pack 5 from or connect the battery pack to the charger.
NOTE
The battery is supplied partially charged. Ideally, fully charge the battery before use. You can charge the lithium-ion battery at any time without shortening its service life. Interrupting the charging process does not damage the battery.
NOTE
-
Never charge the battery pack if the ambient temperature is below 10^ or above 40^ . If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The storage climate should be cool and dry and the ambient temperature should be between 0^ and 50^ .
-
To remove the battery pack, press the release button and pull the battery pack out of the appliance.
- Insert the battery pack into the high-speed charger 20
- Insert the mains plug into the socket. The control LED lights up red.
- The green charge status indicator LED18 indicates that the charging process is complete and the battery pack 5s ready.
- Insert the battery pack into the appliance.
Checking the battery charge level
Press the ON/OFF switch to check the status of the battery (see also main diagram). The status/remaining charge will be shown on the battery display LED 3s follows: RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge - charge the battery
Dust/chip extraction
Materials containing asbestos may not be processed. Asbestos is a known carcinogen.
WARNING! RISK OF FIRE!
When working with electrical appliances that can be connected to a vacuum cleaner via a vacuum cleaner adapter, there is a risk of fire! In unfavourable conditions, e.g. when sparks are flying while sanding metal or metal residues in wood, wood dust in the bag of the vacuum cleaner can spontaneously ignite. This is a particular risk if the wood dust is mixed with paint residues or other chemicals and the workpiece has become hot after being worked for a long time. Therefore, avoid overheating of the material being sanded as well as the appliance. Always empty the vacuum cleaner's dust bag before taking work breaks.
Always use dust extraction.
Ensure that your workplace is adequately ventilated.
Observe the regulations applicable in your country regarding the materials to be worked.
Connecting a dust extraction unit
Place the dust extraction unit 6 under the appliance and fix it into place on the appliance with the screw 9
Fit the angle adapte 7 onto the dust extraction unit
The angle adapter 7 can be turned by up to 180^
Select a tool
NOTE
The universal fitting without-tool-change is suitable for standard accessories.

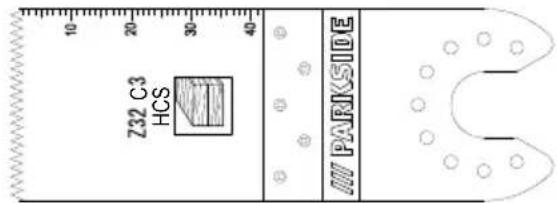

HCS plunge saw blade 32 mm
Materials
Wood, plastic, gypsum (plaster) and other soft materials
Application
-separation and plunge saw cuts
-sawing close to edges, even in hard to reach areas
Example sawing of recesses in lightweight walls.

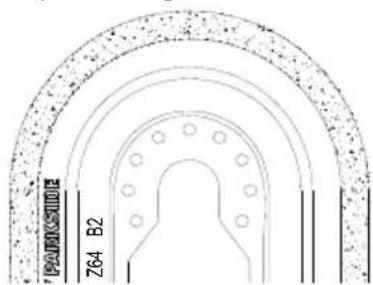

Diamond saw blade
Materials
Tile adhesives, tile joints
Application
-removal of material residues, such as tile adhesive, when replacing damaged tiles
- milling of grout on wall and floor tiles.
Scaper
Materials
Mortar/concrete residues, tile/carpet glue, paint/silicone residues
Application
-removal of material residues, such as carpet glue residue on the floor.

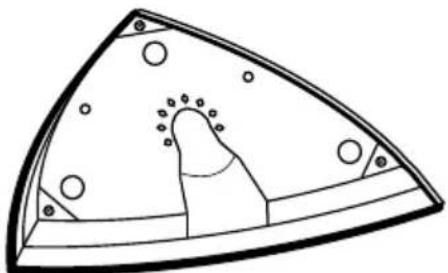

Sanding plate
Materials
Wood and metal (sanding sheets supplied), wood, metal
- depending on the sanding sheet
Application
-landing up to edges and hard to reach areas.
Fitting the sanding sheet onto the sanding plate
Place the sanding sheet ① centrally on the sanding plate 17
Changing tools
NOTE
If you wish to use the dust collection, it must be connected before fitting the tool (see section "Connecting a dust extraction device").
WARNING! RISK OF INJURY!
Always remove the battery before working on the power tool.
If necessary, remove an already fitted tool. To do this, raise the tool release lever 1.
Fit the tool (e.g. the plunge saw blade) onto the tool fitting.
NOTE
You can fit the tools in any snap position on the tool fitting.
Fix the tool in place by pushing the tool release lever 1 back down again.
Check that the tool is fitted firmly. Incorrectly or insecurely fitted tools can come loose during use and cause you an injury.
Operation
Switching on and off
Switching on
Push the ON/OFF switch 2 forwards to switch the appliance on.
The LED work light 1 lights up when the appliance is switched on to light up the working area in low light conditions.
Switching off
Push the ON/OFF switch 2 backwards to switch the appliance off.
Select oscillation speed
Use the speed adjustment wheel to set the required oscillation speed.
Stage 1: low oscillation speed
Stage 6: high oscillation speed
NOTE
The required speed depends on the material being worked and on the working conditions and can be determined through practical tests.
Maintenance and cleaning
WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.
Do not use any sharp objects to clean the appliance. Never permit liquids to enter inside the appliance. This can damage the appliance.
Clean the appliance regularly, preferably immediately after completion of the work.
Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
A vacuum cleaner is required for thorough cleaning of the appliance.
■ Ventilation openings must never be obstructed.
Remove any adhering swarf with a brush.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The optimum storage climate is cool and dry.
NOTE
Replacement parts not listed (such as carbon brushes, switches and replacement batteries) can be ordered via our service hotline.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
The warranty period does not apply to
Normal reduction of the battery capacity over time
Commercial use of the product
Damage to or alteration of the product by the customer
Non-compliance with safety and maintenance instructions, operating errors
Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN) 385628_2107 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 385628_2107.
WARNING!
Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.
Service
GB Service Great Britain Tel.:08004047657 E-Mail: kompernass@lidl.co
IE Service Ireland Tel.:1800 101010 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie
IAN 385628_2107
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Disposal
The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
Do not dispose of power tools in your normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools be
collected separately and recycled in an environmentally compatible manner.
Do not dispose of batteries in your normal household waste! Defective or worn-out rechargeable batteries must be recycled according
to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility. Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material
components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive
(2006/42/EC)
EC Low Voltage Directive
(2014/35/EU, charger only)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)*
- The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.
Applied harmonised standards
EN 62841-1:2015
EN 62841-2-4:2014
ENIEC55014-1:2021
EN IEC 55014-2:2021
EN 61000-3-3:2013/A1:2019
EN IEC 61000-3-2:2019
EN 60335-2-29:2004/A11:2018
EN 60335-1:2012/A2:2019
EN 62233:2008
ENIEC63000:2018
Type/appliance designation: Cordless multi-purpose tool PAMFW 12 D4
Year of manufacture: 12-2021
Serial number: IAN 385628_2107
Bochum, 03/12/2021
Semi Uguzlu
- Quality Manager -
The right to effect technical changes in the context of further development is reserved.
Ordering a replacement battery
If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone. Due to limited stocks, this item may sell out in a relatively short time.
NOTE
- Online ordering of replacement parts might not be possible in some countries. In this is the case, please contact the Service hotline.
Telephone ordering
GB Service Great Britain Tel.: 0800 404 7657
IE Service Ireland Tel.: 1800 101010 (0,08 EUR/Min., peak · 0,06 EUR/Min., off peak)
To ensure that your order is processed swiftly, have the article number of your appliance to hand (IAN 385628_2107) in case of questions. The article number can be found on the type plate or the title page of these instructions.
Inhaltsverzeichnis
Einleitung 16
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867BOCHUM
GERMANY
www.kompernass.com
Entsorgung
(Courant alternative)
Puisance absorbee 50 W
SORTIE/Output
Tension nominale 12 V (courant continu)
Chere cliente, cher client,
Chere cliente, cher client,
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Mise au rebut
Directive relative aux machines (2006/42/CE)
Directive RoHS (2011/65/EU)*
- Responsible qualite -
Nominate spanning 220-240 V ~, 50-60 Hz (wisselstroom)
WAARSCHUWING! BRANDGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
Afvoeren
Rychlonabiječka akumulatoru PLGK 12 A1*
VSTUP/input
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Likvidace
Obal je z ekologickych materialu. Lze ho zlikvidovat v mstnich recyklacnich kontejnerech.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Utylizacja
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867BOCHUM
NEMECKO
www.kompernass.com
Likvidácia
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
Desecho
Trin 1: lavvt vibrationstal
Trin 6: hjt vibrationstal
BEMAERK
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
Bortskaffelse
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANIA
www.kompernass.com
Smaltimento
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMCIJA
www.kompernass.com
Pooblasceni serviser
SI ServisSlovenija
Tel.: 018889273
E-Mail: kompernass@lidl.si
IAN385628_2107
Garancijski list
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci · Stan informaci
Stav informacié·Estado de las informaciones·Tilstand af information·Versione delle informazioni·Informacionk allasa·Stanje informacij:
12/2021·Ident.-No.:PAMFW12D4-122021-1
