USER MANUAL Startronic Hybrid 950 GYS

• Protect the electrical contacts of the battery against short- circuiting. Acid projection hazard!

• Wear safety goggles and protective gloves

• If your eyes or skin come into contact with battery acid, rinse the affected part of the body with plenty of water and seek immediate medical assistance.9 STARTRONIC HYBRID 950

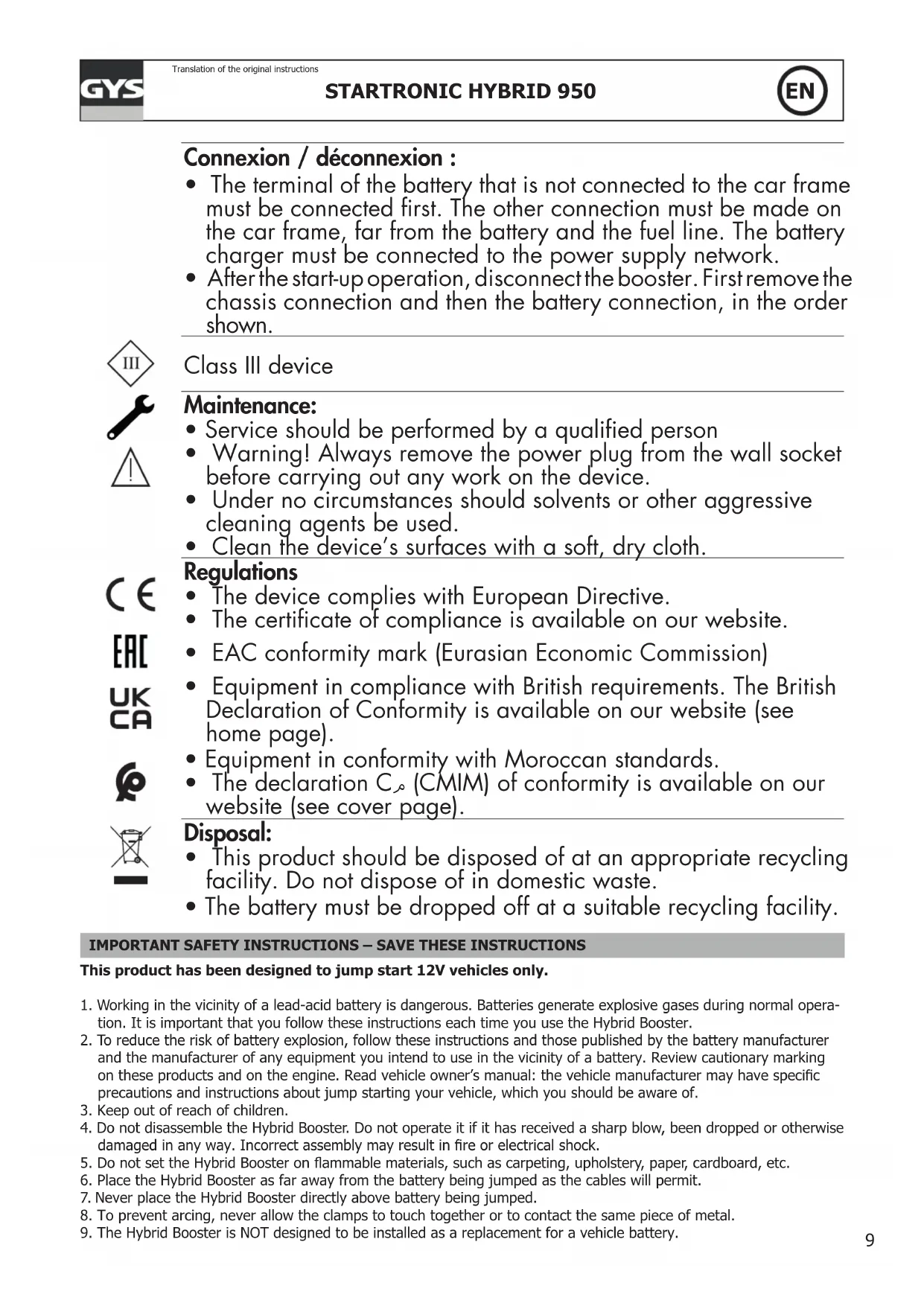

Translation of the original instructions Connexion / déconnexion :

• The terminal of the battery that is not connected to the car frame must be connected rst. The other connection must be made on the car frame, far from the battery and the fuel line. The battery charger must be connected to the power supply network.

• After the start-up operation, disconnect the booster. First remove the chassis connection and then the battery connection, in the order shown. Class III device Maintenance:

• Service should be performed by a qualied person

• Warning! Always remove the power plug from the wall socket before carrying out any work on the device.

• Under no circumstances should solvents or other aggressive cleaning agents be used.

• Clean the device’s surfaces with a soft, dry cloth. Regulations

• The device complies with European Directive.

• The certicate of compliance is available on our website.

• EAC conformity mark (Eurasian Economic Commission)

• Equipment in compliance with British requirements. The British Declaration of Conformity is available on our website (see home page).

• Equipment in conformity with Moroccan standards.

• The declaration Cم (CMIM) of conformity is available on our website (see cover page). Disposal:

• This product should be disposed of at an appropriate recycling facility. Do not dispose of in domestic waste.

• The battery must be dropped off at a suitable recycling facility.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS

This product has been designed to jump start 12V vehicles only.

1. Working in the vicinity of a lead-acid battery is dangerous. Batteries generate explosive gases during normal opera-

tion. It is important that you follow these instructions each time you use the Hybrid Booster.

2. To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer

and the manufacturer of any equipment you intend to use in the vicinity of a battery. Review cautionary marking on these products and on the engine. Read vehicle owner’s manual: the vehicle manufacturer may have specic precautions and instructions about jump starting your vehicle, which you should be aware of.

3. Keep out of reach of children.

4. Do not disassemble the Hybrid Booster. Do not operate it if it has received a sharp blow, been dropped or otherwise

damaged in any way. Incorrect assembly may result in re or electrical shock.

5. Do not set the Hybrid Booster on ammable materials, such as carpeting, upholstery, paper, cardboard, etc.

6. Place the Hybrid Booster as far away from the battery being jumped as the cables will permit.

7. Never place the Hybrid Booster directly above battery being jumped.

8. To prevent arcing, never allow the clamps to touch together or to contact the same piece of metal.

9. The Hybrid Booster is NOT designed to be installed as a replacement for a vehicle battery.10

Translation of the original instructions

10. Do not use for dry cell batteries that are commonly used with home appliances.

11. Turn o ALL electronics in your vehicle (air conditioner, heat, radio, lights, chargers, etc.).

12. Make sure the key is in the “OFF” position. For smart-key fobs (push-to-start vehicles), make sure the vehicle is

completely OFF before jump starting.

PERSONAL SAFETY INSTRUCTIONS

1. Neutralize any acid spills thoroughly with baking soda before attempting to clean up.

2. Remove all personal metal items from your body, such as rings, bracelets, necklaces and watches. A battery can

produce a short circuit current high enough to weld a ring to metal, causing a severe burn.

3. Never smoke or allow a spark or ame in the vicinity of the battery or engine.

Translation of the original instructions

5. USB output 6. Lithium battery pack compartment

13. Capacitor charging percentage 14. Vehicle battery voltage

Ensure that the vehicle battery terminals are clean, free of grease and corrosion.

Connect the clamps to the battery terminals. The booster lights up by itself. Standard mode

STARTRONIC detects a battery. The digital display shows the voltage of the vehicle battery .

If the vehicle’s battery is too low to recharge the Startronic’s supercapa- citors, the lithium backup battery automatically switches on to recharge them.

When the charging of the supercapacitors comes to an end, the ignition signal appears

Wait until «FUL» appears on the display and the beep sounds and then start the engine.

Working cycle : If the motor does not start on the rst attempt, make a maximum of 3 start attempts consecutively. Plan an interval of 20 minutes between each session (1 session = 3 starts).12 STARTRONIC HYBRID 950

Translation of the original instructions Bypass mode If the supercapacitors do not recharge during a standard mode procedure,

If there is no battery mounted on the engine to be started, connect as shown below:

Long press ON/OFF (2 seconds and release). The back-up lithium battery will start to recharge the Ultracapacitors.

Wait for the device to emit the ignition signals: visual on the screen and audible signal. Start the engine.

As soon as the engine starts, and keeping the Hybrid Booster clamp and battery lead connected, attach the positive lead to the positive battery terminal and tighten the terminal clamp. After the posi- tive lead has been secured to the battery terminal, switch o the Hybrid Booster and disconnect from the battery. WARNING - Do not leave the engine running without the Hybrid Booster or the battery being connected. Failure to comply could result in damage to the vehicle ECU. The manufacturer will not accept responsibility for any damage caused by incorrect use of this product. Glow Mode In cold weather, the glow plugs in most diesel vehicles will energize rst to heat up the engine chamber before the engine start, as indicated by the GLOW sign on the dashboard. The process takes about 4-6 seconds. In this case, after the Hybrid Booster is fully recharged and connected, press the GLOW button, and then turn on the ignition. NOTE:GLOW is inactive under Bypass mode.

LITHIUM BACK-UP BATTERY PACK

This jump starter is equipped with a lithium battery pack. Recharge the battery pack with any micro USB charger with a current output of min. 2 Amps. Once Micro USB charger is connected, the back-up battery will be charged automatically. Recharging the lithium battery It is recommended to fully charge this lithium battery at least once a year. Recharge the battery with the supplied USB microphone cable. Once the Micro USB charger is connected, the backup battery is automatically charged. To check the charge level of the lithium battery, press ON/OFF, the indicator shows the battery status. Replacing the lithium battery13 STARTRONIC HYBRID 950

Translation of the original instructionsLITHIUM BATTERY FOR STARTRONIC HYBRID 950Ref. 027411Battery pack specications 7.4 V / 2200 mAhRecharge time 5-8 hours Contact your distributor for battery replacement.

DIGITAL DISPLAY AND INDICATORS

Vehicle battery voltage

Capacitor charging percentage

As long as ignition sign appears, it’s ready for start

GLOW mode is activated

Backup battery pack charge

Error: Internal failure, do not use If the battery symbol ashes, recharge the lithium battery (USB plug). SPECIFICATION Input: DC12V 10A, DC5V 2A Working temperature: -40°C to 65°C Starting current 950 A Peak current 1900 A Recharge time 180 secondes WARRANTY The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour). The warranty does not cover:

• Damages due to misuse (power supply error, dropping of equipment, disassembling).

• Environment related failures (pollution, rust, dust).

• The lithium backup battery. In case of failure, return the unit to your distributor together with: - The proof of purchase (receipt etc ...) - A description of the fault reported14 STARTRONIC HYBRID 950
