| Product Type | USB Bluetooth Adapter |
| Brand | Beyerdynamic |
| Model | USB WL Adapter |
| Dimensions (L × W × H) | 31 × 17 × 6 mm |
| Weight | 3 g |
| Power Supply | Via USB port (5 V) |
| Connector | USB Type-A |
| Supported Bluetooth Profiles | HFP (wide band speech), A2DP, AVRCP |
| Audio Codec | SBC |
| Bluetooth Range | Approx. 10 m (Class 2) |
| Frequency | 2.400 – 2.4835 GHz (ISM band) |
| Transmission Power | 2.5 mW |
| Maximum Number of Connected Devices | 3 |
| System Compatibility | Windows 10, macOS 10.14.6 and later |
| LED Indicators | White (standby), red/blue (pairing), blue (connected), green (call), red (mute), yellow (reset) |
| Main Functions | A2DP audio, synchronized volume, HFP switching, microphone detection, HID commands |
| Maintenance | Soft cloth with alcohol-based cleaner, avoid solvents |
| Safety | Do not expose to moisture, keep out of reach of children (small parts) |
| Repairability | Not user-serviceable, firmware update via PC |
| Warranty | Consult the Beyerdynamic website |
Frequently Asked Questions - USB WL Adapter BEYERDYNAMIC
User questions about USB WL Adapter BEYERDYNAMIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Network card / adapter in PDF format for free! Find your manual USB WL Adapter - BEYERDYNAMIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. USB WL Adapter by BEYERDYNAMIC.
USER MANUAL USB WL Adapter BEYERDYNAMIC
OPERATING INSTRUCTIONS | BEDIENUNGSANLEITUNG | MODE D'EMPLOI | INSTRUCCIONES DE USO | ISTRUZIONI PER L'USO | BRUKSANVISNING | 取扱説明 | 使用说明书
English 7
Deutsch 13
Français 19
España 25
Italiano 31
Svenska 37
日本語 43
中文....49
USB WL Adapter
OPERATING INSTRUCTIONS
CONTENTS
SAFETY INSTRUCTIONS 7
Intended use....7
Risk of swallowing....7
Environmental conditions 7
ABOUT THIS MANUAL....7
SUPPLIED ACCESSORIES 7
PRODUCT OVERVIEW 7
PRODUCT DESCRIPTION 7
FIRST STEPS....7
Removing from packaging and storing....7
FIRMWARE UPDATE 7
SUPPORTED AUDIO CODECS 7
OPERATION 8
Inserting / removing the USB WL Adapter 8
Connecting compatible Bluetooth ^® products from beyerdynamic and laptop/PC with USB WL Adapter via Bluetooth ^® (pairing) 8
Overview of the LED displays 8
USB WL Adapter-supported functions 8
HELP WITH PROBLEMS / FAQ....8
CLEANING AND MAINTENANCE....9
DISPOSAL....9
EU DECLARATION OF CONFORMITY....9
TECHNICAL DATA....9
WARRANTY CONDITIONS 9
REGISTERED TRADEMARKS 9
FCC / IC REGULATION....10
This manual describes the most important functions of the beyerdynamic USB WL Adapter.
SAFETY INSTRUCTIONS
▶ Please read these instructions carefully and completely before using the product.
▶ Please observe all instructions given, especially those concerning the safe use of the product.
▶ Do not use the product if it is defective.
The company beyerdynamic GmbH & Co. KG accepts no liability for damage to the product or injury to persons caused by careless, improper or incorrect use of the product, or by use for purposes not specified by the manufacturer.
Intended use
Only use the product as described in this product manual, beyerdynamic accepts no liability for damage to the product or injury to persons caused by careless, improper or incorrect use of the product, or by use for purposes not specified by the manufacturer.
beyerdynamic is not liable for damage to USB devices that do not comply with the USB specifications.
beyerdynamic is not liable for damage resulting from connection interruptions due to batteries being empty or too old, or due to exceeding the Bluetooth® transmission range.
Please also observe the relevant country-specific regulations before using the product.
Risk of swallowing
▶ Keep small parts, such as product, packaging and accessories, away from children and pets. They constitute a choking hazard if swallowed.
Environmental conditions
▶ Do not expose the product to rain, snow, liquids or moisture.
ABOUT THIS MANUAL
This manual describes the most important functions of the beyerdynamic USB WL Adapter.
The information in this manual refers to the default settings of the specified software version. A newer version may be available.
▶ You can find information about software updates under "Firmware update" on page 7.
SUPPLIED ACCESSORIES
- USB WL Adapter
- Quick Start Guide

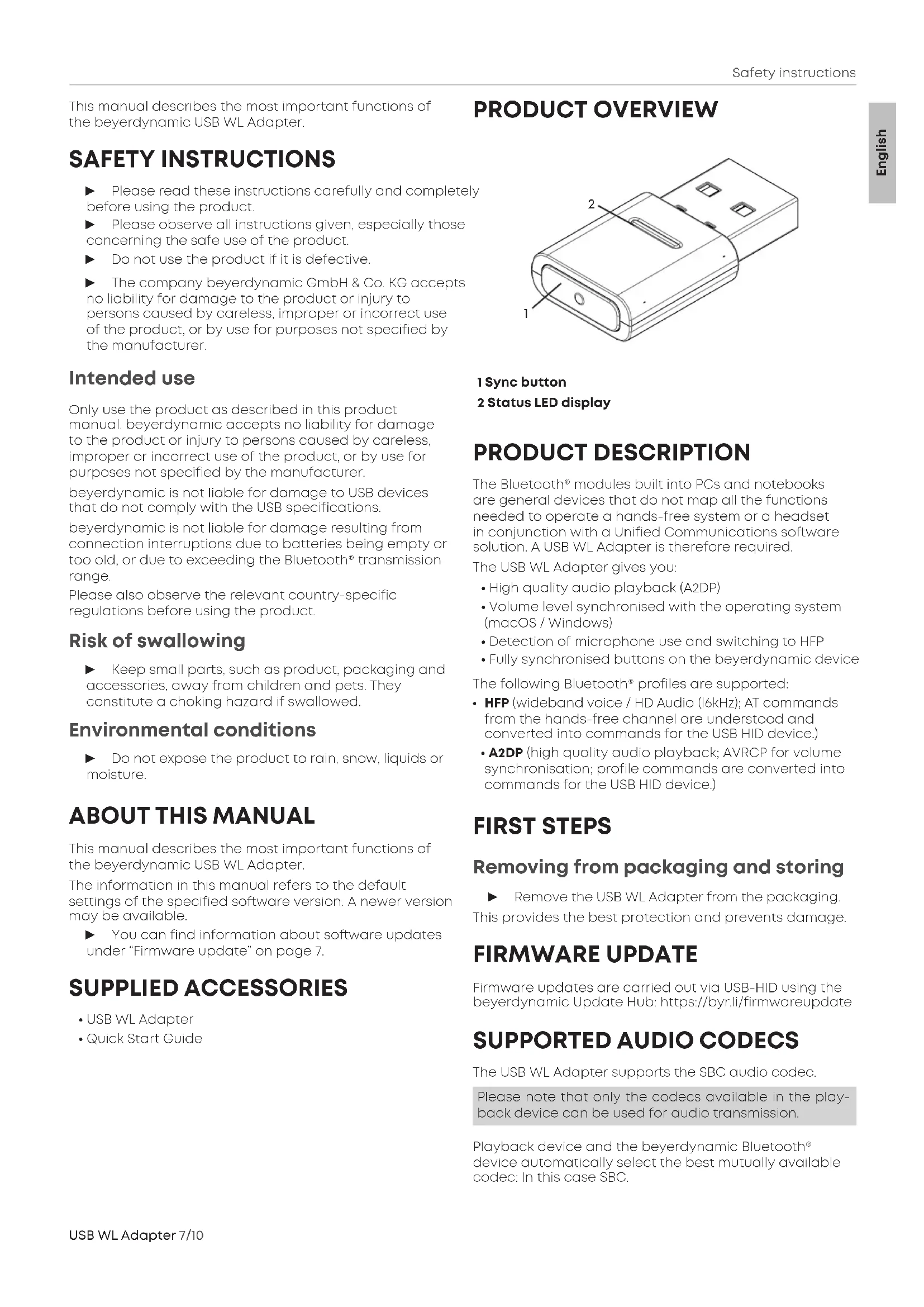

PRODUCT OVERVIEW


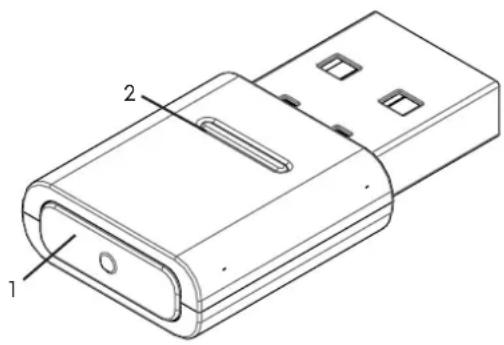

Technical line drawing of a USB flash drive (no text or symbols)1 Sync button
2 Status LED display
PRODUCT DESCRIPTION
The Bluetooth ^® modules built into PCs and notebooks are general devices that do not map all the functions needed to operate a hands-free system or a headset in conjunction with a Unified Communications software solution. A USB WL Adapter is therefore required.
The USB WL Adapter gives you:
• High quality audio playback (A2DP)
• Volume level synchronised with the operating system (macOS / Windows)
• Detection of microphone use and switching to HFP
- Fully synchronised buttons on the beyerdynamic device
The following Bluetooth ^® profiles are supported:
- HFP (wideband voice / HD Audio (16kHz); AT commands from the hands-free channel are understood and converted into commands for the USB HID device.)
- A2DP (high quality audio playback; AVRCP for volume synchronisation; profile commands are converted into commands for the USB HID device.)
FIRST STEPS
Removing from packaging and storing
▶ Remove the USB WL Adapter from the packaging.
This provides the best protection and prevents damage.
FIRMWARE UPDATE
Firmware updates are carried out via USB-HID using the beyerdynamic Update Hub: https://byr.li/firmwareupdate
SUPPORTED AUDIO CODECS
The USB WL Adapter supports the SBC audio codec.
Please note that only the codecs available in the play-back device can be used for audio transmission.
Playback device and the beyerdynamic Bluetooth® device automatically select the best mutually available codec: In this case SBC.
OPERATION
Inserting / removing the USB WL Adapter
The following platforms/operating systems are supported:
• Windows 10 (32bit/ 64bit) and future Windows releases
• macOS 10.14.6 (Mojave) and 10.15.7 (Catalina) and future operating systems
Plugging in:
Plug the USB WL Adapter into the USB port on the desired PC/laptop.
Once plugged in, the USB WL Adapter is displayed as "USB WL Adapter" on the computer.
Removal:
▶ Pull the USB WL Adapter out of the USB connection on the PC/laptop.
Connecting compatible Bluetooth® products from beyerdynamic and laptop/PC with USB WL Adapter via Bluetooth® (pairing)
Before you can use compatible Bluetooth® products from beyerdynamic, you must connect them with your mobile phone or another Bluetooth®-enabled device. The connection process may differ depending on the device.
With the USB WL Adapter, a laptop/PC can be connected with up to three Bluetooth ^® -enabled devices from beyerdynamic.
Pairing with a USB WL Adapter on a PC/laptop is described here.
▶ Please refer to the relevant operating instructions of the device you wish to pair the beyerdynamic USB WL Adapter with.
Connect the USB WL Adapter to a suitable beyerdynamic Bluetooth® device:
√ The output device (PC/laptop) is switched on.
√ The beyerdynamic Bluetooth® device is switched on.
- Plug the USB WL Adapter into the USB port on the PC/laptop.
- Press the Sync button (1) on the USB WL Adapter for 3 seconds..
The LED display flashes alternately blue and red.
- Carry out pairing as described in the operating instructions of your beyerdynamic Bluetooth® product.
After successful pairing, the LED display of your USB WL Adapter flashes alternately blue and white three times.
Briefly pressing the Sync button (1) causes the USB WL adapter to start searching for a device in the pairing list and establish a connection with it.
Deleting the list of already connected devices:
▶ Press the Sync button (1) on the USB WL Adapter for 10 seconds.
The LED display flashes yellow.
The list of already connected Bluetooth ^® devices (maximum 3) is deleted.
Overview of the LED displays
LED display Function
| Lights up steady white No connection, not in pairing mode |
| Flashes rapidly red and blue | Pairing mode |
| Flashes three times blue and white | Pairing successful |
| Flashes rapidly yellow Pairing list cleared |
| Lights up steady blue Device connected |
| Lights up steady green | Call in progress |
| Lights up steady red | Mute |
USB WL Adapter-supported functions
When paired with PC or laptop devices, the USB WL Adapter enables the use of functions such as mute and call functions (hang up) that are often not supported by the playback devices.
▶ Please refer to the operating instructions of your beyerdynamic Bluetooth® product.
HELP WITH PROBLEMS / FAQ
The volume of the Bluetooth ^® device cannot be adjusted from the PC.
| The audio signal transmitted by the USB WL Adapter is not processed by the receiving device. | ▶ Adjust the volume directly in the sound reproduction app. |
No audio output.
| There is no Bluetooth®connection. | ▶ Make sure that thehands-free system hasbeen successfully pairedwith the USB WL Adapter. |
Bluetooth device is connected to another/the wrong device.
There is already a Bluetooth® connection to another playback device.
▶ Switch off the incorrectly connected device.
▶ Reset the USB WL Adapter to factory settings and disconnect it from the USB port. Activate pairing mode, plug in the USB WL Adapter again (minimise the distance between the USB WL Adapter and the Bluetooth® device) and carry out pairing again.
Microphone does not work.
| USB WL Adapter is not recognised on the input device. | Make sure that the audio settings in the operating system are correct.Make sure that the input device is set to the USB WL Adapter.If necessary, adjust the settings in the communication app used. |
Bluetooth® device fails or has no range, or noise is heard.
| There is interference with other devices. | ▶ Keep your distance from WLAN routers and microwave ovens. ▶ Do not stand between the playback device and the beyerdynamic Bluetooth® device. |
| Batteries are empty ▶ Charge the Bluetooth® device. | |
| Other devices are paired. ▶ Set unwanted paired devices to Bluetooth® OFF. | |
| Signal transmission is disturbed. | ▶ Unplug the USB WL Adapter and plug it back in. Wait for the connection process. ▶ Reset the USB WL Adapter to factory settings and pair again. |
| The Bluetooth® signal may be impaired by obstacles between the hands-free device and the USB WL Adapter. | ▶ Reduce the distance between the USB WL Adapter and the Bluetooth® device and avoid obstacles. |
| USB transmission faulty | ▶ Connect the USB WL Adapter to another USB port on the input device. |
No audio output.
| There is no Bluetooth® connection. | ▶ Make sure that the Bluetooth® device has been successfully paired with the USB WL Adapter. |
Please also observe the troubleshooting information in the operating instructions of the Bluetooth® device used.
CLEANING AND MAINTENANCE
- Use a soft cloth moistened with alcohol cleaner to clean the USB WL Adapter. Make sure that no liquid enters the USB connector.
- Do not use cleaners containing solvents, as these can damage the surface.
DISPOSAL
This symbol on the product, in the user manual or on the packaging means that your electrical and electronic devices must be disposed of separately from household waste at the end of their life cycle. There are separate collection systems for recycling in the EU.
For further information, please contact your local authorities or the dealer where you purchased the product. Returning batteries is free of charge.
EU DECLARATION OF CONFORMITY
beyerdynamic hereby declares that this radio transmission device complies with the EU Directive 2014/53/EU.
The full text of the EU declaration of conformity can be found on the Internet at: www.beyerdynamic.com/cod
TECHNICAL DATA
| ISM band frequency range | 2.400 to 2.4835 GHz |
| Transmitting power 2.5 mW (Class 2) | |
| Length x width x height (mm) 31 x 17 x 6 | |
| Weight 3 g | |
▶ You can find more detailed information about the technical data online at: www.beyerdynamic.com/usb-adapter.html#product-downloads
WARRANTY CONDITIONS
beyerdynamic provides a limited warranty for the original beyerdynamic product you have purchased.
▶ You can find detailed information about beyerdynamic's warranty conditions on the Internet at: www.beyerdynamic.de/service/garantie
REGISTERED TRADEMARKS
Windows is a registered trademark or trademark of Microsoft Corporation in the United States of America or other countries.
iPhone, iPod touch, iPad, macOS and Mac are trademarks of Apple Inc. registered in the United States and other countries.
Android is a trademark of Google LLC.
The Bluetooth ^® word mark and logos are registered trademarks of Bluetooth ^® SIG, Inc. and any use of such marks by beyerdynamic under licence. Other trademarks and trade names belong to their respective owners.
USB type A, USB type B and USB type C are trademarks of USB Implementers.
FCC / IC REGULATION
FCC ID: OSDUSBBTADAPT
Canada IC: 3628C-USBBTADAPT
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTICE:
This device complies with Part 15 of the FCC Rules [and with Industry Canada licenceexempt RSS standard(s)].
Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications made to this equipment not expressly approved by beyerdynamic GmbH & Co. KG may void the FCC authorization to operate this equipment.
NOTICE:
This Class B digital apparatus complies with Canadian ICES-003.
Radio frequency radiation exposure information:
For body worn operation, this radio frequency device has been tested and meets the FCC RF exposure guidelines when used within a minimum distance to the human body.
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device.
Purchasers should also be aware that FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change.
For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
This device operates on a no-protection, no-interference basis. Should the user seek to obtain protection from other radio services operating in the same TV bands, a radio licence is required. For further details, consult Innovation, Science and Economic Development Canada's document Client Procedures Circular CPC-2-1-28,
Voluntary Licensing of Licence-Exempt Low-Power Radio Apparatus in the TV Bands.
USB WL Adapter
BEDIENUNGSANLEITUNG
INHALT
Abstract black curved line on white background (no text or symbols)beyerdynamic
USB WL Adapter
MODE D'EMPLOI
CONTENU
CONSIGNES DE SÉCURITÉ....19
VUE D'ENSEMBLE DU PRODUIT....19
DESCRIPTIONS DU PRODUIT....19
PREMIÈRES ÉTAPES 19
DÉCLARATION DE CONFORMITÉ UE....21
CARACTÉRISTIQUES TECHNIQUES 22
CONDITIONS DE GARANTIE....22
MARQUES....22
VUE D'ENSEMBLE DU PRODUIT
DÉCLARATION DE CONFORMITÉ UE
CONDITIONS DE GARANTIE
USB WL Adapter
INSTRUCCIONES DE USO
ÍNDICE
SINOPSIS DEL PRODUCTO.... 25
Colocar/RetirarUSB WL Adapter 26
SINOPSIS DEL PRODUCTO
USB WL Adapter
ISTRUZIONI D'USO
CONTENUTO
NORME DI SICUREZZA ....31
Uso previsto 31
USB WL Adapter
BRUKSANVISNING
INNEHÅLL
SÄKERHETSANVISNINGAR.... 37
GARANTIVILLKOR....40
VARUMÄRKEN....40
USB WL Adapter
取扱説明
目次
USB WL Adapter
操作說明
目录
安全注意事项 49
合规使用.... 49
误吞危险.... 49
环境条件.... 49
使用说明内容....49
随机清单....49
产品概览....49
产品描述....49
首要事项....49
拆封及日常收纳 49
固件更新....49
支持的音频编解码器 49
操作 49
USB WL Adapter 插入/拔掉 49
借助 USB WL Adapter 通过 Bluetooth® 功能与 beyerdynamic
2 状态 LED 指示灯
产品描述
Windows is a registered trademark or trademark of Microsoft Corporation in the United States and other countries.
iPhone, iPod, iPod touch, iPad, macOS and Mac are trademarks of Apple Inc., registered in the U.S. and other countries.
Android is a trademark of Google LLC.
The Bluetooth ^® word mark and logos are registered trademarks of Bluetooth ^® SIG, Inc. and all use of these trademarks by beyerdynamic is licensed. Other trademarks and trade names are the property of the respective owners.
USB Type-A, Type-B and Type-C are trademarks of USB Implementers.
R 202-SMJ088
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Subject to change without notice.
