USER MANUAL Gysflash 10.3648 PL GYS

ANOMALIES, CAUSES, REMÉDES

CONDITIONS DE GARANTIE

This manual contains safety and operating instructions, to be followed for your safety. Please read it carefully before using the device for the first time and keep it for future reference.

This machine should only be used for charging or power supply operations comprised within the limits indicated on the machine and in the instructions manual. The operator must observe the safety precautions. In case of improper or unsafe use, the manufacturer cannot be held liable.

The device is destined to be used indoors. Must not be exposed to the rain.

This unit can be used by children aged 8 or over and by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly monitored or if instructions for using the equipment have safely been read and risks made aware of. Children must not play with the product.

Cleaning and maintenance should not be performed by an unsupervised child.

Do not use to charge domestic batteries or non rechargeable batteries.

Do not operate the device with a damaged power supply cord or a damaged mains plug.

Do not use the device if the charging cable appears to be damaged or assembled incorrectly in order to avoid any risk of short circuiting the battery.

Never use on a frozen or damaged battery.

Do not cover the device.

Do not place the device near a fire or subject it to heat or to longterm temperatures exceeding 50^

Do not obstruct the machine's air intake, which facilitates air circulation.

The operating mode of the automatic charger and the restrictions applicable to its use are explained later in this manual.

Fire and explosion risks!

A charging battery can emit explosive gases.

• During the charge, the battery must be placed in a well ventilated area.
• Avoid flames and sparks. Do not smoke near the device.
• Protect the battery's electrical contact surfaces against short-circuits.

Acid projection hazard!

• Wear safety goggles and protective gloves

• If your eyes or skin come into contact with battery acid, rinse the affected part of the body with plenty of water and seek immediate medical assistance

Connection / disconnection :

• Ensure that the charger's power supply is disconnected before connecting or disconnecting to the battery terminals.
• Always ensure the Red clamp is connected to the ""+"" battery terminal first. If it is necessary to connect the black clamp to the vehicle chassis, make sure it is a safe distance from the battery and the fuel/exhaust pipe. The charger must be connected to the mains.
• After charging, disconnect the charger from the mains, then disconnect the negative clamp from the car body and then disconnect the positive clamp from the battery, in this order.

Connection :

Class I device
- This device must be connected to an earthed power supply
- The connection to the power supply must be carried out in compliance with national standards.

Maintenance :

• If the power cable is damaged, it must be replaced by the manufacturer, its after sales or by an equally qualified person to prevent any accidents.
  Service should be performed by a qualified person
• Warning! Always remove the power plug from the wall socket before carrying out any work on the device.
• Under no circumstances should solvents or other aggressive cleaning agents be used.
• Clean the device's surfaces with a soft, dry cloth.

Regulations :

• The Machine is compliant with European directives.
• The declaration of conformity is available on our website.
• EAEC Conformity marking (Eurasian Economic Community).
• Equipment in compliance with British requirements. The British Declaration of Conformity is available on our website (see home page).
• Equipment in conformity with Moroccan standards.
• The declaration C_ (CMIM) of conformity is available on our website (see cover page).

Waste management:

• This product should be disposed of at an appropriate recycling facility. Do not throw away in a household bin.

GENERAL DESCRIPTION

GYSf 10.36/48 PL is ideal for charging most lead-acid (Gel, AGM, Liquid,...) and lithium batteries of the Lithium Iron Phosphate (LFP / LiFePO4) and «standard» lithium-ion types such as Nickel Manganese Cobalt (NMC), Lithium nickel cobalt aluminium oxide (NCA), Lithium Cobalt Oxide (LCO), Lithium Polymer (Li-Po), Lithium Manganese Cobalt Oxide (MCO), etc.

This charger is perfectly suited for charging :

• 36 V lead batteries (18 cells in series)
• 48 V lead batteries (24 cells in series)
• 36 V Lithium batteries (12 cells in series)
• 48 V LFP batteries (15 cells in series) - 48 V LFP batteries (16 cells in series)
• «Standard» Lithium-ion batteries 48 V (13 cells in series)
• «Standard» Lithium-ion batteries 48 V (14 cells in series)

The Gysflash 10.36/48 PL is equipped with a function that :

• when charging a lead-acid battery, adjusts the output voltage automatically according to the ambient air temperature. This adjustment allows for a very accurate lead-acid battery charge adapted to the temperature.
• When charging a lithium battery, the charge is prevented if the ambient temperature is below 3^ .

In both cases, the adjustment can take between 1 and 10 minutes before the charge starts or stops.

CALIBRATION CABLE

Procedure for the calibration of the charging leads in order for the charger to compensate any voltage drop due to the length or condition of the cables. It is strongly recommended to perform this procedure each time the cables are modified or changed.

1. Before undertaking the procedure, make sure that the charger is disconnected from the mains socket.
2. Short-circuit the ends of the charging leads.
3. Press buttons BATTERY and Battery Tsimaneously.

4. Plug in the mains plug while holding down the two buttons until the indicator light OK or lights up. Results :

5. Indicator OK is on : the calibration was successful.

6. Indicator is on: the calibration failed, disconnect the mains plug and restart the procedure.

7. Unplug the mains plug until the charger switches off.

START UP

1. Connect the charger to the battery.
2. Plug the charger to the mains (single phase 220-240Vac 50-60Hz).
3. Select the charging voltages (or the number of cells in your battery) by pressing button BATTERY to select the battery technology press button BATTERY. After roughly five seconds, the charge starts automatically.
4. During the charge, the device indicates charge progress. When indicator OK flashes, the battery is ready to start the engine. Once indicator OK is steady, the battery is fully charged.
5. The charge can be interrupted at any time by unplugging the mains plug or pressing the BATTERY button.
6. After the charge, disconnect the charger from the mains, then disconnect the clamps from the battery.

CHARGE MODES

• Description of charging modes and currents :

●36V ●Pb	Lead CHARGE mode (43.8 V/10 A max): Mode for charging 36 V lead-acid batteries from 20 Ah to 230 Ah. Automatic seven step charge cycle.
●36V ●LFP	Lithium Iron Phosphate Charging Mode (43.2 V/10 A max): Mode for charging 36 V LiFePO4 batteries from 10 Ah to 230 Ah. Eight-step automatic charging cycle.
●36V ●Li	Standard Lithium-ion charging mode (41.5 V/10 A max): Mode for charging 36 V Li-ion standard batteries from 10 Ah to 230 Ah. Eight-step automatic charging cycle.
●48V ●Pb	Lead CHARGE mode (58.4 V/8 A max): Mode for charging 48V Lead-acid batteries from 15Ah to 160 Ah. Automatic seven step charge cycle.
●48V ●54.0V ●LFP	Lithium Iron Phosphate Charging Mode (54 V/8 A max): Mode for charging 48V LiFePO4 batteries with 15 cells in series from 8 Ah to 160 Ah.. 8 step automatic maintenance charge cycle.
● 48V ● 58.0V ● LFP	Lithium Iron Phosphate Charging Mode (57.6 V/8 A max): Mode for charging 48 V LiFePO4 batteries with 16 cells in series from 8 Ah to 160 Ah. 8 step automatic maintenance charge cycle.
● 48V ● 54.0V ● Li	Standard Lithium-ion charging mode (54 V/8 A max): Mode for charging standard 48 V Li-ion batteries with 13 cells in series from 8 Ah to 160 Ah. 8 step automatic maintenance charge cycle.
● 48V ● 58.0V ● Li	Standard Lithium-ion charging mode (58.1 V/8 A max): Mode for charging standard lithium-ion batteries with 14 cells in series from 8 Ah to 160 Ah. 8 step automatic maintenance charge cycle Some Lithium batteries incorporate a UVP protection (Under Voltage Protection) which disconnect the battery in case of deep discharge. This protection prevents the charger from detecting the battery. In order for the Gysflash 10.36/48 PL to charge the battery, the UVP protection must be disabled. To do this, select the Lithium charging mode and press the button BATTERY TYPE for 10 seconds. The charger will then deactivate the UVP protection and automatically start charging.

In 48V lithium-ion charging mode (LFP or standard), press and hold button BATTERY for 3s to switch between 54V and 58V charging voltages depending on the number of serial cells in your battery..

• Battery type selection :

Using button Battery type from the following three technology categories :

Lead-acid, AGM, GEL, etc. LiFePO4 NMC, NCA, Li-Po, LCO, MCO, ...

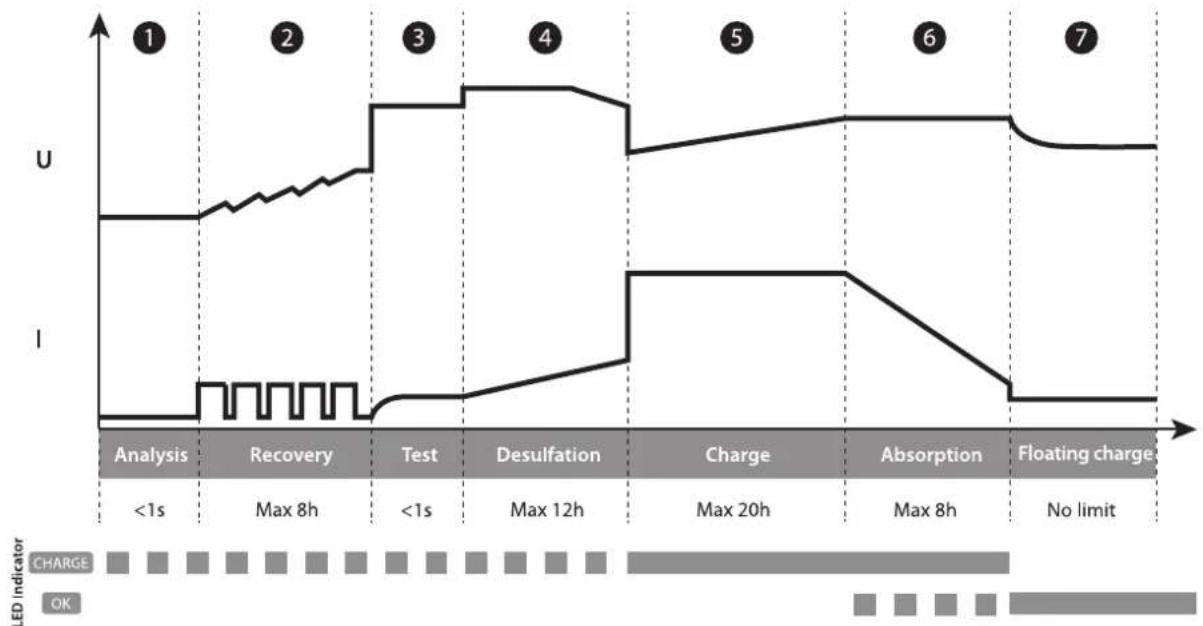

- Load curve Lead :

The GYSfsh 10.36/48 PL uses an advanced 7-step lead charging curve that guarantees the optimal performance of your lead-acid battery.

Step 1 : Analysis

Analyses the state of the battery (charge level, polarity inversion, wrong battery...)

Step 5 : Charge (36V - 10 A / 488A)

Fast charge at maximum current to reach 80% charge level.

Step 2:Recovery (36V-4A/483VA)

Recovering damaged elements after deep and prolonged discharge.

Step 6 : Absorption (36 V - 43.8 V / 4658.4 V)

Constant voltage charge to reach 100% charge level.

Step 3: Test

Sulfated battery test

Step7:Floatingmode(3640.8V/-544W)

Maintaining the battery charge level at its maximum.

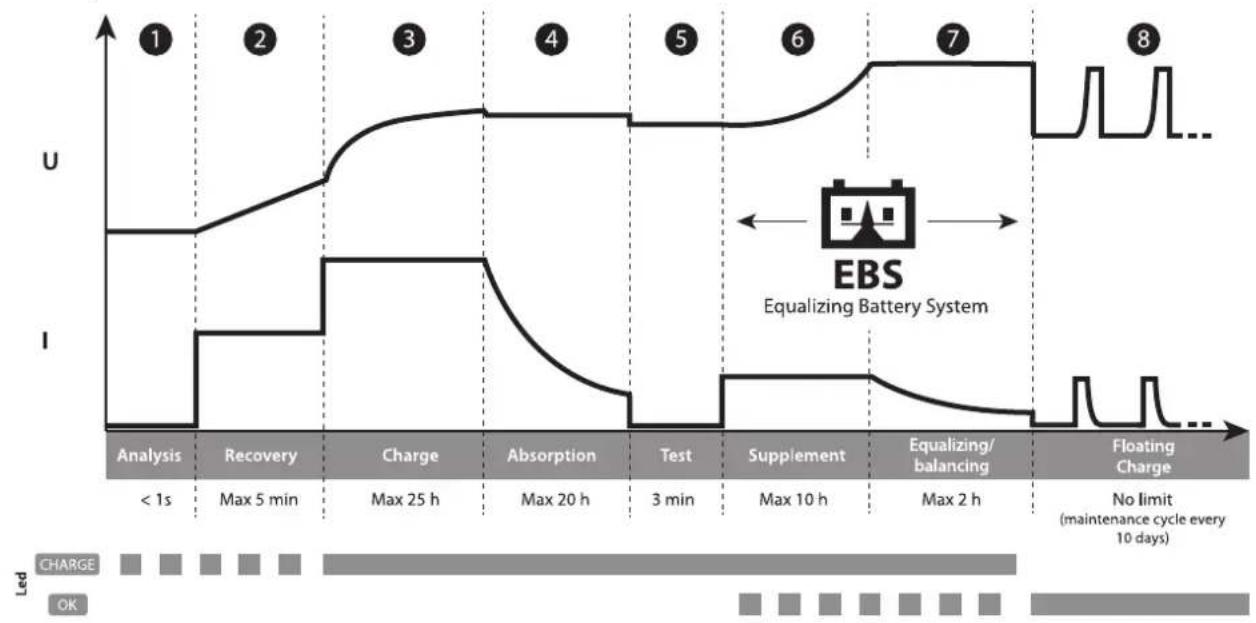

- Lithium charging curve :

The GYSfsh 10.36/48 PL uses an advanced 8-step Lithium charging curve that guarantees the optimal performance of your lithium battery.

Step 1 : Analysis

Analyses the state of the battery (charge level, polarity inversion, wrong battery...)

Step 5: Test

Charge hold test.

Step 2:Recovery (36V-2A/482VA)

Recovery algorithm following a deep discharge.

Step 6: Complement

Reduce current charge to reach 100% charge level.

Step 3 : Charging (36V - 10 A / 488A)

Fast charging at maximum current up to 90% . of the charge level.

Step 7: Equalization / Balancing

Balancing the battery cells

	48V/54.0V	48V 58.0V	36V
LiFePO4	54 V 57.6 V 43	2 V
Li-ion 54	V 58.1 V 41.5 V

Step 4 : Absorption

Constant voltage charging to bring the charge level to 98% .

	48V/54.0V	48V 58.0V	36V
LiFePO4	51.8 V 55.2 V	41.4 V
Li-ion	52.7 V 56.7 V	40.5 V

Step 8: Floating mode

Maintain the battery charge level at its maximum with maintenance charge every 10 days.

	48V/ 94.0V	48V 58.0V	36V
LiFePO4	51.75 V	55.2 V	41.4 V
Li-ion	52.7 V	56.7 V	40.5 V

Estimated charge time :

Charging current	Lead-acid
	8 A				10 A
Battery capacity	20 Ah	50 Ah	100 Ah	160 Ah	60 Ah	150 Ah	230 Ah
Charge timing 0% >90%	2 h	6 h	12 h	20 h	6 h	15 h	23 h

Lithium
8 A				10 A
8 Ah	30 Ah	120 Ah	160 Ah	30 Ah	140 Ah	230 Ah
1 h	3.5 h	15 h	20 h	3 h	14 h	23 h

- Protections :

The GYSFLASH 10.36/48 PL has several features to protect it against short circuits and polarity reversal. It has an anti-spark feature which prevents sparks whilst connecting the device to the battery. This charger has double insulation and is safe to use with the battery in situ as it will protect the vehicle's on-board electronics.

The GYSFLASH 10.36/48 PL is equipped with an integrated temperature sensor that allows it to adapt its charging current according to the ambient temperature in order to prevent internal electronics from overheating.

TROUBLESHOOTING, CAUSES, SOLUTIONS

	Troubleshooting Causes Solutions
1	Indicator flashes.	·Polarity reversal ·Battery voltage is too high ·Clamps in short-circuit	·Check that the clamps are connected correctly ·Check that the selected voltage matches the battery voltage.
2	The indicator is on.	·Failure during charging, battery not recoverable ·External temperature too low to charge a lithium battery	·Change the battery and press BATTERY VOLTAGE to restart a charge. ·Charge the lithium battery in a temperate place or press button BATTERY VOLTAGE.
3	Indicator irstays on even after pressing BATTERY button	Thermal protection	Ambient temperature is too high (>50°C), cool the room and let the charger cool down.
4	Indicator flashes.	Charger in sleep mode	Press button BATTERY VOLTAGE or connect a battery to the charger to exit sleep mode.
5	Indicator Ⅲstays on.	Charge interrupted by pressing BATTERY VOLTAGE	Press BATTERY VOLTAGE again to restart the load

WARRANTY

The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).

The warranty does not cover:

• Transit damage.
• Normal wear of parts (eg.: cables, clamps, etc.).
• Damages due to misuse (power supply error, dropping of equipment, disassembling).
• Environment related failures (pollution, rust, dust).

In case of failure, return the unit to your distributor together with:

• The proof of purchase (receipt etc ...)
• A description of the fault reported

SICHERHEITSHINWEISE

TeTnIPOBaHHe cyIbΦaTnIPOBaHHOro aKKymyIaTopa

3tan7:Подерханneзарда(3640.8V/-54Kv)/

PoiepkaHne ypOBn3aApda aKKyMnyTopa Ha MaKcMMyMe.

3tan 4: DecyIbΦatauia (36V-47.4V/4B62V)

AIlropntM DecyIbΦaTaUu AKKymyIaTopa

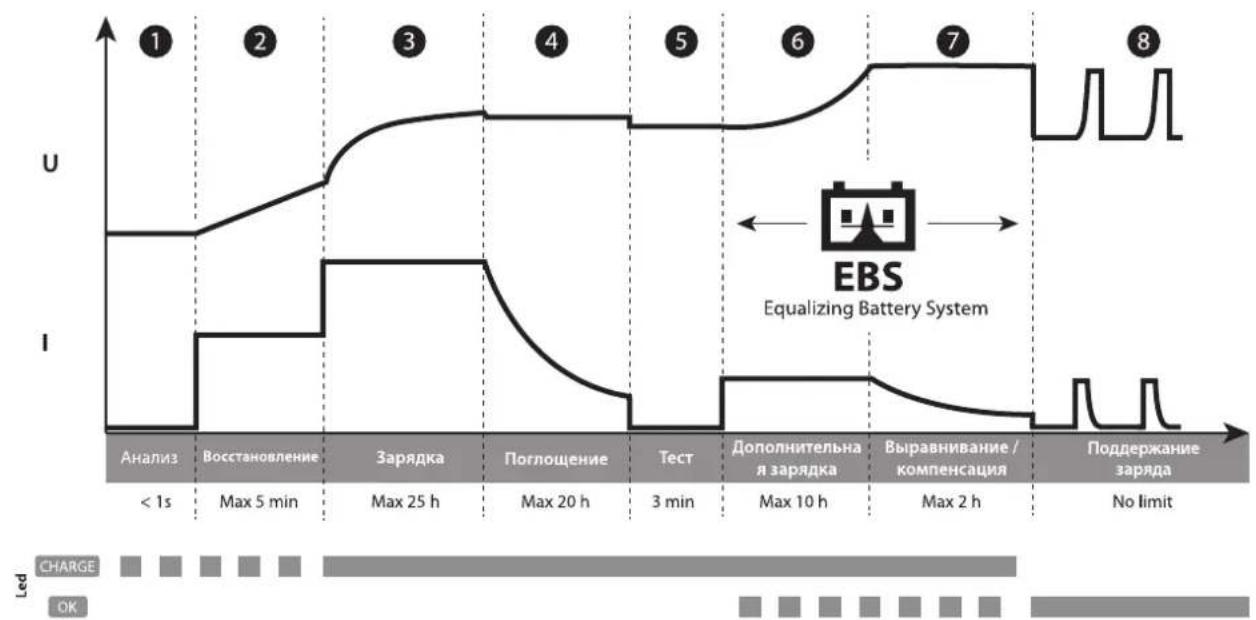

KpNBa3apAknIHTNHeBbIXaKKyMylrTOPOB:

GYSFLASH 10.36/48 PL 3apjkaet no pa3BepHyToK kPBOI nla IInTneBbIX AK5, coCTOaIe n3 8 3TaIOB, rapaHTnpyioe ONTMalhIbe pa6oue xapaKTepnCTnK BaWero IInTneBOr aKKMyJrTopa

3Tan 1:Anann3

AHaHn3 CoCToHnA aKKMyJrTOpa (yPoBeHb 3apJa, INHbepCnIPOJIpHOCTeN,IOKnIIOUeHne HEnpaBnIbHorO aKKMyJrTOpa...

3ran 5: Tect

TecnpoBaanHe coxpaHEny 3apya

3tan 2: BocCTaHOBJIeHne (36V - 2A / 4E2VA)

AnropTM BOCCTaHOBJIeHn BCNECTBnE rnyboko pa3pndKn

HENCNPABHOCTN, INX INPNUINHBI IN YCTPAHEHNE

	НемправностуПрочны Устранения
1	Мигает Иndикатор	·ИнBERСЯ пог�rostу ·Наряженье AKБ слишков Всиске ·Зakорочны заимь�ы
2	Горот Иndикатор	·Ошибka рир зардke, AKБ Восстановлению не полесKit ·Слишков НИЗКая Temпература okryжтошей срешидь对于我们 зардки Литnevого akкумлaitopa
3	Инникатор побол�кает明确提出, песмOTРУ на то, чTO в�ы нажалу Кноку BATTERY VOLTAGE	П robлема с temпературо
4	Мигает Иndикатор	Зардhoe устриоств В рекIMe ожд�пь Зардhoe Зардhoe ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп ZapкIMп Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�� Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap�. Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap� Zap�	Слишков Всиска тампегаший срешиптупам поготу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погotу погOTу ZAPETY VOLTAGE ПОДСЕДСЕТС СпOSTКУ BATTERY ПОДСЕДСЕТС СпOSTКУ BATTERY ПОДСЕДСЕТС СпOSTКУ BATTERY ПОДСSEДСЕТС СпOSTКУ BATTERY ПОДСSEДСЕТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСS СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТC СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТС СпOSTКУ BATTERY ПОДСSEДСSEТCs СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCs СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCs СпOSTКУ BATTERY ПОДСSEДСSEТCs СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТcs СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTКУ BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTK/U BATTERY ПОДСSEДСSEТCS СпOSTK/U BATTERY ПОДСSEДСSEТCS СпOSTK/U BATTERY ПОДСSEДСSEТCS СпOSTK/U BATTERY ПОДСSEДСSEТCS СпOSTK/U BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTK U BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKU BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSEТCS СпOSTK UT BATTERY ПОДСSEДСSEТCS СпOSTKUT BATTERY ПОДСSEДСSETCS СпOSTKUT BATTERY ПОДСSEДСSETCS СпOSTKUT BATTERY ПОДСSEДСSETCS СпOSTKUT BATTERY ПОДСSEДСSETCS СпOSTKUT BATTERY ПОДСSEДСSETCS СпOSTKUT BATTERY ПОДСSEДСSE TCS CpOSTKUT BATTERY ПОДСSEДСSE TCS CpOSTKUT BATTERY ПОДСSEДСSE TCS CpOSTKUT BATTERY ПОДСSEДСSE TCS CpOSTKUT BATTERY ПОДСSEДСSE TCS CpOSTKUT BATTERY ПОДСSEДСSE Tcs CpOSTKUT BATTERY ПОДСSEДСSE Tcs CpOSTKUT BATTERY ПОДСSEДСSE Tcs CpOSTKUT BATTERY ПОДСSEДСSE Tcs CpOSTKUT BATTERY ПОДСSEДСSE Tcs CpOSTKUT BATTERY ПОДСSDEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS cP0STKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT ВATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОДСSEDACTCS CpOSTKUT BATTERY ПОDACTCS CpOSTKUT BATTERY ПОDACTCS CpOSTKUT BATTERY ПОDACTCS CpOSTKUT BATTERY ПОDACTCS CpOSTKUT BATTERY ПОDACTCS CpOSTKUT BATTERY ПОDACTCS CpOSTKUT BATTERY ПОDACTCS

TAPAHTR

TapaHTn paacnpoctpaHareTc H a IIO6oI 3aBODCKO DepeKT nII 6paK B TeueHne 2x let C daTbI nokyPkn n3dEInna (3aNactn npapooa cnla).

IapaHTnHe paocpTaHReTcHa:
- JIO6bIe NOJOMKn, BbI3BaHHbIe TpaHCnOpTnpOBkoN.
- HopMaJIbHbIи3Hoc DeTaeNei (HanpImeP : Ka6eJI, 3aXIMbI n T.d.).
CnyuHn HnpeBnHoro nnoJb3ObaHHa (oWn6ka nHTAHn, naHeHne, pa36opka).
CnyuH BbIXoHa n3 CToPn H3-3a OkpyKaIOUe Cpebl (3arp3HeHne Bo3dyxa, Kopp03n, nbIb).

PnBbIXoJe n3 cTpo, o6paTntecb B nyHKT NOKyIKN AnnapaTa C npedbYBaIeHMeC neDyIOxN DOKyMeHTOB:

• DOKyMeHT, NOITBepKdaUOuN NOKyNkY (c DaTOn): KaccOBbI YeK, INHBOIC....
  -ONINCAHNEIIOJOMKN.
• une note explicative de la panne.

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

• 36 Volt loodaccu's (18 cellen in series)
• 48 Volt Ioadaccu's (24 cellen in series)
• 36 Volt Lithium accu's (12 cellen in series)
• 48 Volt LFP accu's (15 cellen in series) - 48 V LFP accu's (16 cellen in series)
• « standard » 18 Volt Lithium-ion accu's (13 cellen in series)
• « standard » 48 Volt Lithium-ion accu's (14 cellen in series)

Stap 5:Laden (36V-10A/488mA)

Stap 3:Laden (36V-10A/488VA)
