USER MANUAL Gysflash Lithium 1.12 GYS

ANOMALIES, CAUSES, REMÈDES

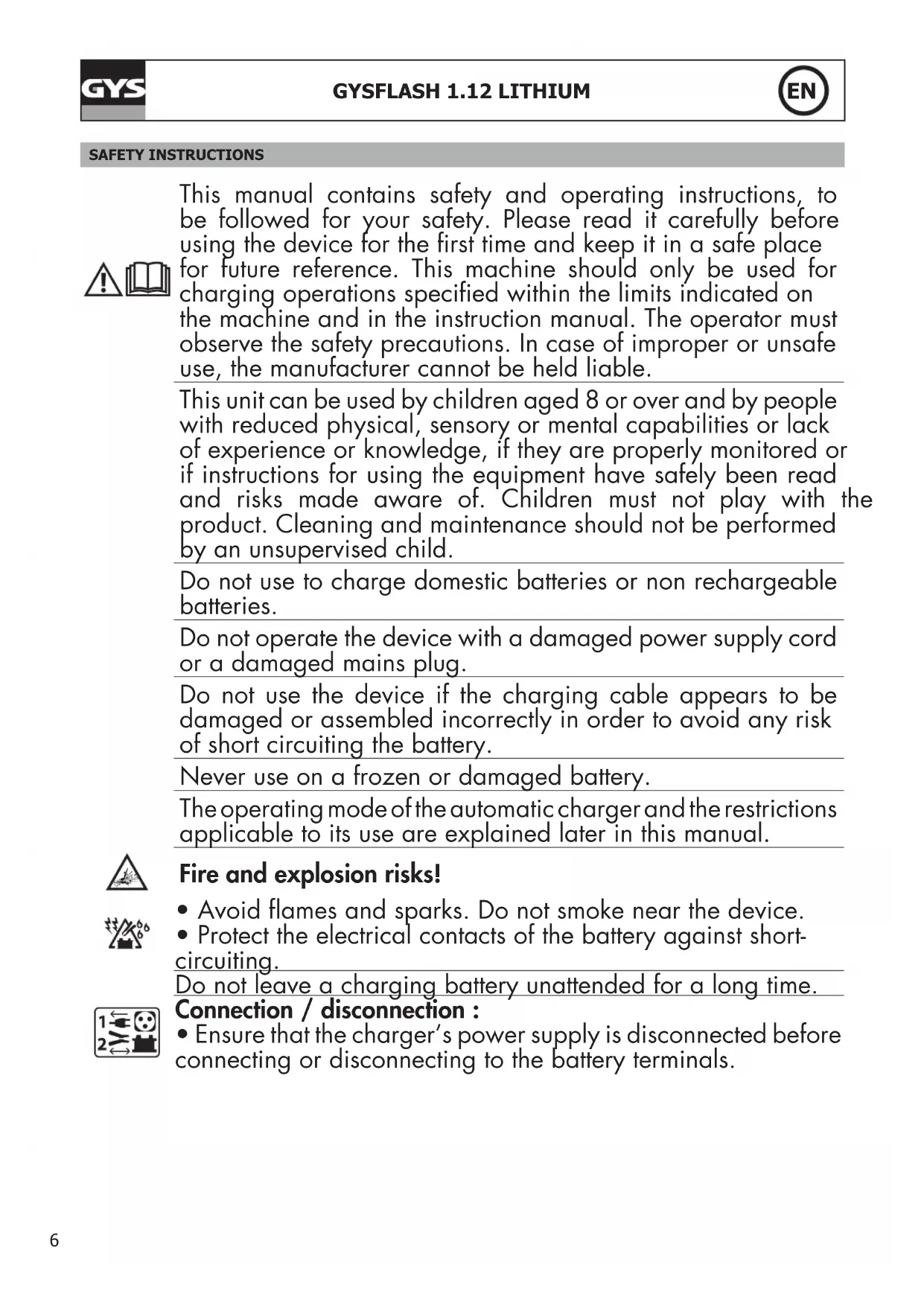

• Les pannes liées à l’environnement (pollution, rouille, poussière). En cas de panne, retourner l’appareil à votre distributeur, en y joignant : - un justicatif d’achat daté (ticket de sortie de caisse, facture….) - une note explicative de la panne. FR6 GYSFLASH 1.12 LITHIUM SAFETY INSTRUCTIONS This manual contains safety and operating instructions, to be followed for your safety. Please read it carefully before using the device for the rst time and keep it in a safe place for future reference. This machine should only be used for charging operations specied within the limits indicated on the machine and in the instruction manual. The operator must observe the safety precautions. In case of improper or unsafe use, the manufacturer cannot be held liable. This unit can be used by children aged 8 or over and by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly monitored or if instructions for using the equipment have safely been read and risks made aware of. Children must not play with the product. Cleaning and maintenance should not be performed by an unsupervised child. Do not use to charge domestic batteries or non rechargeable batteries. Do not operate the device with a damaged power supply cord or a damaged mains plug. Do not use the device if the charging cable appears to be damaged or assembled incorrectly in order to avoid any risk of short circuiting the battery. Never use on a frozen or damaged battery. The operating mode of the automatic charger and the restrictions applicable to its use are explained later in this manual. Fire and explosion risks!

• Avoid ames and sparks. Do not smoke near the device.

• Protect the electrical contacts of the battery against short- circuiting. Do not leave a charging battery unattended for a long time. Connection / disconnection :

• Ensure that the charger’s power supply is disconnected before connecting or disconnecting to the battery terminals. EN7 GYSFLASH 1.12 LITHIUM

• Always ensure the Red clamp is connected to the «+» battery terminal rst. If it is necessary to connect the black clamp to the vehicle chassis, make sure it is a safe distance from the battery and the fuel/exhaust pipe. The charger must be connected to the mains.

• After charging, disconnect the charger from the mains, then disconnect the negative clamp from the car body and then disconnect the positive clamp from the battery, in this order. Connection :

• The connection to the power supply must be carried out in compliance with national standards. Maintenance :

• If the power cable is damaged, it must be replaced by the manufacturer, its after sales or by an equally qualied person to prevent any accidents. Regulations :

• The Machine is compliant with European directives.

• The declaration of conformity is available on our website.

• EAEC Conformity marking (Eurasian Economic Community).

• Equipment in compliance with British requirements. The British Declaration of Conformity is available on our website (see home page).

• Equipment in conformity with Moroccan standards.

• The declaration Cم (CMIM) of conformity is available on our website (see cover page). Waste management:

• This product should be disposed of at an appropriate recycling facility. Do not throw away in a household bin.8 GYSFLASH 1.12 LITHIUM

GENERAL DESCRIPTION GYSFLASH 1.12 Lithium is designed to charge the Lithium batteries of type Lithium Fer Phosphate (LFP / LiFePO4). This charger has been designed to charge 12V batteries (4 elements in series) from 0.5 Ah to 20 Ah, or for oating charge up to 50 Ah. START UP

1. Connect the charger to the battery using the proper accessory (clamps, lugs, etc...).

2. Plug the charger to the mains (single phase 220-240Vac 50-60Hz).

3. During the charge, the device indicates the charge progress. When indicator

blinks, the battery is ready to start the vehicle. Once indicator stays on, the battery is fully charged.

4. After the charge, disconnect the charger from the mains, then disconnect the charger’s connections from the battery.

• Charge Mode description: CHARGE Mode (14.5V/1A) : Mode designed for 12V lithium batteries, from 0.5 Ah to 20Ah and up to 50Ah for maintenance charge. 8 step auto- matic maintenance charge cycle. If the motorbike is tted with a 12V plug, the GYSFLASH 1.12 can charge the battery via this plug with the CAN-BUS system, without switching the dashboard on. In this setup, connect the cigratte lighter adapter (ref. 029439) on the motorbike’s 12V charger then follow the «start up » procedure on the previous page. In certain cases, it is possible that the charge will only start 2 minutes after performing the connections.

• Charging curve : The GYSFLASH 1.12 Lithium uses a charging curve which guarantees optimal performance for your lithium battery.

: Analysis Analyses the battery state (charge level, polarity inversion, wrong battery…) Step

: Recovery (0.2A) Recovering due to a prolonged deep discharge. Step

: Completion Reduce current charge to reach an 100% charge level. Step

: Charge (1A) Maximum current fast charge to reach an 90% charge level. Step

: Equalizing / balancing (14.4V) Balacing of battery cells. Step

: Absorption (13.8V) Constant voltage charge to reach a 98% charge level. Step

: Floating/maintenance charge (13.8V) Maintains battery charge level at its maximum with maintenance charge every 10 days.9 GYSFLASH 1.12 LITHIUM

• Estimated charge time Battery capacity 1 Ah (3 Ah EqPb*) 5 Ah (15 Ah EqPb*)10 Ah(30 Ah EqPb*)20 Ah(60 Ah EqPb*)Charge timing 0% >>> 90%1 h 30 4 h 30 8 h 30 16 h *Lead battery corresponding : A lithium battery has a better starting performance (CCA) than a lead battery. That’s why some lithium battery manufacturers indicate the battery lead equivalent (EqPb) which corresponds to the capacity of a lead-acid battery with the same starting perfor- mance. For instance, a LFP battery of 10 Ah will have the same starting performance as a lead-acid battery of about 30 Ah.

• Protections : The GYSFLASH 1.12 Lithium has comprehensive safety features to protect it against short-circuits and polarity rever- sals. It has an anti-spark feature which prevents sparks whilst connecting the device to the battery. This charger has double insulation and is safe to use with the battery in situ as it will protect the vehicle’s on-board electronics. The GYSFLASH 1.12 Lithium is tted with an integrated temperature probe that ensures that the charging current is adapted to the ambient temprature to prevent internal electronics’ overheating. TROUBLESHOOTING Troubleshooting Causes Solutions The indicator blinks rapidly.• Polarity reversal• Battery voltage is too high• Check that the clamps are properly connected. • Check that it is a 12V battery. The indicator blinks slowly.Battery is faulty or has a very low voltage.Change the battery. The indicator is on.• Charge failure, battery non recove-rable.• Thermal protection.• Change the battery and restart a charge.• Ambient temperature is too high (>50°C), cool the room and let the charger cool down. The indicator blinks.Charger in sleep mode.Connect a battery to the charger to exit sleep mode. WARRANTY The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour). The warranty does not cover:

• Damages due to misuse (power supply error, dropping of equipment, disassembling).

• Environment related failures (pollution, rust, dust). In case of failure, return the unit to your distributor together with: - The proof of purchase (receipt etc ...) - A description of the fault reported10 GYSFLASH 1.12 LITHIUM
