HT 2000 - Hedge trimmers AL-KO - Free user manual and instructions
Find the device manual for free HT 2000 AL-KO in PDF.
| Product type | Cordless hedge trimmer |
| Brand | AL-KO |
| Model | HT 2000 |
| Power supply | Lithium-ion battery (B50 Li included, B100 Li optional) |
| Charger | C30 Li (included) |
| Safety devices | Hand guard, two-hand control, safety switch |
| Intended use | Private use, trimming hedges, shrubs, bushes |
| Sound power level | 80.3 dB(A) measured / 90 dB(A) guaranteed |
| Maintenance | Cleaning and lubricating the blade after each use |
| Delivery contents | Base unit, hand guard, B50 Li battery, C30 Li charger, blade guard, screws, manual |
Frequently Asked Questions - HT 2000 AL-KO
User questions about HT 2000 AL-KO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge trimmers in PDF format for free! Find your manual HT 2000 - AL-KO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HT 2000 by AL-KO.
USER MANUAL HT 2000 AL-KO
Inhaltsverzeichnis
Deutsch 6
English....21
Nederlands 35
Français....50
Español 65
Italiano 80
Slovenščina 94
Hrvatski....108
Polski 121
Česky 137
Slovenská 151
Magyarul....165
Dansk 180
Svensk....194
Norsk 207
Suomi 220
Latviešu 233
Lietuvių 247
Русский....261
Україна....277
© 2018
AL-KO KOBER GROUP Kötz, Germany
This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.
www.al-ko.com/service-contacts
1 About these operating instructions ..... 21
1.1 Symbols on the title page.... 21
1.2 Legends and signal words ...... 22
2 Product description 22
2.1 Intended use 22
2.2 Possible foreseeable misuse ..... 22
2.3 Residual risks.... 22
2.4 Safety and protective devices ...... 22
2.4.1 Hand guard.... 22
2.4.2 Two-hand operation.... 22
2.5 Symbols on the appliance 23
2.6 Scope of supply.... 23
2.7 Product overview (01) 23
3 Safety instructions 24
3.1 General Power Tool Safety Warnings 24
3.1.1 Work area safety 24
3.1.2 Electrical safety 24
3.1.3 Personal safety.... 24
3.1.4 Power tool use and care.... 25
3.1.5 Battery tool use and care.... 25
3.1.6 Service.... 25
3.2 Hedge trimmer safety warnings ..... 25
3.3 Vibration load 26
3.4 Noise pollution.... 26
3.5 Safety information regarding the rechargeable battery 26
3.6 Safety information regarding the charging unit.... 27
3.7 Safety instructions relating to operation 28

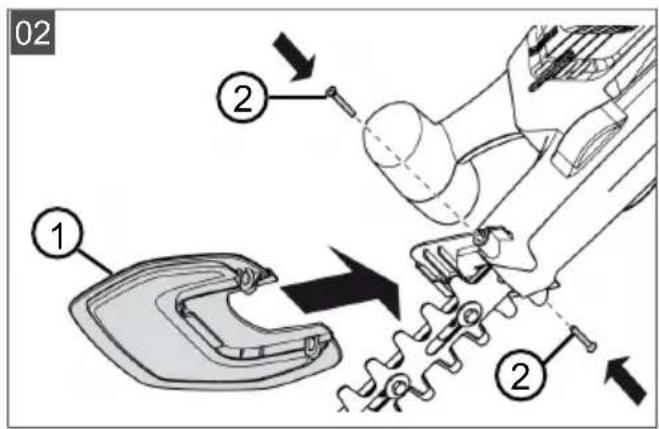

4 Assembly (02).... 28
5 Start-up 28
5.1 Charging the rechargeable battery..... 28

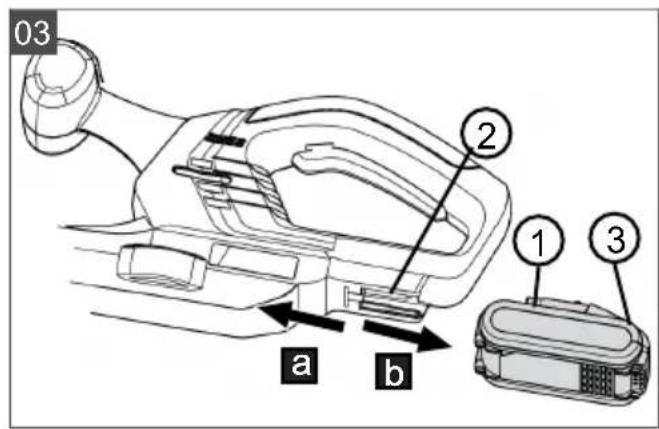

5.2 Inserting and pulling out the rechargeable battery (03) 29
6 Operation 29

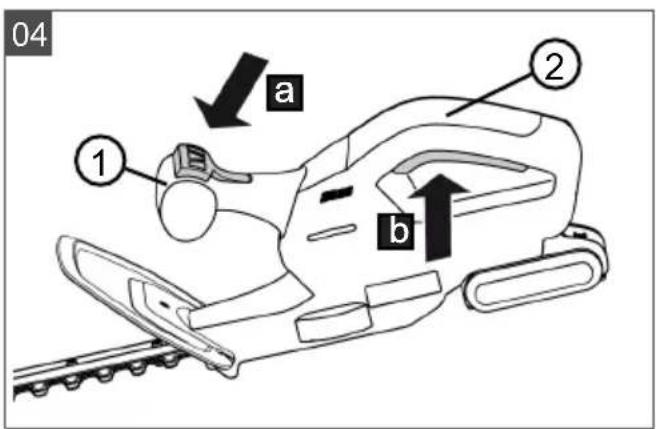

6.1 Switching on the hedge trimmer (04) . 29

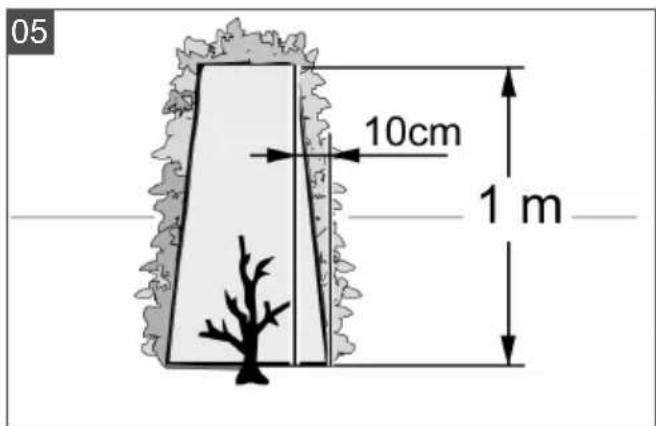

7 Working behaviour and working technique (05) 29
8 Maintenance and care.... 29
9 Help in case of malfunction 30
10 Transport.... 31
11 Storage.... 32
11.1 Storage of the appliance.... 32
11.2 Storing the rechargeable battery and charging unit 32
12 Disposal.... 32
13 After-Sales / Service.... 33
14 Guarantee 33
15 Translation of the original EU/EC declaration of conformity.... 34
1 ABOUT THESE OPERATING INSTRUCTIONS
The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
■ Always safeguard these operating instructions so that they can be consulted if you need any information about the appliance.
■ Only pass on the appliance to other persons together with these operating instructions.
■ Comply with the safety and warning information in these operating instructions.
1.1 Symbols on the title page
Symbol Meaning
It is essential to read through these operating instructions carefully before start-up. This is essential for safe working and trouble-free handling.
Operating instructions
Symbol Meaning
Handle Li-Ion rechargeable batteries with care! In particular, observe the notes on transport, storage and disposal in these operating instructions!

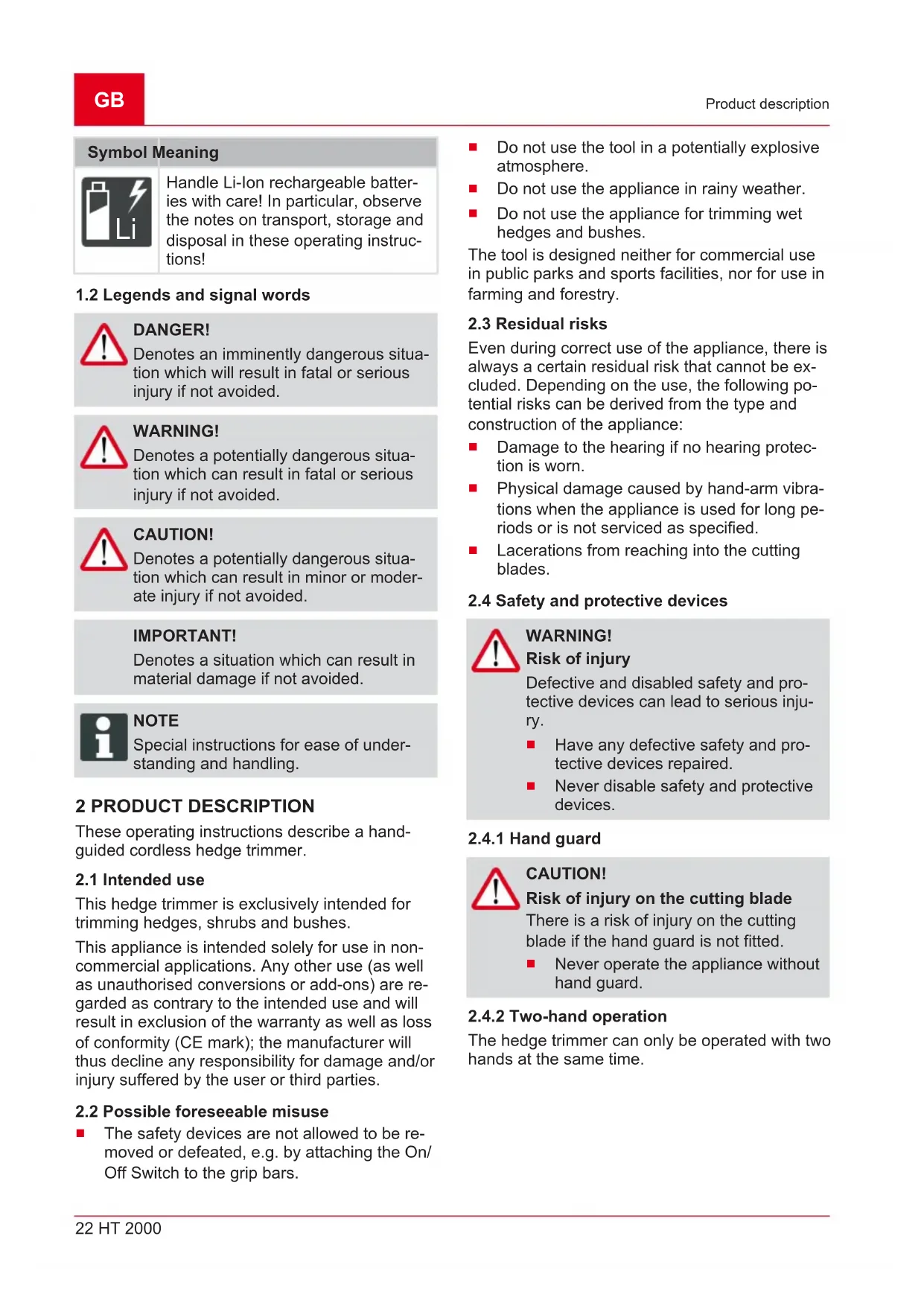

1.2 Legends and signal words
DANGER!
Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.
WARNING!
Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.
CAUTION!
Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.
IMPORTANT!
Denotes a situation which can result in material damage if not avoided.
NOTE
Special instructions for ease of understanding and handling.
2 PRODUCT DESCRIPTION
These operating instructions describe a hand-guided cordless hedge trimmer.
2.1 Intended use
This hedge trimmer is exclusively intended for trimming hedges, shrubs and bushes.
This appliance is intended solely for use in non-commercial applications. Any other use (as well as unauthorised conversions or add-ons) are regarded as contrary to the intended use and will result in exclusion of the warranty as well as loss of conformity (CE mark); the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.
2.2 Possible foreseeable misuse
The safety devices are not allowed to be removed or defeated, e.g. by attaching the On/Off Switch to the grip bars.
- Do not use the tool in a potentially explosive atmosphere.
■ Do not use the appliance in rainy weather. - Do not use the appliance for trimming wet hedges and bushes.
The tool is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.
2.3 Residual risks
Even during correct use of the appliance, there is always a certain residual risk that cannot be excluded. Depending on the use, the following potential risks can be derived from the type and construction of the appliance:
■ Damage to the hearing if no hearing protection is worn.
■ Physical damage caused by hand-arm vibrations when the appliance is used for long periods or is not serviced as specified.
■ Lacerations from reaching into the cutting blades.
2.4 Safety and protective devices
WARNING!
Risk of injury
Defective and disabled safety and protective devices can lead to serious injury.
■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.
2.4.1 Hand guard
CAUTION!
Risk of injury on the cutting blade
There is a risk of injury on the cutting blade if the hand guard is not fitted.
■ Never operate the appliance without hand guard.
2.4.2 Two-hand operation
The hedge trimmer can only be operated with two hands at the same time.
2.5 Symbols on the appliance
Symbol Meaning
Pay special attention when handling this product!
Read the operating instructions before starting operation.
Protect the appliance from rain and moisture!
Wear ear protection!
Wear eye protection!
Wear breathing protection!
Remove the battery before making adjustments to or cleaning the appliance, or before leaving the appliance unattended for a prolonged period.

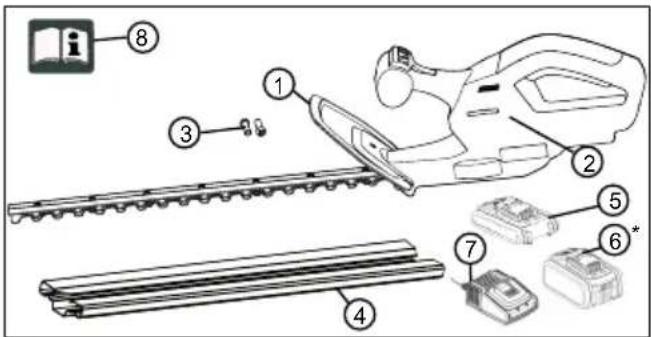

2.6 Scope of supply
The items listed here are part of the scope of supply. Check that all items are included:
1 Hand guard
2 Base unit
No. Component
3 Screws for fitting the hand guard (2x)
4 Blade guard
5 B50 Li battery
6 B100 Li* battery
7 Charger with mains plug
8 Operating instructions
* Not included in the scope of delivery, the B100 Li battery can be purchased separately.
The rechargeable battery hedge trimmer is intended for operation with the B50 Li battery (Art. No. 113559) or B100 Li battery (Art. No. 113698). Only the B50 Li battery is included in the scope of delivery. Charger C30 Li (Art. No. 113560) is required for charging the batteries.
NOTE
Heed the separate operating instructions for the rechargeable battery and for the charging unit.
NOTE
The battery is partially charged and has to be charged before the tool is used for the first time.

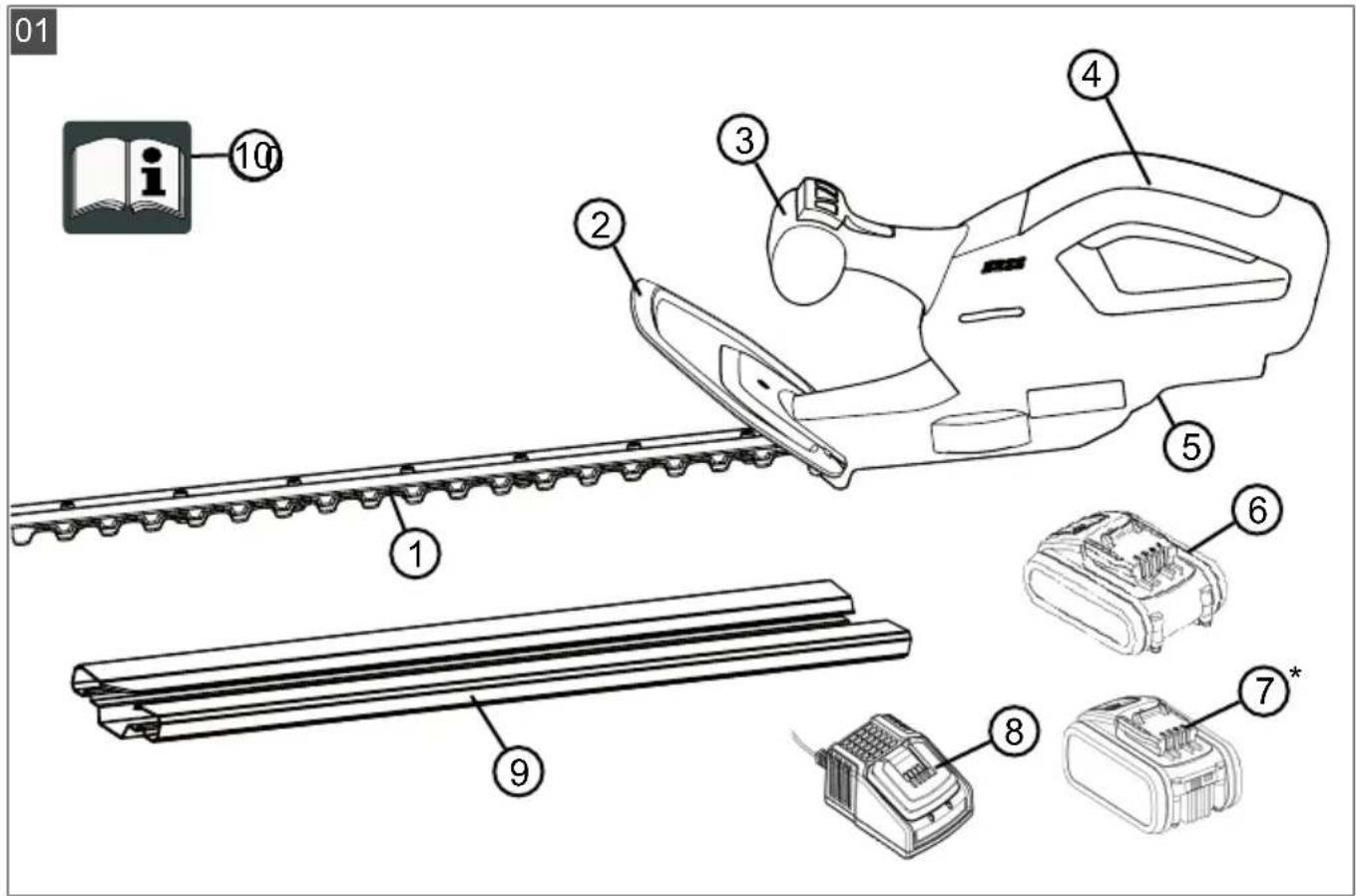

2.7 Product overview (01)
The product overview provides an overview of the appliance.
No. Component
1 Cutting blade
2 Hand guard
3 Front handle with safety switch
4 Rear handle with the on/off switch
5 Rechargeable battery compartment
6 B50 Li battery
7 B100 Li* battery
8 Charger with mains plug
9 Blade guard
10 Instructions for use
* Not included in the scope of delivery. However, can be purchased separately under the article number 113698.
3 SAFETY INSTRUCTIONS
3.1 General Power Tool Safety Warnings
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
■ Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
3.1.1 Work area safety
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
- Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
3.1.2 Electrical safety
■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
■ When operating a power tool outdoors, use an extension cord suitable for out-
door use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3.1.3 Personal safety
■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
3.1.4 Power tool use and care
- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. - Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. - Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
3.1.5 Battery tool use and care
■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
3.1.6 Service
■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
■ Never service damaged battery packs.
Service of battery packs should only be performed by the manufacturer or authorized service providers.
3.2 Hedge trimmer safety warnings
- Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of in-attention while operating the hedge trimmer may result in serious personal injury.
- Carry the hedge trimmer by the handle with the cutter blade stopped. When
transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
- Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
3.3 Vibration load
■ Danger due to vibration
The actual magnitude of the vibration emissions during the use of the appliance may deviate from that stated by the manufacturer. Observe the following influencing factors before or during use:
Is the appliance being used as intended?
Is the material being cut or processed in the proper manner?
Is the appliance in a proper condition of use?
Is the cutting tool properly sharpened or is the correct cutting tool installed?
Are the handle grips and any optional vibration grips mounted, and are they firmly attached to the appliance?
■ Only operate the tool at the motor speed required for the respective work. Avoid using the maximum speed in order to reduce noise and vibrations.
The noise and vibrations of the tool may increase due to improper use and maintenance. This leads to health damage. In this case, immediately switch off the tool and have it repaired by an authorised service workshop.
The degree of stress due to vibration depends on the work to be performed or on the use of the tool. Estimate the stress and plan appropriate work breaks. This considerably reduces stress due to vibration over the entire working time.
■ Extensive use of the tool exposes the operator to vibrations, which can lead to circulatory issues ("white fingers"). To avoid this risk, wear gloves and keep your hands warm. If any symptoms of "white fingers" occur, immediately consult a physician. These symptoms include: Numbness, loss of feeling, tingling, itching, pain, reduced muscular
strength, changes in the colour or condition of the skin. Normally these conditions affect the fingers, hands or pulse. The risk increases at low temperatures.
Take long breaks during your working day so you can recover from the noise and the vibrations. Plan your work in such a way that the use of appliances that generate strong vibrations is spread over several days.
If you notice an unpleasant sensation or discoloration of the skin on your hands when using the tool, stop work immediately. Take sufficient work breaks. Without sufficient breaks, a hand/arm vibration syndrome can occur.
- Minimise your risk of being exposed to vibrations. Maintain the tool according to the instructions in the operating instructions.
If the tool is used frequently, contact your dealer to purchase anti-vibration accessories (e.g. handles).
- Avoid working with the tool at temperatures below 10 °C. Define how the vibration load can be limited in a work plan.
3.4 Noise pollution
A certain level of noise exposure from this appliance is inevitable. Carry out noisy work at approved and specified time periods. Observe rest periods as necessary and restrict the duration of the work to a minimum. For your personal protection and protection of persons in the vicinity, appropriate hearing protection must be worn.
3.5 Safety information regarding the rechargeable battery
This section mentions all the basic safety information to be heeded when using the rechargeable battery. Read these instructions.
■ Only use the rechargeable battery as designated, i.e. for AL-KO rechargeable battery-driven appliances. Only charge the rechargeable battery with the AL-KO charging unit provided.
■ Only unpack the new rechargeable battery from the original packaging when it is to be used.
■ Fully charge the rechargeable battery before using it for the first time and always use the specified charger. Comply with the details given in these instructions for use for charging the rechargeable battery.
- Do not use the rechargeable battery in environments where there is a potential risk of explosion and/or fire.
- Do not expose the rechargeable battery to moisture and humidity when in use with the appliance.
■ Protect the rechargeable battery from heat, oil and fire to prevent it being damaged so no vapours and electrolyte liquids can escape. There is a danger of explosion! - Do not subject the rechargeable battery to impacts or throw it.
- Do not use the rechargeable battery when soiled or wet. Before use, clean and dry the rechargeable battery with a dry, clean cloth.
- When the battery pack is not in use, keep it away from other metal objects to prevent bridging the contacts (e.g. paper clips, coins, keys, nails, screws). Do not use sharp objects (e.g. a screwdriver) to work on the battery. This can cause an internal short circuit which can lead to overheating, fire or explosion of the battery.
- Do not open, dismantle or crush the rechargeable battery. There is a danger of electric shock and short-circuit.
An improperly used and damaged rechargeable battery can cause vapours and electrolyte liquid to escape. Vent the room adequately and in the case of any disorders, consult a doctor.
If accidental contact with electrolyte liquid occurs, flush with water and thoroughly rinse the eyes immediately. Then consult a doctor.
This rechargeable battery must not be used by unauthorised persons unless they are supervised by a person responsible for their safety or have been instructed on how to use the rechargeable battery. Unauthorised persons include, for example:
■ Persons (including children) with limited physical, sensory or mental aptitude.
- Persons who have no experience and/or knowledge of the rechargeable battery.
■ Children must be supervised and instructed so they do not play with the rechargeable battery.
- Do not leave the rechargeable battery permanently in the charger. For prolonged storage, remove the rechargeable battery from the charger.
■ When not in use, remove the rechargeable batteries from the operated appliances.
Dry the unused rechargeable battery and store in a closed place. Protect from heat and direct sunlight. Unauthorised persons and children must not have access to the rechargeable battery.
3.6 Safety information regarding the charging unit
This section mentions all the basic safety and warning information to be heeded when using the charging unit. Read these instructions.
■ Only use the charging unit as designated, i.e. for charging the intended rechargeable batteries. Only charge original rechargeable batteries from AL-KO in the charging unit.
Before each use, inspect the charging unit – and especially the mains cable and the rechargeable battery compartment – for damage. Only use the charging unit when it is in proper working order.
- Do not use the charging unit in environments where there is a potential risk of explosion and/or fire.
■ Only operate the charging unit indoors and do not expose it to moisture and humidity.
■ Always place the charging unit on a well ventilated and non-inflammable surface because it heats up during the charging process. Keep the ventilation slots clear and do not cover the charging unit.
Before connecting the charging unit, make sure that the mains voltage matches the voltage stated in the "Technical data".
■ Only use the mains cable for connecting the charging unit, not for any other purpose. Do not carry the charging unit by the mains cable and do not remove the power plug from the power outlet by pulling on the mains cable.
- Protect the mains cable from heat, oil and sharp edges to prevent it being damaged.
- Do not use the charging unit and rechargeable battery when soiled or wet. Before using the charging unit, clean and dry the rechargeable battery.
- Do not open the charging unit or rechargeable battery. There is a danger of electric shock and short-circuit.
For your own safety, only have the charging unit repaired by qualified specialist personnel using genuine spare parts.
This appliance can be used by children of 8 years and older and by persons with reduced physical, sensory or mental capabilities, or those lacking experience and knowledge, if they are supervised or have been instructed with regard to the safe use of the appliance and the ensuing risks. Children must not be allowed to play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.
■ People with very strong and complex restrictions may have needs that exceed the instructions described here.
Dry the unused charging unit and store in a closed place. Unauthorised persons and children must not have access to the charging unit.
3.7 Safety instructions relating to operation
WARNING!
Risk due to electromagnetic field
This power tool produces an electromagnetic field during operation. Under certain circumstances, this field may impair active or passive medical implants.
In order to reduce the risk of serious or fatal injury, we recommend that any persons fitted with medical implants should consult their doctor and the manufacturer of the medical implant before operating the power tool.
Note that the user is responsible for accidents and damage that may befall other persons or their property.
■ Use the appliance only for the purposes for which it is intended. Any non-intended use can lead to injury and property damage.
- Switch on the appliance only when there are no other persons or animals in the working area.
- Maintain a safe distance to persons or animals, or switch off the appliance if persons or animals approach.
Before cutting, check the hedges and bushes for concealed objects – e.g. wires, wire fences, electrical cables, garden equipment, bottles – and remove them.
■ Move and transport the appliance so that persons and animals cannot touch the cutting blade. Before transport, push the protective cover over the cutting blade.
■ During the work, do not hold the branches to be cut off.
■ Before removing jammed branches, switch off the appliance and wait until the cutting blade has come to a standstill.
■ Remove the rechargeable battery from the appliance and push the protective cover over the cutting blade for:
■ Testing, adjustment work and cleaning work
■ Working on the cutting blade
■ Leaving the appliance
Transport
Storage
■ Maintenance and repair work
Danger
4 ASSEMBLY (02)
WARNING!
Danger if assembly is not carried out completely!
Operation of an incompletely assembled appliance can result in serious injury.
■ Only operate the appliance when it is fully assembled.
- Do not insert the battery into the appliance until it is fully assembled.
- Check that all safety and protective devices are in place and functioning correctly before switching on.
- Attach the hand guard (02/1) to the housing using the enclosed screws (02/2).
5 START-UP
5.1 Charging the rechargeable battery
CAUTION!
Danger of fire during charging!
Due to heating of the charger, there is a danger of fire if it is placed on an inflammable surface and is not adequately ventilated.
■ Always use the charger on a non-inflammable surface or in a non-combustible environment.
If available: Keep the ventilation slots free.
NOTE
Fully charge the rechargeable battery before using it for the first time. The rechargeable battery can be charged in any charge status. Interrupting charging does not damage the rechargeable battery.
The rechargeable battery is partially charged. Fully charge the rechargeable battery before using it for the first time. The rechargeable battery can be charged in any charge status. Interrupting charging does not damage the rechargeable battery.
NOTE
For detailed information, heed the separate operating instructions for the rechargeable battery and for the charging unit.
5.2 Inserting and pulling out the rechargeable battery (03)
Inserting the battery
- Push the rechargeable battery (03/1) from above (03/a) into the rechargeable battery slot (03/2) until it engages.
Pull out the rechargeable battery
- Press and hold the unlock button (03/3) on the rechargeable battery (03/1).
- Pulling out the rechargeable battery (03/b).
6 OPERATION
6.1 Switching on the hedge trimmer (04)
- Stand securely.
- Hold the front handle (04/1) with one hand and then the rear handle (04/2) with the other hand.
- Press the safety switch on the front handle (04/a), then press the on/off switch on the rear handle (04/b). The appliance starts.
- Keep both buttons pressed while working. When a button is released, the appliance switches off.
7 WORKING BEHAVIOUR AND WORKING TECHNIQUE (05)
WARNING!
Increased risk of falling
There is a greater risk of falling if work is carried out from an elevated position (e.g. ladder).
■ always work with the appliance from the ground and make sure that you are standing securely.
■ Heed the safety instructions.
- Cut the hedge regularly and only at the permitted times.
■ Only cut off the thin branches and new growth on the surface of the hedge; do not cut too deep.
■ Always cut the two sides of a hedge first, followed by the top. This prevents cut material from falling into areas that you have not yet trimmed.
Hedges should always be trimmed into a trapezoidal shape (tapering toward the top). This prevents the leaves on the lower branches from being shaded out (05).
■ Make sure the motor is stopped before you remove any cuttings.
■ When leaving/transporting the appliance:
Switch off the tool. - Put on the blade guard.
■ Remove the battery.
■ After use, remove the battery and check the appliance for damage.
8 MAINTENANCE AND CARE
WARNING!
Danger of lacerations
Danger of cutting injuries when reaching into sharp-edged, moving appliance parts and into cutting tools.
Before maintenance, care and cleaning work, always switch off the appliance. Remove the rechargeable battery.
■ Always wear protective gloves during maintenance, care and cleaning work.
NOTE
Repair work is only allowed to be carried out by expert workshops or our service centres.
- Do not get the appliance wet or expose it to moisture.
■ After each use, clean the housing and cutting blades with a brush or cloth. Do not use water and/or aggressive cleaning agents or solvents - risk of corrosion and damage to the plastic parts.
■ After every use, remove the rechargeable battery and inspect the appliance for damage.
■ Clean the cutting blade and spray with rust-proofing oil.
■ Regularly check the cutting blade. Contact an AL-KO service centre under the following circumstances:
■ Defective cutting blade
Blunt cutting blade
Excessive wear
■ Inspect all bolts for tightness.
- Inspect the electrical contacts of the appliance for corrosion, clean with a fine wire brush if necessary and then spray with a contact spray.
9 HELP IN CASE OF MALFUNCTION
CAUTION!
Risk of injury
Sharp-edged and moving appliance parts can lead to injury.
■ Always wear protective gloves during maintenance, care and cleaning work.
NOTE
If you encounter any malfunctions that are not listed in this table or that you cannot rectify yourself, please contact our customer service.
| Malfunction Cause Remedy | ||
| Engine does not run. Rechargeable battery is flat. Charge the rechargeable battery. | ||
| Motor keeps cutting out. | ■ Appliance faults■ The On/Off switch is defective. | Contact an AL-KO service centre. |
| Cutting blade becomes hot when running. Generation of smoke. | No oil on the cutting blade. 1. | Switch off the appliance and remove the rechargeable battery.2. Clean and oil the cutting blade.3. Insert the rechargeable battery again. |
| ■ Cutting blade is blunt.■ Nicks in the cutting blade. | Contact an AL-KO service centre. | |
| Branches are not cleanly cut. Branches are often jammed in the cutting blade. | Cutting blade is blunt. Contact an AL-KO service centre. | |
| The sliding play of the cutting blade is too great. | Contact an AL-KO service centre. | |
| Motor running, but the cutting blade does not move. | Appliance faults Contact an AL-KO service centre. | |
| Appliance vibrates unusually. | Appliance faults Contact an AL-KO service centre. | |
| Rechargeable battery operating time is significantly shorter. | The service life of the rechargeable battery has expired. | Replace the rechargeable battery. Only use genuine accessories from the manufacturer. |
| Rechargeable battery cannot be charged. | Rechargeable battery contacts are dirty. | Contact an AL-KO service centre. |
| Rechargeable battery or charging unit is defective. | Order spare parts. Contact an AL-KO service centre. | |
| Rechargeable battery is too hot. | Allow the battery to cool down. | |
10 TRANSPORT
Before transporting, carry out the following measures:
- Switch off the appliance.
- Remove the rechargeable battery from the appliance.
- Pack the battery properly.
NOTE
The nominal energy of the rechargeable battery is less than 100 Wh. Therefore, heed the following transport instructions.
The li-ion rechargeable battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified conditions:
The undamaged rechargeable battery can be transported on public roads by the private user without further conditions provided it is packaged for retail sale and the transport serves personal purposes. The weight limits for batteries sent separately must be observed:
Max. 30 kg total weight per package when transported by road, rail and water
No upper limit for air transport but max. 2 pieces per package
If damage to the battery (e.g. due to the appliance falling) is suspected, transport is not permissible.
■ Commercial users who carry out the transport in connection with their main activity (e.g. delivery from and to building sites, or demonstrations) can also take advantage of this simplification.
In both cases, it is essential to take the mandatory precautions mentioned above to prevent any leakage of the contents. In other cases, it is essential to comply with the regulations of the hazardous goods law. In the case of non-compliance, severe penalties can be imposed on the sender and possibly the transporter.
Additional notes on transport and shipment
■ Only transport or ship lithium-ion rechargeable batteries in an undamaged state.
- Secure the appliance in such a way as to prevent it from starting to operate inadvertently during transport.
- Secure the appliance with strong outer packaging (cardboard shipment box). Use the manufacturer's original packaging if possible.
■ Ensure correct identification and documentation of the consignment during transport or dispatch (e.g. by parcel or forwarding):
When transporting by road, rail and water, a warning sticker must be applied to the packaging when the battery/batteries accompany the appliance. No warning sticker is necessary if the battery/batteries are installed or fitted into the appliance, since the outer packaging/original
packaging must already comply with specific regulations.
A warning sticker must always be placed on the packaging when transporting by air. The maximum weight limits for batteries sent together with the appliance must be observed: max. 5 kg battery weight per package and max. 2 pieces per package, if the battery/batteries are accompanying the appliance.
■ Please find out in advance whether transport is possible with the selected service provider, and show your shipment.
We recommend involving a hazardous goods specialist in the preparation of the shipment. Please heed any other national regulations.
11 STORAGE
11.1 Storage of the appliance
- Thoroughly clean the appliance and its accessories after each use and – if present – attach all covers.
■ Store the appliance in a dry place protected against frost. - Keep out of the reach of children and unauthorised persons.
Carry out the following jobs before intervals in work lasting longer than 30 days:
■ Clean the cutting blade and spray with rust-proofing oil.
■ Thoroughly clean the appliance and store it in a dry place.
11.2 Storing the rechargeable battery and charging unit
DANGER!
Danger of explosion and fire!
Persons will be fatally or severely injured if the rechargeable battery explodes because it was stored in front of naked flames or heat sources.
■ Store the rechargeable battery in cool and dry conditions, but not in front of naked flames or heat sources.
NOTE
When charging, the rechargeable battery is protected from overcharging due to automatic detection of the charge status and thus can remain connected to the charging unit for some time, but not permanently.
■ Store the battery in a dry, frost-free place at the prescribed storage temperature (see operating instructions for the battery) and with a charge of approx. 40 - 60 %.
■ Due to a risk of short-circuit, do not store the battery near metallic or acid-containing objects.
■ Recharge the rechargeable battery for approx. 2 hours after approx. 6 months' storage.
12 DISPOSAL
Information on the German Electrical and Electronic Equipment Act (ElectroG)
■ Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.
■ Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed before disposal. Their disposal is regulated by the battery law.
- Owners or users of electrical and electronic appliances are obliged by law to return them after use.
■ The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.
The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.
Electrical and electronic appliances can be handed in at the following places at no charge:
■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of electrical appliances (stationary and online) provided traders are obliged to take them back or offer this voluntarily.
These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply
to the disposal of electrical and electronic appliances in countries outside the European Union.
Information on the German Battery Act (BattG)
■ Used batteries and rechargeable batteries do not belong in household waste, but should be collected and disposed of separately.
For safe removal of batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, follow the further information within the operating or installation instructions.
- Owners or users of batteries and rechargeable batteries are obliged by law to return them after use. Return is limited to the handover of customary household quantities.
Used batteries can contain harmful substances or heavy metals that can cause damage to the environment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities.
The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in household rubbish. In addition, if the symbol Hg, Cd or Pb appears under the rubbish bin, this stands for the following:
■ Hg: Battery contains more than 0.0005 % mercury
Cd: Battery contains more than 0.002 % cadmium
■ Pb: Battery contains more than 0.004 % lead Rechargeable batteries and batteries can be handed in at the following places at no charge:
■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of batteries and rechargeable batteries
■ Disposal points of the common take-back system for the used batteries of appliances
■ Disposal point of the manufacturer (if not a member of the common take-back system)
These statements apply only to rechargeable batteries and batteries that are sold in the countries of the European Union and that are subject to European Directive 2006/66/EU. Different provisions can apply to the disposal of rechargeable batteries and batteries in countries outside the European Union.
13 AFTER-SALES / SERVICE
In the event of questions of warranty, repair or spare parts, please contact your nearest AL-KO Service Centre. These can be found on the Internet at:
www.al-ko.com/service-contacts
14 GUARANTEE
We will resolve any material or manufacturing faults on the appliance during the legal warranty period for claims relating to faults, in accordance with our choice either to repair or replace. The legal warranty period is determined by the legislation of the country in which the appliance was purchased.
Our warranty promise applies only if:
■ These operating instructions are heeded
■ The appliance is handled correctly
■ Original spare parts have been used
The guarantee excludes:
■ Paint damage that can be attributed to normal wear and tear
■ Wear parts that are marked with a frame xxxxxx (x) on the spare parts card
The guarantee period commences with purchase by the first end user. The date on the proof of purchase is decisive. In the event of a guarantee claim, please take this guarantee declaration and the original proof of purchase, and contact your dealer or the nearest authorised customer service centre. This statement does not affect the purchaser's statutory claims for defects against the vendor.
The warranty becomes void in the case of:
■ Unauthorised repair attempts
■ Unauthorised technical modifications
Non-intended use
15 TRANSLATION OF THE ORIGINAL EU/EC DECLARATION OF CONFORMITY
We hereby declare, as the exclusive responsible party, that this product in its marketed form conforms to the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards.
Product
Battery hedge trimmer
Serial number
G2033012
Manufacturer
AL-KO Geräte GmbH
Ichenhauser Str. 14
D-89359 Kötz
Germany
Duly authorised person for technical file
Andreas Hedrich
Ichenhauser Str. 14
D-89359 Kötz
Germany
Type
HT 2000
EU directives
2006/42/EC
2014/30/EU
Sound power level
EN ISO 3744
measured/guaranteed
80.3 dB(A) / 90 dB(A)
2000/14/EC
2011/65/EU
Conformity evaluation
2000/14/EC Appendix V
Harmonised standards
EN 60745-1
EN 60745-2-15
EN 55014-1
EN 55014-2
EN 62841-4-2:2015
EN 62233
Kötz, 14/08/2018
Dr. Wolfgang Hergeth
Managing Director
VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING
Inhoudsopgave
2 PRODUCTOMSCHRIJVING
www.al-ko.com/service-contacts
Dr. Wolfgang Hergeth Managing Director
TRADUCTION DE LA NOTICE D'UTILISATION ORIGINALE
Table des matières
www.al-ko.com/service-contacts
14 GARANTIE
Dr. Wolfgang Hergeth Managing Director
TRADUZIONE DEL MANUALE PER L'USO ORIGINALE
Sommario
www.al-ko.com/service-contacts
14 GARANZIA
Dott. Wolfgang Hergeth Managing Director
PREVOD ORIGINALNIH NAVODIL
Kazalo vsebine
1 Zaščita za roke
2 Osnovna naprava
www.al-ko.com/service-contacts
14 GARANCIJA
1 Štitnik za ruke
2 Osnovni uređaj
3 Vijci za montažu štitnika za ruke (2x)
www.al-ko.com/service-contacts
Možebitne greške u materijalu ili proizvodnji na uređaju uklonit ćemo tijekom zakonskoga roka zastare za jamstvo na nedostatke prema vlastitom izboru popravljanjem ili zamjenskom dostavom. Rok zastare određuje se prema pravu države u kojoj je uređaj kupljen.
Dr. Wolfgang Hergeth Managing Director
TŁUMACZENIE ORYGINALNEJ INSTRUKCJI OBSŁUGI
Spis treści
Dr. Wolfgang Hergeth Managing Director
PŘEKLAD ORIGINÁLNÍHO NÁVODU K POUŽITÍ Obsah
1 Chránič rukou
2 Základní stroj
www.al-ko.com/service-contacts
14 ZÁRUKA
Dr. Wolfgang Hergeth Managing Director
PREKLAD ORIGINÁLNEHO NÁVODU NA POUŽITIE
Obsah
1 O tomto návode na použitie.... 151
1.1 Symboly na titulnej strane 151
14 ZÁRUKA
www.al-ko.com/service-contacts
14 GARANTI
www.al-ko.com/service-contacts
14 GARANTI
Dr. Wolfgang Hergeth Managing Director
OVERSETTELSE AV DEN ORIGINALE BRUKSANVISNINGEN
Innhold
1 Om denne bruksanvisningen 207
1.1 Symboler på tittelsiden.... 207
1.2 Tegnforklaringer og signalord .....208
2 Produktbeskrivelse 208
| 1 Håndbeskyttelse |
| 2 Basismaskin |
| 3 Skruer for montering av håndbeskyttelsen (2 stk.) |
| 4 Knivbeskytter |
| 5 Batteri B50 Li |
| 6 Batteri B100 Li* |
| 7 Lader med ledning |
| 8 Bruksanvisning |
* Ikke inkludert i leveransen, batteriet B100 Li kan bestilles i tillegg.
Den batteridrevne hekksaksen er laget for drift med batteriet B50 Li (varenr. 113559) eller B100 Li (varenr. 113698). Det er bare batteriet B50 Li som er inkludert i leveransen. For lading av batteriene er det nødvendig med laderen C30 Li (varenr. 113560).
MERK
7 ARBEIDSMÅTE OG ARBEIDSTEKNIKK (05)
ADVARSEL!
∅kt fare for fall
8 VEDLIKEHOLD OG PLEIE
ADVARSEL!
Fare for kuttskader
www.al-ko.com/service-contacts
1 Käsisuojus
2 Peruslaite
www.al-ko.com/service-contacts
www.al-ko.com/service-contacts
14 GARANTIJA
Technical diagram of a hatched tool with numbered parts and labeled partsНомер компонента
www.al-ko.com/service-contacts
14 ГАРАНТИЯ
14 ГАРАНТИЯ
Dr. Wolfgang Hergeth Managing Director
