USER MANUAL RW 1600 A ATIKA

ATIKI No Origin Origin Eredi O Istruzi Origin Instr

Hand - Rührgerät

Original instructions – Safety instructions – Spare parts

Agitateur portatif

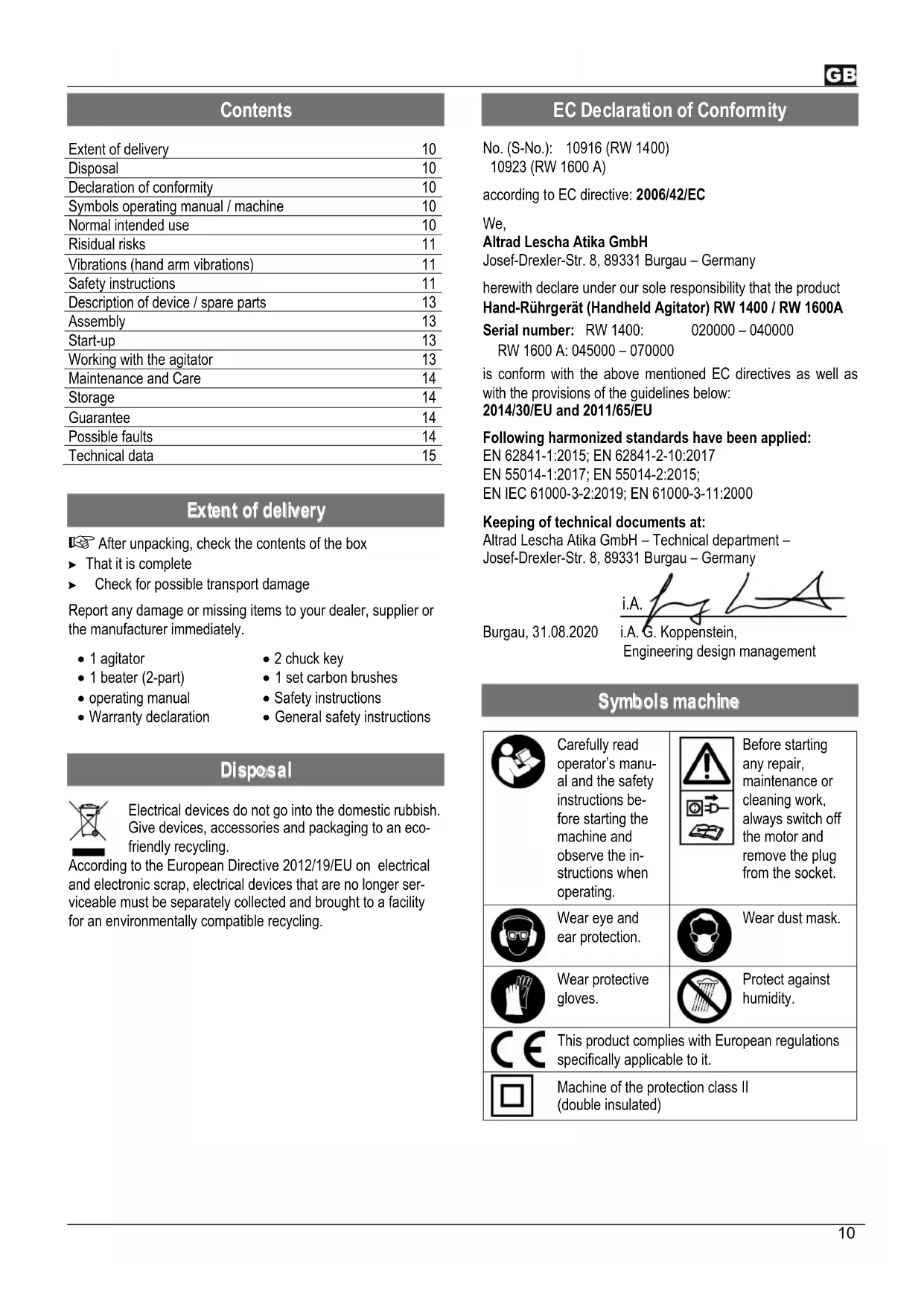

GB Do not operate machine before having read the operating instructions, understood all the notes and assembly the machine as described here. Keep the instructions in a safe place for future use.

Extent of delivery	10
Disposal	10
Declaration of conformity	10
Symbols operating manual / machine	10
Normal intended use	10
Risidual risks	11
Vibrations (hand arm vibrations)	11
Safety instructions	11
Description of device / spare parts	13
Assembly	13
Start-up	13
Working with the agitator	13
Maintenance and Care	14
Storage	14
Guarantee	14
Possible faults	14
Technical data	15

Extent of delivery

After unpacking, check the contents of the box

▶ That it is complete
▶ Check for possible transport damage

Report any damage or missing items to your dealer, supplier or the manufacturer immediately.

• 1 agitator
• 1 beater (2-part)
• operating manual

• Warranty declaration

• 2 chuck key

• 1 set carbon brushes
• Safety instructions
• General safety instructions

Disposal

Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an eco-friendly recycling.

According to the European Directive 2012/19/EU on electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling.

EC Declaration of Conformity

No. (S-No.): 10916 (RW 1400) 10923 (RW 1600 A)

according to EC directive: 2006/42/EC

We,

Altrad Lescha Atika GmbH

Josef-Drexler-Str. 8, 89331 Burgau – Germany

herewith declare under our sole responsibility that the product Hand-Rührgerät (Handheld Agitator) RW 1400 / RW 1600A

Serial number: RW 1400: 020000 - 040000

RW 1600 A: 045000 - 070000

is conform with the above mentioned EC directives as well as with the provisions of the guidelines below: 2014/30/EU and 2011/65/EU

Following harmonized standards have been applied:

EN 62841-1:2015; EN 62841-2-10:2017

EN 55014-1:2017; EN 55014-2:2015;

EN IEC 61000-3-2:2019; EN 61000-3-11:2000

Keeping of technical documents at:

Altrad Lescha Atika GmbH – Technical department – Josef-Drexler-Str. 8, 89331 Burgau – Germany

i.A. f i.A. G. Koppenstein,

Engineering design management

Burgau, 31.08.2020

Symbols machine

	Carefully read operator's manual and the safety instructions before starting the machine and observe the instructions when operating.		Before starting any repair, maintenance or cleaning work, always switch off the motor and remove the plug from the socket.
	Wear eye and ear protection.		Wear dust mask.
	Wear protective gloves.		Protect against humidity.
	This product complies with European regulations specifically applicable to it.
	Machine of the protection class II (double insulated)

Symbols operating manual

Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property.

Important information on proper handling. Not observing this instruction can lead to faults.

User information. This information helps you to use all the functions optimally.

Assembly, operation and servicing. Here you are explained exactly what to do.

Normal intended use

• This agitator is suited for DIY work for mixing liquid and powdry building material such as: paints, mortar, adhesives, plaster, grouting compounds, knifing fillers, coating compounds.
• Only beaters intended for the device with the max. diameter 120 mm (RW 1400) – 140 mm (RW 1600 A) must be used.
  • This machine must not be used

— as a drilling machine or as a drive for other devices

- for polishing, grinding, sharpening, engraving with any attachments.

Any other utilisation counts as improper use, especially xing combustible or explosive materials ( fire and vision hazard) and use with foodstuffs. The manufacturer not liable for damages resulting from improper use.

→ the user alone shall bear the risk.

• The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
• The relevant accident prevention regulations for the operation as well as the other generally acknowledged occupational medicine and safety rules must be complied with.
• Unauth orised modifi ca tio ns on the e agitator exclude a liability of the manufacturer for damages of any kind resulting from it.
• Only persons who are familiarised with the device and informed about possible risks are allowed to prepare, operate and service this device. Repair works may only be carried out by us or by a customer service agent nominated by us.

Residual risks

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the “Safety instructions” and the “Normal intended use” as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Failure to observe the safety precautions can lead to injury to the operator or damage to property.
• Risk from electricity, by using non-standard electrical connections.
  ■ Touching live parts of opened electrical components.
• Impairment of hearing when working on the machine for longer periods of time without ear protection.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Vibrations (hand arm vibrations)

Hand arm vibration a_vww = 3,2 m/s^2 ;

Measuring uncertainty: K = 1,5 m/s ^4

Warning!

The actual vibration emission level during the use of the machine may differ from that indicated in the operating instructions or indicated by the manufacturer. This may be caused by the following factors to be minded before and during the use:

• Proper use of the machine
• Correct operating of the machine
• Proper condition of the machine for use
• Proper condition of the beaters or installation of the correct beater
• Handles and optional anti-vibration handles properly mounted on the machine body

When you feel uncomfortable or notice discoloration of skin on your hands during the use of the machine, stop working immediately. Observe sufficient break times to rest. Failure to have sufficient break times may result in a hand-arm vibration syndrome.

The extent of exposure depending on the type of work or machine use should be estimated and appropriate breaks taken. In this way, the extent of exposure can be considerably reduced over the entire work time. Minimise the risk caused by vibrations. Maintain this machine according to the instructions in the manual.

Avoid the use of this machine at temperatures under 10^ C.

Create a work schedule in order to minimise vibration exposure.

Safety instructions

Pass the safety instructions on to all persons who work with the machine.
Children and young persons under 16 years of age as well as persons who have not read the instruction manual are not allowed to operate this product.
Keep these safety instructions in a safe place.
i Follow the attached "General safety instructions".

Safety instructions for agitators

a) Hold the power tool with both hands by the handles provided. Loss of control may result in injury.

b) To avoid a dangerous atmosphere, ensure adequate ventilation when mixing flammable substances. Vapours formed may be inhaled or ignited by sparks generated by power tools.
c) Do not stir any food. Power tools and their implements are not designed for processing food.
d) Keep the power cords away from the work area. The power cord can get caught in the beater.
e) Ensure that the agitator tank is firmly and safely positioned. An improperly secured container may move unexpectedly.
f) Make sure that no liquid splashes against the housing of the power tool. Liquid entering the power tool may cause damage and electric shock.
g) Follow the directions and safety instructions for the material to be mixed. The material to be mixed can be harmful to health.
h) If the power tool falls into the material to be mixed, immediately unplug the power plug and have the power tool checked by qualified personnel. Reaching into the container with the power tool still hanging from the socket inside it can lead to an electric shock.
i) During the stirring process, do not reach into the agitator container with your hands or insert any other objects. Contact with the beater can lead to serious injuries.
j) Only let the power tool start up and come to a stop in the agitator tank. The beater can spin around or bend in an uncontrolled manner.

Refer to the enclosed brochure "General safety instructions" for additional safety notices.

more safety warnings - „Personal safety“

• Do not use the machine for unsuitable purposes (see "Normal intended use" and "Working with the agitator").
• Do not touch, inhal (dust) or swallow cement and additives. Wear personal protective equipment (gloves, safety goggles, face mask) when filling or emptying the mixing container.
• Keep children, bystanders and animals at a distance from your working area. Do not allow other persons, especially children, to touch the tool or the cable.
• Switch off the machine if persons, in particular children or pets, are close to you or if you change your working area.
• The operator is responsible to third persons within the area of operations.
• The operator is responsible for accidents or risks which occur to other persons or their properties.
• Never operate the machine if other persons are in the immediate vicinity.

more safety warnings - „Power tool use and care“

■ Never leave the device unattended.
- Only operate the machine with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety.
- Do not modify the device or parts of the device respectively.

- Switch the machine off and remove the mains plug from the socket when

• carrying out repair works
• maintenance and cleaning
• eliminating faults.
• checking connecting lines, whether these are knotted or damaged.
• transport
  – leaving unattended (even during short interruptions).
  – unusual noises and vibrations

■ Thoroughly maintain your agitator:

• Make sure that the ventilation apertures are free.
• Keep handles dry and free of oils and grease. Follow the maintenance instructions.

■ Check the machine for possible damage:

• Before further use of the machine the safety devices must be checked carefully for their proper and intended function.
• Check whether movable parts function perfectly and do not stick or whether parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the machine.
• Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.
• Damaged or illegible safety labels should be replaced immediately.

- Store unused equipment in a dry, locked place out of the reach of children.

more safety warnings - „Electrical safety“

• Design of the connection cable according to IEC 60 245 (H 07 RN-F) with a core cross-section of at least ⇒ 3 x 1.5 mm² for a maximum cable length of up to 25 m ⇒ 3 x 2.5 mm² for cable lengths over 25m
• Long and thin connection lines result in a potential drop. The motor does not reach any longer its maximal power; the function of the device is reduced.
• Plugs and coupler outlets on connection cables must be made of rubber, non-rigid PVC or other thermoplastic material of same mechanical stability or be covered with this material.
• The connector of the connection cable must be splash-proof.
• When running the connection line observe that it does not interfere, is not squeezed, bended and the plug connection does not get wet.
• Wind off completely the cable when using a cable drum.
• Regularly check the extension cables and replace them if they are damaged.
• Do not use any defective connection cables.
• Do not set up any provisional electrical connections.
  ■ Never bypass protective devices or deactivate them.
• Only hook up the machine by means of a fault-current circuit breaker (30 mA).

The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points.

more safety warnings - „Service“

Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points.

Use only original spare parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

A Description of device / Spare parts

Pos	Denomination	Order-No.
		RW 1400	RW 1600 A
1.	Agitator
2.	Mortar beatera) Barb) Beater attachment	372582∅120	372612∅140
3.	ON / OFF-switch
4.	Trip switch
5.	Speed control
6.	2-speed switch
7.	Handle
8.	Shaft
9.	Spanners	372562
10.	Spiral beater	372583 ∅120	372613 ∅140
11.	Disk beater	372614 ∅114

Assembly

Chucking the beater:

Screw the bar (2a) on the beater attachment (2b).

Screw the beater assembly (2) on the shaft (8). Secure the beater using the spanners (9).

Start-up

Do not use any device where the switch can not be hed on and off. Damaged switches must be repaired placed immediately by the customer service.

• Check that the machine is completely and correctly assembled.
  ■ Before each use, check

- Connection cables for defects (cracks, cuts, etc.).

Do not use any defective cables.

– there are no damages at the machine (see "safe working")
– that the beater is properly secured.

Mains connection

- Compare the voltage given on the machine model plate e.g. 230 V with the mains voltage and connect the machine to the relevant and properly earthed plug.

• Connect the machine via a 30 mA fault current safety switch.
• Do not use any defective connection cables.
• Use connecting or extension cables up to a length of 1.5 m featuring a core cross section of at least 25 mm ^2 .
• In case of disadvantageous power system conditions short-term voltage reductions can occur during the starting process of the device which can influence other devices (e.g. jittering of a lamp). No failures are expected when the house service connection has a continuous current-carrying capacity greater than 100 A per phase.

Main fuse: 10 A

Switching on/off

Do not use any device where the switch can not be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service.

Switching on

Operate the trip switch (4) at first. Press the ON/OFF button (3) on the handle.

Start the machine at the lowest rotational speed. Increase rotational speed with the speed control dial (5) if required.

Switching off

Release the ON/OFF handle button.

2- speed gear F

The device is equipped with a 2-speed gear.

	RW 1400	RW 1600 A
1. speed:	0 min^-1 - 700 min^-1	0 min^-1 - 420 min^-1
2. speed:	0 min^-1 - 940 min^-1	0 min^-1 - 760 min^-1

For the speed selection turn the switch (6) by 180°.

Only operate this switch at standstill.

Speed control E

With this type, the motor's speed and thus the agitator performance can be adjusted. You can continuously adjust the speed with the speed control (5).

• Level 1 → Min. power = SLOW.
• Level 6 → max. power = FAST.

Working with the agitator

In any case, adhere to all safety notes (see "Safe working").

Instruction for using the agitator

- Only use beaters recommended by the manufacturer.

Pay attention the max. diameter ( 120 mm - RW / 140 mm - RW 1600 A).

• The supplied mortar beater is suited for following materials: - larger amounts of tenacious and glutinous compounds to be mixed such as paints, varnish, translucent inks, adhesives, paste, glue, knifing filler, plaster, flooring plaster etc.
  ■ Always use this device with the extra handles fitted.
• Increase the speed during the mixing process. Immerse the beater through the material to be mixed until it is thoroughly mixed. Follow the processing instructions from the suppliers.
• Do not work with low speed in continuous mode. This may result in overloading/overheating the motor as no sufficient cooling can be generated.
• Hold the device with both hands during mixing.
• Do not reach in the running beater (rotating beater).
• ① Avoid splashing. Work with low speed when immersing the beater in the material to be mixed or pulling it out.

Maintenance and Care

Before each maintenance and cleaning work:

• switch off device
• wait for standstill of the beater
• pull out power plug

Use only original parts. Other parts can result in unexpected damages and injuries.

Maintenance and repair work beyond this is only allowed to be carried out by the manufacturer or authorized service staff.

Store unused equipment in a dry, locked place out of the reach of children.

i Observe the following to maintain the operability of the machine:

• Keep vent slits clean and free from obstructions.
  ■ Remove dust and dirt using a cloth or a soft brush.
• Do not clean the machine with running water or high-pressure cleaners.
• Do not use solvents for the synthetic parts (petrol, alcohol, etc.) as these can damage the synthetic parts.
• Check that the handles are properly secured.
• Clean the beater.
• The agitator is equipped with carbon brushes. Have the carbon brushes be replaced by the customer service if they are worn

⚠️ Regularly check the beater for damages for your own safety. Immediately replace any damaged beater.

⚠️ Check the shaft on a regular basis. An agitator with defective shaft must no longer be used. Have the device be repaired by the customer service.

Storage

Pull out power plug

■ Store unused equipment in a dry, locked place out of the reach of children.
Before a longer period of storage carry out the following to extend the machine's service life and ensure an easy operating:

— thoroughly clean the device

Guarantee

Please observe the enclosed terms of guarantee.

Possible faults

Before each fault elimination:

• switch off device
  — wait for standstill of the beater
  — pull out power plug

After each fault clearance, put into operation and recheck all security installations.

Problem	Possible cause	Remedy
Motor does not start.	⇒ No power supply (power failure)⇒ Mains cable defective.⇒ Motor or switch defect	⇒ Check fuses (10 A)⇒ Exchange defect cable, respectively check extension cable, (by electrician)Never use defect lead⇒ To correct the problem, refer to the manufacturer or other approved service centre.
Unusual vibrations	⇒ Beater defective.⇒ Chuck defective.⇒ Non-intended material to be mixed.	⇒ Replace the beater.⇒ To correct the problem, refer to the manufacturer or other approved service centre.⇒ Incorrect processing. Follow the processing instructions from the supplier.
Device starts but blocks under slight load and cuts off automatically.	⇒ Extension cable too long, or cross-section too small.⇒ Socket too far away from main connection, and cross-section of connection lead too small.	⇒ Extension cable at least 1,5 mm2 , maximum 25 m long.⇒ Cross- section of at least 2,5 mm2 in longer cables.

Technical data

Type / Model	RW 1400	RW 1600 A
Year of construction see last page
Motor power P_1 1350 W 1600 W
Motor AC-motor 230 V ~ 50 Hz
Speed n_0 (with speed control)	1. speed: 0 - 700 min ^-1 2. speed: 0 - 940 min ^-1	1. speed: 0 - 420 min ^-1 2. speed: 0 - 760 min ^-1
Beater diameter	120 mm	140 mm
Beater chuck M 14
Beater length Ca. 590 mm
Hand/arm vibration on the handle(according to EN 1033/DIN 45675)	a_vhw = . 3.2 m/s^2 K = 1.5 m/s^2
Volume of the material to be mixed	< 65 Liter	40-90 Liter
Weight	5.6 kg	6.7 kg
Sound power level L_WA (as per EN ISO 4871)	Measured sound power level LWA 98.6 dB (A); K = 3 dB (A)
Sound pressure level L_PA (as per EN ISO 4871)	87.6 dB (A); K = 3 dB (A)
Safety class	II
Protection class IP 20

Sommaire

31 Burgau – Germany

Burgau, 31.08.2020
