Product Type	Radio alarm clock with projector
Brand	Oregon Scientific
Model	PROJI (RM338PX / RM338PAX / RM338PUX)
Dimensions (L x W x H)	108 x 26 x 77 mm
Weight (without batteries)	112 g
Power supply	2 AAA 1.5 V batteries
Indoor temperature range	-5 °C to 50 °C
Temperature accuracy	±1 °C (±2 °F) from 0 °C to 40 °C; ±2 °C (±4 °F) outside this range
Temperature resolution	0.1 °C (0.2 °F)
Main features	Self-synchronizing clock (RCC), ceiling time projection, two alarms with snooze, indoor temperature monitoring, backlight, calendar and weekday display
Radio-controlled clock reception	DCF (EU) or MSF (UK) depending on model
Settings	Manual time, alarm, 12/24 h format, temperature unit, language (ENG/SPA/ITA/FRE/GER)
Projection	Continuous or temporary (5 seconds or 5 minutes), 90° rotation of projected image
Maintenance and cleaning	Wipe with a soft, dry cloth. Do not immerse, do not use abrasive or corrosive products.
Safety	Do not open the device, do not expose to moisture, shocks, or excessive force. Use only new batteries, do not mix new and used batteries. Recycle according to WEEE directive.
Spare parts and repairability	Contact Oregon Scientific customer service for any parts or repairs.
General information	Compliant with European directives (2014/53/EU, 2011/65/EU, 2012/19/EU). Compatible countries: EU, Switzerland, Norway.

Frequently Asked Questions - PROJI OREGON SCIENTIFIC

How to set the time manually?

Hold down the MODE button until the display flashes. Press + or - to adjust the time offset, 12/24h format, hour, minutes, year, date format, month, day, temperature unit, and language. Press MODE to confirm each setting, then hold MODE to exit.

How to activate the time projection?

Briefly press SNOOZE | LIGHT to activate the backlight and projection for 5 seconds. For a 5-minute projection, hold this button until you hear a beep. For continuous projection, hold the PROJECTION button on the back until the icon appears.

How to set the alarm?

Hold down the ALARM button. Use + or - to set the hour and minutes, then press ALARM to confirm. Next, set activation for weekdays (ON/OFF) with + or - and confirm. Repeat for the second alarm.

How to synchronize the clock to the radio signal?

Press the RCC button on the back to start searching for the signal. The icon flashes during search. If the signal is received, the icon becomes steady. Synchronization can take 2 to 10 minutes, up to 24 hours in weak signal conditions.

What to do if the display is dim or shows the low battery icon?

Replace both AAA batteries with new ones. Open the battery compartment at the back, insert the batteries respecting polarity, then close.

How to flip the projected image?

Briefly press the PROJECTION button on the back. The image will rotate 90 degrees each press.

How to stop the alarm sound?

Press ALARM to stop the alarm permanently until the next day. Press SNOOZE | LIGHT to activate snooze (8 minutes of silence before resuming).

Can I use the device without batteries?

No, the device operates only with 2 AAA batteries. AC adapter is not provided nor supported.

How to switch from time display to date or alarm?

Briefly press MODE to cycle through screens: time, calendar, alarm 1, and alarm 2. Each display lasts 5 seconds.

What to do if the projection does not work?

Check that the batteries are sufficiently charged. Make sure continuous projection is activated (hold PROJECTION to activate/deactivate). Continuous projection is not available if the device is not plugged into mains (but the device has no mains plug, so it works on batteries only). Try replacing the batteries.

USER MANUAL PROJI OREGON SCIENTIFIC

Oregon SCIENTIFIC

PROJI Projection Clock User Manual

12:58 AM 12:58 DAY IN MON 26.8°C Dragonfly

RM338PX/RM338PAX/RM338PUX

CONTENTS

EN....2

IT 16

FR....28

DE....40

ES....52

POR....64

NL 76

SWE 88

TC....100

SC....110

EN

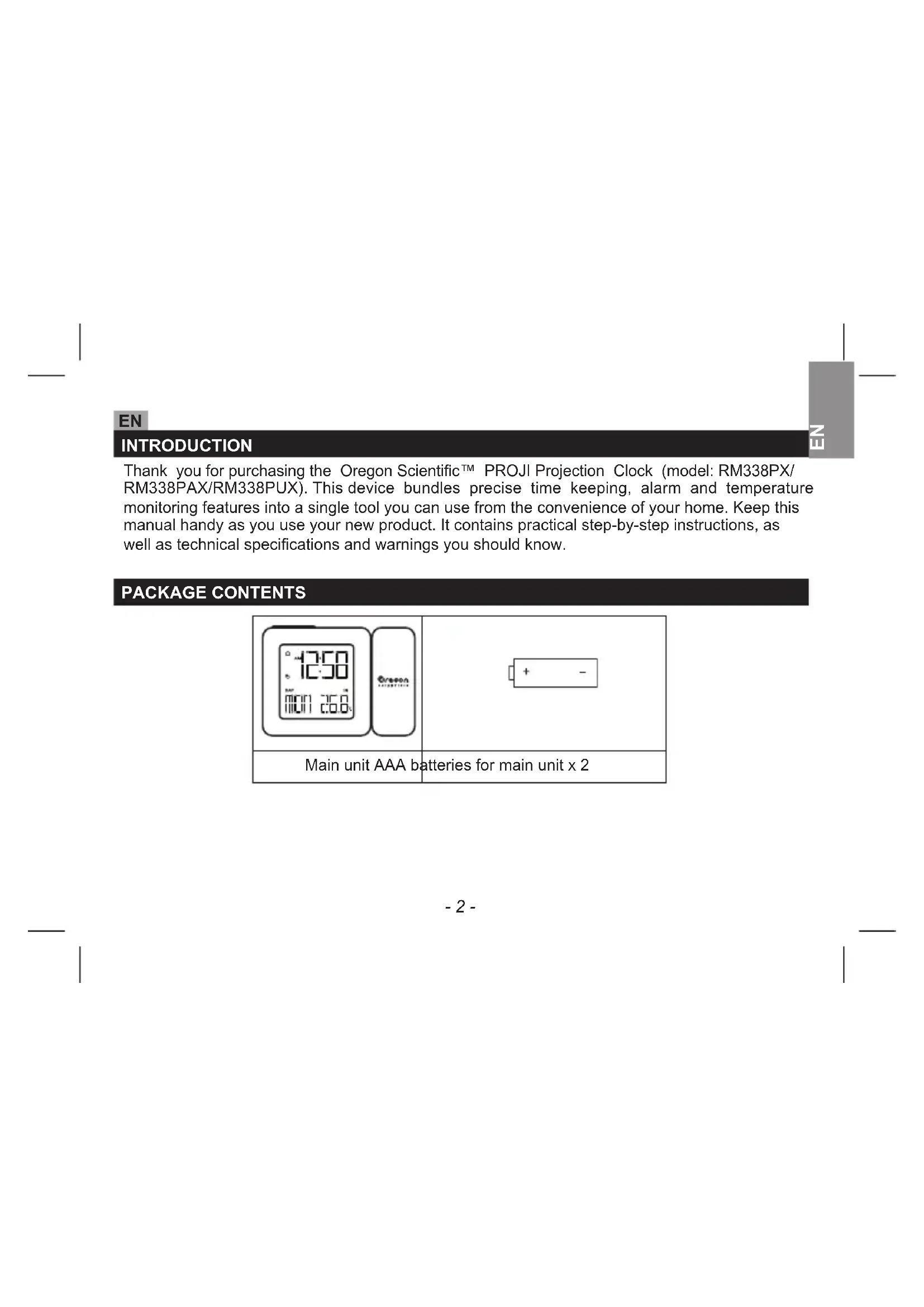

INTRODUCTION

Z

Thank you for purchasing the Oregon Scientific™ PROJI Projection Clock (model: RM338PX/RM338PAX/RM338PUX). This device bundles precise time keeping, alarm and temperature monitoring features into a single tool you can use from the convenience of your home. Keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know.

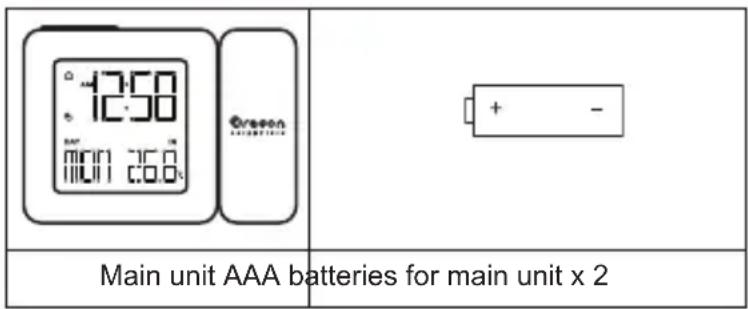

PACKAGE CONTENTS

12:50 MON 3:50 MIN 6:00 Green + - Main unit AAA batteries for main unit x 2

1 2 3 4 5 6

1. • • Press to increase settings, or press and hold to increase rapidly in setting mode.
2. SNOOZE | LIGHT - Press to snooze an alarm or activate the backlight and projection. Press and hold until you hear a beep to activate the projection for 5 minutes.
3. -Press to toggle between current time, calendar or alarm 1/2 displays for 5 seconds. Press and hold to enter setting mode.
4. -- Press to decrease settings, press and hold to decrease settings rapidly.
5. Projection lens
6. -Press to turn on/off alarms, press and hold to enter alarm setting mode.

1 2 3 4 5

1. Battery compartment
2. RESET - Press to reset the unit to default.
3. / PROJECTION - Press to flip the projection content in 90°. Press and hold to toggle continuous projection on/off.
4. RCC – Press to turn on and search RCC signal. Press and hold to turn off.
5. Battery compartment cover

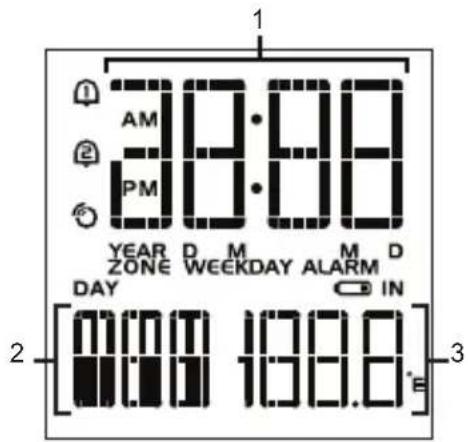

1 AM PM YEAR D M M D ZONE WEEKDAY ALARM DAY IN 2 [000 198.0] 3

1. Time display
2. Weekday display
3. Indoor temperature display

Symbol Description
	Alarm 1 is on.
	Alarm 2 is on.
	RCC signal received
	Main unit low battery

GETTING STARTED

INSERT BATTERIES

1. Gently push the battery compartment cover downwards to remove it from the main unit.
2. Insert the batteries, matching the polarities (+/-).

NOTE Replace the batteries when displays ,or when the display is dim.

CLOCK

CLOCK RECEPTION

Z

This clock synchronizes automatically with a clock signal. Press RCC to turn on and search for the clock signal.

The main unit is able to receive RF clock data with different RCC signal:

Model number Region Signal
RM338PX EU DCF
RM338PUX UK MSF
RM338PAX US WWVB

Clock signal reception indicator:

Icons Description
J J O O	Main unit is searching for clock signal strength
J (flash)	Main unit is searching for clock signal
J	No clock signal
O	Strong RCC signal received
O	Weak RCC signal received

NOTE

• It takes 2-10 minutes to receive the clock signal. If the signal is weak, it could take up to 24 hours to receive a valid signal.
  • Not applicable to Asia and non-designated areas.

SET THE CLOCK MANUALLY

1. Press and hold . The screen displays ZONE and the number flashes.
2. Press once or press and hold +/- to adjust the setting.

- For EU/UK, the time-zone offset sets the clock up to +/- 23 hours from the received clock signal time.

- For US, the time-zone setting is Atlantic (A); Mountain (M); Pacific (P); Central (C); Eastern (E); Newfoundland (N).

1. Press to confirm.
2. Press once or press and hold +/- to adjust the setting for 12/24h hour format, hour, minute, year, calendar format (month-day/day-month), month, date, temperature unit (°C/°F), language and daylight saving time (DST) (ON/OFF) for US.
3. Press to confirm each setting.

NOTE

• The language options are English (ENG), Spanish (SPA), Italian (ITA), French (FRE) and German (GER).

• The signal reception is on after each reset or battery replacement.

• While in the setting mode, press and hold to save the settings and leave the setting mode.

• The daylight saving time (DST) is set to OFF when the RCC is turned off, or when the time/year, month or date is changed.

ALARM

SETTING/ADJUSTING ALARM TIME

1. Press and hold .
2. Press once or press and hold +/- to adjust the hour and minute setting, then press confirm.
3. Press +/- to toggle the weekday alarm ON/OFF, then press 🔒 to confirm.
   • The alarm rings only on weekdays when the setting is ON.
4. Repeat step 2 – 4 for alarm 2 setting.

TURN ON/OFF ALARMS:

Press to turn on/off the alarm in sequence:

Alarm1 Alarm 2 >Both ON >Both OFF.

OPERATION

When the alarm rings, the backlight will flash. You may:

• Press to stop. The alarm will ring again on the next day.
• Press SNOOZE | LIGHT to snooze. The alarm rings again after 8 minutes.

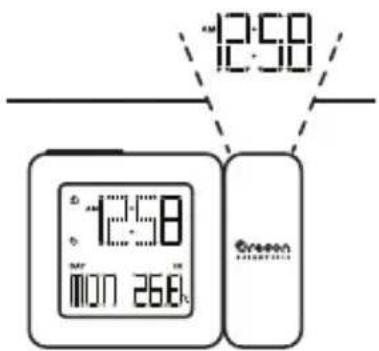

PROJECTION

12:58 12:58 MON 26:00 Green

The projector displays the time on your ceiling for easy viewing in a darkened room. For the optimal projection results, place the unit within 1.5 - 2 m (5 - 6.5 ft) from the ceiling or wall.

• Press SNOOZE | LIGHT to activate the backlight and projection for 5 seconds.
• Press and hold SNOOZE | LIGHT until you hear a beep to activate the projection for 5 minutes.
• Press ⬆ PROJECTION to flip the projection content by 90°.
• Press and hold ⚙ / PROJECTION to toggle the continuous projection on/off.

NOTE The continuous projection function is disabled when the main unit is not connected to the power adapter.

PRECAUTIONS

• Do not subject the unit to excessive force, shock, dust, temperature or humidity.
• Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive materials.
• Do not tamper with the unit's internal components. This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old batteries.
• Images shown in this manual may differ from the actual display.
• When disposing of this product, ensure it is collected separately for special treatment.
• Placement of this product on certain types of wood may result in damage to its finish for which Oregon Scientific will not be responsible. Consult the furniture manufacturer's care instructions for information.
• The contents of this manual may not be reproduced without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
• Please note that some units are equipped with a battery safety strip. Remove the strip from the battery compartment before first use.

NOTE The technical specifications for this product and the contents of the user manual are subject to change without notice.

NOTE Features and accessories will not be available in all countries. For more information, please contact your local retailer. To download an electronic version of the user manual, please visit http://global.oregonscientific.com/customerSupport.php.

SPECIFICATIONS

MAIN UNIT

L x W x H 108 x 26 x	77 mm (4.25 x 1.02 x 3.03 in)
Weight 112 g
Temperature range -5°C to 50°C (23°F to 122°F)
Accuracy 0°C to 40°C: ±1°C (±2.0°F) < 0°C and >40°C: ±2°C (±4.0°F)
Resolution 0.1°C (0.2°F)
Power 2 x UM-4 (AAA) 1.5 V batteries

ABOUT OREGON SCIENTIFIC

Visit our website www.oregonscientific.com to learn more about Oregon Scientific products.

For any enquiry, please contact our Customer Services at [e-mail].

Oregon Scientific Global Distribution Limited reserves the right to interpret and construe any contents, terms and provisions in this user manual and to amend it, at its sole discretion, at any time without prior notice. To the extent that there is any inconsistency between the English version and any other language versions, the English version shall prevail.

EU-DECLARATION OF CONFORMITY

Hereby the manufacturer, Oregon Scientific Global Distribution Limited, declares that the radio equipment type PROJI Projection Clock (model: RM338PX/RM338PAX/RM338PUX) is in compliance with 2014/53/EU Directive. The full text of the EU Declaration of Conformity is available at the following Internet address : http://global.oregonscientific.com/customerSupport.php

Countries RED Approval Complied

All EU countries, Switzerland CH

and Norway N

DISPOSAL INFORMATION FOR USERS

Pursuant to and in accordance with Article 14 of the Directive 2012/19/EU of the European Parliament on waste electrical and electronic equipment (WEEE), and pursuant to and in accordance with Article 20 of the Directive 2013/56/EU of the European Parliament on batteries and accumulators and waste batteries.

The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from other waste. Please note that the batteries/rechargeable batteries must be removed from the equipment before it is given as waste. To remove the batteries/accumulators refer to the specifications in the user manual. Therefore, any products that have reached the end of their useful life must be given to waste disposal centers specializing in separate collection of waste electrical and electronic equipment, or given back to the dealer when purchasing a new WEEE, pursuant to and in accordance with Article 14 as implemented in the country.

The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposal of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimizes the recycling and reuse of components making up the apparatus.

Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

NOTE This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES- 3(B)/NMB-3(B)

DECLARATION OF CONFORMITY

The following information is not to be used as contact for support or sales. Please call our customer service number (listed on our website at www.oregonscientific.com), or on the warranty card for this product) for all inquiries instead.

We

Name: Oregon Scientific Inc.

Address: Brea Corporate Park 3020 Saturn St. Suite 200 Brea, CA 92821

Telephone No.: 1 [phone]

declare that the product

Product No.: RM338PX/RM338PAX/RM338PUX

Product Name: PROJI Projection Clock

Manufacturer: Oregon Scientific Global Distribution Limited

Address: Block C, 9/F, Kaiser Estate, Phase 1, 41 Man Yue St., Hung Hom, Kowloon, Hong Kong

is in conformity with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation.
