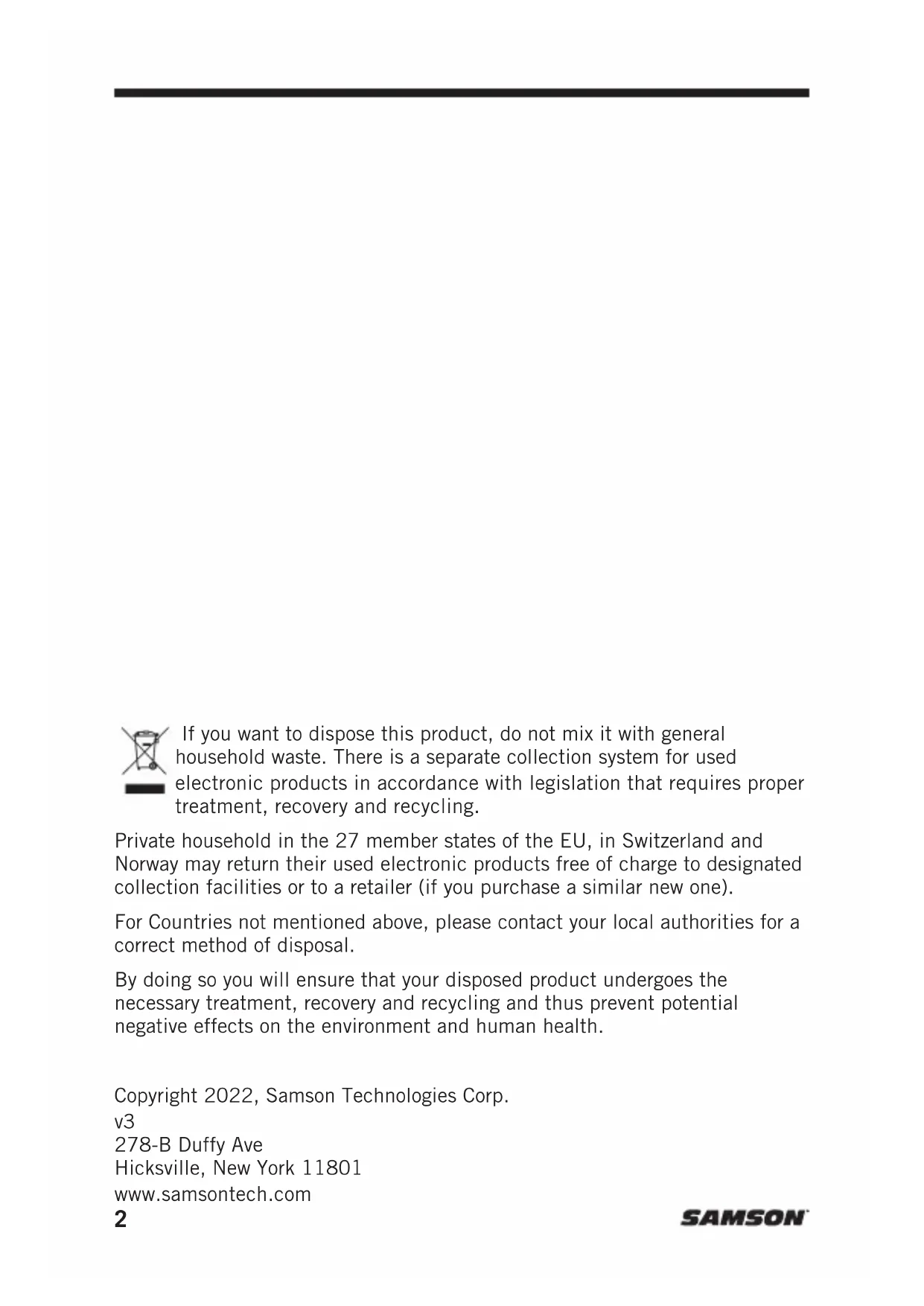

LM7x / LM10x Lavalier Microphones Owner’s Manual2 If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private household in the 27 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. Copyright 2022, Samson Technologies Corp.

278-B Duffy Ave Hicksville, New York 11801 www.samsontech.com3 LM7x/LM10x Lavalier Microphones ENFRDEESIT Introduction Thank you for purchasing the Samson LMx lavalier microphone! Delivering outstanding audio quality, the LMx lavalier microphones are perfect for presentations, broadcast, theater and worship application. The LM7x is a features a 6.84mm capsule in a marine-grade stainless steel housing. It has a unidirectional pick up pattern, which captures more sound in front of the microphone, creating better separation and isolation which translates to more gain before feedback and less pickuip of ambient room sounds. The LM10x is a low profile microphone with a 3mm capsule with omnidirectional pick up pattern. The microphone’s off axis frequency response is linear, resulting in a clear and articulate reproduction regardless of the position of the capsule relative to the sound source. The LMx lavalier microphones are particularly well-suited for use with Samson wireless systems and with four included adapters, the microphones can be used with most any other manufacturer’s wireless body pack systems. The kit also includes four windscreens and carry case. Manufactured with extreme care and the highest quality components, LMx lavalier microphones deliver exceptionally clear, articulate sound with reliable performance. If you have any questions or comments regarding the LMx Lavalier Microphone or any other products from Samson, do no hesitate to contact us at [e-mail].4 Positioning the LM10x

• Attach the microphone to the performer’s shirt or jacket, using the included microphone clip, approximately 8”–10” below their chin with the microphone facing towards their mouth.

• Using a small loop in the microphone cable will help reduce cable noise when the performer moves.

• Use one of the included windscreens to reduce breath or wind noise, when using outdoors.

• To further conceal the microphone, it can be placed behind clothing, but this will affect the high frequency performance of the microphone, behind a button, in the performers hairline or even taped to a pair of glasses.

• With the performer talking into the microphone, listen to the quality of the audio, and adjust the positioning of the microphone until a balanced sound is reached.5 LM7x/LM10x Lavalier Microphones ENFRDEESIT Using the detachable connectors LM7x and LM10x lavalier microphones include four cables with adapters for some of the most popular wireless microphone body pack transmitters. 3.5mm Connector Works with Sennheiser

wireless systems Hirose

4-Pin Connector Works with Audio-Technica

wireless systems Switchcraft

TA3F Connector Works with Samson AirLine ATX Series, Concert Series and most AKG

wireless systems Switchcraft

TA4F Connector Works with most Shure

wireless systems Choose the right cable and connector that works with your wireless system. Line the cable up to the threaded terminal on the LM10x microphone cable and screw the cable into the headset. Do not over tighten the cable.6 Specifications LM7x Microphone Element Back electret condenser Capsule Dimension 6.59mm Polar Pattern Unidirectional Frequency Response 50Hz–16kHz Sensitivity -37dB 1 V/Pa ±3dB at 1kHz Output Impedance 2.2kΩ ±30% Max. SPL 130dB Operating Voltage 1.5–12V DC Cables 4x ø1.4mm*1.2m Adapters 1/8” (3.5mm), Hirose

TA4F Accessories 4x standard windscreens, mic clip, carry case Product Weight 0.15oz / 4.2g At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice.7 LM7x/LM10x Lavalier Microphones ENFRDEESIT Specifications

Polar Pattern Polar Pattern Frequency Response Frequency Response
